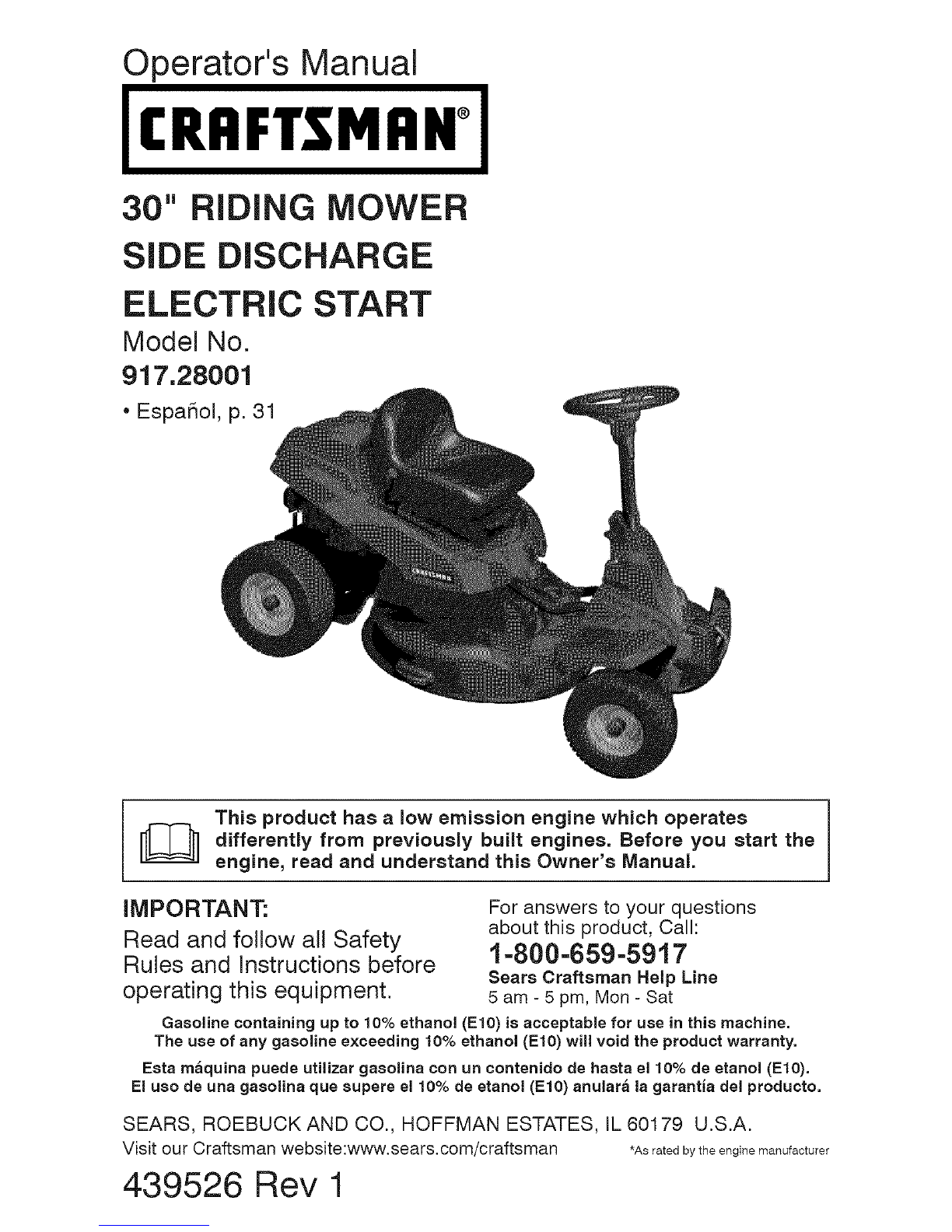

Craftsman 917.28001 Manuel utilisateur

Operator's Manual

CRRFTSMI:IH°

30" RIDING MOWER

SIDE DISCHARGE

ELECTRIC START

Model No.

917.28001

,Espa_ol, p. 31

iMPORTANT:

Read and follow all Safety

Rules and Instructions before

operating this equipment.

This product has a low emission engine which operates

differently from previously built engines. Before you start the 1engine, read and understand this Owner's Manual.

For answers to your questions

about this product, Call:

1-800-659 -5917

Sears Craftsman Help Line

5 am - 5 pm, Mon - Sat

Gasoline containing up to 10% ethanol (EIO) is acceptable for use in this machine.

The use of any gasoline exceeding 10% ethanol (EIO) will void the product warranty.

Esta maquina puede utilizar gasolina con un contenido de hasta el 10% de etanol (El0).

El uso de una gasolina que supere el 10% de etanol (El0) anulara la garantia del producto,

SEARS, ROEBUCK AND CO., HOFFMAN ESTATES, IL 60179 U.S.A.

Visit our Craftsman website:www.sears.com/craftsman *Asratedbytheenginemanufacturer

439526 Rev 1

Warranty ................................................. 2 Maintenance ......................................... 18

Safety Rules ........................................... 3 Service and Adjustments ...................... 23

Product Specifications ............................ 6 Storage ................................................. 27

Assembty/Pre-Operation ........................ 7 Troubleshooting .................................... 28

Operation .............................................. 11 Sears Service ........................ Back Cover

Maintenance Schedule ......................... 18

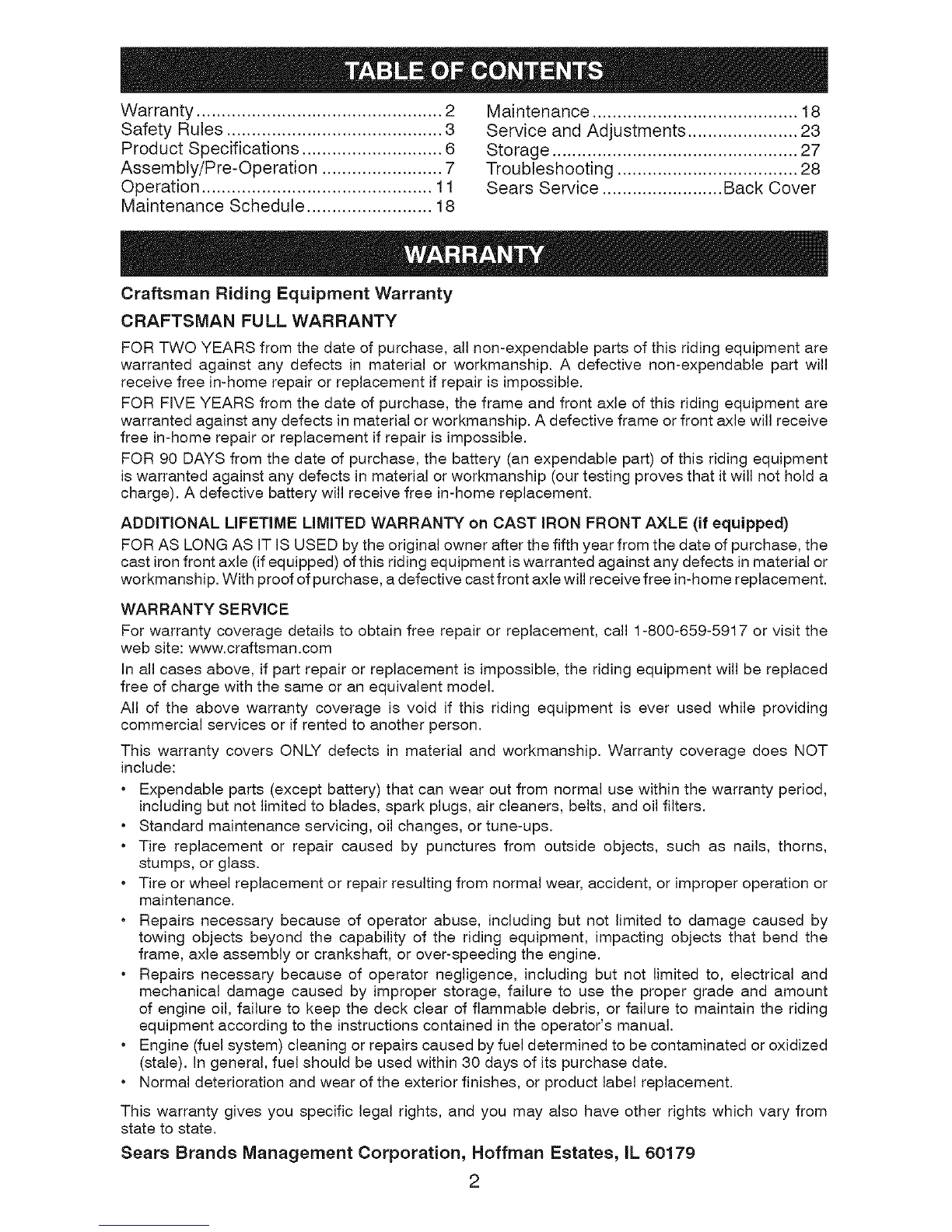

Craftsman Riding Equipment Warranty

CRAFTSMAN FULL WARRANTY

FOR TWO YEARS from the date of purchase, all non-expendable parts of this riding equipment are

warranted against any defects in material or workmanship. A defective non-expendable part will

receive free in-home repair or replacement if repair is impossible.

FOR FIVE YEARS from the date of purchase, the frame and front axle of this riding equipment are

warranted against any defects in material or workmanship. A defective frame or front axle will receive

free in-home repair or replacement if repair is impossible.

FOR 90 DAYS from the date of purchase, the battery (an expendable part) of this riding equipment

is warranted against any defects in material or workmanship (our testing proves that it will not hold a

charge). A defective battery will receive free in-home replacement.

ADDITIONAL LIFETIME LIMITED WARRANTY on CAST IRON FRONT AXLE (if equipped)

FOR AS LONG AS IT IS USED by the original owner after the fifth year from the date of purchase, the

cast iron front axle (if equipped) of this riding equipment is warranted against any defects in material or

workmanship. With proof of purchase, a defective cast front axle will receive free in-home replacement.

WARRANTY SERVICE

For warranty coverage details to obtain free repair or replacement, call 1-800-659-5917 or visit the

web site: www.craftsman.com

In all cases above, if part repair or replacement is impossible, the riding equipment will be replaced

free of charge with the same or an equivalent model.

All of the above warranty coverage is void if this riding equipment is ever used while providing

commercial services or if rented to another person.

This warranty covers ONLY defects in material and workmanship. Warranty coverage does NOT

include:

• Expendable parts (except battery) that can wear out from normal use within the warranty period,

including but not limited to blades, spark plugs, air cleaners, belts, and oil filters.

• Standard maintenance servicing, oil changes, or tune-ups.

• Tire replacement or repair caused by punctures from outside objects, such as nails, thorns,

stumps, or glass.

• Tire or wheel replacement or repair resulting from normal wear, accident, or improper operation or

maintenance.

• Repairs necessary because of operator abuse, including but not limited to damage caused by

towing objects beyond the capability of the riding equipment, impacting objects that bend the

frame, axle assembly or crankshaft, or over-speeding the engine.

• Repairs necessary because of operator negligence, including but not limited to, electrical and

mechanical damage caused by improper storage, failure to use the proper grade and amount

of engine oil, failure to keep the deck clear of flammable debris, or failure to maintain the riding

equipment according to the instructions contained in the operator's manual.

• Engine (fuel system) cleaning or repairs caused by fuel determined to be contaminated or oxidized

(stale). In general, fuel should be used within 30 days of its purchase date.

• Normal deterioration and wear of the exterior finishes, or product label replacement.

This warranty gives you specific legal rights, and you may also have other rights which vary from

state to state.

Sears Brands Management Corporation, Hoffman Estates, IL 60179

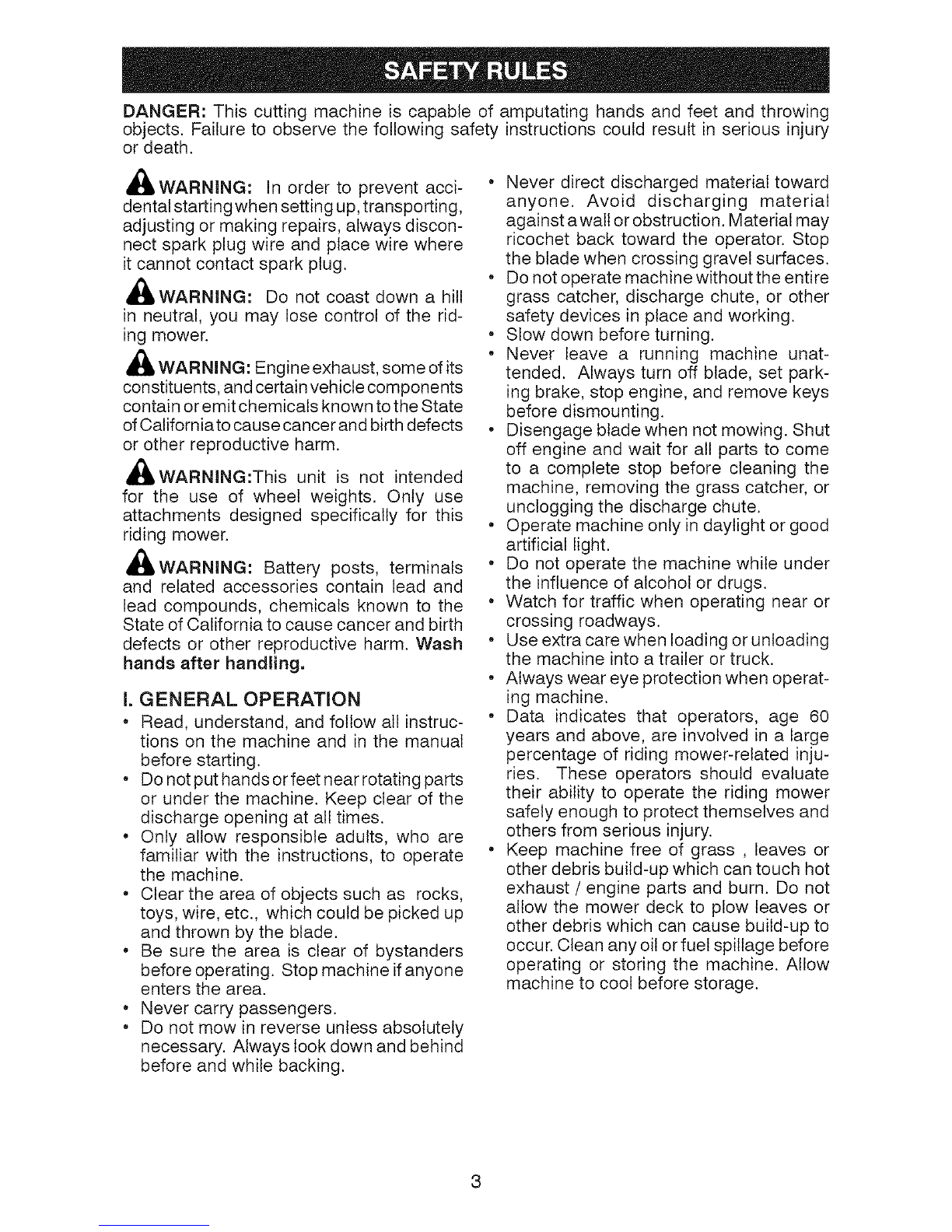

DANGER: This cutting machine is capable of amputating hands and feet and throwing

objects. Failure to observe the following safety instructions could result in serious injury

or death.

WARNING: In order to prevent acci-

dental starting when setting up, transporting,

adjusting or making repairs, always discon-

nect spark plug wire and place wire where

it cannot contact spark plug.

WARNING: Do not coast down a hitl

in neutral, you may lose control of the rid-

ing mower.

WARNING: Engine exhaust, some ofits

constituents, and certain vehicle components

contain or emit chemicals known to the State

ofCaliforniato cause cancer and birth defects

or other reproductive harm.

WARNING:This unit is not intended

for the use of wheel weights. Onty use

attachments designed specifically for this

riding mower.

WARNING: Battery posts, terminals

and related accessories contain lead and

lead compounds, chemicals known to the

State of California to cause cancer and birth

defects or other reproductive harm. Wash

hands after handling,

I. GENERAL OPERATION

*Read, understand, and follow atl instruc-

tions on the machine and in the manual

before starting.

* Donot put hands or feet near rotating parts

or under the machine. Keep clear of the

discharge opening at all times.

* Onty allow responsible adults, who are

familiar with the instructions, to operate

the machine.

* Clear the area of objects such as rocks,

toys, wire, etc., which could be picked up

and thrown by the blade.

* Be sure the area is clear of bystanders

before operating. Stop machine if anyone

enters the area.

* Never carry passengers.

* Do not mow in reverse unless absolutely

necessary. Always look down and behind

before and while backing.

* Never direct discharged material toward

anyone. Avoid discharging material

against awalt or obstruction. Material may

ricochet back toward the operator. Stop

the blade when crossing gravel surfaces.

* Do not operate machine withoutthe entire

grass catcher, discharge chute, or other

safety devices in place and working.

* Slow down before turning.

* Never leave a running machine unat-

tended. Always turn off blade, set park-

ing brake, stop engine, and remove keys

before dismounting.

* Disengage blade when not mowing. Shut

off engine and wait for all parts to come

to a complete stop before cleaning the

machine, removing the grass catcher, or

unclogging the discharge chute.

*Operate machine only in daylight or good

artificial light.

* Do not operate the machine while under

the influence of alcohol or drugs.

* Watch for traffic when operating near or

crossing roadways.

* Use extra care when loading or unloading

the machine into a trailer or truck.

* Always wear eye protection when operat-

ing machine.

* Data indicates that operators, age 60

years and above, are involved in a large

percentage of riding mower-related inju-

ries. These operators should evaluate

their ability to operate the riding mower

safely enough to protect themselves and

others from serious injury.

* Keep machine free of grass ,leaves or

other debris build-up which can touch hot

exhaust /engine parts and burn. Do not

allow the mower deck to plow leaves or

other debris which can cause build-up to

occur. Clean any oil or fuel spillage before

operating or storing the machine. Allow

machine to cool before storage.

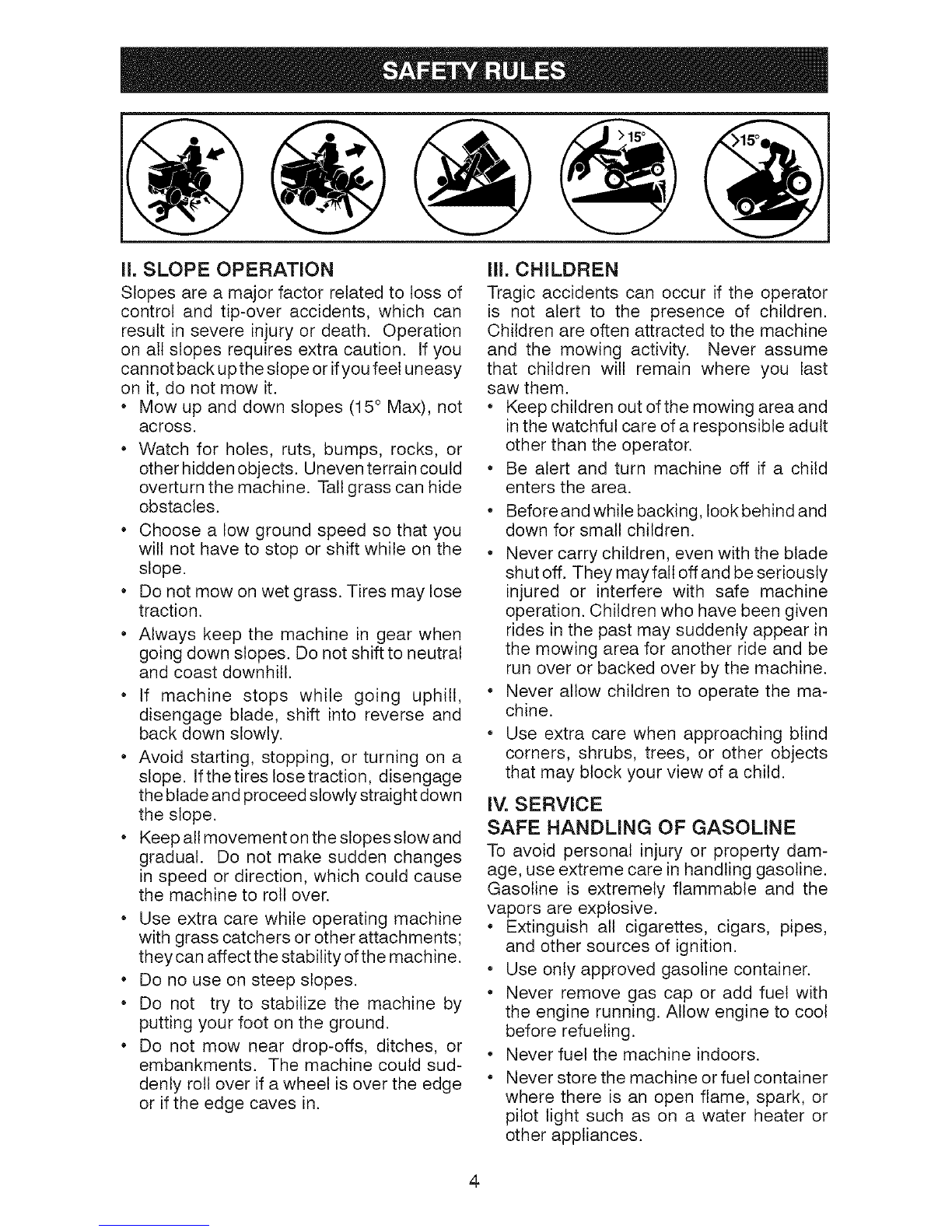

il. SLOPE OPERATION

Slopes are a major factor related to toss of

control and tip-over accidents, which can

result in severe injury or death. Operation

on all slopes requires extra caution. If you

cannot back upthe slope or ifyou feel uneasy

on it, do not mow it.

* Mow up and down slopes (15° Max), not

across.

Watch for holes, ruts, bumps, rocks, or

other hidden objects. Uneven terrain could

overturn the machine. Tall grass can hide

obstacles.

Choose a low ground speed so that you

will not have to stop or shift while on the

slope.

Do not mow on wet grass. Tires may lose

traction.

Always keep the machine in gear when

going down slopes. Do not shift to neutral

and coast downhill.

If machine stops while going uphill,

disengage blade, shift into reverse and

back down slowly.

Avoid starting, stopping, or turning on a

slope. Ifthe tires lose traction, disengage

the blade and proceed slowly straight down

the slope.

Keep all movement onthe slopes slow and

gradual. Do not make sudden changes

in speed or direction, which could cause

the machine to roll over.

Use extra care while operating machine

with grass catchers or other attachments;

they can affect the stability ofthe machine.

Do no use on steep slopes.

Do not try to stabilize the machine by

putting your foot on the ground.

Do not mow near drop-offs, ditches, or

embankments. The machine could sud-

denly roll over if a wheel is over the edge

or if the edge caves in.

III. CHILDREN

Tragic accidents can occur if the operator

is not alert to the presence of children.

Children are often attracted to the machine

and the mowing activity. Never assume

that children will remain where you last

saw them.

* Keep children out of the mowing area and

in the watchful care of a responsible adult

other than the operator.

* Be alert and turn machine off if a child

enters the area.

* Before and while backing, look behind and

down for small children.

* Never carry children, even with the blade

shutoff. They may fall off and be seriously

injured or interfere with safe machine

operation. Children who have been given

rides in the past may suddenly appear in

the mowing area for another ride and be

run over or backed over by the machine.

* Never allow children to operate the ma-

chine.

* Use extra care when approaching blind

corners, shrubs, trees, or other objects

that may block your view of a child.

iV. SERVICE

SAFE HANDLING OF GASOLINE

To avoid personal injury or property dam-

age, use extreme care in handling gasoline.

Gasoline is extremely flammable and the

vapors are explosive.

Extinguish all cigarettes, cigars, pipes,

and other sources of ignition.

Use only approved gasoline container.

Never remove gas cap or add fuel with

the engine running. Allow engine to cool

before refueling.

Never fuel the machine indoors.

Never store the machine or fuel container

where there is an open flame, spark, or

pilot light such as on a water heater or

other appliances.

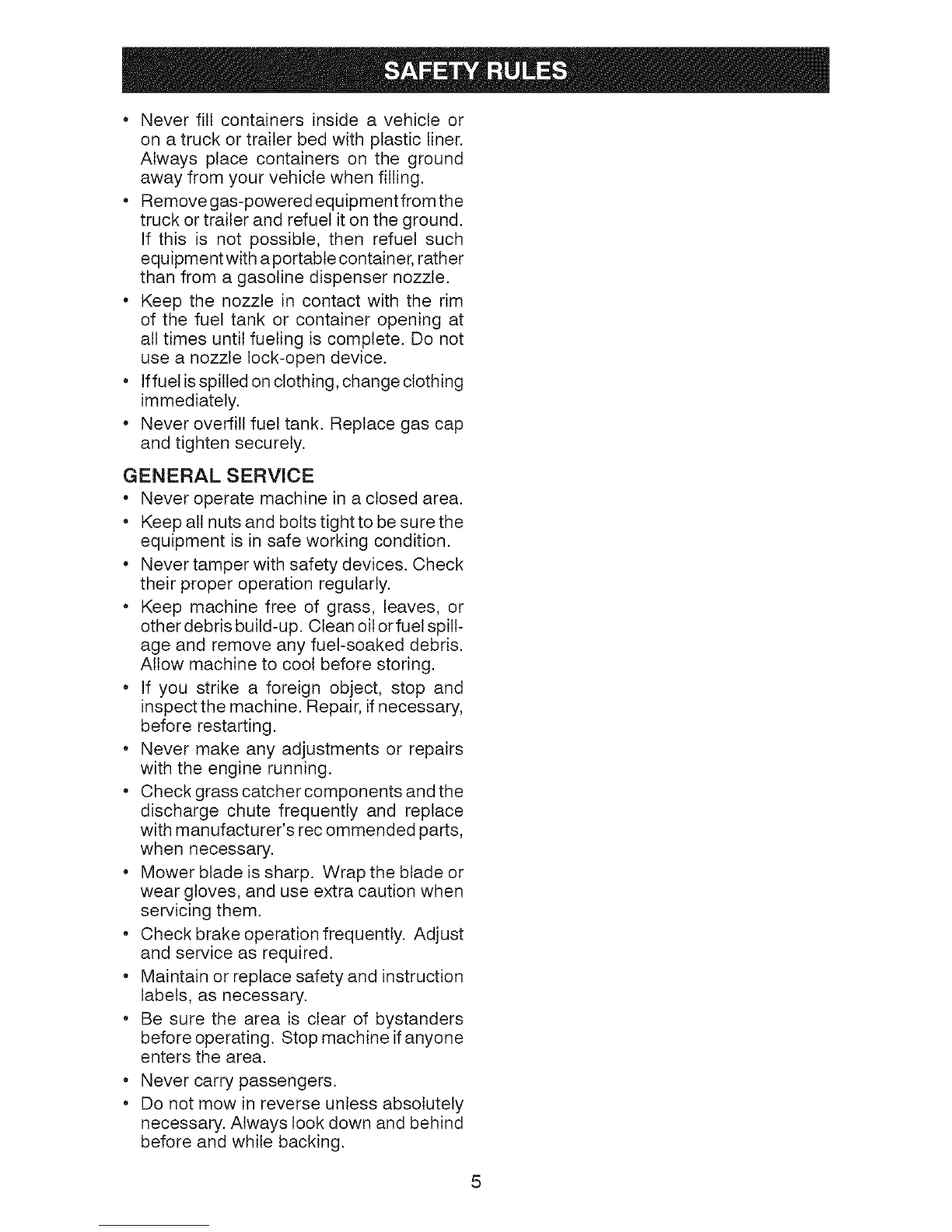

•Never fill containers inside a vehicle or

on a truck or trailer bed with plastic liner.

Always place containers on the ground

away from your vehicle when filling.

Remove gas-powered equipment from the

truck or trailer and refuel it on the ground.

If this is not possible, then refuel such

equipment with aportable container, rather

than from a gasoline dispenser nozzle.

Keep the nozzle in contact with the rim

of the fuel tank or container opening at

all times until fueling is complete. Do not

use a nozzle lock-open device.

Iffuet isspilled on clothing, change clothing

immediately.

Never overfill fuel tank. Replace gas cap

and tighten securely.

GENERAL SERVICE

Never operate machine in a closed area.

Keep all nuts and bolts tight to be sure the

equipment is in safe working condition.

Never tamper with safety devices. Check

their proper operation regularly.

Keep machine free of grass, leaves, or

other debris build-up. Clean oil orfuet spill-

age and remove any fuel-soaked debris.

Allow machine to coot before storing.

If you strike a foreign object, stop and

inspect the machine. Repair, if necessary,

before restarting.

* Never make any adjustments or repairs

with the engine running.

* Check grass catcher components and the

discharge chute frequently and replace

with manufacturer's rec ommended parts,

when necessary.

* Mower blade is sharp. Wrap the blade or

wear gloves, and use extra caution when

servicing them.

.Check brake operation frequently. Adjust

and service as required.

* Maintain or replace safety and instruction

labels, as necessary.

* Be sure the area is clear of bystanders

before operating. Stop machine if anyone

enters the area.

.Never carry passengers.

.Do not mow in reverse unless absolutely

necessary. Always look down and behind

before and while backing.

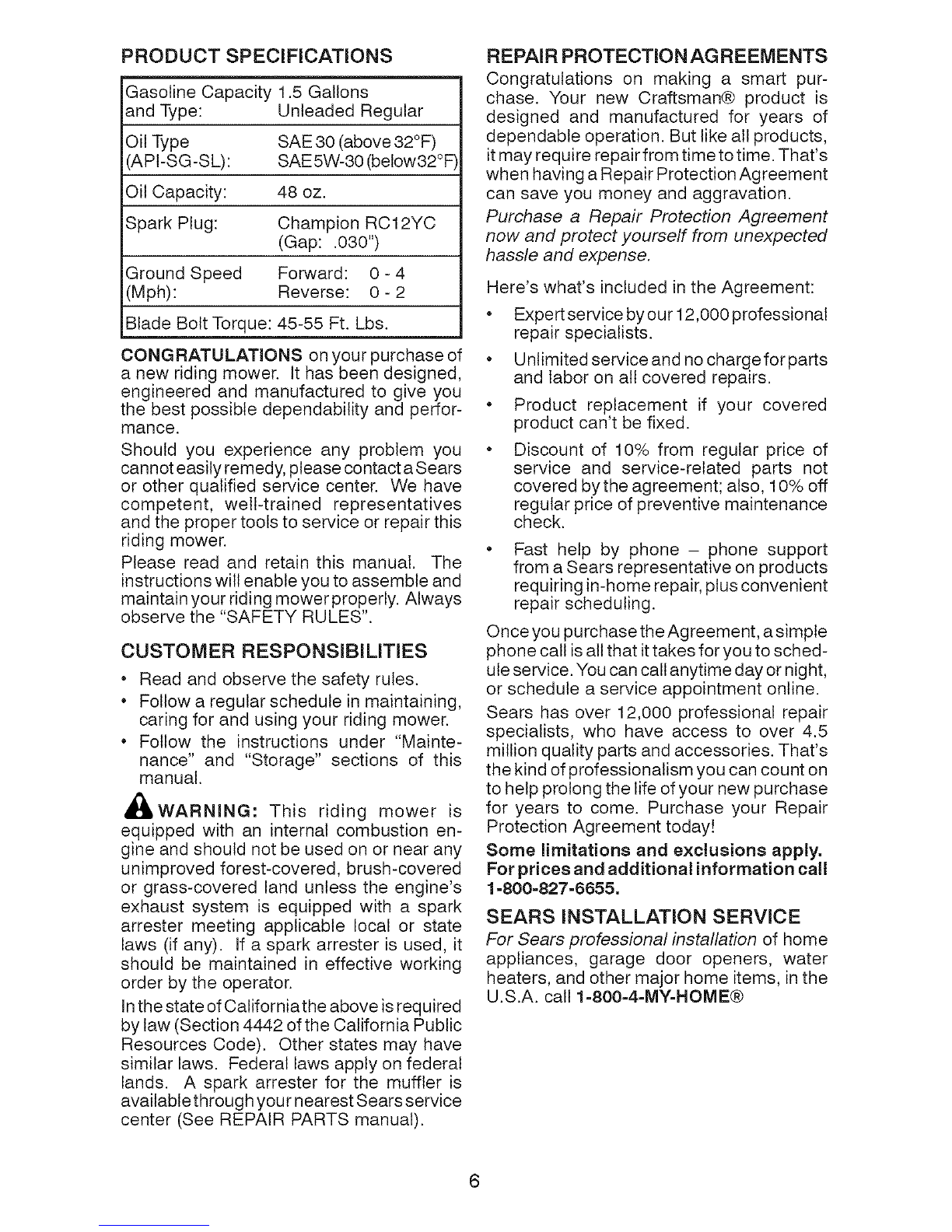

PRODUCTSPECiFiCATiONS

Gasoline Capacity 1.5 Gallons

and Type: Unleaded Regular

Oil Type SAE 30 (above 32°F)

API-SG-SL): SAE5W-30 (betow32°F

Oil Capacity: 48 oz.

Spark Plug: Champion RC12YC

(Gap: .030")

Ground Speed Forward: 0 - 4

(Mph): Reverse: 0 - 2

Blade Bolt Torque: 45-55 Ft. Lbs.

CONGRATULATIONS on your purchase of

a new riding mower. It has been designed,

engineered and manufactured to give you

the best possible dependability and perfor-

mance.

Should you experience any problem you

cannot easily remedy, please contact a Sears

or other qualified service center. We have

competent, welt-trained representatives

and the proper tools to service or repair this

riding mower.

Please read and retain this manual. The

instructions will enable you to assemble and

maintain your riding mower properly. Always

observe the "SAFETY RULES".

CUSTOMER RESPONSiBILiTiES

Read and observe the safety rules.

Follow a regular schedule in maintaining,

caring for and using your riding mower.

Follow the instructions under "Mainte-

nance" and "Storage" sections of this

manual.

WARNING: This riding mower is

equipped with an internal combustion en-

gine and should not be used on or near any

unimproved forest-covered, brush-covered

or grass-covered land unless the engine's

exhaust system is equipped with a spark

arrester meeting applicable local or state

laws (if any). If a spark arrester is used, it

should be maintained in effective working

order by the operator.

Inthe state of Californiathe above is required

by law (Section 4442 of the California Public

Resources Code). Other states may have

similar laws. Federal laws apply on federal

lands. A spark arrester for the muffler is

available through your nearest Sears service

center (See REPAIR PARTS manual).

REPAIR PROTECTIONAGREEMENTS

Congratulations on making a smart pur-

chase. Your new Craftsman@ product is

designed and manufactured for years of

dependable operation. But like all products,

it may require repair from time to time. That's

when having a Repair Protection Agreement

can save you money and aggravation.

Purchase a Repair Protection Agreement

now and protect yourself from unexpected

hassle and expense.

Here's what's included in the Agreement:

Expert service byour 12,000 professional

repair specialists.

Unlimited service and no charge for parts

and labor on all covered repairs.

Product replacement if your covered

product can't be fixed.

Discount of 10% from regular price of

service and service-related parts not

covered bythe agreement; also, 10% off

regular price of preventive maintenance

check.

Fast help by phone - phone support

from a Sears representative on products

requiring in-home repair, plus convenient

repair scheduling.

Once you purchase the Agreement, asimple

phone call isall that it takes for you to sched-

uleservice. You can call anytime day or night,

or schedule a service appointment online.

Sears has over 12,000 professional repair

specialists, who have access to over 4.5

million quality parts and accessories. That's

the kind of professionalism you can count on

to help prolong the life of your new purchase

for years to come. Purchase your Repair

Protection Agreement today!

Some limitations and exclusions apply.

For prices and additional information call

1-800=827-6655,

SEARS iNSTALLATiON SERVICE

For Sears professional installation of home

appliances, garage door openers, water

heaters, and other major home items, in the

U.S.A. call 1-800-4-MY-HOME@

s- ...... ,

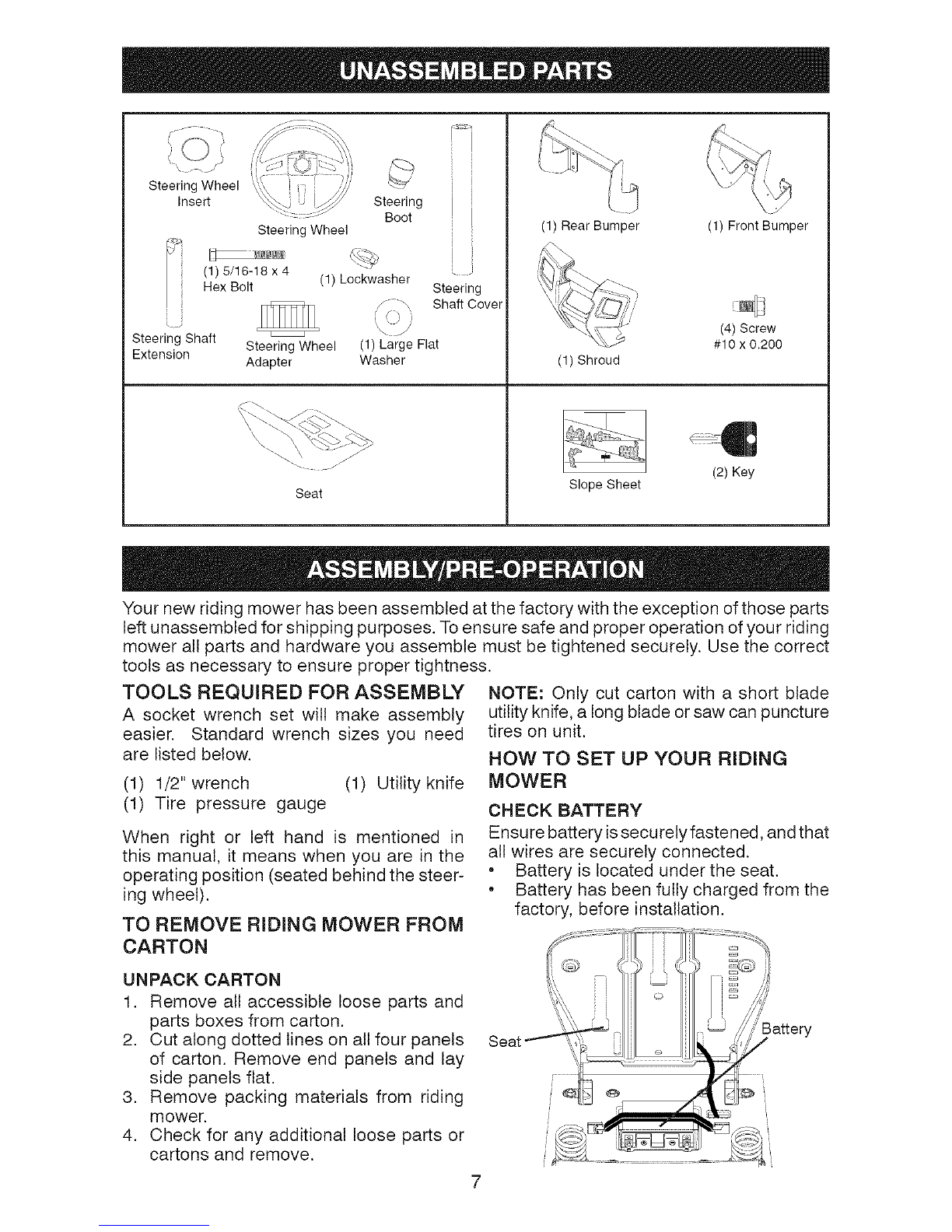

Steering Wheel

Insert Steering

Boot

Steering Wheel

(1) 5/16-18 x4 L J

Hex Bolt (1) Lockwasher Steering

f \ Shaft Cover

Steering Shaft Steering Wheel (1) Large Flat

Extension Adapter Washer

(1) Rear Bumper (1) Front Bumper

(4) Screw

#10 x 0.200

(1) Shroud

(2) Key

Seat Slope Sheet

Your new riding mower has been assembled at the factory with the exception of those parts

left unassembted for shipping purposes. To ensure safe and proper operation of your riding

mower all parts and hardware you assemble must be tightened securely. Use the correct

tools as necessary to ensure proper tightness.

TOOLS REQUIRED FOR ASSEMBLY

A socket wrench set will make assembly

easier. Standard wrench sizes you need

are listed below.

(1) 1/2" wrench (1) Utility knife

(1) Tire pressure gauge

When right or left hand is mentioned in

this manual, it means when you are in the

operating position (seated behind the steer-

ing wheel).

TO REMOVE RIDING MOWER FROM

CARTON

UNPACK CARTON

1. Remove all accessible loose parts and

parts boxes from carton.

2. Cut along dotted lines on all four panels

of carton. Remove end panels and lay

side panels fiat.

3. Remove packing materials from riding

mower.

4. Check for any additional loose parts or

cartons and remove.

NOTE: Only cut carton with a short blade

utility knife, a long blade or saw can 3uncture

tires on unit.

HOW TO SET UP YOUR RIDING

MOWER

CHECK BATTERY

Ensure battery is securely fastened, and that

all wires are securely connected.

*Battery is located under the seat.

*Battery has been fully charged from the

factory, before installation.

Seat _.' Battery

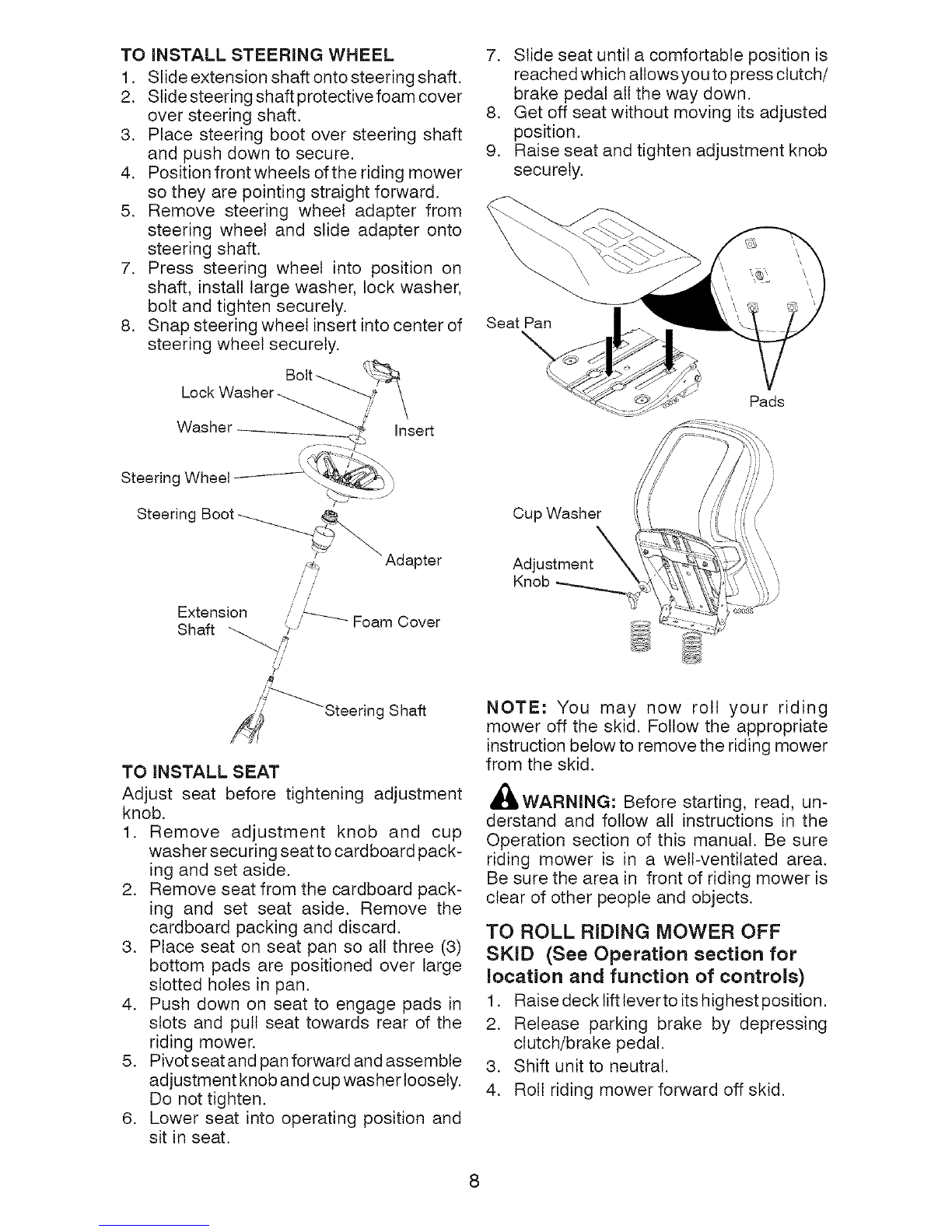

TOINSTALLSTEERING WHEEL

1. Slide extension shaft onto steering shaft.

2. Slide steering shaft protective foam cover

over steering shaft.

3. Place steering boot over steering shaft

and push down to secure.

4. Position front wheels ofthe riding mower

so they are pointing straight forward.

5. Remove steering wheel adapter from

steering wheel and slide adapter onto

steering shaft.

7. Press steering wheel into position on

shaft, install large washer, lock washer,

bolt and tighten securely.

8. Snap steering wheel insert into center of

steering wheel securely.

Bolt_ %_

LockWasher__ - \

Washer__SJ i_sert

Steering Wheel-----------_\_ ,,

Steering

7. Slide seat until a comfortable position is

reached which allows you to press clutch/

brake pedal all the way down.

8. Get off seat without moving its adjusted

position.

9. Raise seat and tighten adjustment knob

securely.

Seat Pan

Pads

Adapter

/ /

Extension '/ "_ Foam Cover

Shaft "--_.._,_-"

_;'

g Shaft

TO iNSTALL SEAT

Adjust seat before tightening adjustment

knob.

1. Remove adjustment knob and cup

wash er secu ring seat to cardboard pack-

ing and set aside.

2. Remove seat from the cardboard pack-

ing and set seat aside. Remove the

cardboard packing and discard.

3. Place seat on seat pan so all three (3)

bottom pads are positioned over large

slotted holes in pan.

4. Push down on seat to engage pads in

slots and pull seat towards rear of the

riding mower.

5. Pivotseatand panforward and assemble

adjustment knob and cup washer loosely.

Do not tighten.

6. Lower seat into operating position and

sit in seat.

NOTE: You may now roll your riding

mower off the skid. Follow the appropriate

instruction below to remove the riding mower

from the skid.

WARNING: Before starting, read, un-

derstand and follow all instructions in the

Operation section of this manual. Be sure

riding mower is in a well-ventilated area.

Be sure the area in front of riding mower is

clear of other people and objects.

TO ROLL RIDING MOWER OFF

SKID (See Operation section for

location and function of controls)

1. Raise deck lift teverto its highest position.

2. Release parking brake by depressing

clutch/brake pedal.

3. Shift unit to neutral.

4. Roll riding mower forward off skid.

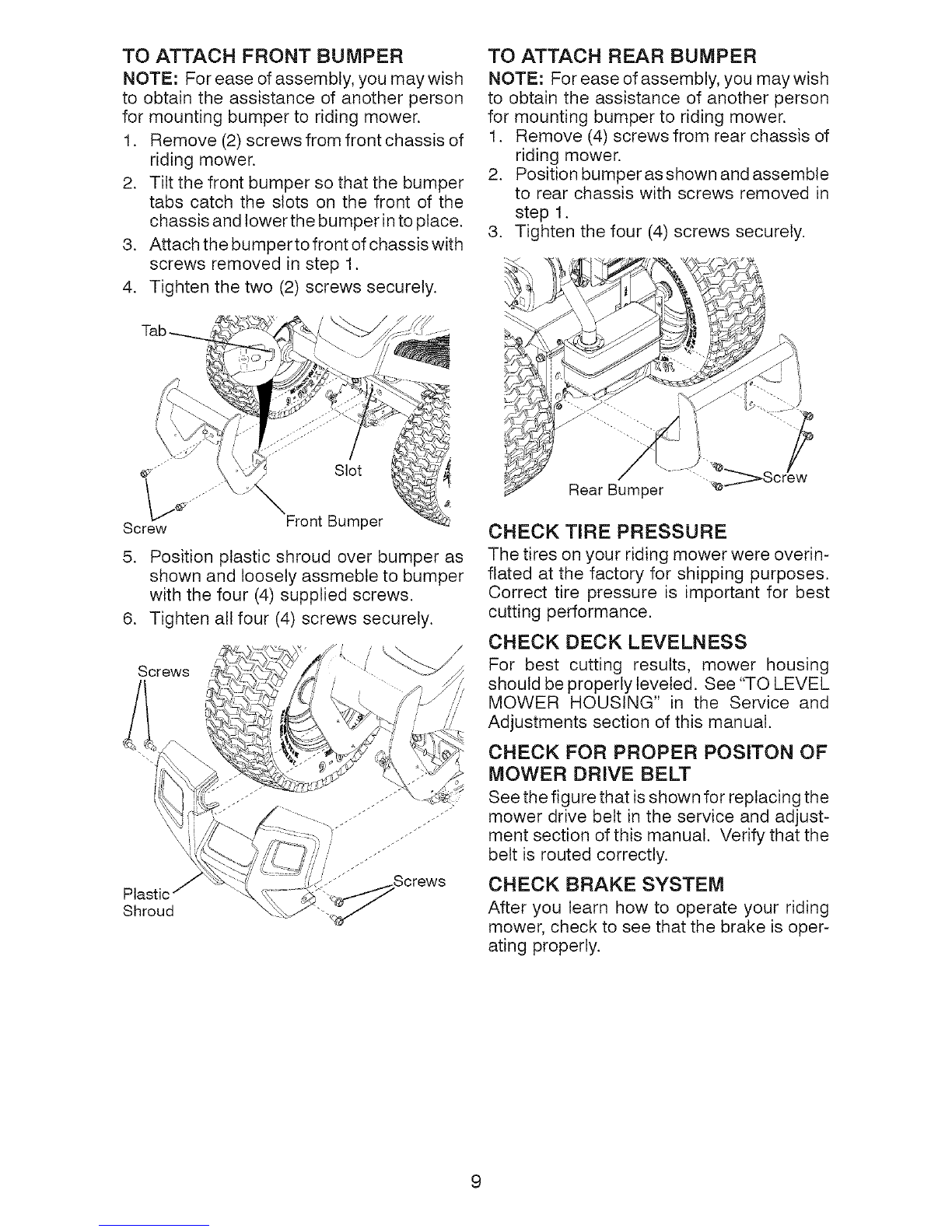

TO ATTACH FRONT BUMPER

NOTE: For ease ofassembly, you may wish

to obtain the assistance of another person

for mounting bumper to riding mower.

1. Remove (2) screws from front chassis of

riding mower.

2. Tilt the front bumper so that the bumper

tabs catch the slots on the front of the

chassis and lower the bumper into place.

3. Attach the bumperto front of chassis with

screws removed in step 1.

4. Tighten the two (2) screws securely.

TO ATTACH REAR BUMPER

NOTE: For ease of assembly, you may wish

to obtain the assistance of another person

for mounting bumper to riding mower.

1. Remove (4) screws from rear chassis of

riding mower.

2. Position bumperasshown and assemble

to rear chassis with screws removed in

step 1.

3. Tighten the four (4) screws securely.

..... Slot

Front Bumper

Screw

5. Position plastic shroud over bumper as

shown and loosely assmeble to bumper

with the four (4) supplied screws.

6. Tighten all four (4) screws securely.

Screws

Plastic

Shroud

....._.j_Scr'ew

Rear Bumper

CHECK TIRE PRESSURE

The tires on your riding mower were overin-

flated at the factory for shipping purposes.

Correct tire pressure is important for best

cutting performance.

CHECK DECK LEVELNESS

For best cutting results, mower housing

should be properly leveled. See "TO LEVEL

MOWER HOUSING" in the Service and

Adjustments section of this manual.

CHECK FOR PROPER POSITON OF

MOWER DRIVE BELT

See the figure that is shown for replacing the

mower drive belt in the service and adjust-

ment section of this manual. Verify that the

belt is routed correctly.

CHECK BRAKE SYSTEM

After you learn how to operate your riding

mower, check to see that the brake is oper-

ating properly.

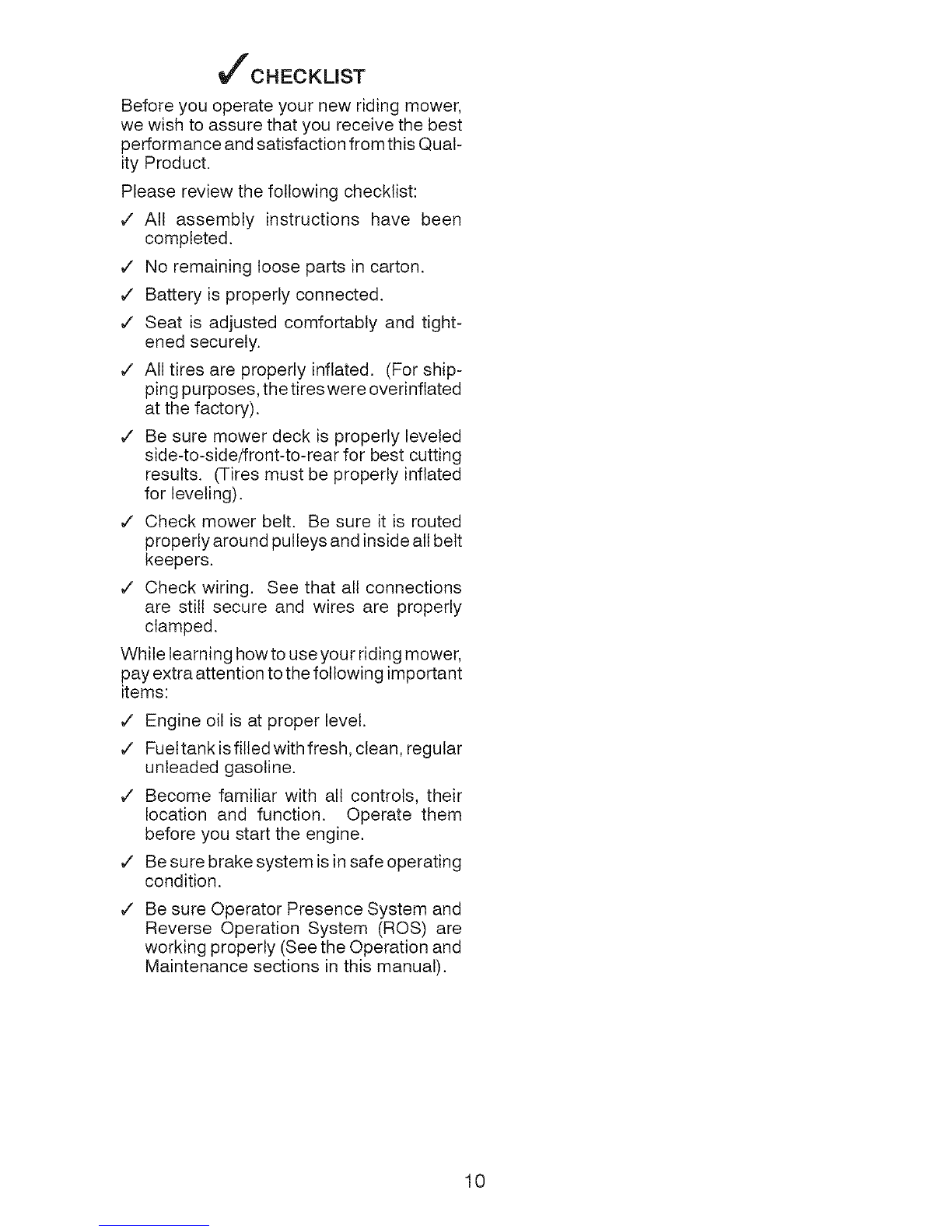

If'CHECKLiST

Before you operate your new riding mower,

we wish to assure that you receive the best

performance and satisfaction from this Qual-

ity Product.

Please review the following checklist:

v" All assembly instructions have been

completed.

v" No remaining loose parts in carton.

v" Battery is properly connected.

v" Seat is adjusted comfortably and tight-

ened securely.

v" All tires are properly inflated. (For ship-

ping purposes, the tires were overinftated

at the factory).

v" Be sure mower deck is properly leveled

side-to-side/front-to-rear for best cutting

results. (Tires must be properly inflated

for leveling).

v" Check mower belt. Be sure it is routed

properly around pulleys and inside all belt

keepers.

v" Check wiring. See that all connections

are still secure and wires are properly

clamped.

While learning how to use your riding mower,

pay extra attention to the following important

items:

v" Engine oil is at proper level.

v" Fueltank is filled with fresh, clean, regular

unleaded gasoline.

v" Become familiar with all controls, their

location and function. Operate them

before you start the engine.

v" Be sure brake system is in safe operating

condition.

¢" Be sure Operator Presence System and

Reverse Operation System (ROS) are

working properly (See the Operation and

Maintenance sections in this manual).

Autres manuels pour 917.28001

Table des matières

Langues :

Autres manuels Craftsman Tondeuse à gazon

Craftsman

Craftsman CMCMW260P1 Manuel utilisateur

Craftsman

Craftsman 917.374106 Manuel utilisateur

Craftsman

Craftsman 917.377380 Manuel utilisateur

Craftsman

Craftsman 917.374041 Manuel utilisateur

Craftsman

Craftsman 917.25432 Manuel utilisateur

Craftsman

Craftsman 917.4787A Manuel utilisateur

Craftsman

Craftsman 917.25432 Manuel utilisateur

Craftsman

Craftsman 917.250560 Manuel utilisateur

Craftsman

Craftsman 917.374543 Manuel utilisateur

Craftsman

Craftsman 917.371343 Manuel utilisateur

Craftsman

Craftsman EZ3 917.273122 Manuel utilisateur

Craftsman

Craftsman 247.25000 Manuel utilisateur

Craftsman

Craftsman 917.376552 Manuel utilisateur

Craftsman

Craftsman 536.270321 Manuel utilisateur

Craftsman

Craftsman EZ3 917.377302 Manuel utilisateur

Craftsman

Craftsman 917.258524 Manuel utilisateur

Craftsman

Craftsman 917.275821 Manuel utilisateur

Craftsman

Craftsman 917.272073 Manuel utilisateur

Craftsman

Craftsman 277620 Manuel du propriétaire

Craftsman

Craftsman 917.370928 Manuel utilisateur

Craftsman

Craftsman 247.37638 Manuel utilisateur

Craftsman

Craftsman 917.376230 Manuel utilisateur

Craftsman

Craftsman 917.379700 Manuel utilisateur

Craftsman

Craftsman 247.38510 Manuel utilisateur

Manuels Tondeuse à gazon populaires d'autres marques

RHINO

RHINO 1958 Manuel utilisateur

Wolf Garten

Wolf Garten Compact plus 40 B Manuel utilisateur

Cub Cadet

Cub Cadet LTX 1045 Manuel utilisateur

GGP ITALY SPA

GGP ITALY SPA CR/CS 434 SERIES Manuel utilisateur

Challenge

Challenge CH18V2 Instructions de fonctionnement

TALEN TOOLS

TALEN TOOLS AVR HGM30 Manuel utilisateur

DEWEZE

DEWEZE ATM-725 Manuel d'utilisation

Weed Eater

Weed Eater 180083 Manuel utilisateur

Husqvarna

Husqvarna Poulan Pro PP185A42 Manuel utilisateur

Better Outdoor Products

Better Outdoor Products Quick Series Manuel utilisateur

Cub Cadet

Cub Cadet 23HP Z-Force 60 Manuel d'utilisation

MTD

MTD 795, 792, 791, 790 Manuel utilisateur

Toro

Toro Groundsmaster 3505-D Manuel utilisateur

Dennis

Dennis FT 610 Manuel utilisateur

AIRFORCE

AIRFORCE F-15 Gen 3 Manuel utilisateur

MTD

MTD 126-220-000 Manuel utilisateur

Toro

Toro 74806 Manuel utilisateur

Stihl

Stihl RMA 443 PV Manuel utilisateur
