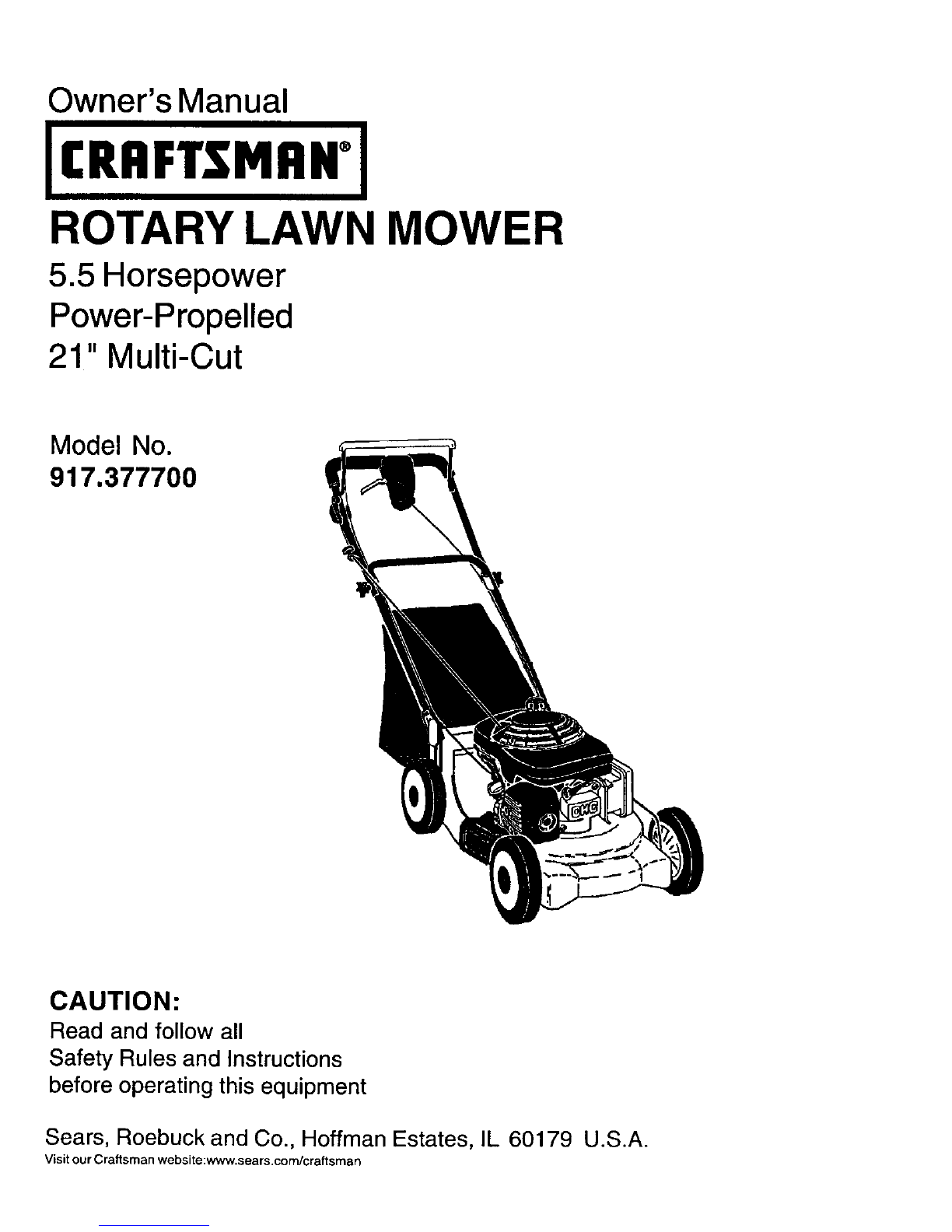

Craftsman 917.377700 Manuel utilisateur

Owner's Manual

ICRIIFTSMHWI

ROTARY LAWN MOWER

5.5 Horsepower

Power-Propelled

21" Multi-Cut

Model No.

917.377700

CAUTION:

Read and follow all

Safety Rules and Instructions

before operating this equipment

Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A.

Visit our Craftsman website:www.sears.com/craftsman

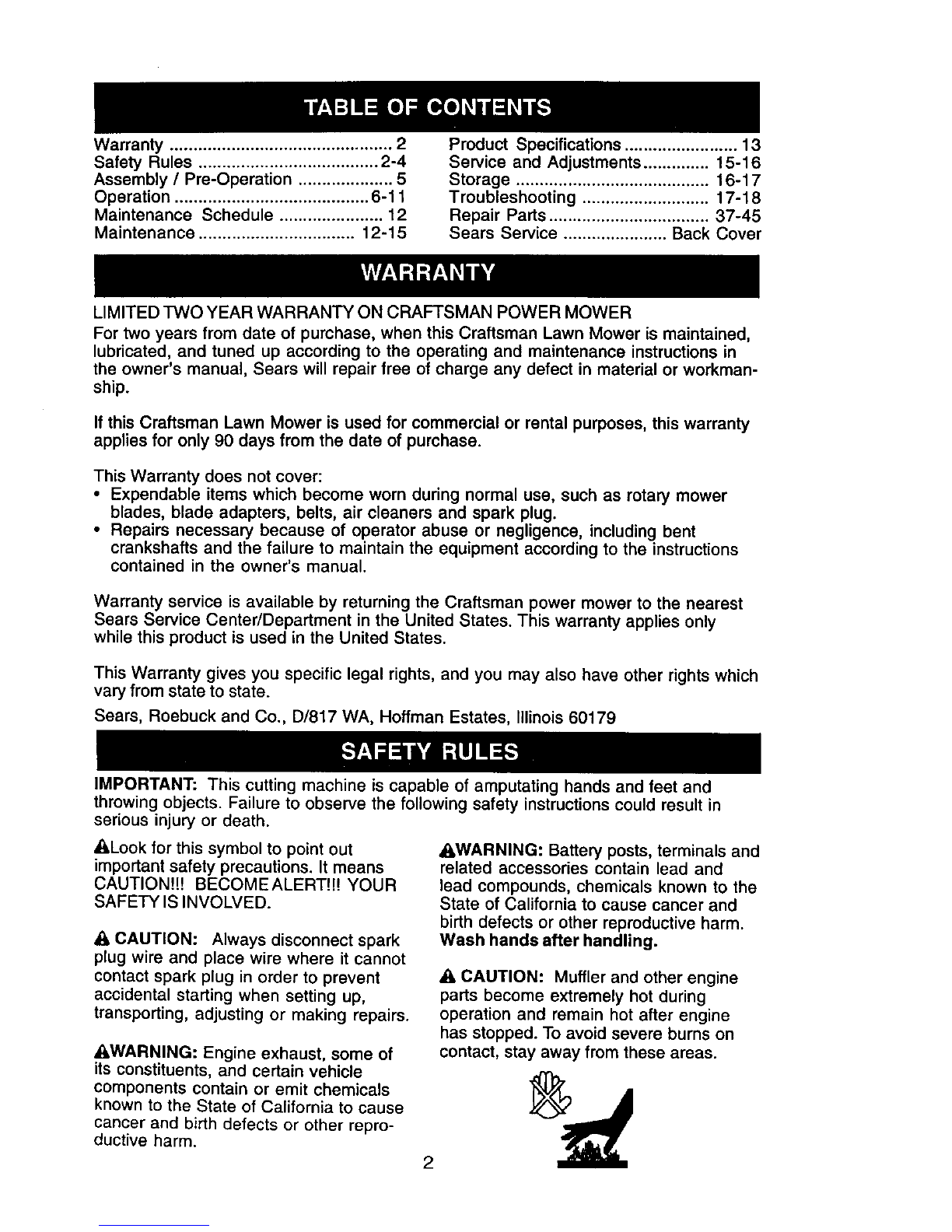

Warranty ............................................... 2

Safety Rules ...................................... 2-4

Assembly /Pre-Operation .................... 5

Operation ......................................... 6-1 1

Maintenance Schedule ...................... 12

Maintenance ................................. 12-15

Product Specifications ........................ 13

Service and Adjustments .............. 15-16

Storage ......................................... 16-17

Troubleshooting ........................... 17-18

Repair Parts .................................. 37-45

Sears Service ...................... Back Cover

LIMITED IWO YEAR WARRANTY ON CRAFTSMAN POWER MOWER

For two years from date of purchase, when this Craftsman Lawn Mower is maintained,

lubricated, and tuned up according to the operating and maintenance instructions in

the owner's manual, Sears will repair free of charge any defect in material or workman-

ship.

If this Craftsman Lawn Mower is used for commercial or rental purposes, this warranty

applies for only 90 days from the date of purchase.

This Warranty does not cover:

•Expendable items which become worn during normal use, such as rotary mower

blades, blade adapters, belts, air cleaners and spark plug.

•Repairs necessary because of operator abuse or negligence, including bent

crankshafts and the failure to maintain the equipment according to the instructions

contained in the owner's manual.

Warranty service is available by returning the Craftsman power mower to the nearest

Sears Service Center/Department in the United States. This warranty applies only

while this product is used in the United States.

This Warranty gives you specific legal rights, and you may also have other rights which

vary from state to state.

Sears, Roebuck and Co., D/817 WA, Hoffman Estates, Illinois 60179

IMPORTANT: This cutting machine is capable of amputating hands and feet and

throwing objects. Failure to observe the following safety instructions could result in

serious injury or death.

ALook for this symbol to point out

important safety precautions. It means

CAUTION!!! BECOMEALERT!H YOUR

SAFETY IS INVOLVED.

A CAUTION: Always disconnect spark

plug wire and place wire where it cannot

contact spark plug in order to prevent

accidental starting when setting up,

transporting, adjusting or making repairs.

AWARNING: Battery posts, terminals and

related accessories contain lead and

lead compounds, chemicals known to the

State of California to cause cancer and

birth defects or other reproductive harm.

Wash hands after handling.

AWARNING: Engine exhaust some of

ts constituents, and certain vehicle

components contain or emit chemicals _L.I)7 ,,

known to the State of California to cause

cancer and birth defects or other repro-

ductive harm. 2

A CAUTION: Muffler and other engine

parts become extremely hot during

operation and remain hot after engine

has stopped. To avoid severe burns on

contact, stay away from these areas.

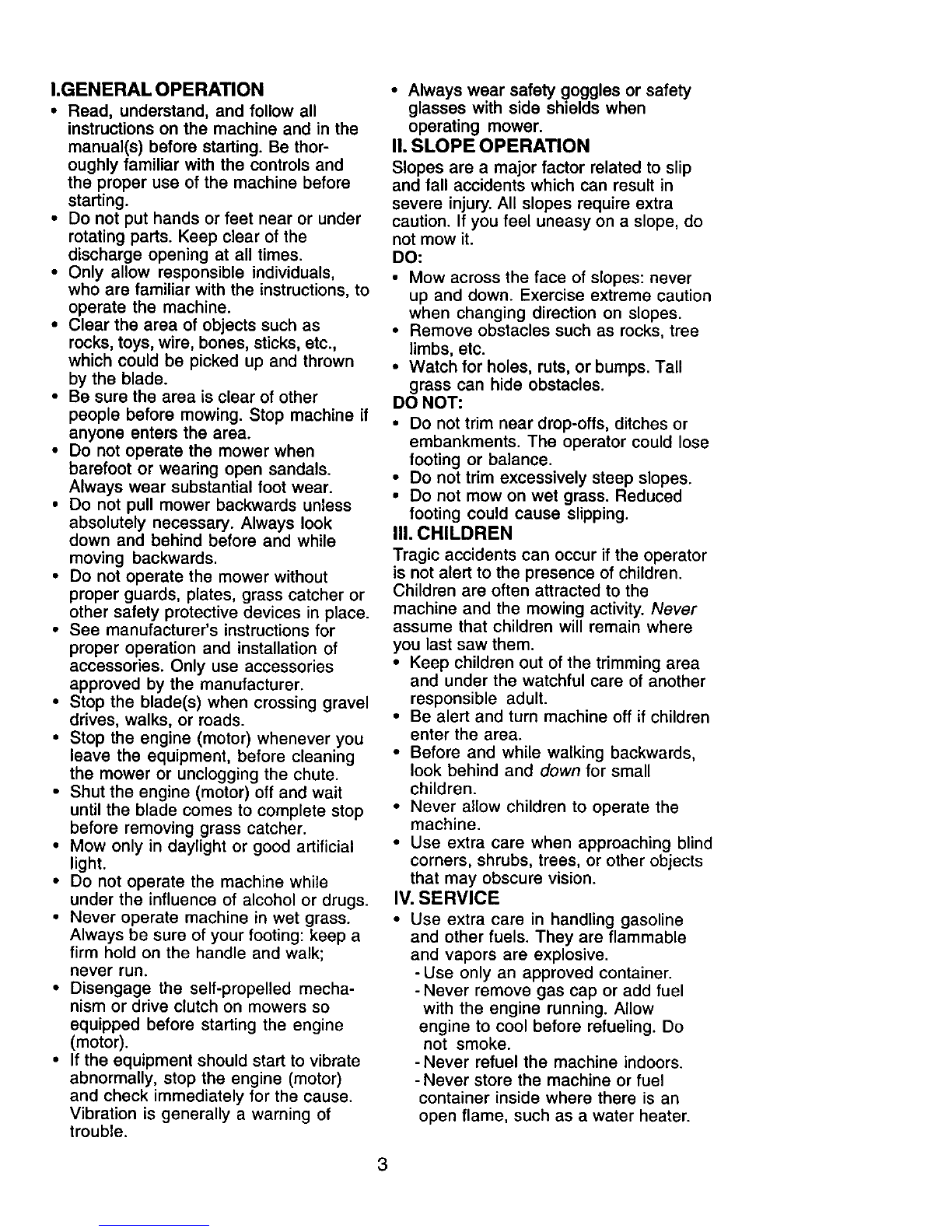

I.GENERAL OPERATION

•Read, understand, and follow all

instructions on the machine and in the

manual(s) before starting. Be thor-

oughly familiar with the controls and

the proper use of the machine before

starting.

•Do not put hands or feet near or under

rotating parts. Keep clear of the

discharge opening at all times.

•Only allow responsible individuals,

who are familiar with the instructions, to

operate the machine.

• Clear the area of objects such as

rocks, toys, wire, bones, sticks, etc.,

which could be picked up and thrown

by the blade.

• Be sure the area is clear of other

people before mowing. Stop machine if

anyone enters the area.

• Do not operate the mower when

barefoot or wearing open sandals.

Always wear substantial foot wear.

•Do not pull mower backwards unless

absolutely necessary. Always look

down and behind before and while

moving backwards.

• Do not operate the mower without

proper guards, plates, grass catcher or

other safety protective devices in place.

• See manufacturer's instructions for

proper operation and installation of

accessories. Only use accessories

approved by the manufacturer.

• Stop the blade(s) when crossing gravel

drives, walks, or roads.

• Stop the engine (motor) whenever you

leave the equipment, before cleaning

the mower or unclogging the chute.

• Shut the engine (motor) off and wait

until the blade comes to complete stop

before removing grass catcher.

• Mow only in daylight or good artificial

light.

• Do not operate the machine while

under the influence of alcohol or drugs.

• Never operate machine in wet grass.

Always be sure of your footing: keep a

firm hold on the handle and walk;

never run.

• Disengage the self-propelled mecha-

nism or drive clutch on mowers so

equipped before starting the engine

(motor).

• If the equipment should start to vibrate

abnormally, stop the engine (motor)

and check immediately for the cause.

Vibration is generally a warning of

trouble.

• Always wear safety goggles or safety

glasses with side shields when

operating mower.

I1. SLOPE OPERATION

Slopes are a major factor related to slip

and fall accidents which can result in

severe injury. All slopes require extra

caution. If you feel uneasy on a slope, do

not mow it.

DO:

• Mow across the face of slopes: never

up and down. Exercise extreme caution

when changing direction on slopes.

• Remove obstacles such as rocks, tree

limbs, etc.

• Watch for holes, ruts, or bumps. Tall

grass can hide obstacles.

DO NOT:

• Do not trim near drop-offs, ditches or

embankments. The operator could lose

footing or balance.

•Do not trim excessively steep slopes.

• Do not mow on wet grass. Reduced

footing could cause slipping.

II1. CHILDREN

Tragic accidents can occur if the operator

is not alert to the presence of children.

Children are often attracted to the

machine and the mowing activity. Never

assume that children will remain where

you last saw them.

• Keep children out of the trimming area

and under the watchful care of another

responsible adult.

• Be alert and turn machine off if children

enter the area.

• Before and while walking backwards,

look behind and down for small

children.

• Never allow children to operate the

machine.

• Use extra care when approaching blind

corners, shrubs, trees, or other objects

that may obscure vision.

IV. SERVICE

•Use extra care in handling gasoline

and other fuels. They are flammable

and vapors are explosive.

-Use only an approved container.

-Never remove gas cap or add fuel

with the engine running. Allow

engine to cool before refueling. Do

not smoke.

-Never refuel the machine indoors.

-Never store the machine or fuel

container inside where there is an

open flame, such as a water heater.

•Never run a machine inside a closed

area.

•Never make adjustments or repairs

with the engine (motor) running.

Disconnect the spark plug wire, and

keep the wire away from the plug to

prevent accidental starting.

• Keep nuts and bolts, especially blade

attachment bolts, tight and keep

equipment in good condition.

• Never tamper with safety devices.

Check their proper operation regularly.

• Keep machine free of grass, leaves, or

other debris build-up. Clean oil or fuel

spillage. Allow machine to cool before

storing.

•Stop and inspect the equipment if you

strike an object. Repair, if necessary,

before restarting.

° Never attempt to make wheel height

adjustments while the engine (motor) is

running.

• Grass catcher components are subject

to wear, damage, and deterioration,

which could expose moving parts or

allow objects to be thrown. Frequently

check components and replace with

manufacturer's recommended parts,

when necessary.

• Mower blades are sharp and can cut.

Wrap the blade(s) or wear gloves, and

use extra caution when servicing them.

• Do not change the engine governor

setting or overspeed the engine.

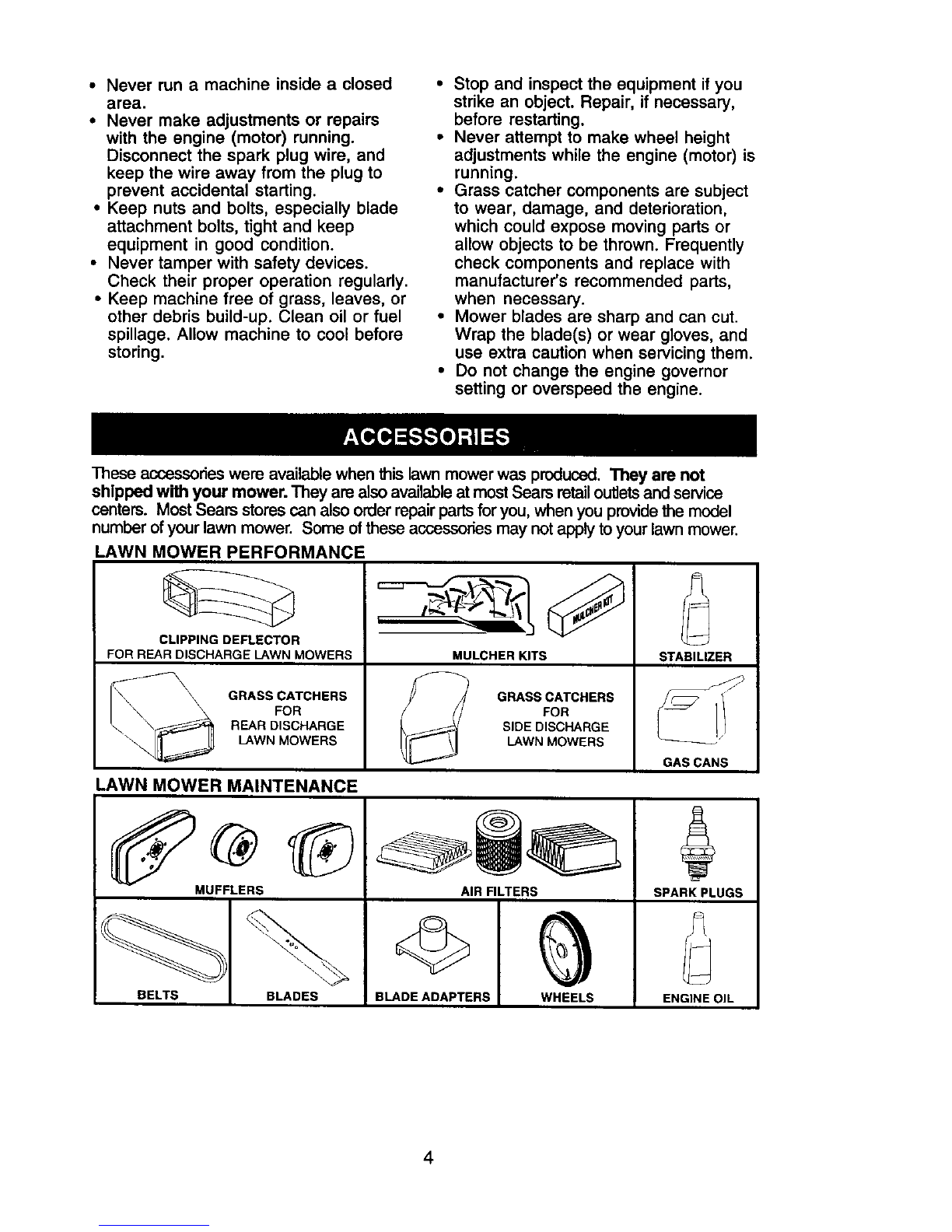

These acceseodes were available when this lawn mower was produced. They are not

shipped with your mower. They are also available at most Sears retail outlets and service

centers. Most Sears stores can also order repair parts for you, when you provide the model

number of your lawn mower. Some of these accessories may not apply to your lawn mower.

LAWN MOWER PERFORMANCE

CLIPPING DEFLECTOR

FOR REAR DISCHARGE LAWN MOWERS MULCHER KITS

GRASS CATCHERS

FOR

REAR DISCHARGE

LAWN MOWERS GRASS CATCHERS

FOR

SIDE DISCHARGE

LAWN MOWERS

STABILIZER

GAS CANS

LAWN MOWER MAINTENANCE

MUFFLERS

BELTS BLADES

AIR FILTERS

% b

BLADE ADAPTERS WHEELS

SPARK PLUGS

ENGINE OIL

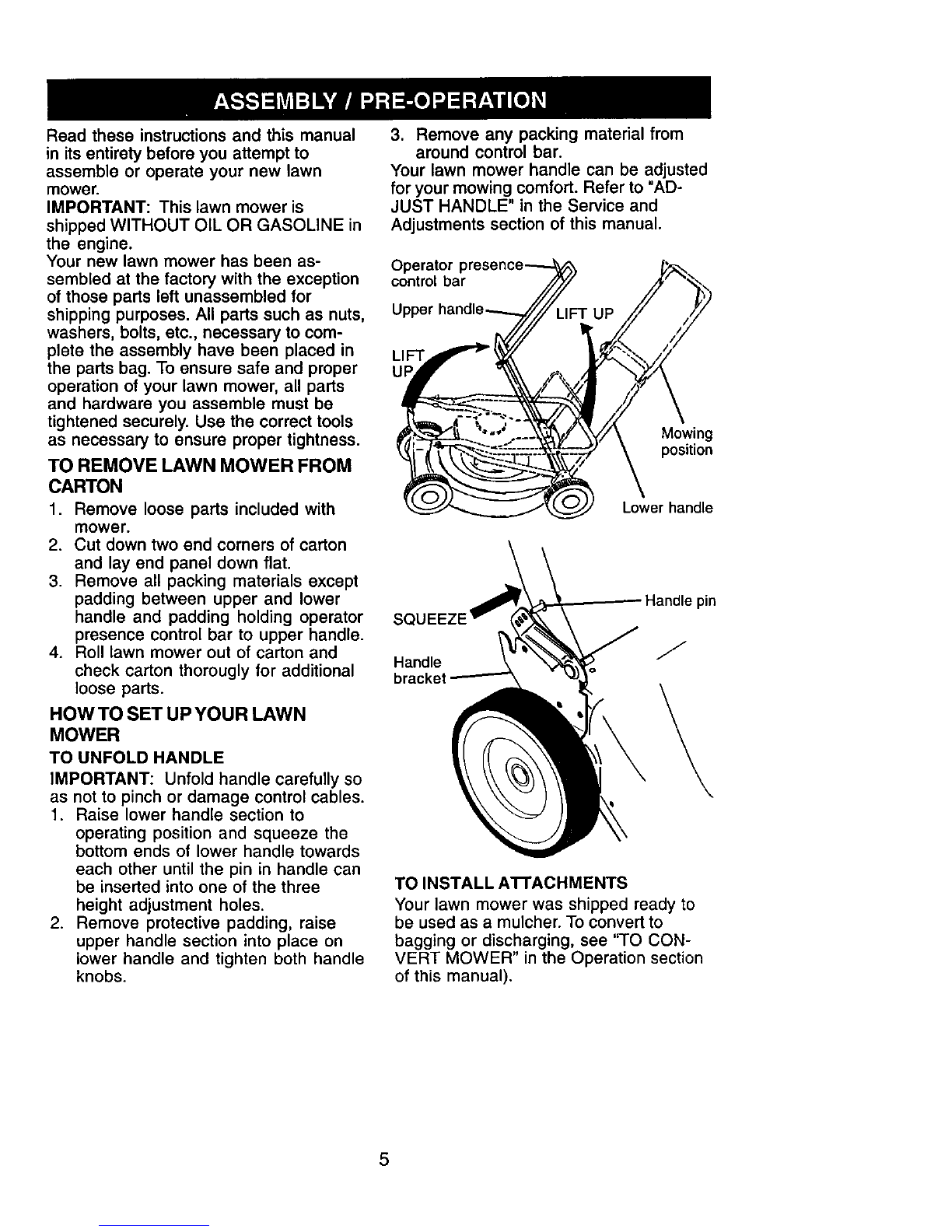

Read these instructions and this manual

in its entirety before you attempt to

assemble or operate your new lawn

mower.

IMPORTANT: This lawn mower is

shipped WITHOUT OIL OR GASOLINE in

the engine.

Your new lawn mower has been as-

sembled at the factory with the exception

of those parts left unassembled for

shipping purposes. All parts such as nuts,

washers, bolts, etc., necessary to com-

plete the assembly have been placed in

the parts bag. To ensure safe and proper

operation of your lawn mower, all parts

and hardware you assemble must be

tightened securely. Use the correct tools

as necessary to ensure proper tightness.

TO REMOVE LAWN MOWER FROM

CARTON

1. Remove loose parts included with

mower.

2. Cut down two end corners of carton

and lay end panel down flat.

3. Remove all packing materials except

padding between upper and lower

handle and padding holding operator

presence control bar to upper handle.

4. Roll lawn mower out of carton and

check carton thorougly for additional

loose parts.

HOWTO SET UP YOUR LAWN

MOWER

TO UNFOLD HANDLE

IMPORTANT: Unfold handle carefully so

as not to pinch or damage control cables.

1. Raise lower handle section to

operating position and squeeze the

bottom ends of lower handle towards

each other until the pin in handle can

be inserted into one of the three

height adjustment holes.

2. Remove protective padding, raise

upper handle section into place on

lower handle and tighten both handle

knobs.

3. Remove any packing material from

around control bar.

Your lawn mower handle can be adjusted

for your mowing comfort. Refer to "AD-

JUST HANDLE" in the Service and

Adjustments section of this manual.

Operator

control bar

Mowing

position

Lower handle

SQI

Handle

bracket

Handle pin

TO INSTALL A'n'ACHMENTS

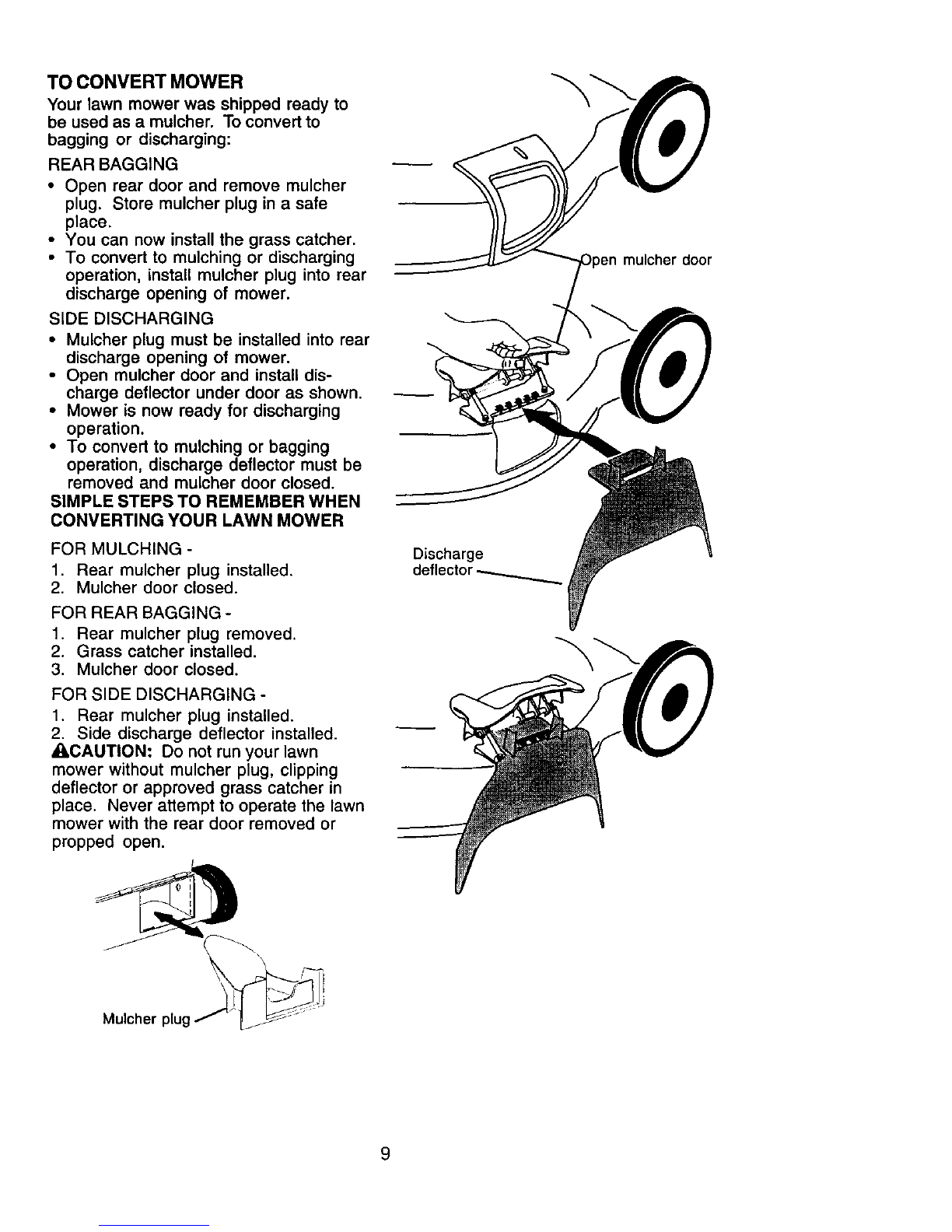

Your lawn mower was shipped ready to

be used as a mulcher. To convert to

bagging or discharging, see 'qO CON-

VERT MOWER" in the Operation section

of this manual).

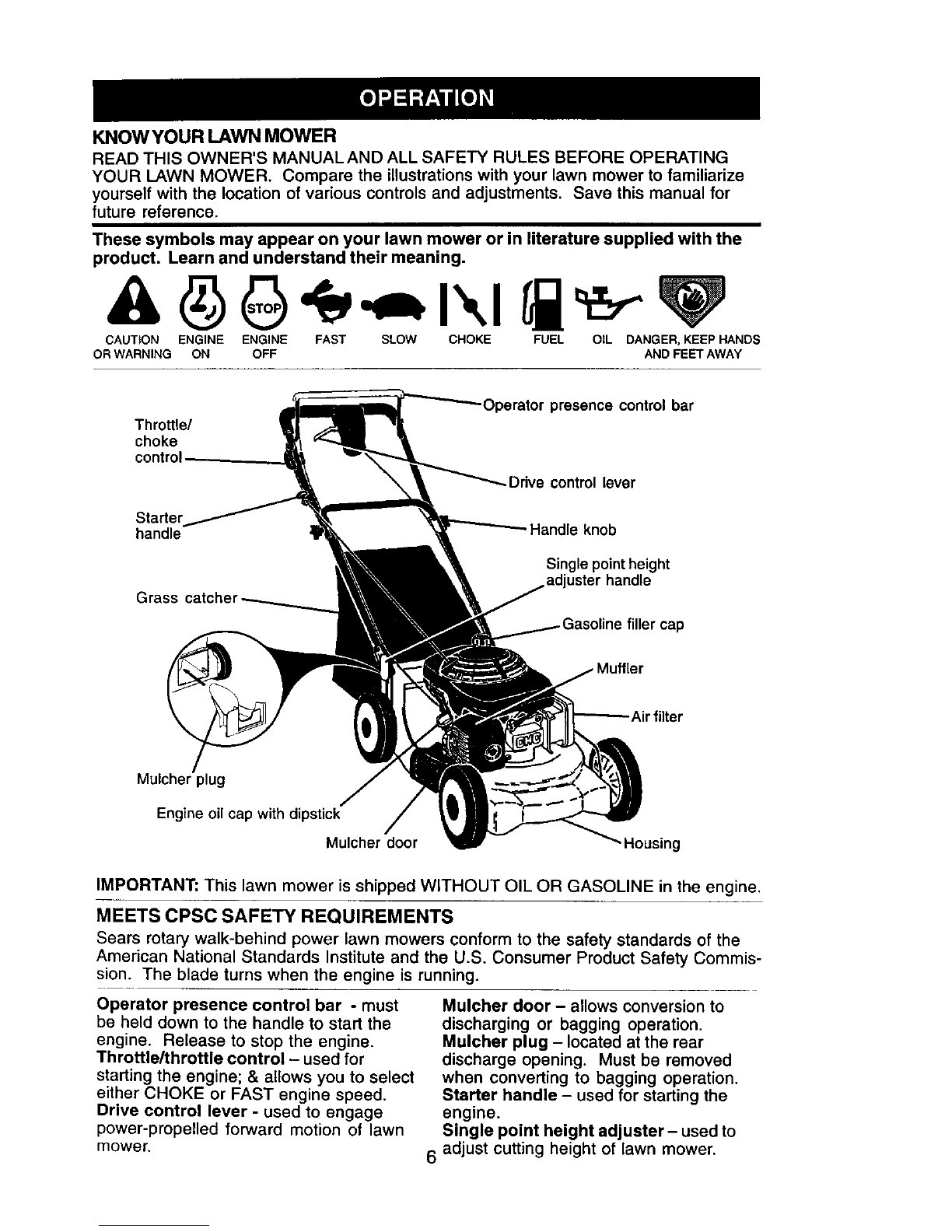

KNOWYOUR LAWN MOWER

READ THIS OWNER'S MANUAL AND ALL SAFETY RULES BEFORE OPERATING

YOUR LAWN MOWER. Compare the illustrations with your lawn mower to familiarize

yourself with the location of various controls and adjustments, Save this manual for

future reference.

These symbols may appear on your lawn mower or in literature supplied with the

product, Learn and understand their meaning,

CAUTION ENGINE ENGINE FAST SLOW CHOKE FUEL OIL DANGER, KEEP HANDS

OR WARNING ON OFF AND FEET AWAY

Throttle/

choke

Operator presence control bar

Starter

handle

Grass

~Drive control lever

Handle knob

Single point height

handle

cap

MuffLer

Mulcher plug

Engine oil cap with dipstick

Mulcher door Housing

IMPORTANT: This lawn mower is shipped WITHOUT OIL OR GASOLINE in the engine.

MEETS CPSC SAFETY REQUIREMENTS

Sears rotary walk-behind power lawn mowers conform to the safety standards of the

American National Standards Institute and the U.S. Consumer Product Safety Commis-

sion. The blade turns when the engine is running.

Operator presence control bar -must

be held down to the handle to start the

engine. Release to stop the engine.

Throttle/throttle control - used for

starting the engine; & allows you to select

either CHOKE or FAST engine speed.

Drive control lever -used to engage

power-propelled forward motion of lawn

mower. 6

Mulcher door - allows conversion to

discharging or bagging operation.

Mulcher plug - located at the rear

discharge opening. Must be removed

when converting to bagging operation.

Starter handle - used for starting the

engine.

Single point height adjuster- used to

adjust cutting height of lawn mower.

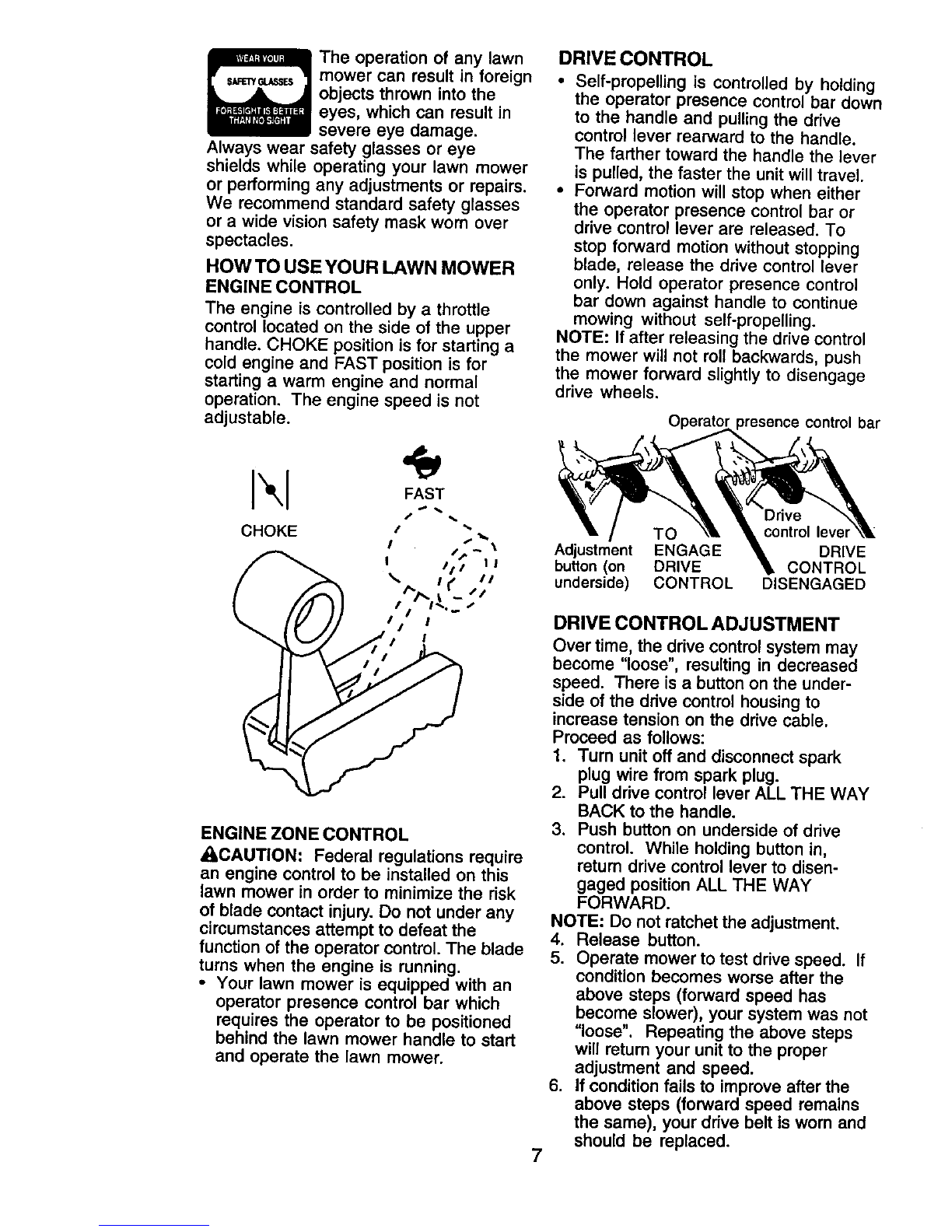

The operation of any lawn

mower can result in foreign

objects thrown into the

eyes, which can result in

severe eye damage.

Always wear safety glasses or eye

shields while operating your lawn mower

or performing any adjustments or repairs.

We recommend standard safety glasses

or a wide vision safety mask wom over

spectacles.

HOWTO USEYOUR LAWN MOWER

ENGINE CONTROL

The engine is controlled by a throttle

control located on the side of the upper

handle. CHOKE position is for starting a

cold engine and FAST position is for

starting a warm engine and normal

operation, The engine speed is not

adjustable.

CHOKE

FAST

|ii II|

_. I,S II

,?.,,.;-:,

I// I

ENGINE ZONE CONTROL

A_CAUTION" Federal regulations require

an engine control to be installed on this

lawn mower in order to minimize the dsk

of blade contact injury. Do not under any

circumstances attempt to defeat the

function of the operator control. The blade

turns when the engine is running.

• Your lawn mower is equipped with an

operator presence control bar which

requires the operator to be positioned

behind the lawn mower handle to start

and operate the lawn mower.

DRIVE CONTROL

•Self-propelling is controlled by holding

the operator presence control bar down

to the handle and pulling the drive

control lever rearward to the handle.

The farther toward the handle the lever

is pulled, the faster the unit will travel.

• Forward motion will stop when either

the operator presence control bar or

drive control lever are released. To

stop forward motion without stopping

blade, release the drive control lever

only. Hold operator presence control

bar down against handle to continue

mowing without self-propelling.

NOTE: If after releasing the drive control

the mower will not roll backwards, push

the mower forward slightly to disengage

drive wheels.

control bar

Adjustment ENGAGE DRIVE

button (on DRIVE CONTROL

underside) CONTROL DISENGAGED

DRIVE CONTROL ADJUSTMENT

Over time, the drive control system may

become "loose", resulting in decreased

speed. There is a button on the under-

side of the ddve control housing to

increase tension on the drive cable.

Proceed as follows:

1. Turn unit off and disconnect spark

plug wire from spark plug.

2. Pull drive control lever ALL THE WAY

BACK to the handle.

3. Push button on underside of drive

control. While holding button in,

return drive control lever to disen-

gaged position ALL THE WAY

FORWARD.

NOTE: Do not ratchet the adjustment.

4. Release button.

5. Operate mower to test drive speed. If

condition becomes worse after the

above steps (forward speed has

become slower), your system was not

"loose". Repeating the above steps

will return your unit to the proper

adjustment and speed.

6. If condition fails to improve after the

above steps (forward speed remains

the same), your ddve belt is worn and

should be replaced.

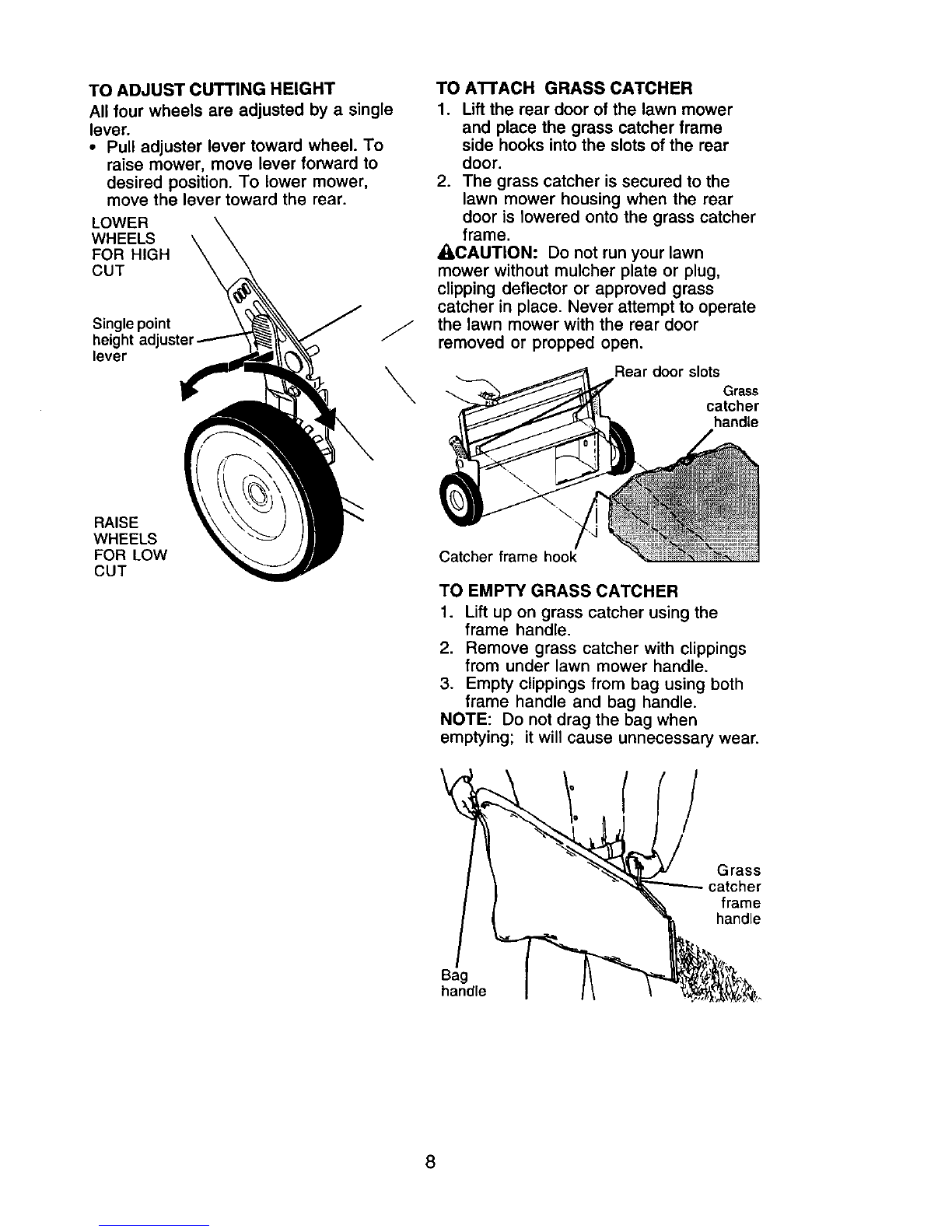

TO ADJUST CUTTING HEIGHT

All four wheels are adjusted by a single

lever.

•Pull adjuster lever toward wheel. To

raise mower, move lever forward to

desired position. To lower mower,

move the lever toward the rear.

LOWER

WHEELS

FOR HIGH

CUT

Single point

height adjust_

lever

RAISE

WHEELS

FOR LOW

CUT

TO A'I-rACH GRASS CATCHER

1. Lift the rear door of the lawn mower

and place the grass catcher frame

side hooks into the slots of the rear

door.

2. The grass catcher is secured to the

lawn mower housing when the rear

door is lowered onto the grass catcher

frame.

ACAUTION: Do not run your lawn

mower without mulcher plate or plug,

clipping deflector or approved grass

catcher in place. Never attempt to operate

the lawn mower with the rear door

removed or prepped open.

Rear door slots

Grass

catcher

handle

Catcher frame hook

TO EMPTY GRASS CATCHER

1. Lift up on grass catcher using the

frame handle.

2. Remove grass catcher with clippings

from under lawn mower handle.

3. Empty clippings from bag using both

frame handle and bag handle.

NOTE: Do not drag the bag when

emptying; it will cause unnecessary wear.

Grass

'.atcher

frame

handle

Bag

handle

TO CONVERT MOWER

Your lawn mower was shipped ready to

be used as a mulcher. To convert to

bagging or discharging:

REAR BAGGING

•Open rear door and remove mulcher

plug. Store mulcher plug in a safe

place.

•You can now install the grass catcher.

• To convert to mulching or discharging

operation, install mulcher plug into rear

discharge opening of mower.

SIDE DISCHARGING

• Mulcher plug must be installed into rear

discharge opening of mower.

• Open mulcher door and install dis-

charge deflector under door as shown.

• Mower is now ready for discharging

operation.

•To convert to mulching or bagging

operation, discharge deflector must be

removed and mulcher door closed.

SIMPLE STEPS TO REMEMBER WHEN

CONVERTING YOUR LAWN MOWER

FOR MULCHING -

1. Rear mulcher plug installed.

2. Mulcher door closed.

FOR REAR BAGGING -

1. Rear mulcher plug removed.

2. Grass catcher installed.

3. Mulcher door closed.

FOR SIDE DISCHARGING -

1. Rear mulcher plug installed.

2. Side discharge deflector installed.

_CAUTION: Do not run your lawn

mower without mulcher plug, clipping

deflector or approved grass catcher in

place. Never attempt to operate the lawn

mower with the rear door removed or

p_pped open.

Discharge

door

Mulcher plug

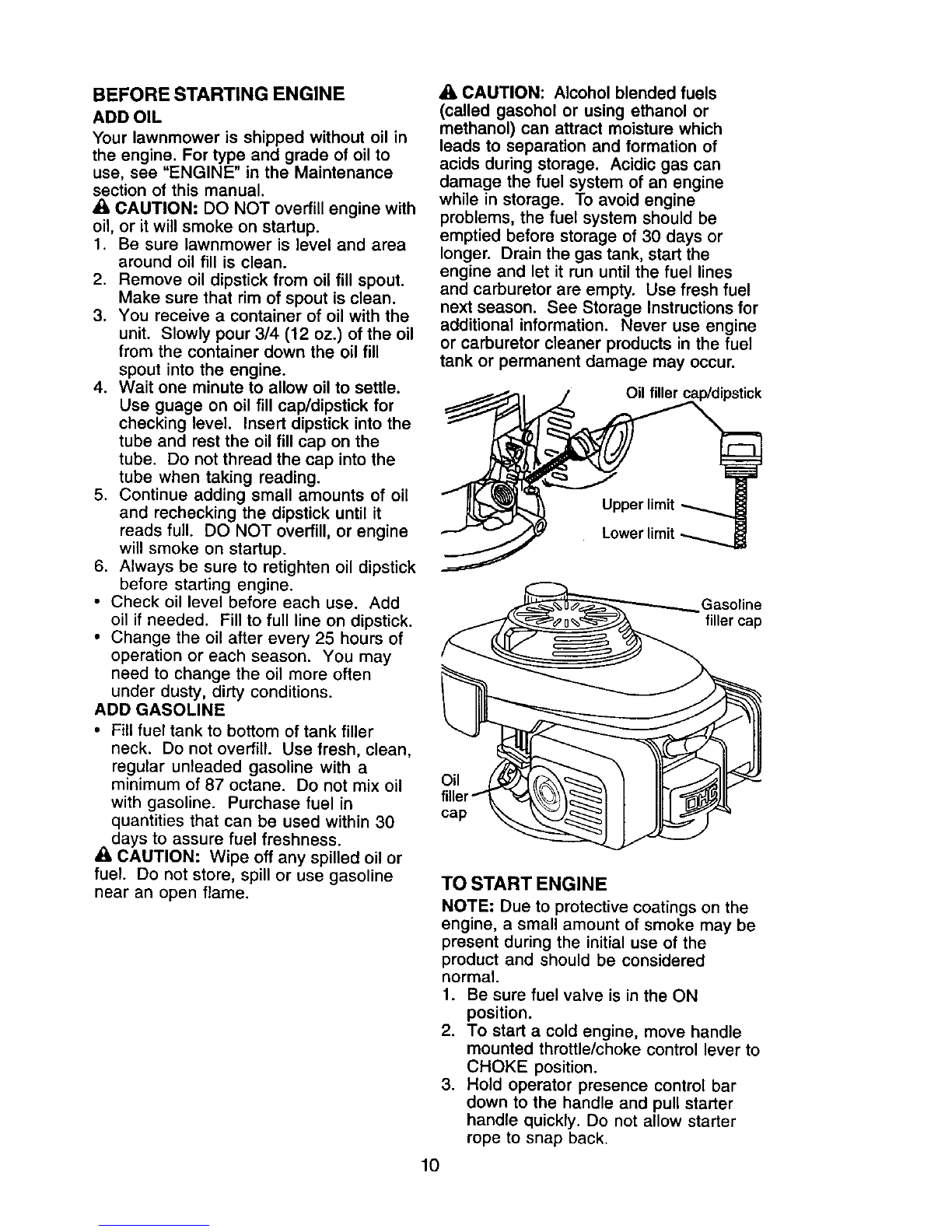

BEFORE STARTING ENGINE

ADD OIL

Your lawnmower is shipped without oil in

the engine. For type and grade of oil to

use, see "ENGINE" in the Maintenance

section of this manual.

A CAUTION: DO NOT overfill engine with

oil, or it will smoke on startup.

1. Be sure lawnmower is level and area

around oil fill is clean.

2. Remove oil dipstick from oil fill spout.

Make sure that rim of spout is clean.

3. You receive a container of oil with the

unit. Slowly pour 3/4 (12 oz.) of the oil

from the container down the oil fill

spout into the engine.

4. Wait one minute to allow oil to settle.

Use guage on oil fill cap/dipstick for

checking level. Insert dipstick into the

tube and rest the oil fill cap on the

tube. Do not thread the cap into the

tube when taking reading.

5. Continue adding small amounts of oil

and rechecking the dipstick until it

reads full. DO NOT overfill, or engine

will smoke on startup.

6. Always be sure to ratighten oil dipstick

before starting engine.

•Check oil level before each use. Add

oil if needed. Fill to full line on dipstick.

• Change the oil after every 25 hours of

operation or each season. You may

need to change the oil more often

under dusty, dirty conditions.

ADD GASOLINE

•Fill fuel tank to bottom of tank filler

neck. Do not overfill. Use fresh, clean,

regular unleaded gasoline with a

minimum of 87 octane. Do not mix oil

with gasoline. Purchase fuel in

quantities that can be used within 30

days to assure fuel freshness.

A CAUTION: Wipe off any spilled oil or

fuel. Do not store, spill or use gasoline

near an open flame.

A CAUTION: Alcohol blended fuels

(called gasohol or using ethanol or

methanol) can attract moisture which

leads to separation and formation of

acids during storage. Acidic gas can

damage the fuel system of an engine

while in storage. To avoid engine

problems, the fuel system should be

emptied before storage of 30 clays or

longer. Drain the gas tank, start the

engine and let it run until the fuel lines

and carburetor are empty. Use fresh fuel

next season. See Storage Instructions for

additional information. Never use engine

or carburetor cleaner products in the fuel

tank or permanent damage may occur.

Oil filler

Gasoline

filler cap

Oil

cap

TO START ENGINE

NOTE: Due to protective coatings on the

engine, a small amount of smoke may be

present during the initial use of the

product and should be considered

normal.

1. Be sure fuel valve is in the ON

position.

2. To start a cold engine, move handle

mounted throttle/choke control lever to

CHOKE position.

3. Hold operator presence control bar

down to the handle and pull starter

handle quickly. Do not allow starter

rope to snap back.

Table des matières

Langues :

Autres manuels Craftsman Tondeuse à gazon

Craftsman

Craftsman 917.28728 Manuel utilisateur

Craftsman

Craftsman 37624 - Front Propelled Rear Bag Lawn Mower Manuel utilisateur

Craftsman

Craftsman 917.275751 Manuel utilisateur

Craftsman

Craftsman 247.37638 Manuel utilisateur

Craftsman

Craftsman 33731 Manuel utilisateur

Craftsman

Craftsman 917.273220 Manuel utilisateur

Craftsman

Craftsman 917.371651 Manuel utilisateur

Craftsman

Craftsman 917.255723 Manuel utilisateur

Craftsman

Craftsman 944.361460 Manuel utilisateur

Craftsman

Craftsman 917.259561 Manuel utilisateur

Craftsman

Craftsman 917.275754 Manuel utilisateur

Craftsman

Craftsman 917.270830 Manuel utilisateur

Craftsman

Craftsman EZ3 917.386153 Manuel utilisateur

Craftsman

Craftsman 917.370871 Manuel utilisateur

Craftsman

Craftsman 944.362080 Manuel utilisateur

Craftsman

Craftsman 917.272020 Manuel utilisateur

Craftsman

Craftsman 917.371351 Manuel utilisateur

Craftsman

Craftsman 917.20386 Manuel utilisateur

Craftsman

Craftsman 917.273643 Manuel utilisateur

Craftsman

Craftsman 917.28936 Manuel utilisateur

Craftsman

Craftsman 536.270320 - 13.5 HP 30 in. Deck Manuel utilisateur

Craftsman

Craftsman EZ3 917.271011 Manuel utilisateur

Craftsman

Craftsman 900.370520 Manuel utilisateur

Craftsman

Craftsman 917.2736404 Manuel utilisateur

Manuels Tondeuse à gazon populaires d'autres marques

RHINO

RHINO 1958 Manuel utilisateur

Wolf Garten

Wolf Garten Compact plus 40 B Manuel utilisateur

Cub Cadet

Cub Cadet LTX 1045 Manuel utilisateur

GGP ITALY SPA

GGP ITALY SPA CR/CS 434 SERIES Manuel utilisateur

Challenge

Challenge CH18V2 Instructions de fonctionnement

TALEN TOOLS

TALEN TOOLS AVR HGM30 Manuel utilisateur

DEWEZE

DEWEZE ATM-725 Manuel d'utilisation

Weed Eater

Weed Eater 180083 Manuel utilisateur

Husqvarna

Husqvarna Poulan Pro PP185A42 Manuel utilisateur

Better Outdoor Products

Better Outdoor Products Quick Series Manuel utilisateur

Cub Cadet

Cub Cadet 23HP Z-Force 60 Manuel d'utilisation

MTD

MTD 795, 792, 791, 790 Manuel utilisateur

Toro

Toro Groundsmaster 3505-D Manuel utilisateur

Dennis

Dennis FT 610 Manuel utilisateur

AIRFORCE

AIRFORCE F-15 Gen 3 Manuel utilisateur

MTD

MTD 126-220-000 Manuel utilisateur

Toro

Toro 74806 Manuel utilisateur

Stihl

Stihl RMA 443 PV Manuel utilisateur
