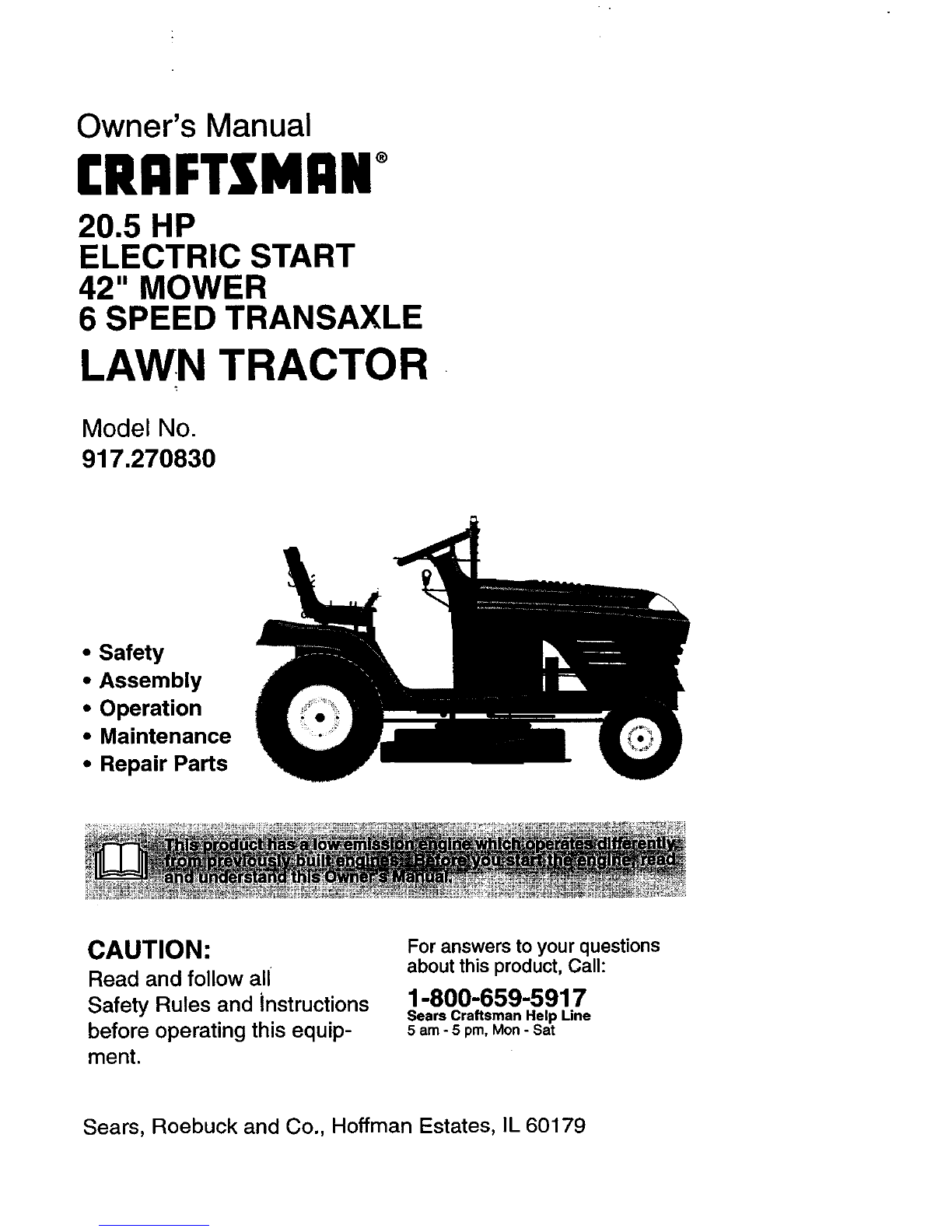

Craftsman 917.270830 Manuel utilisateur

Owner's Manual

£RI:IFTSMI:IN

20.5 HP

ELECTRIC START

42" MOWER

6 SPEED TRANSAXLE

LAWN TRACTOR

Model No.

917.270830

• Safety

• Assembly

• Operation

•Maintenance

•Repair Parts

CAUTION:

Read and follow all

Safety Rules and instructions

before operating this equip-

ment.

For answers to your questions

about this product, Call:

1-800-659-5917

Sears Craftsman Help Line

5 am -5 pm, Mon- Sat

Sears, Roebuck and Co., Hoffman Estates, IL 60179

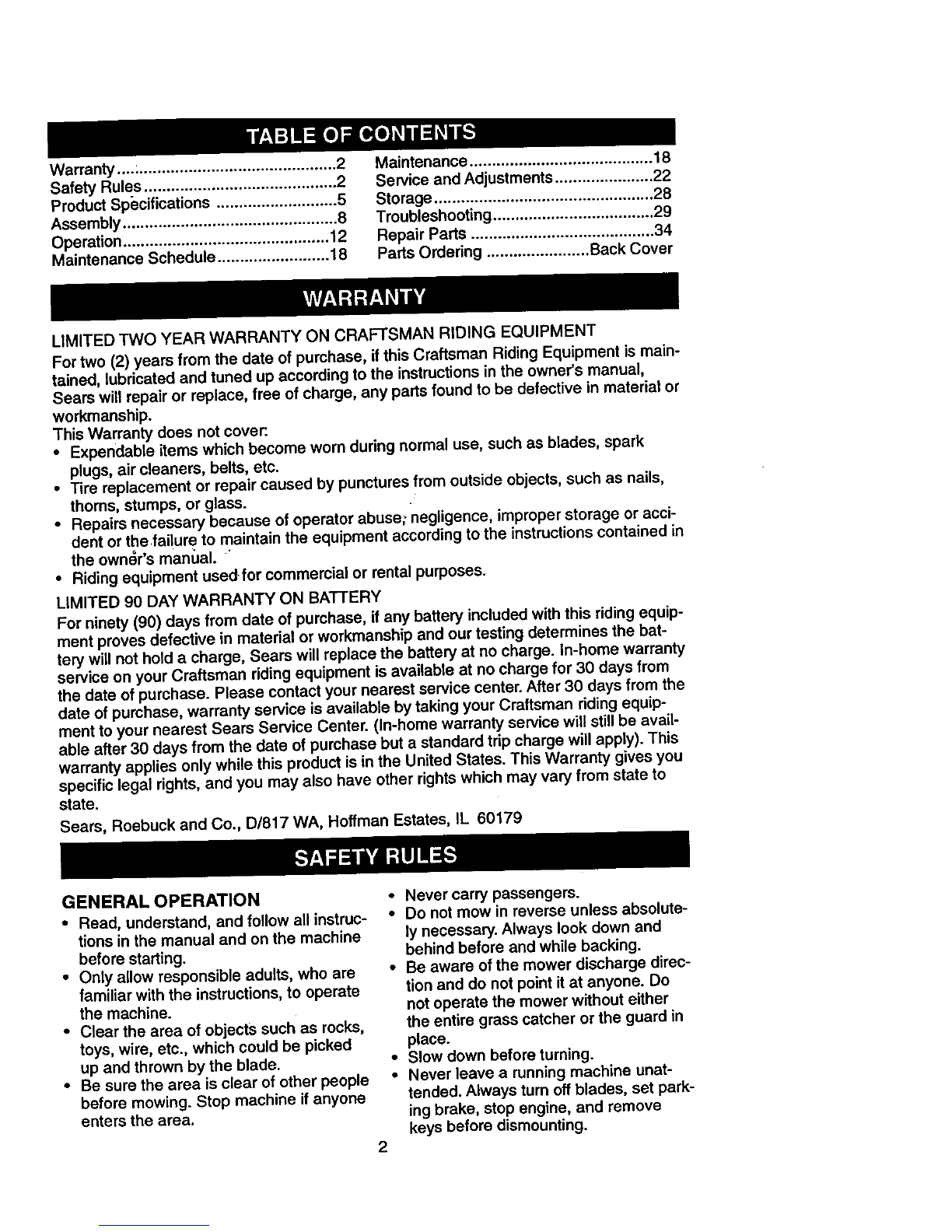

Warranty ....:............................................ 2

Safety Rules........................................... 2

Product Specifications ........................... 5

Assembly................................................ 8

Operation .............................................. 12

Maintenance Schedule ......................... 18

Maintenance ......................................... 18

Service and Adjustments ...................... 22

Storage ................................................. 28

Troubleshooting .................................... 29

Repair Parts ......................................... 34

Parts Ordering ....................... Back Cover

LIMITED TWO YEAR WARRANTY ON CRAFTSMAN RIDING EQUIPMENT

For two (2) years from the date of purchase, if this Craftsman Riding Equipment is main-

tained, lubricated and tuned up according to the instructions in the owner's manual,

Sears will repair or replace, free of charge, any parts found to be defective in material or

workmanship.

This Warranty does not cover:.

• Expendable items which become worn during normal use, such as blades, spark

plugs, air cleaners, belts, etc.

oTire replacement or repair caused by punctures from outside objects, such as nails,

thorns, stumps, or glass.

• Repairs necessary because of operator abuse; negligence, improper storage or acci-

dent or the failure to maintain the equipment according to the instructions contained in

the own6r's manLJal.

•Riding equipment use_for commercial or rental purposes.

LIMITED 90 DAY WARRANTY ON BATTERY

For ninety (90) days from date of purchase, if any battery included with this riding equip-

ment proves defective in matedal or workmanship and our testing determines the bat-

tery will not hold a charge, Sears will replace the battery at no charge. In-home warranty

service on your Craftsman dding equipment is available at no charge for 30 days from

the date of purchase. Please contact your nearest service center. After 30 days from the

date of purchase, warranty service is available by taking your Craftsman dding equip-

ment to your nearest Sears Service Center. (In-home warranty service wil_ still be avail-

able after 30 days from the date of purchase but a standard trip charge will apply). This

warranty applies only while this product is in the United States. This Warranty gives you

specific legal rights, and you may also have other rights which may vary from state to

state.

Sears, Roebuck and Co., D/817 WA, Hoffman Estates, IL 60179

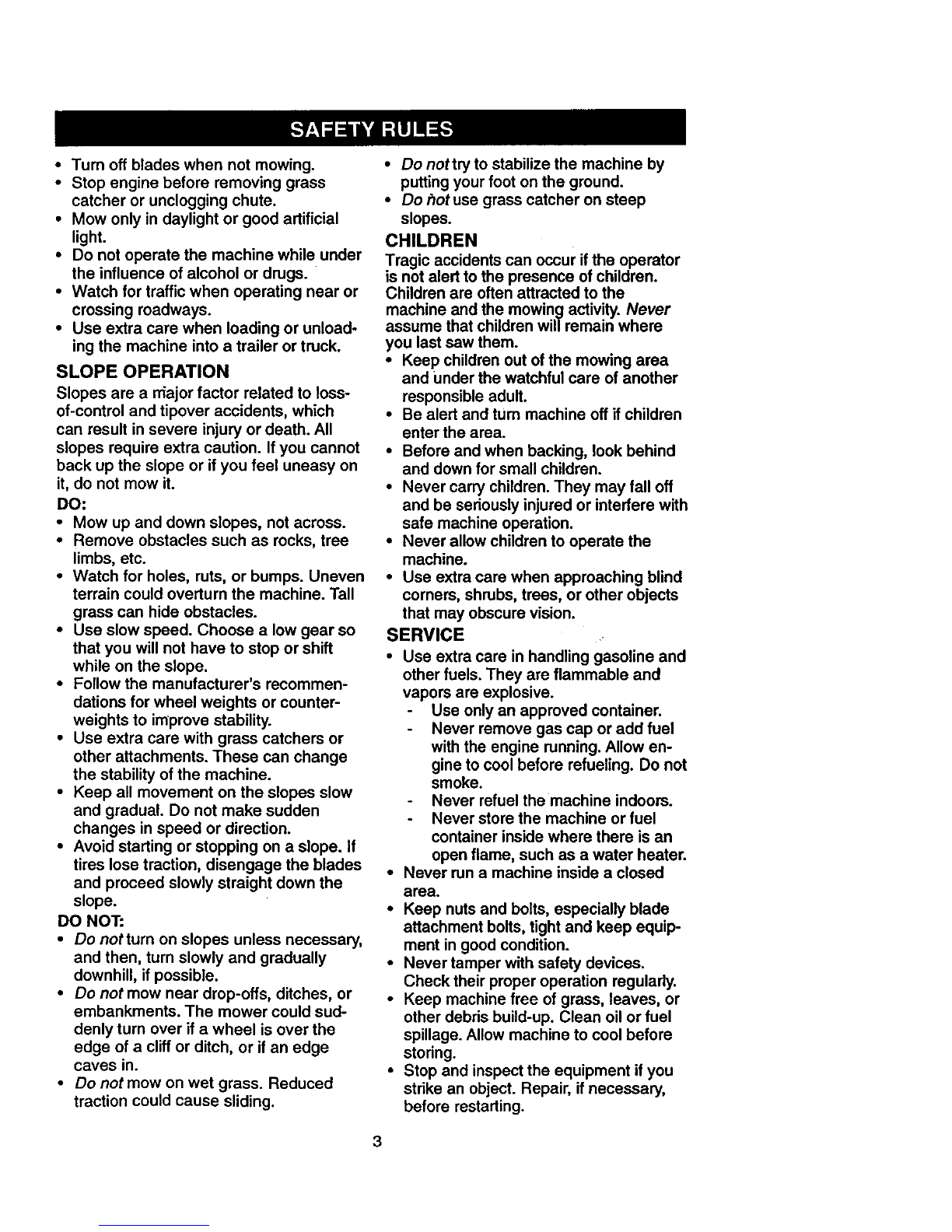

GENERAL OPERATION

•Read, understand, and follow all instruc-

tions in the manual and on the machine

before starting.

•Only allow responsible adults, who are

familiar with the instructions, to operate

the machine.

• Clear the area of objects such as rocks,

toys, wire, etc., which could be picked

up and thrown by the blade.

•Be sure the area is clear of other people

before mowing. Stop machine if anyone

enters the area.

•Nevercarry passengers.

•Do not mow in reverse unless absolute-

ly necessary. Always look down and

behind before and while backing.

•Be aware of the mower discharge direc-

tion and do not point it at anyone. Do

not operate the mower without either

the entire grass catcher or the guard in

place.

•Slow down before turning.

• Never leave a running machine unat-

tended. Always turn off blades, set park-

ing brake, stop engine, and remove

keys before dismounting.

•Turn off blades when not mowing.

•Stop engine before removing grass

catcher or unclogging chute.

• Mow only in daylight or good artificial

light.

• Do not operate the machine while under

the influence of alcohol or drugs.

•Watch for traffic when operating near or

crossing roadways.

•Use extra care when loading or unload-

ing the machine into a trailer or truck.

SLOPE OPERATION

Slopes are a rriajor factor related to loss-

of-control and tipover accidents, which

can result in severe injury or death. All

slopes require extra caution. If you cannot

back up the slope or if you feel uneasy on

it, do not mow it.

DO:

•Mow up and down slopes, not across.

• Remove obstacles such as rocks, tree

limbs, etc.

•Watch for holes, ruts, or bumps. Uneven

terrain could overturn the machine. Tall

grass can hide obstacles.

• Use slow speed. Choose a low gear so

that you will not have to stop or shift

while on the slope.

•Follow the manufacturer's recommen-

dations for wheel weights or counter-

weights to improve stability.

•Use extra care with grass catchers or

other attachments. These can change

the stability of the machine.

•Keep all movement on the slopes slow

and gradual. Do not make sudden

changes in speed or direction.

• Avoid starting or stopping on a slope. If

tires lose traction, disengage the blades

and proceed slowly straight down the

slope.

DO NOT:

•Do notturn on slopes unless necessary,

and then, turn slowly and gradually

downhill, if possible.

•Do not mow near drop-offs, ditches, or

embankments. The mower could sud-

denly turn over if a wheel is over the

edge of a cliff or ditch, or if an edge

caves in.

•Do not mow on wet grass. Reduced

traction could cause sliding.

•Do nottry to stabilize the machine by

puttingyour foot on the ground.

•Do hot use grass catcher on steep

slopes.

CHILDREN

Tragic accidents can occur ifthe operator

ts not alert to the presence otchildren.

Children are often attracted to the

machine and the mowing activity. Never

assume that children will remain where

you last saw them.

• Keep children out of the mowing area

and Underthe watchful care of another

responsible adult.

•Be alert and turn machine off if children

enter the area.

• Before and when backing, look behind

and down for small children.

• Never carry children. They may fall off

and be seriously injured or interfere with

safe machine operation.

• Never allow children to operate the

machine.

• Use extra care when approaching blind

corners, shrubs, trees, or other objects

that may obscure vision.

SERVICE

•Use extra care in handling gasoline and

other fuels. They are flammable and

vapors are explosive.

Use only an approved container.

Never remove gas cap or add fuel

with the engine running. Allow en-

gine to cool before refueling. Do not

smoke.

Never refuel the machine indoors.

Never store the machine or fuel

container inside where there is an

open flame, such asawater heater.

•Never run a machine inside a closed

area.

•Keep nuts and bolts, especially blade

attachment bolts, tight and keep equip-

ment in good condition.

•Never tamper with safety devices.

Check their proper operation regularly.

•Keep machine free of grass, leaves, or

other debris build-up. Clean oil or fuel

spillage. Allow machine to cool before

storing.

•Stop and inspect the equipment if you

strike an object. Repair, if necessary,

before restarting.

• Nevermakeadjustmentsorrepairswith

theenginerunning.

• Gras_catchercomponentsare subject

to wear, damage, and deterioration,

which could expose moving parts or

allow objects to be thrown. Frequently

check components and replace with

manufacturer's recommended parts,

when necessary.

•Mower blades are sharp and can cut.

Wrap the blade(s) or wear gloves, and

use extra caution when servicing them.

•Check brake operation frequently.

Adjust and service as required.

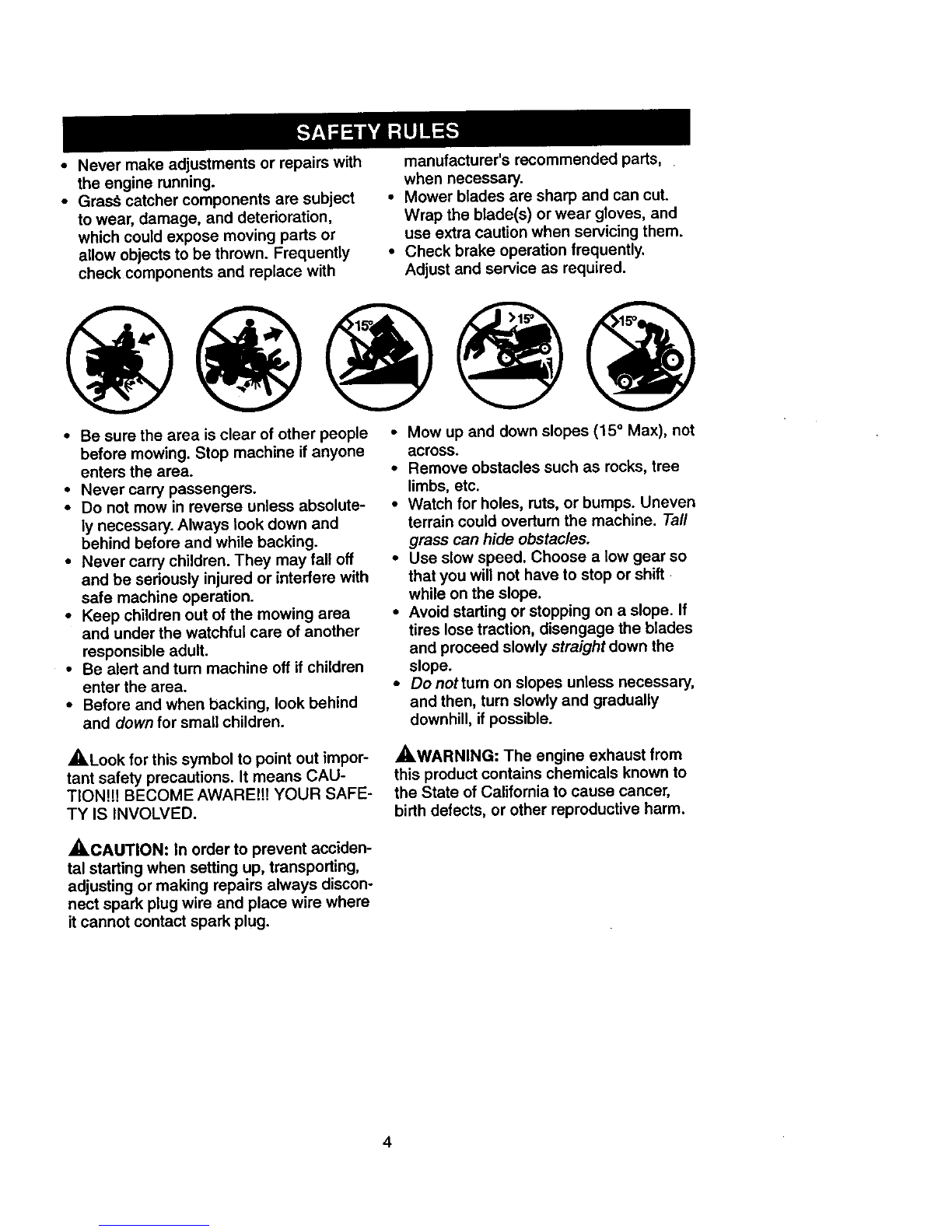

•Be sure the area is clear of other people • Mow up and down slopes (15 °Max), not

before mowing. Stop machine if anyone

enters the area.

•Never carry passengers.

•Do not mow in reverse unless absolute-

ly necessary. Always look down and

behind before and while backing.

•Never carry children. They may fall off

and be seriously injured or interfere with

safe machine operation.

•Keep children out of the mowing area

and under the watchful care of another

responsible adult.

•Be alert and turn machine off if children

enter the area.

•Before and when backing, look behind

and down for small children.

across.

•Remove obstacles such as rocks, tree

limbs, etc.

•Watch for holes, ruts, or bumps. Uneven

terrain could overturn the machine. Tall

grass can hide obstacles.

•Use slow speed. Choose a low gear so

that you will not have to stop or shift

while on the slope.

•Avoid starting or stopping on a slope. If

tires lose traction, disengage the blades

and proceed slowly straight down the

slope.

•Donotturn on slopes unless necessary,

and then, turn slowly and gradually

downhill, if possible.

_,Look for this symbol to point out impor-

tant safety precautions. It means CAU-

TION!H BECOME AWARE!!! YOUR SAFE-

TY IS INVOLVED.

_WARNING: The engine exhaust from

this product contains chemicals known to

the State of Califomia to cause cancer,

birth defects, or other reproductive harm.

_,CAUTION: In order to prevent acciden-

tal starting when setting up, transporting,

adjusting or making repairs always discon-

nect spark plug wire and place wire where

it cannot contact spark plug.

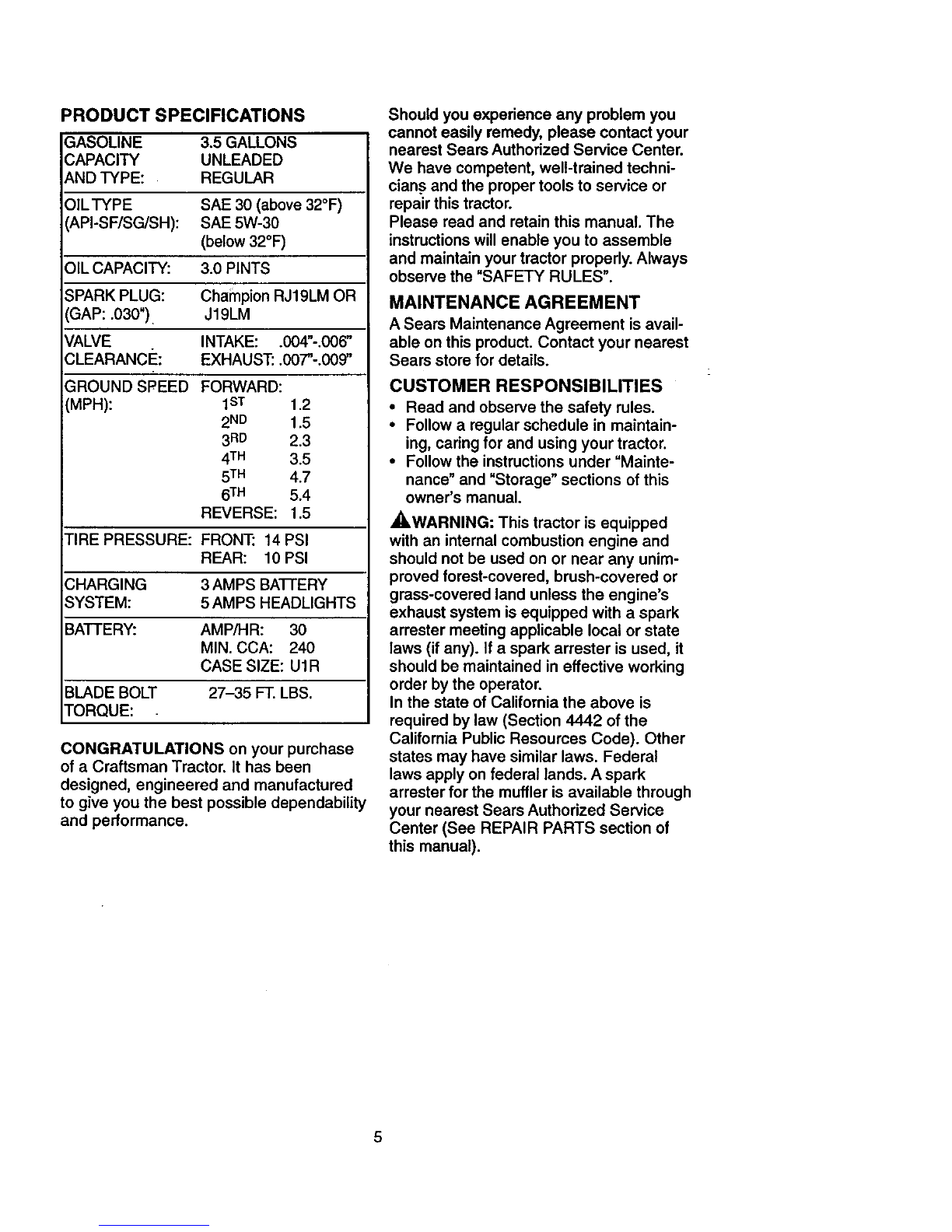

PRODUCT SPECIFICATIONS

GASOLINE 3.5GALLONS

CAPACITY UNLEADED

AND TYPE: REGULAR

OILTYPE SAE 30 (above 32°F)

API-SF/SG/SH): SAE 5W-30

(below 32°F)

OIL CAPACITY: 3.0 PINTS

SPARK PLUG: champion RJ19LM OR

GAP: .030"). J19LM

VALVE INTAKE: .004"-.006"

CLEARANCI_: EXHAUST: .007"-.009"

GROUND SPEED

(MPH): FORWARD:

1ST 1.2

2ND 1.5

3RD 2.3

4TM 3.5

5TM 4.7

6TM 5.4

REVERSE: 1.5

TIRE PRESSURE: FRONT: 14 PSI

REAR: 10 PSI

CHARGING 3AMPS BAI-FERY

SYSTEM: 5 AMPS HEADLIGHTS

BATTERY: AMP/HR: 30

MIN. CCA: 240

CASE SIZE: U1R

BLADE BOLT 27-35 FT. LBS.

TORQUE:

CONGRATULATIONS on your purchase

of a Craftsman Tractor. it has been

designed, engineered and manufactured

to give you the best possible dependability

and performance.

Should you experience any problem you

cannot easily remedy, please contact your

nearest Sears Authorized Service Center.

We have competent, well-trained techni-

cian.s and the proper tools to service or

repair this tractor.

Please read and retain this manual. The

instructions will enable you to assemble

and maintain your tractor properly. Always

observe the "SAFETY RULES".

MAINTENANCEAGREEMENT

A Sears Maintenance Agreement is avail-

able on this product. Contact your nearest

Sears store for details.

CUSTOMER RESPONSIBILITIES

• Read and observe the safety rules.

• Follow a regular schedule in maintain-

ing, caring for and using your tractor.

•Follow the instructions under "Mainte-

nance" and "Storage" sections of this

owner's manual.

_,WARNING: This tractor is equipped

with an internal combustion engine and

should not be used on or near any unim-

proved forest-covered, brush-covered or

grass-covered land unless the engine's

exhaust system is equipped with a spark

arrester meeting applicable local or state

laws (if any). If a spark arrester is used, it

should be maintained in effective working

order by the operator.

In the state of California the above is

required by law (Section 4442 of the

Califomia Public Resources Code). Other

states may have similar laws. Federal

laws apply on federal lands. A spark

arrester for the muffler is available through

your nearest Sears Authorized Service

Center (See REPAIR PARTS section of

this manual).

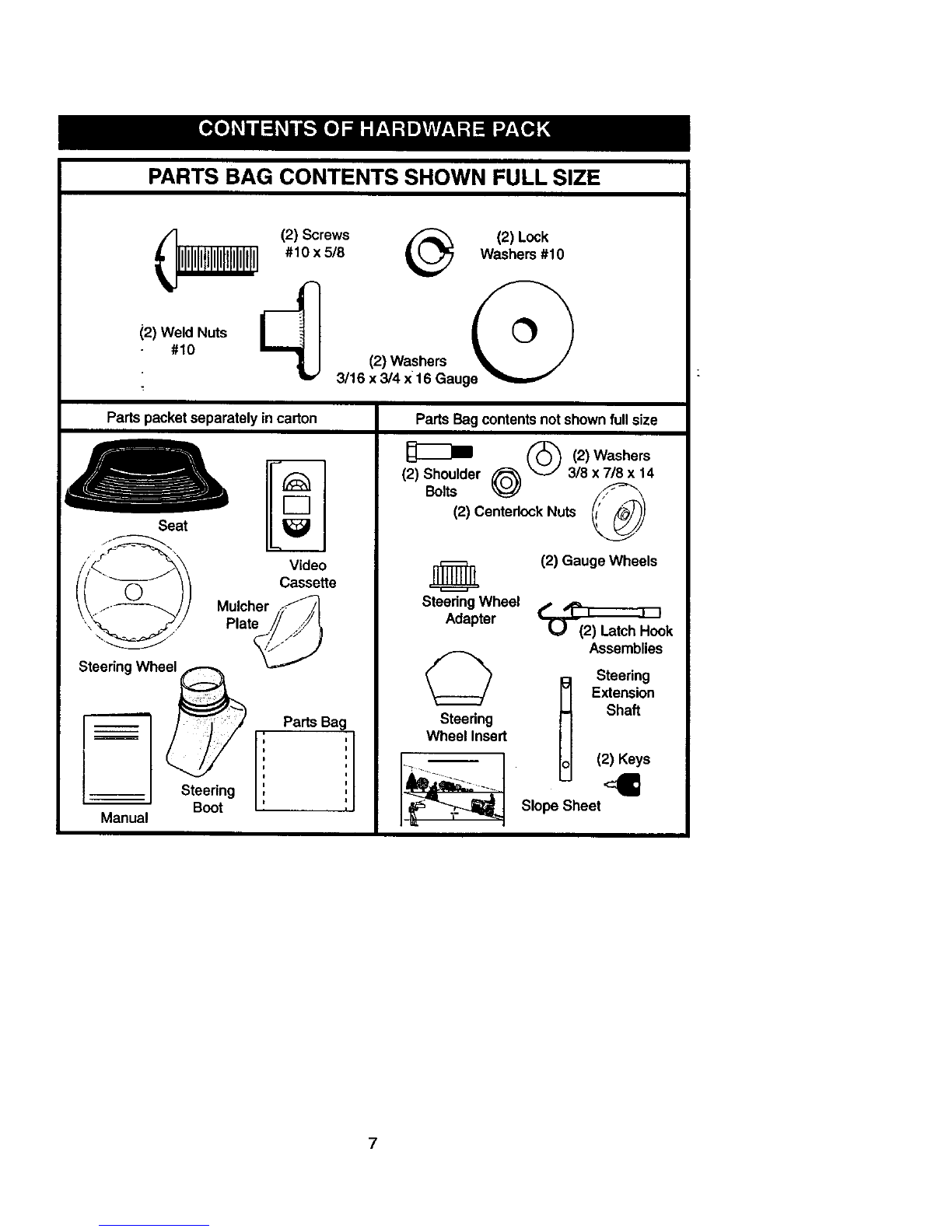

PARTS BAG CONTENTS SHOWN FULL SIZE

(1) Large Rat Washer

O(1) Hex _)t

3/8-16 x 1

(1) Lockwasher

3/8

(1) Hax Bolt

5/16-18x 1-1/4 @(1) Locknut

5/16-18

(1) Shoulder Bolt

5/16-18

(1) Washer

17/32 x1-3/16 x 12 Gauge ©

PARTS BAG CONTENTS SHOWN FULL SIZE

(2)WeldNuts

#10

(2) Screws _ (2) Lock

_#10 x 5/8 W_hem #10

i 0 ,

(2) Washers _/

_' 3/16 x 3/4 x 16 Gauge

Parts packet separately in carton

Seat D

v,.jo

Cassette

Mulcher ._

Plate// J

Steering Wheel

Steering

Boot

Manual

Pads Bag

Parts Bag contentsnot shown full size

(_ (2) Washers

(2) Shoulder "_/ 3/8 x 7/8 x 14

Bolts @

(2) Centerlock Nuts

Steering Wheel

Adapter

Steering

Wheel Insert

(2) Gauge Wheels

_k Assemblies

_Steering

Extension

Shaft

'o (2) Keys

Slope Sheet .c_

Yournew tractor has been assembled at the factory with exception of those parts left.

unassembled for shipping purposes. To ensure safe and proper operation of your tractor

all parts and hardware you assemble must be tightened securely. Use the correct tools

as necessary to insure proper tightness. Review the video cassette before you begin.

TOOLS REQUIRED FOR • Position steering wheel so cross bars

ASSEMBLY are horizontal (left to right) and slide

inside boot and onto adapter.

A socket wrench set will make assembly

easier. Standard wrench sizes you need

are listed below.

(1) 9116" wrench

(1) Phillips Screw-

driver

(1) Utility knife

(1) 3/4" socket with

drive ratchet

When right or left hand is mentioned in

this manual, it means, from your point of

view, when you are in the operating posi-

tion (seated behind the steering wheel).

TO REMOVE TRACTOR FROM

CARTON

(2) 1/2" wrench

(1) Pliers

(1) Tire pressure

gauge

UNPACK CARTON

•Remove all accessible loose parts and

parts boxes from shipping carton (See

page 6).

•Cut, from top to bottom, along lines on.

all four corners of shipping carton, and

lay panels flat.

•Check for any additional loose parts or

boxes and remove.

BEFORE ROLLING TRACTOR OFF

SKID

ATTACH STEERING WHEEL

ASSEMBLE EXTENSION SHAFT AND

BOOT

• Slide extension shaft onto lower steer-

ing shaft. Align mounting holes in exten-

sion and lower shafts and install 5/16

hex bolt and Iocknut. Tighten securely.

IMPORTANT: Tighten bolt and nut secure-

ly to 18-22 ft. Ibs. torque.

•Place tabs of steering boot over tab

slots in dash and push down to secure.

INSTALL STEERING WHEEL

• Position front wheels of the tractor so

they are pointing straight forward.

• Slide steering wheel adapter onto steer-

ing shaft extension.

• Assemble large flat washer, 3/8 lock

washer, 3/8 hex bolt and tighten securely.

• Snap steering wheel insert into center

of steering wheel.

•Remove protective materials from trac-

•tot hood and grill.

IMPORTANT: Check for and remove any

staples in skid that may puncture tires

where tractor is to roll off skid.

Insert

_3/8 Hex Bolt

"_ a/8 L_asher

f___L_ Large Flat

Washer

TO ROLL TRACTOR OFF SKID (See

Operation section for location and

function of controls)

•Press lift lever plunger and raise attach-

ment lift lever to its highest position.

•Release parking brake by depressing

clutch/brake pedal.

•Place gearshift lever in neutral (N) posi-

tion.

• Roll tractor forward off skid.

• Remove banding holding discharge

guard up against tractor.

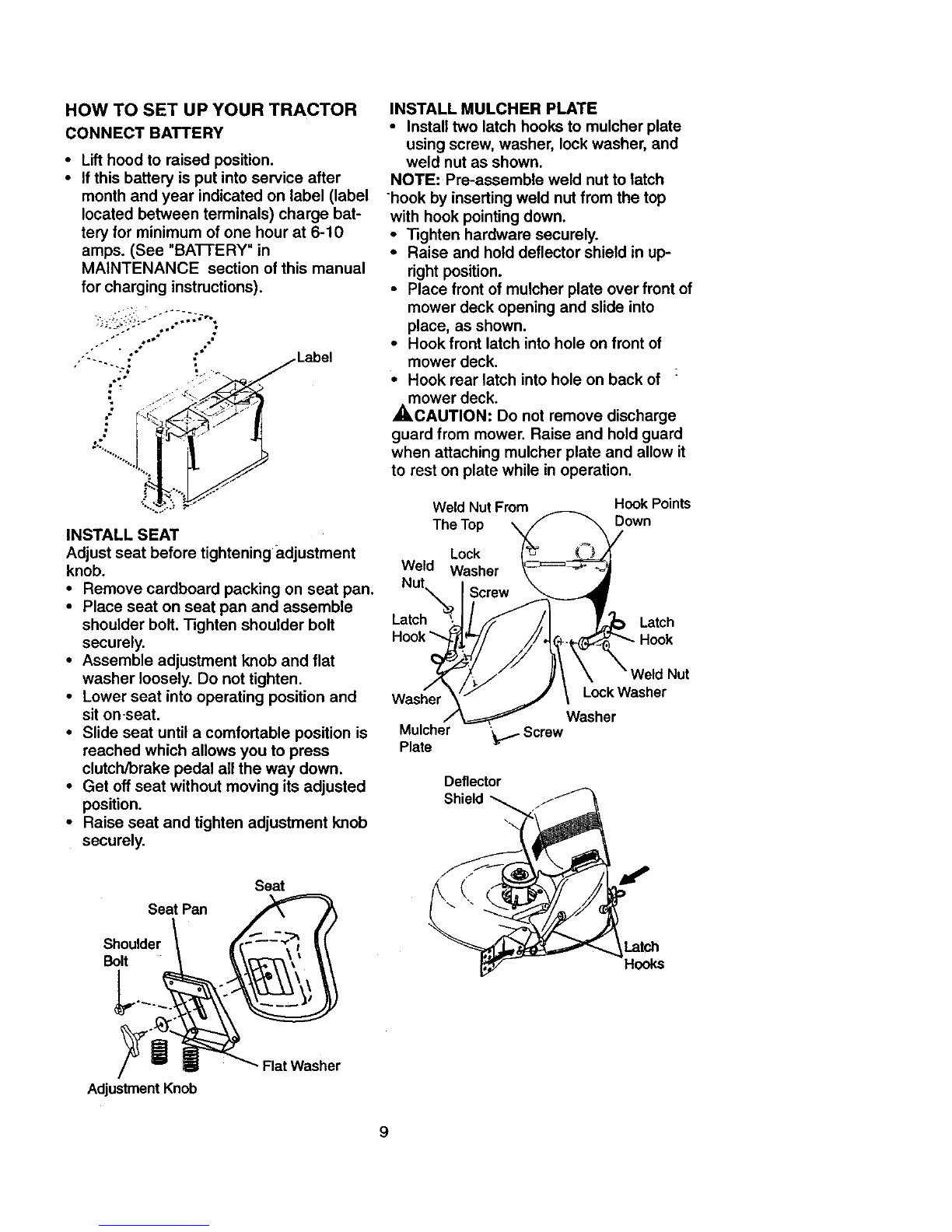

HOW TO SET UP YOUR TRACTOR

CONNECT BATTERY

•Lift hood to raised position.

•If this battery is put into service after

month and year indicated on label (label

located between terminals) charge bat-

tery for minimum of one hour at 6-10

amps. (See "BATIERY" in

MAINTENANCE section of this manual

for charging instructions).

,o •

...... _ _Label

- .-._

INSTALL SEAT

Adjust seat before tightening adjustment

knob.

• Remove cardboard packing on seat pan.

• Place seat on seat pan and assemble

shoulder bolt. Tighten shoulder bolt

securely.

• Assemble adjustment knob and flat

washer loosely. Do not tighten.

•Lower seat into operating position and

sit on seat.

•Slide seat until a comfortable position is

reached which allows you to press

clutch/brake pedal all the way down.

• Get off seat without moving its adjusted

position.

• Raise seat and tighten adjustment knob

securely.

Seat

Seat Pan

Shoulder

Bolt

INSTALL MULCHER PLATE

•Install two latch hooks to mulcher plate

using screw, washer, lock washer, and

weld nut as shown.

NOTE: Pre-assemble weld nut to latch

hook by inserting weld nut from the top

with hook pointing down.

• Tighten hardware securely.

•Raise and hold deflector shield in up-

right position.

•Place front of mulcher plate over front of

mower deck opening and slide into

place, as shown.

•Hook front latch into hole on front of

mower deck.

•Hook rear latch into hole on back of :

mower deck.

_,CAUTION: Do not remove discharge

guard from mower. Raise and hold guard

when attaching mulcher plate and allow it

to rest on plate while in operation.

Weld NutF_m Hook Poin_

The Top Down

Lock

Weld Washer

Latch Latch

_ook

Washer

Mulcher

Plate

Nut

Lock Washer

Washer

'_..,f Screw

Deflector

Shield

_atch

Hooks

Adjustment Knob

Flat Washer

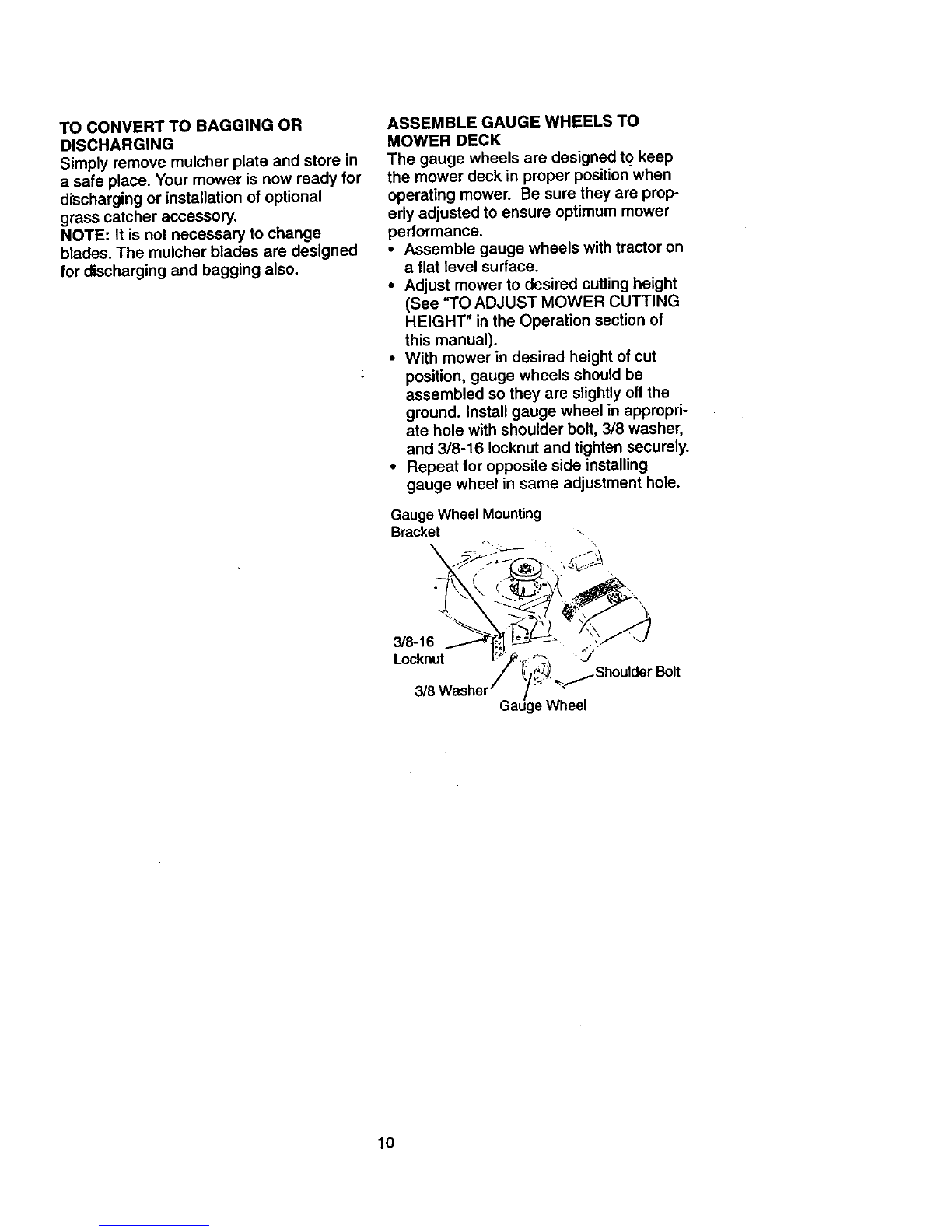

TOCONVERTTO BAGGINGOR

DISCHARGING

Simplyremovemulcherplateandstorein

asafeplace.Yourmowerisnowreadyfor

dischargingorinstallationofoptional

grasscatcheraccessory.

NOTE:Itis notnecessarytochange

blades.Themulcherbladesaredesigned

for discharging and bagging also.

ASSEMBLE GAUGE WHEELS TO

MOWER DECK

The gauge wheels are designed to keep

the mower deck in proper position when

operating mower. Be sure they are prep-

erly adjusted to ensure optimum mower

performance.

•Assemble gauge wheels with tractor on

a flat level surface.

•Adjust mower to desired cutting height

(See "TO ADJUST MOWER CUTTING

HEIGHT" in the Operation section of

this manual).

•With mower in desired height of cut

position, gauge wheels should be

assembled so they are slightly off the

ground. Install gauge wheel in appropri-

ate hole with shoulder bolt, 3/8 washer,

and 3/8-16 Iocknut and tighten securely.

•Repeat for opposite side installing

gauge wheel in same adjustment hole.

Gauge Wheel Mounting

Bracket --

3/8-16

Locknut :J'

Wheel

Table des matières

Autres manuels Craftsman Tondeuse à gazon

Craftsman

Craftsman 917.377030 Manuel utilisateur

Craftsman

Craftsman 917.258510 Manuel utilisateur

Craftsman

Craftsman 247.203690 Manuel utilisateur

Craftsman

Craftsman 917.270730 Manuel utilisateur

Craftsman

Craftsman Rotary Lawn Mower 917.379120 Manuel utilisateur

Craftsman

Craftsman 917.387850 Manuel utilisateur

Craftsman

Craftsman 25743 Manuel utilisateur

Craftsman

Craftsman 3One 917.372910 Manuel utilisateur

Craftsman

Craftsman 917.28750 Manuel utilisateur

Craftsman

Craftsman 917.272463 Manuel utilisateur

Craftsman

Craftsman 917.378470 Manuel utilisateur

Craftsman

Craftsman 917.388835 Manuel utilisateur

Craftsman

Craftsman 917.388262 Manuel utilisateur

Craftsman

Craftsman 917.371800 Manuel utilisateur

Craftsman

Craftsman 917.370562 Manuel utilisateur

Craftsman

Craftsman 917.370720 Manuel utilisateur

Craftsman

Craftsman 917.377190 Manuel utilisateur

Craftsman

Craftsman EZ3 917.251630 Manuel utilisateur

Craftsman

Craftsman 917.274980 Manuel utilisateur

Craftsman

Craftsman 917.275683 Manuel utilisateur

Craftsman

Craftsman 917.377180 Manuel utilisateur

Craftsman

Craftsman 917.374821 Manuel utilisateur

Craftsman

Craftsman 917.375630 Manuel utilisateur

Craftsman

Craftsman 917.255930 Manuel utilisateur

Manuels Tondeuse à gazon populaires d'autres marques

RHINO

RHINO 1958 Manuel utilisateur

Wolf Garten

Wolf Garten Compact plus 40 B Manuel utilisateur

Cub Cadet

Cub Cadet LTX 1045 Manuel utilisateur

GGP ITALY SPA

GGP ITALY SPA CR/CS 434 SERIES Manuel utilisateur

Challenge

Challenge CH18V2 Instructions de fonctionnement

TALEN TOOLS

TALEN TOOLS AVR HGM30 Manuel utilisateur

DEWEZE

DEWEZE ATM-725 Manuel d'utilisation

Weed Eater

Weed Eater 180083 Manuel utilisateur

Husqvarna

Husqvarna Poulan Pro PP185A42 Manuel utilisateur

Better Outdoor Products

Better Outdoor Products Quick Series Manuel utilisateur

Cub Cadet

Cub Cadet 23HP Z-Force 60 Manuel d'utilisation

MTD

MTD 795, 792, 791, 790 Manuel utilisateur

Toro

Toro Groundsmaster 3505-D Manuel utilisateur

Dennis

Dennis FT 610 Manuel utilisateur

AIRFORCE

AIRFORCE F-15 Gen 3 Manuel utilisateur

MTD

MTD 126-220-000 Manuel utilisateur

Toro

Toro 74806 Manuel utilisateur

Stihl

Stihl RMA 443 PV Manuel utilisateur
