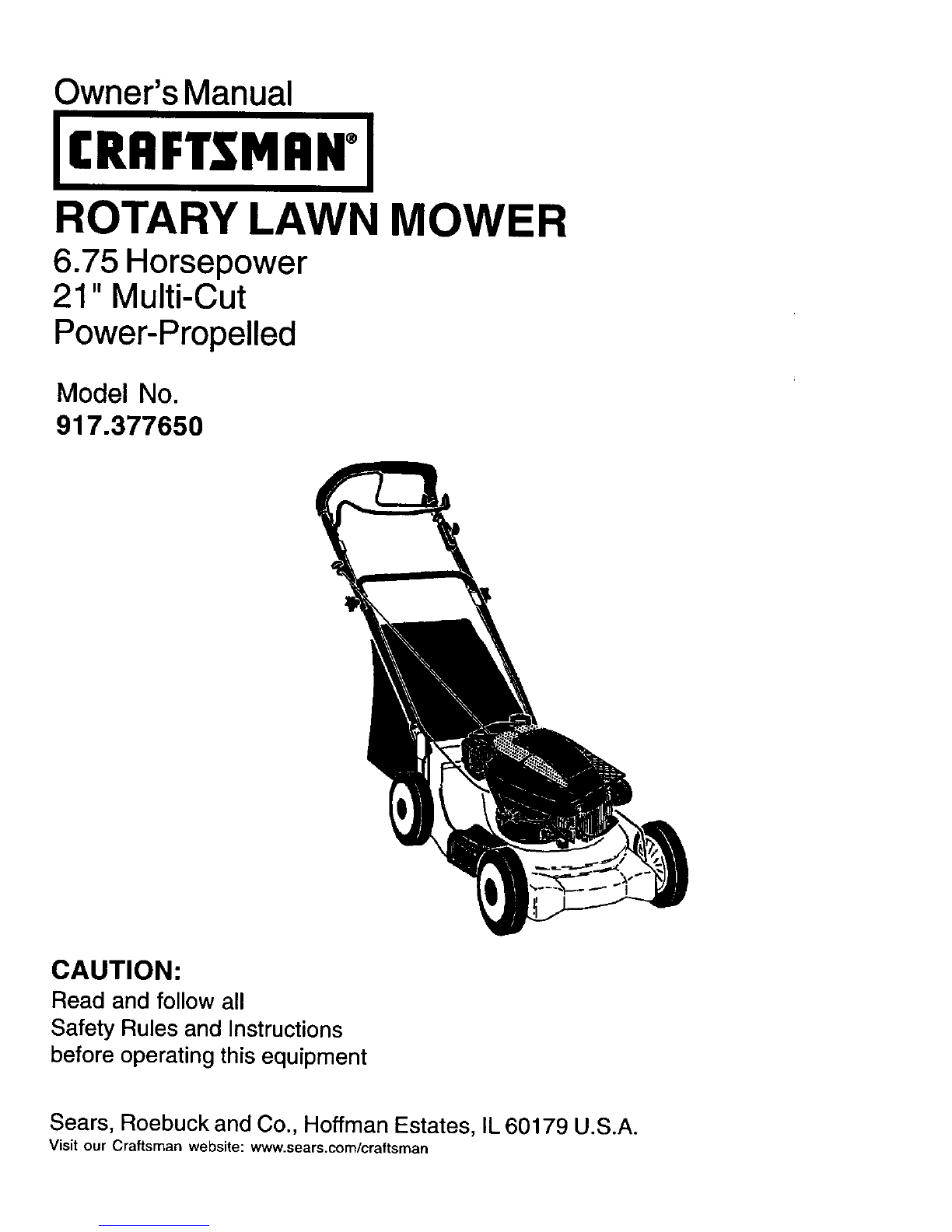

Owner's Manual

I(RRFT.TMRW I

ROTARY LAWN MOWER

6.75 Horsepower

21" Multi-Cut

Power-Propelled

Model No.

917.377650

CAUTION:

Read and follow all

Safety Rules and Instructions

before operating this equipment

Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A.

Visit our Craftsman website: www.sears.comlcraftsman

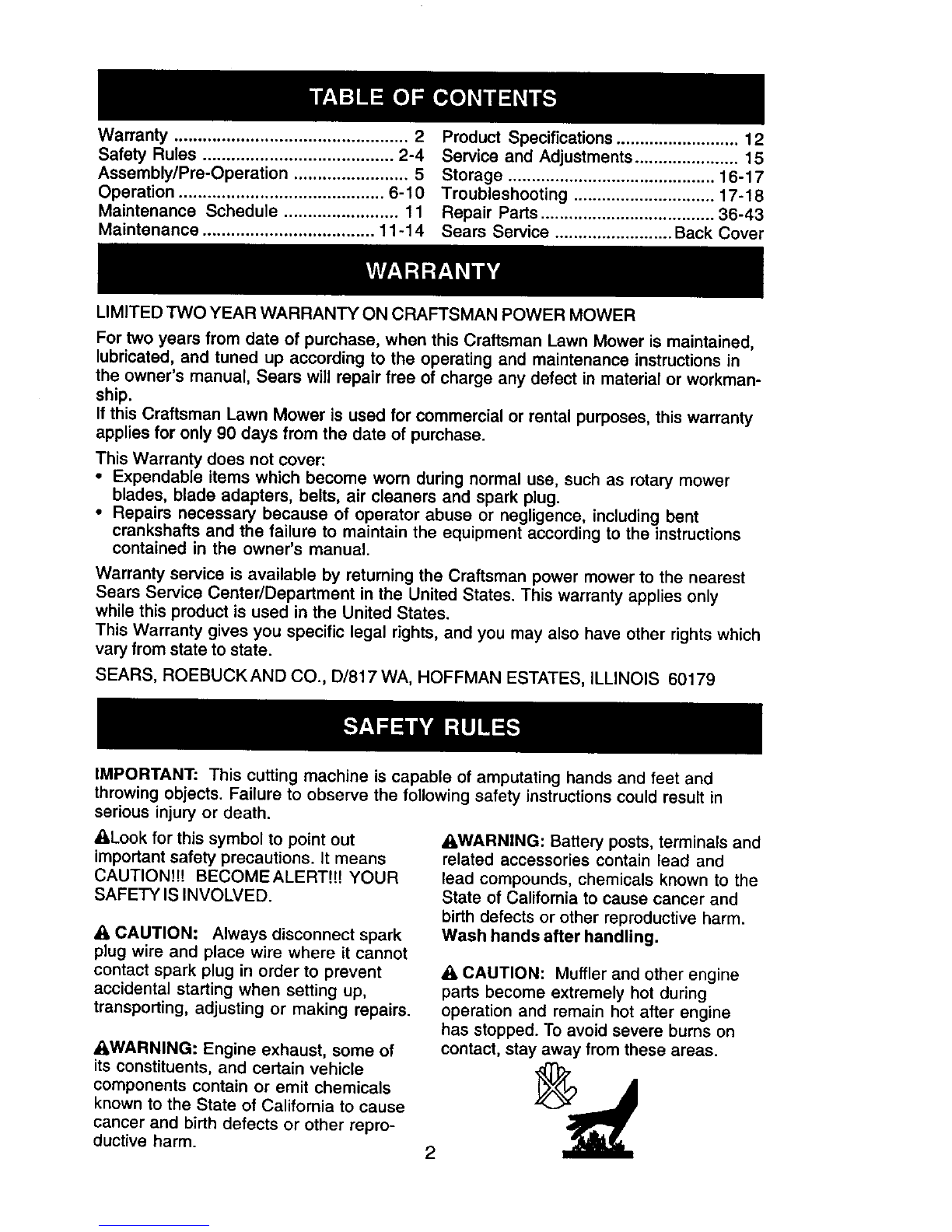

Warranty ................................................. 2

Safety Rules ........................................ 2-4

Assembly/Pre-Operation ........................ 5

Operation ........................................... 6-10

Maintenance Schedule ........................ 11

Maintenance .................................... 11-14

Product Specifications .......................... 12

Service and Adjustments ...................... 15

Storage ............................................ 16-17

Troubleshooting .............................. 17-18

Repair Parts ..................................... 36-43

Sears Service ......................... Back Cover

LIMITED TWO YEAR WARRANTY ON CRAFTSMAN POWER MOWER

For two years from date of purchase, when this Craftsman Lawn Mower is maintained,

lubricated, and tuned up according to the operating and maintenance instructions in

the owner's manual, Sears will repair free of charge any defect in material or workman-

ship.

If this Craftsman Lawn Mower is used for commercial or rental purposes, this warranty

applies for only 90 days from the date of purchase.

This Warranty does not cover:

•Expendable items which become worn during normal use, such as rotary mower

blades, blade adapters, belts, air cleaners and spark plug.

• Repairs necessary because of operator abuse or negligence, including bent

crankshafts and the failure to maintain the equipment according to the instructions

contained in the owner's manual.

Warranty service is available by returning the Craftsman power mower to the nearest

Sears Service Center/Department in the United States. This warranty applies only

while this product is used in the United States.

This Warranty gives you specific legal rights, and you may also have other rights which

vary from state to state.

SEARS, ROEBUCK AND CO., D/817 WA, HOFFMAN ESTATES, ILLINOIS 60179

IMPORTANT: This cutting machine is capable of amputating hands and feet and

throwing objects. Failure to observe the following safety instructions could result in

serious injury or death.

ALook for this symbol to point out

important safety precautions. It means

CAUTION!H BECOMEALERT!!! YOUR

SAFETY IS iNVOLVED.

&CAUTION: Always disconnect spark

plug wire and place wire where it cannot

contact spark plug in order to prevent

accidental starting when setting up,

transporting, adjusting or making repairs.

&WARNING: Engine exhaust, some of

its constituents, and certain vehicle

components contain or emit chemicats

known to the State of California to cause

cancer and birth defects or other repro-

ductive harm.

AWARNING: Battery posts, terminals and

related accessories contain lead and

lead compounds, chemicals known to the

State of California to cause cancer and

birth defects or other reproductive harm.

Wash hands after handling.

&CAUTION: Muffler and other engine

parts become extremely hot during

operation and remain hot after engine

has stopped. To avoid severe burns on

contact, stay away from these areas.

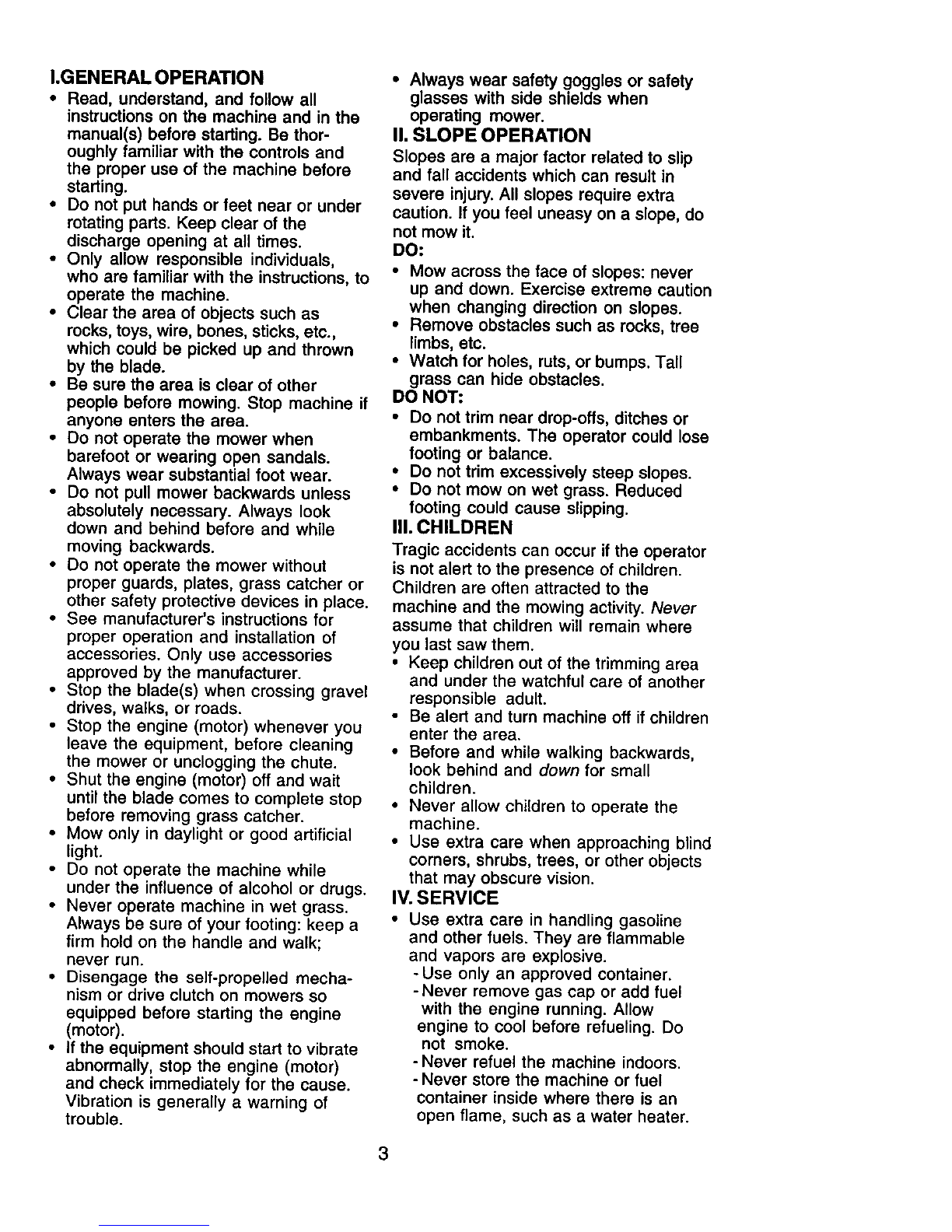

I.GENERAL OPERATION

•Read, understand, and follow all

instructions on the machine and in the

manual(s) before starting. Be thor-

oughly familiar with the controls and

the proper use of the machine before

starting.

•Do not put hands or feet near or under

rotating parts. Keep clear of the

discharge opening at all times.

• Only allow responsible individuals,

who are familiar with the instructions, to

operate the machine.

•Clear the area of objects such as

rocks, toys, wire, bones, sticks, etc.,

which could be picked up and thrown

by the blade.

•Be sure the area is clear of other

people before mowing. Stop machine if

anyone enters the area.

•Do not operate the mower when

barefoot or wearing open sandals.

Always wear substantial foot wear.

•Do not pull mower backwards unless

absolutely necessary. Always look

clown and behind before and while

moving backwards.

•Do not operate the mower without

proper guards, plates, grass catcher or

other safety protective devices in place.

•See manufacturer's instructions for

proper operation and installation of

accessories. Only use accessories

approved by the manufacturer.

•Stop the blade(s) when crossing gravel

drives, walks, or roads.

• Stop the engine (motor) whenever you

leave the equipment, before cleaning

the mower or unclogging the chute.

•Shut the engine (motor) off and wait

until the blade comes to complete stop

before removing grass catcher.

•Mow only in daylight or good artificial

light.

• Do not operate the machine while

under the influence of alcohol or drugs.

•Never operate machine in wet grass.

Always be sure of your footing: keep a

firm hold on the handle and walk;

never run.

•Disengage the self-propelled mecha-

nism or drive clutch on mowers so

equipped before starting the engine

(motor).

• If the equipment should start to vibrate

abnormally, stop the engine (motor)

and check immediately for the cause.

Vibration is generally awarning of

trouble.

•Always wear safety goggles or safety

glasses with side shields when

operating mower.

II. SLOPE OPERATION

Slopes are a major factor related to slip

and fall accidents which can result in

severe injury. All slopes require extra

caution. If you feel uneasy on a slope, do

not mow it.

DO:

•Mow across the face of slopes: never

up and down. Exercise extreme caution

when changing direction on slopes.

•Remove obstacles such as rocks, tree

limbs, etc.

•Watch for holes, ruts, or bumps. Tall

grass can hide obstacles.

DO NOT:

•Do not trim near drop-offs, ditches or

embankments. The operator could lose

footing or balance.

•Do not trim excessively steep slopes.

•Do not mow on wet grass. Reduced

footing could cause slipping.

II1. CHILDREN

Tragic accidents can occur if the operator

is not alert to the presence of children.

Children are often attracted to the

machine and the mowing activity. Never

assume that children will remain where

you last saw them.

• Keep children out of the trimming area

and under the watchful care of another

responsible adult.

•Be alert and turn machine off if children

enter the area.

•Before and while walking backwards,

look behind and down for small

children.

•Never allow children to operate the

machine.

•Use extra care when approaching blind

corners, shrubs, trees, or other objects

that may obscure vision.

IV. SERVICE

•Use extra care in handling gasoline

and other fuels. They are flammable

and vapors are explosive.

-Use only an approved container.

-Never remove gas cap or add fuel

with the engine running. Allow

engine to cool before refueling. Do

not smoke.

-Never refuel the machine indoors.

- Never store the machine or fuel

container inside where there is an

open flame, such as a water heater.

•Never run a machine inside a closed

area.

•Never make adjustments or repairs

with the engine (motor) running.

Disconnect the spark plug wire, and

keep the wire away from the plug to

prevent accidental starting.

• Keep nuts and bolts, especially blade

attachment bolts, tight and keep

equipment in good condition.

• Never tamper with safety devices.

Check their proper operation regularly.

• Keep machine free of grass, leaves, or

other debris build-up. Clean oil or fuel

spillage. Allow machine to cool before

storing.

• Stop and inspect the equipment if you

strike an object. Repair, if necessary,

before restarting.

•Never attempt to make wheel height

adjustments while the engine (motor) is

running.

•Grass catcher components are subject

to wear, damage, and deterioration,

which could expose moving parts or

allow objects to be thrown. Frequently

check components and replace with

manufacturer's recommended parts,

when necessary.

• Mower blades are sharp and can cut.

Wrap the blade(s) or wear gloves, and

use extra caution when servicing them.

• Do not change the engine governor

setting or overspeed the engine.

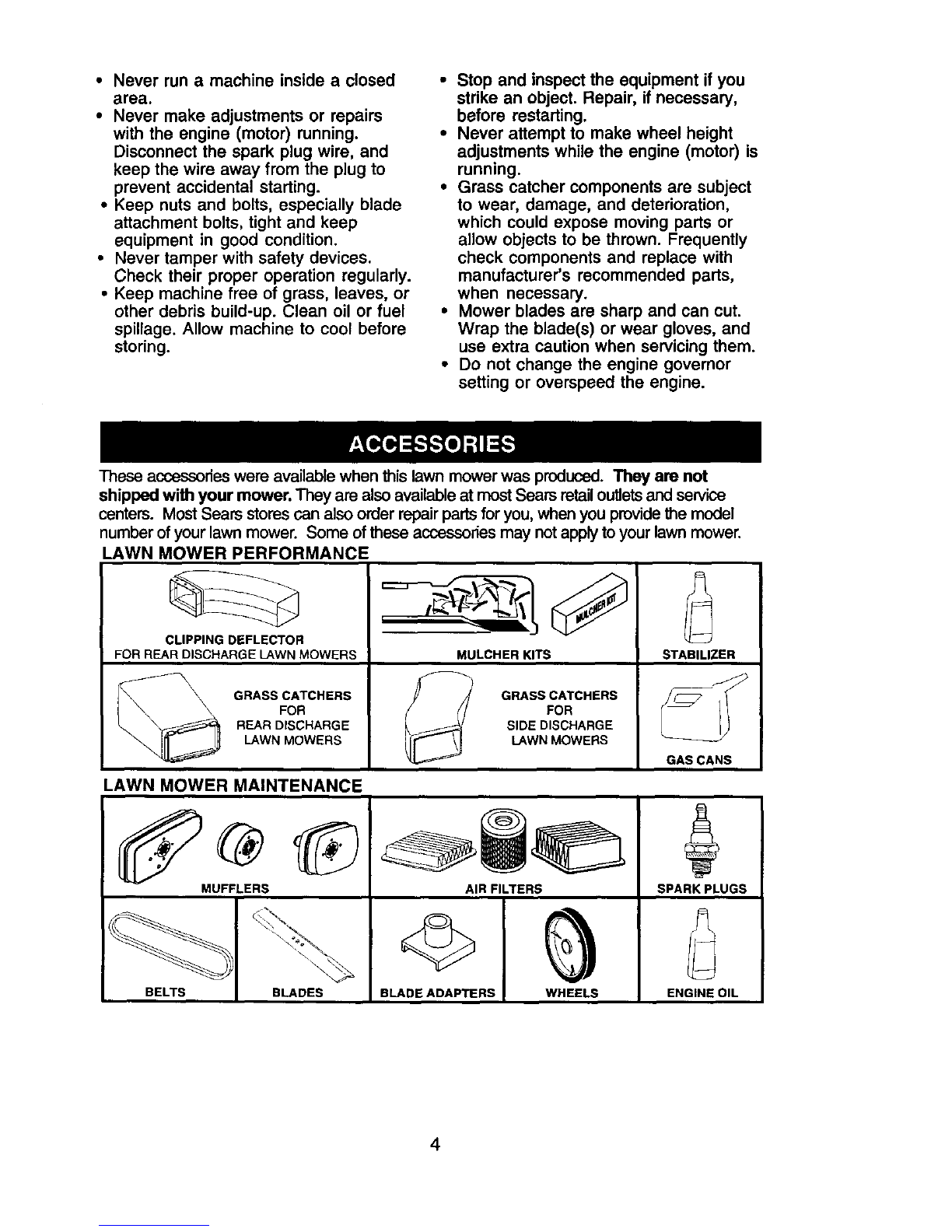

These accessories were available when this lawn mower was produced. They are not

shipped with your mower. They are also available at most Sears retail outlets and service

centers. Most Sears stores can also order repair parts for you, when you provide the model

number of your lawn mower. Some of these accessories may not apply to your lawn mower.

LAWN MOWER PERFORMANCE

CLIPPING DEFLECTOR

FOR REAR DISCHARGE LAWN MOWERS

GRASS CATCHERS

FOR

REAR DISCHARGE

LAWN MOWERS

MULCHER KITS

GRASS CATCHERS

FOR

SIDE DISCHARGE

LAWN MOWERS

STABILIZER

GAS CANS

LAWN MOWER MAINTENANCE

MUFFLERS

BELTS BLADES BLADE ADAPTERS

AIR FILTERS

WHEELS

SPARK PLUGS

ENGINE OIL

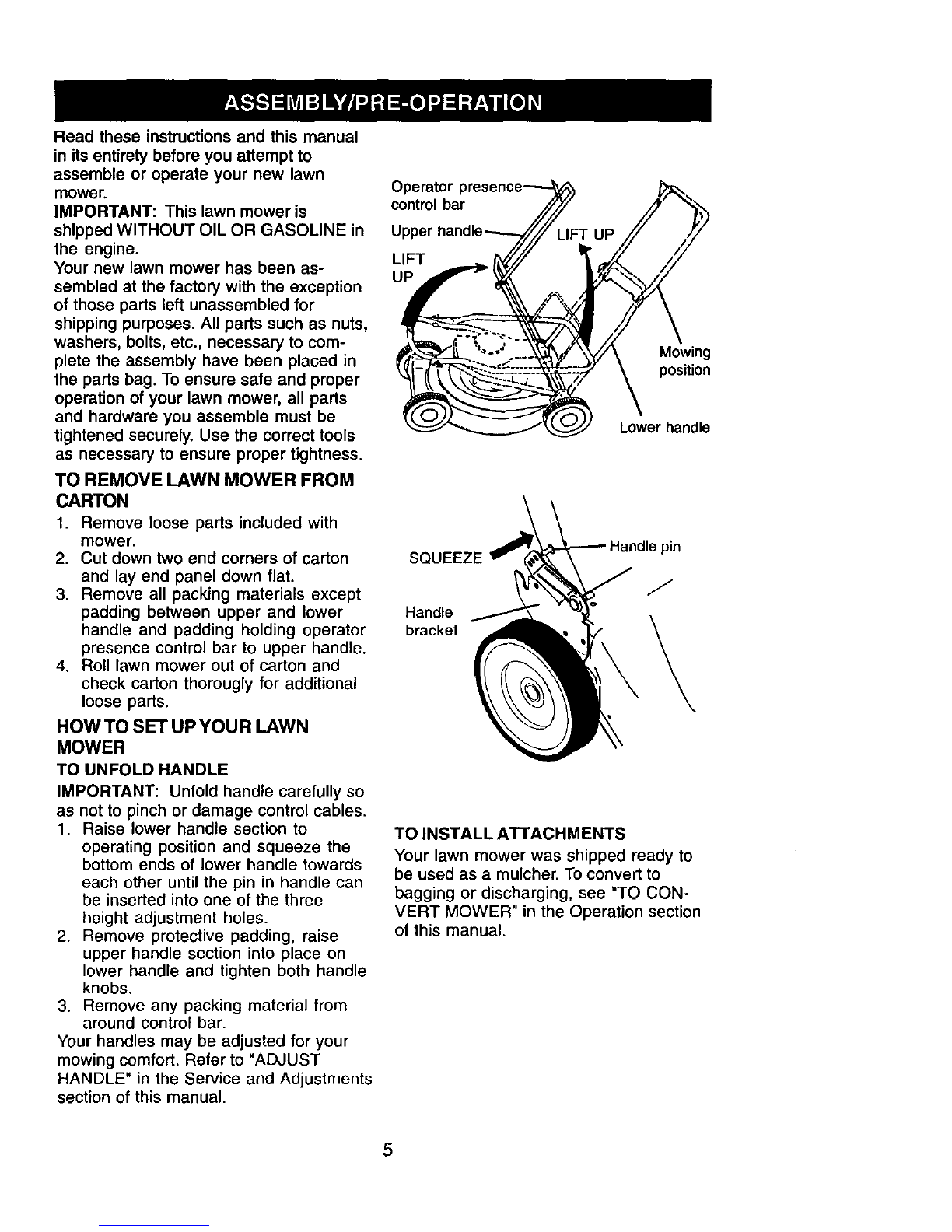

Read these instructions and this manual

in its entirety before you attempt to

assemble or operate your new lawn

mower.

IMPORTANT: This lawn mower is

shipped WITHOUT OIL OR GASOLINE in

the engine.

Your new lawn mower has been as-

sembled at the factory with the exception

of those parts left unassembled for

shipping purposes. All parts such as nuts,

washers, belts, etc., necessary to com-

plete the assembly have been placed in

the parts bag. To ensure safe and proper

operation of your lawn mower, all parts

and hardware you assemble must be

tightened secumlyo Use the correct tools

as necessary to ensure proper tightness.

TO REMOVE LAWN MOWER FROM

CARTON

1. Remove loose parts included with

mower.

2. Cut down two end corners of carton

and lay end panel down flat.

3. Remove all packing materials except

padding between upper and lower

handle and padding holding operator

presence control bar to upper handle.

4. Roll lawn mower out of carton and

check carton thorougly for additional

loose parts.

HOW TO SET UP YOUR LAWN

MOWER

TO UNFOLD HANDLE

IMPORTANT: Unfold handle carefully so

as not to pinch or damage control cables.

1. Raise lower handle section to

operating position and squeeze the

bottom ends of lower handle towards

each other until the pin in handle can

be inserted into one of the three

height adjustment holes.

2. Remove protective padding, raise

upper handle section into place on

lower handle and tighten both handle

knobs.

3. Remove any packing material from

around control bar.

Your handles may be adjusted for your

mowing comfort. Refer to "ADJUST

HANDLE" in the Service and Adjustments

section of this manual.

Operator

control bar

LIFT

Mowing

position

Lower handle

SQUEEZE

Handle

bracket

TOINSTALL ATTACHMENTS

Your lawn mower was shipped ready to

be used as a mulcher. To convert to

bagging or discharging, see "TO CON-

VERT MOWER" in the Operation section

of this manual.

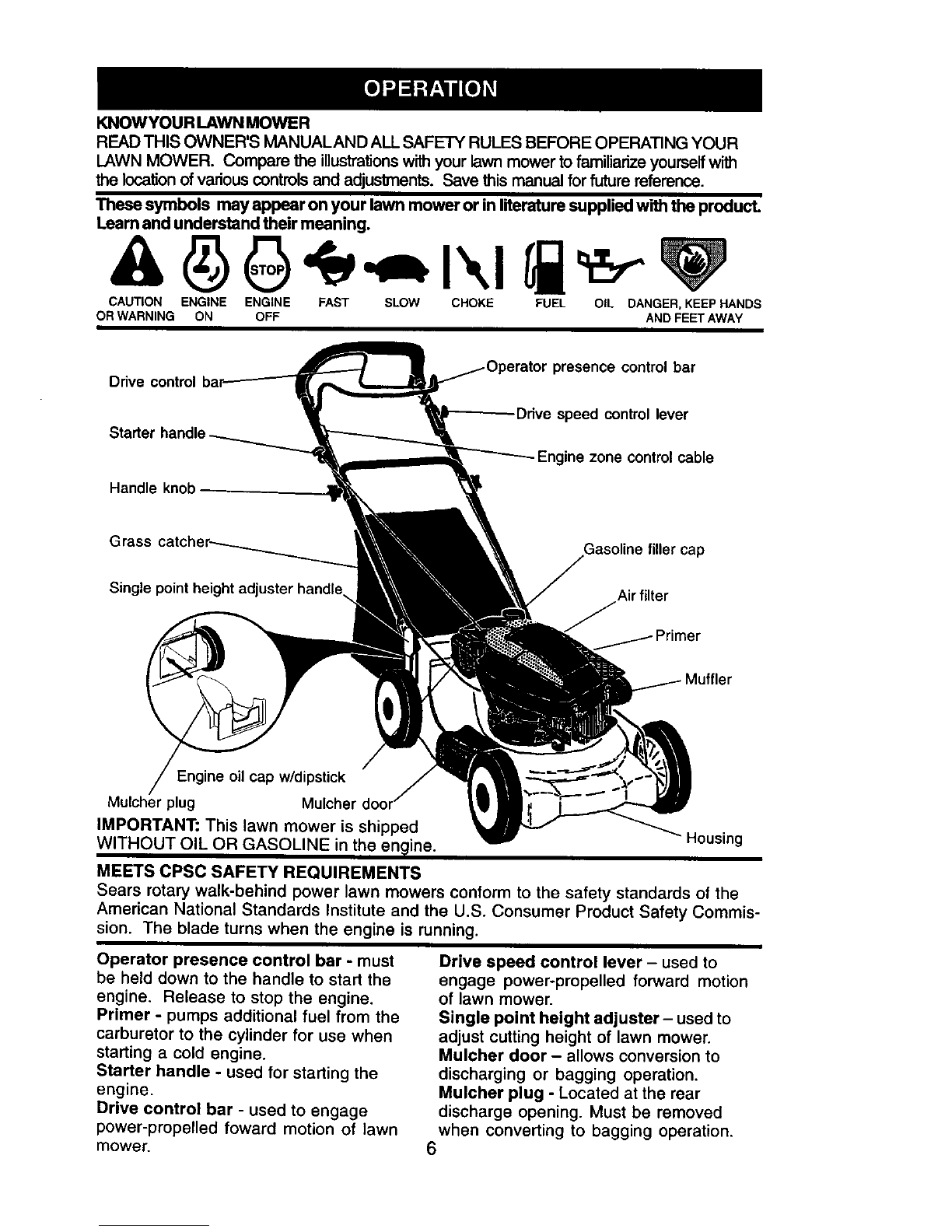

KNOWYOUR LAWN MOWER

READ THIS OWNER'S MANUALAND ALL SAFETY RULES BEFORE OPERATING YOUR

LAWN MOWER. Compare the illustrations with your lawn mower to familiarize yourself with

the location of various controls and adjustments. Save this manual for future reference.

These symbols may appear on your lawn mower or in literature supplied with the product.

Learn and understand their meaning.

CAUTION ENGINE ENGINE FAST SLOW CHOKE FUEL OIL DANGER, KEEP HANDS

OR WARNING ON OFF AND FEET AWAY

Drive presence control bar

Ddve speed control lever

Handle knob

zone controlcable

Grass

Single point height adjuster handle

Gasoline filler cap

t_irfilter

Mulcher plug

IMPORTANT: This lawn mower is shipped

WITHOUT OIL OR GASOLINE in the engine. Housing

MEETS CPSC SAFETY REQUIREMENTS

Sears rotary walk-behind power lawn mowers conform to the safety standards of the

American National Standards Institute and the U.S. Consumer Product Safety Commis-

sion. The blade turns when the engine is running.

Operator presence control bar -must

be held down to the handle to start the

engine. Release to stop the engine.

Primer -pumps additional fuel from the

carburetor to the cylinder for use when

starting a cold engine.

Starter handle -used for starting the

engine.

Drive control bar - used to engage

power-propelled foward motion of lawn

mower.

Drive speed control lever - used to

engage power-propelled forward motion

of lawn mower.

Single point height adjuster - used to

adjust cutting height of lawn mower.

Mulcher door - allows conversion to

discharging or bagging operation.

Mulcher plug -Located at the rear

discharge opening. Must be removed

when converting to bagging operation.

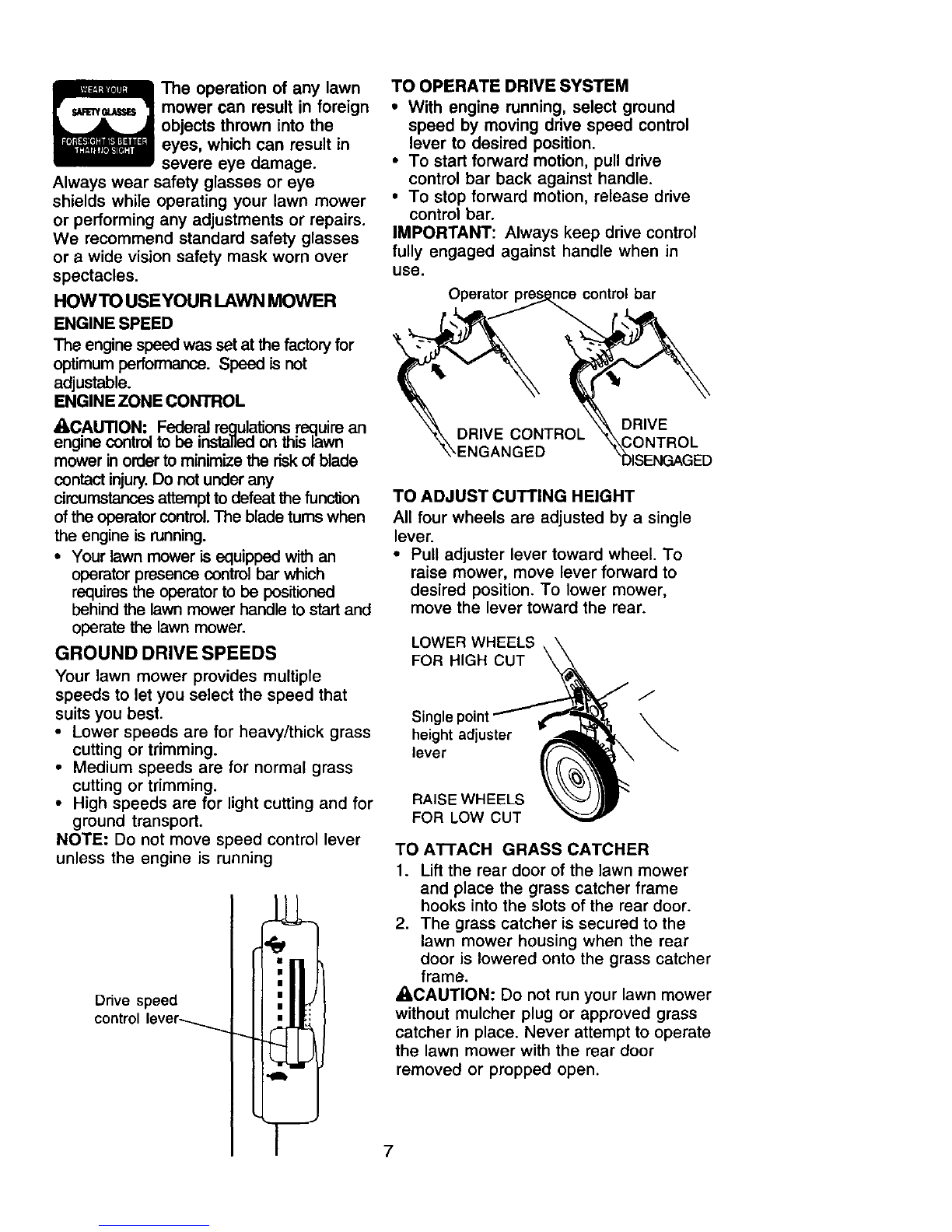

Theoperationof anylawn

mower can result in foreign

objects thrown into the

eyes, which can result in

severe eye damage.

Always wear safety glasses or eye

shields while operating your lawn mower

or performing any adjustments or repairs.

We recommend standard safety glasses

or a wide vision safety mask worn over

spectacles.

HOWTO USEYOUR LAWN MOWER

ENGINE SPEED

The engine speed was set at the factory for

optimum performance. Speed is not

adjustable.

ENGINE ZONE CONTROL

ACAUTION: Federal re_:lulations .reg,uim an

engine control to be installed on this lawn

mower in order to minimize the risk of blade

contact injury. Do not under any

circumstances attempt to defeat the function

of the operator control. The blade tums when

the engine is running.

•Your lawn mower is equipped with an

operator presence control bar which

requires the operator to be positioned

behind the lawn mower handle to start and

operate the lawn mower.

GROUND DRIVE SPEEDS

Your lawn mower provides multiple

speeds to let you select the speed that

suits you best.

• Lower speeds are for heavy/thick grass

cutting or trimming.

• Medium speeds are for normal grass

cutting or trimming.

•High speeds are for light cutting and for

ground transport.

NOTE: Do not move speed control lever

unless the engine is running

Ddve speed

TO OPERATE DRIVE SYSTEM

•With engine running, select ground

speed by moving drive speed control

lever to desired position.

•To start forward motion, pull drive

control bar back against handle.

•To stop forward motion, release drive

control bar.

IMPORTANT: Always keep drive control

fully engaged against handle when in

use.

Operator :ontrolbar

DRIVE

DRIVE CONTROL

_,ENGANGED

TO ADJUST CUTTING HEIGHT

All four wheels are adjusted by a single

lever.

•Pull adjuster lever toward wheel. To

raise mower, move lever forward to

desired position. To lower mower,

move the lever toward the rear.

LOWER WHEELS

FOR HIGH CUT

Sing

height adjuster

lever

RAISE WHEELS

FOR LOW CUT

TO ATTACH GRASS CATCHER

1. Lift the rear door of the lawn mower

and place the grass catcher frame

hooks into the slots of the rear door.

2. The grass catcher is secured to the

lawn mower housing when the rear

door is lowered onto the grass catcher

frame.

ACAUTION: Do not run your lawn mower

without mulcher plug or approved grass

catcher in place. Never attempt to operate

the lawn mower with the rear door

removed or propped open.

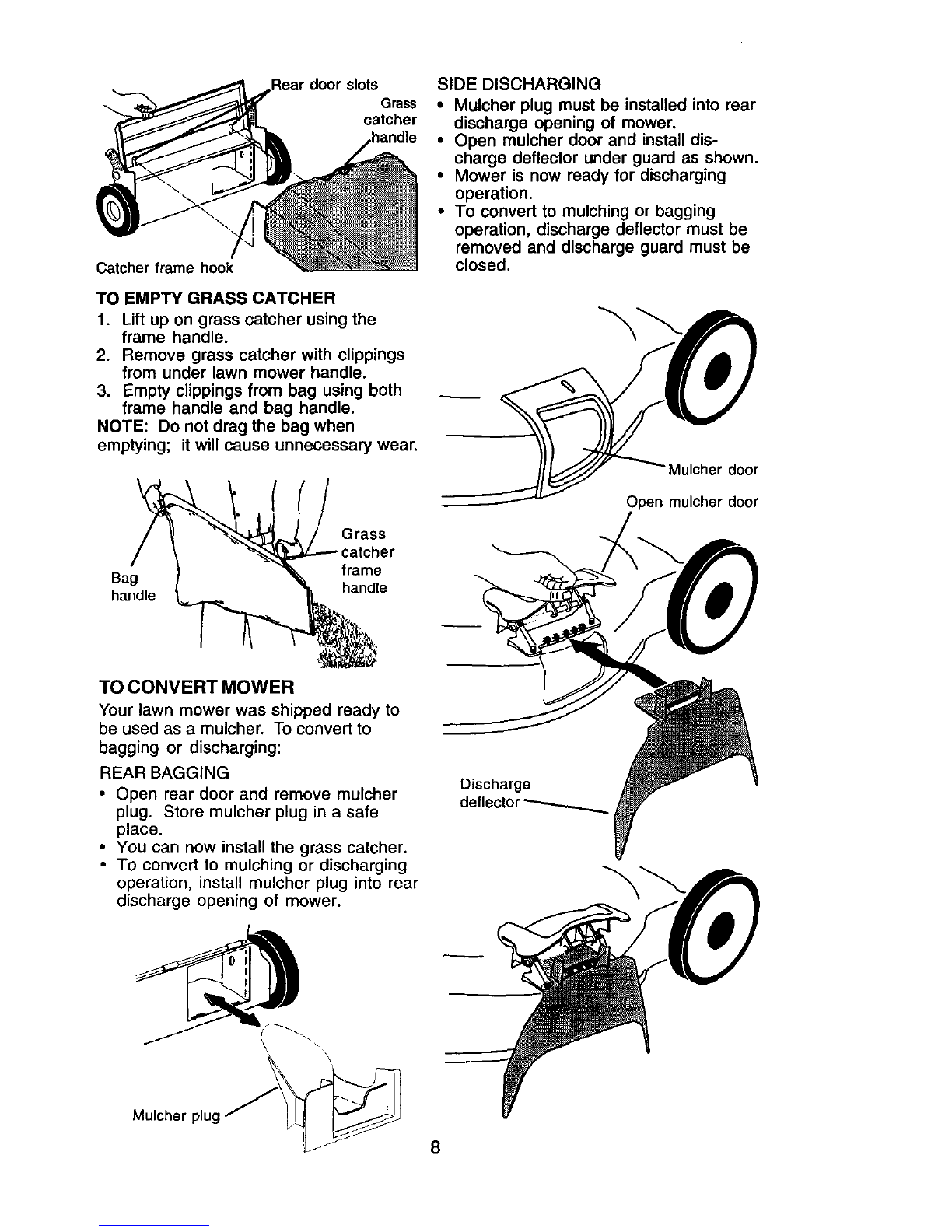

Rear door slotsGrass

catcher

Catcher frame hook

TO EMPTY GRASS CATCHER

1. Lift up on grass catcher using the

frame handle.

2. Remove grass catcher with clippings

from under lawn mower handle.

3, Empty clippings from bag using beth

frame handle and bag handle.

NOTE: Do not drag the bag when

emptying; it will cause unnecessary wear.

(/ Grass

frame

Bag handle

handle

TO CONVERT MOWER

Your lawn mower was shipped ready to

be used as a mulcher. To convert to

bagging or discharging:

REAR BAGGING

•Open rear door and remove mulcher

plug. Store mulcher plug in a safe

place.

• You can now install the grass catcher.

• To convert to mulching or discharging

operation, install mulcher plug into rear

discharge opening of mower.

Mulcher plug/_

SIDE DISCHARGING

•Mulcher plug must be installed into rear

discharge opening of mower.

•Open mulcher door and install dis-

charge deflector under guard as shown.

•Mower is now ready for discharging

operation.

•To convert to mulching or bagging

operation, discharge deflector must be

removed and discharge guard must be

closed.

Mulcher door

Open mulcher door

Discharge

deflector

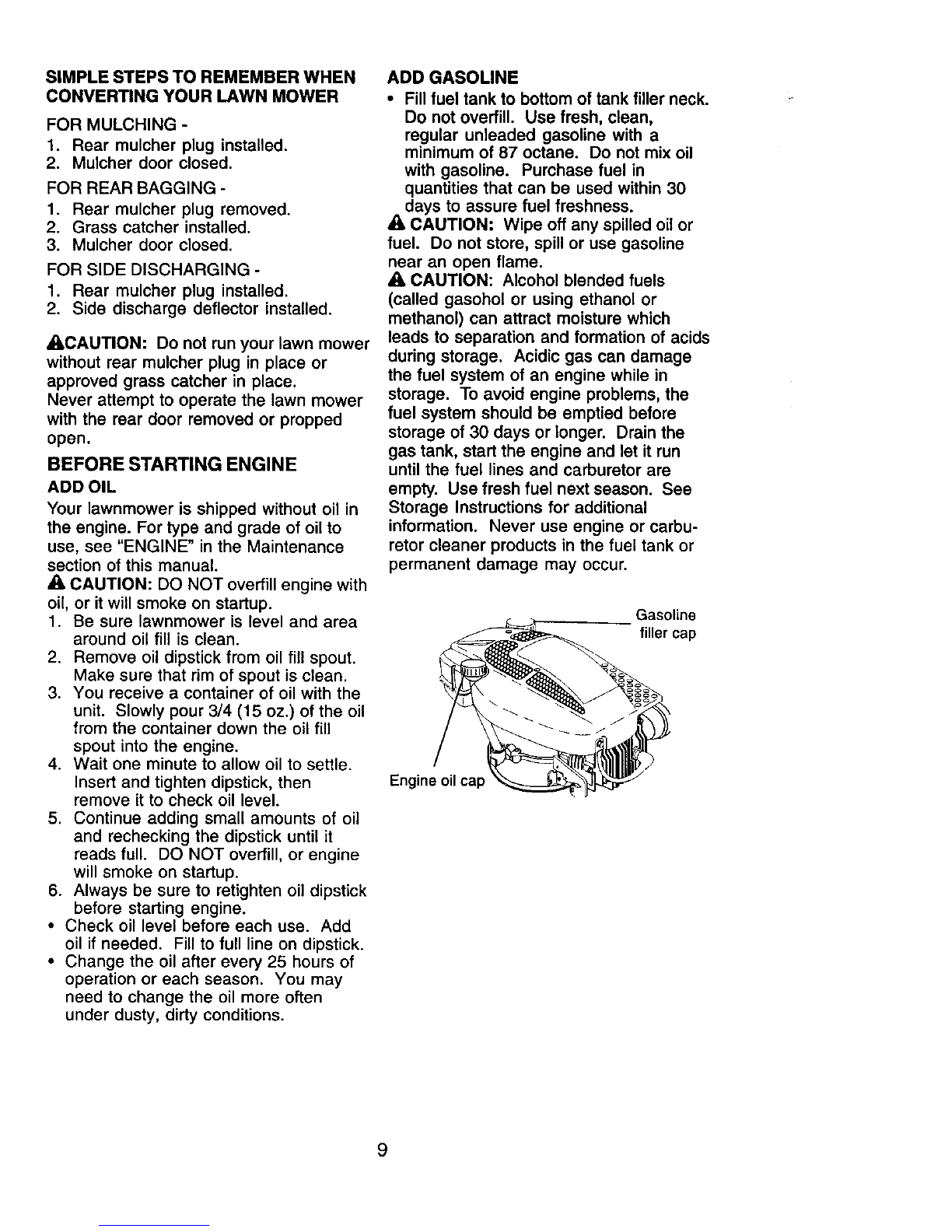

SIMPLE STEPS TO REMEMBER WHEN

CONVERTING YOUR LAWN MOWER

FOR MULCHING -

1. Rear mulcher plug installed.

2. Mulcher door closed.

FOR REAR BAGGING -

1. Rear mulcher plug removed.

2. Grass catcher installed.

3. Mulcher door closed.

FOR SIDE DISCHARGING -

1. Rear mulcher plug installed.

2. Side discharge deflector installed.

ACAUTION: Do not run your lawn mower

without rear mulcher plug in place or

approved grass catcher in place.

Never attempt to operate the lawn mower

with the rear door removed or propped

open.

BEFORE STARTING ENGINE

ADD OIL

Your lawnmower is shipped without oil in

the engine. For type and grade of oil to

use, see "ENGINE" in the Maintenance

section of this manual.

A CAUTION: DO NOT overfill engine with

oil, or it will smoke on startup.

1. Be sure lawnmower is level and area

around oil fill is clean.

2. Remove oil dipstick from oil fill spout.

Make sure that rim of spout is clean.

3. You receive a container of oil with the

unit. Slowly pour 3/4 (15 oz.) of the oil

from the container down the oil fill

spout into the engine.

4. Wait one minute to allow oil to settle.

Insert and tighten dipstick, then

remove it to check oil level.

5. Continue adding small amounts of oil

and rechecking the dipstick until it

reads full. DO NOT overfill, or engine

will smoke on startup.

6. Always be sure to retighten oil dipstick

before starting engine.

•Check oil level before each use. Add

oil if needed. Fill to full line on dipstick.

• Change the oil after every 25 hours of

operation or each season. You may

need to change the oil more often

under dusty, dirty conditions.

ADD GASOLINE

• Fill fuel tank to bottom of tank filler neck.

Do not overfill. Use fresh, clean,

regular unleaded gasoline with a

minimum of 87 octane. Do not mix oil

with gasoline. Purchase fuel in

quantities that can be used within 30

days to assure fuel freshness.

A CAUTION: Wipe off any spilled oil or

fuel. Do not store, spill or use gasoline

near an open flame.

A CAUTION: Alcohol blended fuels

(called gasohol or using ethanol or

methanol) can attract moisture which

leads to separation and formation of acids

during storage. Acidic gas can damage

the fuel system of an engine while in

storage. To avoid engine problems, the

fuel system should be emptied before

storage of 30 days or longer. Drain the

gas tank, start the engine and let it run

until the fuel lines and carburetor are

empty. Use fresh fuel next season. See

Storage Instructions for additional

information. Never use engine or carbu-

retor cleaner products in the fuel tank or

permanent damage may occur.

Gasoline

filler cap

Engine oil cap

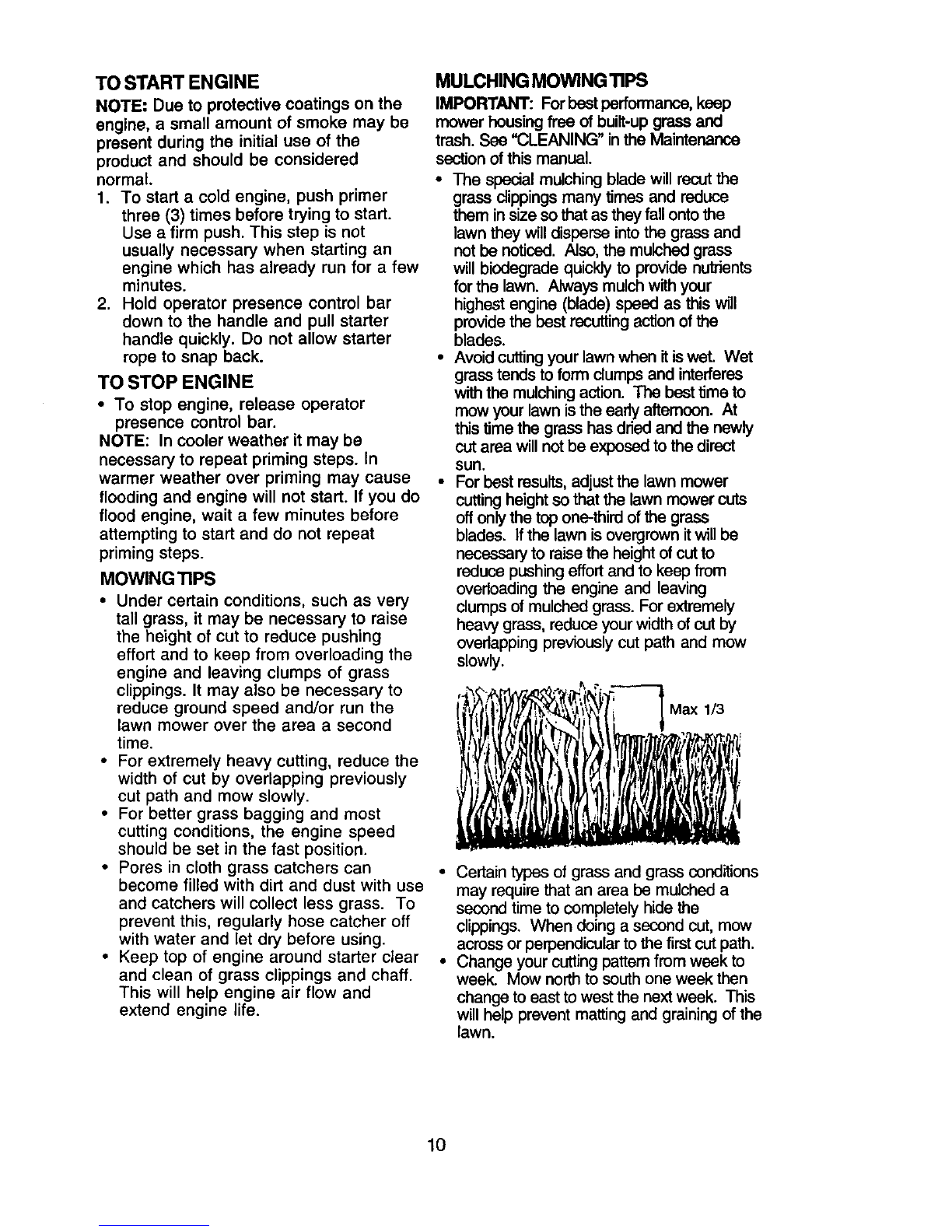

TO START ENGINE

NOTE: Due to protective coatings on the

engine, a small amount of smoke may be

present during the initial use of the

product and should be considered

normal.

1. To start a cold engine, push primer

three (3) times before trying to start.

Use a firm push. This step is not

usually necessary when starting an

engine which has already run for afew

minutes.

2. Hold operator presence control bar

down to the handle and pull starter

handle quickly. Do not allow starter

rope to snap back.

TO STOP ENGINE

• To stop engine, release operator

presence control bar.

NOTE: In cooler weather it may be

necessary to repeat priming steps. In

warmer weather over priming may cause

flooding and engine will not start. If you do

flood engine, wait a few minutes before

attempting to start and do not repeat

priming steps.

MOWING TIPS

• Under certain conditions, such as very

tall grass, it may be necessary to raise

the height of cut to reduce pushing

effort and to keep from overloading the

engine and leaving clumps of grass

clippings. It may also be necessary to

reduce ground speed and/or run the

lawn mower over the area a second

time.

• For extremely heavy cutting, reduce the

width of cut by overlapping previously

cut path and mow slowly.

•For better grass bagging and most

cutting conditions, the engine speed

should be set in the fast position.

• Pores in cloth grass catchers can

become filled with dirt and dust with use

and catchers will collect less grass. To

prevent this, regularly hose catcher off

with water and let dry before using.

• Keep top of engine around starter clear

and clean of grass clippings and chaff.

This will help engine air flow and

extend engine life.

MULCHING MOWING TIPS

IMPORTANT: Forbeet performance, keep

mower housing free of built-up grass and

trash. See "CLEANING" in the Maintenance

section of this manual.

•The special mulching blade will recur the

grass clippings many times and reduce

them in size so that as they fall onto the

lawn they will disperse intothe grass and

not be noticed. Also, the mulched grass

will biodegrade quickly to provide nutrients

for the lawn. Always mulch with your

highest engine (blade) spend as this will

provide the best reoutting action of the

blades.

• Avoid cutting your lawn when it is wet. Wet

grass tends to form dumps and interferes

with the mulching action. The best time to

mow your lawn is the early aftemoon. At

this time the grass has dried and the newly

cut area will not be exposed to the direct

sun.

•For best results, adjust the lawn mower

cutting height so that the lawn mower cuts

offonly the top one-third of the grass

blades. If the lawn is overgrown it will be

necessary to raise the height of cut to

reduce pushing effort and to keep from

overlonding the engine and leaving

clumps of mulched grass. For extremely

heavy grass, reduce your width of cut by

overlapping previously cut path and mow

slowly.

Max 1/3

• Certain types of grass and grass conditions

may require that an area be mulched a

second time to completely hide the

clippings. When doing a second cut, mow

across or perpendicular to the first cut path.

•Change your cutting pattern from week to

week. Mow north to south one week then

change to east to west the next week. This

will help prevent matting and graining of the

lawn.

Table des matières

Langues :

Autres manuels Craftsman Tondeuse à gazon

Craftsman

Craftsman 917.377573 Manuel utilisateur

Craftsman

Craftsman 3One 917.373580 Manuel utilisateur

Craftsman

Craftsman 917.377351 Manuel utilisateur

Craftsman

Craftsman 247.28981 Manuel utilisateur

Craftsman

Craftsman 917.370584 Manuel utilisateur

Craftsman

Craftsman 917.274951 Manuel utilisateur

Craftsman

Craftsman 917.389040 Manuel utilisateur

Craftsman

Craftsman 917.276041 Manuel utilisateur

Craftsman

Craftsman 25317 Manuel utilisateur

Craftsman

Craftsman 253792 Manuel du propriétaire

Craftsman

Craftsman 247.27022 Manuel utilisateur

Craftsman

Craftsman EZ3 917.258660 Manuel utilisateur

Craftsman

Craftsman T100 Series Manuel utilisateur

Craftsman

Craftsman EZ3 917.270813 Manuel utilisateur

Craftsman

Craftsman 917.389610 Manuel utilisateur

Craftsman

Craftsman 917.374112 Manuel utilisateur

Craftsman

Craftsman 917.377621 Manuel utilisateur

Craftsman

Craftsman 917.383223 Manuel utilisateur

Craftsman

Craftsman 25915 Manuel utilisateur

Craftsman

Craftsman 917.28008 Manuel utilisateur

Craftsman

Craftsman 917.272440 Manuel utilisateur

Craftsman

Craftsman 917.377532 Manuel utilisateur

Craftsman

Craftsman 917.370605 Manuel utilisateur

Craftsman

Craftsman 917.377970 Manuel utilisateur

Manuels Tondeuse à gazon populaires d'autres marques

RHINO

RHINO 1958 Manuel utilisateur

Wolf Garten

Wolf Garten Compact plus 40 B Manuel utilisateur

Cub Cadet

Cub Cadet LTX 1045 Manuel utilisateur

GGP ITALY SPA

GGP ITALY SPA CR/CS 434 SERIES Manuel utilisateur

Challenge

Challenge CH18V2 Instructions de fonctionnement

TALEN TOOLS

TALEN TOOLS AVR HGM30 Manuel utilisateur

DEWEZE

DEWEZE ATM-725 Manuel d'utilisation

Weed Eater

Weed Eater 180083 Manuel utilisateur

Husqvarna

Husqvarna Poulan Pro PP185A42 Manuel utilisateur

Better Outdoor Products

Better Outdoor Products Quick Series Manuel utilisateur

Cub Cadet

Cub Cadet 23HP Z-Force 60 Manuel d'utilisation

MTD

MTD 795, 792, 791, 790 Manuel utilisateur

Toro

Toro Groundsmaster 3505-D Manuel utilisateur

Dennis

Dennis FT 610 Manuel utilisateur

AIRFORCE

AIRFORCE F-15 Gen 3 Manuel utilisateur

MTD

MTD 126-220-000 Manuel utilisateur

Toro

Toro 74806 Manuel utilisateur

Stihl

Stihl RMA 443 PV Manuel utilisateur
