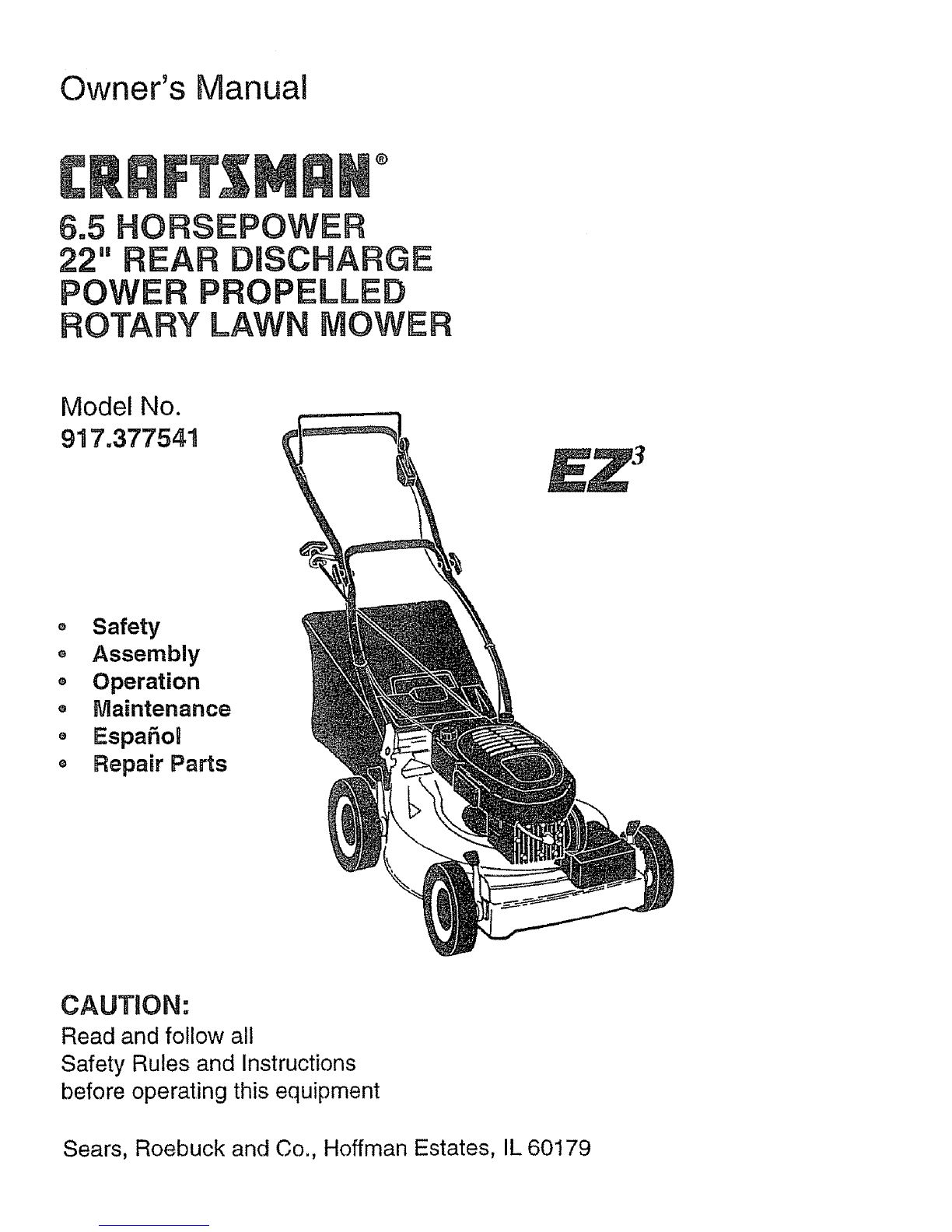

Owner's Manual

6.5 HORSEPOWER

22" REAR DISCHARGE

POWER PROPELLED

ROTARY LAWN MOWER

Model No.

917.377541

Safety

oAssembly

o Operation

Maintenance

,, Espafiol

,, Repair Parts

CAUTDON:

Read and follow all

Safety Rules and Instructions

before operating this equipment

Sears, Roebuck and Co., Hoffman Estates, IL 60179

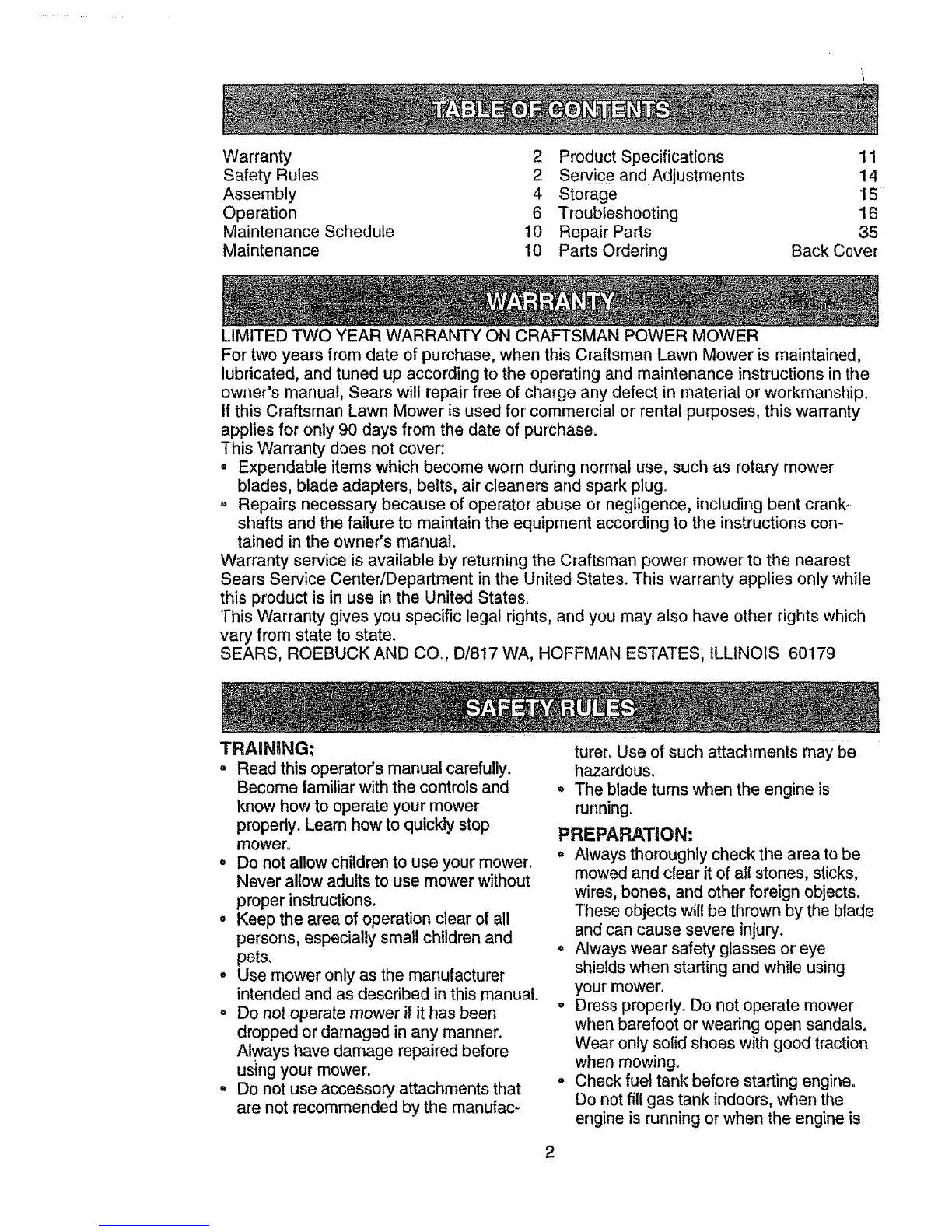

Warranty 2 Product Specifications 11

Safety Rules 2 Service and Adjustments 14

Assembly 4 Storage 15

Operation 6 Troubleshooting 16

Maintenance Schedule 10 Repair Parts 35

Maintenance 10 Parts Ordering Back Cover

LIMITED TWO YEAR WARRANTY ON CRAFTSMAN POWER MOWER

For two years from date of purchase, when this Craftsman Lawn Mower is maintained,

lubricated, and tuned up according to the operating and maintenance instructions in the

owner's manual, Sears will repair free of charge any defect in material or workmanship.

If this Craftsman Lawn Mower is used for commercial or rental purposes, this warranty

applies for only 90 days from the date of purchase.

This Warranty does not cover:

. Expendable items which become worn during normal use, such as rotary mower

blades, blade adapters, belts, air cleaners and spark plug.

- Repairs necessary because of operator abuse or negligence, including bent crank*

shafts and the failure to maintain the equipment according to the instructions con-

tained in the owner's manual.

Warranty service is available by returning the Craftsman power mower to the nearest

Sears Service Center/Department in the United States. This warranty applies only while

this product is in use in the United States.

This Warranty gives you specific legal rights, and you may also have other rights which

vary from state to state.

SEARS, ROEBUCK AND CO., D/817 WA, HOFFMAN ESTATES, ILLINOIS 60179

TRAiNiNG:

-Read this operator's manual carefully.

Become familiar with the controls and

know how to operate your mower

properly. Loam how to quickly stop

mower.

• Do not allow children to use your mower.

Never allow adults to use mower without

proper instructions.

o Keep the area of operation clear of all

persons, especially small children and

pets.

° Use mower only as the manufacturer

intended and as described in this manual.

- Do not operate mower if it has been

dropped or damaged in any manner.

Always have damage repaired before

using your mower.

• Do not use accessory attachments that

are not recommended by the manufac-

turer. Use of such attachments may be

hazardous.

o The blade turns when the engine is

running.

PREPARATION:

• Always thoroughlycheck the area to be

mowed and clear it of atI stones, sticks,

wires, bones, and other foreign objects.

These objects wilt be thrown by the blade

and can cause severe injury.

• Always wear safety glasses or eye

shields when starting and while using

your mower.

- Dress properly. Do not operate mower

when barefoot or wearing open sandals.

Wear only solid shoes with good traction

when mowing.

° Check fuel tank before starting engine.

Do not fill gas tank indoors, when the

engine is running or when the engine is

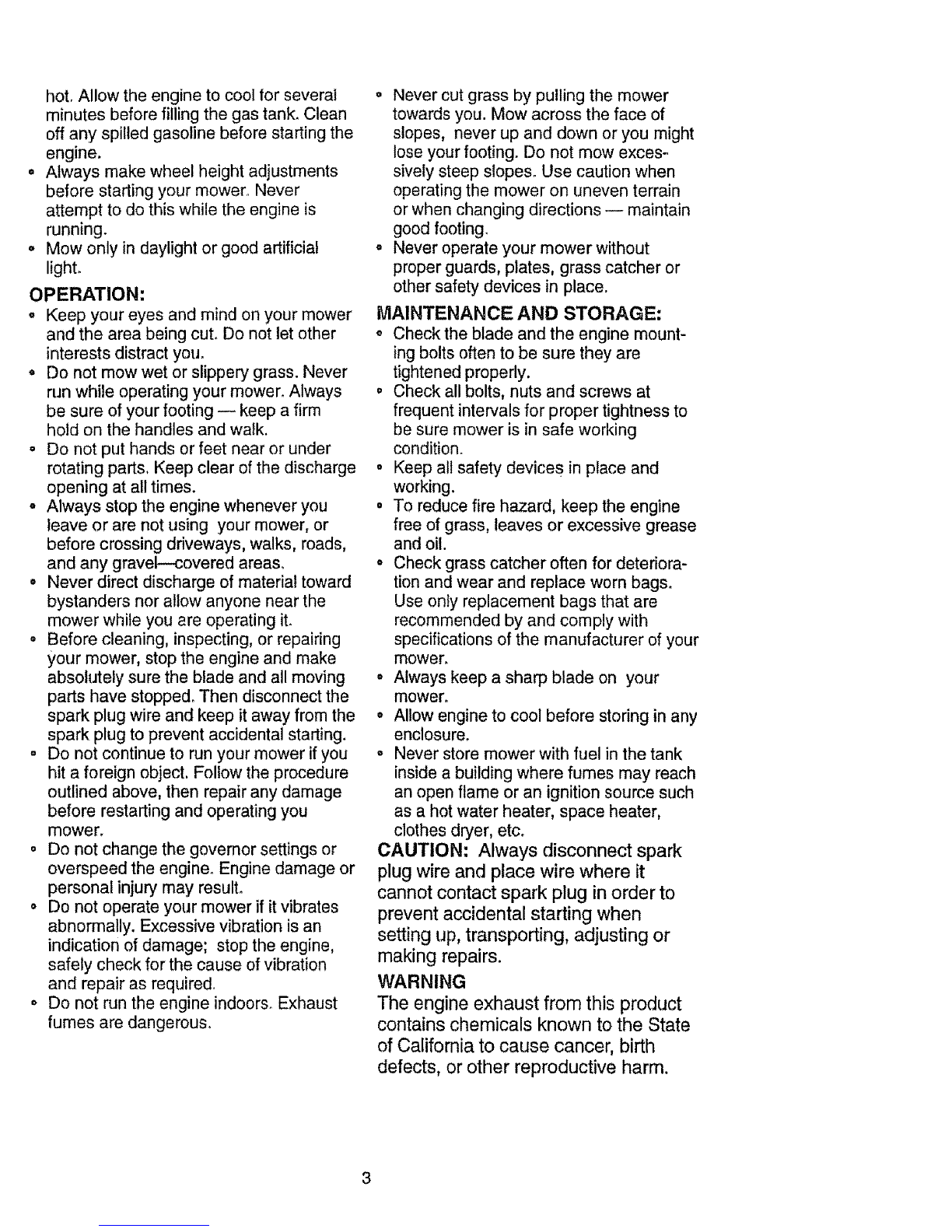

hot.Allowtheenginetocoolforseveral

minutesbeforefillingthegastank.Clean

offanyspilledgasolinebeforestartingthe

engine.

• Alwaysmakewheelheightadjustments

beforestartingyourmower_Never

attempttodothiswhiletheengineis

running.

• Mowonlyindaylightorgoodartificial

light.

OPERATION:

oKeep your eyes and mind on your mower

and the area being cut. Do not let other

interests distract you.

• Do not mow wet or slippery grass. Never

run while operating your mower. Always

be sure of your footing m keep a firm

hold on the handles and walk.

• Do not put hands or feet near or under

rotating parts. Keep clear of the discharge

opening at all times.

° Always stop the engine whenever you

leave or are not using your mower, or

before crossing driveways, walks, roads,

and any gravel--covered areas°

• Never direct discharge of material toward

bystanders nor allow anyone near the

mower while you are operating it.

, Before cleaning, inspecting, or repairing

your mower, stop the engine and make

absolutely sure the blade and all moving

parts have stopped. Then disconnect the

spark plug wire and keep it away from the

spark plug to prevent accidental starting.

- Do not continue to run your mower ifyou

hit a foreign object. Follow the procedure

outlined above, then repair any damage

before restarting and operating you

mower.

° Do not change the governor settings or

overspeed the engine. Engine damage or

personal injury may result°

• Do not operate your mower if it vibrates

abnormally. Excessive vibration is an

indication of damage; stop the engine,

safely check for the cause of vibration

and repair as required.

o Do not run the engine indoors. Exhaust

fumes are dangerous.

• Never cut grass by pulling the mower

towards you. Mow across the face of

slopes, never up and down or you might

lose your footing. Do not mow exces-

sively steep slopes. Use caution when

operating the mower on uneven terrain

or when changing directions -- maintain

good footing.

, Never operate your mower without

proper guards, plates, grass catcher or

other safety devices in place.

MAINTENANCE AND STORAGE:

o Check the blade and the engine mount-

ing bolts often to be sure they are

tightened properly.

• Check all bolts, nuts and screws at

frequent intervals for proper tightness to

be sure mower is in safe working

condition.

o Keep all safety devices in place and

working.

o To reduce fire hazard, keep the engine

free of grass, leaves or excessive grease

and oil.

, Check grass catcher often for deteriora-

tion and wear and replace worn bags.

Use only replacement bags that are

recommended by and comply with

specifications of the manufacturer of your

mower,

, Always keep a sharp blade on your

mower.

, Allow engine to cool before storing in any

enclosure.

-Never store mower with fuel in the tank

inside a building where fumes may reach

an open flame or an ignition source such

as a hot water heater, space heater,

clothes dryer, etc.

CAUTION: Always disconnect spark

plug wire and place wire where it

cannot contact spark plug in order to

prevent accidental starting when

setting up, transporting, adjusting or

making repairs.

WARNING

The engine exhaust from this product

contains chemicals known to the State

of California to cause cancer, birth

defects, or other reproductive harm.

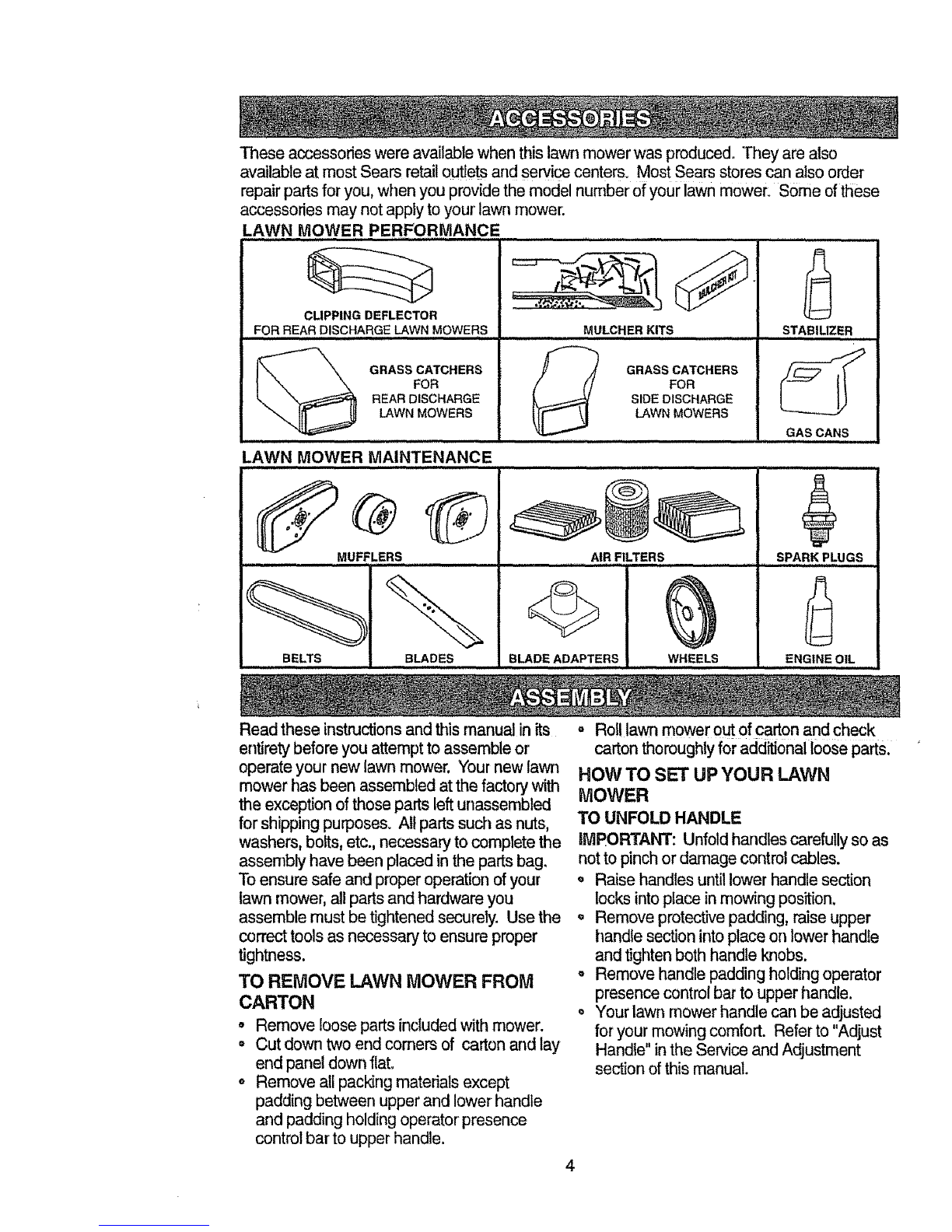

Theseaccessorieswereavailablewhenthislawnmowerwasproduced.Theyarealso

availableatmostSearsretailoutletsandservicecenters.MostSearsstorescanalsoorder

repairpartsforyou,whenyouprovidethemodelnumberofyourlawnmower:Someofthese

accessories may not apply to your lawn mower.

LAWN MOWER PERFORMANCE

CLIPPING DEFLECTOR

FOR REAR DISCHARGE LAWN MOWERS

GRASS CATCHERS

FOR

REAR DISCHARGE

LAWN MOWERS

MULCHER KITS

GRASSCATCHERS

FOR

SIDE DISCHARGE

LAWN MOWERS

BELTS

LAWN MOWER MAINTENANCE

MUFFLERS i

BLADES

AIR FILTERS

illllIIHI ,, II,,,I,

BLADE ADAPTERS WHEELS

STABILIZER

GAS CANS

SPARK PLUGS

i i UJlu,ui,JlJu,_,,

ENGINE OIL

Read these instructions and this manual in its

entirety before you attempt to assemble or

operate your new lawn mower. Your new lawn

mower has been assembled at the factory with

the exception of those parts left unassembled

for shipping purposes. All parts such as nuts,

washers, bolts, etc., necessary to complete the

assembly have been placed in the parts bag.

Toensure safe and proper operation of your

lawn mower, allparts and hardware you

assemble must be tightened securely. Use the

correct tools as necessary to ensure proper

tightness.

TO REMOVE LAWN MOWER FROM

CARTON

,Remove loose parts included with mower.

° Cut down two end comers of carton and lay

end panel down flat.

o Remove all packing materials except

padding between upper and lower handle

and padding holding operator presence

control bar to upper handle.

° Roll lawn mower o_ of carton and check

carton thoroughly for additional loose parts.

HOW TO SET UP YOUR LAWN

MOWER

TO UNFOLD HANDLE

IMPORTANT: Unfoldhandlescarefully so as

not to pinch or damage control cables.

Q Raise handles until lower handle section

locks into place in mowing position.

Remove protective padding, raise upper

handle section into place on lower handle

and tighten both handle knobs.

o Remove handle padding holding operator

presence control bar to upper handle.

o Your lawn mower handle can be adjusted

for your mowing comfort. Refer to "Adjust

Handle" in the Service and Adjustment

section of this manual.

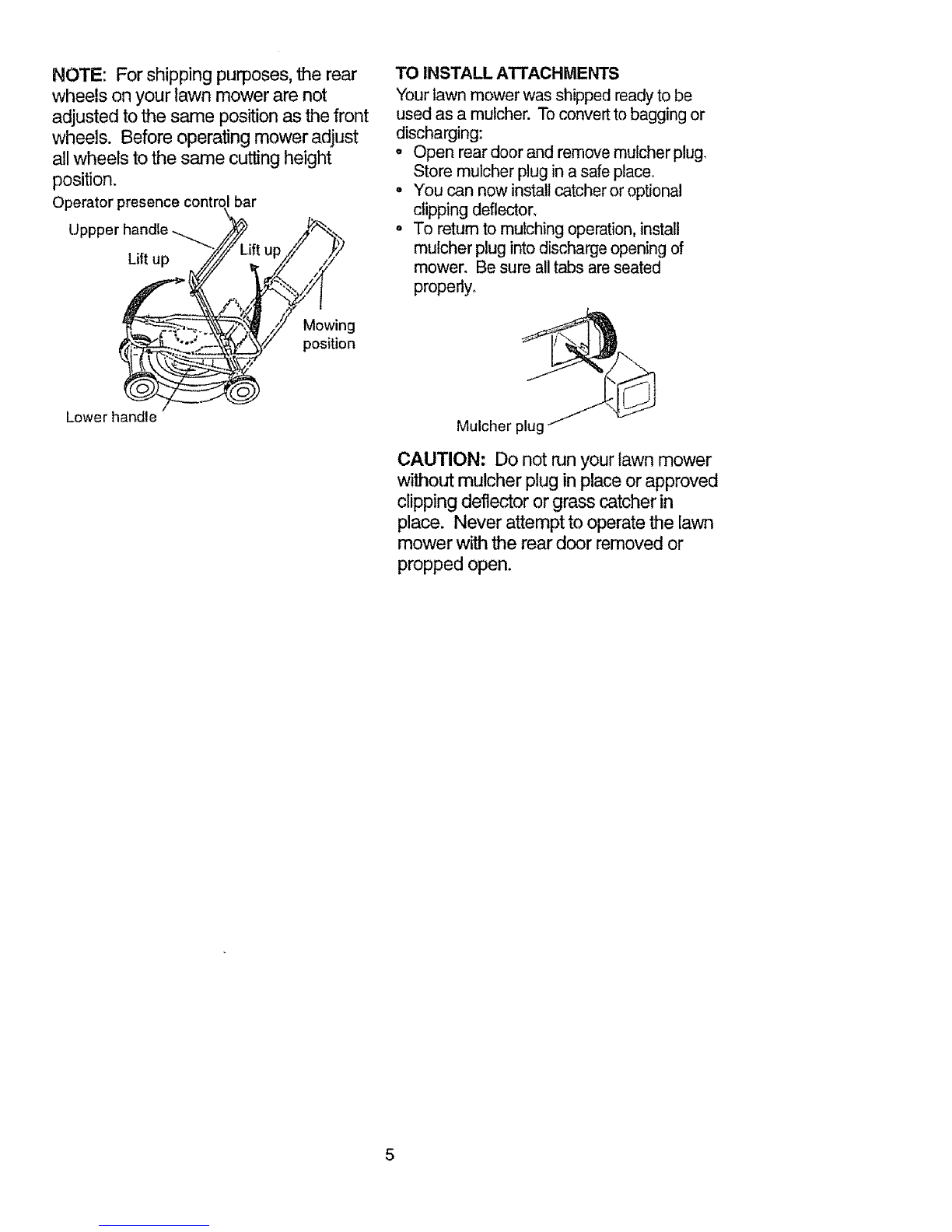

NOTE: Forshippingpurposes,the rear

wheels onyour lawnmowerarenot

adjustedtothe same positionasthefront

wheels. Beforeoperatingmoweradjust

allwheelsto thesamecuttingheight

position.

Operator presence contr( bar

Uppper

Lift up up

Mowing

position

TO INSTALL ATTACHMENTS

Your lawn mower was shipped readyto be

used as a mulcher. To convert to bagging or

discharging:

° Open rear door and remove mutcher plug,

Store mulcher plug in a safe place°

o You can now install catcher or optional

clipping deflector_

o To return to muiching operation, install

mulcher plug into discharge opening of

mower, Be sure all tabs are seated

properly.

Lower handle Mulcher plug

CAUTION: Do not run your lawn mower

without mulcher plug in place or approved

clipping deflector or grass catcher in

place. Never attempt to operate the lawn

mower with the rear door removed or

propped open.

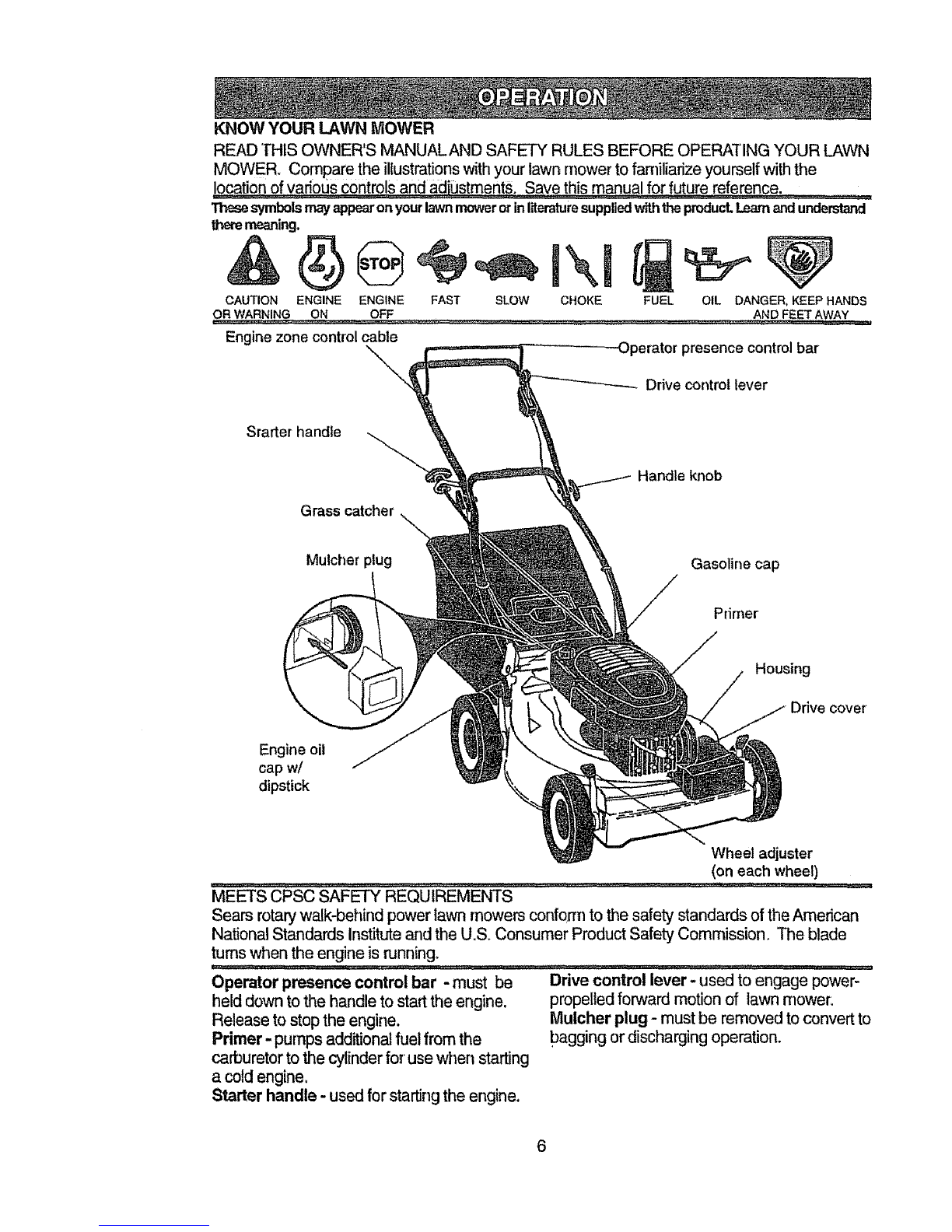

KNOW YOUR LAWN MOWER

READ THIS OWNER'S MANUALAND SAFETY RULES BEFORE OPERATING YOUR LAWN

MOWER. Compare the illustrations with your lawn mower to familiarize yourself with the

location of__ariQ0s controls and ad ustme,ntS. Save this manual for future reference_ ............................................

symbols mayappearonyourlawnmowerorin literaturesuppliedwiththeproduct,Learnand understand

theremeaning.

CAUTION ENGINE

OR WARNING ON ENGINE FAST SLOW CHOKE FUEL OIL DANGER, KEEP HANDS

OFF AND FEET AWAY

Engine zone control cable presence control bar

_'_\ Drive control lever

Srarter handle

Grass catcher

Handle knob

Mulcher plug Gasoline cap

Pdmer

Housing

Drive covet

Engine oil

cap w/

dipstick

Wheel adjuster

(on each wheel)

MEETS CPSC SAFETY REQUIREMENTS

Sears rotary walk-behind power lawnmowers conform to the safety standards of the American

National Standards Institute and the U,S. Consumer Product Safety Commission, The blade

tums when the engine is running.

Operator presence control bar -must be

held down to the handle to startthe engine.

Release to stop the engine.

Primer - pumps additional fuel from the

carburetor to the cylinder for use when starting

a cold engine,

Starter handle - used for starting the engine.

Drive control lever- used to engage power-

propelled forward motion of lawn mower:

Mulcher plug- must be removed toconvert to

bagging or discharging operation.

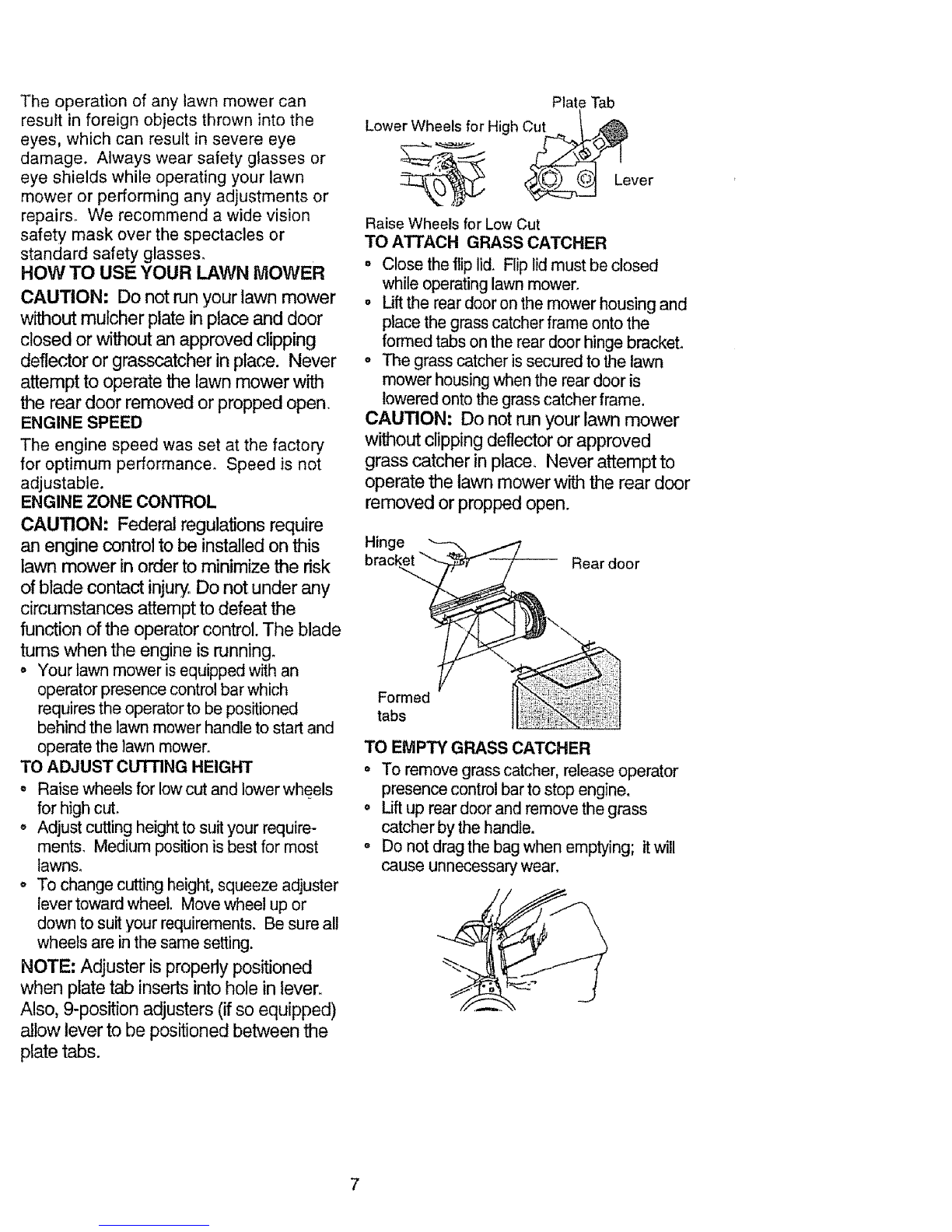

Theoperationof anylawnmowercan

resultin foreignobjectsthrownintothe

eyes,whichcan resultinsevereeye

damage. Alwayswearsafetyglassesor

eyeshieldswhileoperatingyourlawn

mowerorperforminganyadjustmentsor

repairs, Werecommendawidevision

safetymaskoverthespectaclesor

standardsafetyglasses,

HOW TO USE YOUR LAWN MOWER

CAUTION: Do not run your lawn mower

without mulcher plate in place and door

closed or without an approved clipping

deflector or grasscatcher in place. Never

attempt to operate the lawn mower with

the rear door removed or propped open.

ENGINE SPEED

The engine speed was set at the factory

for optimum performance, Speed is not

adjustable,

ENGINE ZONE CONTROL

CAUTION: Federal regulations require

an engine control to be installed on this

lawn mower in order to minimize the risk

of blade contact injury.Do not under any

circumstances attempt to defeat the

function of the operator control. The blade

turns when the engine is running.

Your lawn mower isequipped with an

operator presence control bar which

requires the operator to be positioned

behind the lawn mower handle to start and

operate the lawn mower,

TO ADJUST CUTTING HEIGHT

o Raise wheels for low cut and lower wheels

for high cut.

o Adjust cutting heightto suit your require-

ments, Medium position is best for most

lawns,

o To change cutting height, squeeze adjuster

lever toward wheel. Move wheel up or

down to suit your requirements. Be sure all

wheels are in the same setting.

NOTE: Adjuster is properly positioned

when plate tab inserts into hole in lever.

Also, 9-position adjusters (if so equipped)

allow lever to be positioned between the

plate tabs.

Plate Tab

Lower Wheels for High Cut _ .,_

_ Lever

Raise Wheels for Low Cut

TO ATTACH GRASS CATCHER

•Close the flip lid. Fliplid must be closed

while operating lawn mower.

° Liftthe rear door on the mower housing and

place the grass catcher frame onto the

formed tabs onthe rear door hinge brackeL

o The grass catcher is secured to the lawn

mower housing when the rear door is

lowered onto the grass catcher frame,

CAUTION: Do not run your lawn mower

without clipping deflector or approved

grass catcher in place. Never attempt to

operate the lawn mower with the rear door

removed or propped open.

Hinge Rear door

Formed

tabs

TO EMPTY GRASS CATCHER

= To remove grass catcher, release operator

presence control bar to stop engine.

o Lift up rear door and remove the grass

catcher by the handle,

- Do not drag the bag when emptying; it will

cause unnecessary wear.

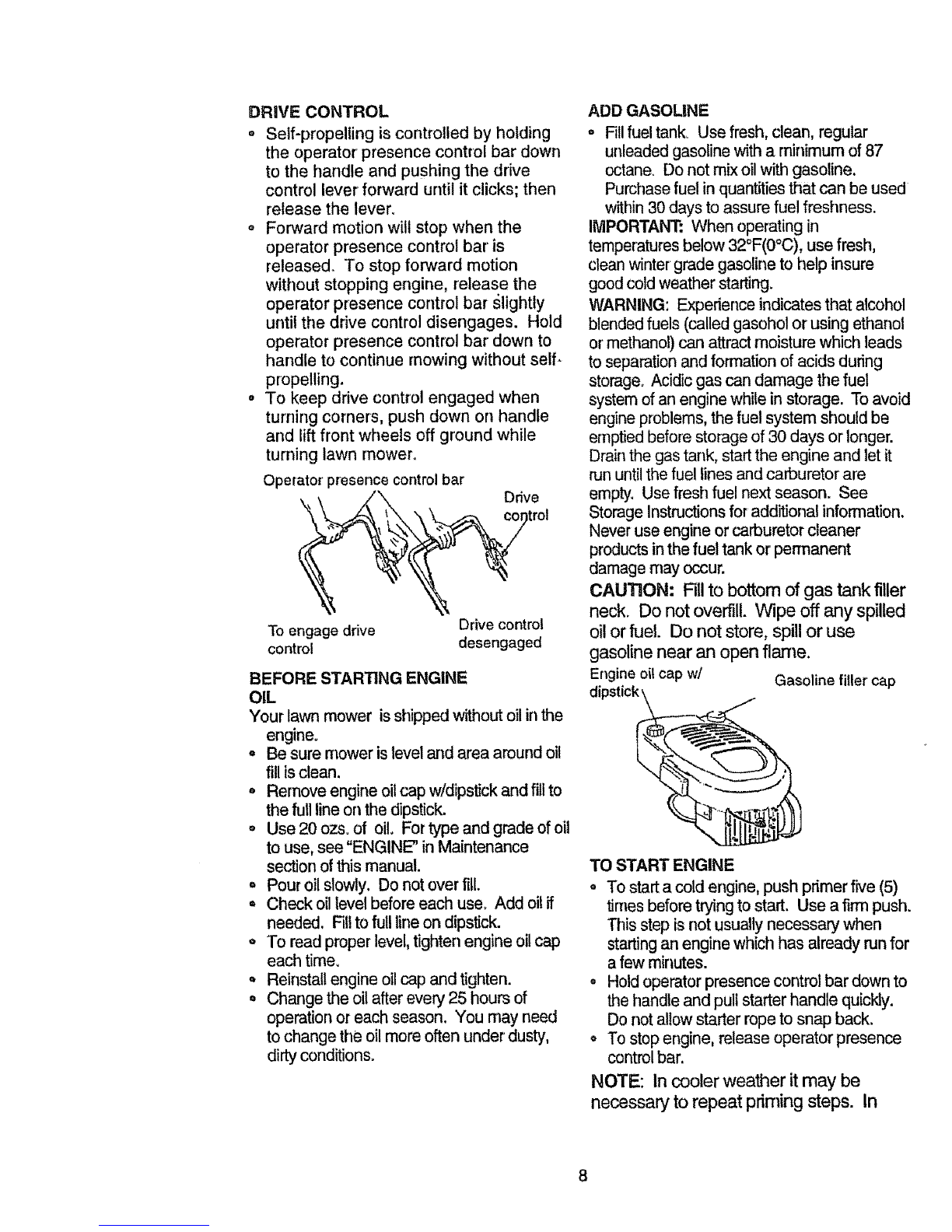

DRmVECONTROL

o Self-propellingiscontrolledbyholdklg

theoperatorpresencecontrolbar down

to thehandleandpushingthedrive

controllever'forwarduntilit clicks;then

releasethelever.

o Forwardmotionwillstopwhenthe

operatorpresencecontrolbaris

released.To stopforwardmotion

withoutstoppingengine,release the

operator presence control bar §lightly

until the drive control disengages. Hold

operator presence control bar down to

handle to continue mowing without self-

propelling.

, To keep drive control engaged when

turning corners, push down on handle

and lift front wheels off ground while

turning lawn mower,

Operator presence control bar

,_ Drive

To engage drive DrNe control

control desengaged

BEFORE STARTING ENGINE

OIL

Your lawn mower isshipped withoutoil in the

engine°

° Be sure mower islevel and area around oil

fill isdean.

• Remove engine oilcap w/dipstick and fillto

the full line on the dipstick.

Use 20 ozsoof oil. For type and grade of oit

to use, see"ENGINE" in Maintenance

section of this manual.

° Pour oil slowly. Do not over fill.

° Check oillevelbefore each use_ Add oitif

needed. Fillto full line on dipstick.

o To read proper level, tighten engine oilcap

each time,

o Reinstall engine oilcap and tighten.

Change the oil after every 25 hours of

operation or each season. You may need

to change the oi!more often under dusty,

dirty conditions.

ADD GASOLINE

°Fillfueltank. Use fresh, clean, regular

unleadedgasolinewitha rninimumof87

octane. Do not mix oilwith gasoline.

Purchasefuel inquantities thatcan be used

within30 days to assurefuel freshness.

IMPORTANT: When operating in

temperaturesbelow 32°F(0°C), use fresh,

cleanwintergradegasoline to help insure

good coldweather starting.

WARNING: Experienceindicatesthatalcohol

blended fuels (calledgasoholor using ethanol

or methanol)can attractmoisture whichleads

toseparation and formationofacidsduring

storage. Acidic gas can damage the fuel

system ofan enginewhile in storage. To avoid

engine problems, the fuel system should be

emptied before storage of 30 days or longer.

Drainthe gastank, start the engine and letit

run until the fuel lines and carburetor are

empty. Use fresh fuel next season. See

Storage Instructions for additional information.

Never use engine or carburetor cleaner

products in the fuel tank or permanent

damage may occur.

CAU'RON: Fill to bottom of gas tank filler

neck. Do not overfill. Wipe off any spilled

oil or fuel. Do not store, spill or use

gasoline near an open flame.

Engine oil cap wi Gasoline fillet' cap

TO START ENGINE

o To start a cold engine, push primer five (5)

_rnesbefore trying to start. Use a firm push.

Thisstep is not usually necessary when

starting an engine which has already runfor

afew minutes.

• Hold operator presence control bar down to

the handle and pull starter handle quickly.

Do not allow starter rope to snap back.

oTo stop engine, release operator presence

controlbar.

NOTE: In cooler weather it may be

necessary to repeat priming steps. In

warrne_"weatheroverprimingmaycause

floodingandenginewillnotstart. Ifyou

dofloodengine,wait a fewminutesbefore

attemptingto stair anddo not repeat

primingsteps.

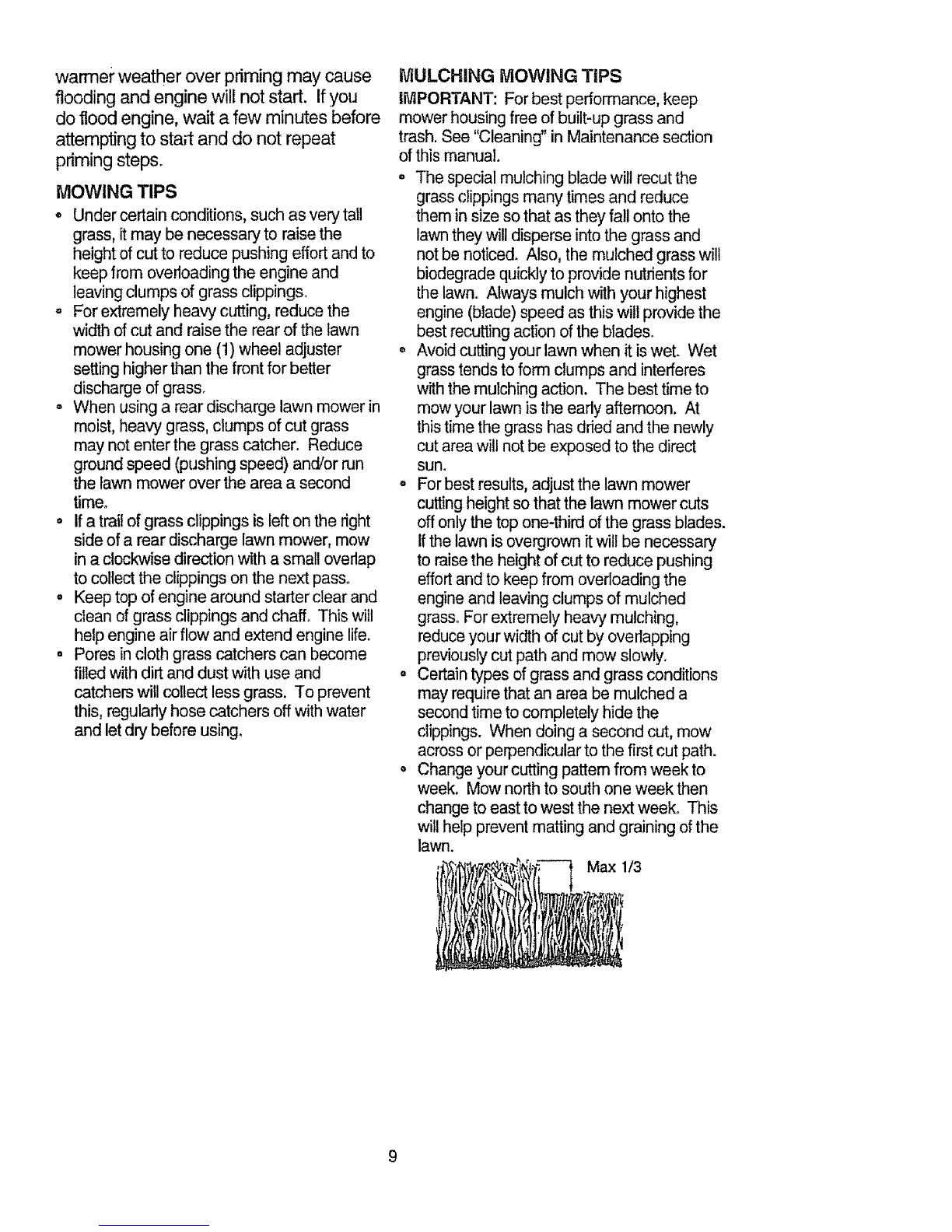

MOWINGTIPS

o Under certain conditions, such as very tall

grass, it may be necessary to raise the

height of cut to reduce pushing effort and to

keep from overloading the engine and

leaving clumps of grass clippings,

° For extremely heavy cutting, reduce the

width of cut and raise the rear of the lawn

mower housing one (1) wheel adjuster

setting higher than the front for better

discharge of grass.

° When using a rear discharge lawn mower in

moist, heavy grass, clumps of cut grass

may not enter the grass catcher° Reduce

ground speed (pushing speed) and/or run

the lawn mower over the area a second

time°

• If a trail of grass clippings is left on the fight

side of a rear discharge lawn mower, mow

in a clockwise direction with a small overlap

to collect the clippings on the next pass.

• Keep top of engine around starter clear and

clean ofgrass clippings and chaff. This will

help engine airflow and extend engine life_

• Pores in cloth grass catchers can become

filled with dirt and dust with use and

catchers will collect less grass. To prevent

this, regularly hose catchers off with water

and letdry before using.

MULCHING MOWING TiPS

IiV1PORTANT:For best performance, keep

mower housing free of built-up grass and

trash. See "Cleaning" in Maintenance section

of this manual.

° The special mulching blade will recut the

grass clippings many times and reduce

them in size so that as they fall onto the

lawn they will disperse intothe grass and

notbe noticed_ Also, the mulched grass will

biodegrade quickly to provide nutrients for

the lawn. Always mulch with your highest

engine (blade) speed as this will provide the

best recutting action of the blades_

= Avoid cutting your lawn when itis wet. Wet

grass tends to form clumps and interferes

with the mulching action, The best time to

mow your lawn is the early afternoon. At

this time the grass has dded and the newly

cut area will not be exposed to the direct

sun.

° Forbest results, adjust the lawn mower

cutting height so that the lawn mower cuts

off only the top one-third of the grass blades.

Ifthe lawn is overgrown itwill be necessary

to raisethe height of cut to reduce pushing

effort and to keep from overloading the

engine and leaving clumps of mulched

grass° For extremely heavy mulching,

reduce your width of cut by overlapping

previously cut path and mow slowly.

° Certain types of grass and grass conditions

may requirethat an area be mulched a

second time to completely hide the

clippings. When doing a second cut, mow

across or perpendicular to the first cut path.

o Change your cutting pattern from week to

week. Mow north to south one week then

change to easttowest the next weeko This

will help prevent matting and graining ofthe

lawn. Max 1/3

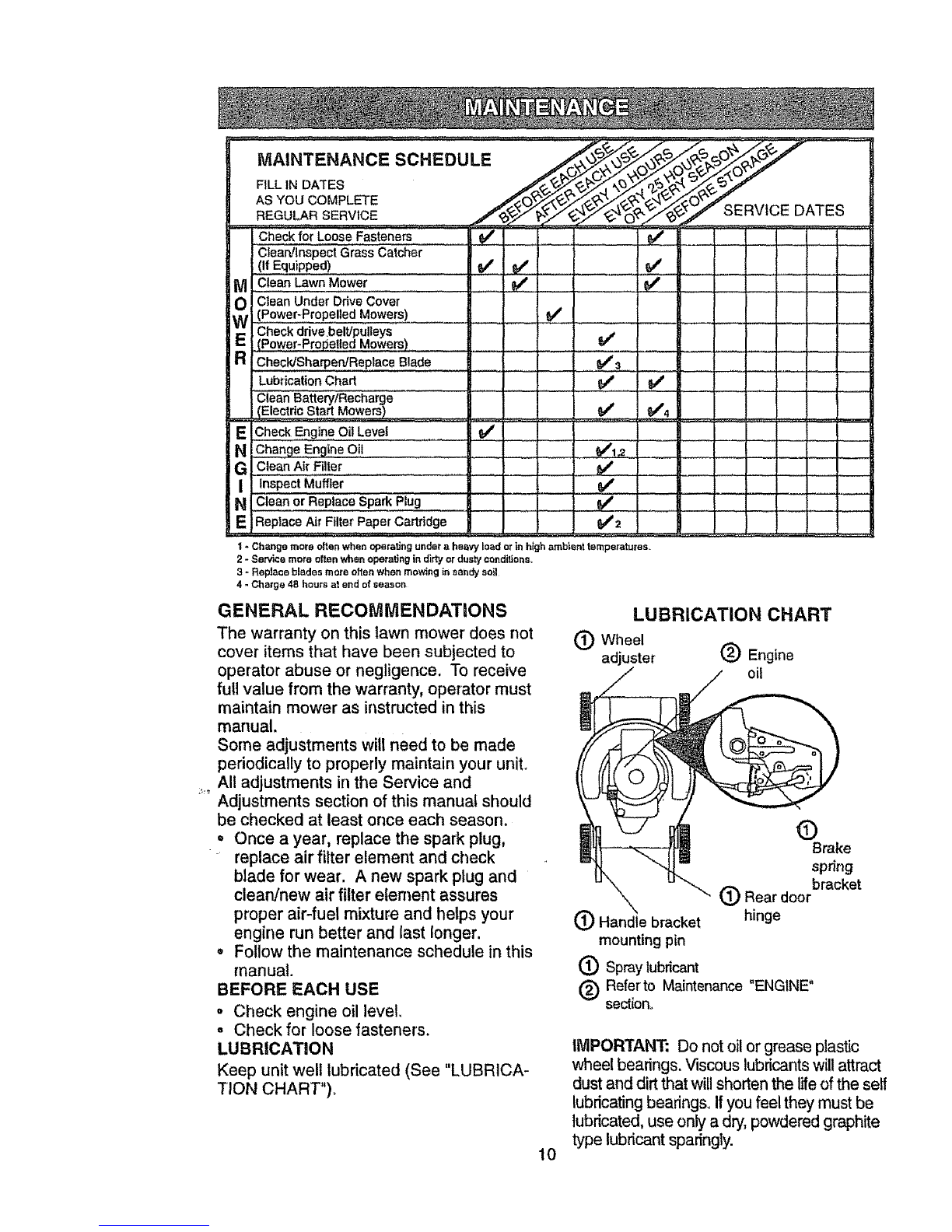

MAINTENANCE SCHEDULE /__,_°_/__ ......

REe.UL ,SERVICE........... ,..

Check for Loose Fasteners _#'

Clean!inspect Grass Catcher

(If Equipped) lp#

IVi Clean Lawn Mower

O Ctean Under Drive Cover

(p0wer_Fropelled Mowers)

Check ddvebelt/pulleys

E;(Power-Propelled Mowers)

RCheck/Sharpen/Replace Blade ......

LubricationChart

Clean Battery/Recharge

(ElectricStad Mowers)

v' v' ..........

V' _4

E Check Engine Oil Level Ip#

N Change Engine Oil . . _,1'1_

GClean Air Filter t,/

I Inspect Muffler _'

N Clean or Replace Spark Plug = V'

E Replace Air Filter Paper Cartridge _#'2

t - Change more oxen when operating under aheavy load ot in high ambient temperatures,.

2 - Service more often when operating in dirty or dusty condi'_one.

3-Replace blades more often when mowing in sandy soil

4-Charge 48 hours at end of season

GENERAL RECOMMENDATRONS

The warranty on this lawn mower does not

cover items that have been subjected to

operator abuse or negligence. To receive

full value from the warranty, operator must

maintain mower as instructed in this

manual.

Some adjustments will need to be made

periodically to properly maintain your unit.

....All adjustments in the Service and

Adjustments section of this manual should

be checked at least once each season.

o Once a year, replace the spark plug,

replace air filter element and check

blade for wear. A new spark plug and

clean/new air filter element assures

proper air-fuel mixture and helps your

engine run better and last longer.

= Follow the maintenance schedule in this

manual.

BEFORE EACH USE

° Check engine oil level

- Check for loose fasteners.

LUBRICATION

Keep unit well lubricated (See "LUBRICA-

TION CHART").

LUBRICATION CHART

1_ Wheel

adjuster (_) Engine

oil

(_ Handle bracket

mounting pin

(_) Spray lubricant

OBrake

spring

bracket

(_ Rear door

hinge

Referto Maintenance "ENGINE"

section.

ItVlPORTANT: Do not oil or grease plastic

wheel bearings. Viscous lubricants willattract

dust and dirt that will shorten the life of the self

lubricating bearings. If you feel they must be

lubricated, use only a dry, powdered graphite

type lubricant sparingly.

Table des matières

Langues :

Autres manuels Craftsman Tondeuse à gazon

Craftsman

Craftsman 944.362201 Manuel utilisateur

Craftsman

Craftsman 917.28008 Manuel utilisateur

Craftsman

Craftsman 917.379591 Manuel utilisateur

Craftsman

Craftsman Professional 247.38109 Manuel utilisateur

Craftsman

Craftsman 917.376801 Manuel utilisateur

Craftsman

Craftsman 917.375923 Manuel utilisateur

Craftsman

Craftsman 917.377690 Manuel utilisateur

Craftsman

Craftsman 247.28884 Manuel utilisateur

Craftsman

Craftsman 917.376224 Manuel utilisateur

Craftsman

Craftsman 917.286420 Manuel utilisateur

Craftsman

Craftsman 917.251521 Manuel utilisateur

Craftsman

Craftsman 917.388521 Manuel utilisateur

Craftsman

Craftsman 917.376396 Manuel utilisateur

Craftsman

Craftsman 25447 Manuel utilisateur

Craftsman

Craftsman 917.28910 Manuel utilisateur

Craftsman

Craftsman 917.273811 Manuel utilisateur

Craftsman

Craftsman EZ3 917.376370 Manuel utilisateur

Craftsman

Craftsman 917.385192 Manuel utilisateur

Craftsman

Craftsman 917.272233 Manuel utilisateur

Craftsman

Craftsman 917.273490 Manuel utilisateur

Craftsman

Craftsman 917.385322 Manuel utilisateur

Craftsman

Craftsman 3One 917.257660 Manuel utilisateur

Craftsman

Craftsman 917.376541 Manuel utilisateur

Craftsman

Craftsman 917.271842 Manuel utilisateur

Manuels Tondeuse à gazon populaires d'autres marques

RHINO

RHINO 1958 Manuel utilisateur

Wolf Garten

Wolf Garten Compact plus 40 B Manuel utilisateur

Cub Cadet

Cub Cadet LTX 1045 Manuel utilisateur

GGP ITALY SPA

GGP ITALY SPA CR/CS 434 SERIES Manuel utilisateur

Challenge

Challenge CH18V2 Instructions de fonctionnement

TALEN TOOLS

TALEN TOOLS AVR HGM30 Manuel utilisateur

DEWEZE

DEWEZE ATM-725 Manuel d'utilisation

Weed Eater

Weed Eater 180083 Manuel utilisateur

Husqvarna

Husqvarna Poulan Pro PP185A42 Manuel utilisateur

Better Outdoor Products

Better Outdoor Products Quick Series Manuel utilisateur

Cub Cadet

Cub Cadet 23HP Z-Force 60 Manuel d'utilisation

MTD

MTD 795, 792, 791, 790 Manuel utilisateur

Toro

Toro Groundsmaster 3505-D Manuel utilisateur

Dennis

Dennis FT 610 Manuel utilisateur

AIRFORCE

AIRFORCE F-15 Gen 3 Manuel utilisateur

MTD

MTD 126-220-000 Manuel utilisateur

Toro

Toro 74806 Manuel utilisateur

Stihl

Stihl RMA 443 PV Manuel utilisateur
