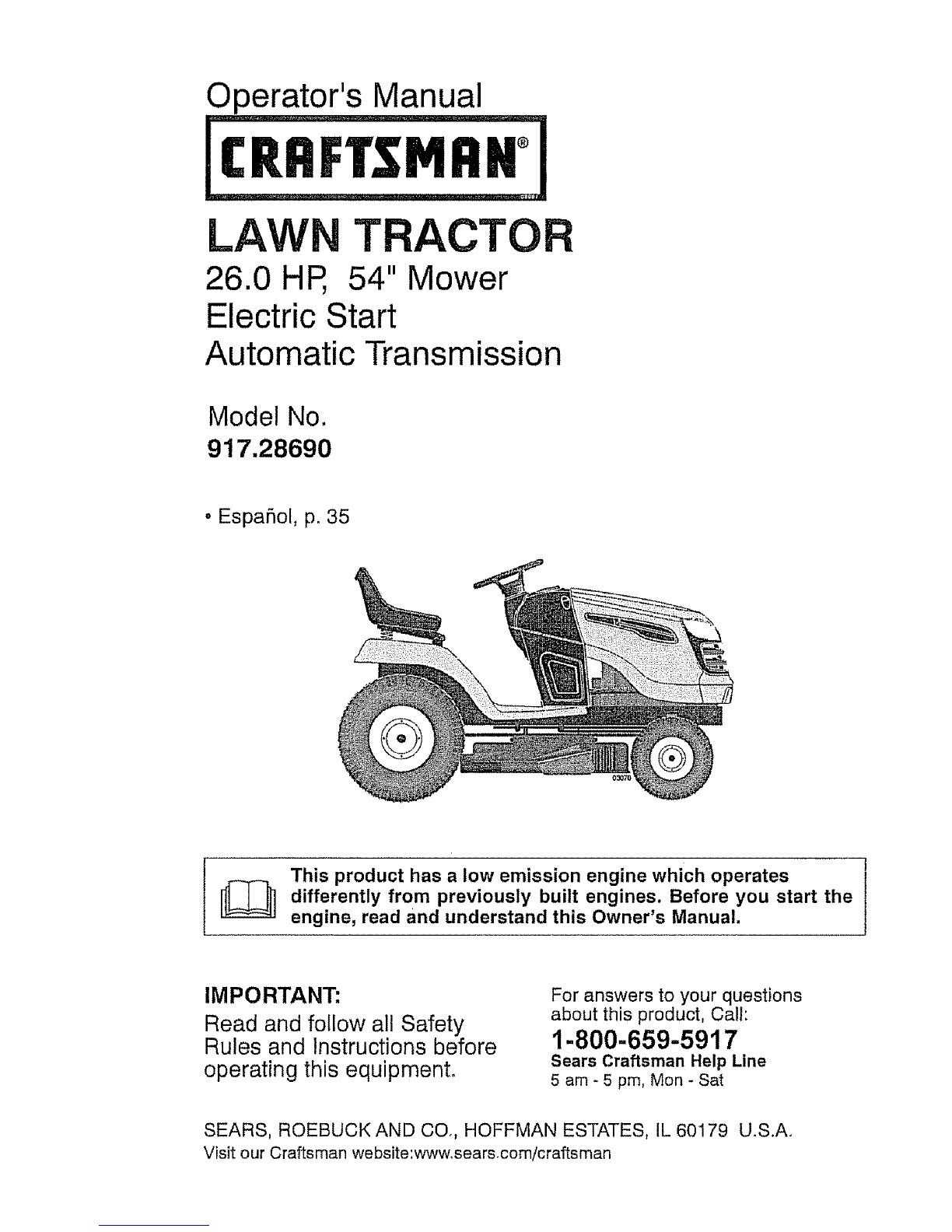

Craftsman 917.286900 Manuel utilisateur

Operator's Manual I

!!!!!!!_

LAWN TRACTOR

26.0 HP, 54" Mower

Electric Start

Automatic Transmission

Model No.

917.28690

• EspaSol, p. 35

This product has a low emission engine which operates

differently from previously built engines. Before start the

you

engine, read and understand this Owner's Manual.

IMPORTANT:

Read and follow all Safety

Rules and Instructions before

operating this equipment°

For answers to your questions

about this product, Call:

1-800-659-5917

Sears Craftsman Help Line

5 am - 5 pm, Mon- Sat

SEARS, ROEBUCK AND CO., HOFFMAN ESTATES, IL 60179 U.S.A.

Visit our Craftsman website:www, searscom/craftsman

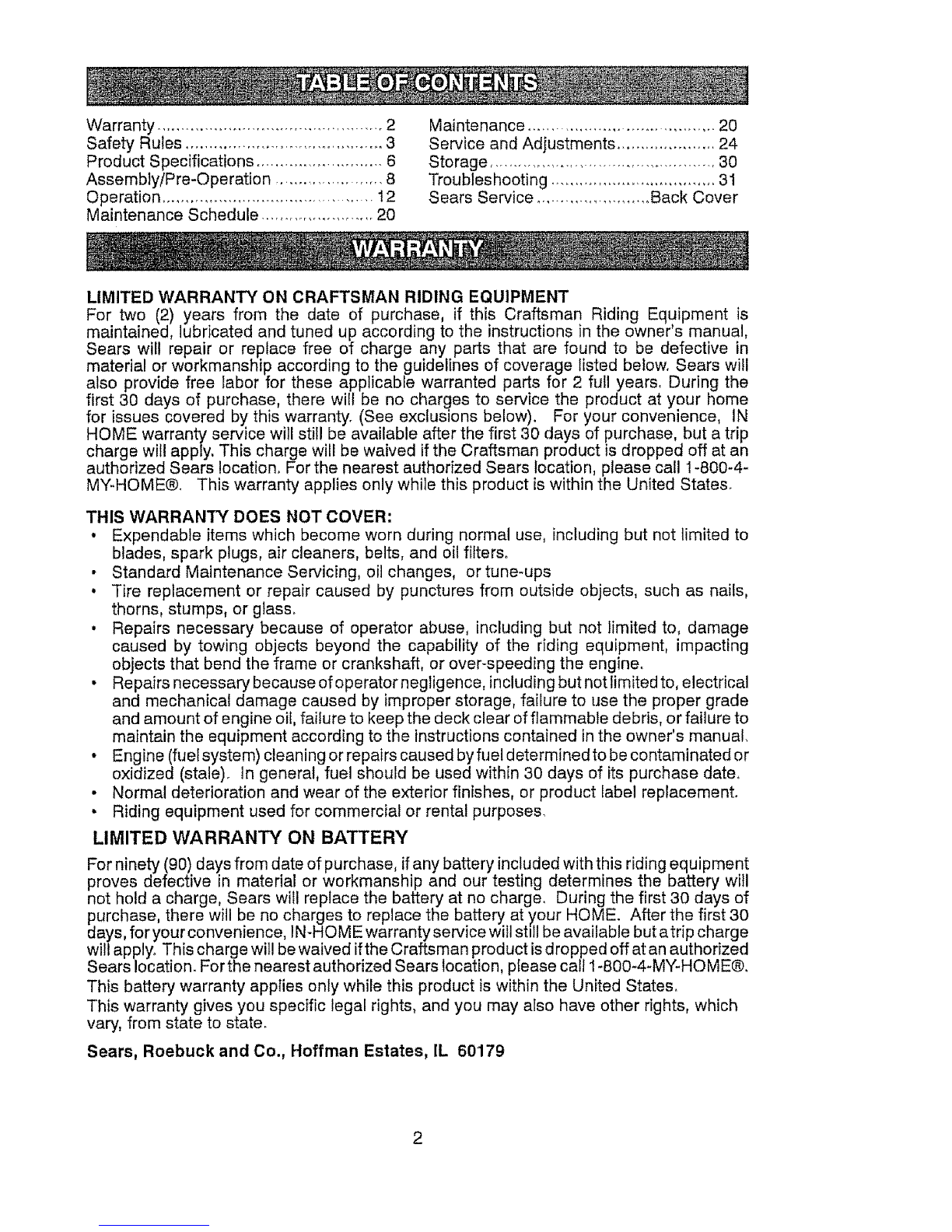

Warranty ................................................ 2

Safety Rules .......................................... 3

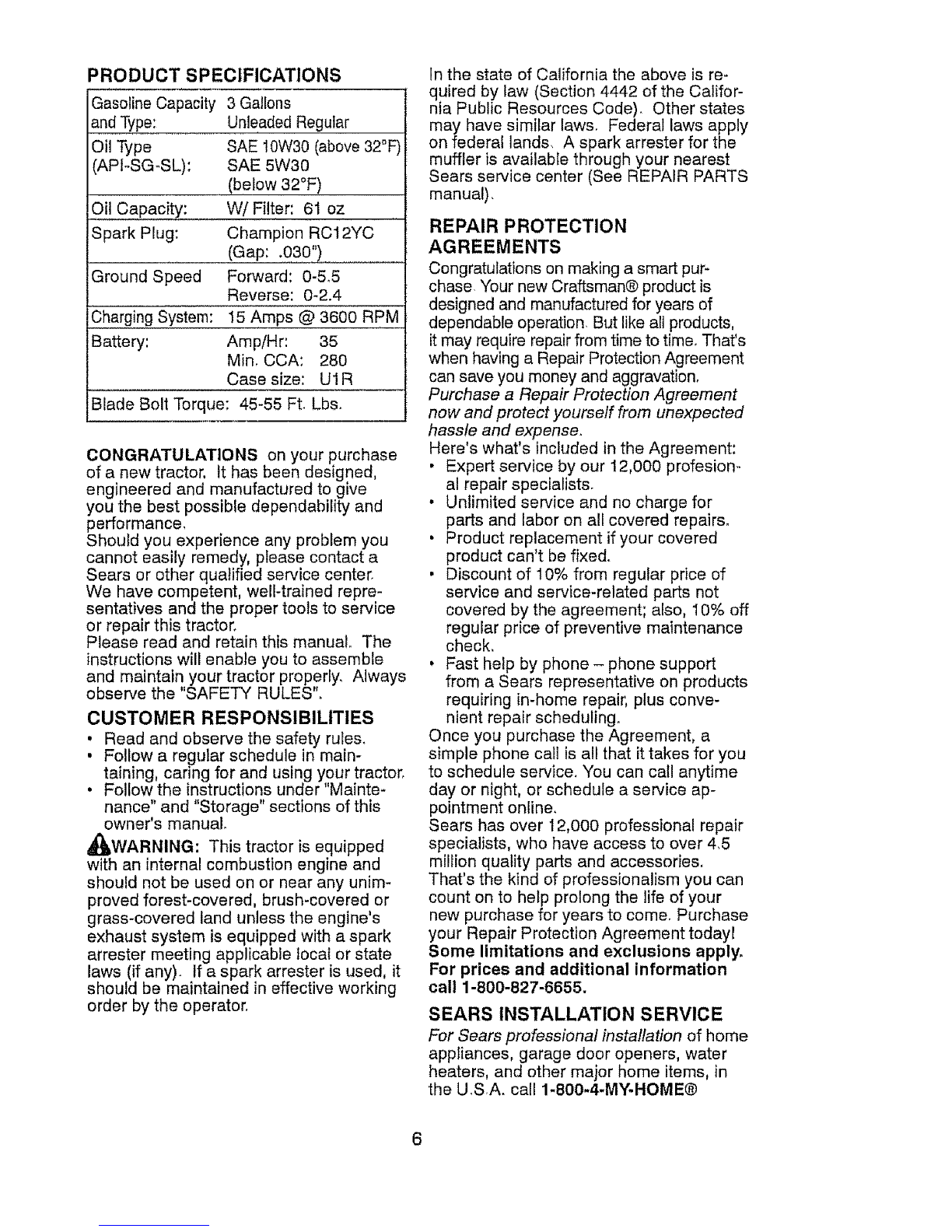

Product Specifications ........................... 6

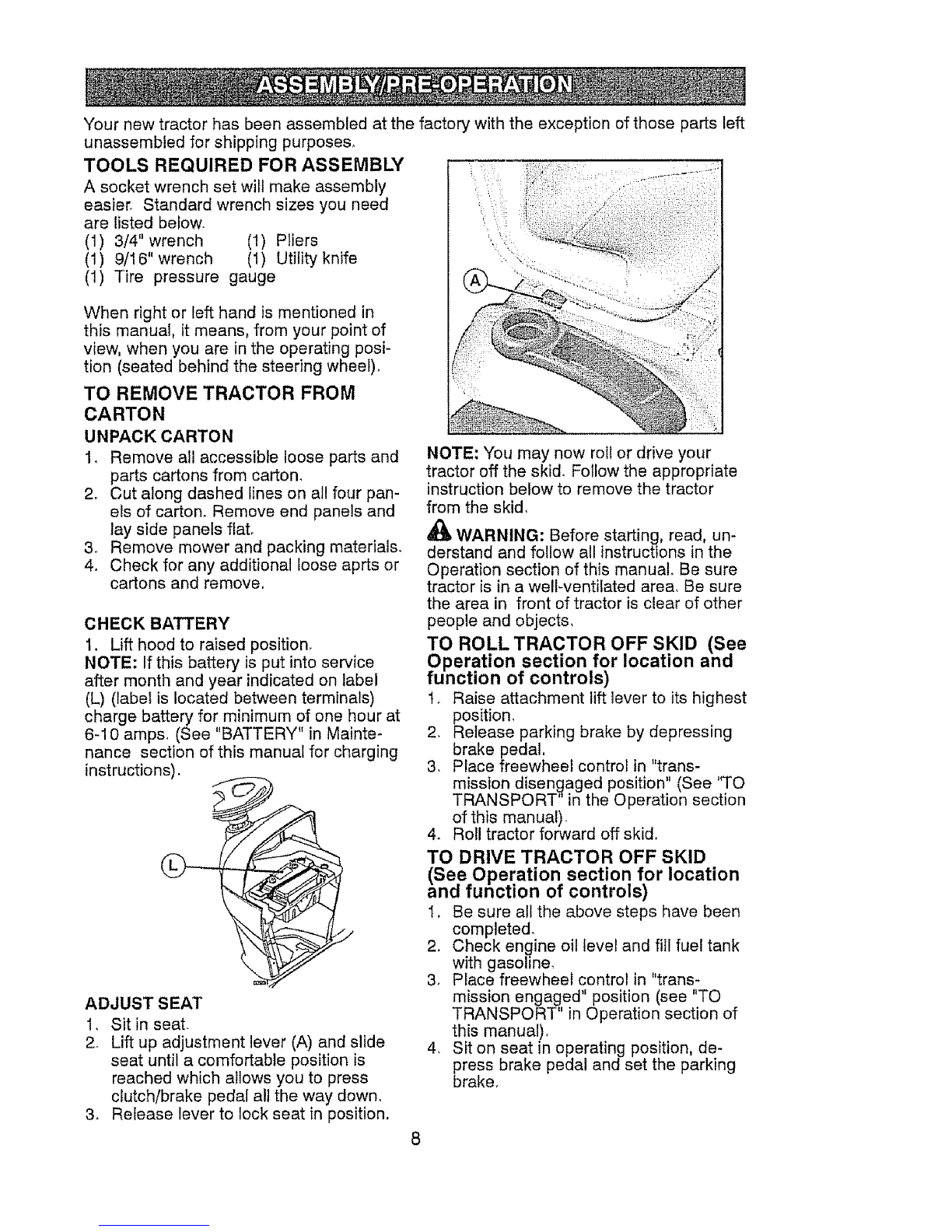

Assembly/Pre-Operation ....................... 8

Operation ............................................. 12

Maintenance Schedule ......................... 20

Maintenance ..................................... 20

Service and Adjustments ..................... 24

Storage ................................................ 30

Troubleshooting ................................... 31

Sears Service ........................ Back Cover

LIMITED WARRANTY ON CRAFTSMAN RIDING EQUIPMENT

For two (2) years from the date of purchase, if this Craftsman Riding Equipment is

maintained, lubricated and tuned up according to the instructions in the owner's manual,

Sears wilt repair or replace free of charge any parts that are found to be defective in

material or workmanship according to the guidelines of coverage listed below. Sears will

also provide free labor for these applicable warranted parts for 2 full years. During the

first 30 days of purchase, there will be no charges to service the product at your home

for issues covered by this warranty. (See exclusions below). For your convenience, IN

HOME warranty service will still be available after the first 30 days of purchase, but a trip

charge will apply, This charge will be waived if the Craftsman product is dropped off at an

authorized Sears location, For the nearest authorized Sears location, please call 1-800-4-

MY-HOME®. This warranty applies only while this product is within the United States.

THIS WARRANTY DOES NOT COVER:

•Expendable items which become worn during normal use, including but not limited to

blades, spark plugs, air cleaners, belts, and oil filters.

• Standard Maintenance Servicing, oil changes, or tune-ups

• Tire replacement or repair caused by punctures from outside objects, such as nails,

thorns, stumps, or glass_

, Repairs necessary because of operator abuse, including but not limited to, damage

caused by towing objects beyond the capability of the riding equipment, impacting

objects that bend the frame or crankshaft, or over-speeding the engine.

• Repairs necessary because of operator negligence, including but not limited to, electrical

and mechanical damage caused by improper storage, failure to use the proper grade

and amount of engine oil, failure to keep the deck clear of flammable debris, or failure to

maintain the equipment according to the instructions contained in the owner's manual.

• Engine (fuel system) cleaning or repairs caused by fuel determined to be contaminated or

oxidized (stale). in general, fuel should be used within 30 days of its purchase date,

• Normal deterioration and wear of the exterior finishes, or product iabel replacement.

•Riding equipment used for commercial or rental purposes.

LIMITED WARRANTY ON BATTERY

For ninety (90) days from date of purchase, if any battery included with this riding equipment

proves defective in material or workmanship and our testing determines the battery will

not hold a charge, Sears will replace the battery at no charge. During the first 30 days of

purchase, there will be no charges to replace the battery at your HOME. After the first 30

days, for your convenience, IN-HOME warranty service will still be available but atrip charge

will apply_ This charge will be waived if the Craftsman product is dropped off at an authorized

Sears location. For the nearest authorized Sears location, please call 1-800_4-MY-HOME®.

This battery warranty applies only while this product is within the United States.

This warranty gives you specific legal rights, and you may also have other rights, which

vary, from state to state.

Sears, Roebuck and Co., Hoffman Estates, IL 60179

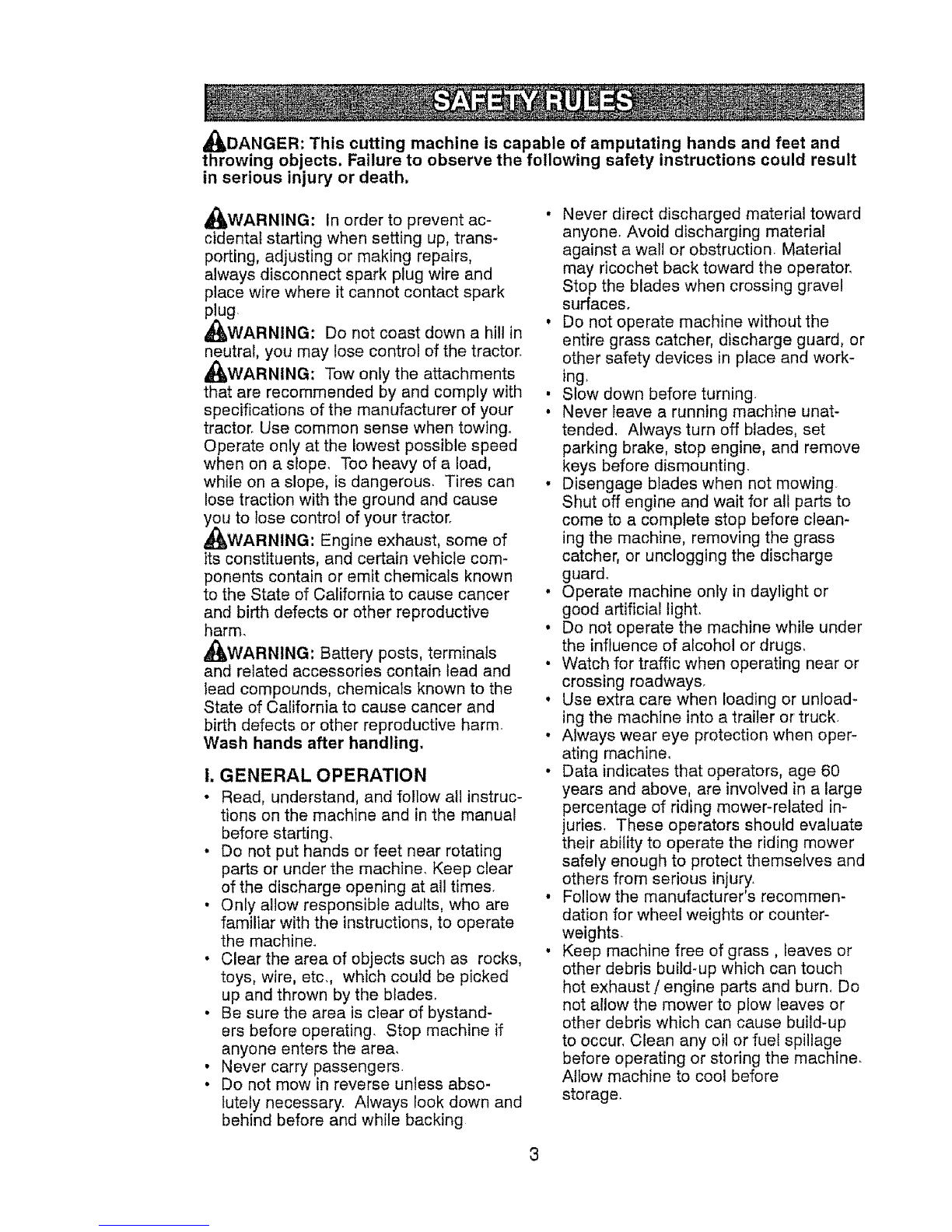

_DANGER: This cutting machine is capable of amputating hands and feet and

throwing objects. Failure to observe the following safety instructions could result

in serious injury or death.

_kWARNING: In order to prevent ac-

cidental starting when setting up, trans-

porting, adjusting or making repairs,

always disconnect spark plug wire and

place wire where it cannot contact spark

plug.

_,WARNING: Do not coast down a hill in

neutral, you may lose control of the tractor.

_kWARNING: Tow only the attachments

that are recommended by and comply with

specifications of the manufacturer of your

tractor, Use common sense when towing°

Operate only at the lowest possible speed

when on a slope. Too heavy of a load,

while on a slope, is dangerous. Tires can

lose traction with the ground and cause

you to lose control of your tractor°

_WARNING: Engine exhaust, some of

its constituents, and certain vehicle com-

ponents contain or emit chemicals known

to the State of California to cause cancer

and birth defects or ether reproductive

harm.

_WARN1NG: Battery posts, terminals

and related accessories contain lead and

lead compounds, chemicals known to the

State of California to cause cancer and

birth defects or other reproductive harm.

Wash hands after handling.

!. GENERAL OPERATION

• Read, understand, and follow all instruc-

tions on the machine and in the manual

before starting.

. Do not put hands or feet near rotating

parts or under the machine, Keep clear

of the discharge opening at all times,

• Only allow responsible adults, who are

familiar with the instructions, to operate

the machine.

• Clear the area of objects such as rocks,

toys, wire, etc,, which could be picked

up and thrown by the blades°

• Be sure the area is clear of bystand-

ers before operating, Stop machine if

anyone enters the area,

• Never carry passengers.

• Do not mow in reverse unless abso-

lutely necessary. Always look down and

behind before and while backing

• Never direct discharged material toward

anyone. Avoid discharging material

against a wall or obstruction. Material

may ricochet back toward the operator,

Stop the blades when crossing gravel

surfaces°

, Do not operate machine without the

entire grass catcher, discharge guard, or

other safety devices in place and work-

ing,

• Slow down before turning.

• Never leave a running machine unat-

tended, Always turn off blades, set

parking brake, stop engine, and remove

keys before dismounting.

• Disengage blades when not mowing

Shut off engine and wait for all parts to

come to a complete stop before clean-

ing the machine, removing the grass

catcher, or unclogging the discharge

guard°

• Operate machine only in daylight or

good artificial light.

• Do not operate the machine while under

the influence of alcohol or drugs,

• Watch for traffic when operating near or

crossing roadways.

• Use extra care when loading or unload-

ing the machine into a trailer or truck.

• Always wear eye protection when oper-

ating machine,

• Data indicates that operators, age 60

years and above, are involved in a large

percentage of riding mower-related in-

juries. These operators should evaluate

their ability to operate the riding mower

safely enough to protect themselves and

others from serious injury.

• Follow the manufacturer's recommen-

dation for wheel weights or counter-

weights.

• Keep machine free of grass, leaves or

other debris build-up which can touch

hot exhaust /engine parts and burn, Do

not allow the mower to plow leaves or

other debris which can cause build-up

to occur, Clean any oil or fuel spillage

before operating or storing the machine

Allow machine to cool before

storage.

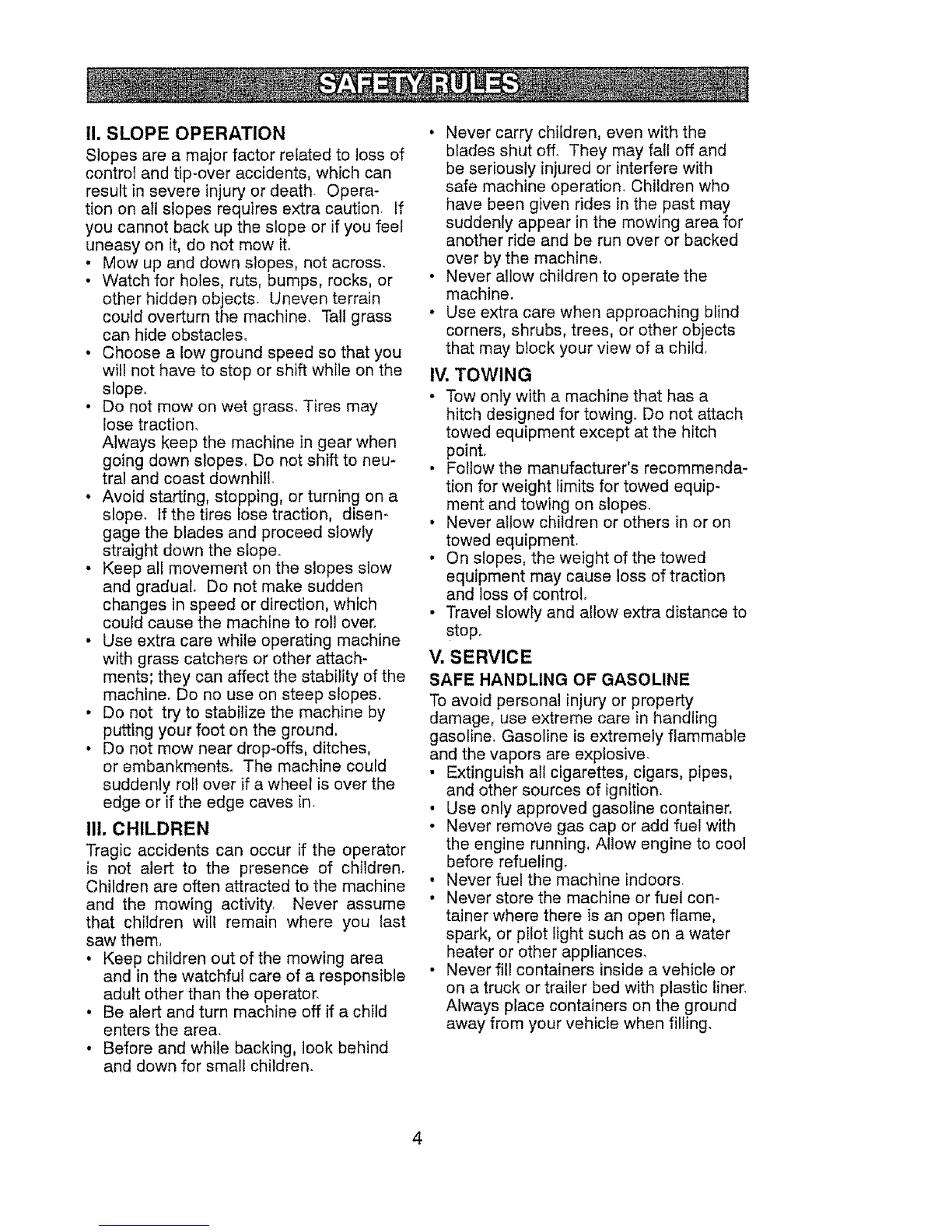

!1.SLOPE OPERATION

Slopesare amajorfactorrelatedto lossof

controlandtip-overaccidents,whichcan

resultinsevereinjuryordeath. Opera-

tion onallslopesrequiresextracaution. If

youcannotbackuptheslopeorifyoufeel

uneasyonit, donotmowit_

. Mowup anddownslopes,notacross.

• Watchfor holes,ruts,bumps,rocks,or

otherhiddenobjects. Uneventerrain

couldoverturnthemachine°Tallgrass

canhideobstacles°

• Choosea lowgroundspeedsothatyou

will nothavetostoporshiftwhileonthe

slope.

• Donotmowonwetgrass.Tiresmay

losetraction_

Alwayskeepthemachineingearwhen

goingdownslopes,Donotshiftto neu-

tralandcoastdownhill.

• Avoidstarting,stopping,orturningona

slope, tfthetireslosetraction, disen-

gagethebladesandproceedslowly

straightdowntheslope°

• Keepallmovementontheslopesslow

andgradual. Donotmakesudden

changesin speedordirection,which

couldcausethemachineto rollover.

• Useextracarewhileoperatingmachine

with grasscatchersorotherattach-

ments;theycanaffectthestabilityofthe

machine.Do nouseonsteepslopes.

• Donot try tostabilizethemachineby

puttingyourfootontheground,

• Donotmowneardrop-offs,ditches,

orembankments,Themachinecould

suddenlyrolloverif awheelisoverthe

edgeoriftheedgecavesin

II!. CHILDREN

Tragicaccidentscan occurif the operator

is not alert to the presence of children,

Childrenareoftenattractedtothemachine

and the mowingactivity. Never assume

that childrenwit! remainwhere you last

sawthem,

• Keepchildrenoutofthemowingarea

andinthewatchfulcareofa responsible

adultotherthantheoperator.

• Bealertandturnmachineoff ifachild

entersthearea.

• Beforeandwhilebacking,lookbehind

anddownforsmallchildren.

• Nevercarrychildren,evenwiththe

bladesshutoff, They mayfall offand

beseriouslyinjuredorinterferewith

safemachineoperation.Childrenwho

havebeengivenridesin thepastmay

suddenlyappearinthemowingareafor

anotherrideandberunoverorbacked

overbythemachine,

• Neverallowchildrento operatethe

machine.

• Useextracarewhenapproachingblind

corners,shrubs,trees,orotherobjects

thatmayblockyourviewofa child.

IV.TOWING

• Towonlywith amachinethat hasa

hitchdesignedfortowing,Donotattach

towedequipmentexceptatthehitch

point.

• Followthemanufacturer'srecommenda-

tionforweightlimitsfortowedequip-

mentandtowingon slopes.

, Neverallowchildrenor othersin oron

towedequipment.

• Onslopes,theweightofthetowed

equipmentmaycauselossoftraction

andlossof control.

• Travelslowlyandallowextradistanceto

stop°

V. SERVICE

SAFEHANDLINGOFGASOLINE

Toavoidpersonalinjuryorproperty

damage,useextremecarein handling

gasoline.Gasolineisextremelyflammable

andthevaporsareexplosive.

• Extinguishall cigarettes,cigars,pipes,

andothersourcesofignition.

• Useonlyapprovedgasolinecontainer.

• Neverremovegascaporaddfuelwith

theenginerunning_Allowenginetocool

beforerefueling.

• Neverfuelthemachineindoors.

• Neverstorethemachineorfuel con-

tainerwherethereisan openflame,

spark,orpilotlightsuchason awater

heaterorotherappliances.

• Neverfill containersinsideavehicleor

on atruckortrailerbedwithplasticliner.

Alwaysplacecontainersontheground

awayfromyourvehiclewhenfilling.

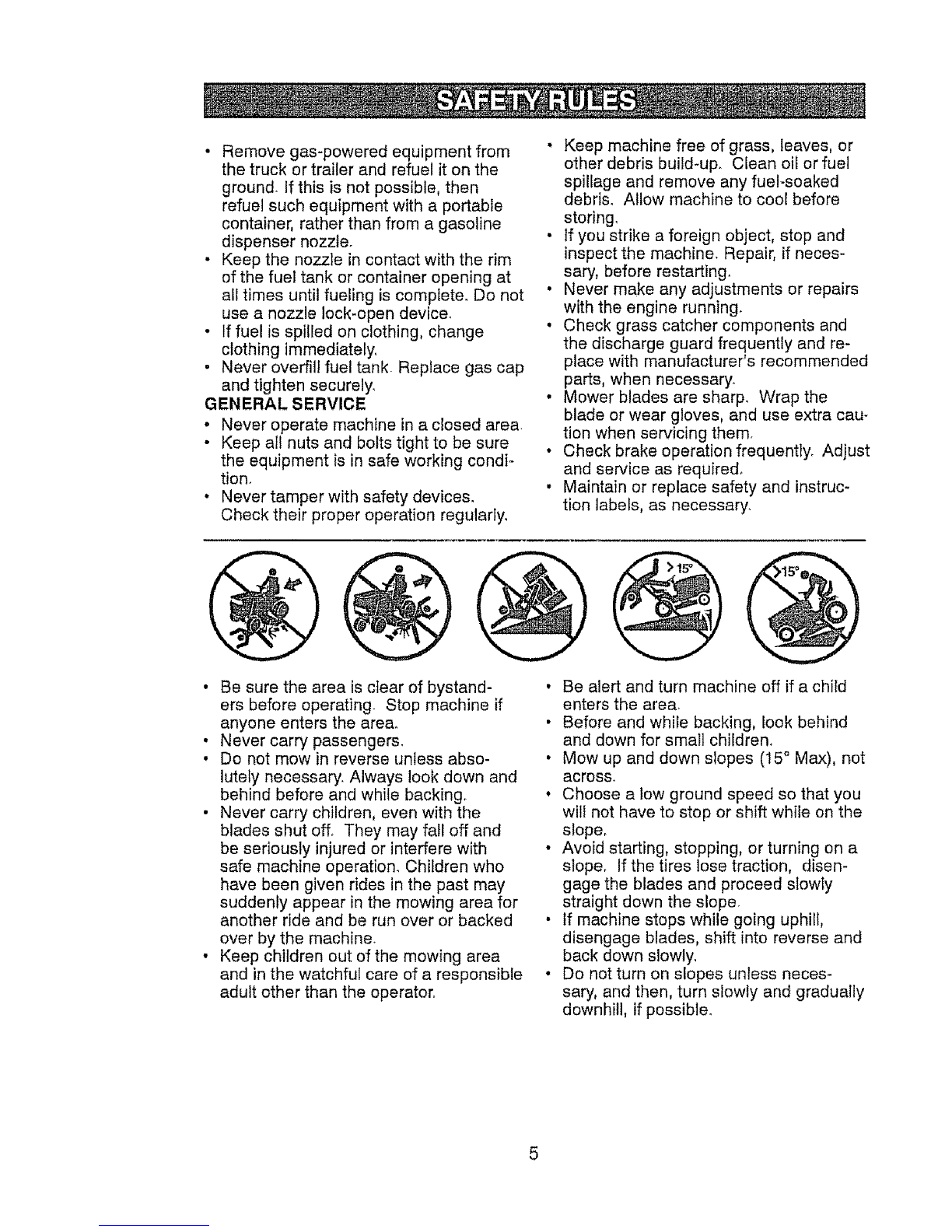

• Removegas-poweredequipmentfrom

thetruckortrailerandrefuelit onthe

ground.Ifthisisnotpossible,then

refuelsuchequipmentwitha portable

container,ratherthanfromagasoline

dispensernozzle.

• Keepthe nozzlein contactwiththe rim

ofthefueltankorcontaineropeningat

alltimesuntilfuelingiscomplete,Do not

usea nozzlelock-opendevice.

, Iffuel is spilledon clothing,change

clothingimmediately,

• Neveroverfillfue!tank.Replacegascap

andtightensecurely.

GENERALSERVICE

• Neveroperatemachinein a closed area.

• Keep all nuts and bolts tight to be sure

the equipment is in safe working condi-

tion.

• Never tamper with safety devices.

Check their proper operation regularly,

• Keep machine free of grass, leaves, or

other debris build-up. Clean oil or fuel

spillage and remove any fuel-soaked

debris, Allow machine to cool before

storing,

• If you strike a foreign object, stop and

inspect the machine. Repair, if neces-

sary, before restarting.

• Never make any adjustments or repairs

with the engine running.

• Check grass catcher components and

the discharge guard frequently and re-

place with manufacturer's recommended

parts, when necessary.

• Mower blades are sharp. Wrap the

blade or wear gloves, and use extra cau-

tion when servicing them.

• Check brake operation frequentIy. Adjust

and service as required,

• Maintain or replace safety and instruc-

tion labels, as necessary.

• Be sure the area is ctear of bystand-

ers before operating. Stop machine if

anyone enters the area.

• Never carry passengers.

• Do not mow in reverse unless abso-

lutely necessary. Always look down and

behind before and while backing.

• Never carry children, even with the

blades shut off. They may fall off and

be seriously injured or interfere with

safe machine operation° Children who

have been given rides in the past may

suddenly appear in the mowing area for

another ride and be run over or backed

over by the machine.

• Keep children out of the mowing area

and in the watchful care of a responsible

adult other than the operator.

• Be alert and turn machine off if a child

enters the area.

• Before and while backing, look behind

and down for smal] children,

• Mow up and down slopes (15 ° Max), not

across,

° Choose a tow ground speed so that you

will not have to stop or shift while on the

slope°

• Avoid starting, stopping, or turning on a

slope_ If the tires lose traction, disen-

gage the blades and proceed slowty

straight down the slope

• If machine stops while going uphill,

disengage blades, shift into reverse and

back down slowly,

• Do not turn on slopes unless neces-

sary, and then, turn slowly and gradually

downhill, if possible,

PRODUCT SPECIFICATIONS

Gasoline Capacity

and Type:

Oil Type

(APIoSG-SL):

Oil Capacity:

Spark Plug:

Ground Speed

Charging System:

Battery:

3 Gallons

Unleaded Regular

SAE 10W30 (above 32°F

SAE 5W30

(below 32°F)

W/Filter: 61 oz

Champion RCI 2YC

(Gap: .030")

Forward: 0-5,5

Reverse: 0-2.4

I5 Amps @ 3600 RPM

Amp!Hr: 35

Min, CCA: 280

Case size: U1R

Blade Bolt Torque: 45-55 Ft. Lbs.

CONGRATULATIONS on your purchase

of a new tractor, It has been designed,

engineered and manufactured to give

you the best possible dependability and

performance,

Should you experience any problem you

cannot easily remedy, please contact a

Sears or other qualified service center.

We have competent, well-trained repre-

sentatives and the proper tools to service

or repair this tractor.

Please read and retain this manual The

instructions will enable you to assemble

and maintain your tractor properly, Always

observe the "SAFETY RULES"_

CUSTOMER RESPONSIBILITIES

. Read and observe the safety rules.

• Follow a regular schedule in main-

taining, caring for and using your tractor,

• Follow the instructions under"Mainte-

nance" and "Storage" sections of this

owner's manual.

,_WARNING: This tractor is equipped

with an internal combustion engine and

should not be used on or near any unim-

proved forest-covered, brush-covered or

grass-covered land unless the engine's

exhaust system is equipped with a spark

arrester meeting applicable local or state

laws (if any). If a spark arrester is used, it

should be maintained in effective working

order by the operator.

In the state of California the above is re-

quired by law (Section 4442 of the Califor-

nia Public Resources Code), Other states

may have similar laws, Federal laws apply

on federal lands, A spark arrester for the

muffler is available through your nearest

Sears service center (See REPAIR PARTS

manual),

REPAIR PROTECTION

AGREEMENTS

Congratulations on making a smart pur-

chase Your new Craftsman® product is

designed and manufactured for years of

dependable operation But like all products,

it may require repair from time to time. That's

when having a Repair Protection Agreement

can save you money and aggravation.

Purchase a Repair Protection Agreement

now and protect yourself from unexpected

hassle and expense.

Here's what's included in the Agreement:

• Expert service by our 12,000 profesion-

al repair specialists.

• Unlimited service and no charge for

parts and labor on all covered repairs.

• Product replacement if your covered

product can't be fixed,

• Discount of 10% from regular price of

service and service-related parts not

covered by the agreement; also, 10% off

regular price of preventive maintenance

check,

, Fast help by phone - phone support

from a Sears representative on products

requiring in-home repair, plus conve-

nient repair scheduling,

Once you purchase the Agreement, a

simple phone call is all that ittakes for you

to schedule service. You can call anytime

day or night, or schedule a service ap-

pointment online,

Sears has over 12,000 professional repair

specialists, who have access to over 4,5

million quality parts and accessories,

That's the kind of professionalism you can

count on to help prolong the life of your

new purchase for years to come. Purchase

your Repair Protection Agreement todayl

Some limitations and exclusions apply.

For prices and additional information

call 1-800-827-6655,

SEARS INSTALLATION SERVICE

For Sears professional installation of home

appliances, garage door openers, water

heaters, and other major home items, in

the U.SA. call 1-800-4-MY-HOME®

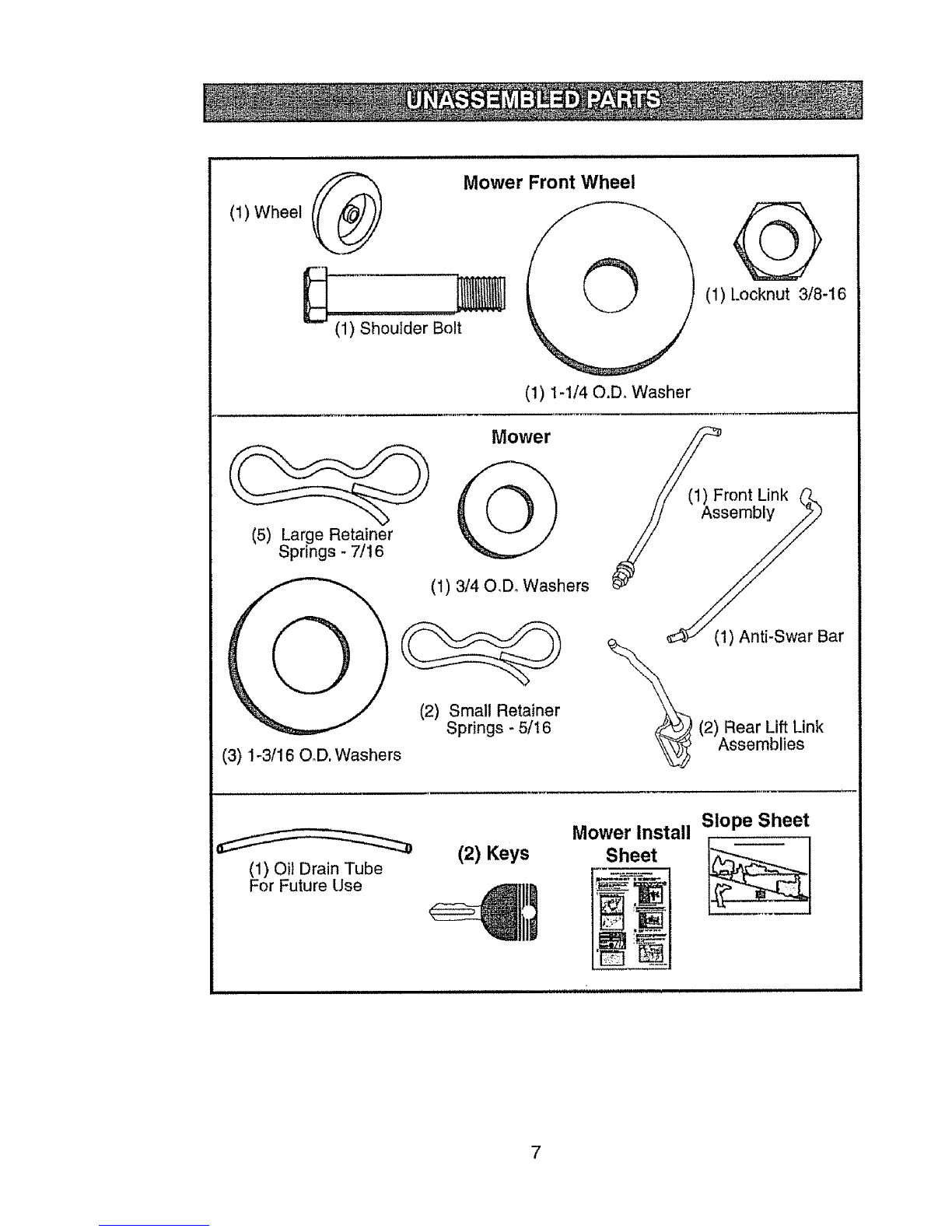

(1)Wheel

Mower Front Wheel

(1) Shoulder Bolt

(1) 1-1/40.D, Washer

(1) Locknut 3/8-16

(5) Large Retainer

Springs - 7/16

(3) 1-3/16 O_D. Washers

Mower

(1) 3/40,D_ Washers

(2) Small Retainer

Springs - 5/16

(1) Front Link (_

(1) Anti-Swar Bar

2) Rear Lift Link

Assemblies

(1) OiJDrain Tube

For Future Use

(2) Keys

Mower Install Slope Sheet

Sheet

Your new tractor has been assembled at the factory with the exception of those parts left

unassembled for shipping purposes,

TOOLS REQUIRED FOR ASSEMBLY

A socket wrench set will make assembly

easier, Standard wrench sizes you need

are listed below.

(1) 3/4" wrench (1) Pliers

(1) 9/16" wrench (1) Utility knife

(1) Tire pressure gauge

When right or left hand is mentioned in

this manual, it means, from your point of

view, when you are in the operating posi-

tion (seated behind the steering wheel),

TO REMOVE TRACTOR FROM

CARTON

UNPACK CARTON

1, Remove all accessible loose parts and

parts cartons from carton,

2o Cut along dashed lines on al! four pan-

els of carton. Remove end panels and

lay side panels flat,

3, Remove mower and packing materials,

4. Check for any additional loose aprts or

cartons and remove.

CHECK BATTERY

1, Lift hood to raised position,

NOTE: If this battery is put into service

after month and year indicated on label

(L) (label is located between terminals)

charge battery for minimum of one hour at

6-10 amps, (See "BATTERY" in Mainte-

nance section of this manual for charging

instructions),

ADJUST SEAT

1, Sit in seat.

2. Lift up adjustment lever (A) and slide

seat until a comfortable position is

reached which allows you to press

clutch/brake pedal all the way down,

3, Retease lever to lock seat in position.

NOTE: You may now roll or drive your

tractor off the skid. Follow the appropriate

instruction below to remove the tractor

from the skid,

WARNING: Before starting, read, un-

derstand and follow all instructions in the

Operation section of this manual. Be sure

tractor is in a well-ventilated area, Be sure

the area in front of tractor is clear of other

people and objects,

TO ROLL TRACTOR OFF SKID (See

Operation section for location and

function of controls)

1, Raise attachment lift lever to its highest

position_

2, Release parking brake by depressing

brake pedal.

3, Place freewheel control in "trans-

mission disengaged position" (See %0

TRANSPORT in the Operation section

of this manual).

4. Roll tractor forward off skid.

TO DRIVE TRACTOR OFF SKID

(See Operation section for location

and function of controls)

1, Be sure all the above steps have been

completed,

2. Check engine oil level and fill fuel tank

with gasoline_

3, Place freewheel control in "trans-

mission engaged" position (see "TO

TRANSPORT" in Operation section of

this manual)+

4, Sit on seat in operating position, de-

press brake pedal and set the parking

brake,

5, Raise attachment lift lever to its highest

position,

6_ Remove key from bag and start the

engine (see "TO START ENGINE" in

the Operation section of this manual)_

After engine has started, move throttle

control to idle position,

7,. Release parking brake,

8, Slowly depress forward drive peda{ and

drive tractor off skid,

9, Apply brake to stop tractor and set

parking brake,

1&Turn ignition key to "STOP" position°

Continue with the instructions that foIIow,

ASSEMBLE FRONT WHEEL TO

MOWER

1, Using shoulder bolt, washer and

locknut from parts bag, assemble front

wheel to mower as shown. Tighten

securely.

NOTE: Be sure mower side suspension

arms (A) are pointing forward before slid-

ing mower under tractor,

4, Slide mower under tractor until it is

centered under tractor,

5, FIRST INSTALL ANTI-SWAY BAR (S),

- From right side of mower, insert

ant-sway bar into hole in transmission

bracket (T),

INSTALL MOWER AND DRIVE

BELT

See MOWER AND DRIVE BELT AS-

SEMBLY Supplement Sheet for additional

guidance on this assembly,

Be sure tractor is on level surface and

engage parking brake,

1, Lower attachment lift lever to it's lowest

position_

CAUTION: Lift lever is spring loaded.

Have a tight grip on lift lever, lower it

slowly and engage in lowest position.

2. Turn steering wheel to the left as far as

it will go and position mower on right

side of tractor with deflector shield to

the right,

Remove plastic tie securing belt. bring 7,

belt forward and check belt for proper

routing in all mower pulley grooves. 9

- Pivot bar towards you and insert other

end of bar into hole in rear mower

bracket (D)o Move mower as needed to

insert bar_

- Secure with washer and retainer

spring as shown.

ATTACH MOWER SIDE SUSPENSION

ARMS (A) TO CHASSIS - Position hole

in arm over pin (B) on outside of tractor

chassis and secure with washer and

retainer spring,

Repeat on opposite side of tractor-

12.Insertotherendoflink(E)intoholein

frontmowerbracket(H)andsecurewith

washerandretainerspring(J)

8, ATTACHREARUFTLINKS(C)- Insert

rodendoflinkassemblyintoholeintrac-

torliftshaftsuspensionarm(L)andpivot

linkdownto mowerLiftrearcornerof

mowerandpositionslotinlinkassembly

overpinonrearmowerbracket(D)and

securewithwasherandretainerspring.

9. Repeatonoppositesideoftractor.

13_Disengage belt tension rod (K) from lock-

ing bracket (L)_

14. Install belt onto engine clutch pulley (M).

IMPORTANT: Check belt for proper routing

in all mower pulley grooves.

10. Turn steering wheel to position wheels

straight forward.

11. ATTACH FRONT LINK (E) - Work from

left side of tractor, Insert rod end of tink

assembly through front hole in tractor

front suspension bracket (F) and secure

with retainer spring (G) through hole in

link located behind the bracket.

15. Engage belt tension rod (K) on locking

. bracket (L).

CAUTION: Belt tension rod is spring

loaded. Have a tight grip on rod and engage

slowly.

16, Raise attachment lift lever to highest

position.

17. [f necessary, adjust gauge wheels

before operating mower as shown in the

Operation section of this manual.

02937A

Ce manuel convient aux modèles suivants

Table des matières

Langues :

Autres manuels Craftsman Tondeuse à gazon

Craftsman

Craftsman 917.275761 Manuel utilisateur

Craftsman

Craftsman 917.28812 Manuel utilisateur

Craftsman

Craftsman 917.376096 Manuel utilisateur

Craftsman

Craftsman 917.374950 Manuel utilisateur

Craftsman

Craftsman 917.387501 Manuel utilisateur

Craftsman

Craftsman 25327 Manuel utilisateur

Craftsman

Craftsman 917.376483 Manuel utilisateur

Craftsman

Craftsman 917.25148 Manuel utilisateur

Craftsman

Craftsman 917.270861 Manuel utilisateur

Craftsman

Craftsman 917.387302 Manuel utilisateur

Craftsman

Craftsman 917.371811 Manuel utilisateur

Craftsman

Craftsman 917.371640 Manuel utilisateur

Craftsman

Craftsman 917.370536 Manuel utilisateur

Craftsman

Craftsman 917.270681 Manuel utilisateur

Craftsman

Craftsman 917.388480 Manuel utilisateur

Craftsman

Craftsman 27746 Manuel utilisateur

Craftsman

Craftsman 917.275032 Manuel utilisateur

Craftsman

Craftsman 917.388224 Manuel utilisateur

Craftsman

Craftsman 247.289150 Manuel utilisateur

Craftsman

Craftsman 917.28008 Manuel utilisateur

Craftsman

Craftsman 247.27022 Manuel utilisateur

Craftsman

Craftsman 259O9 Manuel utilisateur

Craftsman

Craftsman 917.255440 Manuel utilisateur

Craftsman

Craftsman 917.272922 Manuel utilisateur

Manuels Tondeuse à gazon populaires d'autres marques

RHINO

RHINO 1958 Manuel utilisateur

Wolf Garten

Wolf Garten Compact plus 40 B Manuel utilisateur

Cub Cadet

Cub Cadet LTX 1045 Manuel utilisateur

GGP ITALY SPA

GGP ITALY SPA CR/CS 434 SERIES Manuel utilisateur

Challenge

Challenge CH18V2 Instructions de fonctionnement

TALEN TOOLS

TALEN TOOLS AVR HGM30 Manuel utilisateur

DEWEZE

DEWEZE ATM-725 Manuel d'utilisation

Weed Eater

Weed Eater 180083 Manuel utilisateur

Husqvarna

Husqvarna Poulan Pro PP185A42 Manuel utilisateur

Better Outdoor Products

Better Outdoor Products Quick Series Manuel utilisateur

Cub Cadet

Cub Cadet 23HP Z-Force 60 Manuel d'utilisation

MTD

MTD 795, 792, 791, 790 Manuel utilisateur

Toro

Toro Groundsmaster 3505-D Manuel utilisateur

Dennis

Dennis FT 610 Manuel utilisateur

AIRFORCE

AIRFORCE F-15 Gen 3 Manuel utilisateur

MTD

MTD 126-220-000 Manuel utilisateur

Toro

Toro 74806 Manuel utilisateur

Stihl

Stihl RMA 443 PV Manuel utilisateur
