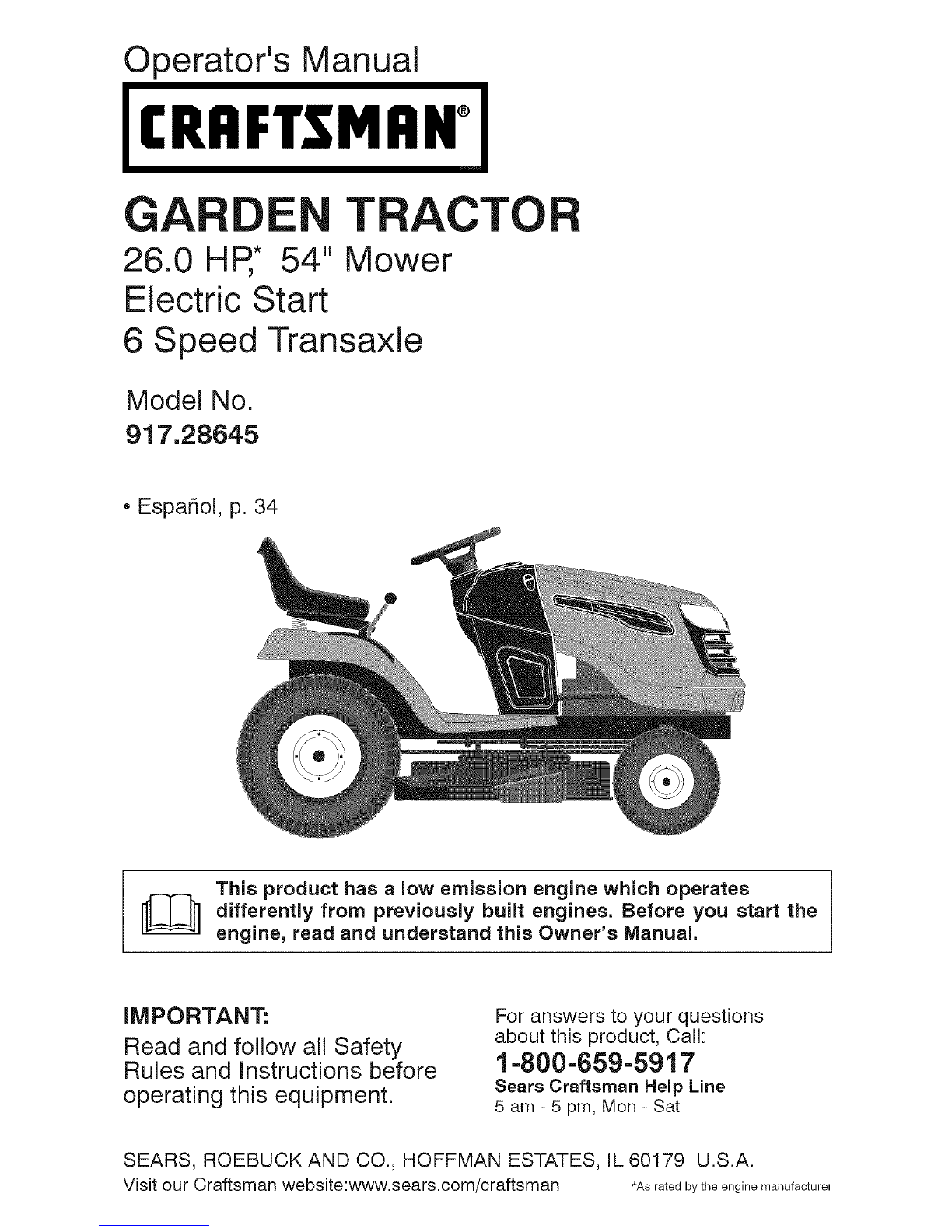

Operator's Manual

CRAFTSMIIN°

GAR TRACTO

26.0 HR* 54" Mower

Electric Start

6 Speed Transaxle

Model No.

917.28645

• Espahol, p. 34

This product has alow emission engine which operates

[[[_ differently from previously built engines. Before start the

you

engine, read and understand this Owner's Manual.

IMPORTANT:

Read and follow all Safety

Rules and Instructions before

operating this equipment,

For answers to your questions

about this product, Call:

t -800-659-59 t 7

Sears Craftsman Help Line

5 am - 5 pm, Mon- Sat

SEARS, ROEBUCK AND CO., HOFFMAN ESTATES, IL 60179 U.S.A.

Visit our Craftsman website:www.sears.com/craftsman *As rated by the engine manufacturer

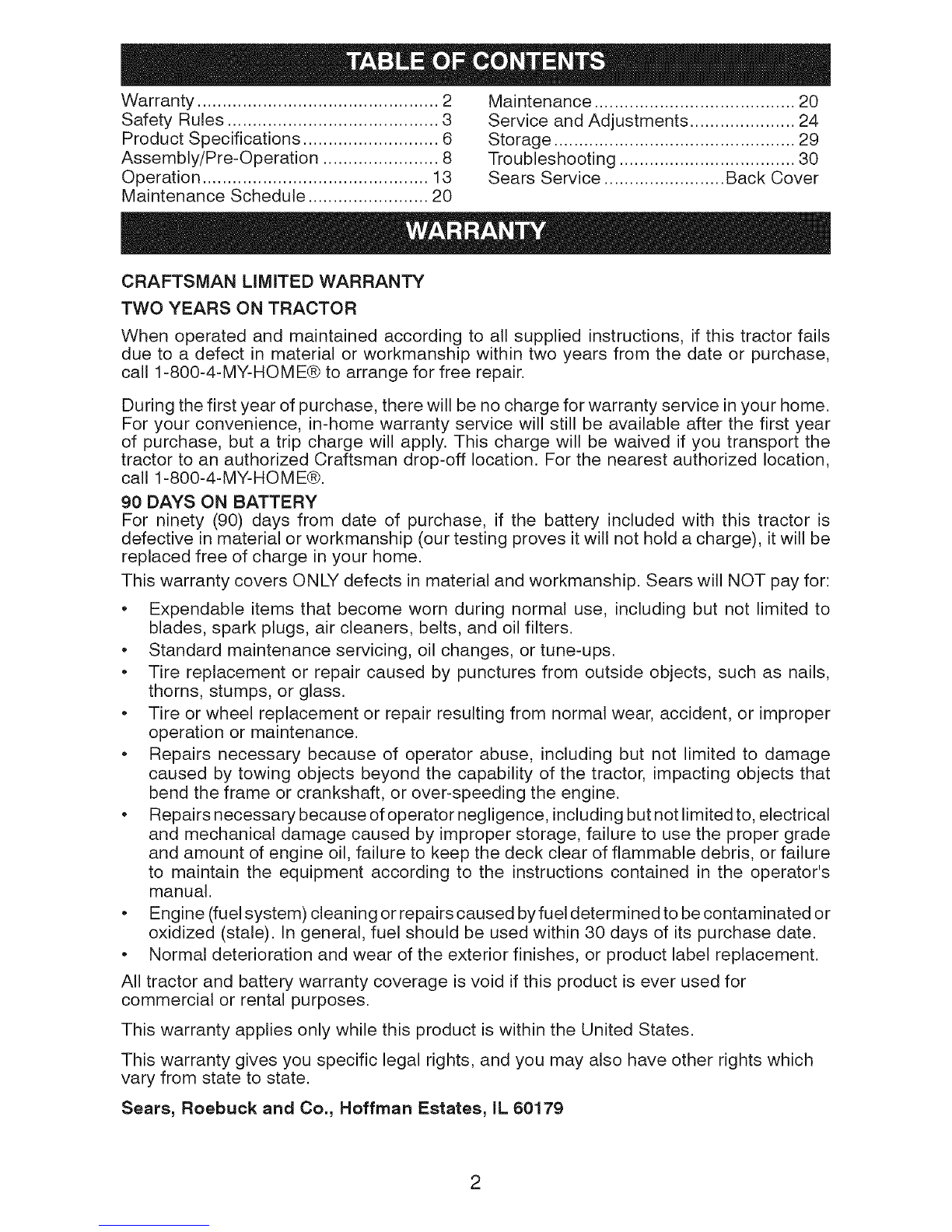

Warranty ................................................ 2 Maintenance ........................................ 20

Safety Rules .......................................... 3 Service and Adjustments ..................... 24

Product Specifications ........................... 6 Storage ................................................ 29

Assembly/Pre-Operation ....................... 8 Troubleshooting ................................... 30

Operation ............................................. 13 Sears Service ........................ Back Cover

Maintenance Schedule ........................ 20

CRAFTSMAN LIMITED WARRANTY

TWO YEARS ON TRACTOR

When operated and maintained according to all supplied instructions, if this tractor fails

due to a defect in material or workmanship within two years from the date or purchase,

call 1-800-4-MY-HOME® to arrange for free repair.

During the first year of purchase, there will be no charge for warranty service in your home.

For your convenience, in-home warranty service will still be available after the first year

of purchase, but a trip charge will apply. This charge will be waived if you transport the

tractor to an authorized Craftsman drop-off location. For the nearest authorized location,

call 1-800-4-MY-HOM E®.

90 DAYS ON BATTERY

For ninety (90) days from date of purchase, if the battery included with this tractor is

defective in material or workmanship (our testing proves it will not hold a charge), it will be

replaced free of charge in your home.

This warranty covers ONLY defects in material and workmanship. Sears will NOT pay for:

•Expendable items that become worn during normal use, including but not limited to

blades, spark plugs, air cleaners, belts, and oil filters.

,Standard maintenance servicing, oil changes, or tune-ups.

•Tire replacement or repair caused by punctures from outside objects, such as nails,

thorns, stumps, or glass.

•Tire or wheel replacement or repair resulting from normal wear, accident, or improper

operation or maintenance.

,Repairs necessary because of operator abuse, including but not limited to damage

caused by towing objects beyond the capability of the tractor, impacting objects that

bend the frame or crankshaft, or over-speeding the engine.

•Repairs necessary because of operator negligence, including but not limited to, electrical

and mechanical damage caused by improper storage, failure to use the proper grade

and amount of engine oil, failure to keep the deck clear of flammable debris, or failure

to maintain the equipment according to the instructions contained in the operator's

manual.

•Engine (fuel system) cleaning or repairs caused byfuel determined to be contaminated or

oxidized (stale). In general, fuel should be used within 30 days of its purchase date.

•Normal deterioration and wear of the exterior finishes, or product label replacement.

All tractor and battery warranty coverage is void if this product is ever used for

commercial or rental purposes.

This warranty applies only while this product is within the United States.

This warranty gives you specific legal rights, and you may also have other rights which

vary from state to state.

Sears, Roebuck and Co., Hoffman Estates, IL 60179

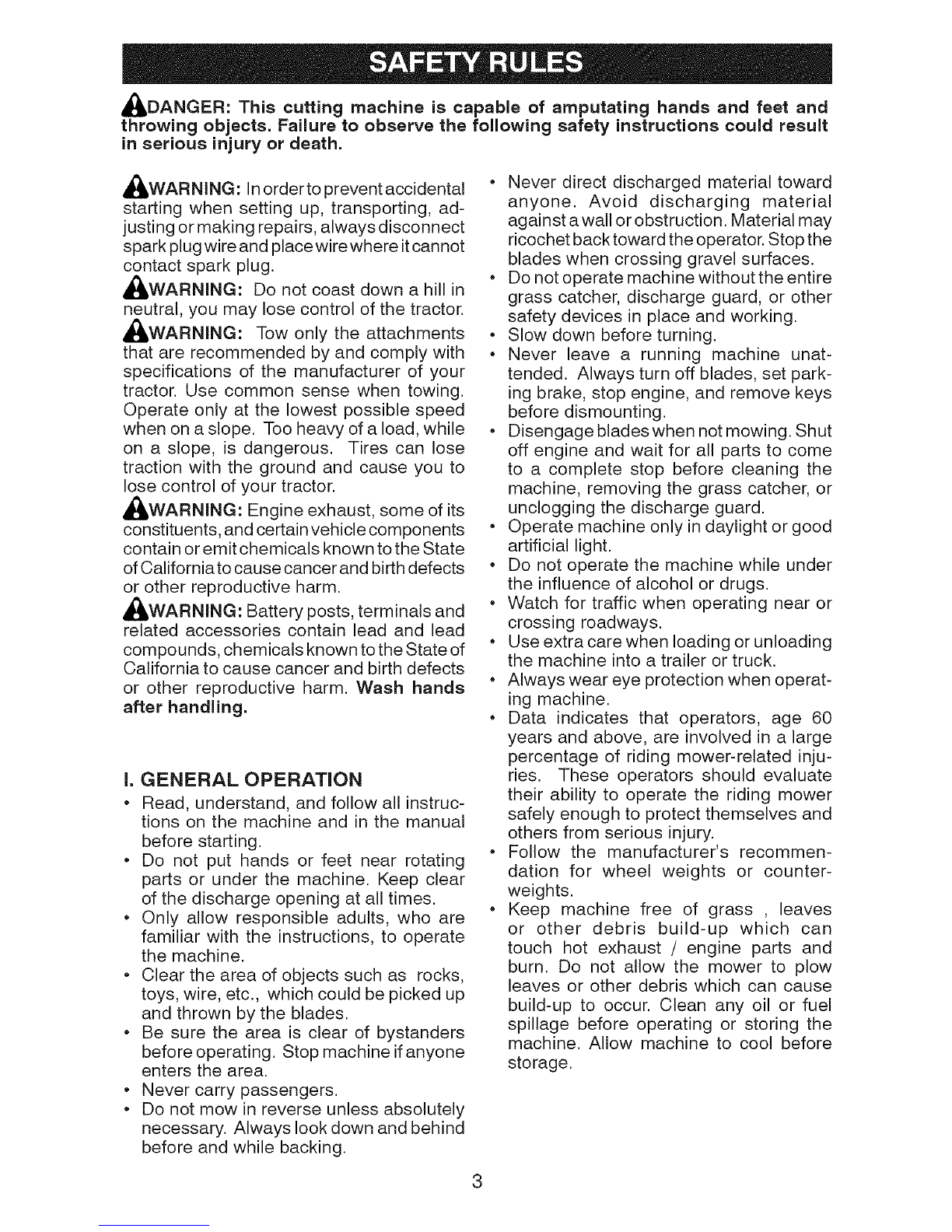

_I, DANGER: This cutting machine is capable of amputating hands and feet and

throwing objects. Failure to observe the following safety instructions could result

in serious injury or death.

,_WARNING: In order to prevent accidental

starting when setting up, transporting, ad-

justing or making repairs, always disconnect

spark plug wire and place wire where itcannot

contact spark plug.

_:_WARNING: Do not coast down a hill in

neutral, you may lose control of the tractor.

,_WARNING: Tow only the attachments

that are recommended by and comply with

specifications of the manufacturer of your

tractor. Use common sense when towing.

Operate only at the lowest possible speed

when on a slope. Too heavy of a load, while

on a slope, is dangerous. Tires can lose

traction with the ground and cause you to

lose control of your tractor.

,_WARNING: Engine exhaust, some of its

constituents, and certain vehicle components

contain or emit chemicals known to the State

of Californiato cause cancer and birth defects

or other reproductive harm.

,_WARNING: Battery posts, terminals and

related accessories contain lead and lead

compounds, chemicals known to the State of

California to cause cancer and birth defects

or other reproductive harm. Wash hands

after handling.

I. GENERAL OPERATION

*Read, understand, and follow all instruc-

tions on the machine and in the manual

before starting.

*Do not put hands or feet near rotating

parts or under the machine. Keep clear

of the discharge opening at all times.

*Only allow responsible adults, who are

familiar with the instructions, to operate

the machine.

*Clear the area of objects such as rocks,

toys, wire, etc., which could be picked up

and thrown by the blades.

*Be sure the area is clear of bystanders

before operating. Stop machine if anyone

enters the area.

*Never carry passengers.

, Do not mow in reverse unless absolutely

necessary. Always look down and behind

before and while backing.

Never direct discharged material toward

anyone. Avoid discharging material

against a wall or obstruction. Material may

ricochet back toward the operator. Stop the

blades when crossing gravel surfaces.

, Do not operate machine without the entire

grass catcher, discharge guard, or other

safety devices in place and working.

Slow down before turning.

Never leave a running machine unat-

tended. Always turn off blades, set park-

ing brake, stop engine, and remove keys

before dismounting.

, Disengage blades when not mowing. Shut

off engine and wait for all parts to come

to a complete stop before cleaning the

machine, removing the grass catcher, or

unclogging the discharge guard.

Operate machine only in daylight or good

artificial light.

Do not operate the machine while under

the influence of alcohol or drugs.

, Watch for traffic when operating near or

crossing roadways.

Use extra care when loading or unloading

the machine into a trailer or truck.

Always wear eye protection when operat-

ing machine.

Data indicates that operators, age 60

years and above, are involved in a large

percentage of riding mower-related inju-

ries. These operators should evaluate

their ability to operate the riding mower

safely enough to protect themselves and

others from serious injury.

, Follow the manufacturer's recommen-

dation for wheel weights or counter-

weights.

, Keep machine free of grass , leaves

or other debris build-up which can

touch hot exhaust /engine parts and

burn. Do not allow the mower to plow

leaves or other debris which can cause

build-up to occur. Clean any oil or fuel

spillage before operating or storing the

machine. Allow machine to cool before

storage.

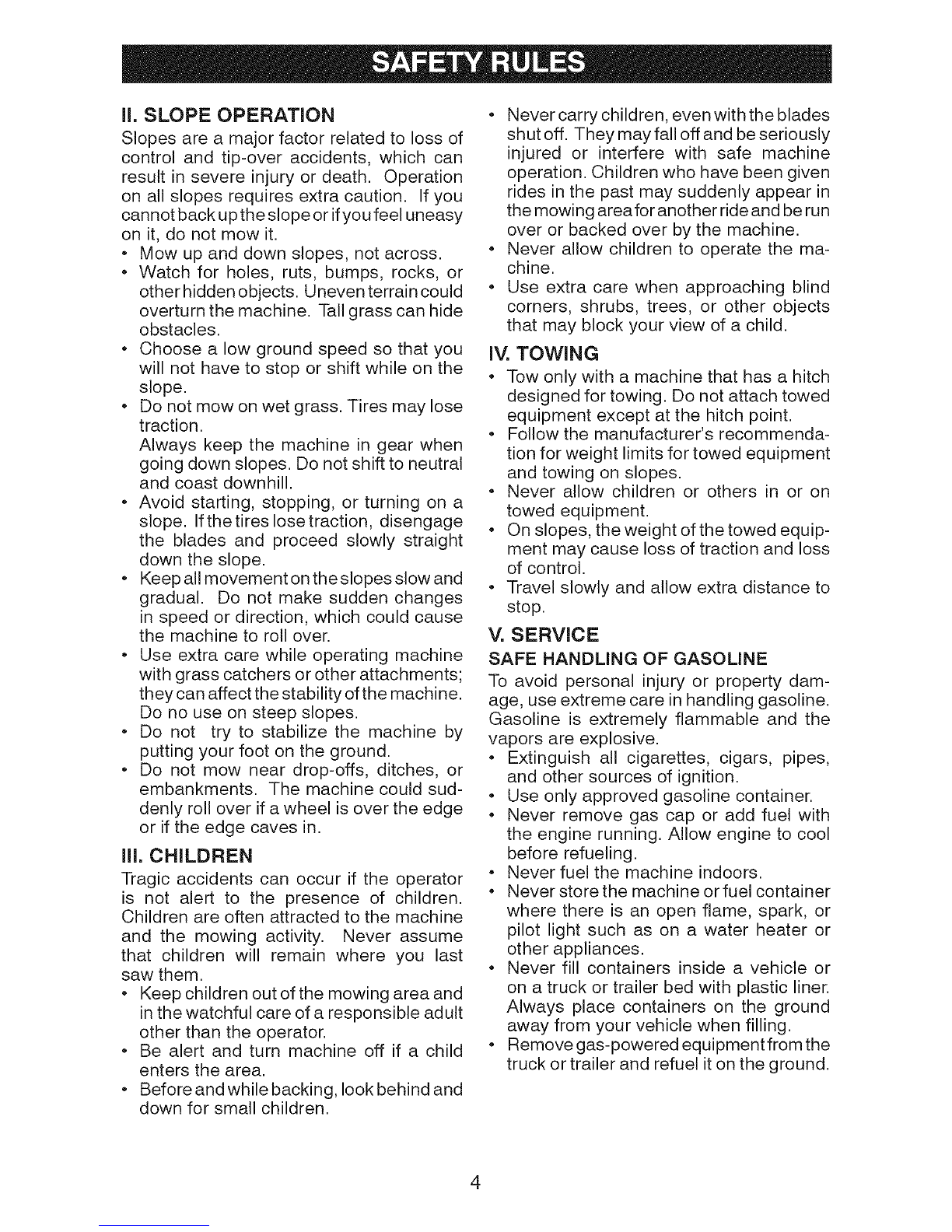

II. SLOPE OPERATION

Slopes are a major factor related to loss of

control and tip-over accidents, which can

result in severe injury or death. Operation

on all slopes requires extra caution. If you

cannot back up the slope or if you feel uneasy

on it, do not mow it.

, Mow up and down slopes, not across.

, Watch for holes, ruts, bumps, rocks, or

other hidden objects. Uneven terrain could

overturn the machine. Tall grass can hide

obstacles.

•Choose a low ground speed so that you

will not have to stop or shift while on the

slope.

Do not mow on wet grass. Tires may lose

traction.

Always keep the machine in gear when

going down slopes. Do not shift to neutral

and coast downhill.

Avoid starting, stopping, or turning on a

slope. If the tires lose traction, disengage

the blades and proceed slowly straight

down the slope.

•Keep all movement on the slopes slow and

gradual. Do not make sudden changes

in speed or direction, which could cause

the machine to roll over.

•Use extra care while operating machine

with grass catchers or other attachments;

they can affect the stability of the machine.

Do no use on steep slopes.

,Do not try to stabilize the machine by

putting your foot on the ground.

•Do not mow near drop-offs, ditches, or

embankments. The machine could sud-

denly roll over if a wheel is over the edge

or if the edge caves in.

III. CHILDREN

Tragic accidents can occur if the operator

is not alert to the presence of children.

Children are often attracted to the machine

and the mowing activity. Never assume

that children will remain where you last

saw them.

,Keep children out of the mowing area and

in the watchful care of a responsible adult

other than the operator.

,Be alert and turn machine off if a child

enters the area.

,Before and while backing, look behind and

down for small children.

•Never carry children, even with the blades

shut off. They may fall off and be seriously

injured or interfere with safe machine

operation. Children who have been given

rides in the past may suddenly appear in

the mowing areafor another ride and be run

over or backed over by the machine.

,Never allow children to operate the ma-

chine.

•Use extra care when approaching blind

corners, shrubs, trees, or other objects

that may block your view of a child.

IV. TOWING

•Tow only with a machine that has a hitch

designed for towing. Do not attach towed

equipment except at the hitch point.

Follow the manufacturer's recommenda-

tion for weight limits for towed equipment

and towing on slopes.

•Never allow children or others in or on

towed equipment.

•On slopes, the weight of the towed equip-

ment may cause loss of traction and loss

of control.

•Travel slowly and allow extra distance to

stop.

V. SERVICE

SAFE HANDLING OF GASOLINE

To avoid personal injury or property dam-

age, use extreme care in handling gasoline.

Gasoline is extremely flammable and the

vapors are explosive.

Extinguish all cigarettes, cigars, pipes,

and other sources of ignition.

Use only approved gasoline container.

Never remove gas cap or add fuel with

the engine running. Allow engine to cool

before refueling.

Never fuel the machine indoors.

Never store the machine or fuel container

where there is an open flame, spark, or

pilot light such as on a water heater or

other appliances.

Never fill containers inside a vehicle or

on a truck or trailer bed with plastic liner.

Always place containers on the ground

away from your vehicle when filling.

Remove gas-powered equipment from the

truck or trailer and refuel it on the ground.

If this is not possible, then refuel such

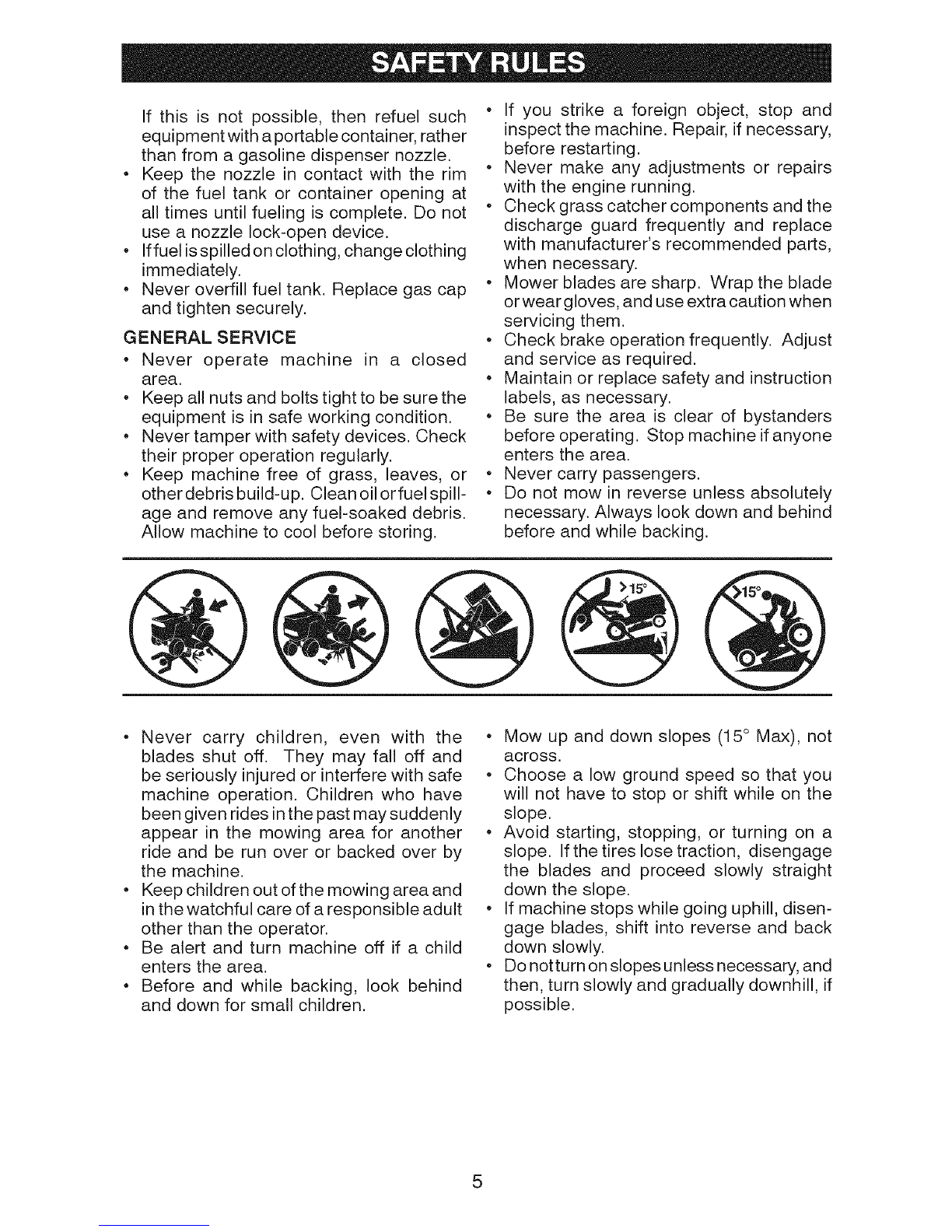

equipmentwithaportablecontainer,rather

thanfrom a gasolinedispenser nozzle.

Keep the nozzle in contact with the rim

of the fuel tank or container opening at

alltimes untilfueling iscomplete. Do not

use a nozzlelock-opendevice.

Iffuelisspilledonclothing,changeclothing

immediately.

Neveroverfillfuel tank. Replacegas cap

andtightensecurely.

GENERAL SERVICE

Never operate machine in a closed

area.

, Keepallnutsandboltstighttobesurethe

equipmentisin safeworking condition.

, Nevertamperwith safetydevices.Check

their properoperationregularly.

Keep machine free of grass, leaves, or

otherdebrisbuild-up.Cleanoilorfuelspill-

age and removeany fuel-soakeddebris.

Allow machineto cool beforestoring.

If you strike a foreign object, stop and

inspectthemachine.Repair,ifnecessary,

beforerestarting.

Never make any adjustments or repairs

with the enginerunning.

Checkgrasscatchercomponentsandthe

discharge guard frequently and replace

with manufacturer'srecommendedparts,

when necessary.

Mowerbladesare sharp. Wraptheblade

orweargloves,anduseextracautionwhen

servicingthem.

Checkbrakeoperationfrequently. Adjust

andserviceas required.

Maintainor replacesafetyand instruction

labels,as necessary.

Be sure the area is clear of bystanders

beforeoperating. Stopmachineifanyone

entersthe area.

Nevercarrypassengers.

Do not mow in reverseunlessabsolutely

necessary.Always lookdownand behind

beforeandwhile backing.

Never carry children, even with the

blades shut off. They may fall off and

beseriouslyinjuredorinterferewith safe

machine operation. Children who have

beengivenridesinthepastmaysuddenly

appear in the mowing area for another

ride and be run over or backed over by

the machine.

Keepchildrenoutofthemowingareaand

inthewatchfulcareofaresponsibleadult

otherthan the operator.

Be alert and turn machine off if a child

entersthe area.

Before and while backing, look behind

anddownfor small children.

Mow up and down slopes (15° Max),not

across.

Choose a low ground speed so that you

will not haveto stop or shift while on the

slope.

Avoid starting, stopping, or turning on a

slope. Ifthetires losetraction, disengage

the blades and proceed slowly straight

downthe slope.

Ifmachinestopswhile goinguphill,disen-

gage blades,shift into reverseand back

downslowly.

Donotturnonslopesunlessnecessary,and

then,turnslowlyandgraduallydownhill,if

possible.

PRODUCT SPECiFiCATiONS

Gasoline Capacity 4 Gallons

and Type: Unleaded Regular

Oil Type SAE 10W30(above 32°F)

API-SG-SL): SAE 5W30(below 32°F

Oil Capacity: W/Filter: 61 oz

Spark Plug: Champion RC12YC

(Gap: .030")

Ground Speed Forward:

(MPH): 1st 1.58

2nd 1.14

3rd 1.77

4th 2.65

5th 3.38

6th 4.33

Reverse: 1.33

Charging System: 15 Amps

Battery: Amp/Hr: 35

Min. CCA: 280

Case size: U1R

Blade Bolt Torque: 45-55 Ft. Lbs.

CONGRATULATIONS on your purchase of

a new tractor. It has been designed, engi-

neered and manufactured to give you the best

possible dependability and performance.

Should you experience any problem you

cannot easily remedy, please contact a

Sears or other qualified service center. We

have competent, well-trained technicians

and the proper tools to service or repair

this tractor.

Please read and retain this manual. The

instructions will enable you to assemble

and maintain your tractor properly. Always

observe the "SAFETY RULES".

CUSTOMER RESPONSIBILITIES

, Read and observe the safety rules.

Follow a regular schedule in maintaining,

caring for and using your tractor.

Follow the instructions under "Mainte-

nance" and "Storage" sections of this

owner's manual.

_IbWARNING: This tractor is equipped with

an internal combustion engine and should not

be used on or near any unimproved forest-

covered, brush-covered or grass-covered

land unless the engine's exhaust system is

equipped with a spark arrester meeting ap-

plicable local or state laws (if any). If a spark

arrester is used, it should be maintained in

effective working order by the operator.

In the state of California the above is required

by law (Section 4442 of the California Public

Resources Code). Other states may have

similar laws. Federal laws apply on federal

lands. A spark arrester for the muffler is

available through your nearest Sears service

center (See REPAIR PARTS manual).

REPAIR PROTECTION AGREEMENTS

Congratulations on making a smart purchase.

Your new Craftsman® product is designed

and manufactured for years of dependable

operation. But like all products, it may require

repair from time to time. That's when having

a Repair Protection Agreement can save you

money and aggravation.

Purchase a Repair Protection Agreement

now and protect yourself from unexpected

hassle and expense.

Here's what's included in the Agreement:

Expert service by our 12,000 profesional

repair specialists.

Unlimited service and no charge for parts

and labor on all covered repairs.

Product replacement if your covered

product can't be fixed.

Discount of 10% from regular price of ser-

vice and service-related parts not covered

by the agreement; also, 10% off regular

price of preventive maintenance check.

Fast help by phone - phone support from

a Sears representative on products requir-

ing in-home repair, plus convenient repair

scheduling.

Once you purchase the Agreement, a

simple phone call is all that it takes for you

to schedule service. You can call anytime

day or night, or schedule a service appoint-

ment online.

Sears has over 12,000 professional repair

specialists, who have access to over 4.5

million quality parts and accessories. That's

the kind of professionalism you can count on

to help prolong the life of your new purchase

for years to come. Purchase your Repair

Protection Agreement today!

Some limitations and exclusions apply.

For prices and additional information call

1=800-827-6655.

SEARS INSTALLATION SERVICE

For Sears professional installation of home

appliances, garage door openers, water

heaters, and other major home items, in the

U.S.A. call 1=800-4-MY=HOME®

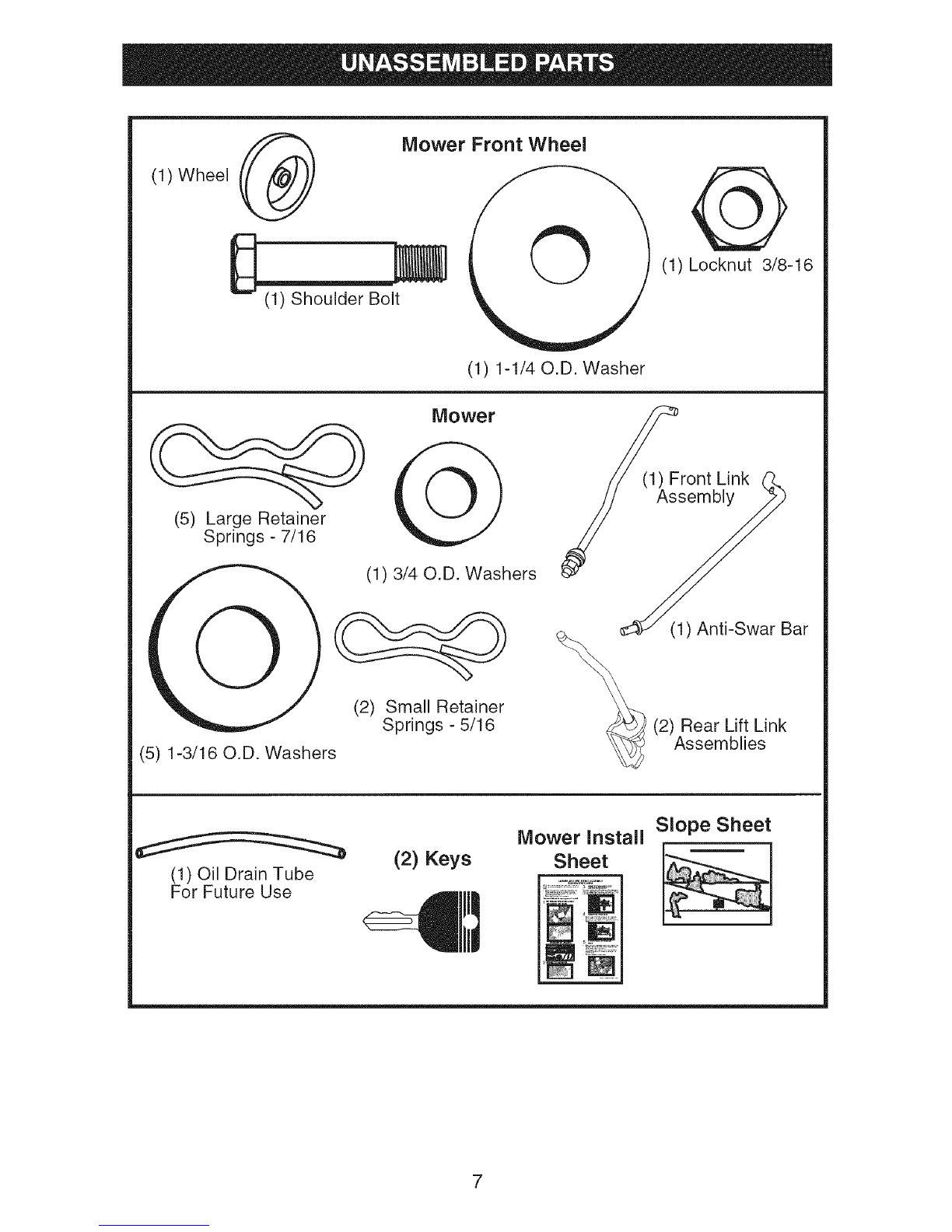

(1)Wheel (_

Mower Front Wheel

(1) 1-1/40.D. Washer

(1) Locknut 3/8-16

(5) Large Retainer

Springs - 7/16

Mower

(1) 3/40.D. Washers

(2) Small Retainer

Springs - 5/16

(5) 1-3/16 O.D. Washers

ront Link

sembly

(1) Anti-Swar Bar

(2) Rear Lift Link

Assemblies

(1) Oil Drain Tube

For Future Use

(2) Keys

lr,',l Mower Install Slope Sheet

Sheet

i I

_ _:

Your new tractor has been assembled at the factory with the exception of those parts left

unassembled for shipping purposes.

TOOLS REQUIRED FOR ASSEMBLY

A socket wrench set will make assembly

easier. Standard wrench sizes you need

are listed below.

(1) 3/4" wrench (1) Pliers

(1) 9/16" wrench (1) Utility knife

(1) Tire pressure gauge

ADJUST SEAT

1. Sit in seat.

2. Lift up adjustment lever (A) and slide seat

until a comfortable position is reached

which allows you to press clutch/brake

pedal all the way down.

3. Release lever to lock seat in position.

When right or left hand is mentioned in this

manual, it means, from your point of view,

when you are in the operating position (seat-

ed behind the steering wheel).

TO REMOVE TRACTOR FROM

CARTON

UNPACK CARTON

1. Remove all accessible loose parts and

parts boxes from carton.

2. Cut along dashed lines on all four panels

of carton. Remove end panels and lay

side panels flat.

3. Remove mower and packing materials.

4. Check for any additional loose parts or

cartons and remove.

CHECK BATTERY

1. Lift hood to raised position.

NOTE: If this battery is put into service after

month and year indicated on label (L) (label

is located between terminals) charge battery

for minimum of one hour at 6-10 amps. (See

"BATTERY" in Maintenance section of this

manual for charging instructions).

02931

NOTE: You may now roll or drive your tractor

offthe skid. Follow the appropriate instruction

below to remove the tractor from the skid.

_,WARNING: Before starting, read,

understand and follow all instructions

in the Operation section of this manual.

Be sure tractor is in a well-ventilated

area. Be sure the area in front of tractor

is clear of other people and objects.

TO ROLL TRACTOR OFF SKiD (See

Operation section for location and

function of controls)

1. Raise attachment lift lever to its highest

position.

2. Release parking brake by depressing

clutch/brake pedal.

3. Place gearshift lever in neutral (N) po-

sition.

4. Roll tractor forward off skid.

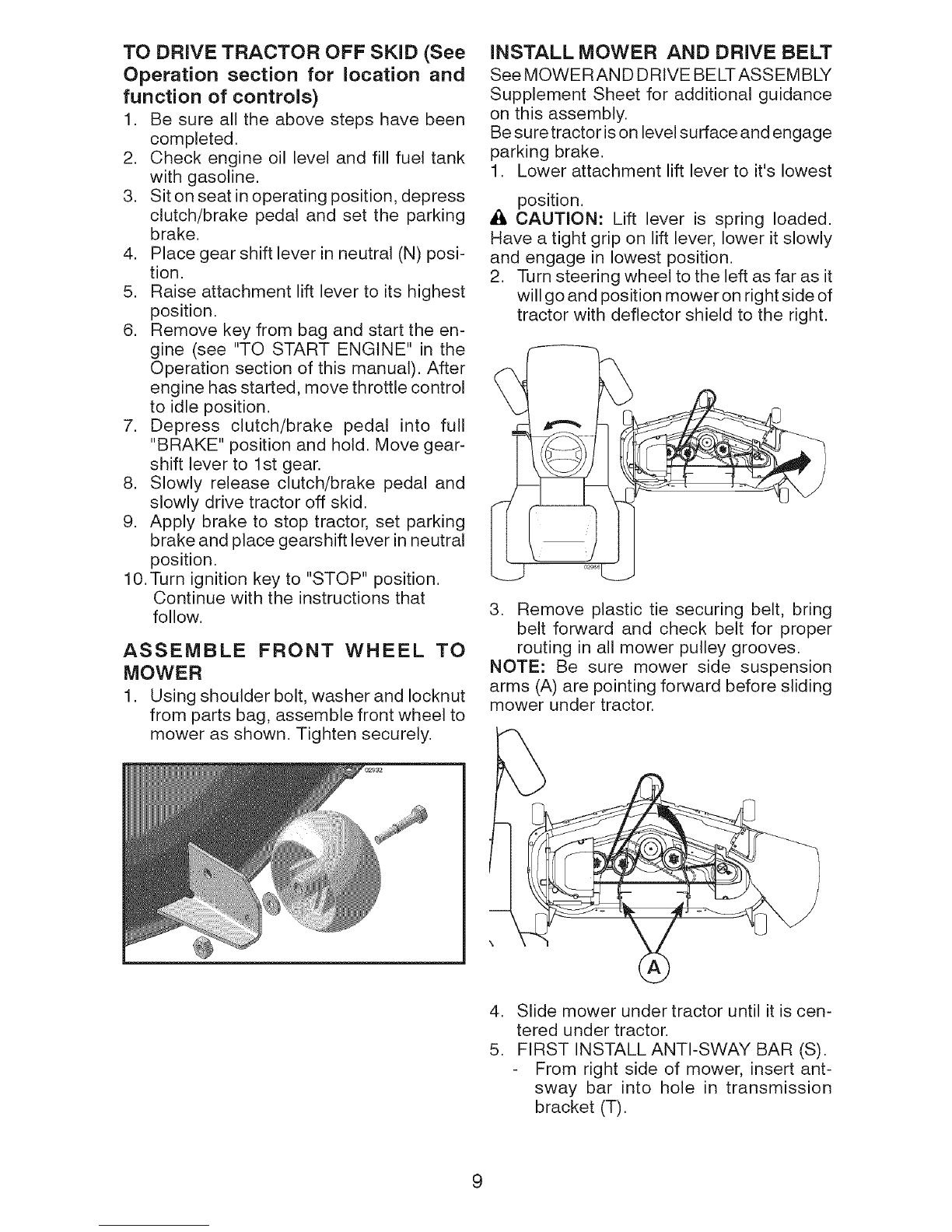

TO DRIVE TRACTOR OFF SKiD (See

Operation section for location and

function of controls)

1. Be sure all the above steps have been

completed.

2. Check engine oil level and fill fuel tank

with gasoline.

3. Sit on seat in operating position, depress

clutch/brake pedal and set the parking

brake.

4. Place gear shift lever in neutral (N) posi-

tion.

5. Raise attachment lift lever to its highest

position.

6. Remove key from bag and start the en-

gine (see "TO START ENGINE" in the

Operation section of this manual). After

engine has started, move throttle control

to idle position.

7. Depress clutch/brake pedal into full

"BRAKE" position and hold. Move gear-

shift lever to 1st gear.

8. Slowly release clutch/brake pedal and

slowly drive tractor off skid.

9. Apply brake to stop tractor, set parking

brake and place gearshift lever in neutral

position.

10.Turn ignition key to "STOP" position.

Continue with the instructions that

follow.

ASSEMBLE FRONT WHEEL TO

MOWER

1. Using shoulder bolt, washer and Iocknut

from parts bag, assemble front wheel to

mower as shown. Tighten securely.

INSTALL MOWER AND DRIVE BELT

See MOWERAND DRIVE BELTASSEM BLY

Supplement Sheet for additional guidance

on this assembly.

Be sure tractor is on level surface and engage

parking brake.

1. Lower attachment lift lever to it's lowest

position.

CAUTION: Lift lever is spring loaded.

Have a tight grip on lift lever, lower it slowly

and engage in lowest position.

2. Turn steering wheel to the left as far as it

will go and position mower on right side of

tractor with deflector shield to the right.

3. Remove plastic tie securing belt, bring

belt forward and check belt for proper

routing in all mower pulley grooves.

NOTE: Be sure mower side suspension

arms (A) are pointing forward before sliding

mower under tractor.

Slide mower under tractor until it is cen-

tered under tractor.

FIRST INSTALL ANTI-SWAY BAR (S).

From right side of mower, insert ant-

sway bar into hole in transmission

bracket (T).

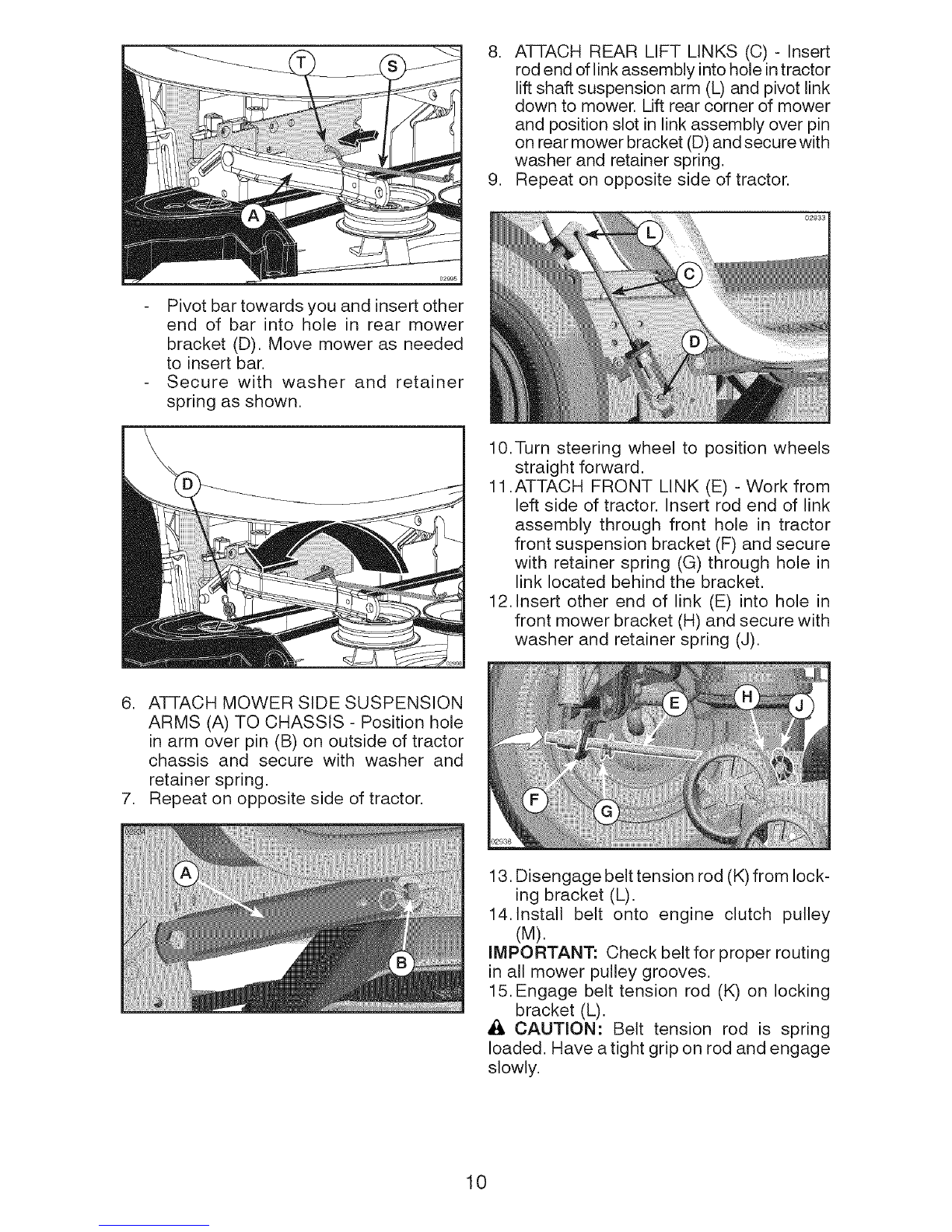

8. ATTACH REAR LIFT LINKS (C) - Insert

rod end of link assembly into hole in tractor

lift shaft suspension arm (L) and pivot link

down to mower. Lift rear corner of mower

and position slot in link assembly over pin

on rear mower bracket (D) and secure with

washer and retainer spring.

9. Repeat on opposite side of tractor.

Pivot bar towards you and insert other

end of bar into hole in rear mower

bracket (D). Move mower as needed

to insert bar.

Secure with washer and retainer

spring as shown.

10.Turn steering wheel to position wheels

straight forward.

11 .ATTACH FRONT LINK (E) -Work from

left side of tractor. Insert rod end of link

assembly through front hole in tractor

front suspension bracket (F) and secure

with retainer spring (G) through hole in

link located behind the bracket.

12.Insert other end of link (E) into hole in

front mower bracket (H) and secure with

washer and retainer spring (J).

6. ATTACH MOWER SIDE SUSPENSION

ARMS (A) TO CHASSIS - Position hole

in arm over pin (B) on outside of tractor

chassis and secure with washer and

retainer spring.

7. Repeat on opposite side of tractor.

13. Disengage belt tension rod (K) from lock-

ing bracket (L).

14. Install belt onto engine clutch pulley

(M).

IMPORTANT: Check belt for proper routing

in all mower pulley grooves.

15. Engage belt tension rod (K) on locking

bracket (L).

CAUTION: Belt tension rod is spring

loaded. Have a tight grip on rod and engage

slowly.

Table des matières

Langues :

Autres manuels Craftsman Tondeuse à gazon

Craftsman

Craftsman 917.272248 Manuel utilisateur

Craftsman

Craftsman EZ 917.270731 Manuel utilisateur

Craftsman

Craftsman 917.370650 Manuel d'utilisation et d'entretien

Craftsman

Craftsman 536.885600 Manuel utilisateur

Craftsman

Craftsman 25906 Manuel utilisateur

Craftsman

Craftsman 944.101761 Manuel utilisateur

Craftsman

Craftsman 917.378361 Manuel utilisateur

Craftsman

Craftsman 151.37664 Manuel utilisateur

Craftsman

Craftsman 917.388125 Manuel utilisateur

Craftsman

Craftsman CMEMW213 Manuel utilisateur

Craftsman

Craftsman 944.362292 Manuel utilisateur

Craftsman

Craftsman 917.377660 Manuel utilisateur

Craftsman

Craftsman 917.99047 Manuel utilisateur

Craftsman

Craftsman 247.370370 Manuel utilisateur

Craftsman

Craftsman 917.252590 Manuel utilisateur

Craftsman

Craftsman Z6100 Manuel utilisateur

Craftsman

Craftsman 917.388920 Manuel utilisateur

Craftsman

Craftsman EZ3 917.271071 Manuel utilisateur

Craftsman

Craftsman 917.371622 Manuel utilisateur

Craftsman

Craftsman 917.385192 Manuel utilisateur

Craftsman

Craftsman 917.372470 Manuel utilisateur

Craftsman

Craftsman 917.376055 Manuel utilisateur

Craftsman

Craftsman 917.255540 Manuel utilisateur

Craftsman

Craftsman 917.374951 Manuel utilisateur

Manuels Tondeuse à gazon populaires d'autres marques

RHINO

RHINO 1958 Manuel utilisateur

Wolf Garten

Wolf Garten Compact plus 40 B Manuel utilisateur

Cub Cadet

Cub Cadet LTX 1045 Manuel utilisateur

GGP ITALY SPA

GGP ITALY SPA CR/CS 434 SERIES Manuel utilisateur

Challenge

Challenge CH18V2 Instructions de fonctionnement

TALEN TOOLS

TALEN TOOLS AVR HGM30 Manuel utilisateur

DEWEZE

DEWEZE ATM-725 Manuel d'utilisation

Weed Eater

Weed Eater 180083 Manuel utilisateur

Husqvarna

Husqvarna Poulan Pro PP185A42 Manuel utilisateur

Better Outdoor Products

Better Outdoor Products Quick Series Manuel utilisateur

Cub Cadet

Cub Cadet 23HP Z-Force 60 Manuel d'utilisation

MTD

MTD 795, 792, 791, 790 Manuel utilisateur

Toro

Toro Groundsmaster 3505-D Manuel utilisateur

Dennis

Dennis FT 610 Manuel utilisateur

AIRFORCE

AIRFORCE F-15 Gen 3 Manuel utilisateur

MTD

MTD 126-220-000 Manuel utilisateur

Toro

Toro 74806 Manuel utilisateur

Stihl

Stihl RMA 443 PV Manuel utilisateur
