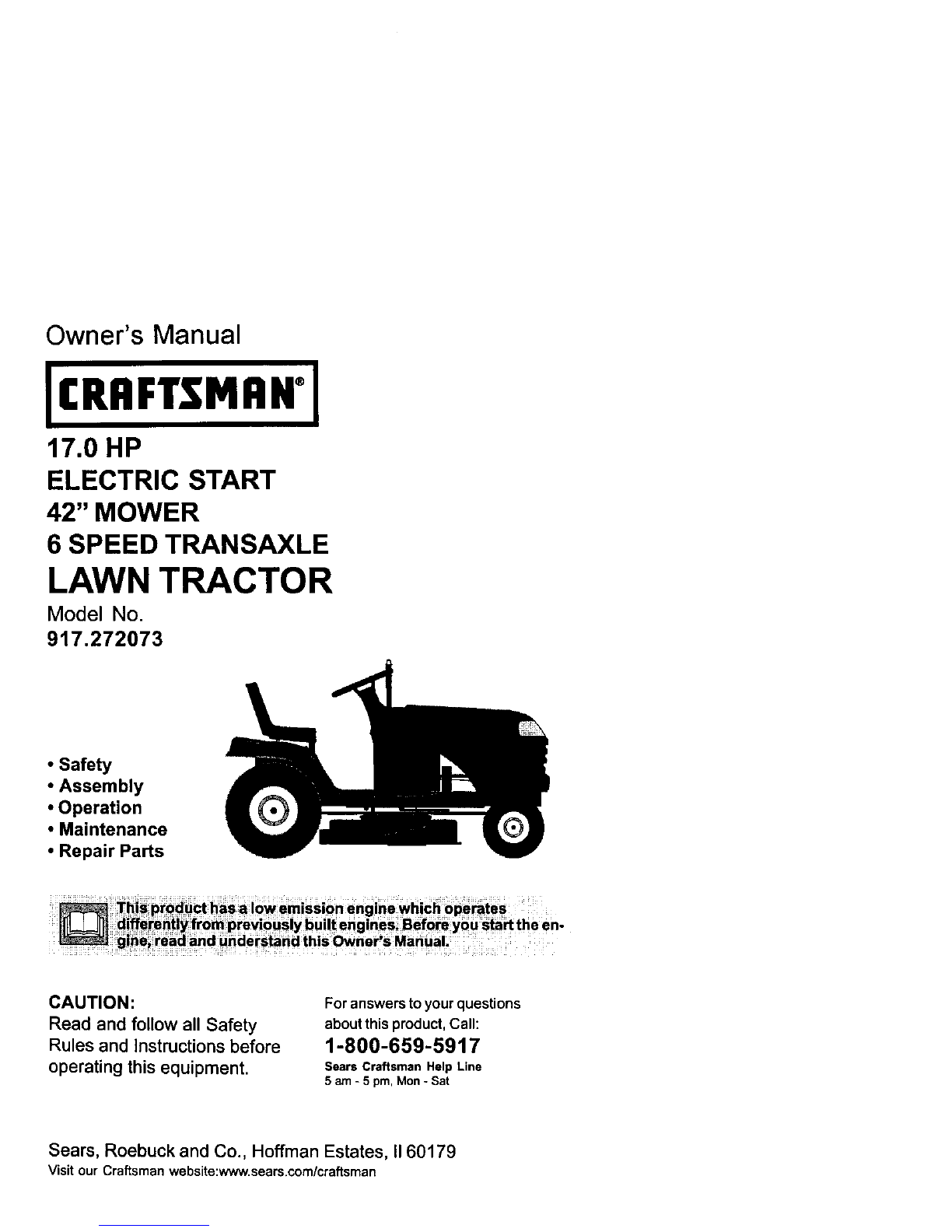

Craftsman 917.272073 Manuel utilisateur

Owner's Manual

ELECTRIC START

42" MOWER

6 SPEED TRANSAXLE

LAWN TRACTOR

Model No.

917.272073

• Safety

•Assembly

• Operation

•Maintenance

•Repair Parts

CAUTION:

Read and follow all Safety

Rules and Instructions before

operating this equipment,

Foranswerstoyour questions

aboutthis product, Call:

1-800-659-5917

Sears Craftsman Help Line

5 am - 5 pm, Mon- Sat

Sears, Roebuck and Co., Hoffman Estates, II 60179

Visit our Craftsman website:www.sears.com/craftsman

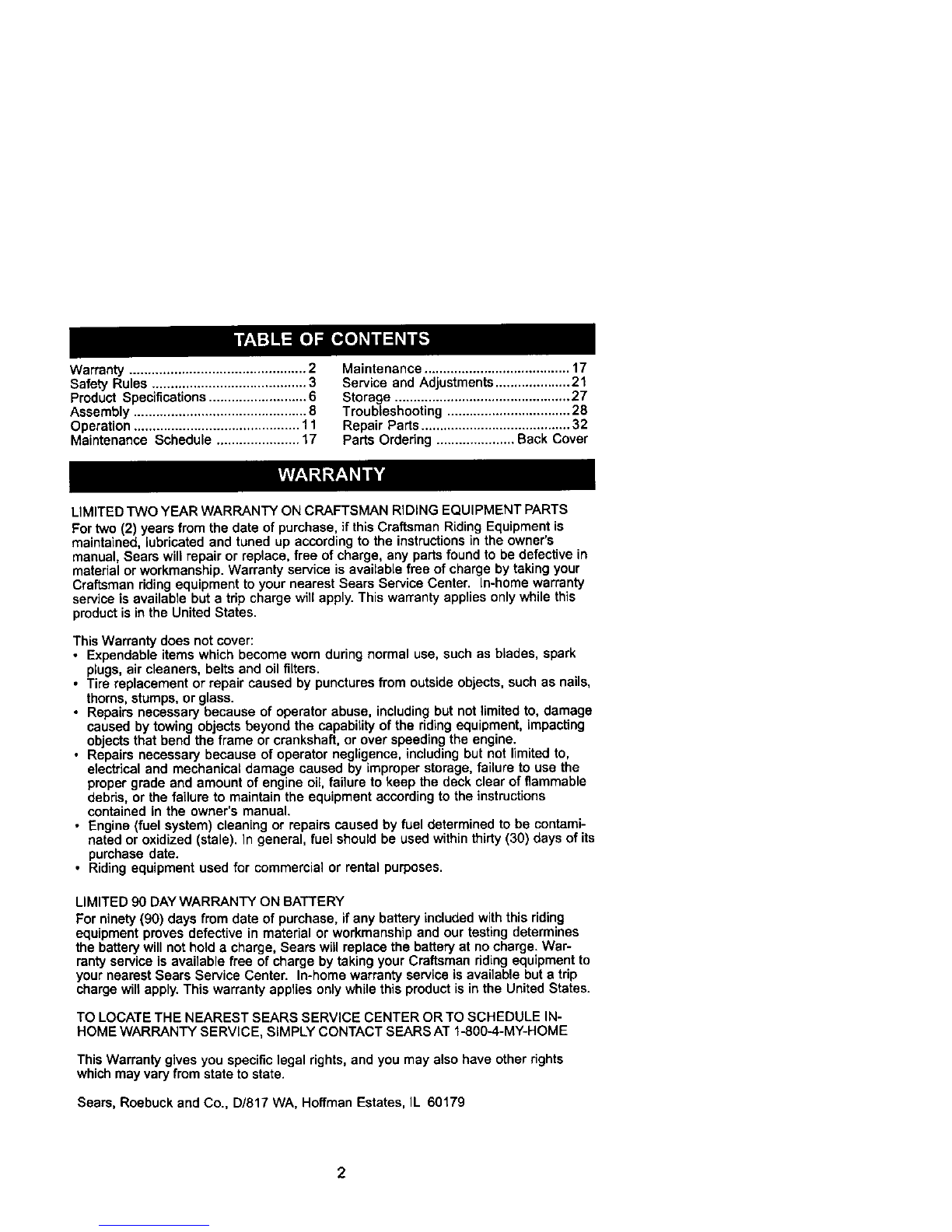

Warranty...............................................2

Safety Rules ......................................... 3

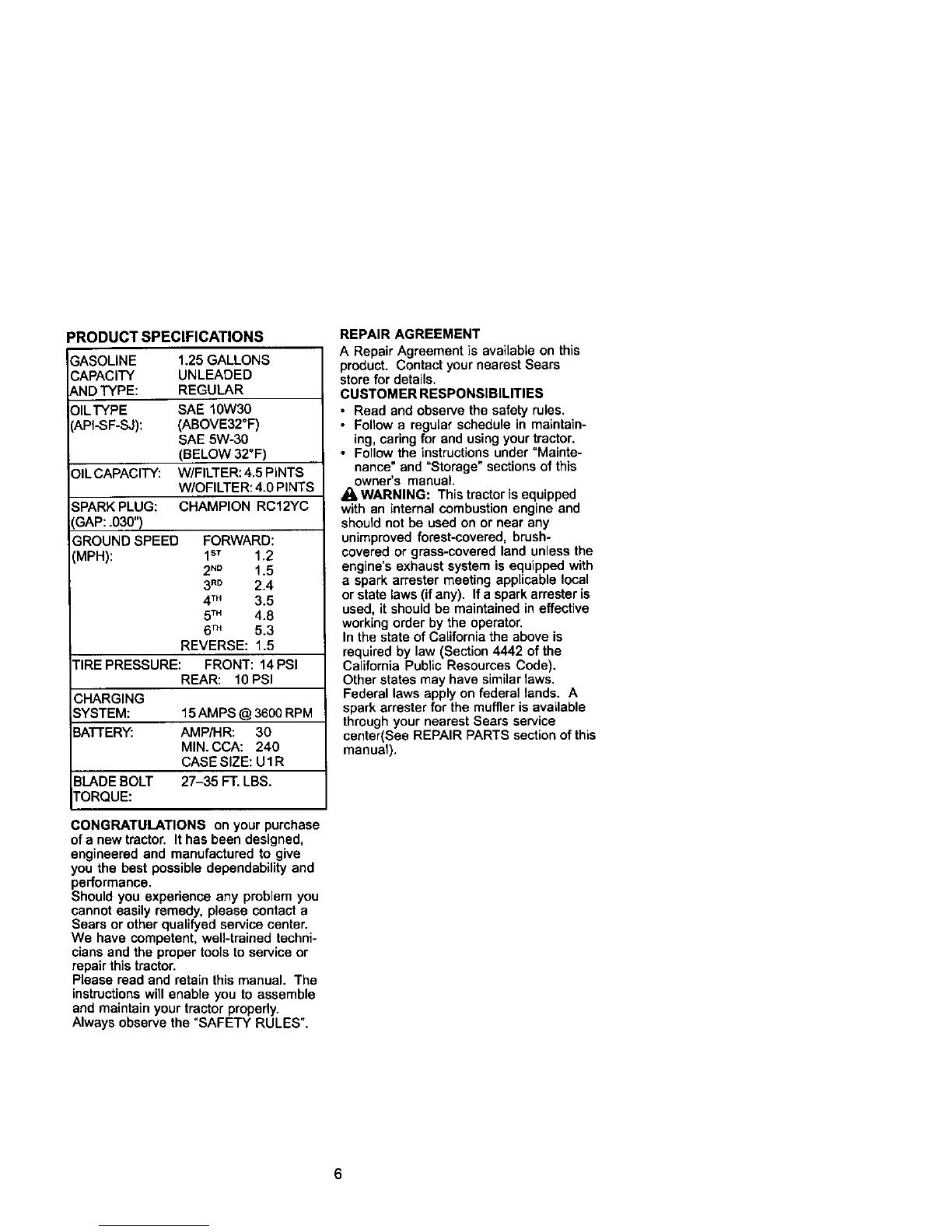

Product Specifications .......................... 6

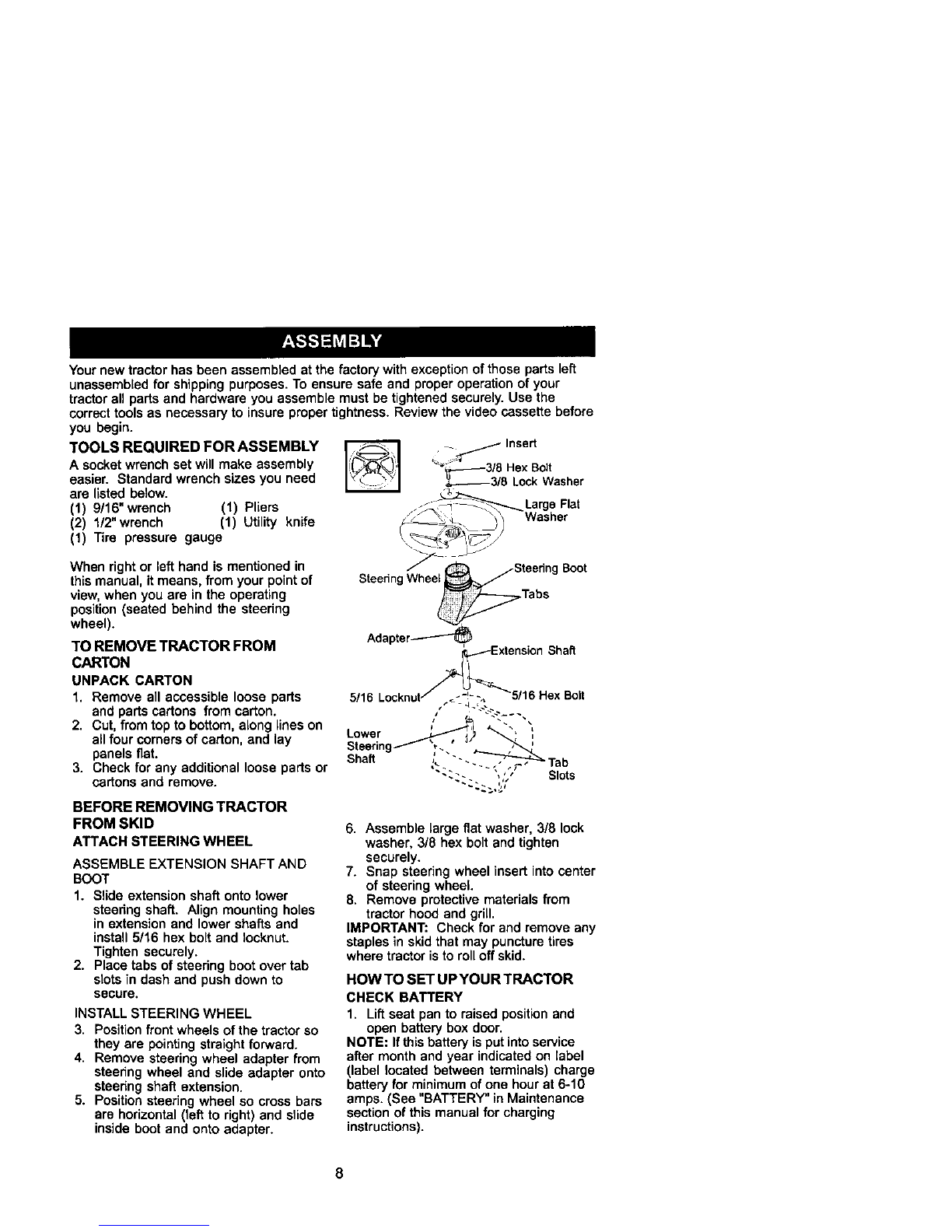

Assembly .............................................. 8

Operation ............................................ 11

Maintenance Schedule ...................... 17

Maintenance ....................................... 17

Service and Adjustments .................... 21

Storage ............................................... 27

Troubleshooting ................................. 28

Repair Parts ........................................ 32

Parts Ordering ..................... Back Cover

LIMITED'I3NO YEAR WARRANTY ON CRAFTSMAN RIDING EQUIPMENT PARTS

For two (2) years from the date of purchase, if this Craftsman Riding Equipment is

maintained, lubricated end tuned up according to the instructions in the owner's

manual, Sears will repair or replace, free of charge, any parts found to be defective in

material or workmanship. Warranty service is available free of charge by taking your

Craftsman riding equipment to your nearest Sears Service Center. In-home warranty

service is available but a trip charge will apply. This warranty applies only while this

product is in the United States.

This Warranty does not cover:

•Expendable items which become worn during normal use, such as blades, spark

plugs, air cleaners, belts and oil filters.

•Tire replacement or repair caused by punctures from outside objects, such as nails,

thorns, stumps, or glass.

• Repairs necessary because of operator abuse, including but not limitedto, damage

caused by towing objects beyond the capability of the riding equipment, impacting

objects that bend the frame or crankshaft, or over speeding the engine.

•Repairs necessary because of operator negligence, including but not limited to,

electrical and mechanical damage caused by improper storage, failure to use the

proper grade and amount of engine oil, failure to keep the deck clear of flammable

debris, or the failure to maintain the equipment according to the instructions

contained in the owner's manual.

•Engine (fuel system) cleaning or repairs caused by fuel determined to be contami-

nated or oxidized (stale). In general, fuel should be used within thirty (30) days of its

purchase date.

• Riding equipment used for commercial or rental purposes.

LIMITED 90 DAY WARRANTY ON BATTERY

For ninety (90) days from date of purchase, if any battery included with this riding

equipment proves defective in material or workmanship and our testing determines

the battery will not hold a charge, Sears will replace the battery at no charge. War-

ranty service is available free of charge by taking your Craftsman riding equipment to

your nearest Sears Service Center. In-home warranty service is available but a trip

charge will apply. This warranty applies only while this product is in the United States.

TO LOCATE THE NEAREST SEARS SERVICE CENTER OR TO SCHEDULE IN-

HOME WARRANTY SERVICE, SIMPLY CONTACT SEARS AT 1-800-4-MY-HOME

This Warranty gives you specific legal rights, and you may also have other rights

which may vary from state to state.

Sears, Roebuck and Co., D/817 WA, Hoffman Estates, IL 60179

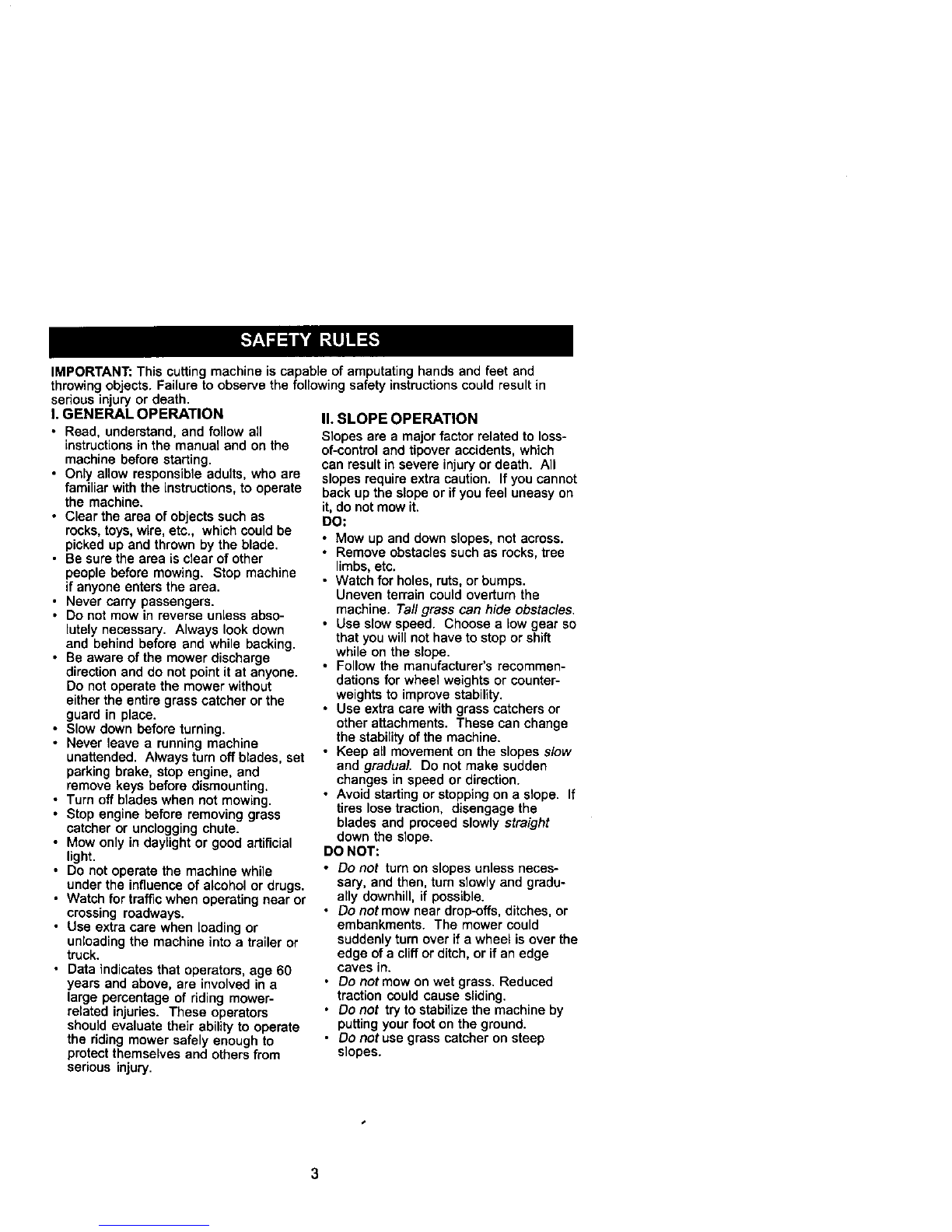

IMPORTANT: This cuttingmachine is capable of amputating hands and feet and

throwingobjects. Failure to observe the followingsafety instructionscould result in

sedous injury or death.

I, GENERAL OPERATION

•Read, understand, and follow all

instructions in the manual and on the

machine before starting.

•Only allow responsible adults, who are

familiar with the instructions, to operate

the machine.

•Clear the area of objects such as

rocks,toys, wire, etc,, which could be

picked up and thrown by the blade.

•Be sure the area is dear of other

people before mowing. Stop machine

if anyone enters the area.

•Never carry passengers.

•Do not mow in reverse unless abso-

lutely necessary. Always look down

and behind before and while backing.

•Be aware of the mower discharge

directionand do not pointit at anyone.

Do not operate the mower without

either the entire grass catcher or the

guard in place.

•Slow down before turning.

•Never leave a running machine

unattended. Always turn off blades, set

parking brake, stop engine, and

remove keys before dismounting,

•Turn off blades when not mowing.

•Stop engine before removing grass

catcher or unclogging chute.

• Mow only in daylight or good artificial

light.

• Do not operate the machine while

under the influence of alcohol or drugs,

•Watch fortraffic when operating near or

crossing roadways.

•Use extra care when loading or

unloading the machine into a trailer or

truck.

•Data indicates that operators, age 60

years and above, are involved in a

large percentage of riding mower-

related injuries. These operators

should evaluate their ability to operate

the riding mower safely enough to

protect themselves and others from

serious injury.

II. SLOPE OPERATION

Slopes are a major factor related to loss-

of-control and tipover accidents, which

can result in severe injuryor death. All

slopes require extra caution. If you cannot

back up the slope or if you feel uneasy on

it, do not mow it.

DO:

•Mow up and down slopes, not across.

•Remove obstacles such as rocks, tree

limbs,etc.

Watch for holes, ruts, or bumps.

Uneven terrain could overturn the

machine. Ta//grass can hide obstacles.

Use slow speed. Choose a low gear so

that you will not have to stop or shift

while on the slope.

Follow the manufacturer's recommen-

dationsfor wheel weights or counter-

weights to improve stability.

Use extra care with grass catchers or

other attachments. These can change

the stabilityof the machine.

Keep all movement on the slopes slow

and gradual. Do not make sudden

changes in speed or direction.

Avoid starting or stopping on a slope. If

tires lose traction, disengage the

blades and proceed slowly straight

down the slope.

DO NOT:

•Do not turn on slopes unless neces-

sary, and then, turn slowlyand gradu-

ally downhill, if possible.

•Do ootmow near drop-offs, ditches, or

embankments. The mower could

suddenly turnover if a wheel is over the

edge of a cliff or ditch, or if an edge

caves in.

•Donotmowonwetgrass. Reduced

traction could cause sliding.

•Do not try to stabilize the machine by

puttingyour foot on the ground.

•Donotusegrasscatcheronsteep

slopes.

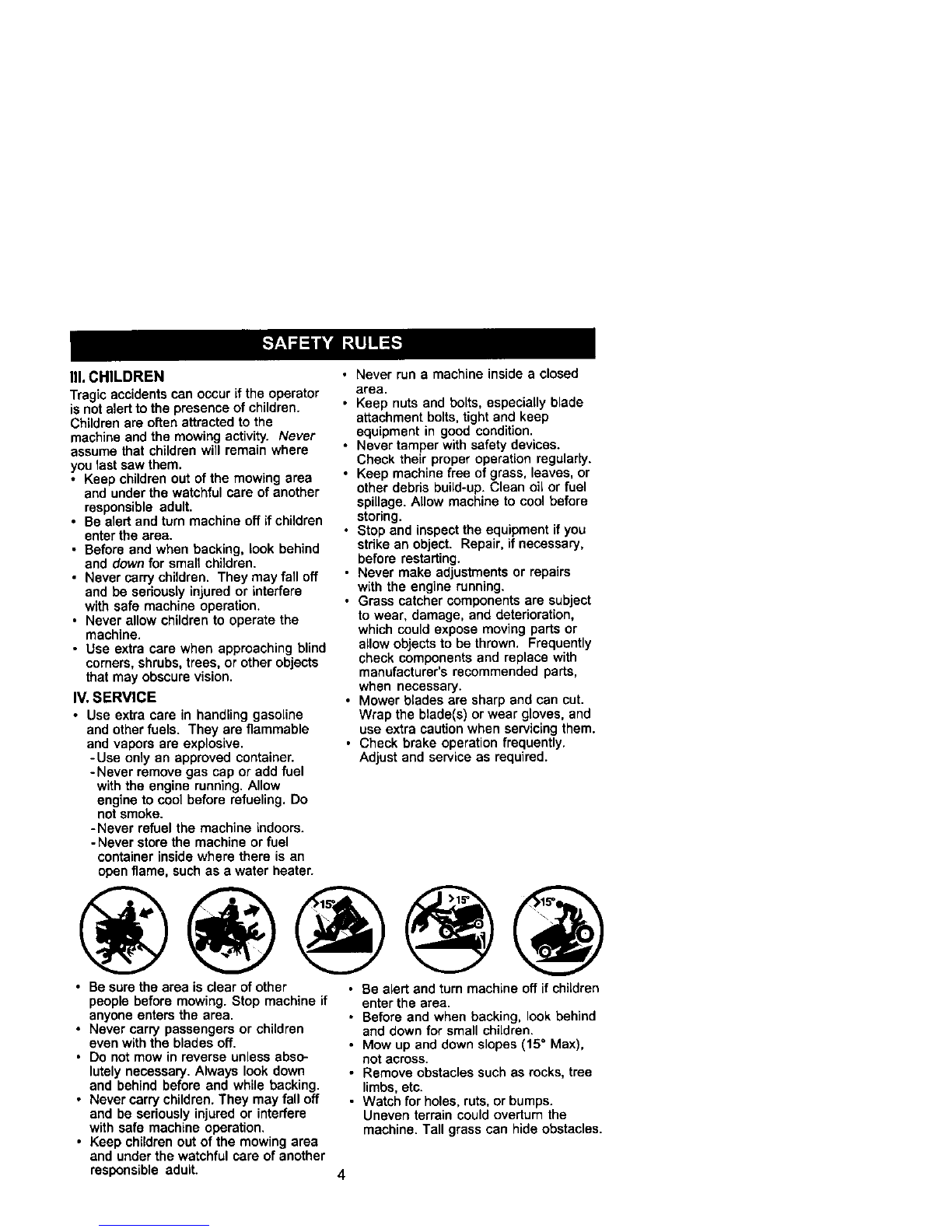

Ill.CHILDREN

Tragicaccidentscanoccurif the operator

isnot alert to the presence of children.

Childrenare often attracted to the

machine and the mowing activity. Never

assume that children will remain where

you last saw them,

• Keep children out ofthe mowing area

and under the watchful care of another

responsible adult.

• Be alert and turn machine off if children

enter the area.

• Before and when backing, look behind

and down for small children.

•Never carrychildren, They may fall off

and be seriously injured or interfere

with safe machine operation.

• Never allow children to operate the

machine.

•Use extra care when approaching blind

corners,shrubs, trees, or other objects

that may obscure vision.

IV. SERVICE

•Use extra care in handling gasoline

and other fuels. They are flammable

and vapors are explosive.

-Use only an approved container.

-Never remove gas cap or add fuel

with the engine running. Allow

engine to cool before refueling, Do

not smoke.

-Never refuel the machine indoors.

- Never store the machine or fuel

container inside where there is an

open flame, such as a water heater.

• Never run emachine inside a closed

area.

•Keep nuts and bolts, especially blade

attachment bolts, tight and keep

equipment in good condition.

•Never tamper with safety devices.

Check their proper operation regularly.

•Keep machine free of grass, leaves, or

other debris build-up. Clean oil or fuel

spillage. Allow machine to cool before

storing.

• Stop and inspect the equipment if you

strike an object. Repair, if necessary,

before restarting.

• Never make adjustments or repairs

with the engine running.

• Grass catcher components ere subject

to wear, damage, and deterioration,

which could expose moving parts or

allow objects to be thrown, Frequently

check components and replace with

manufacturer's recommended parts,

when necessary,

•Mower blades are sharp and can cut.

Wrap the blade(s) or wear gloves, and

use extra caution when servicing them.

•Check brake operation frequently.

Adjust and service as required.

• Be sure the area is clear of other

people before mowing. Stop machine if

anyone enters the area.

•Never carry passengers or children

even with the blades off.

•Do not mow in reverse unless abso-

lutely necessary. Always look down

and behind before and while backing.

•Never carry children. They may fall off

and be seriously injured or interfere

with safe machine operation.

• Keep children outof the mowing area

and under the watchful care of another

responsible adult.

•Be alert and turn machine off if children

enter the area.

• Before end when backing, look behind

and down for small children.

• Mow up and down slopes (15° Max),

not across.

• Remove obstacles such as rocks, tree

limbs, etc.

•Watch for holes, ruts, or bumps.

Uneven terrain could overturn the

machine. Tall grass can hide obstacles.

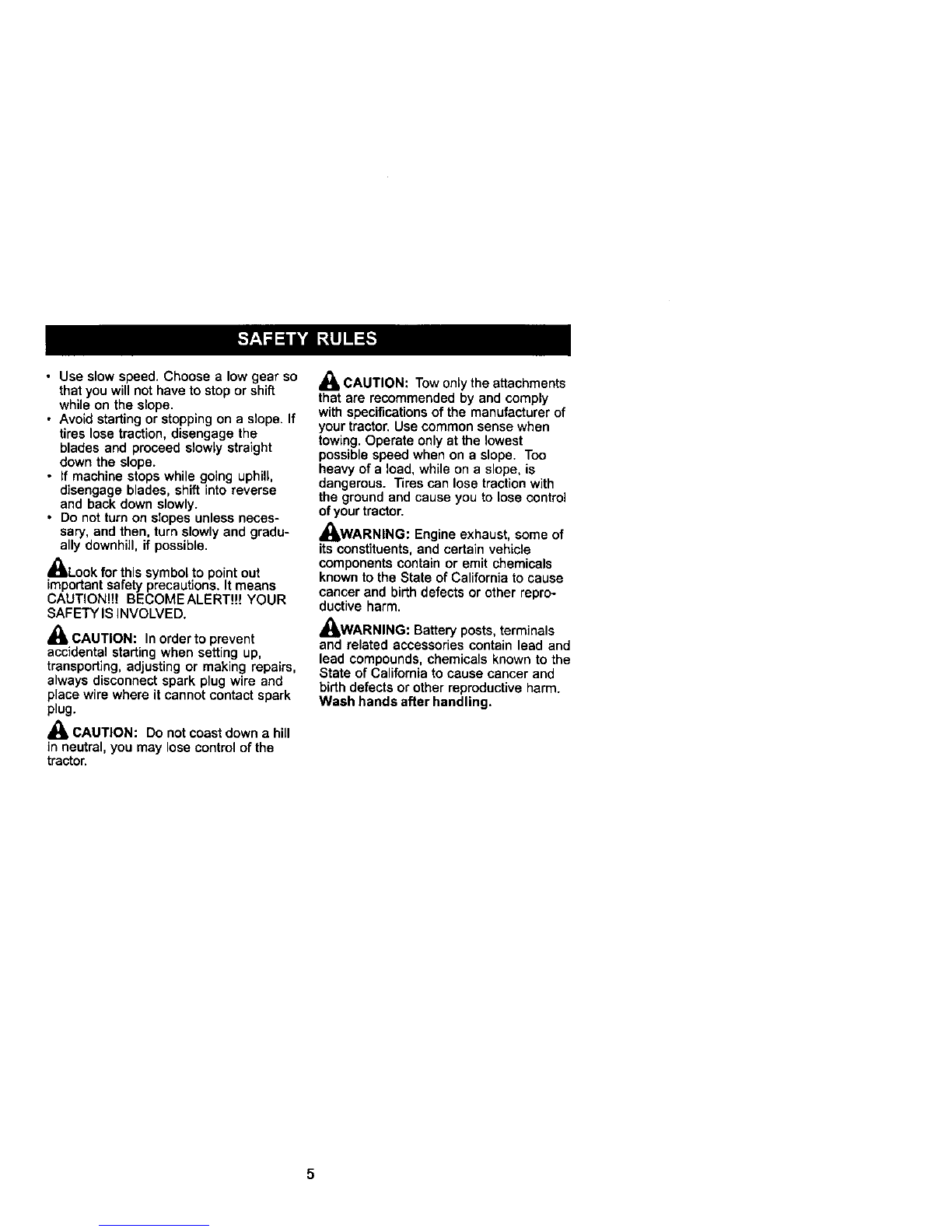

•Use slow speed. Choose a low gear so

that you will not have to stop or shift

while on the slope.

• Avoid starting or stopping on a slope. If

tires lose traction, disengage the

blades and proceed slowly straight

down the slope.

•If machine stops while going uphill,

disengage blades, shift into reverse

and back down slowly.

• Do not turnon slopes unless neces-

sary, and then, turn slowly and gradu-

ally downhill, if possible.

,_Look for this symbol to point out

important safety precautions. It means

CAUTION!!! BECOMEALERT!!! YOUR

SAFETY ISINVOLVED.

_CAUTION: Inorder to prevent

accidental starting when setting up,

transporting, adjusting or making repairs,

always disconnect spark plug wire and

place wire where it cannot contact spark

plug.

_CAUTION: Do not coast down a hill

in neutral, you may lose control of the

tractor.

_, CAUTION: Towonlythe attachments

that are recommended by and comply

with specificationsof the manufacturer of

your tractor.Use common sense when

towing. Operate only at the lowest

possiblespeed when on a slope. Too

heavy of a load, while on a slope, is

dangerous. Tires can lose traction with

the ground and cause you to lose control

of your tractor.

_.WARNING: Engine exhaust, some of

its constituents, and certain vehicle

components contain or emit chemicals

known to the State of California to cause

cancer and birthdefects or other repro-

ductive harm.

_bWARNING: Battery posts,terminals

and related accessories contain lead and

lead compounds, chemicals known to the

State of California to cause cancer and

birthdefects or other reproductive harm.

Wash hands after handling.

PRODUCTSPECIFICATIONS

GASOLINE 1.25GALLONS

CAPACITY UNLEADED

ANDTYPE: REGULAR

OILTYPE SAE10W30

API-SF-SJ): (ABOVE32=F)

SAE 5W-30

(BELOW 32°F)

)ILCAPACITY: W/FILTER: 4.5 PINTS

W/OFILTER: 4.0 PINTS

SPARKPLUG: CHAMPION RC12YC

3AP: .030")

GROUND SPEED FORWARD:

VIPH): 1sT 1.2

2N° 1.5

3RD 2.4

4TM 3.5

5TM 4.8

6TM 5.3

REVERSE: 1,5

TIRE PRESSURE: FRONT: 14 PSi

REAR: 10 PSi

CHARGING

SYSTEM: 15 AMPS @ 3600 RPM

BATrERY: AMP/HR: 30

MIN. CCA: 240

CASE SIZE: UIR

BLADEBOLT 27-35 FT. LBS.

TORQUE:

CONGRATULATIONS on your purchase

of a new tractor. It has been designed,

engineered and manufactured to give

you the best possible dependability and

performance.

Should you experience any problem you

cannot easily remedy, please contact a

Sears or other qualifyed service center.

We have competent, well-trained techni-

cians and the proper tools to service or

repair this tractor.

Please read and retain this manual. The

instructionswill enable you to assemble

and maintainyour tractor properly.

Always observe the "SAFETY RULES".

REPAIR AGREEMENT

A Repair Agreement is available on this

product. Contact your nearest Sears

store for details.

CUSTOMER RESPONSIBILITIES

•Read and observe the safety rules.

• Follow a regular schedule in maintain-

ing, caring for and usingyour tractor.

• Follow the instructions under "Mainte-

nance" and "Storage" sections of this

owner's manual.

WARNING: Thistractor is equipped

with an internal combustion engine and

should not be used on or near any

unimproved forest-covered, brush-

covered or grass-covered land unless the

engine's exhaust system is equipped with

a spark arrester meeting applicable local

or state laws (if any). Ifa spark arrester is

used, it should be maintained in effective

working order by the operator.

In the state of Californiathe above is

required by law (Section 4442 ofthe

California Publlc Resources Code).

Other states may have similarlaws.

Federal laws apply on federal lands. A

spark arrester for the muffler is available

through your nearest Sears service

center(See REPAIR PARTS sectionof this

manual).

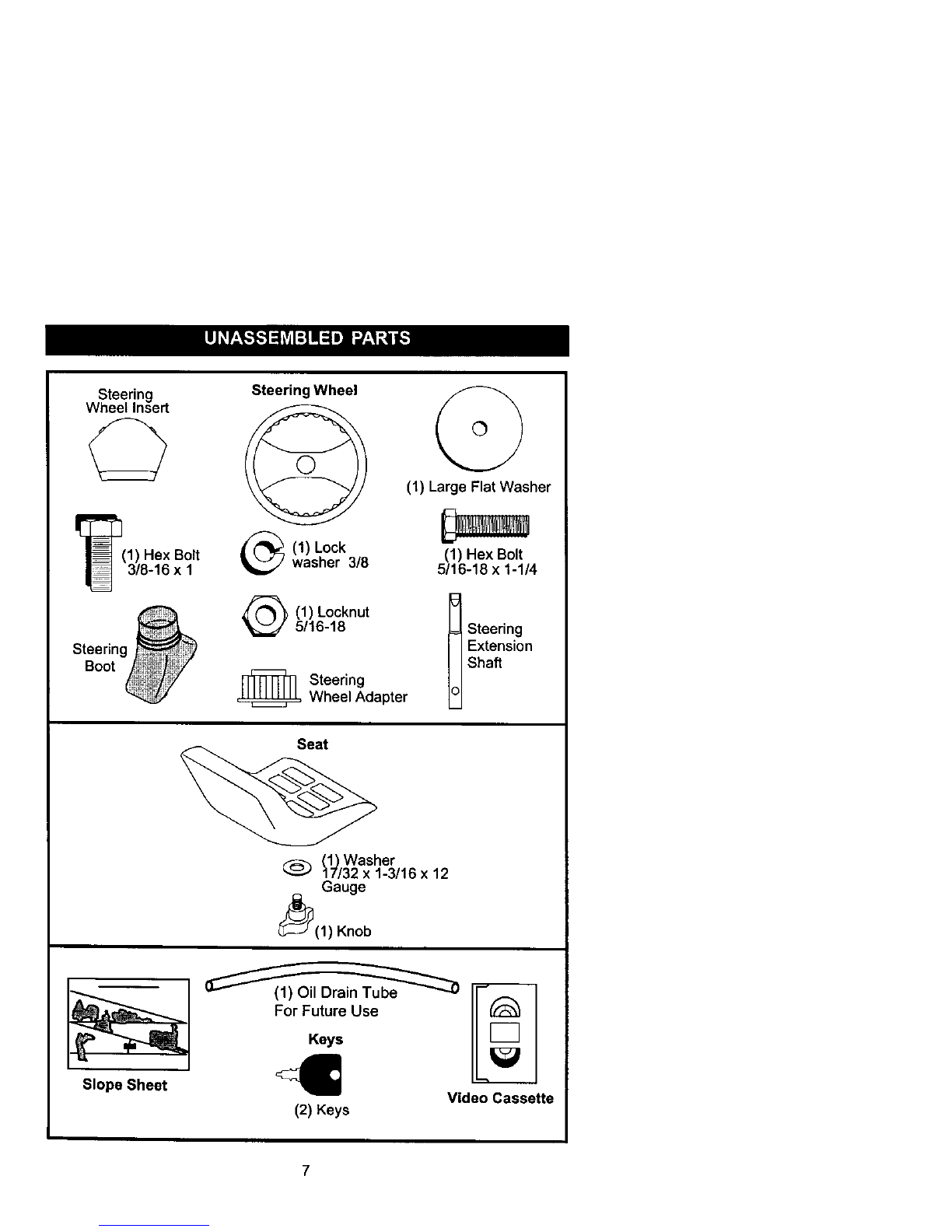

Steering

Wheel Insert

1) Hex Bolt

3/8-16 x1

Steering Wheel

1) Lock

washer 3/8

(1) Locknut

5/16-18

j_ Steering

Wheel Adapter

(1) Large Flat Washer

(1) Hex Bolt

5/16-18 x 1-1/4

t teering

Extension

Shaft

(1) Washer

17/32 x1-3/16 x 12

Gauge

_(1) Knob

Slope Sheet Video Cassette

(2) Keys

Your new tractor has been assembled at the factory with exception of those parts left

unassembled for shipping purposes. To ensure safe and proper operation of your

tractor all parts and hardware you assemble must be tightened securely. Use the

correct tools as necessary to insure proper tightness. Review the video cassette before

you begin.

TOOLS REQUIRED FOR ASSEMBLY

A socket wrench set will make assembly

easier. Standard wrench sizes you need

are listed below.

(1) 9/16"wrench (1) Pliers

(2) 1/2"wrench (1) Utility knife

(1) Tire pressure gauge

When rightor left hand is mentioned in

this manual, it means, from your point of

view,when you are in the operating

position (seated behind the steering

wheel).

TO REMOVE TRACTOR FROM

CARTON

UNPACK CARTON

1. Remove all accessible loose parts

and partscartons from carton.

2. Cut, from topto bottom, along lines on

all four comers of carton, and lay

panels fiat.

3. Check for any additional loose parts or

cartons and remove.

BEFORE REMOVING TRACTOR

FROM SKID

ATTACHSTEERINGWHEEL

ASSEMBLE EXTENSION SHAFT AND

BOOT

1. Slide extension shaft onto lower

steering shaft. Align mounting holes

in extension and lower shafts and

install 5/16 hex bolt and Iocknut.

Tighten securely.

2. Place tabs of steering boot over tab

slots in dash and push down to

secure.

INSTALL STEERING WHEEL

3. Position front wheels of the tractor so

they are pointingstraight forward.

4. Remove steering wheel adapter from

steenng wheel and slide adapter onto

steering shaft extension.

5. Positionsteering wheel so cross bars

are horizontal (left to right) and slide

inside boot and onto adapter.

__11nse_

_!:; 3/8 Hex Bolt

_3/8 Lock Washer

Large Flat

Washer

_-_ Steering Boot

Steedng Wheel _'_

Tebs

Adapter------'_ Shaft

6. Assemble large fiat washer, 3/8 lock

washer, 3/8 hex boltand tighten

securely.

7. Snap steering wheel insert intocenter

of steering wheel.

8, Remove protective materials from

tractor hood and grill.

IMPORTANT: Check for and remove any

staples in skid that may puncture tires

where tractor isto roll off skid.

HOW TO SET UP YOUR TRACTOR

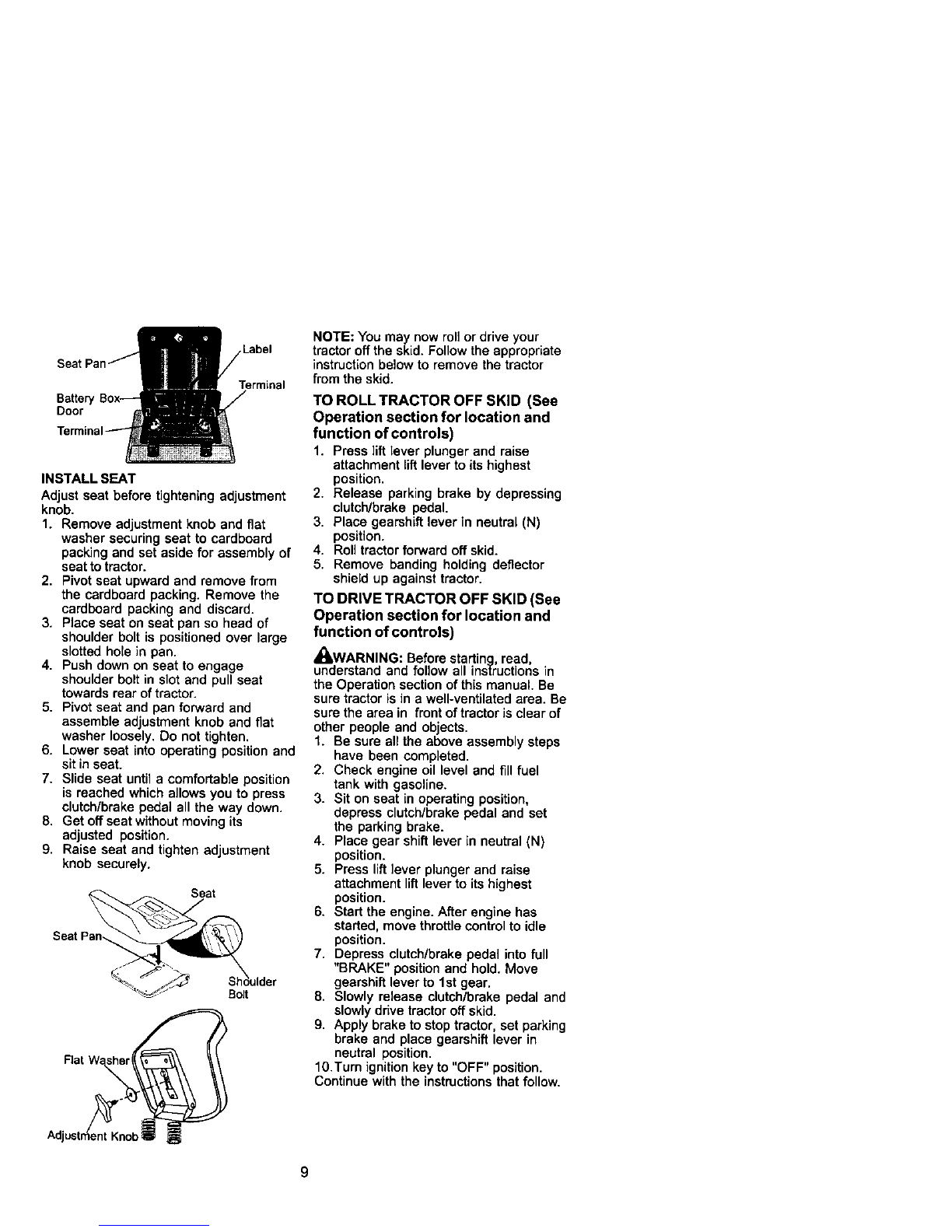

CHECK BATTERY

1. Lift seat pan to raised position and

open battery box door.

NOTE: If thisbattery is putintoservice

after month and year indicated on label

(label located between terminals) charge

batteryfor minimum of one hour at 6-10

amps. (See "BATTERY" in Maintenance

section of this manual for charging

instructions).

Batter

Door

INSTALL SEAT

Adjust seat before tightening adjustment

knob.

1. Remove adjustment knob and fiat

washer securing seat to cardboard

packing and set aside for assembly of

seat to tractor.

2. Pivotseat upward and remove from

the cardboard packing. Remove the

cardboard packing and discard.

3. Place seat on seat pan so head of

shoulder bolt is positioned over large

slotted hole in pan.

4. Push down on seat to engage

shoulder bolt in slot and pull seat

towards rear of tractor.

5. Pivot seat and pan forward and

assemble adjustment knob and flat

washer loosely. Do not tighten.

6. Lower seat into operating position and

sit in seat.

7. Slide seat until a comfortable position

is reached which allows you to press

clutch/brake pedal all the way down.

8. Get off seat without moving its

adjusted position.

9. Raise seat and tighten adjustment

knob securely.

Seat

Bolt

NOTE: You may now roll or drive your

tractor off the skid. Follow the appropriate

instruction below to remove the tractor

from the skid.

TO ROLL TRACTOR OFF SKID (See

Operation section for location and

function of controls)

1. Press liftlever plunger and raise

attachment lift leverto its highest

position.

2. Release parking brake by depressing

clutch/brake pedal.

3. Place gearshift lever in neutral (N)

position.

4. Roll tractor forward off skid.

5. Remove banding holding deflector

shield up against tractor.

TO DRIVE TRACTOR OFF SKID (See

Operation section for location and

function of controls)

_,WARNING: Before starting,read,

understand and follow all instructionsin

the Operation section of this manual. Be

sure tractor is in a well-ventilated area. Be

sure the area in front oftractor isclear of

other people and objects.

1. Be sure all the above assembly steps

have been completed.

2. Check engine oil level and fill fuel

tank with gasoline.

3. Sit on seat in operating position,

depress clutch/brake pedal and set

the parking brake.

4. Place gear shift lever in neutral (N)

position.

5. Press liftlever plunger and raise

attachment lift lever to its highest

position.

6. Start the engine. After engine has

started, move throttle controlto idle

position.

7. Depress clutch/brake pedal into full

"BRAKE" positionand hold. Move

gearshift lever to 1st gear.

8. Slowly release clutch/brake pedal and

slowly dnve tractor off skid.

9. Apply brake to stoptractor, set parking

brake and place gearshift lever in

neutral position.

1O.Tum ignition key to"OFF" position.

Continue with the instructionsthat follow.

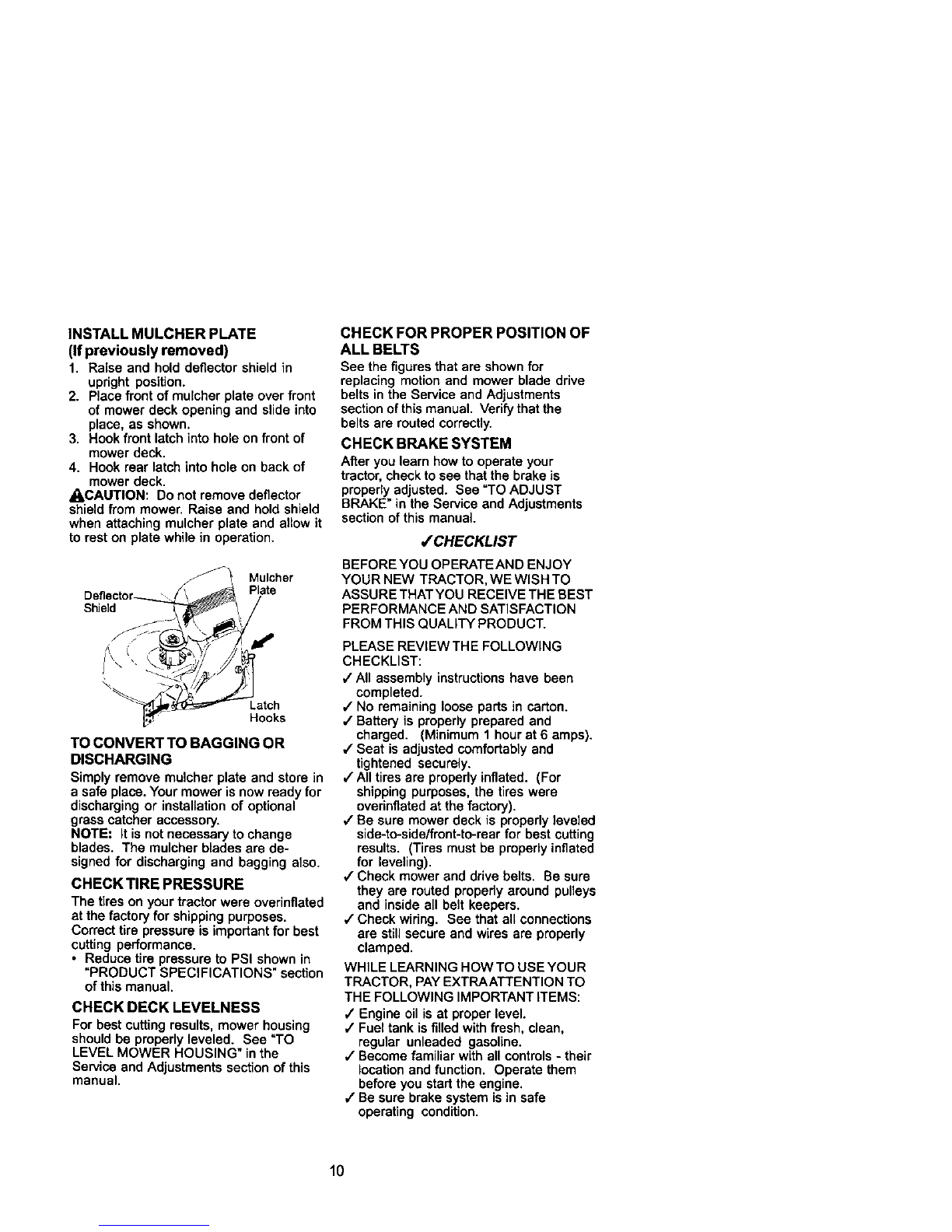

INSTALL MULCHER PLATE

(If previously removed)

1. Raise and hold deflector shield in

upright position.

2. Place front of mulcher plate over front

of mower deck opening and slide into

place, as shown,

3. Hook front latch into hole on front of

mower deck.

4. Hook rear latch into hole on back of

mower deck.

_CAUTION: Do notremove deflector

shield from mower. Raise and hold shield

when attaching mulcher plate and allow it

to rest on plate while in operation.

_Mulcher

Plate

Shield

Latch

Hooks

TO CONVERT TO BAGGING OR

DISCHARGING

Simply remove mulcher plate and store in

a safe place. Your mower is now ready for

discharging or installation of optional

grass catcher accessory.

NOTE: it is notnecessary to change

blades. The mulcher blades are de-

signed for discharging and bagging also.

CHECK TIRE PRESSURE

The tires on your tractor were overinflated

at the factory for shipping purposes.

Correcttire pressure is importantfor best

cutting performance.

• Reduce tire pressure to PSI shown in

"PRODUCT SPECIFICATIONS" section

of this manual.

CHECK DECK LEVELNESS

For bestcutting results, mower housing

should be properly leveled. See "TO

LEVEL MOWER HOUSING" inthe

Service and Adjustments section of this

manual.

CHECK FOR PROPER POSITION OF

ALL BELTS

See the figuresthat are shown for

replacing motion and mower blade drive

belts in the Service and Adjustments

section of this manual. Verify that the

belts are routed correctly.

CHECK BRAKE SYSTEM

After you learn how to operate your

tractor, checkto see that the brake is

propedy adjusted. See "TO ADJUST

BRAKE" in the Service and Adjustments

section of this manual

/CHECKLIST

BEFORE YOU OPERATEAND ENJOY

YOUR NEW TRACTOR, WE WISH TO

ASSURE THAT YOU RECEIVE THE BEST

PERFORMANCE AND SATISFACTION

FROM THIS QUALITY PRODUCT.

PLEASE REVIEWTHE FOLLOWING

CHECKLIST:

,/All assembly instructionshave been

completed.

,I No remaining loose parts in carton.

,/Battery is properly prepared and

charged. (Minimum 1 hour at 6 amps).

/Seat is adjusted comfortably and

tightened securely.

/All tires are properly inflated. (For

shipping purposes, the tires were

overinflated at the factory).

,/Be sure mower deck is properly leveled

side-to-side/front-to-rear for best cutting

results. (Tires must be properly inflated

for leveling).

,/Check mower and drive belts. Be sure

they are routed propedy around pulleys

and inside all belt keepers.

,/Check wiring. See that all connections

are still secure and wires are properly

clamped.

WHILE LEARNING HOW TO USE YOUR

TRACTOR, PAY EXTRAA'I-rENTION TO

THE FOLLOWING IMPORTANT ITEMS:

/Engine oil is at proper level.

#" Fuel tank is filled with fresh, clean,

regular unleaded gasoline.

/Become familiar with all controls - their

location and function. Operate them

before you start the engine.

,/Be sure brake system is in safe

operating condition.

Table des matières

Autres manuels Craftsman Tondeuse à gazon

Craftsman

Craftsman 917.378642 Manuel utilisateur

Craftsman

Craftsman 917.378520 Manuel utilisateur

Craftsman

Craftsman 917.28862 Manuel utilisateur

Craftsman

Craftsman 917.388203 Manuel utilisateur

Craftsman

Craftsman Rotary Lawn Mower 917.379120 Manuel utilisateur

Craftsman

Craftsman Professional PYT9000 Manuel utilisateur

Craftsman

Craftsman 917.28807 Manuel utilisateur

Craftsman

Craftsman 917.273641 Manuel utilisateur

Craftsman

Craftsman 917.271635 Manuel utilisateur

Craftsman

Craftsman 917.271841 Manuel utilisateur

Craftsman

Craftsman 917.375621 Manuel utilisateur

Craftsman

Craftsman 917.379610 Manuel utilisateur

Craftsman

Craftsman 917.376160 Manuel utilisateur

Craftsman

Craftsman EZ3 917.259550 Manuel utilisateur

Craftsman

Craftsman 25454 Manuel utilisateur

Craftsman

Craftsman 247.38529 Manuel utilisateur

Craftsman

Craftsman 917.373491 Manuel utilisateur

Craftsman

Craftsman 917.387612 Manuel utilisateur

Craftsman

Craftsman 917.272030 Manuel utilisateur

Craftsman

Craftsman 917.370691 Manuel utilisateur

Craftsman

Craftsman 917.271630 Manuel utilisateur

Craftsman

Craftsman 917.28851 Manuel utilisateur

Craftsman

Craftsman 917.271810 Manuel utilisateur

Craftsman

Craftsman 917.273491 Manuel utilisateur

Manuels Tondeuse à gazon populaires d'autres marques

RHINO

RHINO 1958 Manuel utilisateur

Wolf Garten

Wolf Garten Compact plus 40 B Manuel utilisateur

Cub Cadet

Cub Cadet LTX 1045 Manuel utilisateur

GGP ITALY SPA

GGP ITALY SPA CR/CS 434 SERIES Manuel utilisateur

Challenge

Challenge CH18V2 Instructions de fonctionnement

TALEN TOOLS

TALEN TOOLS AVR HGM30 Manuel utilisateur

DEWEZE

DEWEZE ATM-725 Manuel d'utilisation

Weed Eater

Weed Eater 180083 Manuel utilisateur

Husqvarna

Husqvarna Poulan Pro PP185A42 Manuel utilisateur

Better Outdoor Products

Better Outdoor Products Quick Series Manuel utilisateur

Cub Cadet

Cub Cadet 23HP Z-Force 60 Manuel d'utilisation

MTD

MTD 795, 792, 791, 790 Manuel utilisateur

Toro

Toro Groundsmaster 3505-D Manuel utilisateur

Dennis

Dennis FT 610 Manuel utilisateur

AIRFORCE

AIRFORCE F-15 Gen 3 Manuel utilisateur

MTD

MTD 126-220-000 Manuel utilisateur

Toro

Toro 74806 Manuel utilisateur

Stihl

Stihl RMA 443 PV Manuel utilisateur
