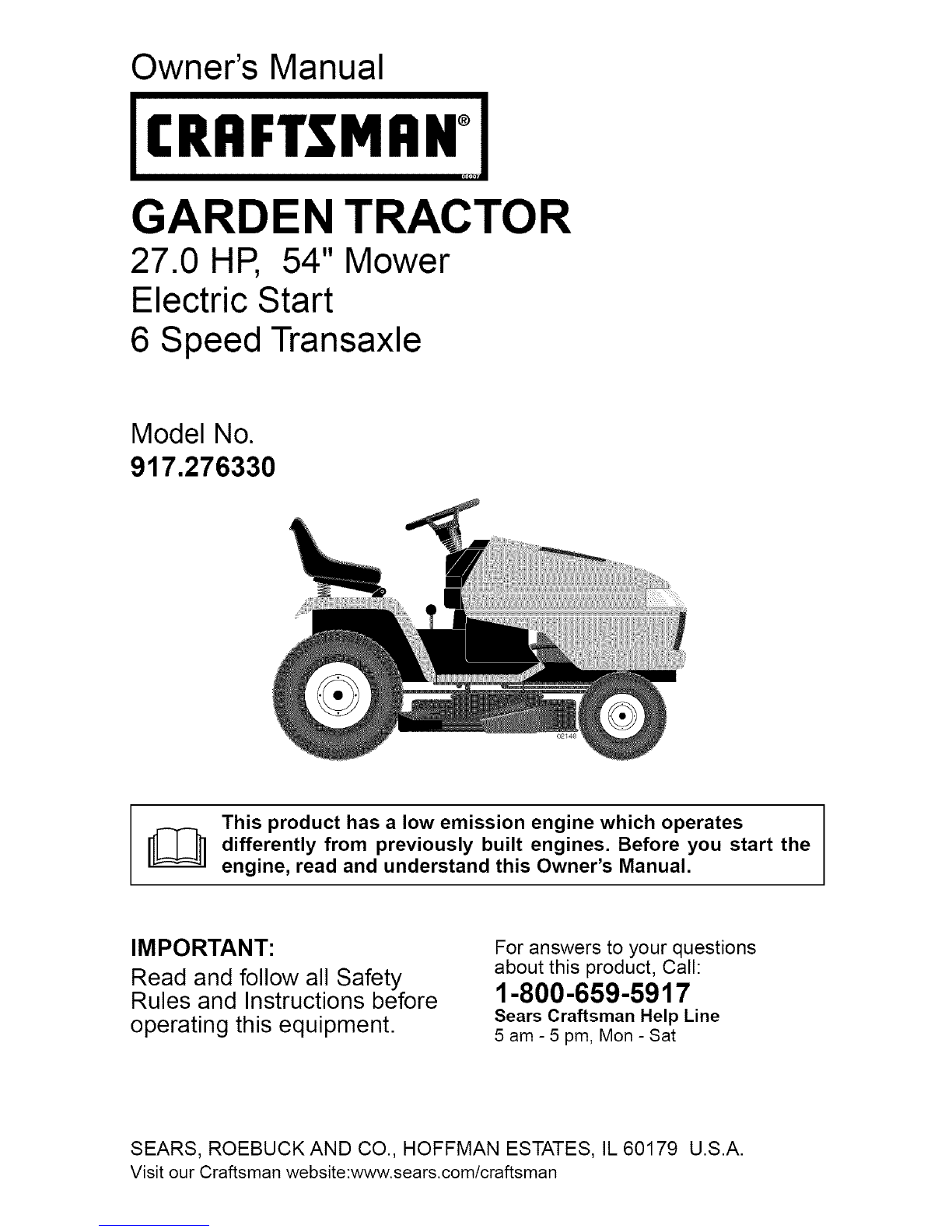

Owner's Manual

[RRFTSMIIN°

GARDEN TRACTOR

27.0 HP, 54" Mower

Electric Start

6 Speed Transaxle

Model No.

917.276330

This product has a low emission engine which operates

I_ differently from previously built engines. Before start the

you

engine, read and understand this Owner's Manual,

IMPORTANT:

Read and follow all Safety

Rules and Instructions before

operating this equipment.

For answers to your questions

about this product, Call:

1-800-659-5917

Sears Craftsman Help Line

5 am- 5 pm, Mon- Sat

SEARS, ROEBUCK AND CO., HOFFMAN ESTATES, IL 60179 U.S.A.

Visit our Craftsman website:www.sears.com/craftsman

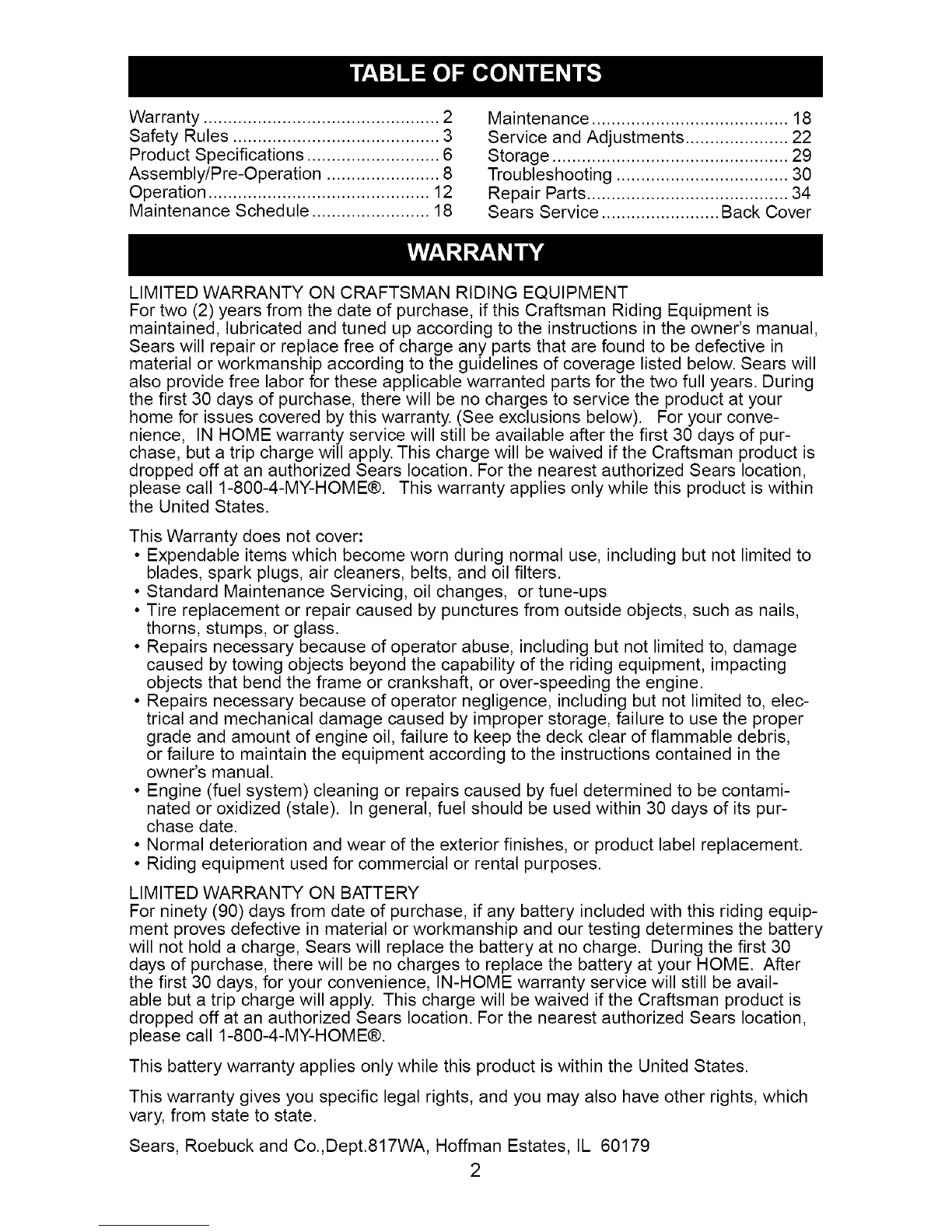

Warranty ................................................ 2

Safety Rules .......................................... 3

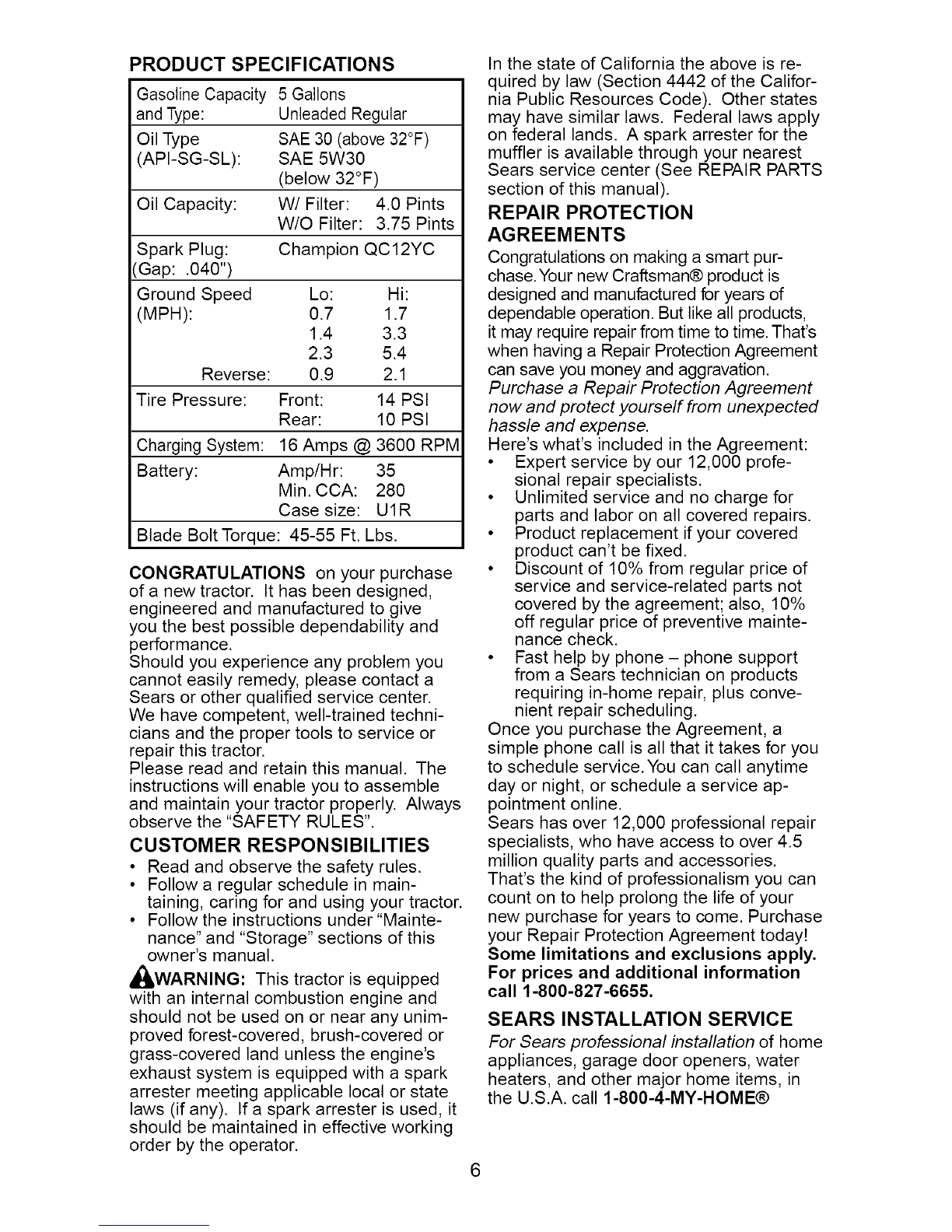

Product Specifications ........................... 6

Assembly/Pre-Operation ....................... 8

Operation ............................................. 12

Maintenance Schedule ........................ 18

Maintenance ........................................ 18

Service and Adjustments ..................... 22

Storage ................................................ 29

Troubleshooting ................................... 30

Repair Parts ......................................... 34

Sears Service ........................ Back Cover

LIMITED WARRANTY ON CRAFTSMAN RIDING EQUIPMENT

For two (2) years from the date of purchase, if this Craftsman Riding Equipment is

maintained, lubricated and tuned up according to the instructions in the owner's manual,

Sears will repair or replace free of charge any parts that are found to be defective in

material or workmanship according to the guidelines of coverage listed below. Sears will

also provide free labor for these applicable warranted parts for the two full years. During

the first 30 days of purchase, there will be no charges to service the product at your

home for issues covered by this warranty. (See exclusions below). For your conve-

nience, IN HOME warranty service will still be available after the first 30 days of pur-

chase, but a trip charge will apply. This charge will be waived if the Craftsman product is

dropped off at an authorized Sears location. For the nearest authorized Sears location,

please call 1-800-4-MY-HOME®. This warranty applies only while this product is within

the United States.

This Warranty does not cover:

• Expendable items which become worn during normal use, including but not limited to

blades, spark plugs, air cleaners, belts, and oil filters.

• Standard Maintenance Servicing, oil changes, or tune-ups

• Tire replacement or repair caused by punctures from outside objects, such as nails,

thorns, stumps, or glass.

• Repairs necessary because of operator abuse, including but not limited to, damage

caused by towing objects beyond the capability of the riding equipment, impacting

objects that bend the frame or crankshaft, or over-speeding the engine.

• Repairs necessary because of operator negligence, including but not limited to, elec-

trical and mechanical damage caused by improper storage, failure to use the proper

grade and amount of engine oil, failure to keep the deck clear of flammable debris,

or failure to maintain the equipment according to the instructions contained in the

owner's manual.

• Engine (fuel system) cleaning or repairs caused by fuel determined to be contami-

nated or oxidized (stale). In general, fuel should be used within 30 days of its pur-

chase date.

• Normal deterioration and wear of the exterior finishes, or product label replacement.

• Riding equipment used for commercial or rental purposes.

LIMITED WARRANTY ON BATTERY

For ninety (90) days from date of purchase, if any battery included with this riding equip-

ment proves defective in material or workmanship and our testing determines the battery

will not hold a charge, Sears will replace the battery at no charge. During the first 30

days of purchase, there will be no charges to replace the battery at your HOME. After

the first 30 days, for your convenience, IN-HOME warranty service will still be avail-

able but a trip charge will apply. This charge will be waived if the Craftsman product is

dropped off at an authorized Sears location. For the nearest authorized Sears location,

please call 1-800-4-MY-HOME®.

This battery warranty applies only while this product is within the United States.

This warranty gives you specific legal rights, and you may also have other rights, which

vary, from state to state.

Sears, Roebuck and Co.,Dept.817WA, Hoffman Estates, IL 60179

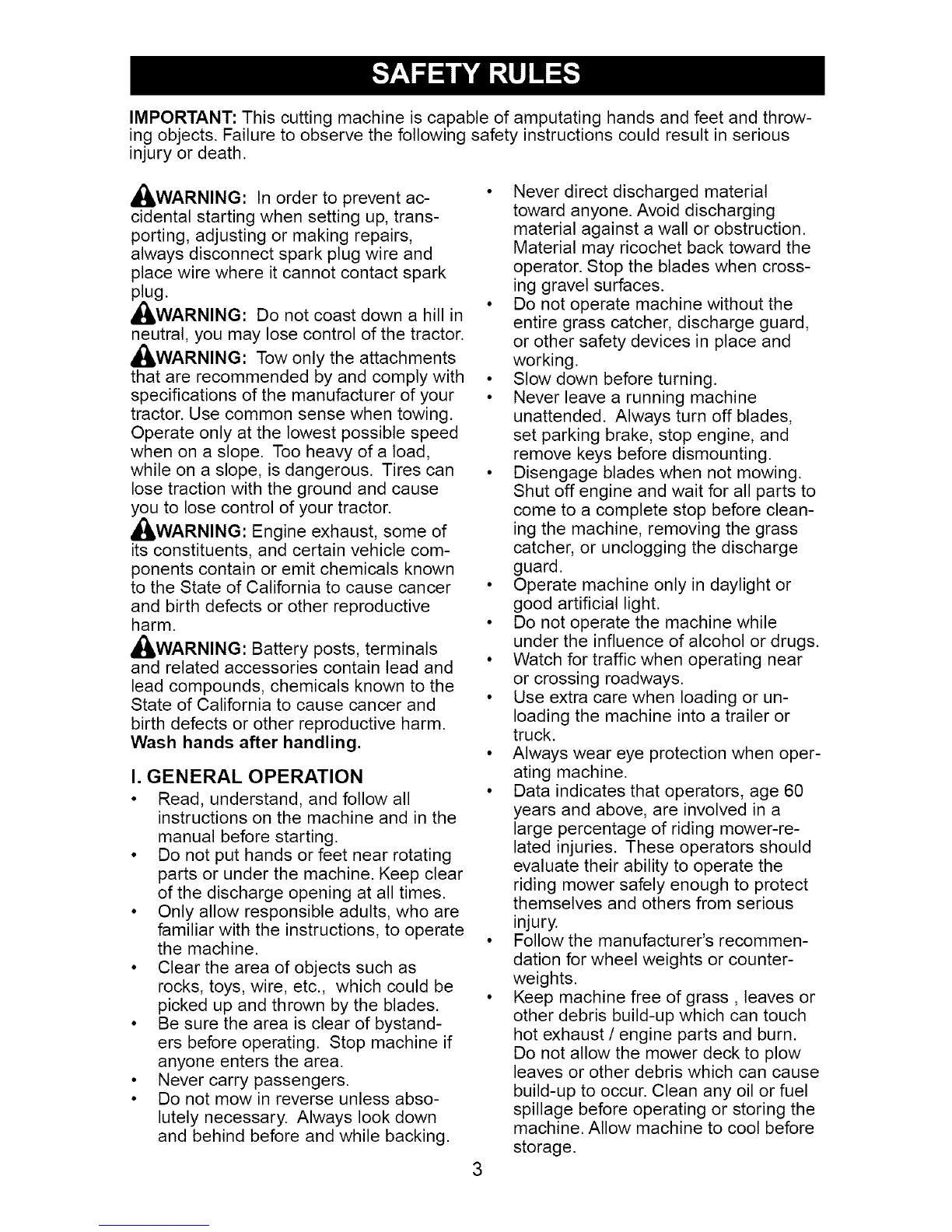

IMPORTANT: This cutting machine is capable of amputating hands and feet and throw-

ing objects. Failure to observe the following safety instructions could result in serious

injury or death.

_IWARNING: In order to prevent ac-

cidental starting when setting up, trans-

porting, adjusting or making repairs,

always disconnect spark plug wire and

place wire where it cannot contact spark

plug.

_I_WARNING: Do not coast down a hill in

neutral, you may lose control of the tractor.

_IWARNING: Tow only the attachments

that are recommended by and comply with

specifications of the manufacturer of your

tractor. Use common sense when towing.

Operate only at the lowest possible speed

when on a slope. Too heavy of a load,

while on a slope, is dangerous. Tires can

lose traction with the ground and cause

you to lose control of your tractor.

_IWARNING: Engine exhaust, some of

its constituents, and certain vehicle com-

ponents contain or emit chemicals known

to the State of California to cause cancer

and birth defects or other reproductive

harm.

_IWARNING: Battery posts, terminals

and related accessories contain lead and

lead compounds, chemicals known to the

State of California to cause cancer and

birth defects or other reproductive harm.

Wash hands after handling.

I. GENERAL OPERATION

• Read, understand, and follow all

instructions on the machine and in the

manual before starting.

• Do not put hands or feet near rotating

parts or under the machine. Keep clear

of the discharge opening at all times.

• Only allow responsible adults, who are

familiar with the instructions, to operate

the machine.

• Clear the area of objects such as

rocks, toys, wire, etc., which could be

picked up and thrown by the blades.

• Be sure the area is clear of bystand-

ers before operating. Stop machine if

anyone enters the area.

• Never carry passengers.

• Do not mow in reverse unless abso-

lutely necessary. Always look down

and behind before and while backing.

• Never direct discharged material

toward anyone. Avoid discharging

material against a wall or obstruction.

Material may ricochet back toward the

operator. Stop the blades when cross-

ing gravel surfaces.

• Do not operate machine without the

entire grass catcher, discharge guard,

or other safety devices in place and

working.

• Slow down before turning.

• Never leave a running machine

unattended. Always turn off blades,

set parking brake, stop engine, and

remove keys before dismounting.

• Disengage blades when not mowing.

Shut off engine and wait for all parts to

come to a complete stop before clean-

ing the machine, removing the grass

catcher, or unclogging the discharge

guard.

• Operate machine only in daylight or

good artificial light.

• Do not operate the machine while

under the influence of alcohol or drugs.

• Watch for traffic when operating near

or crossing roadways.

• Use extra care when loading or un-

loading the machine into a trailer or

truck.

• Always wear eye protection when oper-

ating machine.

• Data indicates that operators, age 60

years and above, are involved in a

large percentage of riding mower-re-

lated injuries. These operators should

evaluate their ability to operate the

riding mower safely enough to protect

themselves and others from serious

injury.

• Followthe manufacturer's recommen-

dation for wheel weights or counter-

weights.

• Keep machine free of grass, leaves or

other debris build-up which can touch

hot exhaust /engine parts and burn.

Do not allow the mower deck to plow

leaves or other debris which can cause

build-up to occur. Clean any oil or fuel

spillage before operating or storing the

machine. Allow machine to cool before

storage.

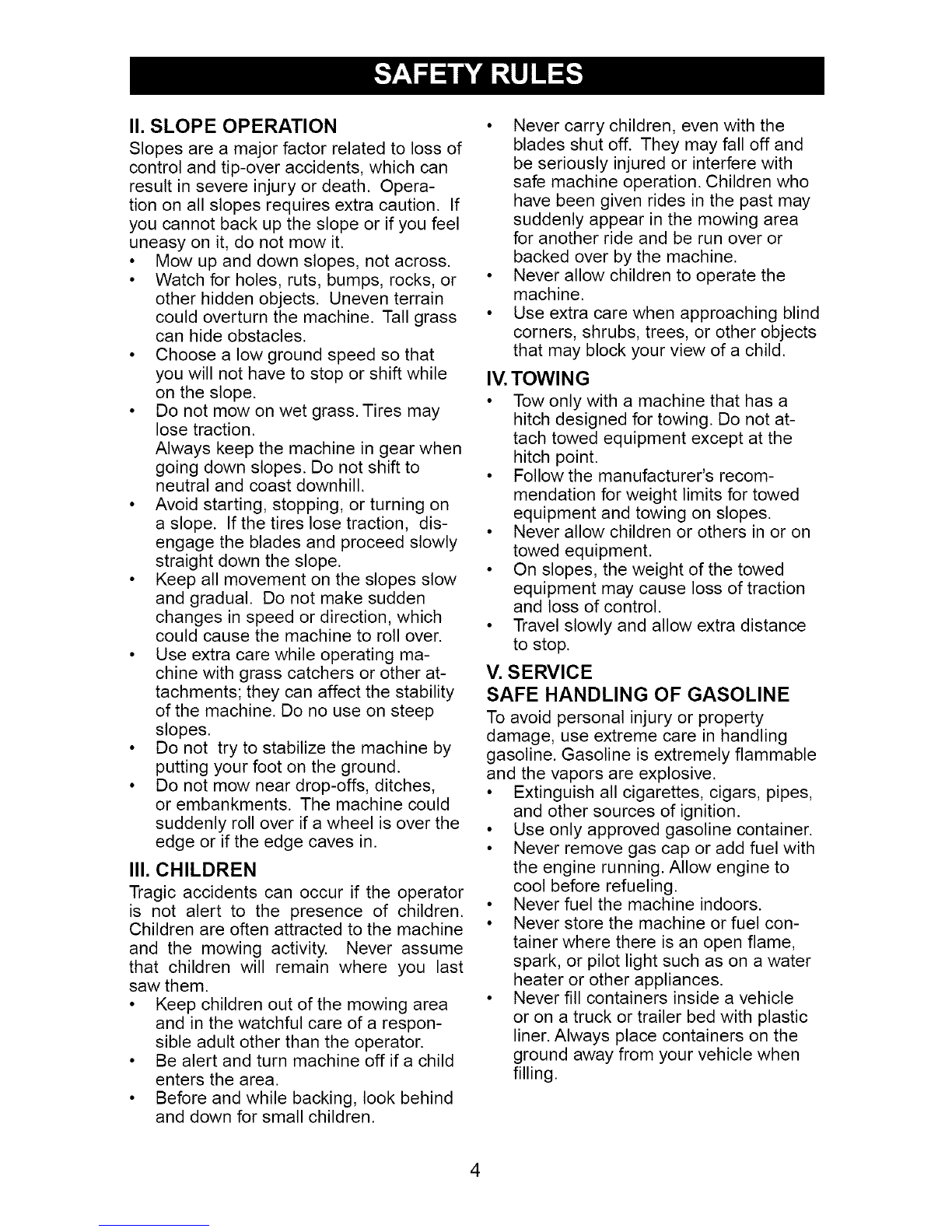

II. SLOPE OPERATION

Slopes are a major factor related to loss of

control and tip-over accidents, which can

result in severe injury or death. Opera-

tion on all slopes requires extra caution. If

you cannot back up the slope or if you feel

uneasy on it, do not mow it.

• Mow up and down slopes, not across.

• Watch for holes, ruts, bumps, rocks, or

other hidden objects. Uneven terrain

could overturn the machine. Tall grass

can hide obstacles.

• Choose a low ground speed so that

you will not have to stop or shift while

on the slope.

• Do not mow on wet grass. Tires may

lose traction.

Always keep the machine in gear when

going down slopes. Do not shift to

neutral and coast downhill.

• Avoid starting, stopping, or turning on

a slope. If the tires lose traction, dis-

engage the blades and proceed slowly

straight down the slope.

• Keep all movement on the slopes slow

and gradual. Do not make sudden

changes in speed or direction, which

could cause the machine to roll over.

• Use extra care while operating ma-

chine with grass catchers or other at-

tachments; they can affect the stability

of the machine. Do no use on steep

slopes.

• Do not try to stabilize the machine by

putting your foot on the ground.

• Do not mow near drop-offs, ditches,

or embankments. The machine could

suddenly roll over if a wheel is over the

edge or if the edge caves in.

II1. CHILDREN

Tragic accidents can occur if the operator

is not alert to the presence of children.

Children are often attracted to the machine

and the mowing activity. Never assume

that children will remain where you last

saw them.

• Keep children out of the mowing area

and in the watchful care of a respon-

sible adult other than the operator.

• Be alert and turn machine off if a child

enters the area.

• Before and while backing, look behind

and down for small children.

• Never carry children, even with the

blades shut off. They may fall off and

be seriously injured or interfere with

safe machine operation. Children who

have been given rides in the past may

suddenly appear in the mowing area

for another ride and be run over or

backed over by the machine.

• Never allow children to operate the

machine.

• Use extra care when approaching blind

corners, shrubs, trees, or other objects

that may block your view of a child.

IV. TOWING

• Tow only with a machine that has a

hitch designed for towing. Do not at-

tach towed equipment except at the

hitch point.

• Followthe manufacturer's recom-

mendation for weight limits for towed

equipment and towing on slopes.

• Never allow children or others in or on

towed equipment.

• On slopes, the weight of the towed

equipment may cause loss of traction

and loss of control.

• Travel slowly and allow extra distance

to stop.

V. SERVICE

SAFE HANDLING OF GASOLINE

To avoid personal injury or property

damage, use extreme care in handling

gasoline. Gasoline is extremely flammable

and the vapors are explosive.

• Extinguish all cigarettes, cigars, pipes,

and other sources of ignition.

• Use only approved gasoline container.

• Never remove gas cap or add fuel with

the engine running. Allow engine to

cool before refueling.

• Never fuel the machine indoors.

• Never store the machine or fuel con-

tainer where there is an open flame,

spark, or pilot light such as on a water

heater or other appliances.

• Never fill containers inside a vehicle

or on a truck or trailer bed with plastic

liner. Always place containers on the

ground away from your vehicle when

filling.

•Remove gas-powered equipment from

the truck or trailer and refuel it on the

ground. If this is not possible, then

refuel such equipment with a portable

container, rather than from a gasoline

dispenser nozzle.

• Keep the nozzle in contact with the rim

of the fuel tank or container opening at

all times until fueling is complete. Do

not use a nozzle lock-open device.

• If fuel is spilled on clothing, change

clothing immediately.

• Never overfill fuel tank. Replace gas

cap and tighten securely.

GENERAL SERVICE

• Never operate machine in a closed are.

•Keep all nuts and bolts tight to be sure

the equipment is in safe working condi-

tion.

• Never tamper with safety devices.

Check their proper operation regularly.

• Keep machine free of grass, leaves, or

other debris build-up. Clean oil or fuel

spillage and remove any fuel-soaked

debris. Allow machine to cool before

storing.

• If you strike a foreign object, stop and

inspect the machine. Repair, if neces-

sary, before restarting.

• Never make any adjustments or repairs

with the engine running.

• Check grass catcher components and

the discharge guard frequently and

replace with manufacturer's recom-

mended parts, when necessary.

• Mower blades are sharp. Wrap the

blade or wear gloves, and use extra

caution when servicing them.

• Check brake operation frequently. Ad-

just and service as required.

• Maintain or replace safety and instruc-

tion labels, as necessary.

• Be sure the area is clear of bystand-

ers before operating. Stop machine if

anyone enters the area.

• Never carry passengers.

• Do not mow in reverse unless abso-

lutely necessary. Always look down

and behind before and while backing.

• Never carry children, even with the

blades shut off. They may fall off and

be seriously injured or interfere with

safe machine operation. Children who

have been given rides in the past may

suddenly appear in the mowing area

for another ride and be run over or

backed over by the machine.

• Keep children out of the mowing area

and in the watchful care of a respon-

sible adult other than the operator.

• Be alert and turn machine off if a child

enters the area.

• Before and while backing, look behind

and down for small children.

• Mow up and down slopes (15 ° Max),

not across.

• Choose a low ground speed so that you

will not have to stop or shift while on

the slope.

• Avoid starting, stopping, or turning on a

slope. If the tires lose traction, disen-

gage the blades and proceed slowly

straight down the slope.

• If machine stops while going uphill,

disengage blades, shift into reverse and

back down slowly.

• Do not turn on slopes unless neces-

sary, and then, turn slowly and gradu-

ally downhill, if possible.

PRODUCT SPECIFICATIONS

Gasoline Capacity 5 Gallons

and Type: Unleaded Regular

Oil Type SAE 30 (above 32°F)

(API-SG-SL): SAE 5W30

(below 32°F)

Oil Capacity: W/Filter: 4.0 Pints

W/O Filter: 3.75 Pints

Spark Plug: Champion QC12YC

(Gap: .040")

Ground Speed

(MPH): Lo: Hi:

0.7 1.7

1.4 3.3

2.3 5.4

Reverse: 0.9 2.1

Tire Pressure: Front: 14 PSI

Rear: 10 PSI

Charging System: 16 Amps @ 3600 RPM

Battery: Amp/Hr: 35

Min. CCA: 280

Case size: U1R

Blade Bolt Torque: 45-55 Ft. Lbs.

CONGRATULATIONS on your purchase

of a new tractor. It has been designed,

engineered and manufactured to give

you the best possible dependability and

performance.

Should you experience any problem you

cannot easily remedy, please contact a

Sears or other qualified service center.

We have competent, well-trained techni-

cians and the proper tools to service or

repair this tractor.

Please read and retain this manual. The

instructions will enable you to assemble

and maintain your tractor properly. Always

observe the "SAFETY RULES".

CUSTOMER RESPONSIBILITIES

• Read and observe the safety rules.

• Follow a regular schedule in main-

taining, caring for and using your tractor.

• Follow the instructions under"Mainte-

nance" and "Storage" sections of this

owner's manual.

_L, WARNING: This tractor is equipped

with an internal combustion engine and

should not be used on or near any unim-

proved forest-covered, brush-covered or

grass-covered land unless the engine's

exhaust system is equipped with a spark

arrester meeting applicable local or state

laws (if any). If a spark arrester is used, it

should be maintained in effective working

order by the operator.

In the state of California the above is re-

quired by law (Section 4442 of the Califor-

nia Public Resources Code). Other states

may have similar laws. Federal laws apply

on federal lands. A spark arrester for the

muffler is available through your nearest

Sears service center (See REPAIR PARTS

section of this manual).

REPAIR PROTECTION

AGREEMENTS

Congratulations on making a smart pur-

chase. Your new Craftsman® product is

designed and manufactured for years of

dependable operation. But like all products,

it may require repair from time to time. That's

when having a Repair Protection Agreement

can save you money and aggravation.

Purchase a Repair Protection Agreement

now and protect yourself from unexpected

hassle and expense.

Here's what's included in the Agreement:

• Expert service by our 12,000 profe-

sional repair specialists.

• Unlimited service and no charge for

parts and labor on all covered repairs.

• Product replacement if your covered

product can't be fixed.

• Discount of 10% from regular price of

service and service-related parts not

covered by the agreement; also, 10%

off regular price of preventive mainte-

nance check.

• Fast help by phone- phone support

from a Sears technician on products

requiring in-home repair, plus conve-

nient repair scheduling.

Once you purchase the Agreement, a

simple phone call is all that it takes for you

to schedule service. You can call anytime

day or night, or schedule a service ap-

pointment online.

Sears has over 12,000 professional repair

specialists, who have access to over 4.5

million quality parts and accessories.

That's the kind of professionalism you can

count on to help prolong the life of your

new purchase for years to come. Purchase

your Repair Protection Agreement today!

Some limitations and exclusions apply.

For prices and additional information

call 1-800-827-6655.

SEARS INSTALLATION SERVICE

For Sears professional installation of home

appliances, garage door openers, water

heaters, and other major home items, in

the U.S.A. call 1-800-4-MY-HOME®

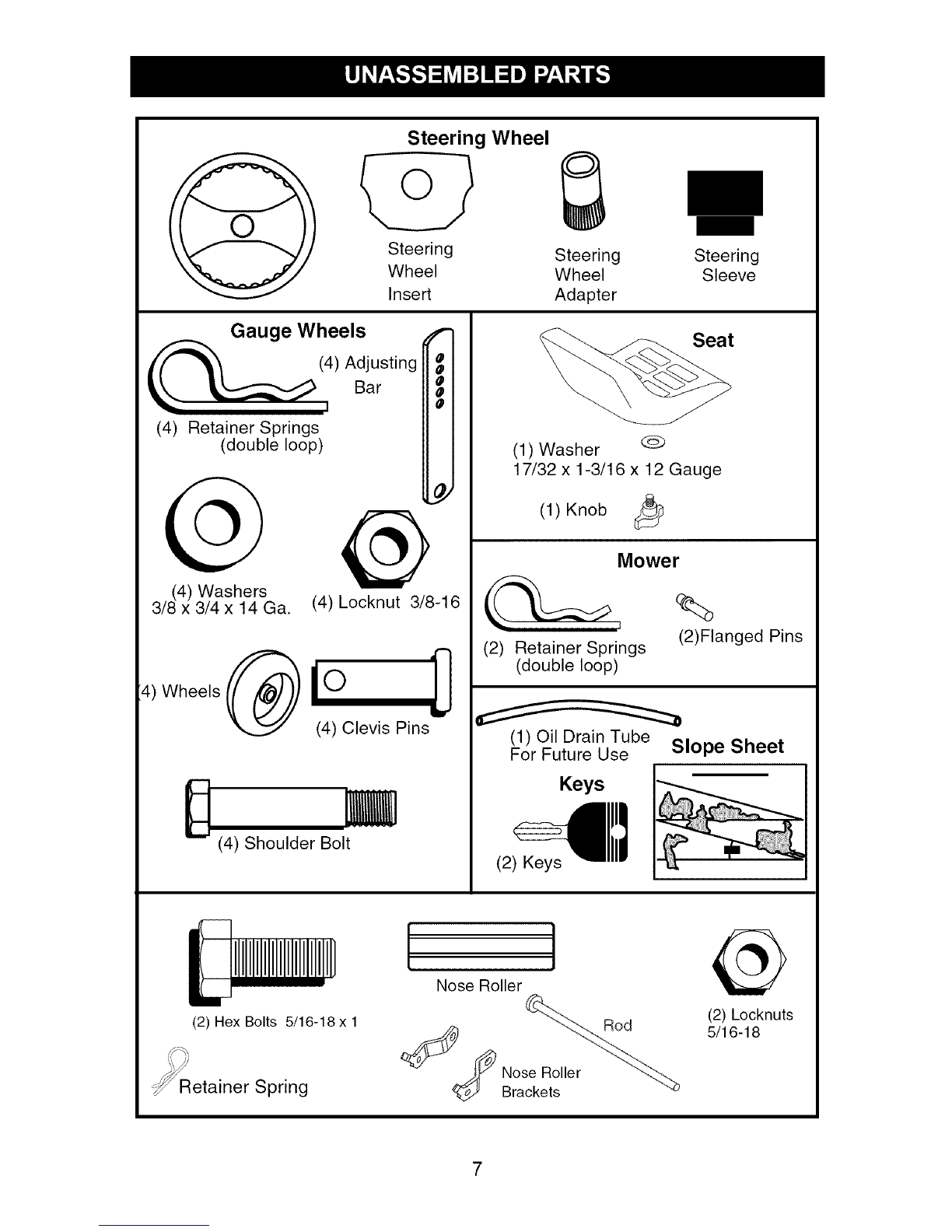

Steering Wheel

Steering

Wheel

Insert

Steering

Wheel

Adapter

Steering

Sleeve

Gauge Wheels

(i) Adjusting

Bar

(4) Retainer Springs

(double loop)

(4) Washers

3/8 x 3/4 x 14 Ga. (4) Locknut 3/8-16

4,whees lO

(4) Clevis Pins

(4) Shoulder Bolt

(1) Washer @

17/32 x 1-3/16 x 12 Gauge

(1) Knob j_

Mower

(2) Retainer Springs

(double loop)

(2)Flanged Pins

(1) Oil Drain Tube

For Future Use Slope Sheet

Keys

(2) Keys

(2) Hex Bolts 5/16-18 x 1

Retainer Spring

INose Roller @

(2) Locknuts

5/16-18

Your new tractor has been assembled at the factory with the exception of those parts left

unassembled for shipping purposes. To ensure safe and proper operation of your tractor

all parts and hardware you assemble must be tightened securely. Use the correct tools

as necessary to insure proper tightness.

TOOLS REQUIRED FOR ASSEMBLY

A socket wrench set will make assembly

easier. Standard wrench sizes you need

are listed below.

(1) 9/16" wrench (1) Pliers

(1) 1/2" wrench (1) Utility knife

(1) 3/4" socket with drive ratchet

(1) Tire pressure gauge

When right or left hand is mentioned in

this manual, it means, from your point of

view, when you are in the operating posi-

tion (seated behind the steering wheel).

TO REMOVE TRACTOR FROM

CARTON

UNPACK CARTON

1. Remove all accessible loose parts and

parts boxes from carton.

2. Cut along dotted lines on all four pan-

els of carton. Remove end panels and

lay side panels flat.

3. Remove mower and packing materials.

4. Check for any additional loose parts or

cartons and remove.

BEFORE REMOVING TRACTOR

FROM SKID

ATTACH STEERING WHEEL

1. Remove Iocknut and large flat washer

from steering shaft.

2. Position front wheels of the tractor so

they are pointing straight forward.

3. Slide the steering sleeve over the

steering shaft.

4. Position steering wheel so cross bars

are horizontal (left to right) and slide

onto steering wheel adapter.

5. Secure steering wheel to steering

shaft with Iocknut and large flat washer

previously removed. Tighten securely.

6. Snap steering wheel insert into center

of steering wheel.

7. Remove protective materials from trac-

tor hood and grill.

IMPORTANT: Check for and remove any

staples in skid that may puncture tires

where tractor is to roll off skid.

Steering Wheel

Steering

Nut

__ Large Flat

Washer

Steering

Wheel

Steering Adaptor

Shaft

__,z_o'_"

CHECK BATTERY

1. Lift hood to raised position.

NOTE: If this battery is put into service

after month and year indicated on label

(label located between terminals) charge

battery for minimum of one hour at 6-10

amps. (See "BATTERY" in Maintenance

section of this manual for charging instruc-

tions).

_?/_(. ..... ::>.

,- _,,; _ Label

INSTALL SEAT

Adjust seat before tightening adjustment

knob.

1. Remove adjustment knob and flat

washer securing seat to cardboard

packing and set aside for assembly of

seat to tractor.

2. Pivot seat upward and remove from

the cardboard packing. Remove the

cardboard packing and discard.

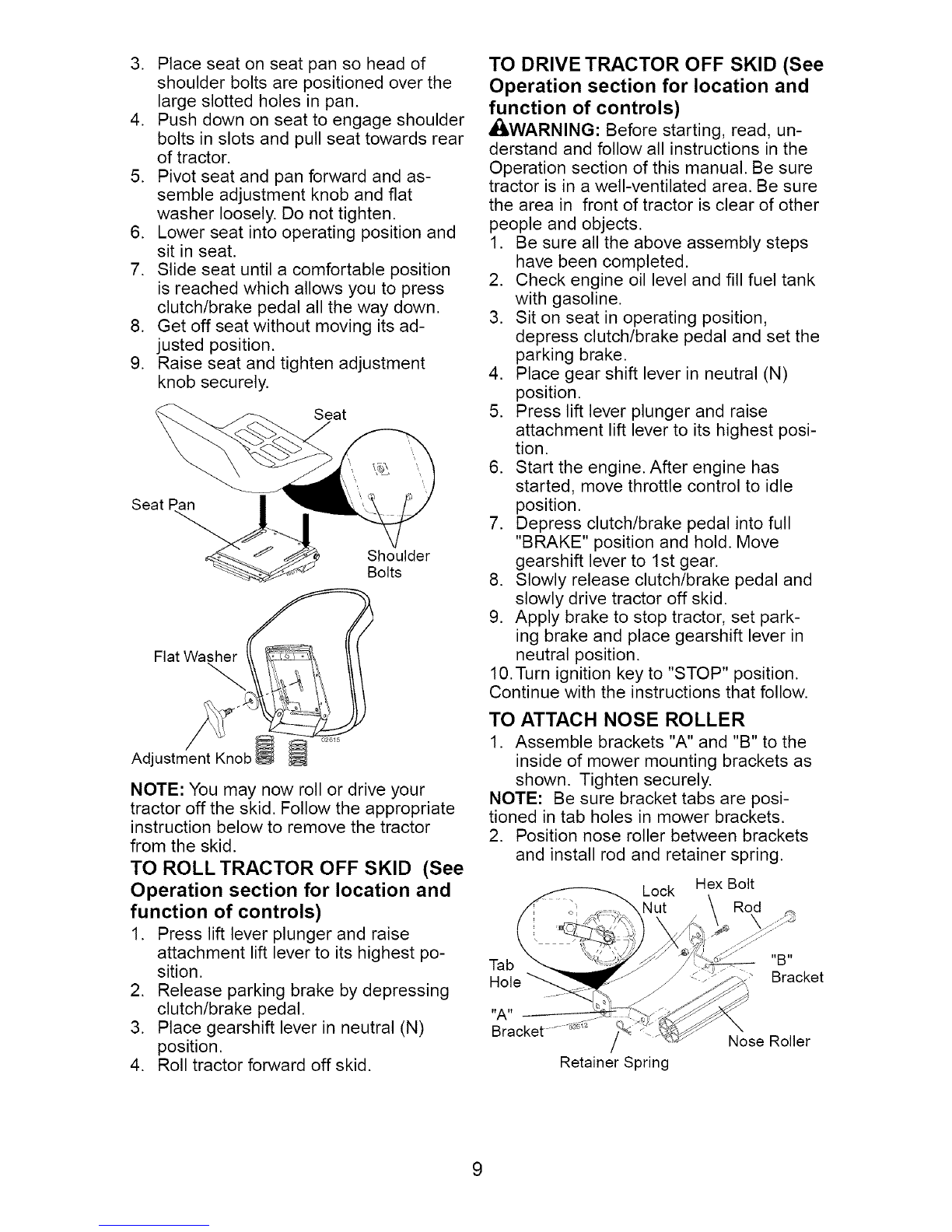

3. Placeseaton seatpansoheadof

shoulderboltsarepositionedoverthe

largeslottedholesin pan.

4. Pushdownon seattoengageshoulder

boltsin slots andpullseattowardsrear

oftractor.

5. Pivotseatandpanforwardandas-

sembleadjustmentknobandflat

washerloosely.Donottighten.

6. Lowerseatintooperatingpositionand

sit inseat.

7. Slideseatuntila comfortableposition

isreachedwhich allowsyou to press

clutch/brakepedalallthewaydown.

8. Getoff seatwithout movingitsad-

justedposition.

9. Raiseseatandtightenadjustment

knobsecurely.

Seat

Seat Pa_ Shoulder

Bolts

Flat Washer

Adjustment Knob

NOTE: You may now roll or drive your

tractor off the skid. Follow the appropriate

instruction below to remove the tractor

from the skid.

TO ROLL TRACTOR OFF SKID (See

Operation section for location and

function of controls)

1. Press lift lever plunger and raise

attachment lift lever to its highest po-

sition.

2. Release parking brake by depressing

clutch/brake pedal.

3. Place gearshift lever in neutral (N)

position.

4. Roll tractor forward off skid.

TO DRIVE TRACTOR OFF SKID (See

Operation section for location and

function of controls)

_WARNING: Before starting, read, un-

derstand and follow all instructions in the

Operation section of this manual. Be sure

tractor is in a well-ventilated area. Be sure

the area in front of tractor is clear of other

people and objects.

1. Be sure all the above assembly steps

have been completed.

2. Check engine oil level and fill fuel tank

with gasoline.

3. Sit on seat in operating position,

depress clutch/brake pedal and set the

parking brake.

4. Place gear shift lever in neutral (N)

position.

5. Press lift lever plunger and raise

attachment lift lever to its highest posi-

tion.

6. Start the engine. After engine has

started, move throttle control to idle

position.

7. Depress clutch/brake pedal into full

"BRAKE" position and hold. Move

gearshift lever to 1st gear.

8. Slowly release clutch/brake pedal and

slowly drive tractor off skid.

9. Apply brake to stop tractor, set park-

ing brake and place gearshift lever in

neutral position.

10.Turn ignition key to "STOP" position.

Continue with the instructions that follow.

TO ATTACH NOSE ROLLER

1. Assemble brackets "A" and "B" to the

inside of mower mounting brackets as

shown. Tighten securely.

NOTE: Be sure bracket tabs are posi-

tioned in tab holes in mower brackets.

2. Position nose roller between brackets

and install rod and retainer spring.

Lock Hex Bolt

Nut Rod

Bracket

Nose Roller

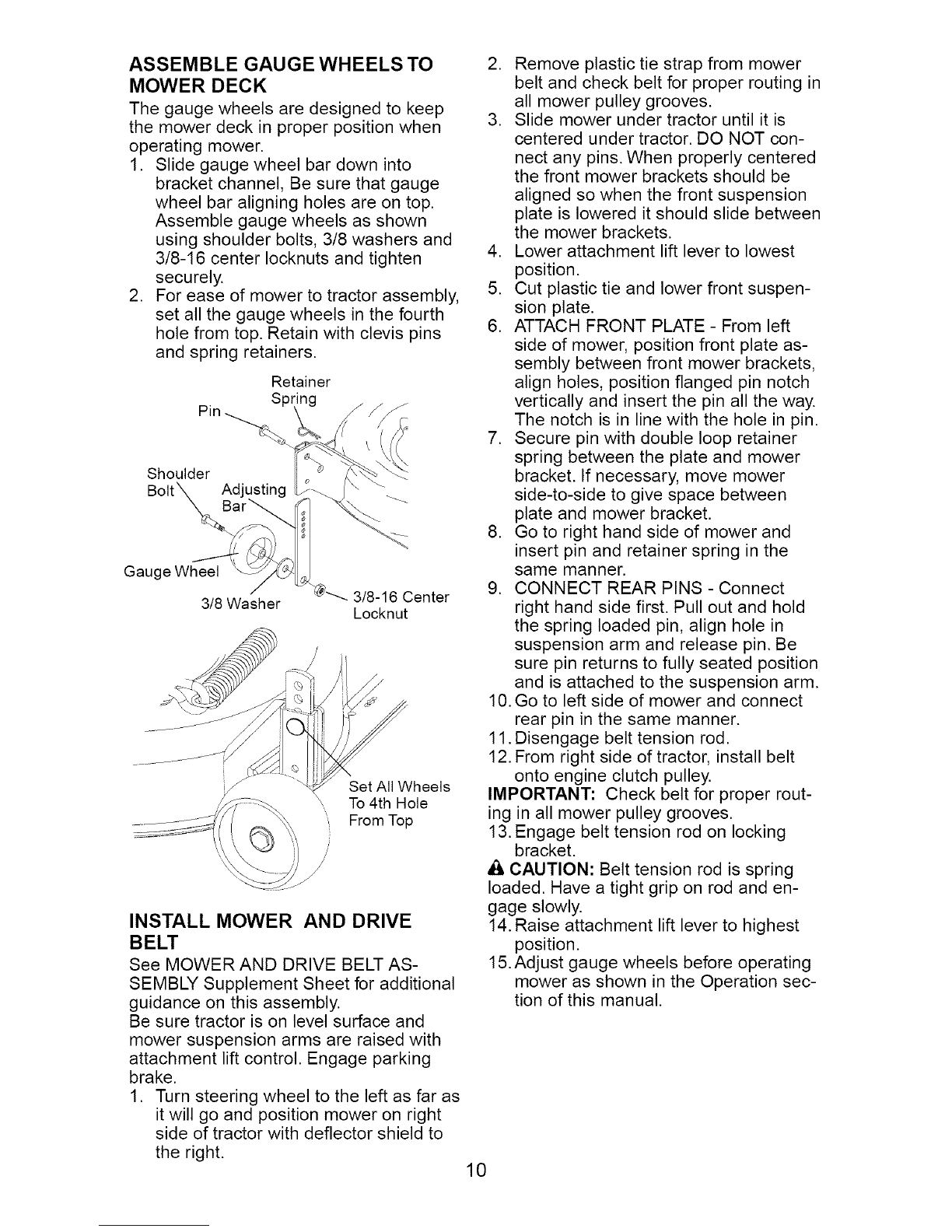

ASSEMBLE GAUGE WHEELS TO

MOWER DECK

The gauge wheels are designed to keep

the mower deck in proper )osition when

operating mower.

1. Slide gauge wheel bar down into

bracket channel, Be sure that gauge

wheel bar aligning holes are on top.

Assemble gauge wheels as shown

using shoulder bolts, 3/8 washers and

3/8-16 center Iocknuts and tighten

securely.

2. For ease of mower to tractor assembly,

set all the gauge wheels in the fourth

hole from top. Retain with clevis pins

and spring retainers.

Shoulder

Bolt_ Adjusting

Gauge Wheel

3/8 Washer _ 3/8-16 Center

Locknut

iSet All Wheels

To 4th Hole

From Top

INSTALL MOWER AND DRIVE

BELT

See MOWER AND DRIVE BELT AS-

SEMBLY Supplement Sheet for additional

guidance on this assembly.

Be sure tractor is on level surface and

mower suspension arms are raised with

attachment lift control. Engage parking

brake.

1. Turn steering wheel to the left as far as

it will go and position mower on right

side of tractor with deflector shield to

the right. 10

2. Remove plastic tie strap from mower

belt and check belt for proper routing in

all mower pulley grooves.

3. Slide mower under tractor until it is

centered under tractor. DO NOT con-

nect any pins. When properly centered

the front mower brackets should be

aligned so when the front suspension

plate is lowered it should slide between

the mower brackets.

4. Lower attachment lift lever to lowest

position.

5. Cut plastic tie and lower front suspen-

sion plate.

6. ATTACH FRONT PLATE - From left

side of mower, position front plate as-

sembly between front mower brackets,

align holes, position flanged pin notch

vertically and insert the pin all the way.

The notch is in line with the hole in pin.

7. Secure pin with double loop retainer

spring between the plate and mower

bracket. If necessary, move mower

side-to-side to give space between

plate and mower bracket.

8. Go to right hand side of mower and

insert pin and retainer spring in the

same manner.

9. CONNECT REAR PINS - Connect

right hand side first. Pull out and hold

the spring loaded pin, align hole in

suspension arm and release pin. Be

sure pin returns to fully seated position

and is attached to the suspension arm.

10. Go to left side of mower and connect

rear pin in the same manner.

11. Disengage belt tension rod.

12. From right side of tractor, install belt

onto engine clutch pulley.

IMPORTANT: Check belt for proper rout-

ing in all mower pulley grooves.

13. Engage belt tension rod on locking

bracket.

A CAUTION: Belt tension rod is spring

loaded. Have a tight grip on rod and en-

gage slowly.

14. Raise attachment lift lever to highest

position.

15. Adjust gauge wheels before operating

mower as shown in the Operation sec-

tion of this manual.

Table des matières

Autres manuels Craftsman Tondeuse à gazon

Craftsman

Craftsman 917.370941 Manuel utilisateur

Craftsman

Craftsman 917.376736 Manuel utilisateur

Craftsman

Craftsman 917.374112 Manuel utilisateur

Craftsman

Craftsman 917.250480 Manuel utilisateur

Craftsman

Craftsman Professional PYT9000 Manuel utilisateur

Craftsman

Craftsman 247.37109 Manuel utilisateur

Craftsman

Craftsman 917.28926 Manuel utilisateur

Craftsman

Craftsman 917.376521 Manuel utilisateur

Craftsman

Craftsman 247.38821 Manuel utilisateur

Craftsman

Craftsman CMXGMAM823763 Manuel utilisateur

Craftsman

Craftsman C459.60410 Manuel utilisateur

Craftsman

Craftsman 277080 Manuel utilisateur

Craftsman

Craftsman 25371 Manuel utilisateur

Craftsman

Craftsman 917.271100 Manuel utilisateur

Craftsman

Craftsman 917.370882 Manuel utilisateur

Craftsman

Craftsman 247.38903 Manuel utilisateur

Craftsman

Craftsman 917.374551 Manuel utilisateur

Craftsman

Craftsman 917.252502 Manuel utilisateur

Craftsman

Craftsman 944.364780 Manuel utilisateur

Craftsman

Craftsman EZ3 917.258990 Manuel utilisateur

Craftsman

Craftsman 917.275284 Manuel utilisateur

Craftsman

Craftsman 28908 - Lt 2000 19.5 HP/42" Lawn Tractor Manuel utilisateur

Craftsman

Craftsman 917.387561 Manuel utilisateur

Craftsman

Craftsman 944.360440 Manuel utilisateur

Manuels Tondeuse à gazon populaires d'autres marques

RHINO

RHINO 1958 Manuel utilisateur

Wolf Garten

Wolf Garten Compact plus 40 B Manuel utilisateur

Cub Cadet

Cub Cadet LTX 1045 Manuel utilisateur

GGP ITALY SPA

GGP ITALY SPA CR/CS 434 SERIES Manuel utilisateur

Challenge

Challenge CH18V2 Instructions de fonctionnement

TALEN TOOLS

TALEN TOOLS AVR HGM30 Manuel utilisateur

DEWEZE

DEWEZE ATM-725 Manuel d'utilisation

Weed Eater

Weed Eater 180083 Manuel utilisateur

Husqvarna

Husqvarna Poulan Pro PP185A42 Manuel utilisateur

Better Outdoor Products

Better Outdoor Products Quick Series Manuel utilisateur

Cub Cadet

Cub Cadet 23HP Z-Force 60 Manuel d'utilisation

MTD

MTD 795, 792, 791, 790 Manuel utilisateur

Toro

Toro Groundsmaster 3505-D Manuel utilisateur

Dennis

Dennis FT 610 Manuel utilisateur

AIRFORCE

AIRFORCE F-15 Gen 3 Manuel utilisateur

MTD

MTD 126-220-000 Manuel utilisateur

Toro

Toro 74806 Manuel utilisateur

Stihl

Stihl RMA 443 PV Manuel utilisateur
