Craftsman Professional PYT9000 Manuel utilisateur

Sears Brands Management Corp., Hoffman Estates, IL 60179 U.S.A.

Visit our website: www.craftsman.com

Operator’s Manual

LAWN TRACTOR

26 HP, 46” Tractor

PYT9000

Model No. 247.28888

IMPORTANT:

Read and follow all Safety

Rules and Instructions before

operating this equipment.

For answers to your questions about

this product, Call:

1-800-659-5917

Craftsman Tractor Help Line

5am - 5 pm, Mon - Sat

This product has a low emission engine which operates differently

from previously built engines. Before you start the engine, read and

understand this Operator’s Manual.

• Español, p. 63

Form No. 769-06504

(November 1, 2010)

PARTS LIST

13 35

1918

4612

25 31

22 23

21 37

34 33

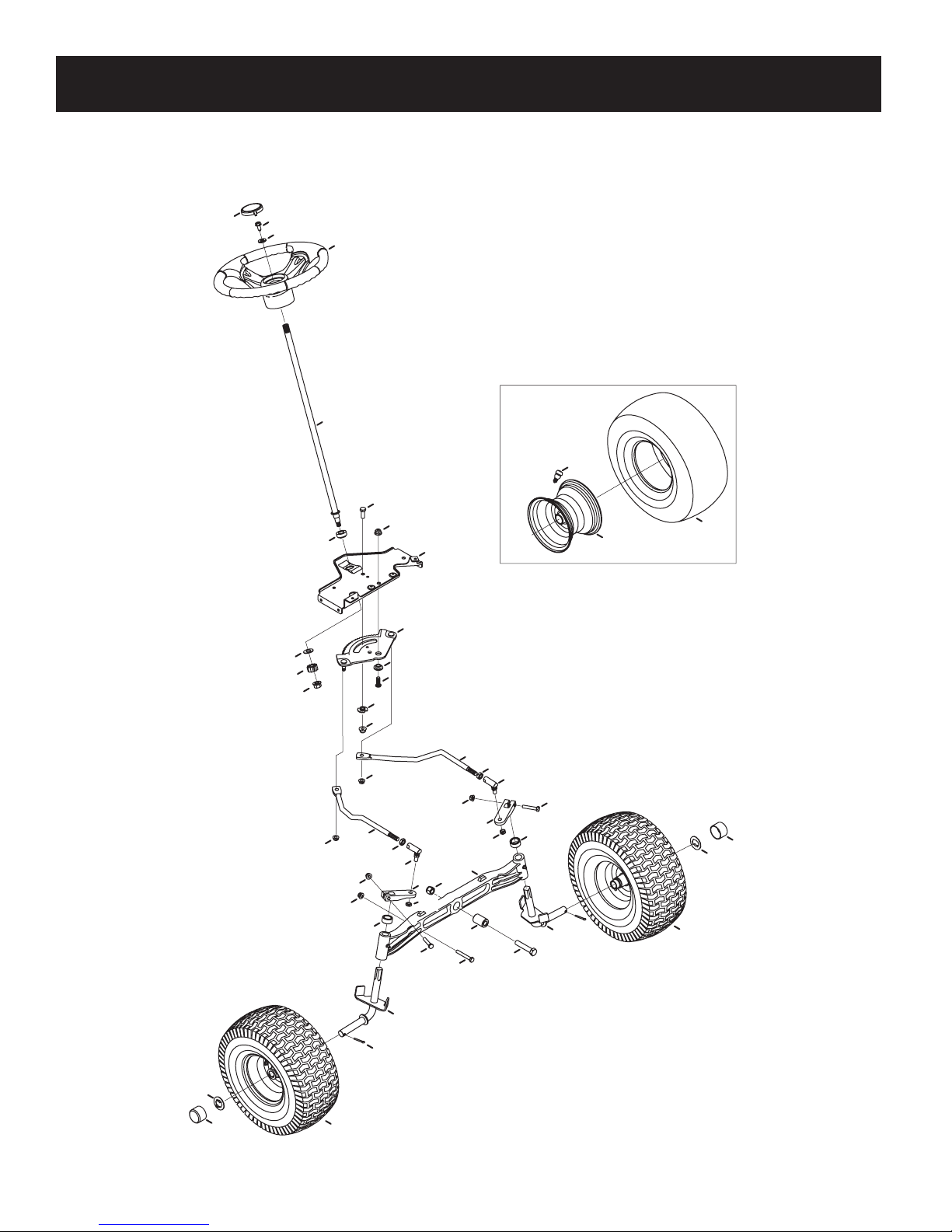

Steering and Axle — Model No. 247.28888

PARTS LIST

Ref.

No. Part No. Description

1710-04095 Hex Head Screw, 3/8-16:1.00

2710-0514 Hex Head Screw, 3/8-16:1.00

3710-0643 Hex Head Screw, 5/16-18:1.00

4711- 04998 LH Drag Link

5711-04999 RH Drag Link

6912-0240 Jam Nut, 7/16-20

7712-04065 Flangelock Nut, 3/8-16

8712-0459 Flangelock Nut, 7/16-20

9712-3004A Flangelock Nut, 5/16-18

10 717-1550F Steering Gear

11 717-1554 Steering Pinion Gear

12 923-0448A Ball Joint, 7/16-20

13 936-3004 Flat Washer, .406 X .875 X .105

14 736-3084 Flat Washer, .51 X 1.12 X .06:HT

15 634-04405-4042 Rim Assembly

16 738-04263 Steering Shaft, .625 OD X 24.25 LG

17 738-04363 Shoulder Spacer, .385X 1.25 X .3025

18 741-04237B Hex Flange Bearing 5/8 PM

19 783-06043-0637 Steering Support Bracket

Ref.

No. Part No. Description

20 638-04022-0637 RH Axle Assembly

21 638-04028-0637 LH Axle Assembly

22 710-0395 Hex Head Screw, 5/16-18:2.25

23 710-0859 Hex Head Screw, 3/8-16:2.50

24 710-3180 Hex Head Screw, 5/16-18:1.75

25 912-0214 Hexlock Nut, 3/8-24

26 712-04063 Flangelock Nut, 5/16-18

27 714-0162 Cotter Pin, 5/32:1.25

28 719-04413A Pivot Bar Axle

29 934-0255 Tubeless Air Valve

30 748-04065-0637 Steering Block

31 748-04068 Spacer, .71 ID X .125 OD X .56LG

32 750-05280 Spacer, .385 X 1.00 X 1.5075

33 731-05674 Bumper Cap

34 736-04228A Flat Washer, .781ID x 1.590OD

35 631-04415 Steering Wheel

36 731-06825 Steering Wheel Cap

37 634-04406-0961 Wheel Assembly

38 734-1731-0901 Tire

Steering and Axle — Model No. 247.28888

PARTS LIST

28 40

815

17 16

433

3533

4241

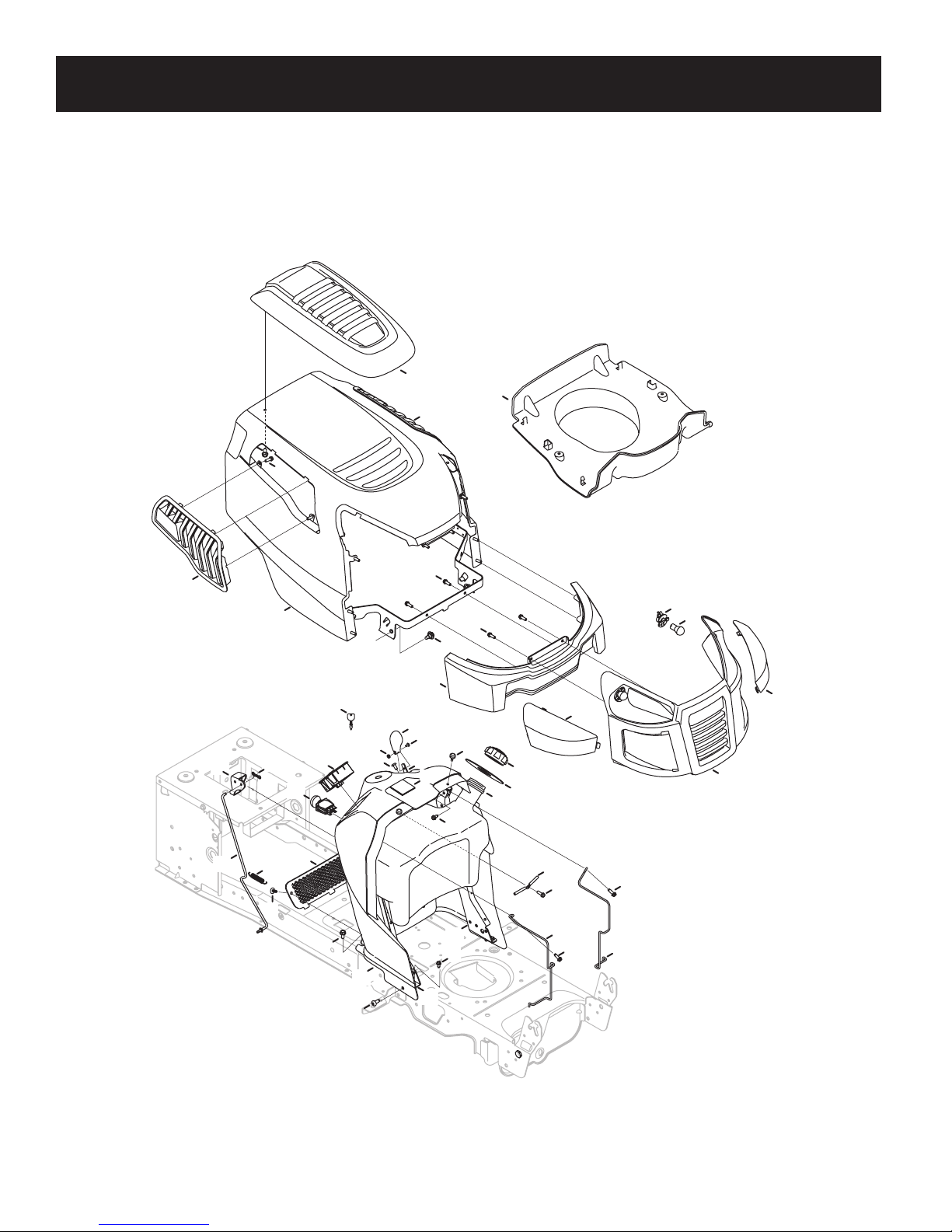

Hood and Dash — Model No. 247.28888

PARTS LIST

Ref.

No. Part No. Description

1631-04353A Dash Lever

2710-04484 Taptite Screw, Lock Washer, 5/16-18:.750

3710-0599 Taptite Screw, Lock Washer, 1/4-20:0.500

4710-0895 Hi-Lo Screw, Lock Washer, 1/4-15:0.750

5710-1652 Screw, Lock Washer, 1/4-20:0.625

6710-1017 Screw, 1/4-14:0.625

7710 -1611B Taptite Screw, 5/16-18:0.750

8710-3217 Machine Screw, #8-32:0.375

9712-0142 Hex Nut, #8-32:GRA

10 714-04040 Bow-tie Cotter Pin

11 726-3046 Ratchet Clip:.250 DIA

12 731-07456 Dash

13 731-07550 Control Knob

14 732-04580 Extension Spring, .500 DIA X 2.733 LG

15 735-0271A Bumper

16 735-04076 Accessory Net

17 747-05280 Control Rod Latch

18 747-1196 Lever Rod

19 783-04285F-0637 RH Dash Support Plate

20 783-04323F-0637 LH Dash Support Plate

21 625-04124 Keys (Set of 2)

22 683-04618-0691 Hood Assembly

23 710-04187 Hi-lo Screw, Lock Washer, 1/4-15:0.50

Ref.

No. Part No. Description

24 710-05108 Screw, Lock Washer, 1/4 DIA:.750

25 931-07457 Grill

26 731-07458 RH Lens

27 731-07459 LH Lens

28 931-07461 Hood Scoop

29 731-07467 Lower Grill

30 731-07469 LH Hood Scoop

31 731-07470 RH Hood Scoop

32 738-04091A Shoulder Screw, .43X.29:TT:5/16-18

33 710-0642 Taptite Screw, 1/4-20:0.750

34 747-05049 RH Tank Support Rod

35 747-05050 LH Tank Support Rod

36 751-0603A Fuel Cap

37 951-10573 Fuel Tank, 2.75 Gallons

38 946-04621 Throttle/Choke Control

39 735-04170 Fuel Tank Gasket

40 731-07495 P-Style Plen

41 925-0963 Miniature Lamp, 12V

42 925-1649 Lamp Socket

43 725-04992 Switch Key Module

44 925-04036C Hour Meter

45 725-04258 PTO Switch

Hood and Dash — Model No. 247.28888

PARTS LIST

615

13 8

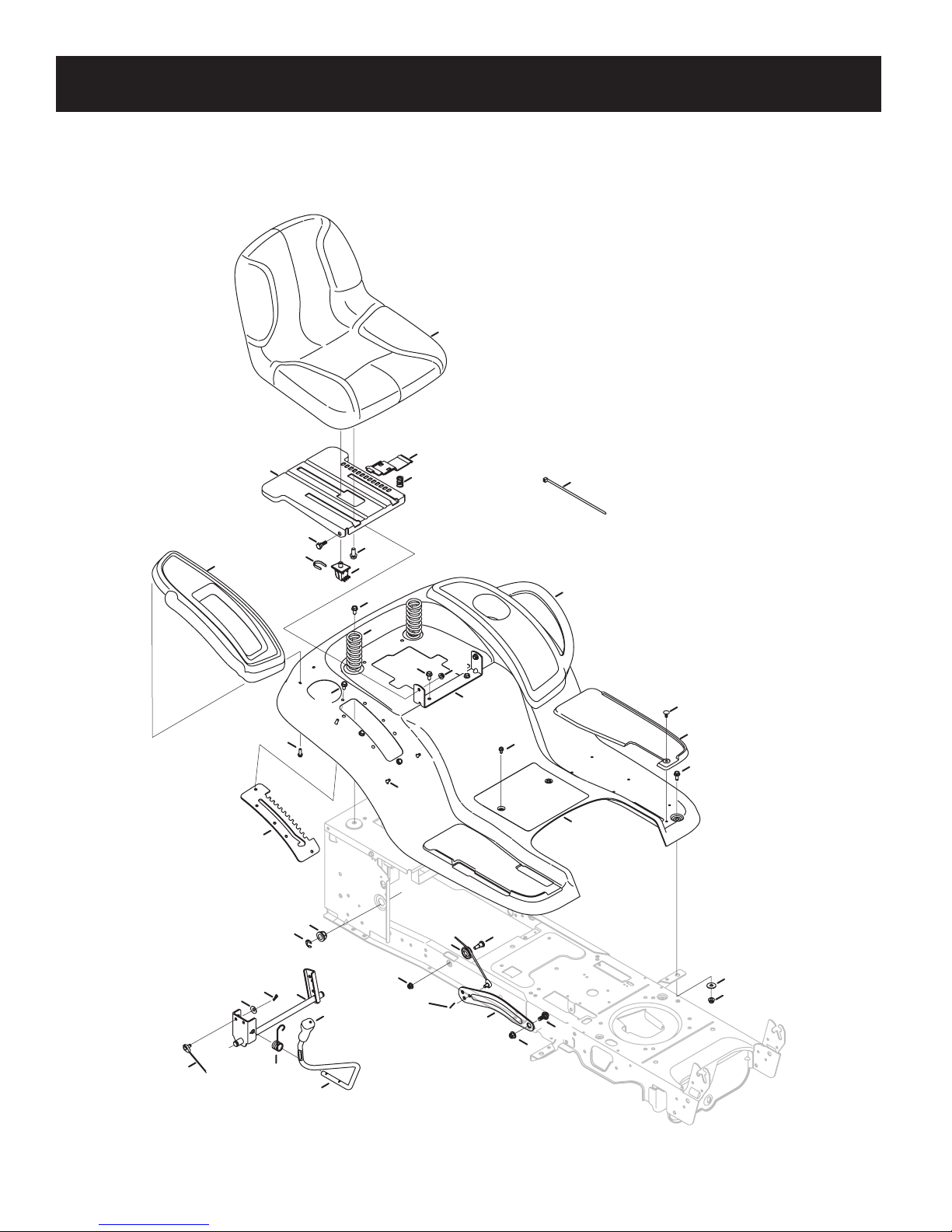

Seat and Fender — Model No. 247.28888

PARTS LIST

Ref.

No. Part No. Description

1683-04223-0637 Lift Shaft Assembly

2712-04063 Flangelock Nut, 5/16-18

3712-04065 Flangelock Nut, 3/8-16

4914-0104 Cotter Pin, .072 DIA. X 1.13 LG

5714-04040 Bow-Tie Cotter Pin

6716-0106A E-Ring, .625 DIA. SHAFT

7720-04150 Handle Grip

8732-0874 Torsion Spring

9736-0105 Spring Washer, .401 X .870 X .063

10 738-0138A Shoulder Screw, .437 X .470:5/16-18

11 938-0380 Shoulder Bolt, .500X.270:3/8-16

12 941-0225 Hex Flange Bearing

13 746-0968 Lift Cable, 16.16 LG

14 747-04962A Lift Handle

15 756-04331 Pulley Roller Cable

16 783-05546A-0637 Lift Arm

17 710-04482 Hex Head Flange, 3/8-16:.875

18 710-04484 Taptite Screw, Lock Washer, 5/16-18:.750

19 712-3004A Flangelock Nut, 5/16-18

20 725-0157 Cable Tie, 3/16 X .05 X 7.4

21 732-04561 Compression Spring, 1.71 X 3.735 X .238

Ref.

No. Part No. Description

22 732-04563 Compression Spring, .68 X 1.065 X .055

23 938-0296 Shoulder Screw, .437 X .268:5/16-18

24 783-06049-0691 Seat Mounting Bracket

25 783-06050 SeatAdjustmentLever

26 783-06088-0691 Seat Pivot Bracket

27 783-06448 Switch Retainer Clip

28 710-04187 Hi-Lo Screw, Lock Washer, 1/4-15:0.50

29 710-0451 Carriage Bolt, 5/16-18:.750

30 710-0599 Taptite Screw, Lock Washer, 1/4-20:0.500

31 710-0895 Hi-Lo Screw, Lock Washer, 1/4-15:0.750

32 731-05837 LH Fender Cover

33 731-06754 RH Fender Cover

34 736-3078 Flat Washer, .344 X 1.00 X .063 HDN

35 783-06118-0691 Fender

36 726-3046 Ratchet Clip

37 735-04137 LH Foot Pad

—735-04139 RH Foot Pad

38 757-04127 Seat

39 783-06181-0637 Lift Bracket

40 925-05013 Seat Switch

Seat and Fender — Model No. 247.28888

PARTS LIST

54 62 5

49 50

57 56 63

17 19 3147 3

74 39

34 36

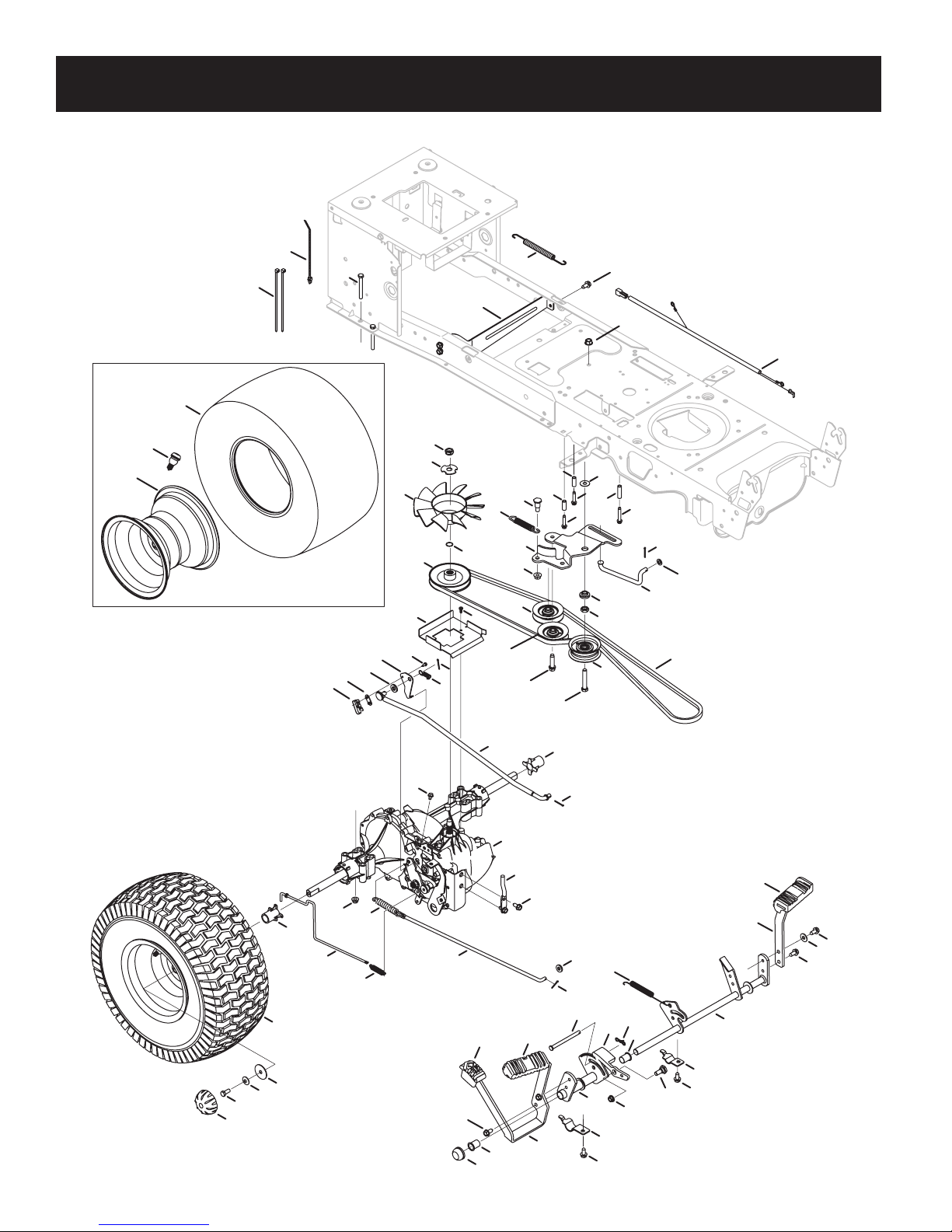

Drive and Rear Wheels — Model No. 247.28888

PARTS LIST

Ref.

No. Part No. Description

1918-0319 Hydro Transmission

2710-0176 Hex Head Screw, 5/16-18:2.75

3710-0227 Screw, Indented Washer, #8-18:0.500

4710-0351 Screw, #10-16:0.500

5710-04484 Taptite Screw, Indented Washer, 5/16-18:.750

6710-0653 Taptite Screw, Indented Washer, 1/4-20:0.375

7710-1007 Taptite Sems Screw, :3/8-16:1.500

8710-1325 Taptite Screw, Indented Washer, 1/4-20:1.625

9710 -3011 Hex Head Screw, 3/8-16:2.25

10 912-0240 Jam Nut, 7/16-20

11 912-0346 Jamlock Nut, 1/2-20

12 712-04063 Flangelock Nut, 5/16-18

13 912-0431 Flangelock Nut, 3/8-16

14 914-0111 Cotter Pin, 3/32:1.0

15 725-0157 Cable Tie. 3/16 X .05 X 7.4

16 725-04791A Jumper Harness

17 725-1644 Short Spring Switch

18 926-0154 Push Mount Cable Tie 7.5 LG

19 926-0320 Insulator Nut Plate

20 731-05299A Sleeve, .765 ID X 1.500 LG

21 731-06098 Hydro Fan

22 932-0209 Extension Spring, .48 OD X 2.03

23 732-04606 Extension Spring, .500 DIA X 12.6 LG

24 732-04792 Extension Spring, 1.00 DIA X 4.75

25 732-0716D Extension Spring, .59 OD X 4.00 LG

26 732-0729 Wire Ring

27 732-3118 Extension Spring, .375 OD X 1.44 LG

28 936-0264 Flat Washer, .330 X .630 X .0635

29 736-04263 Lock Washer

30 936-3008 Flat Washer, .344 X .750 X .120

31 736-3010 Flat Washer, .407 X .812 X .135

32 934-0255 Tubeless Air Valve

33 734-1730-0901 Tire

34 738-04420 Shoulder Spacer, 1.375 X .380 X .183

35 747-04139 Brake Rod

36 747-04957A Footpedal Bypass Transmission Rod

37 747-04979 Hydro Control Rod

38 747-04991 Hydro Bypass Rod

39 750-04456 Spacer, 260 X .372 X 1.420 LG

Ref.

No. Part No. Description

40 954-04207 V-Belt, 4L X 78.9 POLY

41 756-04224 Flat Idler Pulley, 2.75 OD

42 756-04308 Input Pulley, 4.13 DIA

43 756-04325 V Idler Pulley, X 3.06

44 783-06027A Center Idler Bracket

45 783-06133-0637 Hydro Mounting Bracket

46 783-06260-0637 Belt Disengage Support Bracket

47 783-1019B Switch Actuator Bracket

48 647-04152B Brake Control Assembly

49 683-04488 Hydro Pedal Bracket Assembly

50 710-0604A Taptite Screw, Indented Washer, 5/16-18:0.625

51 711-05068 Clevis Pin, 5/16 X 3.985

52 712-04065 Flangelock Nut, 3/8-16

53 714-04040 Bow-Tie Cotter Pin

54 726-0214 Push Cap

55 732-04587 Extension Spring, .63 DIA X 4.95 LG

56 735-04118A Forward Pedal Pad

57 735-04135 Reverse Pedal Pad

58 735-04136 Brake Pedal Pad

59 736-0242 Bell Washer, .340 X .872 X .060

60 634-04369-4042 Rim Assembly

61 938-0380 Shoulder Bolt, .500 X .270:3/8-16

62 741-0495 Flange Bearing, .630 IDX .695 OD X .60

63 748-04203 Cruise Latch

64 783-05914 Pedal Support Bracket

65 783-05940 Pedal Support Bracket, 5/8

66 783-06059-0637 Drive Pedal Bracket

67 783-06103A-0637 Brake Pedal Bracket

68 634-0104-0961 Wheel Assembly

69 710-0627 Hex Head Screw, 5/16-24:.750

70 736-0430 Flat Washer, .350 x 1.59 x .062

71 731-2290A Hub Cap

72 747-05444 Belt Keeper Rod

73 712-04065 Flangelock Nut, 3/8-16

74 738-0430 Shoulder Screw, .50 x .685:3/8-16

75 750-0566A Spacer, 260 X .375 X 1.030 LG

76 710-0809 Taptite Screw, Indented Washer, 1/4-20:0.375

77 936-0344 Flat Washer, .385 X 1.00 X .030

Drive and Rear Wheels — Model No. 247.28888

PARTS LIST

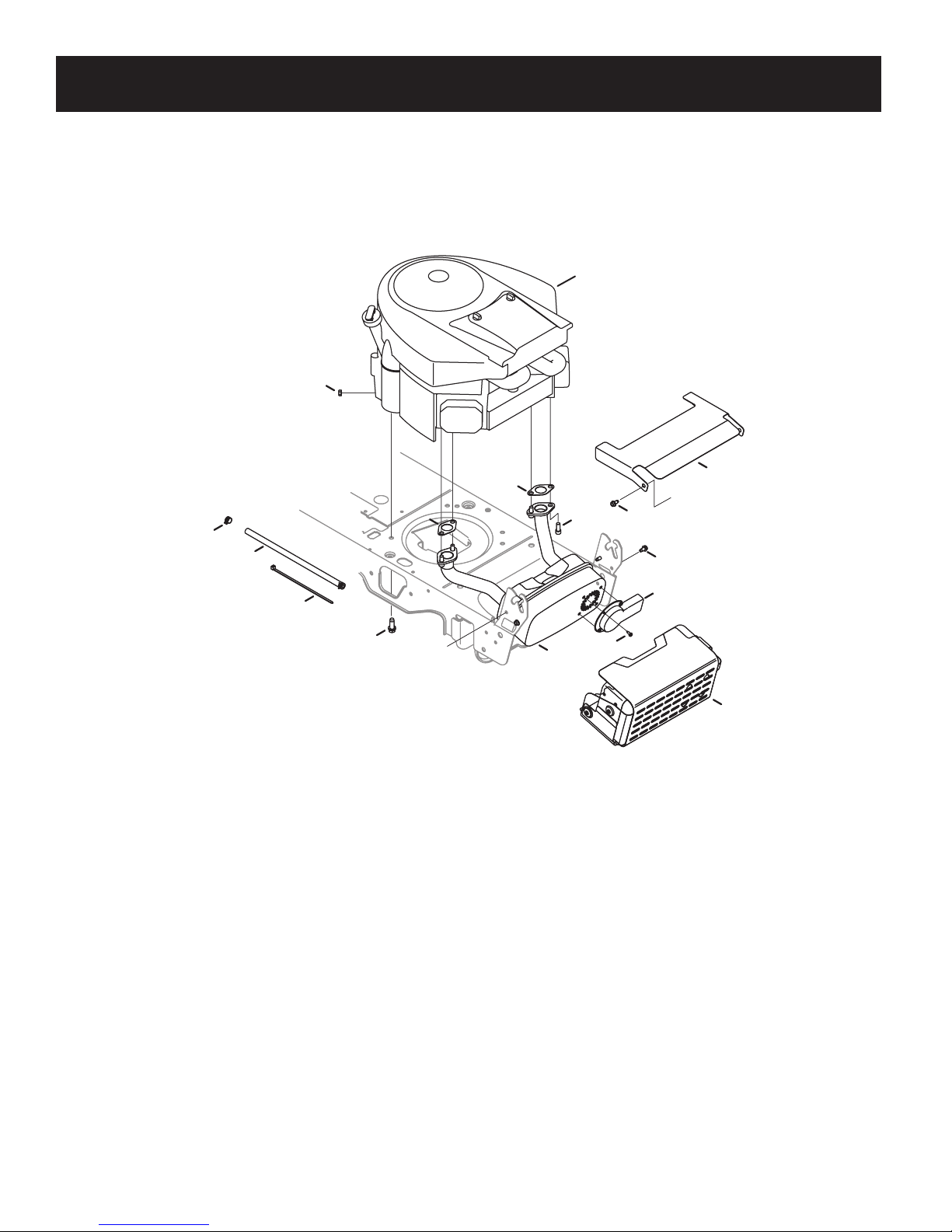

Engine Accessories — Model No. 247.28888
