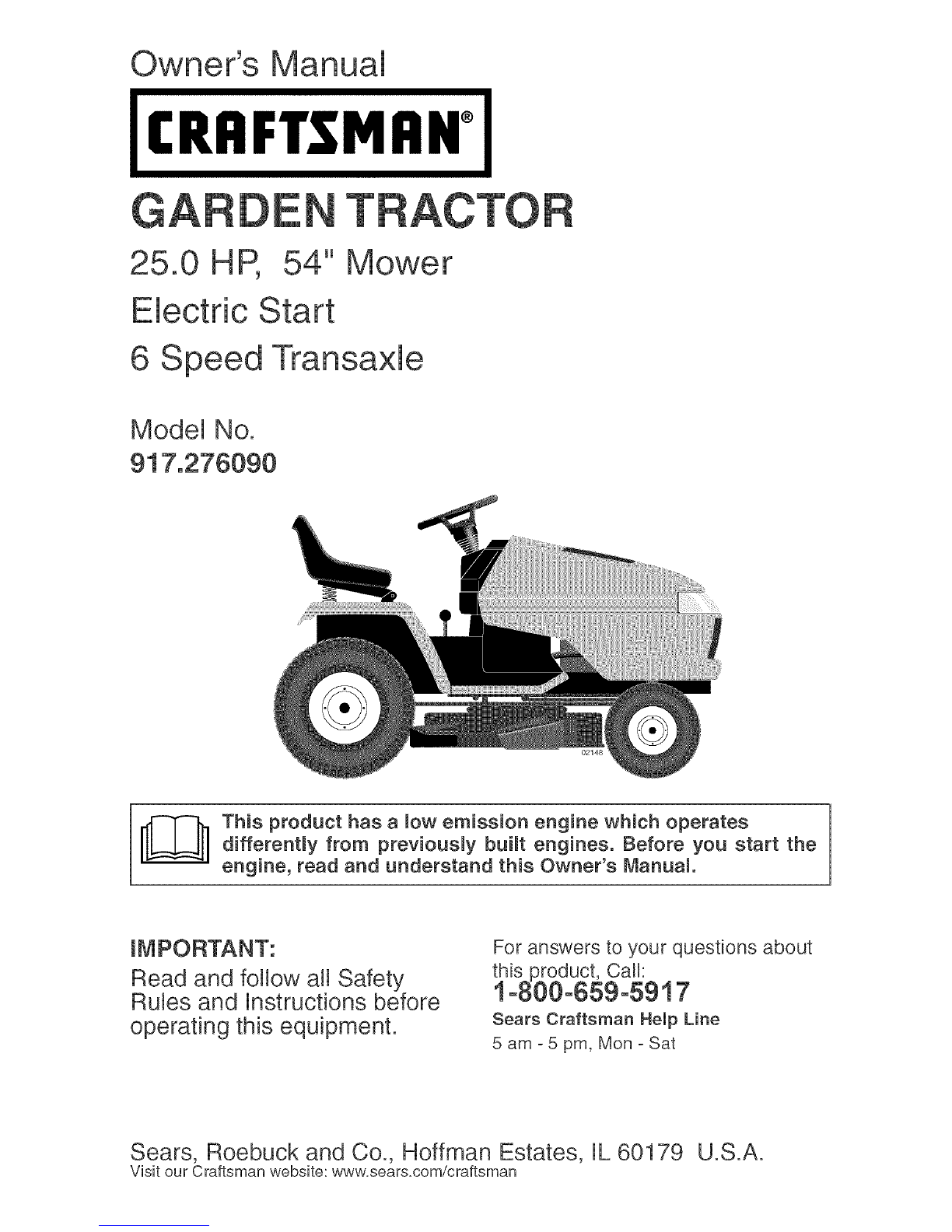

Craftsman 917.276090 Manuel utilisateur

Owner's Manual

CRRFTSMRN°

25.0 HP, 54" Mower

Electric Start

6 Speed Transaxle

Model No.

917.276090

_] his product has a mowemission engine which operates

differentmy from previousmy buimt engines. Before you start the

engine, read and understand this Owner's Manuak

Read and follow aH Safety

Rules and Instructions before

operating this equipment.

For answers to your questions about

th_ product, Ca,,:

1 800 659 8917

Sears Craftsman Help Line

5 am =5 pm, Mort =Sat

Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A.

Visit our Craftsman website: www.sears.com/craftsman

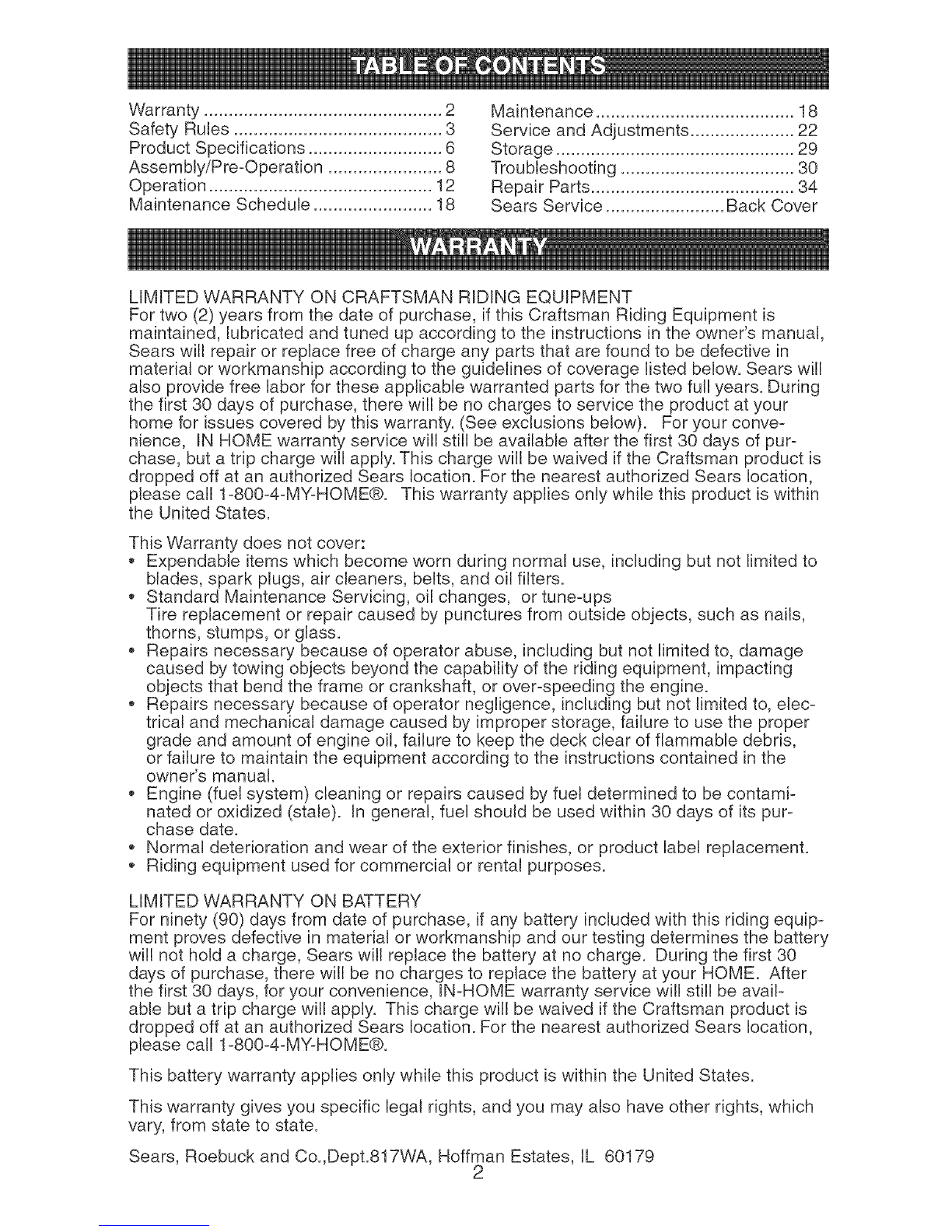

Warranty ................................................ 2

Safety Rules .......................................... 3

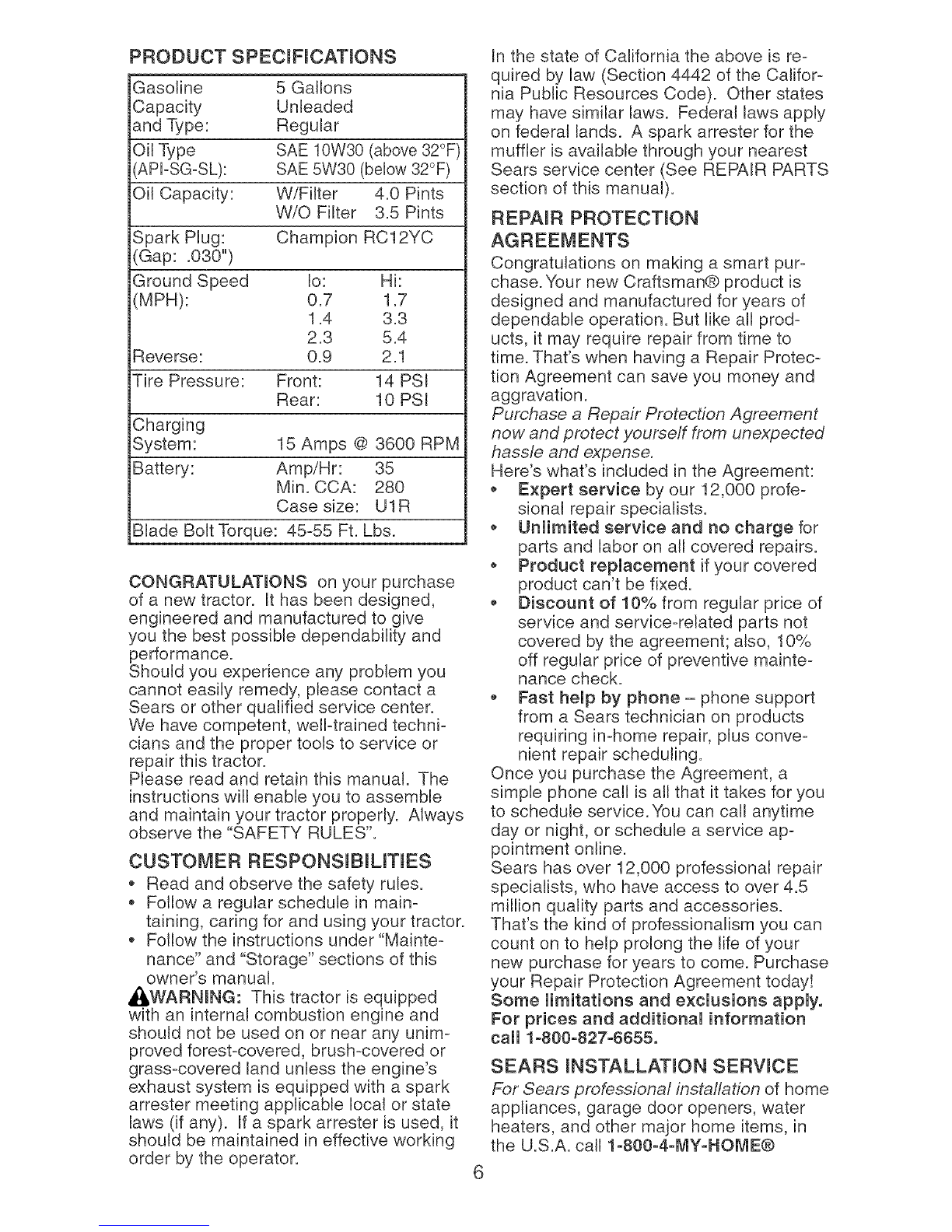

Product Specifications ........................... 6

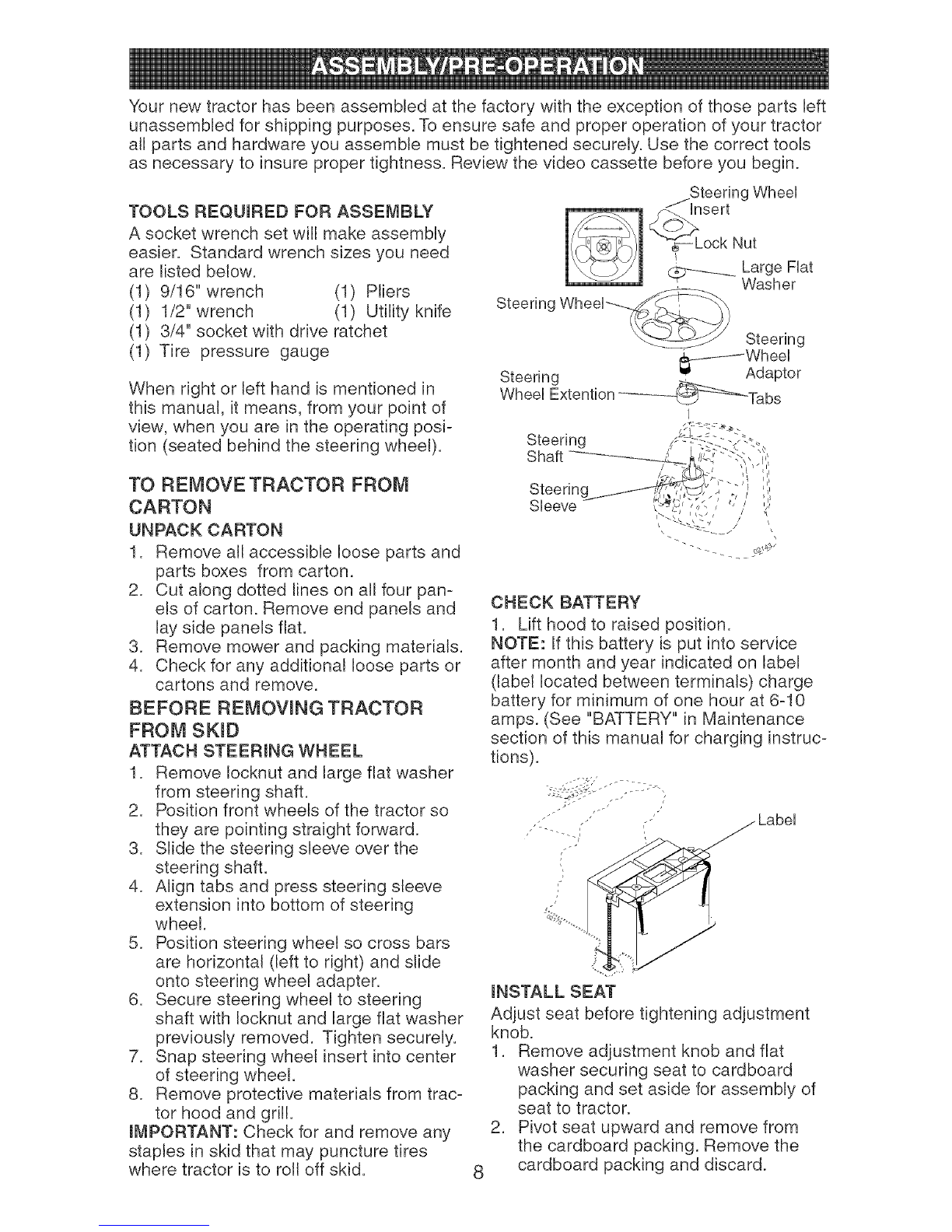

Assembly/Pre-Operation ....................... 8

Operation ............................................. 12

Maintenance Schedule ........................ 18

Maintenance ........................................ 18

Service and Adjustments ..................... 22

Storage ................................................ 29

Troubleshooting ................................... 30

Repair Parts ......................................... 34

Sears Service ........................ Back Cover

LIMITED WARRANTY ON CRAFTSMAN RIDING EQUIPMENT

For two (2) years from the date of purchase, if this Craftsman Riding Equipment is

maintained, lubricated and tuned up according to the instructions in the owner's manual,

Sears will repair or replace free of charge any parts that are found to be defective in

material or workmanship according to the guidelines of coverage listed below. Sears will

also provide free labor for these applicable warranted parts for the two full years. During

the first 30 days of purchase, there will be no charges to service the product at your

home for issues covered by this warranty. (See exclusions below). For your conve-

nience, IN HOME warranty service will still be available after the first 30 days of pur-

chase, but a trip charge will apply. This charge will be waived if the Craftsman product is

dropped off at an authorized Sears location. For the nearest authorized Sears location,

please call 1-800-4-MY-HOME@. This warranty applies only while this product is within

the United States.

This Warranty does not cover:

Expendable items which become worn during normal use, including but not limited to

blades, spark plugs, air cleaners, belts, and oil filters.

Standard Maintenance Servicing, oil changes, or tune-ups

Tire replacement or repair caused by punctures from outside objects, such as nails,

thorns, stumps, or glass.

Repairs necessary because of operator abuse, including but not limited to, damage

caused by towing objects beyond the capability of the riding equipment, impacting

objects that bend the frame or crankshaft, or over-speeding the engine.

Repairs necessary because of operator negligence, including but not limited to, elec-

trical and mechanical damage caused by improper storage, failure to use the proper

grade and amount of engine oil, failure to keep the deck clear of flammable debris,

or failure to maintain the equipment according to the instructions contained in the

owner's manual.

• Engine (fuel system) cleaning or repairs caused by fuel determined to be contami-

nated or oxidized (stale). In general, fuel should be used within 30 days of its pur-

chase date.

, Normal deterioration and wear of the exterior finishes, or product label replacement.

, Riding equipment used for commercial or rental purposes.

LIMITED WARRANTY ON BATTERY

For ninety (90) days from date of purchase, if any battery included with this riding equip-

ment proves defective in material or workmanship and our testing determines the battery

will not hold a charge, Sears will replace the battery at no charge. During the first 30

days of purchase, there will be no charges to replace the battery at your HOME. After

the first 30 days, for your convenience, IN-HOME warranty service will still be avail-

able but a trip charge will apply. This charge will be waived if the Craftsman product is

dropped off at an authorized Sears location. For the nearest authorized Sears location,

please call 1-800-4-MY-HOME@.

This battery warranty applies only while this product is within the United States.

This warranty gives you specific legal rights, and you may also have other rights, which

vary, from state to state.

Sears, Roebuck and Co.,Dept.817WA, Hoffman Estates, IL 60179

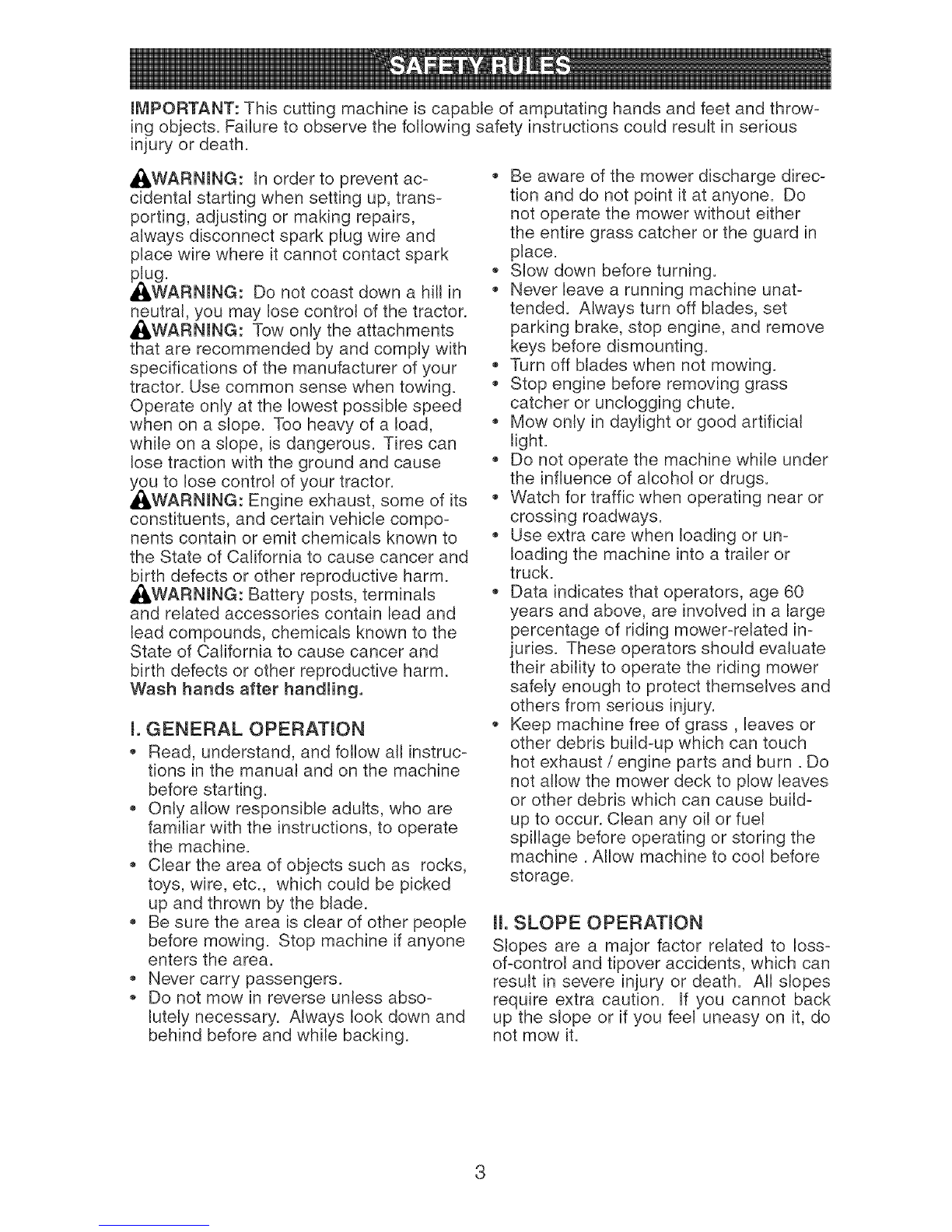

mMPORTANT: This cutting machine is capable of amputating hands and feet and throw-

ing objects. Failure to observe the following safety instructions could result in serious

injury or death.

AI_WARNING: In order to prevent ac-

cidental starting when setting up, trans-

porting, adjusting or making repairs,

always disconnect spark plug wire and

place wire where it cannot contact spark

,_i,ug"

WARNmNG: Do not coast down a hill in

neutral, you may lose control of the tractor.

AI_WARNmNG: Tow only the attachments

that are recommended by and comply with

specifications of the manufacturer of your

tractor. Use common sense when towing.

Operate only at the lowest possible speed

when on a slope. Too heavy of a load,

while on a slope, is dangerous. Tires can

lose traction with the ground and cause

u to lose control of your tractor.

WARNmNG: Engine exhaust, some of its

constituents, and certain vehicle compo-

nents contain or emit chemicals known to

the State of California to cause cancer and

birth defects or other reproductive harm.

_WARNmNG: Battery posts, terminals

and related accessories contain lead and

lead compounds, chemicals known to the

State of California to cause cancer and

birth defects or other reproductive harm.

Wash hands after handling,

L GENERAL OPERATmON

*Read, understand, and follow all instruc-

tions in the manual and on the machine

before starting.

Only allow responsible adults, who are

familiar with the instructions, to operate

the machine.

* Clear the area of objects such as rocks,

toys, wire, etc., which could be picked

up and thrown by the blade.

Be sure the area is clear of other people

before mowing. Stop machine if anyone

enters the area.

* Never carry passengers.

*Do not mow in reverse unless abso-

lutely necessary. Always look down and

behind before and while backing.

Be aware of the mower discharge direc-

tion and do not point it at anyone. Do

not operate the mower without either

the entire grass catcher or the guard in

place.

*Slow down before turning.

Never leave a running machine unat-

tended. Always turn off blades, set

parking brake, stop engine, and remove

keys before dismounting.

Turn off blades when not mowing.

Stop engine before removing grass

catcher or unclogging chute.

Mow only in daylight or good artificial

light.

Do not operate the machine while under

the influence of alcohol or drugs.

Watch for traffic when operating near or

crossing roadways.

Use extra care when loading or un-

loading the machine into a trailer or

truck.

Data indicates that operators, age 60

years and above, are involved in a large

percentage of riding mower-related in-

juries. These operators should evaluate

their ability to operate the riding mower

safely enough to protect themselves and

others from serious injury.

*Keep machine free of grass, leaves or

other debris build-up which can touch

hot exhaust /engine parts and burn. Do

not allow the mower deck to plow leaves

or other debris which can cause build-

up to occur. Clean any oil or fuel

spillage before operating or storing the

machine. Allow machine to cool before

storage.

H. SLOPE OPERATION

Slopes are a major factor related to loss-

of-control and tipover accidents, which can

result in severe injury or death. All slopes

require extra caution. If you cannot back

up the slope or if you feel uneasy on it, do

not mow it.

DO:

, Mow up and down slopes, not across.

Remove obstacles such as rocks, tree

limbs, etc.

Watch for holes, ruts, or bumps. Un-

even terrain could overturn the machine.

Taft grass can hide obstacles.

Use slow speed. Choose a low gear

so that you will not have to stop or shift

while on the slope.

Follow the manufacturer's recommend-

ations for wheel weights or counter-

weights to improve stability.

Use extra care with grass catchers or

other attachments. These can change

the stability of the machine.

Keep all movement on the slopes slow

and gradual Do not make sudden

changes in speed or direction.

Avoid starting or stopping on a slope. If

tires lose traction, disengage the blades

and proceed slowly straight down the

slope.

DO NOT:

Do not turn on slopes unless neces-

sary, and then, turn slowly and gradually

downhill, if possible.

Do not mow near drop-offs, ditches,

or embankments. The mower could

suddenly turn over if a wheel is over

the edge of a cliff or ditch, or if an edge

caves in.

Do not mow on wet grass. Reduced

traction could cause sliding.

Do not try to stabilize the machine by

putting your foot on the ground.

Do not use grass catcher on steep

slopes.

ill. CHILDREN

Tragic accidents can occur if the operator

is not alert to the presence of children.

Children are often attracted to the ma-

chine and the mowing activity. Never as-

sume that children wi[[ remain where you

last saw them.

Keep children out of the mowing area

and under the watchful care of another

responsible adult.

Be alert and turn machine off if children

enter the area.

Before and when backing, look behind

and down for small children.

Never carry children. They may fall off

and be seriously injured or interfere with

safe machine operation.

Never allow children to operate the

machine.

Use extra care when approaching blind

corners, shrubs, trees, or other objects

that may obscure vision.

iV. SERVICE

Use extra care in handling gasoline and

other fuels. They are flammable and

vapors are explosive.

-Use only an approved container.

- Never remove gas cap or add fuel

with the engine running. Allow

engine to cool before refueling. Do

not smoke.

-Never refuel the machine indoors.

- Never store the machine or fuel

container inside where there is an

open flame, such as a water heater.

Never run a machine inside a closed

area.

Keep nuts and bolts, especially blade

attachment bolts, tight and keep equip-

ment in good condition.

Never tamper with safety devices.

Check their proper operation regularly.

Keep machine free of grass, leaves, or

other debris build-up. Clean oil or fuel

spillage. Allow machine to cool before

storing.

Stop and inspect the equipment if you

strike an object. Repair, if necessary,

before restarting.

Never make adjustments or repairs with

the engine running.

Grass catcher components are subject

to wear, damage, and deterioration,

which could expose moving parts or

allow objects to be thrown. Frequently

check components and replace with

manufacturer's recommended parts,

when necessary.

Mower blades are sharp and can cut.

Wrap the blade(s) or wear gloves, and

use extra caution when servicing them.

Check brake operation frequently. Ad-

just and service as required.

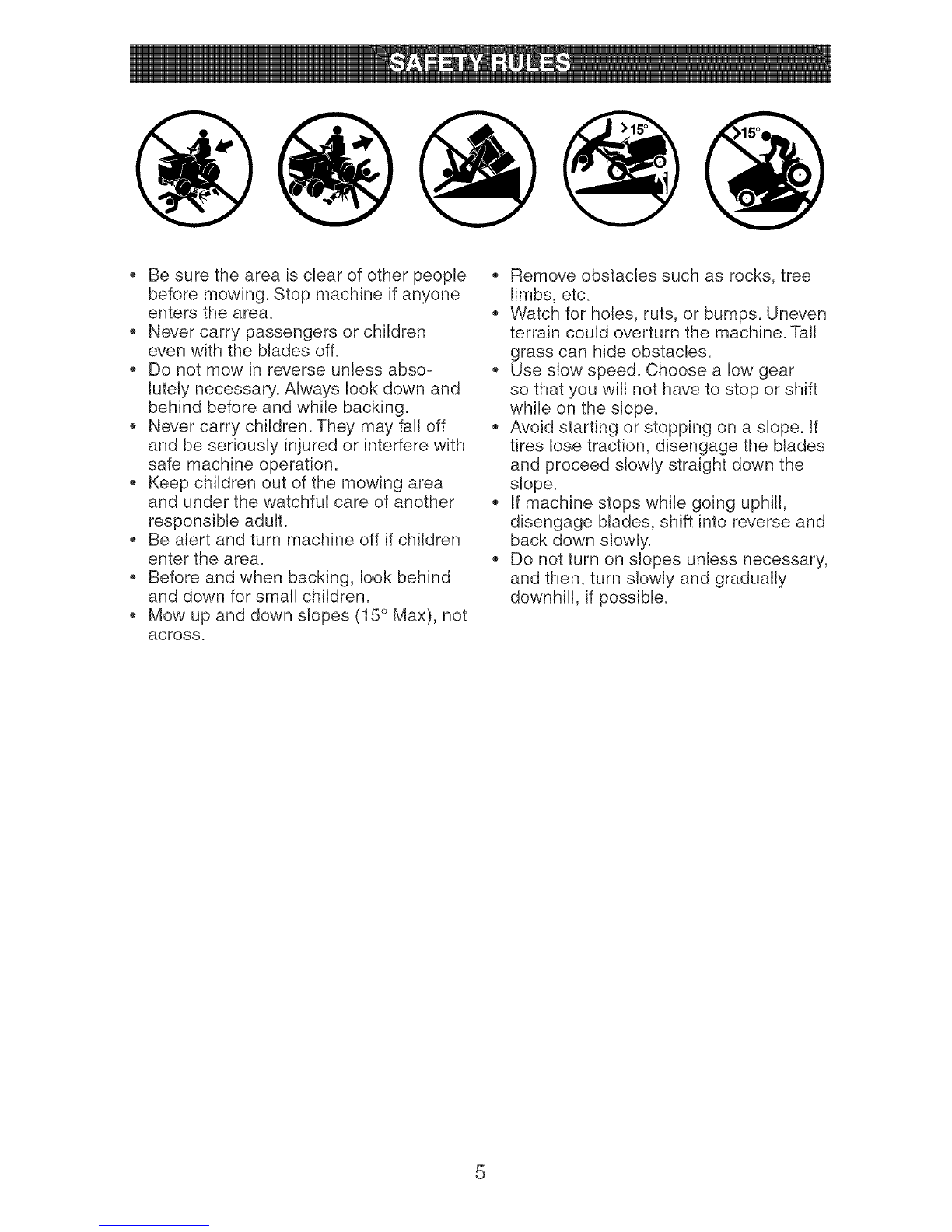

Besurethearea isclearofother people

beforemowing.Stopmachineif anyone

entersthearea.

Nevercarry passengersorchildren

evenwith the bladesoff.

Do notmowin reverseunlessabso-

lutelynecessary.Alwayslookdownand

behindbeforeandwhilebacking.

Nevercarry children.Theymayfall off

and beseriouslyinjuredorinterferewith

safemachineoperation.

Keepchildrenoutof themowingarea

and underthewatchfulcare ofanother

responsibleadult.

Bealert andturn machineoff ifchildren

enterthearea.

Beforeandwhenbacking,lookbehind

anddownforsmallchildren.

Mowup anddownslopes(15° Max),not

across.

Remove obstacles such as rocks, tree

limbs, etc.

Watch for holes, ruts, or bumps. Uneven

terrain could overturn the machine. Tall

grass can hide obstacles.

Use slow speed. Choose a low gear

so that you will not have to stop or shift

while on the slope.

Avoid starting or stopping on a slope. If

tires lose traction, disengage the blades

and proceed slowly straight down the

slope.

If machine stops while going uphill,

disengage blades, shift into reverse and

back down slowly.

Do not turn on slopes unless necessary,

and then, turn slowly and gradually

downhill, if possible.

PRODUCT SPECIFICATmONS

Gasoline 5 Gallons

Capacity Unleaded

and Type: Regular

Oil Type SAE 10W30 (above 32°F '

'APFSG=SL): SAE 5W30 (below 32°F)

Oil Capacity: W/Filter 4.0 Pints

VV/O Filter 3.5 Pints

Spark Plug: Champion RC12YC

(Gap: .030")

Ground Speed Io: Hi:

(MPH): 0.7 1.7

1.4 3.3

2.3 5.4

Reverse: 0.9 2.1

Tire Pressure: Front: 14 PSI

Rear: 10 PSI

Charging

System: 15 Amps @ 3600 RPM

Battery: Amp/Hr: 35

Min. CCA: 280

Case size: U1R

Blade Bolt Torque: 45=55 Ft. Lbs.

CONGRATULATmONS on your purchase

of a new tractor. It has been designed,

engineered and manufactured to give

you the best possible dependability and

performance.

Should you experience any problem you

cannot easily remedy, please contact a

Sears or other qualified service center.

We have competent, well-trained techni-

cians and the proper tools to service or

repair this tractor.

Please read and retain this manual. The

instructions will enable you to assemble

and maintain your tractor properly. Always

observe the "SAFETY RULES".

CUSTOMER RESPONSIBILITIES

*Read and observe the safety rules.

Follow a regular schedule in main=

taining, caring for and using your tractor.

Follow the instructions under "Mainte-

nance" and "Storage" sections of this

owner's manual.

_WARNmNG: This tractor is equipped

with an internal combustion engine and

should not be used on or near any unim-

proved forest-covered, brush-covered or

grass-covered land unless the engine's

exhaust system is equipped with a spark

arrester meeting applicable Iocat or state

laws (if any). If a spark arrester is used, it

should be maintained in effective working

order by the operator.

In the state of California the above is re-

quired by law (Section 4442 of the Califor-

nia Public Resources Code). Other states

may have similar laws. Federal laws apply

on federal lands. A spark arrester for the

muffler is available through your nearest

Sears service center (See REPAIR PARTS

section of this manual).

REPAIR PROTECTmON

Congratulations on making a smart pur-

chase. Your new Craftsman® product is

designed and manufactured for years of

dependable operation. But like all prod-

ucts, it may require repair from time to

time. That's when having a Repair Protec-

tion Agreement can save you money and

aggravation.

Purchase a Repair Protection Agreement

now and protect yourseff from unexpected

hassle and expense.

Here's what's included in the Agreement:

*Expert service by our 12,000 profe-

sionat repair specialists.

*Unlimited service and no charge for

parts and labor on all covered repairs.

*Product replacement if your covered

product can't be fixed.

Discount of 10% from regular price of

service and service=related parts not

covered by the agreement; also, 10%

off regular price of preventive mainte=

nance check.

Fast hemp by phone = phone support

from a Sears technician on products

requiring in=home repair, plus conve=

nient repair scheduling.

Once you purchase the Agreement, a

simple phone call is all that it takes for you

to schedule service. You can call anytime

day or night, or schedule a service ap=

pointment online.

Sears has over 12,000 professional repair

specialists, who have access to over 4.5

million quality parts and accessories.

That's the kind of professionalism you can

count on to help prolong the life of your

new purchase for years to come. Purchase

your Repair Protection Agreement today!

Some limitations and exclusions apply.

For prices and additional information

call 1o800o827o6655.

SEARS mNSTALLATmON SERWCE

For Sears professional installation of home

appliances, garage door openers, water

heaters, and other major home items, in

the U.S.A. call l oS00o4oMYoNOME®

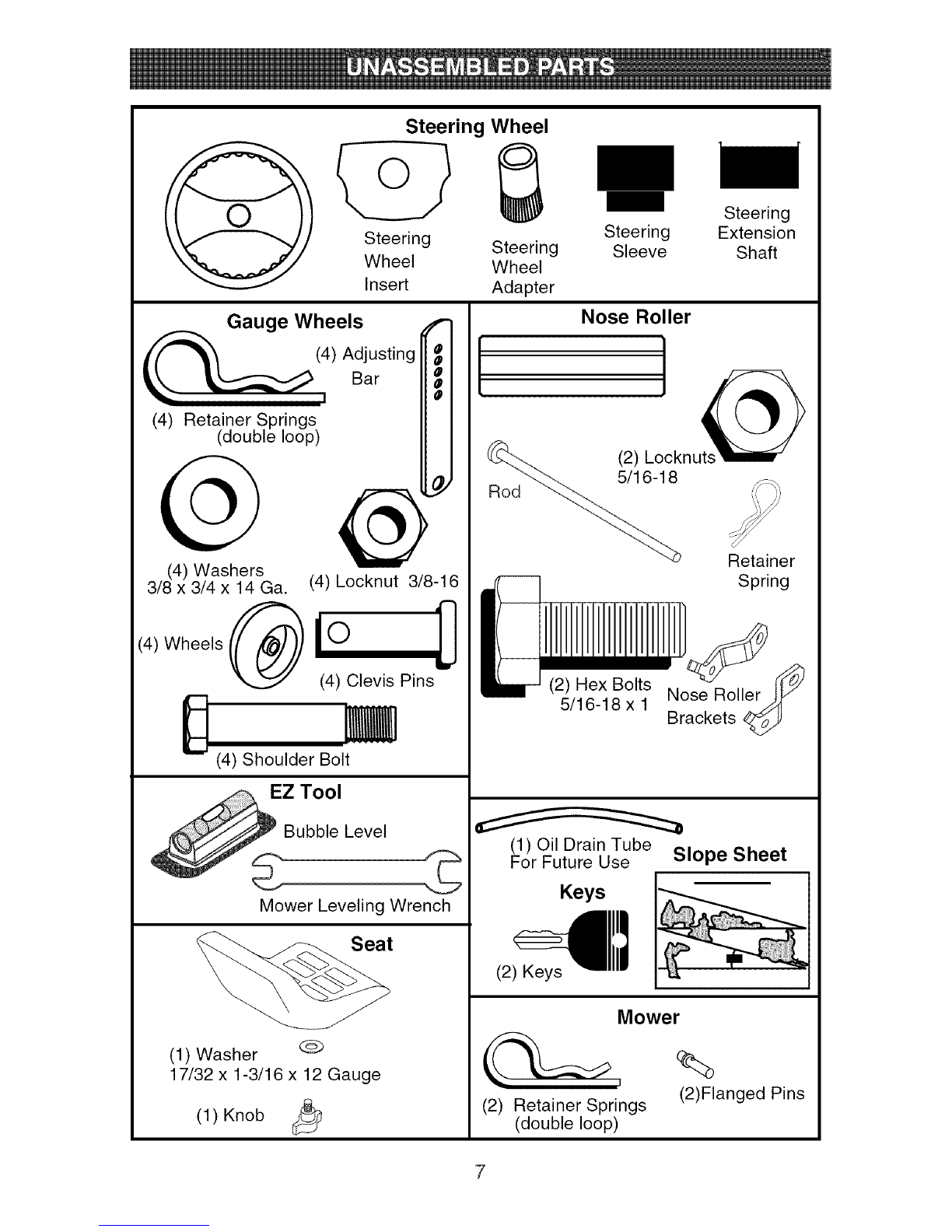

Steering Wheel

Steering Steering

Wheel Wheel

Insert Adapter

Gauge Wheels

(i) Adjusting

Bar

(4) Retainer Springs

(double loop)

Steering

Steering Extension

(4) Washers

Rod

Sleeve Shaft

Nose Roller

(2) Lolcknuts_

5/16-18

Retainer

3/8 x 3/4 x 14 Ga. (4) Locknut 3/8-16

(4) Wheels@ IO ]_]

(4) Clevis Pins

(4) Shoulder Bolt

EZ Tool

Bubble Level

Mower Leveling Wrench

Seat

(1) Washer @

17/32 x 1-3/16 x 12 Gauge

(1) Knob

Spring

(2) Hex Bolts

5/16-18 x 1 Nose Roller

Brackets

(1) Oil Drain Tube

For Future Use Slope Sheet

Keys

(2) Keys

Mower

(2) Retainer Springs

(double loop)

(2)Flanged Pins

Yournewtractorhasbeenassembledatthe factorywiththe exceptionofthose partsleft

unassembledforshippingpurposes.Toensuresafeandproperoperationofyourtractor

allpartsand hardwareyou assemblemustbetightenedsecurely.Usethe correcttools

asnecessaryto insure propertightness.Reviewthe videocassettebeforeyou begin.

TOOLSREQUIREDFORASSEMBLY

A socketwrenchsetwill makeassembly

easier. Standardwrenchsizesyou need

are listedbelow.

(1) 9/16"wrench (1) Pliers

(1) 1/2"wrench (1) Utilityknife

(1) 3/4"socketwith driveratchet

(1) Tire pressure gauge

When rightor lefthandismentionedin

this manual,itmeans,fromyour pointof

view,whenyouare intheoperatingposi-

tion (seatedbehindthe steeringwheel).

TO REMOVE TRACTOR FROM

CARTON

UNPACK CARTON

1. Remove atl accessible loose parts and

parts boxes from carton.

2. Cut along dotted lines on all four pan-

els of carton. Remove end panels and

lay side panels flat.

3. Remove mower and packing materials.

4. Check for any additional loose parts or

cartons and remove.

BEFORE REMOVING TRACTOR

FROM SKmD

ATTACH STEERmNG WHEEL

1. Remove Iocknut and large flat washer

from steering shaft.

2. Position front wheels of the tractor so

they are pointing straight forward.

3. Slide the steering sleeve over the

steering shaft.

4. Align tabs and press steering sleeve

extension into bottom of steering

wheel.

5. Position steering wheel so cross bars

are horizontal (left to right) and slide

onto steering wheel adapter.

6. Secure steering wheel to steering

shaft with Iocknut and large flat washer

previously removed. Tighten securely.

7. Snap steering wheel insert into center

of steering wheel.

8. Remove protective materials from trac-

tor hood and grill.

IMPORTANT: Check for and remove any

staples in skid that may puncture tires

where tractor is to roll off skid.

Steering WheeU....

Steering WheeU

nsert

"_-- Lock Nut

Large Fiat

Washer

Steering

Sleeve

CHECK BATTERY

1. Lift hood to raised position.

NOTE: If this battery is put into service

after month and year indicated on label

(label located between terminals) charge

battery for minimum of one hour at 6-10

amps. (See "BATTERY" in Maintenance

section of this manual for charging instruc-

tions).

/_..... ./Label

INSTALL SEAT

Adjust seat before tightening adjustment

knob.

1. Remove adjustment knob and flat

washer securing seat to cardboard

packing and set aside for assembly of

seat to tractor.

2. Pivot seat upward and remove from

the cardboard packing. Remove the

cardboard packing and discard.

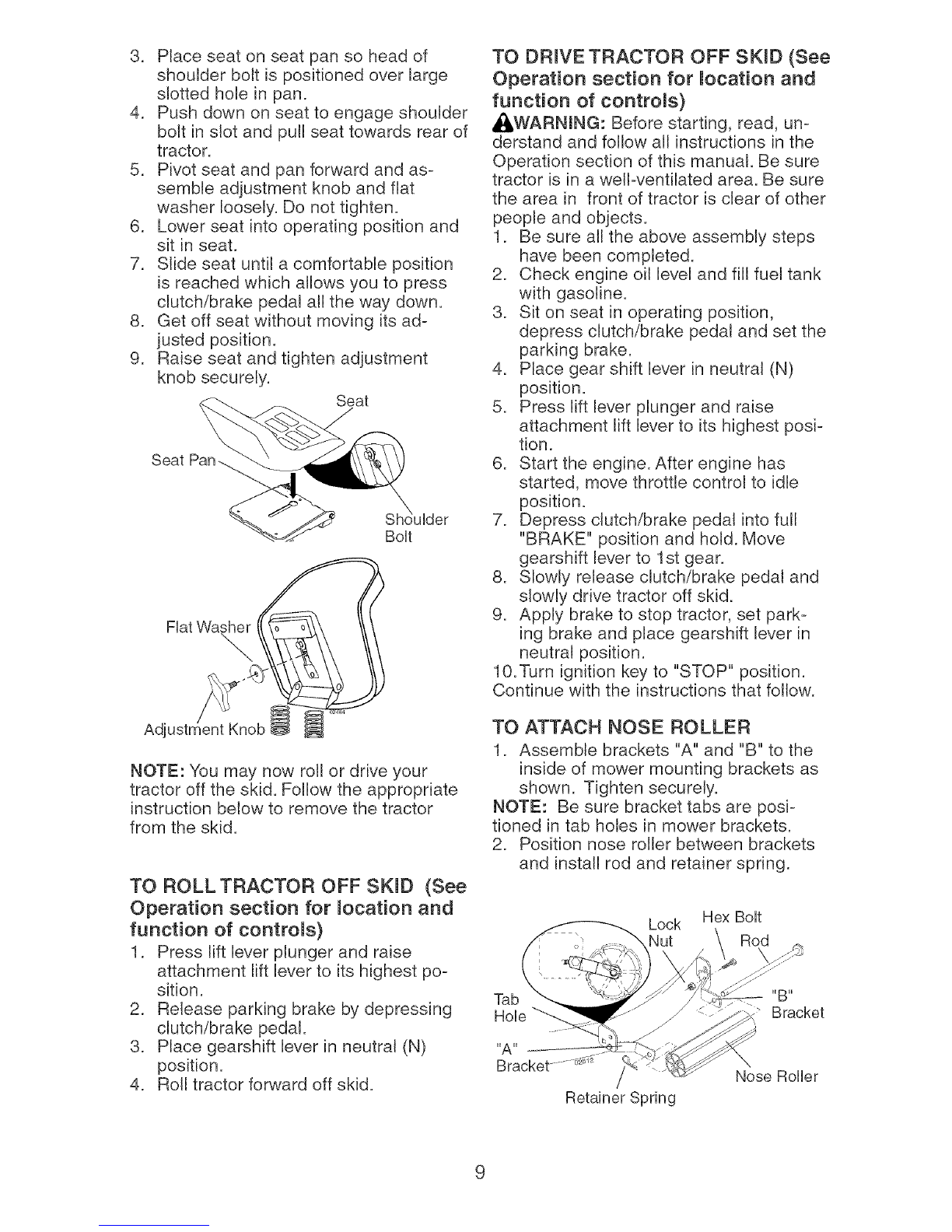

3. Placeseat on seatpanso headof

shoulderboltis positionedoverlarge

slottedholein pan.

4. Pushdownon seat toengageshoulder

bolt inslot and pullseattowardsrearof

tractor.

5. Pivotseatandpanforwardandas-

sembleadjustmentknobandflat

washerloosely.Donottighten.

6. Lowerseatintooperatingpositionand

sit inseat.

7. Slideseatuntilacomfortableposition

isreachedwhich allowsyou to press

clutch/brakepedalallthe way down.

8. Getoff seatwithout movingitsad-

justed position.

9. Raiseseatandtightenadjustment

knobsecurely. Seat

Seat

Bolt

FUatWasher

Adj_

NOTE: You may now roll or drive your

tractor off the skid. Follow the appropriate

instruction below to remove the tractor

from the skid.

TO ROLL TRACTOR OFF SKmD (See

Operation section for mocation and

function of controms)

1. Press lift lever plunger and raise

attachment lift lever to its highest po-

sition.

2. Release parking brake by depressing

clutch/brake pedal.

3. Place gearshift lever in neutral (N)

position.

4. Roll tractor forward off skid.

TO DRIVE TRACTOR OFF SKID (See

Operation section for mocation and

function of controms)

_WARNmNG: Before starting, read, un-

derstand and follow all instructions in the

Operation section of this manual. Be sure

tractor is in a well-ventilated area. Be sure

the area in front of tractor is clear of other

people and objects.

1. Be sure all the above assembly steps

have been completed.

2. Check engine oil level and fill fuel tank

with gasoline.

3. Sit on seat in operating position,

depress clutch/brake pedat and set the

parking brake.

4. Place gear shift lever in neutral (N)

position.

5. Press lift lever plunger and raise

attachment lift lever to its highest posi-

tion.

6. Start the engine. After engine has

started, move throttle control to idle

position.

7. Depress clutch/brake pedal into full

"BRAKE" position and hold. Move

gearshift lever to 1st gear.

8. Slowly release clutch/brake pedal and

slowly drive tractor off skid.

9. Apply brake to stop tractor, set park-

ing brake and place gearshift lever in

neutral position.

10.Turn ignition key to "STOP" position.

Continue with the instructions that follow.

TO ATTACH NOSE ROLLER

1. Assemble brackets "A" and "B" to the

inside of mower mounting brackets as

shown. Tighten securely.

NOTE: Be sure bracket tabs are posi-

tioned in tab holes in mower brackets.

2. Position nose roller between brackets

and install rod and retainer spring.

Lock Hex Bolt

Nut Rod

Tab "B"

Hole Bracket

UAU

Bracket ........._'_'_ /

Retainer Spring Nose Roller

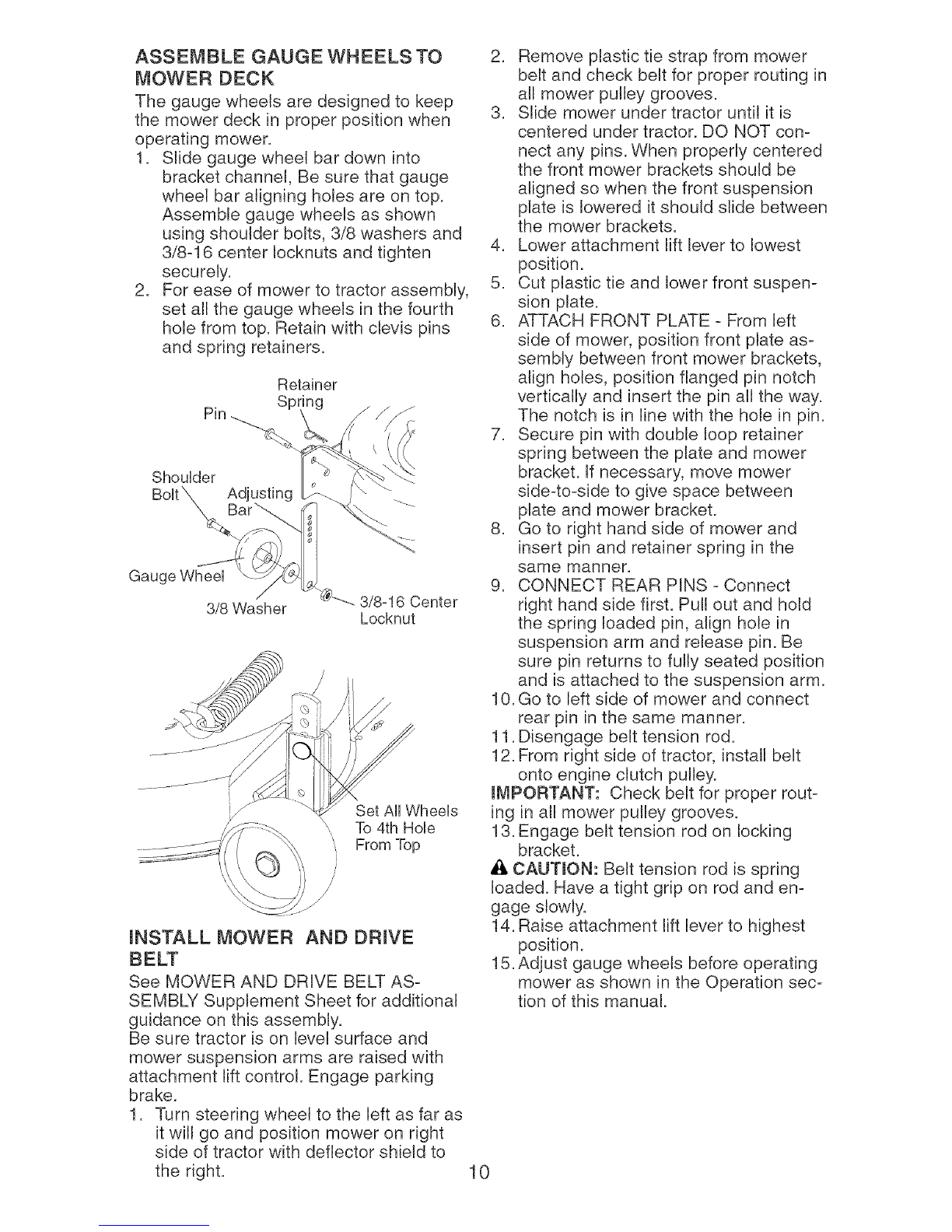

ASSEMBLE GAUGE WHEELS TO

MOWER DECK

The gauge wheels are designed to keep

the mower deck in proper position when

operating mower.

1. Slide gauge wheel bar down into

bracket channel, Be sure that gauge

wheel bar aligning holes are on top.

Assemble gauge wheels as shown

using shoulder bolts, 3/8 washers and

3/8-16 center Iocknuts and tighten

securely.

2. For ease of mower to tractor assembly,

set all the gauge wheels in the fourth

hole from top. Retain with clevis pins

and spring retainers.

Retainer

Spling

Pin J

Shoulder

Bolt_ Adjusting

\ Bar"-......

Gauge Wheel

3/8 Washer 2--... 3/8-16 Center

Locknut

Set All Wheels

To 4th Hole

mNSTALL MOWER AND DRmVE

BELT

See MOWER AND DRIVE BELT AS-

SEMBLY Supplement Sheet for additional

guidance on this assembly.

Be sure tractor is on level surface and

mower suspension arms are raised with

attachment lift control. Engage parking

brake.

1. Turn steering wheel to the left as far as

it will go and position mower on right

side of tractor with deflector shield to

the right.

2. Remove plastic tie strap from mower

belt and check belt for proper routing in

all mower pulley grooves.

3. Slide mower under tractor until it is

centered under tractor. DO NOT con-

nect any pins. When properly centered

the front mower brackets should be

aligned so when the front suspension

plate is lowered it should slide between

the mower brackets.

4. Lower attachment lift lever to lowest

position.

5. Cut plastic tie and lower front suspen-

sion plate.

6. ATTACH FRONT PLATE - From left

side of mower, position front plate as-

sembly between front mower brackets,

align holes, position flanged pin notch

vertically and insert the pin all the way.

The notch is in line with the hole in pin.

7. Secure pin with double loop retainer

spring between the plate and mower

bracket. If necessary, move mower

side-to-side to give space between

plate and mower bracket.

8. Go to right hand side of mower and

insert pin and retainer spring in the

same manner.

9. CONNECT REAR PINS - Connect

right hand side first. Pull out and hold

the spring loaded pin, align hole in

suspension arm and release pin. Be

sure pin returns to fully seated position

and is attached to the suspension arm.

10. Go to left side of mower and connect

rear pin in the same manner.

11. Disengage belt tension rod.

12. From right side of tractor, install belt

onto engine clutch pulley.

mMPORTANT: Check belt for proper rout-

ing in all mower pulley grooves.

13. Engage belt tension rod on locking

bracket.

CAUTmON: Belt tension rod is spring

loaded. Have a tight grip on rod and en-

gage slowly.

14. Raise attachment lift lever to highest

position.

15. Adjust gauge wheels before operating

mower as shown in the Operation sec-

tion of this manual.

Table des matières

Autres manuels Craftsman Tondeuse à gazon

Craftsman

Craftsman 358.792400 Manuel utilisateur

Craftsman

Craftsman 917.270821 Manuel utilisateur

Craftsman

Craftsman 917.374543 Manuel utilisateur

Craftsman

Craftsman 917.25023 Manuel utilisateur

Craftsman

Craftsman 247.397600 Manuel utilisateur

Craftsman

Craftsman 917.27384 Manuel utilisateur

Craftsman

Craftsman 917.271634 Manuel utilisateur

Craftsman

Craftsman 917.255950 Manuel utilisateur

Craftsman

Craftsman 944.363420 Manuel utilisateur

Craftsman

Craftsman 25333 Manuel utilisateur

Craftsman

Craftsman 917.374022 Manuel utilisateur

Craftsman

Craftsman 917.370830 Manuel utilisateur

Craftsman

Craftsman 25320 Manuel utilisateur

Craftsman

Craftsman 917.288526 Manuel utilisateur

Craftsman

Craftsman 247.370320 Manuel utilisateur

Craftsman

Craftsman 917.376561 Manuel utilisateur

Craftsman

Craftsman 917.28803 Manuel utilisateur

Craftsman

Craftsman 37653 Manuel utilisateur

Craftsman

Craftsman 917.273090 Manuel utilisateur

Craftsman

Craftsman 917.273220 Manuel utilisateur

Craftsman

Craftsman EZ3 917.273021 Manuel utilisateur

Craftsman

Craftsman 917.378340 Manuel utilisateur

Craftsman

Craftsman 917.273663 Manuel utilisateur

Craftsman

Craftsman CMXGMAM1125505 Manuel utilisateur

Manuels Tondeuse à gazon populaires d'autres marques

RHINO

RHINO 1958 Manuel utilisateur

Wolf Garten

Wolf Garten Compact plus 40 B Manuel utilisateur

Cub Cadet

Cub Cadet LTX 1045 Manuel utilisateur

GGP ITALY SPA

GGP ITALY SPA CR/CS 434 SERIES Manuel utilisateur

Challenge

Challenge CH18V2 Instructions de fonctionnement

TALEN TOOLS

TALEN TOOLS AVR HGM30 Manuel utilisateur

DEWEZE

DEWEZE ATM-725 Manuel d'utilisation

Weed Eater

Weed Eater 180083 Manuel utilisateur

Husqvarna

Husqvarna Poulan Pro PP185A42 Manuel utilisateur

Better Outdoor Products

Better Outdoor Products Quick Series Manuel utilisateur

Cub Cadet

Cub Cadet 23HP Z-Force 60 Manuel d'utilisation

MTD

MTD 795, 792, 791, 790 Manuel utilisateur

Toro

Toro Groundsmaster 3505-D Manuel utilisateur

Dennis

Dennis FT 610 Manuel utilisateur

AIRFORCE

AIRFORCE F-15 Gen 3 Manuel utilisateur

MTD

MTD 126-220-000 Manuel utilisateur

Toro

Toro 74806 Manuel utilisateur

Stihl

Stihl RMA 443 PV Manuel utilisateur
