Craftsman 917.276040 Manuel utilisateur

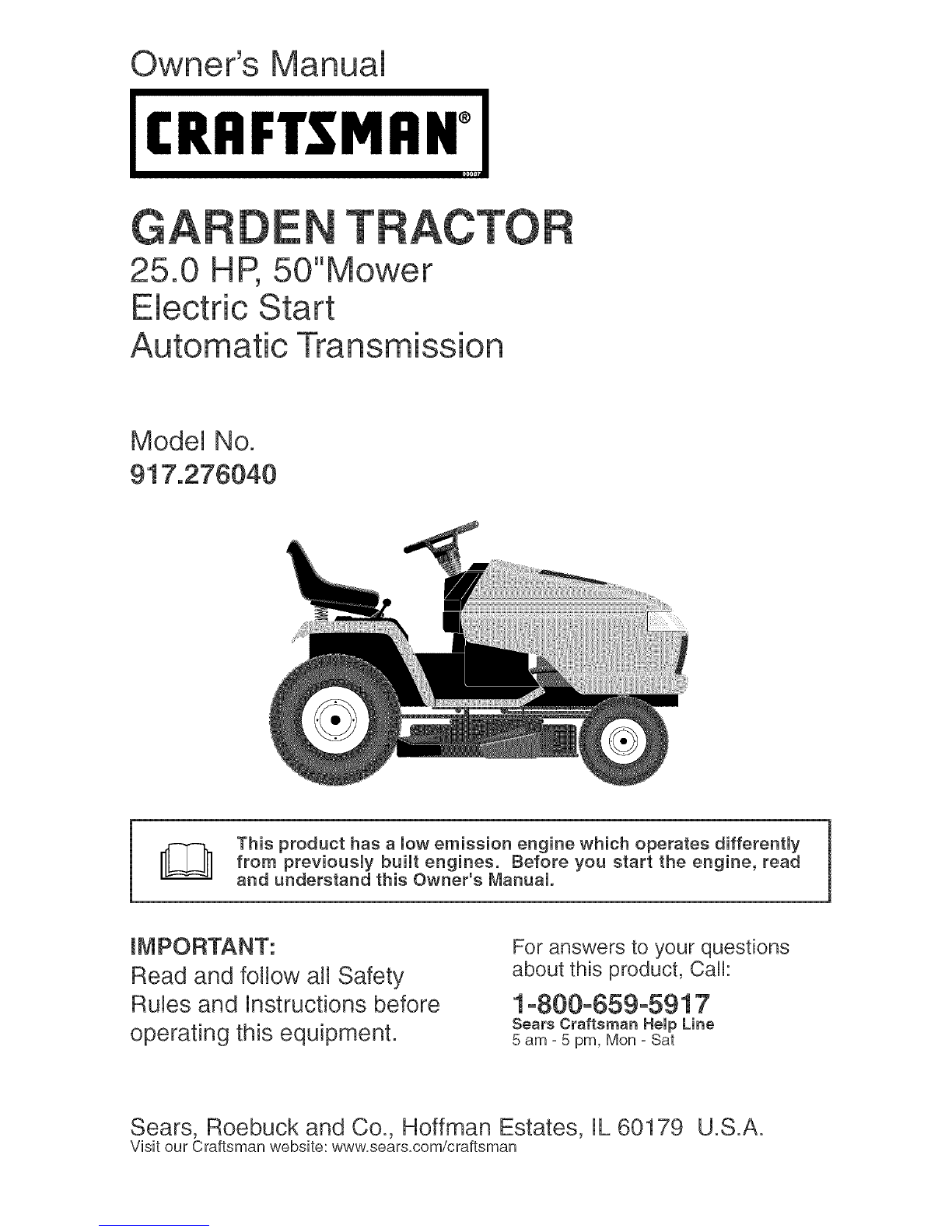

Owner's Manual

CRRFTSMRN°

25.0 HE 50"Mower

Electric Start

Automatic Transmission

Model No.

917.276040

This product has a low emission engine which operates differently

from previously built engines. Before you start the engine, read

and understand this Owner's Manual.

Read and follow all Safety

Rules and instructions before

operating this equipment.

For answers to your questions

about this product, Call:

1-800°659°5917

Sears Craftsman Help Line

5 am o5 pm, Mort oSat

Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A.

Visit our Craftsman website: www.sears.com/craftsman

Warranty ................................................ 2

Safety Rules .......................................... 3

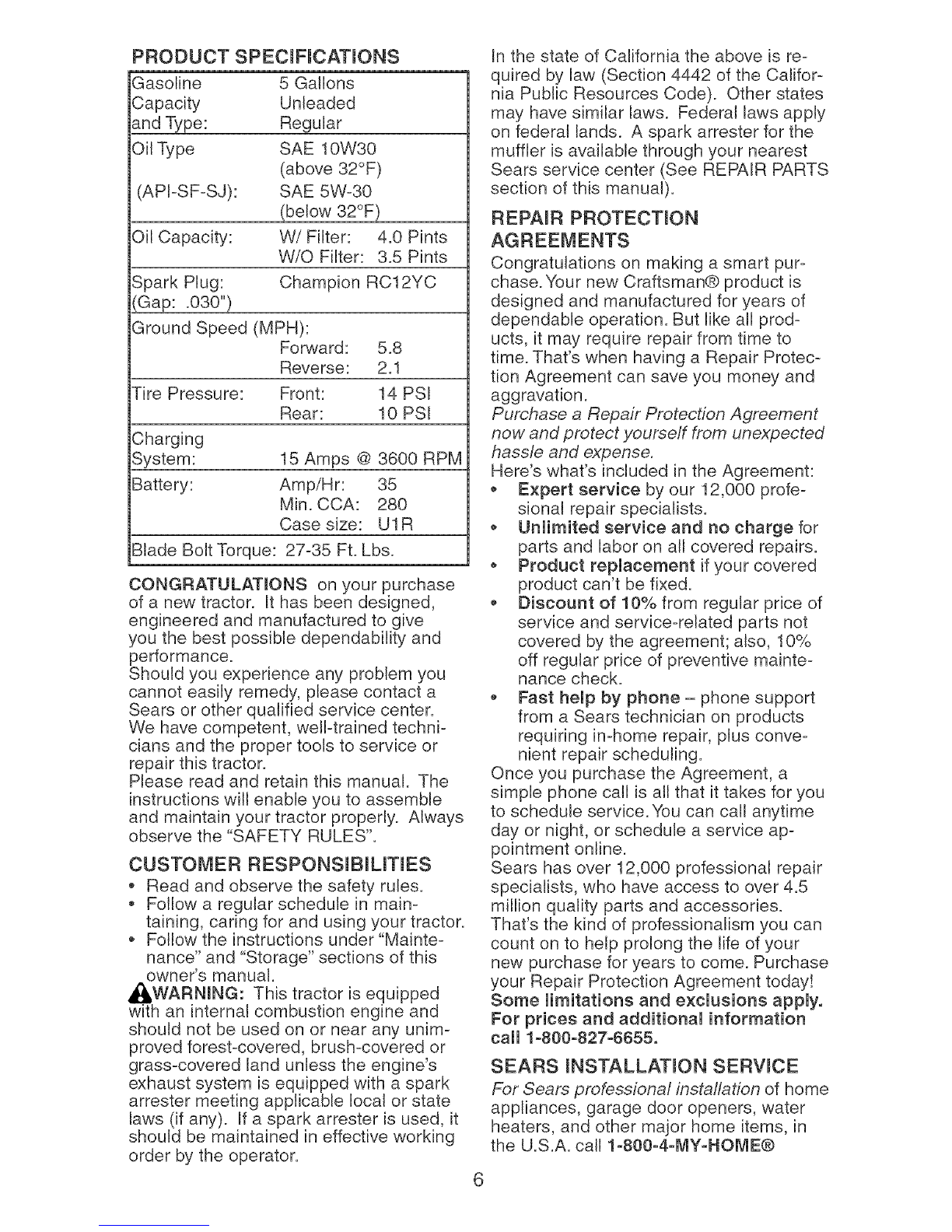

Product Specifications .......................... 6

AssemblyiPre-Operation ....................... 8

Operation ............................................. 13

Maintenance Schedule ........................ 20

Maintenance ........................................ 20

Service and Adjustments ..................... 24

Storage ................................................ 32

Troubleshooting ................................... 33

Repair Parts ......................................... 38

Sears Service ........................ Back Cover

LIMITED WARRANTY ON CRAFTSMAN RIDING EQUIPMENT

For two (2) years from the date of purchase, if this Craftsman Riding Equipment is

maintained, lubricated and tuned up according to the instructions in the owner's manual,

Sears will repair or replace free of charge any parts that are found to be defective in

material or workmanship according to the guidelines of coverage listed below. Sears will

also provide free labor for these applicable warranted parts for the two full years. During

the first 30 days of purchase, there will be no charges to service the product at your

home for issues covered by this warranty. (See exclusions below). For your conve-

nience, IN HOME warranty service will still be available after the first 30 days of pur-

chase, but a trip charge will apply. This charge will be waived if the Craftsman product is

dropped off at an authorized Sears location. For the nearest authorized Sears location,

please call 1-800-4-MY-HOME@. This warranty applies only while this product is within

the United States.

This Warranty does not cover:

Expendable items which become worn during normal use, including but not limited to

blades, spark plugs, air cleaners, belts, and oil filters.

Standard Maintenance Servicing, oil changes, or tune-ups.

Tire replacement or repair caused by punctures from outside objects, such as nails,

thorns, stumps, or glass.

Repairs necessary because of operator abuse, including but not limited to, damage

caused by towing objects beyond the capability of the riding equipment, impacting

objects that bend the frame or crankshaft, or over-speeding the engine.

Repairs necessary because of operator negligence, including but not limited to, elec-

trical and mechanical damage caused by improper storage, failure to use the proper

grade and amount of engine oil, failure to keep the deck clear of flammable debris,

or failure to maintain the equipment according to the instructions contained in the

owner's manual.

• Engine (fuel system) cleaning or repairs caused by fuel determined to be contami-

nated or oxidized (stale). In general, fuel should be used within 30 days of its pur-

chase date.

, Normal deterioration and wear of the exterior finishes, or product label replacement.

, Riding equipment used for commercial or rental purposes.

LIMITED WARRANTY ON BATTERY

For ninety (90) days from date of purchase, if any battery included with this riding equip-

ment proves defective in material or workmanship and our testing determines the battery

will not hold a charge, Sears will replace the battery at no charge. During the first 30

days of purchase, there will be no charges to replace the battery at your HOME. After

the first 30 days, for your convenience, IN-HOME warranty service will still be avail-

able but a trip charge will apply. This charge will be waived if the Craftsman product is

dropped off at an authorized Sears location. For the nearest authorized Sears location,

please call 1-800-4-MY-HOME@.

This battery warranty applies only while this product is within the United States.

This warranty gives you specific legal rights, and you may also have other rights, which

vary, from state to state.

Sears, Roebuck and Co.,Dept.817WA, Hoffman Estates, IL 60179

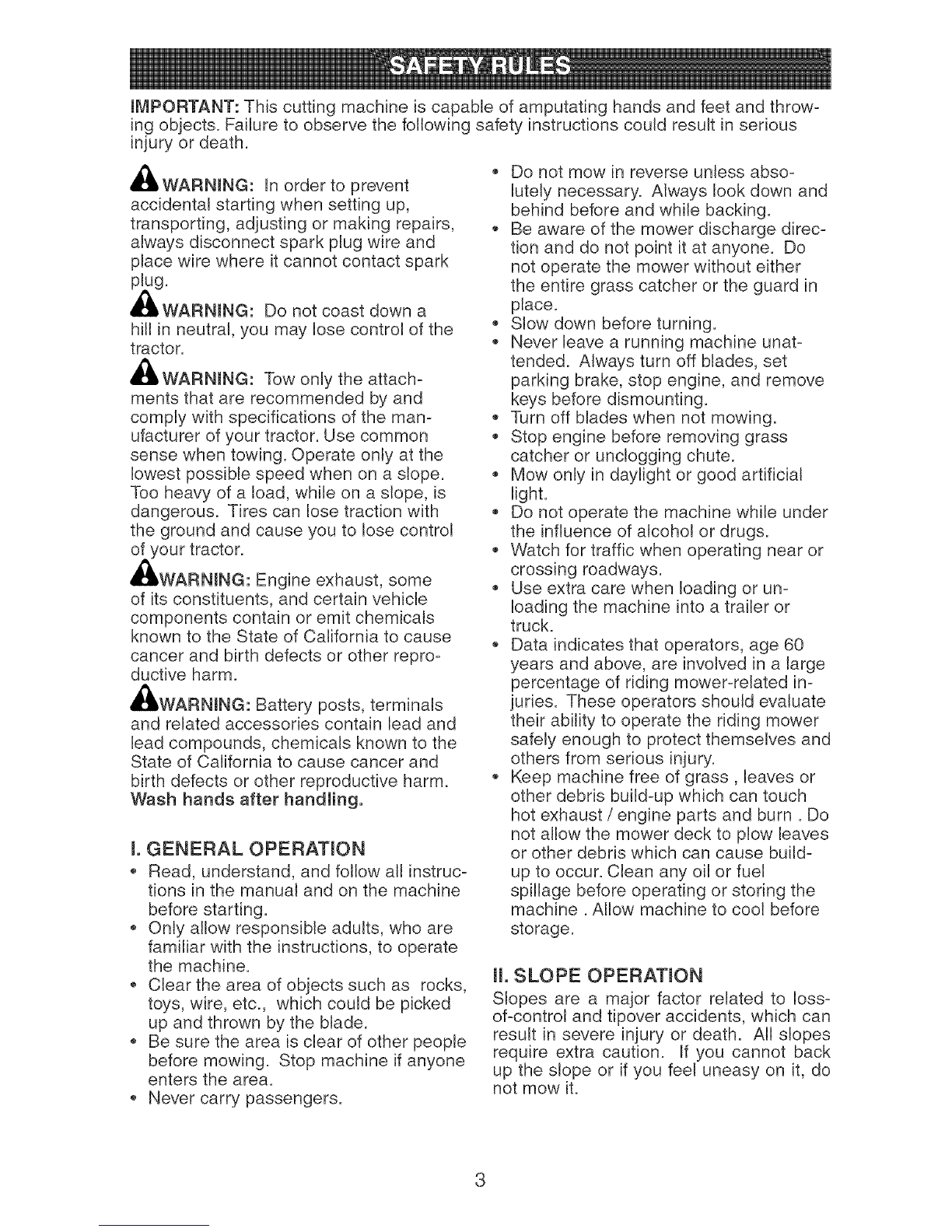

miVIPORTANT:Thiscuttingmachineiscapableof amputatinghandsandfeet andthrow-

ingobjects.Failureto observethefollowingsafetyinstructionscould resultin serious

injuryor death.

In orderto prevent

accidentalstartingwhensetting up,

transporting,adjustingor makingrepairs,

alwaysdisconnectsparkplugwire and

placewirewhereitcannotcontactspark

plug.

_LWARNmNG: Do notcoast downa

hillin neutral,you maylosecontrolofthe

tractor.

Towonlytheattach-

mentsthatare recommendedby and

complywithspecificationsofthe man-

ufacturerofyourtractor.Usecommon

sensewhentowing.Operateonly atthe

lowestpossiblespeedwhenon aslope.

Tooheavyofa load,while on a slope,is

dangerous.Tirescan losetractionwith

thegroundandcauseyou to losecontrol

ofyourtractor. Engineexhaust,some

of itsconstituents,andcertainvehicle

componentscontainoremitchemicals

knownto theStateof Californiato cause

cancerandbirth defectsorotherrepro-

ductiveharm.

,_WARNmNG: Battery posts, terminals

and related accessories contain lead and

lead compounds, chemicals known to the

State of California to cause cancer and

birth defects or other reproductive harm.

Wash hands after handling.

L GENERAL OPERATmON

*Read, understand, and follow all instruc-

tions in the manual and on the machine

before starting.

Only allow responsible adults, who are

familiar with the instructions, to operate

the machine.

Clear the area of objects such as rocks,

toys, wire, etc., which could be picked

up and thrown by the blade.

Be sure the area is clear of other people

before mowing. Stop machine if anyone

enters the area.

, Never carry passengers.

Do not mow in reverse unless abso-

lutely necessary. Always look down and

behind before and while backing.

Be aware of the mower discharge direc-

tion and do not point it at anyone. Do

not operate the mower without either

the entire grass catcher or the guard in

place.

Slow down before turning.

Never leave a running machine unat-

tended. Always turn off blades, set

parking brake, stop engine, and remove

keys before dismounting.

Turn off blades when not mowing.

Stop engine before removing grass

catcher or unclogging chute.

Mow only in daylight or good artificial

light.

Do not operate the machine while under

the influence of alcohol or drugs.

Watch for traffic when operating near or

crossing roadways.

Use extra care when loading or un-

loading the machine into a trailer or

truck.

Data indicates that operators, age 60

years and above, are involved in a large

percentage of riding mower=related in-

juries. These operators should evaluate

their ability to operate the riding mower

safely enough to protect themselves and

others from serious injury.

Keep machine free of grass, leaves or

other debris build=up which can touch

hot exhaust /engine parts and burn. Do

not allow the mower deck to plow leaves

or other debris which can cause build-

up to occur. Clean any oil or fuel

spillage before operating or storing the

machine. Allow machine to cool before

storage.

H. SLOPE OPERATmON

Slopes are a major factor related to loss-

of-control and tipover accidents, which can

result in severe injury or death. All slopes

require extra caution. If you cannot back

up the slope or if you feel uneasy on it, do

not mow it.

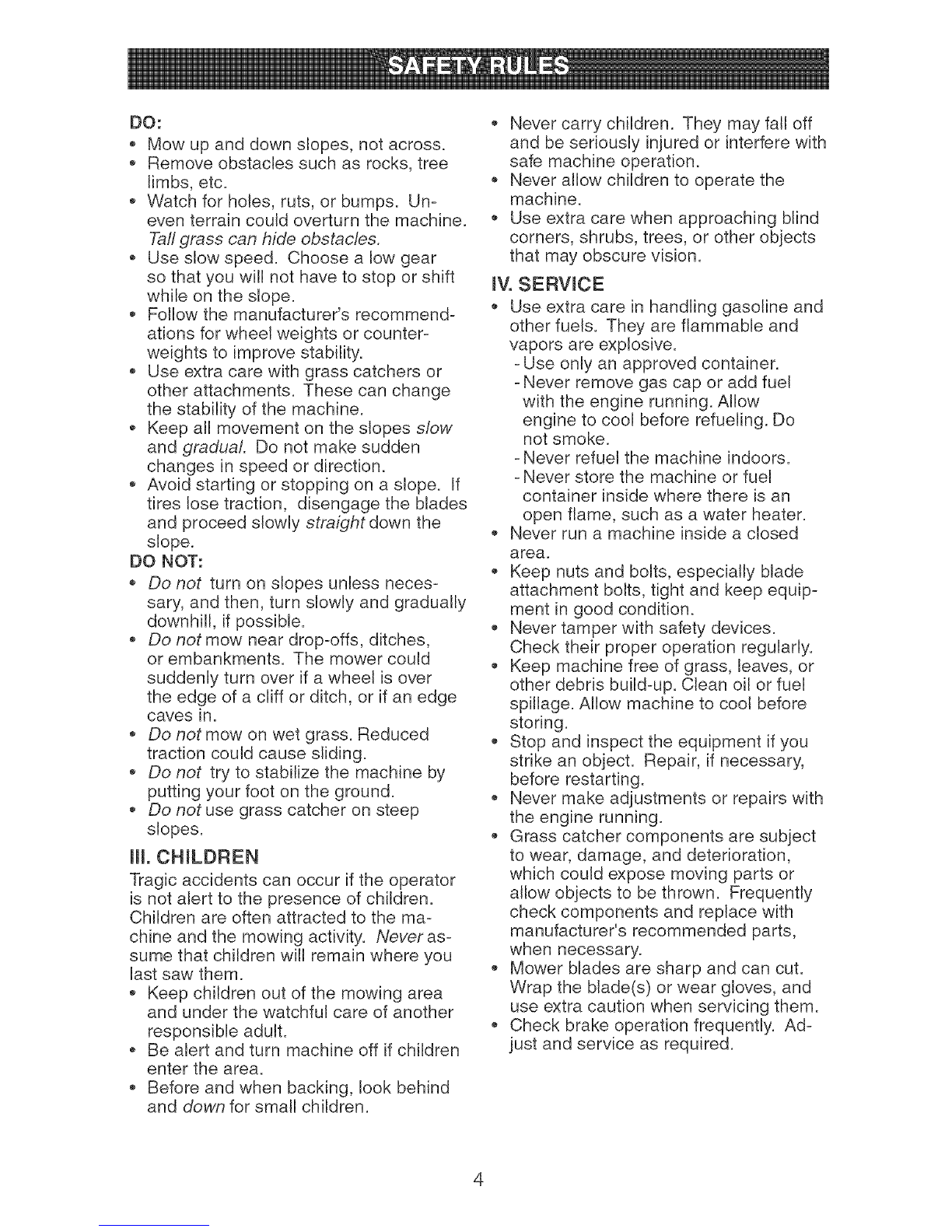

DO:

Mow up and down slopes, not across.

Remove obstacles such as rocks, tree

limbs, etc.

Watch for holes, ruts, or bumps. Un-

even terrain could overturn the machine.

Taft grass can hide obstacles.

Use slow speed. Choose a low gear

so that you will not have to stop or shift

while on the slope.

Follow the manufacturer's recommend-

ations for wheel weights or counter-

weights to improve stability.

Use extra care with grass catchers or

other attachments. These can change

the stability of the machine.

Keep all movement on the slopes slow

and gradual. Do not make sudden

changes in speed or direction.

Avoid starting or stopping on a slope. If

tires lose traction, disengage the blades

and proceed slowly straight down the

slope.

DO NOT:

oDo not turn on slopes unless neces-

sary, and then, turn slowly and gradually

downhill, if possible.

Do not mow near drop-offs, ditches,

or embankments. The mower could

suddenly turn over if a wheel is over

the edge of a cliff or ditch, or if an edge

caves In.

•Do not mow on wet grass. Reduced

traction could cause sliding.

•Do not try to stabilize the machine by

putting your foot on the ground.

•Do not use grass catcher on steep

slopes.

Ill.CHILDREN

Tragic accidents can occur if the operator

is not alert to the presence of children.

Children are often attracted to the ma-

chine and the mowing activity. Never as-

sume that children will remain where you

last saw them.

Keep children out of the mowing area

and under the watchful care of another

responsible adult.

Be alert and turn machine off if children

enter the area.

Before and when backing, look behind

and down for small children.

Never carry children. They may fall off

and be seriously injured or interfere with

safe machine operation.

Never allow children to operate the

machine.

Use extra care when approaching blind

corners, shrubs, trees, or other objects

that may obscure vision.

iV.SERVICE

Use extra care in handling gasoline and

other fuels. They are flammable and

vapors are explosive.

-Use only an approved container.

- Never remove gas cap or add fuel

with the engine running. Allow

engine to cool before refueling. Do

not smoke.

-Never refuel the machine indoors.

- Never store the machine or fuel

container inside where there is an

open flame, such as a water heater.

Never run a machine inside a closed

area.

Keep nuts and bolts, especially blade

attachment bolts, tight and keep equip-

ment in good condition.

Never tamper with safety devices.

Check their proper operation regularly.

Keep machine free of grass, leaves, or

other debris build-up. Clean oil or fuel

spillage. Allow machine to cool before

storing.

Stop and inspect the equipment if you

strike an object. Repair, if necessary,

before restarting.

Never make adjustments or repairs with

the engine running.

Grass catcher components are subject

to wear, damage, and deterioration,

which could expose moving parts or

allow objects to be thrown. Frequently

check components and replace with

manufacturer's recommended parts,

when necessary.

Mower blades are sharp and can cut.

Wrap the blade(s) or wear gloves, and

use extra caution when servicing them.

Check brake operation frequently. Ad-

just and service as required.

@@@@@

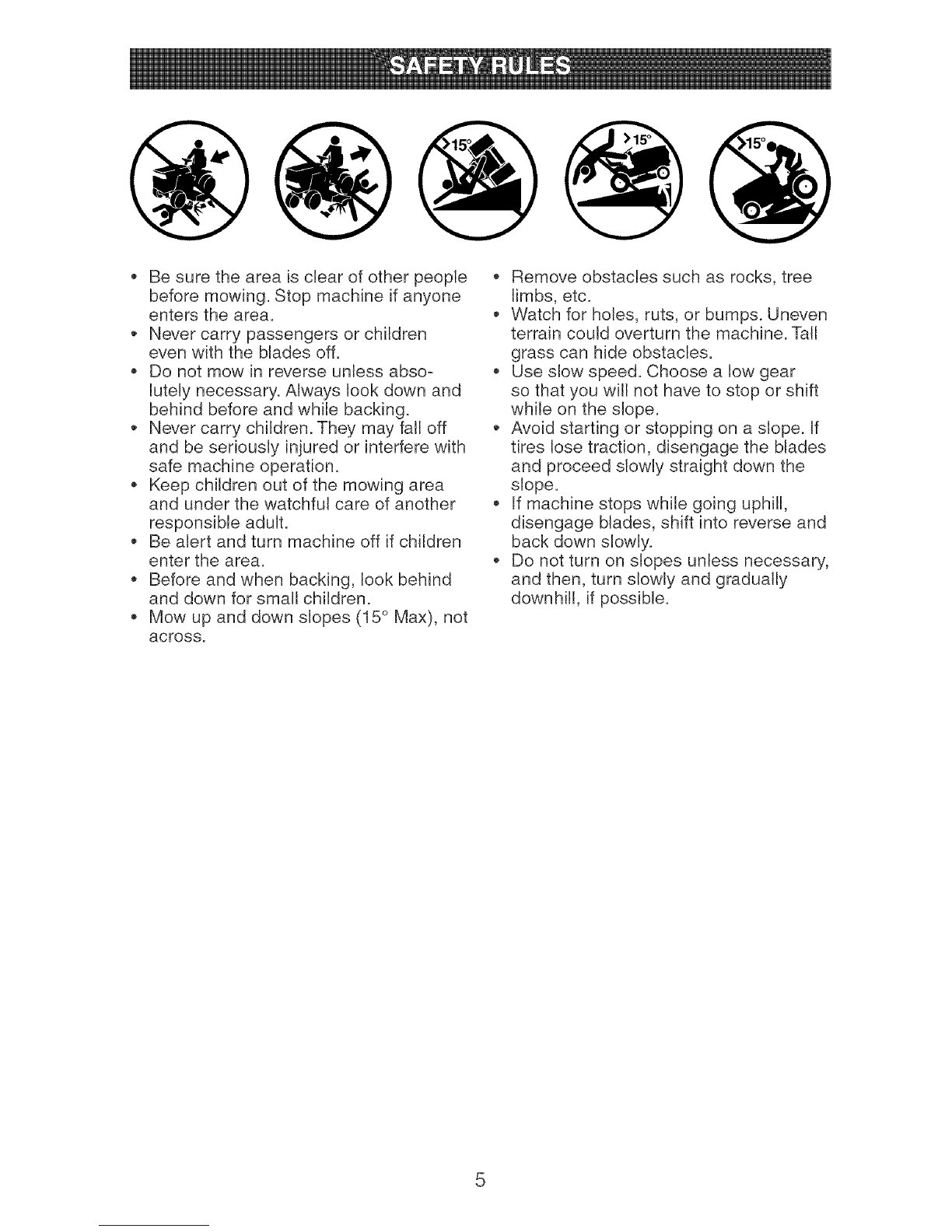

Be sure the area is clear of other people

before mowing. Stop machine if anyone

enters the area.

Never carry passengers or children

even with the blades off.

Do not mow in reverse unless abso-

lutely necessary. Always look down and

behind before and while backing.

Never carry children. They may fall off

and be seriously injured or interfere with

safe machine operation.

Keep children out of the mowing area

and under the watchful care of another

responsible adult.

Be alert and turn machine off if children

enter the area.

Before and when backing, look behind

and down for small children.

Mow up and down slopes (15 ° Max), not

across.

Remove obstacles such as rocks, tree

limbs, etc.

Watch for holes, ruts, or bumps. Uneven

terrain could overturn the machine. Tall

grass can hide obstacles.

Use slow speed. Choose a low gear

so that you will not have to stop or shift

while on the slope.

Avoid starting or stopping on a slope. If

tires lose traction, disengage the blades

and proceed slowly straight down the

slope.

If machine stops while going uphill,

disengage blades, shift into reverse and

back down slowly.

Do not turn on slopes unless necessary,

and then, turn slowly and gradually

downhill, if possible.

PRODUCT SPECIFmCATIONS

Gasoline 5 Gallons

Capacity Unleaded

and Type: Regular

Oil Type SAE 10W30

(above 32°F)

(API=SF=SJ): SAE 5W-30

(below 32°F)

Oil Capacity: Wi Filter: 4.0 Pints

W/O Filter: 3.5 Pints

Spark Plug: Champion RC12YC

(Gap: .030")

Ground Speed (MPH):

Forward: 5.8

Reverse: 2.1

Tire Pressure: Front: 14 PSI

Rear: 10 PSI

Charging

System: 15 Amps @ 3600 RPM

Battery: AmpiHr: 35

Min. CCA: 280

Case size: U1R

Blade Bolt Torque: 27=35 Ft. Lbs.

CONGRATULATmONS on your purchase

of a new tractor. It has been designed,

engineered and manufactured to give

you the best possible dependability and

performance.

Should you experience any problem you

cannot easily remedy, please contact a

Sears or other qualified service center.

We have competent, well-trained techni-

cians and the proper tools to service or

repair this tractor.

Please read and retain this manual. The

instructions will enable you to assemble

and maintain your tractor properly. Always

observe the "SAFETY RULES".

CUSTOMER RESPONSIBIUTIES

Read and observe the safety rules.

Follow a regular schedule in main=

taining, caring for and using your tractor.

*Follow the instructions under"Mainte-

nance" and "Storage" sections of this

owner's manual.

,_WARNmNG: This tractor is equipped

with an internal combustion engine and

should not be used on or near any unim-

proved forest-covered, brush-covered or

grass-covered land unless the engine's

exhaust system is equipped with a spark

arrester meeting applicable Iocat or state

laws (if any). If a spark arrester is used, it

should be maintained in effective working

order by the operator.

In the state of California the above is re-

quired by law (Section 4442 of the Califor-

nia Public Resources Code). Other states

may have similar laws. Federal laws apply

on federal lands. A spark arrester for the

muffler is available through your nearest

Sears service center (See REPAIR PARTS

section of this manual).

REPAIR PROTECTmON

Congratulations on making a smart pur-

chase. Your new Craftsman® product is

designed and manufactured for years of

dependable operation. But like all prod-

ucts, it may require repair from time to

time. That's when having a Repair Protec-

tion Agreement can save you money and

aggravation.

Purchase a Repair Protection Agreement

now and protect yourseff from unexpected

hassle and expense.

Here's what's included in the Agreement:

*Expert service by our 12,000 profe-

sionat repair specialists.

*Unlimited service and no charge for

parts and labor on all covered repairs.

*Product replacement if your covered

product can't be fixed.

Discount of 10% from regular price of

service and service=related parts not

covered by the agreement; also, 10%

off regular price of preventive mainte=

nance check.

Fast hemp by phone = phone support

from a Sears technician on products

requiring in=home repair, plus conve=

nient repair scheduling.

Once you purchase the Agreement, a

simple phone call is all that it takes for you

to schedule service. You can call anytime

day or night, or schedule a service ap=

pointment online.

Sears has over 12,000 professional repair

specialists, who have access to over 4.5

million quality parts and accessories.

That's the kind of professionalism you can

count on to help prolong the life of your

new purchase for years to come. Purchase

your Repair Protection Agreement today!

Some limitations and exclusions apply.

For prices and additional information

call 1o800o827o6655.

SEARS mNSTALLATmON SERWCE

For Sears professional installation of home

appliances, garage door openers, water

heaters, and other major home items, in

the U.S.A. call l oS00o4oMYoNOME®

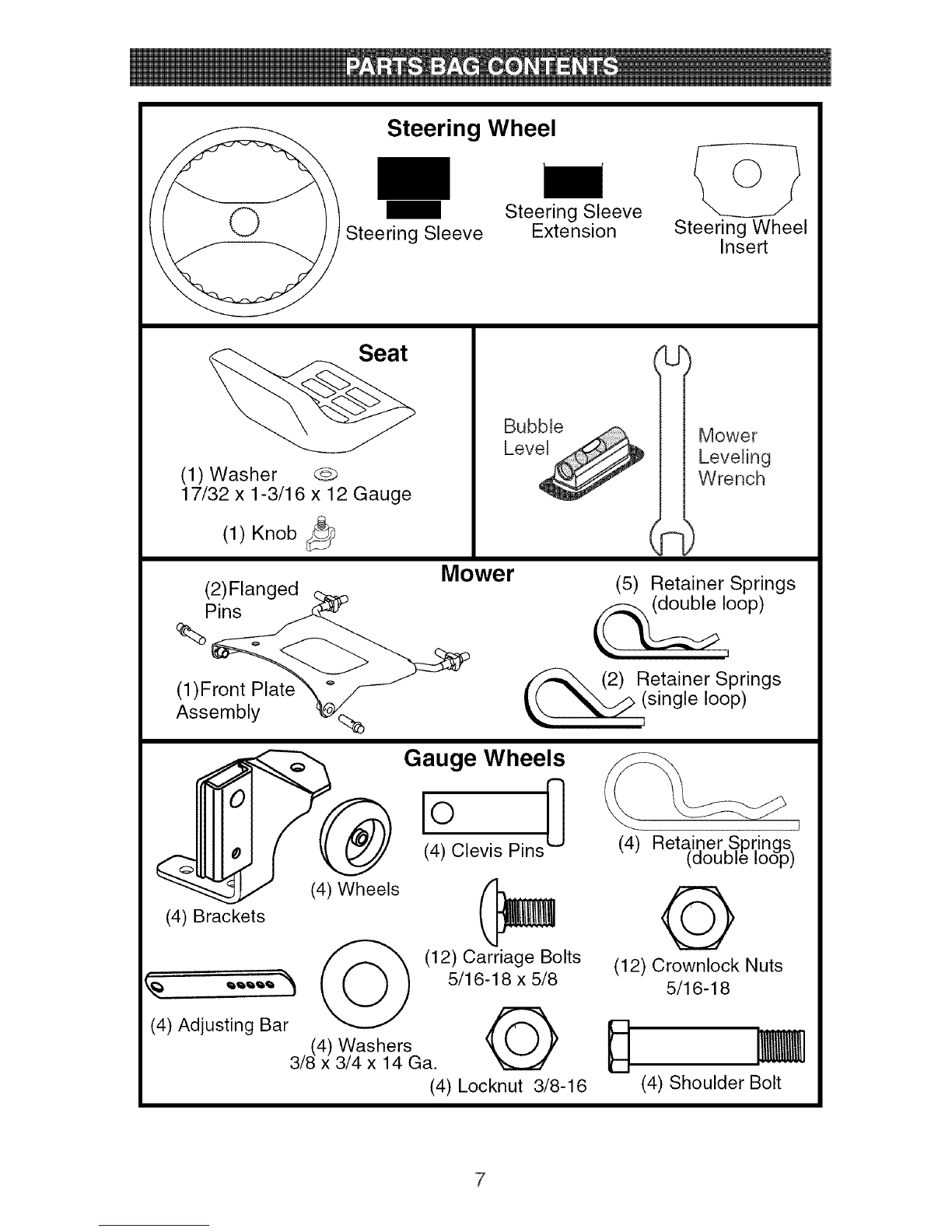

Steering Wheel

Steering Sleeve

Steering Sleeve Extension

Steering Wheel

Insert

(1) Washer @

17/32 x 1-3/16 x 12 Gauge

(1) Knob _

(2) Flanged

Pins

(1)Front Plate

Assembly

Mower

Bubble

Level Mower

Leveling

Wrench

(5) Retainer Springs

oop)

,,__2) Retainer Springs

single loop)

(4) Brackets

(4) Adjusting Bar (4) Washers

3/8 x 3/4 x 14 Ga.

Gauge Wheels

(4) Clevis Pins

(12) Carriage Bolts

5/16-18 x 5/8

(4) Reta,iner,S, prings

taouale loop)

(12) Crownlock Nuts

5/16-18 m

(4) Locknut 3/8-16 (4) Shoulder Bolt

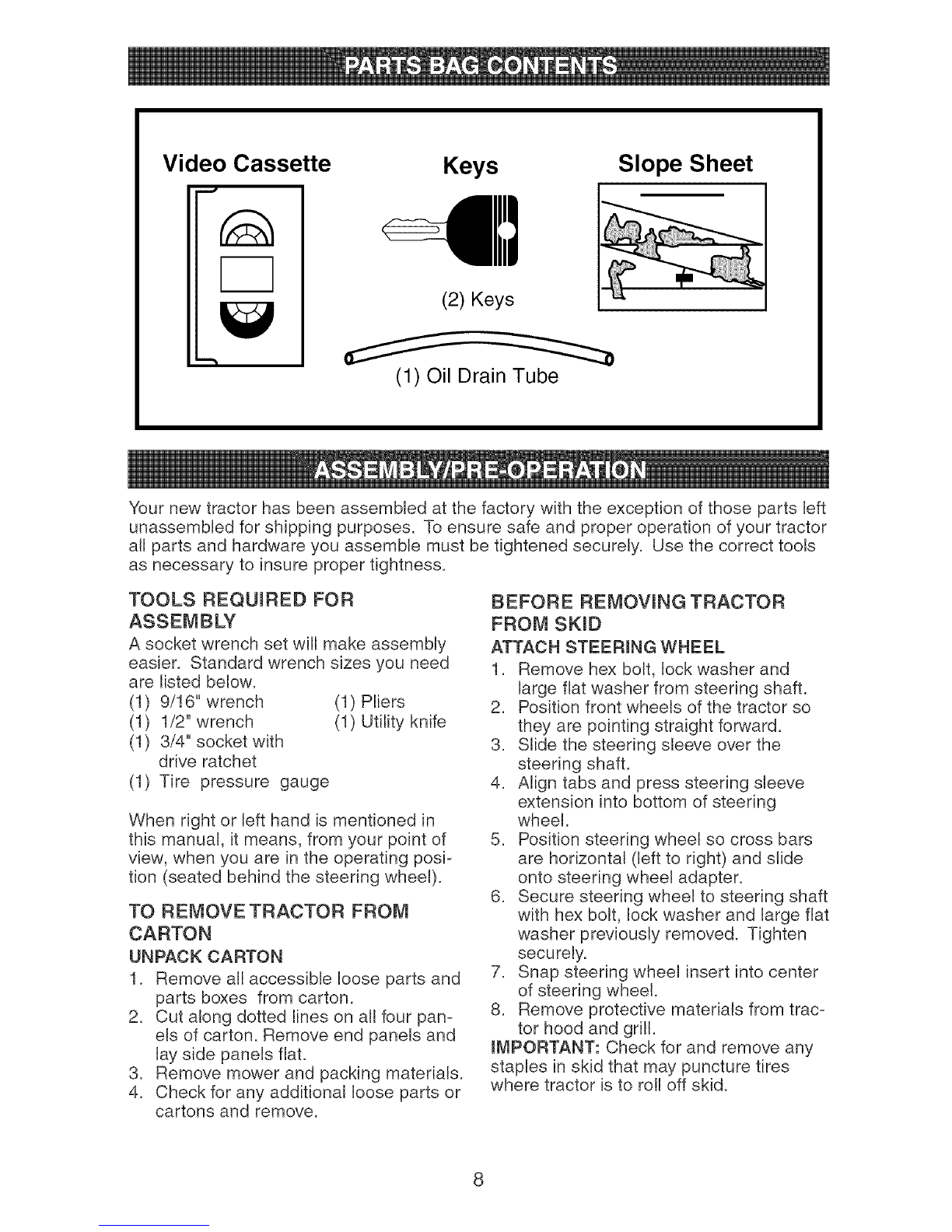

Video Cassette Keys Slope Sheet

(2) Keys

(1) Oil Drain Tube

Your new tractor has been assembled at the factory with the exception of those parts left

unassembled for shipping purposes. To ensure safe and proper operation of your tractor

all parts and hardware you assemble must be tightened securely. Use the correct tools

as necessary to insure proper tightness.

TOOLS REQUmRED FOR

ASSEMBLY

A socket wrench set will make assembly

easier. Standard wrench sizes you need

are listed below.

(1) 9/16" wrench (1) Pliers

(1) 1/2" wrench (1) Utility knife

(1) 3/4" socket with

drive ratchet

(1) Tire pressure gauge

When right or left hand is mentioned in

this manual, it means, from your point of

view, when you are in the operating posi-

tion (seated behind the steering wheel).

TO REMOVE TRACTOR FROM

CARTON

UNPACK CARTON

1. Remove all accessible loose parts and

parts boxes from carton.

2. Cut along dotted lines on all four pan-

els of carton. Remove end panels and

lay side panels fiat.

3. Remove mower and packing materials.

4. Check for any additional loose parts or

cartons and remove.

BEFORE REMOVmNG TRACTOR

FROM SKID

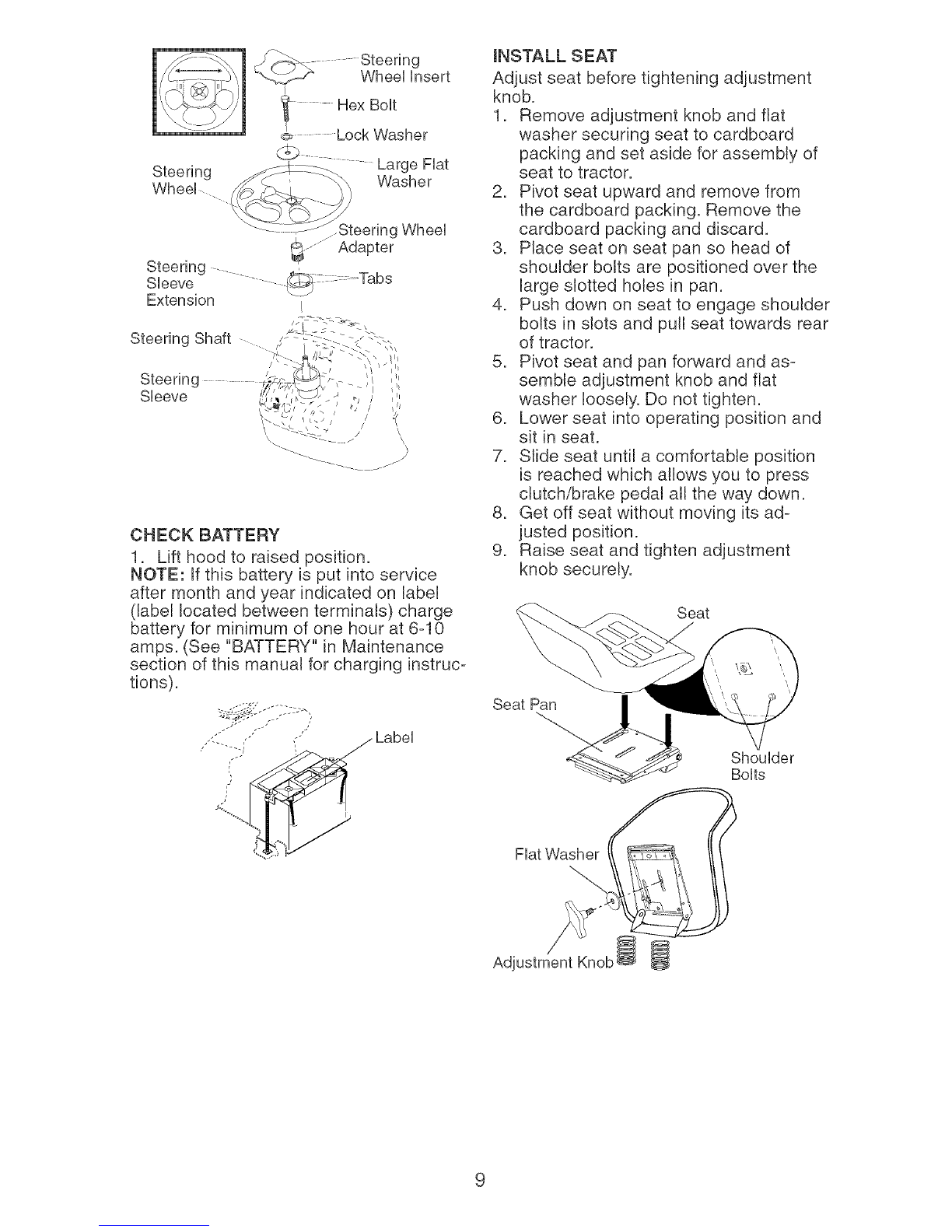

ATTACH STEERmNG WHEEL

1. Remove hex bolt, lock washer and

large flat washer from steering shaft.

2. Position front wheels of the tractor so

they are pointing straight forward.

3. Slide the steering sleeve over the

steering shaft.

4. Align tabs and press steering sleeve

extension into bottom of steering

wheel.

5. Position steering wheel so cross bars

are horizontal (left to right) and slide

onto steering wheel adapter.

6. Secure steering wheel to steering shaft

with hex bolt, lock washer and large fiat

washer previously removed. Tighten

securely.

7. Snap steering wheel insert into center

of steering wheel.

8. Remove protective materials from trac-

tor hood and grill.

mMPORTANT: Check for and remove any

staples in skid that may puncture tires

where tractor is to roll off skid.

Steering ...............

Sleeve

Extension

Steering Shaft

Steering

Sleeve

S ..............Adapter

\ \

CHECK BATTERY

1. Lift hood to raised position.

NOTE: If this battery is put into service

after month and year indicated on label

(label located between terminals) charge

battery for minimum of one hour at 6-10

amps. (See "BATTERY" in Maintenance

section of this manual for charging instruc-

tions).

jJ ,j,"

,_ Label

INSTALL SEAT

Adjust seat before tightening adjustment

knob.

1. Remove adjustment knob and flat

washer securing seat to cardboard

packing and set aside for assembly of

seat to tractor,

2. Pivot seat upward and remove from

the cardboard packing, Remove the

cardboard packing and discard.

3. Place seat on seat pan so head of

shoulder bolts are positioned over the

large slotted holes in pan.

4. Push down on seat to engage shoulder

bolts in slots and pull seat towards rear

of tractor.

5. Pivot seat and pan forward and as:

semble adjustment knob and flat

washer loosely. Do not tighten,

6. Lower seat into operating position and

sit in seat.

7. Slide seat until a comfortable position

is reached which allows you to press

clutch/brake pedal all the way down.

8. Get off seat without moving its ad:

lusted position.

9. Raise seat and tighten adjustment

knob securely.

Seat

Shoulder

Bolts

Flat Washer

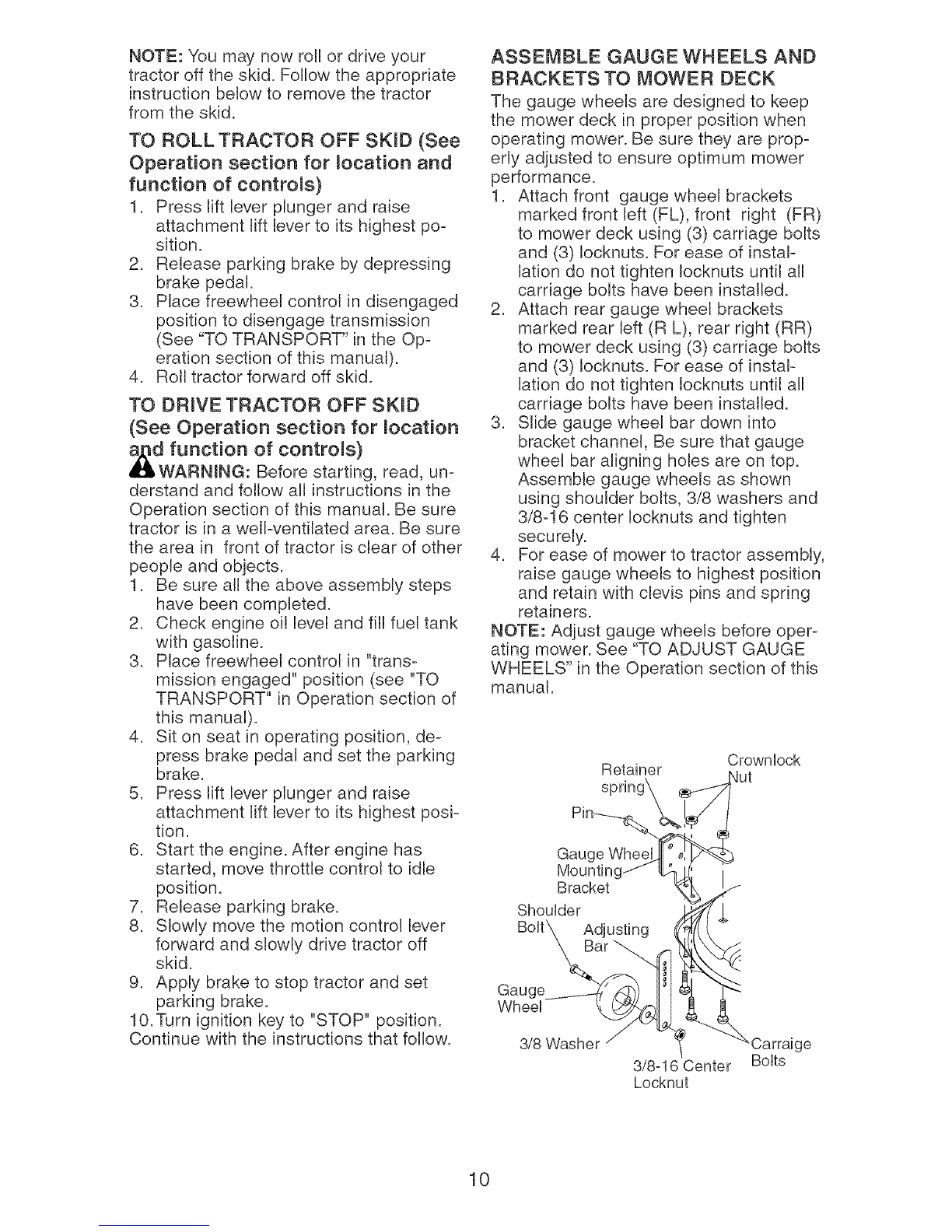

NOTE: You may now roll or drive your

tractor off the skid. Follow the appropriate

instruction below to remove the tractor

from the skid.

TO ROLLTRACTOR OFF SKiD (See

Operation section for mocation and

function of controms)

1. Press lift lever plunger and raise

attachment lift lever to its highest po-

sition.

2. Release parking brake by depressing

brake pedal.

3. Place freewheel controt in disengaged

position to disengage transmission

(See "TO TRANSPORT" in the Op-

eration section of this manual).

4. Roll tractor forward off skid.

TO DRmVE TRACTOR OFF SKID

(See Operation section for mocation

_dwAfUnction of controms)

RNmNG: Before starting, read, un-

derstand and follow all instructions in the

Operation section of this manual. Be sure

tractor is in a well-ventilated area. Be sure

the area in front of tractor is clear of other

people and objects.

1. Be sure all the above assembly steps

have been completed.

2. Check engine oil level and fill fuel tank

with gasoline.

3. Place freewheel control in "trans-

mission engaged" position (see "TO

TRANSPORT" in Operation section of

this manual).

4. Sit on seat in operating position, de-

press brake pedal and set the parking

brake.

5. Press lift lever plunger and raise

attachment lift lever to its highest posi-

tion.

6. Start the engine. After engine has

started, move throttle control to idle

position.

7. Release parking brake.

8. Slowly move the motion control lever

forward and slowly drive tractor off

skid.

9. Apply brake to stop tractor and set

parking brake.

10.Turn ignition key to "STOP" position.

Continue with the instructions that follow.

ASSEMBLE GAUGE WHEELS AND

BRACKETS TO MOWER DECK

The gauge wheels are designed to keep

the mower deck in proper position when

operating mower. Be sure they are prop-

erly adjusted to ensure optimum mower

performance.

1. Attach front gauge wheel brackets

marked front left (FL), front right (FR)

to mower deck using (3) carriage bolts

and (3) Iocknuts. For ease of instal-

lation do not tighten Iocknuts until all

carriage bolts have been installed.

2. Attach rear gauge wheel brackets

marked rear left (R L), rear right (RR)

to mower deck using (3) carriage bolts

and (3) Iocknuts. For ease of instal-

lation do not tighten Iocknuts until all

carriage bolts have been installed.

3. Slide gauge wheel bar down into

bracket channel, Be sure that gauge

wheel bar aligning holes are on top.

Assemble gauge wheels as shown

using shoulder bolts, 3/8 washers and

3/8-16 center Iocknuts and tighten

securely.

4. For ease of mower to tractor assembly,

raise gauge wheels to highest position

and retain with clevis pins and spring

retainers.

NOTE: Adjust gauge wheels before oper-

ating mower. See "TO ADJUST GAUGE

WHEELS" in the Operation section of this

manual.

Retainer

spring_

Gauge Whe(

Mountin(

Bracket

Shoulder

Bolt'\\ Adjusting

\\\ Bar _....

Gauge

Wheel

Crownlock

,Jut

3/8 Washer .Sarraige

3/8-16 Center Bolts

Locknut

Table des matières

Autres manuels Craftsman Tondeuse à gazon

Craftsman

Craftsman 917.387580 Manuel utilisateur

Craftsman

Craftsman EZ3 917.258572 Manuel utilisateur

Craftsman

Craftsman 502.255060 Manuel utilisateur

Craftsman

Craftsman EZ 917.273121 Manuel utilisateur

Craftsman

Craftsman 917.371930 Manuel utilisateur

Craftsman

Craftsman 917.389590 Manuel utilisateur

Craftsman

Craftsman 917.275620 Manuel utilisateur

Craftsman

Craftsman 917.376653 Manuel utilisateur

Craftsman

Craftsman 917.255890 Manuel utilisateur

Craftsman

Craftsman 917.376675 Manuel utilisateur

Craftsman

Craftsman 917.370543 Manuel utilisateur

Craftsman

Craftsman 944.363431 Manuel utilisateur

Craftsman

Craftsman EZ3 917.259556 Manuel utilisateur

Craftsman

Craftsman C459-36100 Manuel utilisateur

Craftsman

Craftsman 917.374100 Manuel utilisateur

Craftsman

Craftsman 917.387680 Manuel utilisateur

Craftsman

Craftsman 917.273460 Manuel utilisateur

Craftsman

Craftsman 917.379400 Manuel utilisateur

Craftsman

Craftsman EZ3 917.270921 Manuel utilisateur

Craftsman

Craftsman 247.28905 Manuel utilisateur

Craftsman

Craftsman EZ3 917.258542 Manuel utilisateur

Craftsman

Craftsman 25340 Manuel utilisateur

Craftsman

Craftsman CTX 9000 Manuel utilisateur

Craftsman

Craftsman 917.377250 Manuel utilisateur

Manuels Tondeuse à gazon populaires d'autres marques

RHINO

RHINO 1958 Manuel utilisateur

Wolf Garten

Wolf Garten Compact plus 40 B Manuel utilisateur

Cub Cadet

Cub Cadet LTX 1045 Manuel utilisateur

GGP ITALY SPA

GGP ITALY SPA CR/CS 434 SERIES Manuel utilisateur

Challenge

Challenge CH18V2 Instructions de fonctionnement

TALEN TOOLS

TALEN TOOLS AVR HGM30 Manuel utilisateur

DEWEZE

DEWEZE ATM-725 Manuel d'utilisation

Weed Eater

Weed Eater 180083 Manuel utilisateur

Husqvarna

Husqvarna Poulan Pro PP185A42 Manuel utilisateur

Better Outdoor Products

Better Outdoor Products Quick Series Manuel utilisateur

Cub Cadet

Cub Cadet 23HP Z-Force 60 Manuel d'utilisation

MTD

MTD 795, 792, 791, 790 Manuel utilisateur

Toro

Toro Groundsmaster 3505-D Manuel utilisateur

Dennis

Dennis FT 610 Manuel utilisateur

AIRFORCE

AIRFORCE F-15 Gen 3 Manuel utilisateur

MTD

MTD 126-220-000 Manuel utilisateur

Toro

Toro 74806 Manuel utilisateur

Stihl

Stihl RMA 443 PV Manuel utilisateur
