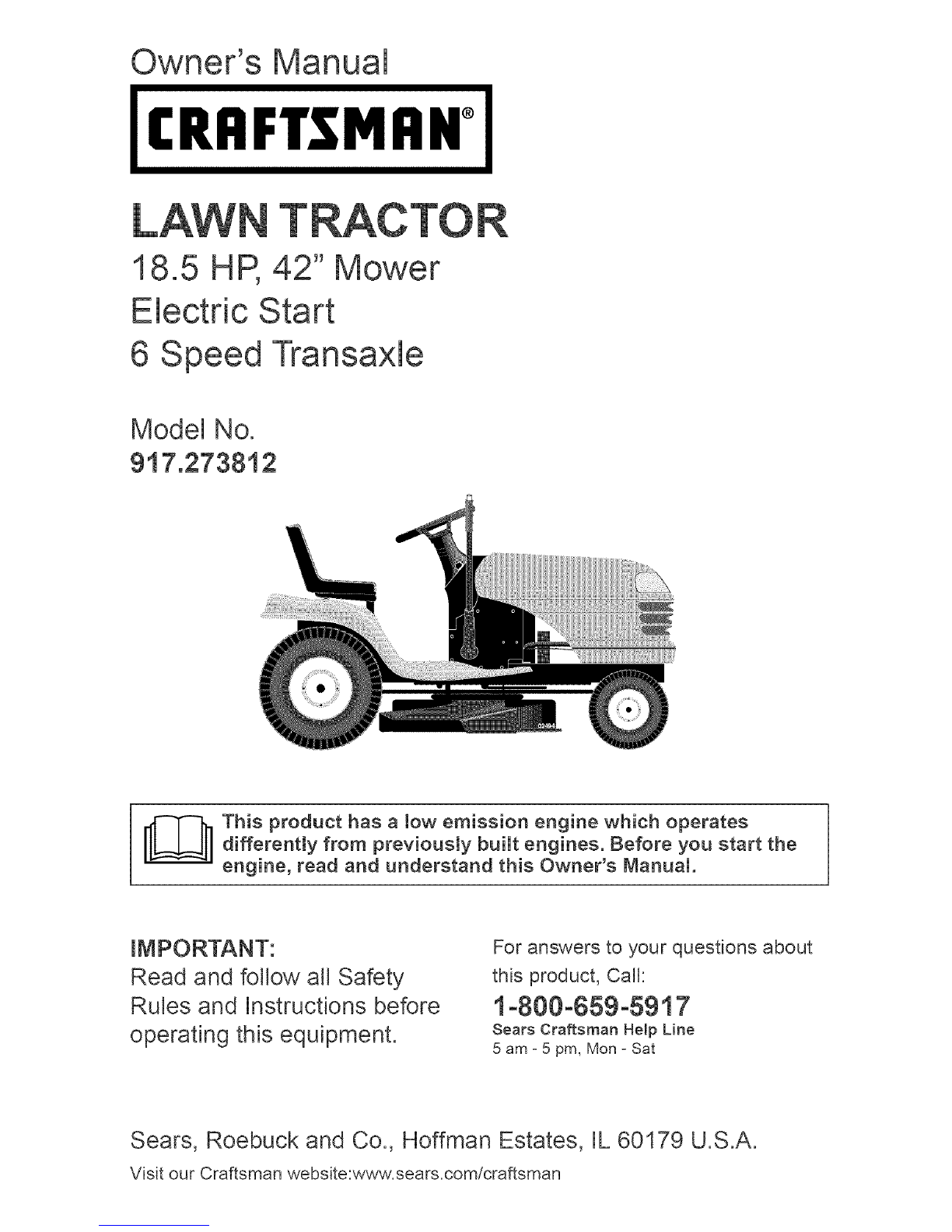

Craftsman 917.2738t2 Manuel utilisateur

Owner's Manual

CRI FTSMIIN°

18.5 HP,42" Mower

Electric Start

6 Speed Transaxle

Model No.

917.2738t2

i]_ his product has a low emission engine which operates

differently from previously built engines. Before you start the

engine, read and understand this Owner's Manual.

Read and follow alJ Safety

Rules and instructions before

operating this equipment.

For answers to your questions about

this product, Call:

1°800°659°5917

Sears Craftsman Help Line

5 am - 5 pm, Mon - Sat

Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A.

Visit our Craftsman website:www.sears.com/craftsman

Warranty ................................................. 2

Safety Rules ........................................... 3

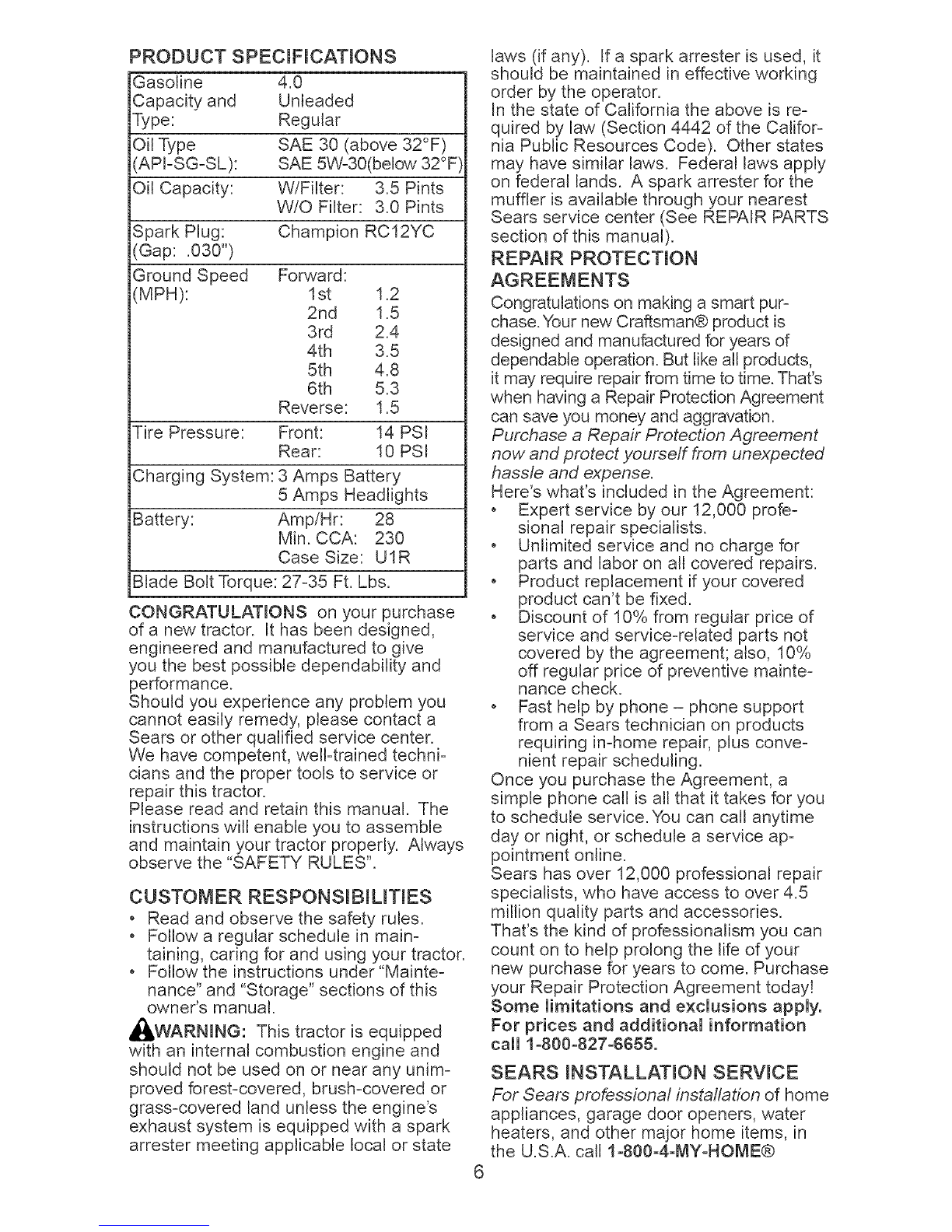

Product Specifications ............................ 6

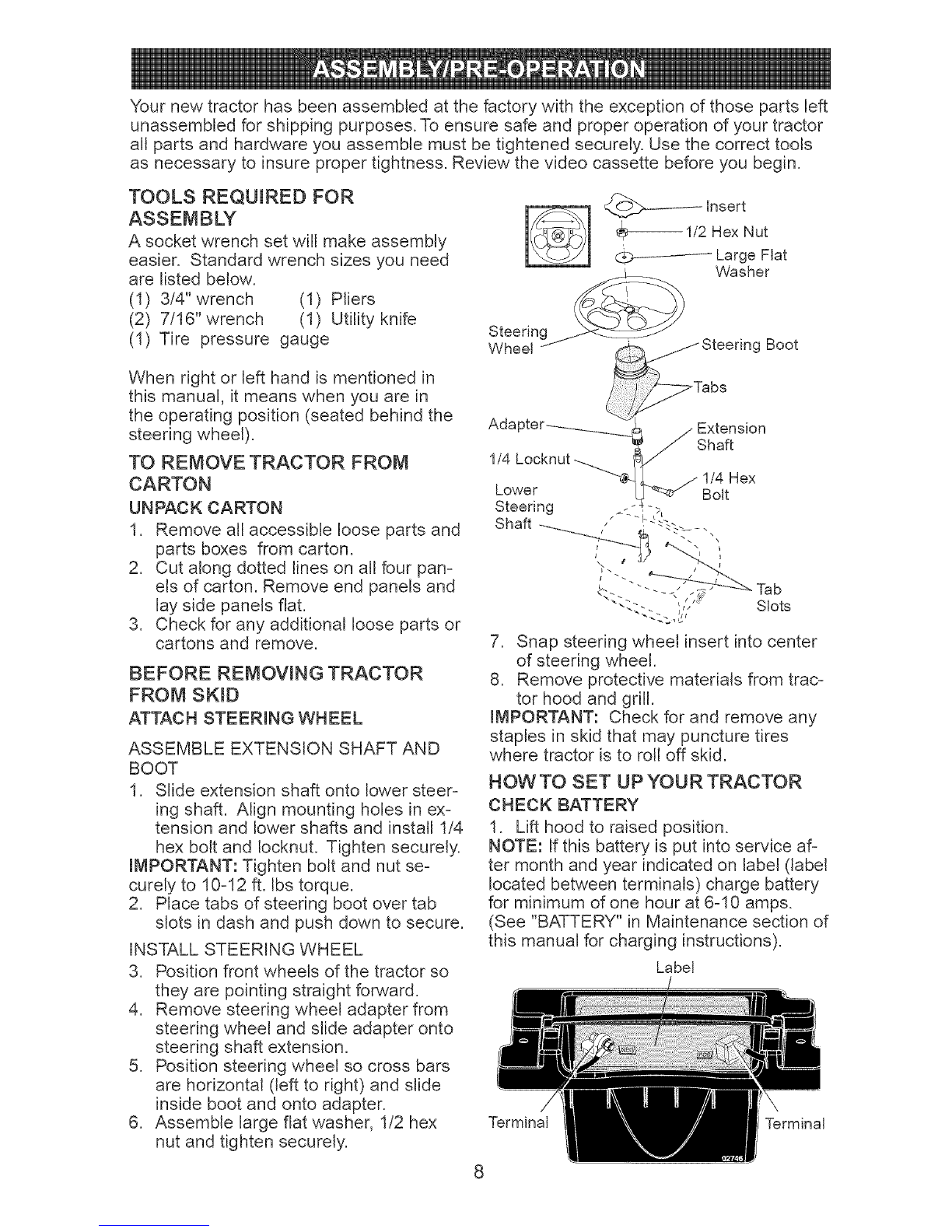

Assembly/Pre-Operation ........................ 8

Operation .............................................. 11

Maintenance Schedule ......................... 17

Maintenance ......................................... 17

Service and Adjustments ...................... 21

Storage ................................................. 27

Troubleshooting .................................... 28

Repair Parts .......................................... 32

Sears Service ......................... Back Cover

LIMITED WARRANTY ON CRAFTSMAN RIDING EQUIPMENT

For two (2) years from the date of purchase, if this Craftsman Riding Equipment is

maintained, lubricated and tuned up according to the instructions in the owner's manual,

Sears will repair or replace free of charge any parts that are found to be defective in

material or workmanship according to the guidelines of coverage listed below. Sears will

also provide free labor for these applicable warranted parts for the two full years. During

the first 30 days of purchase, there will be no charges to service the product at your

home for issues covered by this warranty. (See exclusions below). For your conve-

nience, IN HOME warranty service will still be available after the first 30 days of pur-

chase, but a trip charge will apply. This charge will be waived if the Craftsman product is

dropped off at an authorized Sears location. For the nearest authorized Sears location,

please call 1-800-4-MY-HOME®. This warranty applies only while this product is within

the United States.

This Warranty does not cover:

o Expendable items which become worn during normal use, including but not limited to

blades, spark plugs, air cleaners, belts, and oil filters.

Standard Maintenance Servicing, oil changes, or tune-ups

o Tire replacement or repair caused by punctures from outside objects, such as nails,

thorns, stumps, or glass.

o Repairs necessary because of operator abuse, including but not limited to, damage

caused by towing objects beyond the capability of the riding equipment, impacting

objects that bend the frame or crankshaft, or over-speeding the engine.

o Repairs necessary because of operator negligence, including but not limited to, elec-

trical and mechanical damage caused by improper storage, failure to use the proper

grade and amount of engine oil, failure to keep the deck clear of flammable debris,

or failure to maintain the equipment according to the instructions contained in the

owner's manual.

o Engine (fuel system) cleaning or repairs caused by fuel determined to be contami-

nated or oxidized (stale). In general, fuel should be used within 30 days of its pur-

chase date.

o Normal deterioration and wear of the exterior finishes, or product label replacement.

o Riding equipment used for commercial or rental purposes.

LIMITED WARRANTY ON BATTERY

For ninety (90) days from date of purchase, if any battery included with this riding equip-

ment proves defective in material or workmanship and our testing determines the battery

will not hold a charge, Sears will replace the battery at no charge. During the first 30

days of purchase, there will be no charges to replace the battery at your HOME. After

the first 30 days, for your convenience, IN-HOME warranty service will still be avail-

able but a trip charge will apply. This charge will be waived if the Craftsman product is

dropped off at an authorized Sears location. For the nearest authorized Sears location,

please call 1-800-4-MY-HOME@.

This battery warranty applies only while this product is within the United States.

This warranty gives you specific legal rights, and you may also have other rights, which

vary, from state to state.

Sears, Roebuck and Co.,Dept.817WA, Hoffman Estates, IL 60179

IMPORTANT:Thiscuttingmachineiscapableof amputatinghandsandfeet andthrow-

ingobjects.Failureto observethe followingsafetyinstructionscould resultin serious

injuryordeath.

_IWARNING: Inorderto preventac- °

cidentatstartingwhensettingup,trans-

porting,adjustingor makingrepairs,

alwaysdisconnectsparkplugwire and

placewirewhereitcannotcontactspark

plug.

_I_WARNING: Do notcoastdown a hill in

neutral,you maylosecontrolofthe tractor.

_IWARNING: Towonlythe attachments

that are recommendedbyandcomplywith o

specificationsof themanufacturerofyour o

tractor.Usecommonsensewhentowing.

Operateonlyat thelowestpossiblespeed o

whenon aslope. Tooheavyof a load,

while on aslope,is dangerous.Tirescan o

losetractionwiththegroundandcause

you to losecontrolof yourtractor, o

_IWARNmNG:Engineexhaust,someof

itsconstituents,and certainvehiclecom- °

ponentscontainor emitchemicalsknown

to theStateof Californiato causecancer

andbirthdefectsorother reproductive °

harm.

_:_IWARNING:Batteryposts,terminals

andrelatedaccessoriescontainleadand

leadcompounds,chemicalsknownto the

Stateof Californiato causecancerand

birthdefectsor other reproductiveharm.

Wash hands after handling.

L GENERAL OPERATION

o Read,understand,andfollowall instruc-

tions inthe manualandon the machine

beforestarting.

o Onlyallowresponsibleadults,who are

familiarwith theinstructions,tooperate

themachine.

o Clearthe areaof objectssuch as rocks,

toys,wire, etc., whichcouldbe picked

up andthrownbythe blade.

o Besurethe area is clearofother people

beforemowing.Stopmachineif anyone

entersthe area.

o Nevercarrypassengers.

o Do notmowin reverseunlessabso-

lutelynecessary.Alwayslookdownand

behindbeforeandwhile backing.

Beawareof themowerdischargedirec-

tion anddo notpointit at anyone.Do

notoperatethemowerwithouteither

the entiregrasscatcheror the guardin

place.

Slowdownbeforeturning.

Neverleavearunningmachineunat-

tended. Alwaysturnoff blades,set

parkingbrake,stopengine,andremove

keysbeforedismounting.

Turnoff bladeswhen notmowing.

Stopenginebeforeremovinggrass

catcheror uncloggingchute.

Mowonly in daylightor goodartificial

light.

Donot operatethe machinewhile under

the influenceof alcoholor drugs.

Watchfortrafficwhenoperatingnearor

crossingroadways.

Useextracarewhenloadingor un-

loadingthe machineinto a traileror

truck.

Dataindicatesthatoperators,age60

yearsandabove,are involvedina large

percentageof ridingmower-relatedin-

juries. Theseoperatorsshouldevaluate

their abilityto operatethe ridingmower

safelyenoughto protectthemselvesand

othersfrom seriousinjury.

Keepmachinefreeofgrass, leavesor

other debrisbuild-upwhich cantouch

hotexhaust/engine parts and burn. Do

not allow the mower deck to plow leaves

or other debris which can cause build-

up to occur. Clean any oil or fuel

spillage before operating or storing the

machine. Allow machine to cool before

storage.

H. SLOPE OPERATmON

Slopes are a major factor related to loss-

of-control and tipover accidents, which can

result in severe injury or death. All slopes

require extra caution. If you cannot back

up the slope or if you feel uneasy on it, do

not mow it.

DO:

o Mowup anddownslopes,notacross.

o Removeobstaclessuch as rocks,tree

limbs,etc.

o Watchfor holes,ruts,orbumps. Un-

eventerraincouldoverturnthe machine.

Taft grass can hide obstacles.

o Use slow speed. Choose a low gear

so that you will not have to stop or shift

while on the slope.

o Follow the manufacturer's recommend-

ations for wheel weights or counter-

weights to improve stability.

o Use extra care with grass catchers or

other attachments. These can change

the stability of the machine.

o Keep all movement on the slopes slow

and gradual Do not make sudden

changes in speed or direction.

o Avoid starting or stopping on a slope. If

tires lose traction, disengage the blades

and proceed slowly straight down the

slope.

DO NOT:

Do not turn on slopes unless neces-

sary, and then, turn slowly and gradually

downhill, if possible.

oDo not mow near drop-offs, ditches,

or embankments. The mower could

suddenly turn over if a wheel is over

the edge of a cliff or ditch, or if an edge

caves In.

oDo not mow on wet grass. Reduced

traction could cause sliding.

oDo not try to stabilize the machine by

putting your foot on the ground.

o Do not use grass catcher on steep

slopes.

HI. CHILDREN

Tragic accidents can occur if the operator

is not alert to the presence of children.

Children are often attracted to the ma-

chine and the mowing activity. Neveras-

sume that children will remain where you

last saw them.

o Keep children out of the mowing area

and under the watchful care of another

responsible adult.

o Be alert and turn machine off if children

enter the area.

o Before and when backing, look behind

and down for small children.

o Never carry children. They may fall off

and be seriously injured or interfere with

safe machine operation.

o Never allow children to operate the

machine.

o Use extra care when approaching blind

corners, shrubs, trees, or other objects

that may obscure vision.

inV.SERVmCE

o Use extra care in handling gasoline and

other fuels. They are flammable and

vapors are explosive.

- Use only an approved container.

- Never remove gas cap or add fuel

with the engine running. Allow

engine to cool before refueling. Do

not smoke.

- Never refuel the machine indoors.

- Never store the machine or fuel

container inside where there is an

open flame, such as a water heater.

o Never run a machine inside a closed

area.

o Keep nuts and bolts, especially blade

attachment bolts, tight and keep equip-

ment in good condition.

o Never tamper with safety devices.

Check their proper operation regularly.

o Keep machine free of grass, leaves, or

other debris build-up. Clean oil or fuel

spillage. Allow machine to cool before

storing.

oStop and inspect the equipment if you

strike an object. Repair, if necessary,

before restarting.

o Never make adjustments or repairs with

the engine running.

o Grass catcher components are subject

to wear, damage, and deterioration,

which could expose moving parts or

allow objects to be thrown. Frequently

check components and replace with

manufacturer's recommended parts,

when necessary.

o Mower blades are sharp and can cut.

Wrap the blade(s) or wear gloves, and

use extra caution when servicing them.

o Check brake operation frequently. Ad-

just and service as required.

o Besurethe area is clearofother people

beforemowing.Stopmachineif anyone

entersthe area.

o Nevercarrypassengersorchildren

evenwith thebladesoff.

o Do notmowin reverseunlessabsom

lutelynecessary.Alwayslookdownand

behindbeforeandwhile backing.

o Nevercarry children.Theymayfall off

andbe seriouslyinjuredorinterferewith

safemachineoperation.

o Keepchildrenoutof themowingarea

andunderthewatchfulcare ofanother

responsibleadult.

o Bealert andturn machineoff ifchildren

enterthe area.

o Beforeandwhenbacking,lookbehind

anddownfor smallchildren.

o Mowup anddownslopes(15° Max),not

across.

o Remove obstacles such as rocks, tree

limbs, etc.

oWatch for holes, ruts, or bumps. Uneven

terrain could overturn the machine. Tall

grass can hide obstacles.

o Use slow speed. Choose a low gear

so that you will not have to stop or shift

while on the slope.

o Avoid starting or stopping on a slope. If

tires lose traction, disengage the blades

and proceed slowly straight down the

slope.

o If machine stops while going uphill,

disengage blades, shift into reverse and

back down slowly.

oDo not turn on slopes unless necessary,

and then, turn slowly and gradually

downhill, if possible.

PRODUCT SPECmFICATmONS

Gasoline 4.0

Capacityand Unleaded

Type: Regular

Oil Type SAE 30 (above 32°F)

'APFSG-SL): SAE 5W-30(below 32°F

Oil Capacity: W/'Filter: 3.5 Pints

W/O Filter: 3.0 Pints

Spark Plug: Champion RC12YC

(Gap: .030")

Ground Speed

(MPH): Forward:

t st 1.2

2nd 1.5

3rd 2.4

4th 3.5

5th 4.8

6th 5.3

Reverse: 1.5

Tire Pressure: Front: 14 PSI

Rear: t0 PSI

Charging System: 3 Amps Battery

5 Amps Headlights

Battery: Amp/Hr: 28

Min. CCA: 230

Case Size: U1R

Blade Bolt Torque: 27-35 Ft. Lbs.

CONGRATULATmONS on your purchase

of a new tractor. It has been designed,

engineered and manufactured to give

you the best possible dependability and

performance.

Should you experience any problem you

cannot easily remedy, please contact a

Sears or other qualified service center.

We have competent, well-trained techni-

cians and the proper tools to service or

repair this tractor.

Please read and retain this manual. The

instructions will enable you to assemble

and maintain your tractor properly. Always

observe the "SAFETY RULES".

CUSTOMER RESPONSIBILITIES

o Read and observe the safety rules.

o Follow a regular schedule in main-

taining, caring for and using your tractor.

o Follow the instructions under"Mainte-

nance" and "Storage" sections of this

owner's manual

_bWARNING: This tractor is equipped

with an internal combustion engine and

should not be used on or near any unim-

proved forest-covered, brush-covered or

grass-covered land unless the engine's

exhaust system is equipped with a spark

attester meeting applicable local or state

laws (if any). If a spark arrester is used, it

should be maintained in effective working

order by the operator.

In the state of California the above is re-

quired by law (Section 4442 of the Califor-

nia Public Resources Code). Other states

may have similar laws. Federal laws apply

on federal lands. A spark attester for the

muffler is available through your nearest

Sears service center (See REPAIR PARTS

section of this manual).

REPAmR PROTECTmON

Congratulations on making a smart pur-

chase.Your new Craftsman® product is

designed and manufactured for years of

dependable operation. But like all products,

it may require repair from time to time. That's

when having a Repair Protection Agreement

can save you money and aggravation.

Purchase a Repair Protection Agreement

now and protect yourself from unexpected

hassle and expense.

Here's what's included in the Agreement:

o Expert service by our 12,000 profe-

sional repair specialists.

o Unlimited service and no charge for

parts and labor on all covered repairs.

o Product replacement if your covered

product can't be fixed.

o Discount of 10% from regular price of

service and service-related parts not

covered by the agreement; also, 10%

off regular price of preventive mainte-

nance check.

o Fast help by phone- phone support

from a Sears technician on products

requiring in-home repair, plus conve-

nient repair scheduling.

Once you purchase the Agreement, a

simple phone call is all that it takes for you

to schedule service. You can call anytime

day or night, or schedule a service ap-

pointment online.

Sears has over 12,000 professional repair

specialists, who have access to over 4.5

million quality parts and accessories.

That's the kind of professionalism you can

count on to help prolong the life of your

new purchase for years to come. Purchase

your Repair Protection Agreement today!

Some limitations and exclusions apply.

For prices and additional information

call 1-800-827-665&

SEARS INSTALLATmON SERVICE

For Sears professional installation of home

appliances, garage door openers, water

heaters, and other major home items, in

the U.S.A. call 1-800-4-MY-HOME®

Steering

Wheel Insert

Steering Wheel

(1) Hex Bolt 1/4-28 x 1-1/4

Steering Wheel

Adapter

(1) Locknut 1/2-20

Seat

(1) Large Flat Washer

(1) Locknut 1/4-28

Steering

Extension

Steering Shaft

Boot

(1) Washer

@ 17/32 x 1-3/16 x 12 Gauge

_(1) Knob

Keys

(1) Oil Drain Tube

For Future Use

Slope Sheet Video Cassette

(2) Keys

Your new tractor has been assembled at the factory with the exception of those parts left

unassembled for shipping purposes. To ensure safe and proper operation of your tractor

all parts and hardware you assemble must be tightened securely. Use the correct tools

as necessary to insure proper tightness. Review the video cassette before you begin.

TOOLS REQUIRED FOR

ASSEMBLY

A socket wrench set will make assembly

easier. Standard wrench sizes you need

are listed below.

(1) 3/4" wrench (1) Pliers

(2) 7/16" wrench (1) Utility knife

(1) Tire pressure gauge

When right or left hand is mentioned in

this manual, it means when you are in

the operating position (seated behind the

steering wheel).

TO REMOVE TRACTOR FROM

CARTON

UNPACK CARTON

1, Remove all accessible loose parts and

parts boxes from carton.

2, Cut along dotted lines on all four pare

els of carton, Remove end panels and

lay side panels flat,

3, Check for any additional loose parts or

cartons and remove.

BEFORE REMOVmNG TRACTOR

FROM SKmD

ATTACH STEERING WHEEL

ASSEMBLE EXTENSION SHAFT AND

BOOT

1. Slide extension shaft onto lower steer-

ing shaft. Align mounting holes in exm

tension and lower shafts and install 1/4

hex bolt and Iocknut. Tighten securely.

iMPORTANT: Tighten bolt and nut se-

curely to 10-12 ft. Ibs torque.

2. Place tabs of steering boot over tab

slots in dash and push down to secure.

INSTALL STEERING WHEEL

3. Position front wheels of the tractor so

they are pointing straight forward.

4. Remove steering wheel adapter from

steering wheel and slide adapter onto

steering shaft extension.

5. Position steering wheel so cross bars

are horizontal (left to right) and slide

inside boot and onto adapter.

6. Assemble large flat washer, 1/2 hex

nut and tighten securely.

<_------ insert

_------- 1/2 Hex Nut

_----------- Largo Flat

_@_ Washer

Steering

Wheel JJ Steering Boot

Adapter ......... ___

1/4 Locknut _.._ @_

Lower

Extension

///Shaft

_1/4 Hex

Bolt

Steering ....

Shaft ..... .

"" "'Tab

"-'- "'' Slots

7. Snap steering wheel insert into center

of steering wheel.

8. Remove protective materials from trac-

tot hood and grill.

IMPORTANT: Check for and remove any

staples in skid that may puncture tires

where tractor is to roll off skid.

HOW TO SET UP YOUR TRACTOR

CHECK BATTERY

1. Lift hood to raised position.

NOTE: If this battery is put into service af_

ter month and year indicated on label (label

located between terminals) charge battery

for minimum of one hour at 6m10 amps.

(See "BATTERY" in Maintenance section of

this manual for charging instructions).

Label

Terminal Terminal

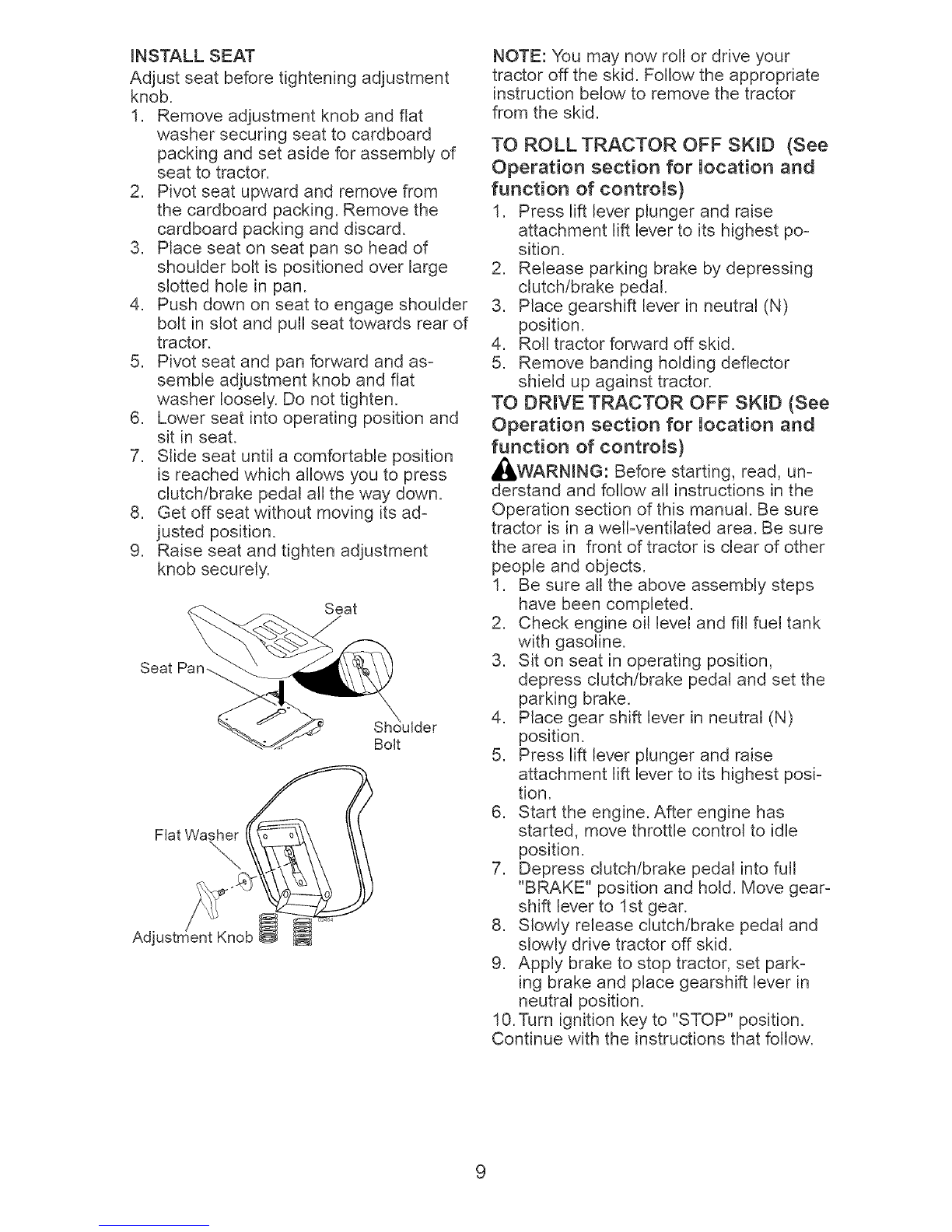

iNSTALL SEAT

Adjust seat before tightening adjustment

knob.

1. Remove adjustment knob and flat

washer securing seat to cardboard

packing and set aside for assembly of

seat to tractor.

2. Pivot seat upward and remove from

the cardboard packing. Remove the

cardboard packing and discard.

3, Place seat on seat pan so head of

shoulder bolt is positioned over large

slotted hole in pan.

4, Push down on seat to engage shoulder

bolt in slot and pull seat towards rear of

tractor.

5, Pivot seat and pan forward and as=

semNe adjustment knob and flat

washer loosely. Do not tighten.

6, Lower seat into operating position and

sit in seat.

7, Slide seat until a comfortable position

is reached which allows you to press

clutch/brake pedal all the way down,

8, Get off seat without moving its ad=

justed position.

9, Raise seat and tighten adjustment

knob securely,

Seat

Bolt

Flat Washer

Adjl Knob

NOTE: You may now roll or drive your

tractor off the skid, Follow the appropriate

instruction below to remove the tractor

from the skid,

TO ROLL TRACTOR OFF SKmD (See

Operation section for mocation and

function of controls)

1. Press lift lever plunger and raise

attachment lift lever to its highest po-

sition.

2, Release parking brake by depressing

clutch!brake pedal.

3, Place gearshift lever in neutral (N)

position,

4, Roll tractor forward off skid.

5, Remove banding holding deflector

shield up against tractor.

TO DRIVE TRACTOR OFF SKmD (See

Operation section for mocation and

function of controms)

,_WARNmNG: Before starting, read, un=

derstand and follow all instructions in the

Operation section of this manual. Be sure

tractor is in a well=ventilated area. Be sure

the area in front of tractor is clear of other

people and objects.

1. Be sure all the above assembly steps

have been completed.

2. Check engine oil level and fill fuel tank

with gasoline.

3. Sit on seat in operating position,

depress clutch/brake pedal and set the

parking brake.

4. Place gear shift lever in neutral (N)

position.

5. Press lift lever plunger and raise

attachment lift lever to its highest posi=

tion.

6. Start the engine. After engine has

started, move throttle control to idle

position.

7, Depress clutch/brake pedal into full

"BRAKE" position and hold, Move gear-

shift lever to Ist gear.

8, Slowly release clutch/brake pedal and

slowly drive tractor off skid.

9, Apply brake to stop tractor, set park=

ing brake and place gearshift lever in

neutral position.

10.Turn ignition key to "STOP" position.

Continue with the instructions that follow,

mNSTALLMULCHER PLATE

(ff previousmy removed)

1. Raise and hold deflector shield in

upright position.

2. Place front of mulcher plate over front

of mower deck opening and slide into

place, as shown.

3. Hook front latch into hole on front of

mower deck.

4. Hook rear latch into hole on back of

mower deck.

_CAUTION: Do not remove deflector

shield from mower.

Deflector

Shield

Mulcher

Latch

Hooks

TO CONVERTTO BAGGmNG OR

DmSCHARGmNG

Simply remove mulcher plate and store in

a safe place. Your mower is now ready for

discharging or installation of optional grass

catcher accessory.

NOTE: It is not necessary to change

blades. The mulcher blades are designed

for discharging and bagging also.

CHECKTmRE PRESSURE

The tires on your tractor were overin-

flated at the factory for shipping purposes.

Correct tire pressure is important for best

cutting performance.

,Reduce tire pressure to PSI shown in

"PRODUCT SPECIFICATIONS" section

of this manual.

CHECK DECK LEVELNESS

For best cutting results, mower hous-

ing should be properly leveled. See "TO

LEVEL MOWER HOUSING" in the Service

and Adjustments section of this manual.

CHECK FOR PROPER POSmTmON

OF ALL BELTS

See the figures that are shown for replac-

ing motion and mower blade drive belts

in the Service and Adjustments section

of this manual. Verify that the belts are

routed correctly.

CHECK BRAKE SYSTEM

After you learn how to operate your trac-

tor, check to see that the brake is properly

adjusted. See "TO ADJUST BRAKE" in

the Service and Adjustments section of

this manual.

,/CHECKLIS T

Before you operate and enjoy your new

tractor, we wish to assure that you receive

the best performance and satisfaction

from this Quality Product.

Please review the following checklist:

,/All assembly instructions have been

completed.

,/No remaining loose parts in carton.

,/Battery is properly prepared and

charged. (Minimum 1 hour at 6 amps).

,/Seat is adjusted comfortably and tight-

ened securely.

,/All tires are properly inflated. (For ship-

ping purposes, the tires were overin-

flated at the factory).

,/Be sure mower deck is properly leveled

side-to-side/front-to-rear for best cutting

results. (Tires must be properly inflated

for leveling).

,/Check mower and drive belts. Be sure

they are routed properly around pulleys

and inside all belt keepers.

,/Check wiring. See that all connections

are still secure and wires are properly

clamped.

While learning how to use your tractor, pay

extra attention to the following important

items:

,/Engine oil is at proper level.

,/Fuel tank is filled with fresh, clean, regu-

lar unleaded gasoline.

,/Become familiar with all controls - their

location and function. Operate them

before you start the engine.

,/Be sure brake system is in safe oper-

ating condition.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Craftsman Tondeuse à gazon

Craftsman

Craftsman 917.25693 Manuel utilisateur

Craftsman

Craftsman 253632 Manuel du propriétaire

Craftsman

Craftsman 917.272244 Manuel utilisateur

Craftsman

Craftsman 917.377130 Manuel utilisateur

Craftsman

Craftsman 917.377553 Manuel utilisateur

Craftsman

Craftsman 917.377520 Manuel utilisateur

Craftsman

Craftsman 917.375630 Manuel utilisateur

Craftsman

Craftsman EZ3 917.258591 Manuel utilisateur

Craftsman

Craftsman 917.272681 Manuel utilisateur

Craftsman

Craftsman 917.275662 Manuel utilisateur

Craftsman

Craftsman 138.98818 Manuel utilisateur

Craftsman

Craftsman 917.388512 Manuel utilisateur

Craftsman

Craftsman 917.275700 Manuel utilisateur

Craftsman

Craftsman 917.374545 Manuel utilisateur

Craftsman

Craftsman 917.385121 Manuel utilisateur

Craftsman

Craftsman EZ3 917.38713 Manuel utilisateur

Craftsman

Craftsman 917.375503 Manuel utilisateur

Craftsman

Craftsman 917.379241 Manuel utilisateur

Craftsman

Craftsman 917.9997B Manuel utilisateur

Craftsman

Craftsman 23.0 HP 917.275031 Manuel utilisateur

Craftsman

Craftsman 917.270412 Manuel utilisateur

Craftsman

Craftsman 917.379601 Manuel utilisateur

Craftsman

Craftsman 917.370670 Manuel utilisateur

Craftsman

Craftsman 917.388900 Manuel utilisateur

Manuels Tondeuse à gazon populaires d'autres marques

RHINO

RHINO 1958 Manuel utilisateur

Wolf Garten

Wolf Garten Compact plus 40 B Manuel utilisateur

Cub Cadet

Cub Cadet LTX 1045 Manuel utilisateur

GGP ITALY SPA

GGP ITALY SPA CR/CS 434 SERIES Manuel utilisateur

Challenge

Challenge CH18V2 Instructions de fonctionnement

TALEN TOOLS

TALEN TOOLS AVR HGM30 Manuel utilisateur

DEWEZE

DEWEZE ATM-725 Manuel d'utilisation

Weed Eater

Weed Eater 180083 Manuel utilisateur

Husqvarna

Husqvarna Poulan Pro PP185A42 Manuel utilisateur

Better Outdoor Products

Better Outdoor Products Quick Series Manuel utilisateur

Cub Cadet

Cub Cadet 23HP Z-Force 60 Manuel d'utilisation

MTD

MTD 795, 792, 791, 790 Manuel utilisateur

Toro

Toro Groundsmaster 3505-D Manuel utilisateur

Dennis

Dennis FT 610 Manuel utilisateur

AIRFORCE

AIRFORCE F-15 Gen 3 Manuel utilisateur

MTD

MTD 126-220-000 Manuel utilisateur

Toro

Toro 74806 Manuel utilisateur

Stihl

Stihl RMA 443 PV Manuel utilisateur
