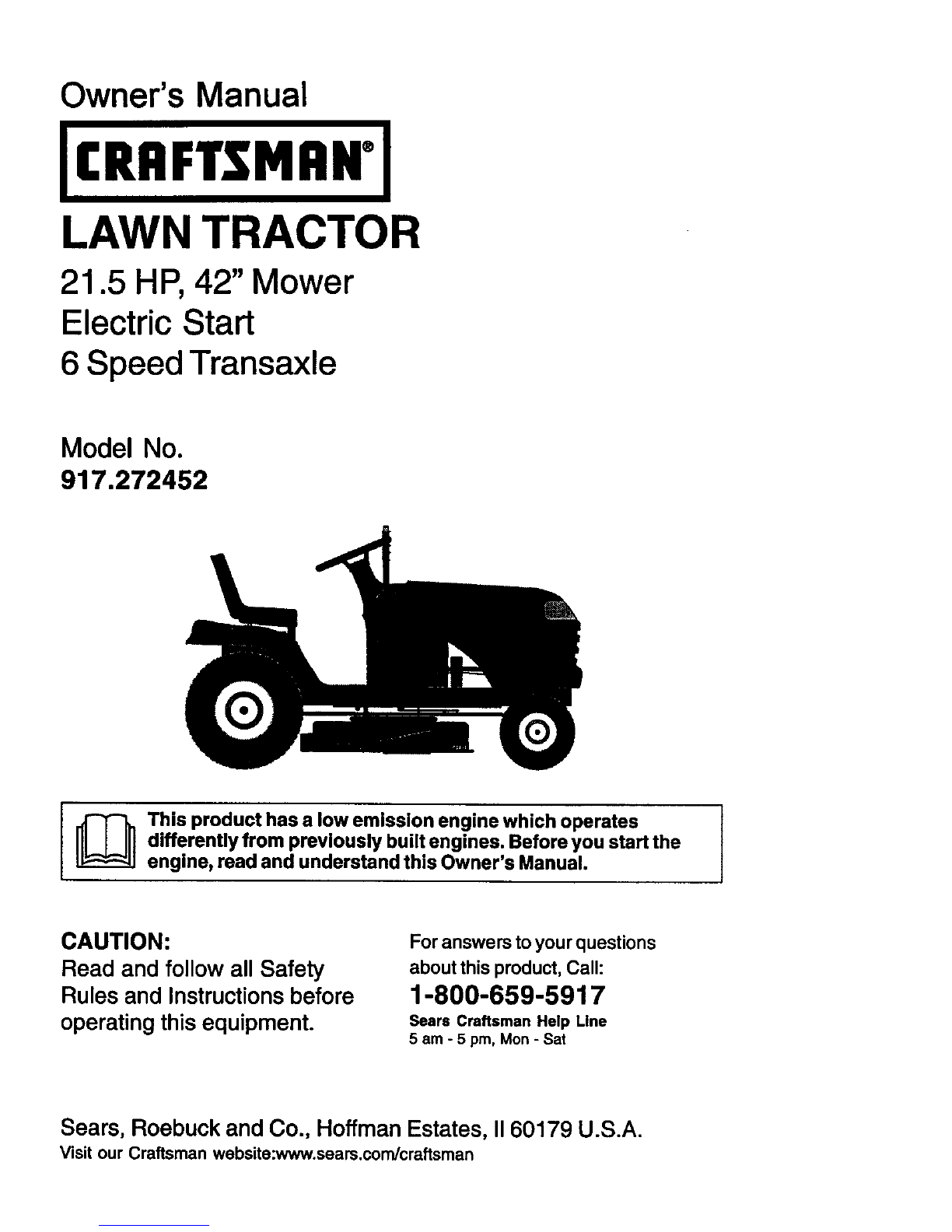

Craftsman 917.272452 Manuel utilisateur

Owner's Manual

JCRIIFTSMRN"I

LAWN TRACTOR

21.5 HP, 42" Mower

Electric Start

6 Speed Transaxle

Model No.

917.272452

[_] his product has a low emission engine which operates

differently from previously built engines. Before you start the

engine, read and understand this Owner's Manual.

CAUTION:

Read and follow all Safety

Rules and Instructions before

operating this equipment.

For answers toyour questions

aboutthis product,Call:

1-800-659-5917

Sears Craftsman Help Line

5 am -5 pm, Mon- Sat

Sears, Roebuck and Co., Hoffman Estates, II 60179 U.S.A.

Visit our Craftsman website:www.sears.com/craftsman

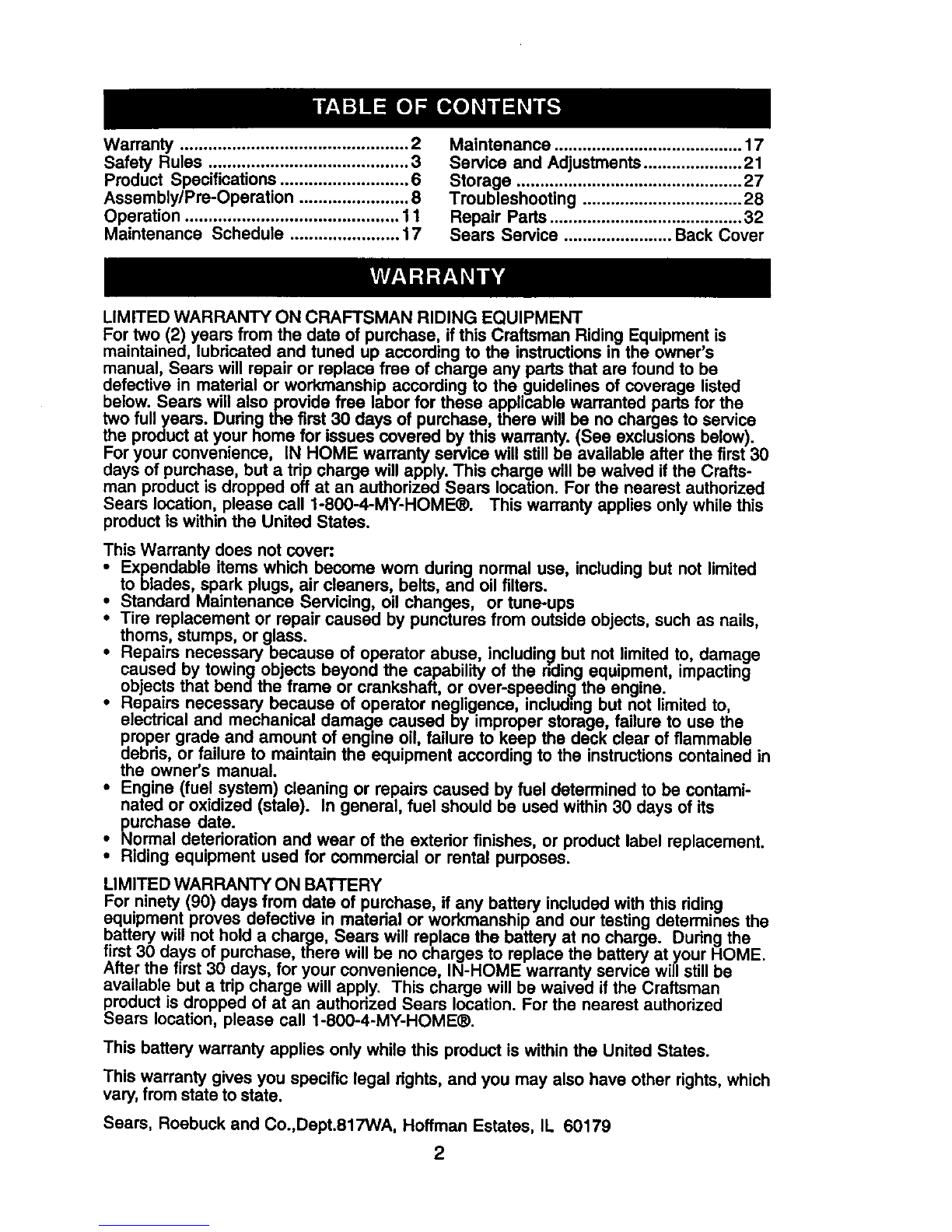

Warranty ................................................ 2

Safety Rules .......................................... 3

Product Specifications ........................... 6

Assembly/Pre-Operation ....................... 8

Operation ............................................. 11

Maintenance Schedule ....................... 17

Maintenance ........................................ 17

Service and Adjustments..................... 21

Storage ................................................ 27

Troubleshooting .................................. 28

Repair Parts ......................................... 32

Sears Service ....................... Back Cover

LIMITED WARRANTY ON CRAFTSMAN RIDING EQUIPMENT

For two (2) years from the date of purchase, if this Craftsman Riding Equipment is

maintained, lubdcated and tuned up according to the instructionsin the owner's

manual, Sears will repair or replace free of charge any parts that are found to be

defective in material or workmanship according to the guidelines of coverage listed

below. Sears will alsoprovide free labor for these applicable warranted pads for the

two full years. Dudng the first 30 days of purchase, there will be no charges to service

the product at your home for issues covered by this warranty. (See exclusions below).

For your convenience, IN HOME warranty service will stillbe available after the first 30

days of purchase, but a tdp charge will apply. This charge will be waived if the Crafts-

man product is dropped offat an authorized Sears location. For the nearest authorized

Sears location, please call 1-800-4-MY-HOME®. This warranty applies only while this

product is within the United States.

This Warranty does not cover"

•Expendable items which become wom dudng normal use, including but not limited

to blades, spark plugs, air cleaners, belts, and oil filters.

•Standard Maintenance Servicing, oil changes, or tune-ups

•Tire replacement or repair caused by punctures from outside objects, such as nails,

thorns, stumps, or glass.

iRepairs necessary because of operator abuse, includin_ but not limited to, damage

caused by towing objects beyond the capability of the nding equipment, impacting

objects that bendthe frame or crankshaft or over-speedin._ the engine.

Rapa rs necessary because of operator negligence, including but not limited to,

electrical and mechanical damage caused by improper storage, failure to use the

proper grade and amount of engine oil, failure to keep the deck clear of flammable

debris, or failure to maintain the equipment according to the instructionscontained in

the owner's manual.

•Engine (fuel system) cleaning or repairs caused by fuel determined to be contami-

nated or oxidized (stale). In general, fuel should be used within 30 days of its

purchase date.

•Normal deterioration and wear of the extedor finishes, or product label replacement.

•Riding equipment used for commercial or rental purposes.

LIMITED WARRANTY ON BATTERY

For ninety (90) days from date of purchase, if any battery included with this riding

equipment proves defective in matedal or workmanship and our testing determines the

battery will not hold a charge, Sears will replace the battery at no charge. During the

first 30 days of purchase, there will be no charges to replace the battery at your HOME.

After the first 30 days, for your convenience, IN-HOME warranty service will still be

available but atrip charge will apply. This charge will be waived if the Craftsman

product is dropped of at an authorized Sears location. For the nearest authorized

Sears location, please call 1-800-4-MY-HOME®.

This battery warranty applies only while this product is within the United States.

This warranty gives you specific legal dghts, and you may also have other rights, which

vary,from state to state.

Sears, Roebuck and Co.,Dept.817WA, Hoffman Estates, IL 60179

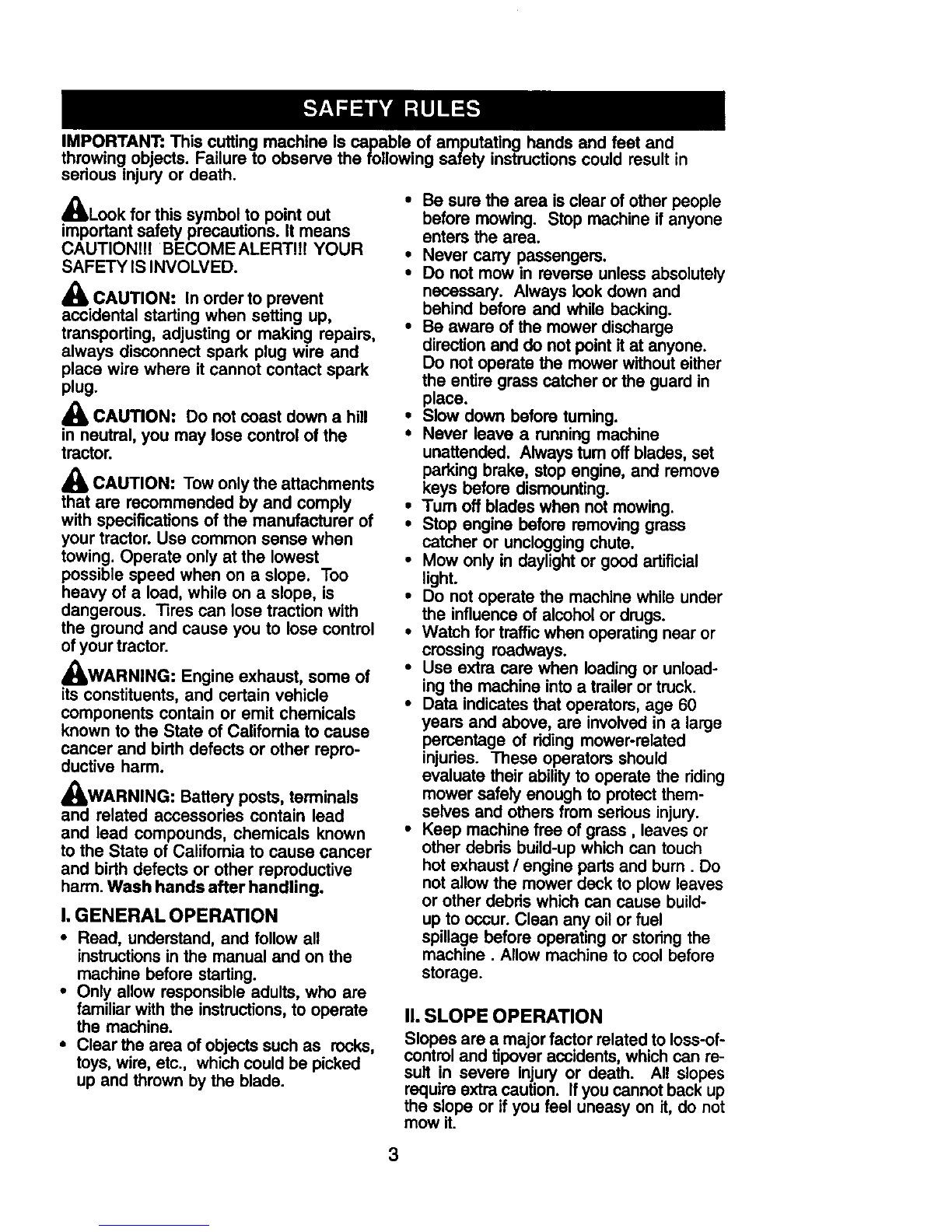

IMPORTANT: This cutting machine Is capable of amputating hands and feet and

throwing objects. Failure to observe the following safety instructions could result in

serious injury or death.

4BkLookfor this symbol to point out

important safety precautions. It means

CAUTIONI!! BECOMEALERTI!! YOUR

SAFETY IS INVOLVED.

,_ CAUTION: In order to prevent

accidental starting when setting up,

transporting, adjusting or making repairs,

always disconnect spark plug wire and

place wire where it cannot contact spark

plug.

,_ CAUTION: Do not coast down a hill

in neutral, you may lose control of the

tractor.

CAUTION: Tow onlythe attachments

that are recommended by and comply

with specificationsof the manufacturer of

your tractor. Use common sense when

towing. Operate only at the lowest

possible speed when on a slope. Too

heavy of a load, while on a slope, is

dangerous. _res can lose traction with

the ground and cause you to lose control

of yourtractor.

_WARNING: Engine exhaust, some of

its constituents, and certain vehicle

components contain or emit chemicals

known to the State of California to cause

cancer and birthdefects or other repro-

ductive harm.

_,WARNING: Battery posts, terminals

and related accessories contain lead

and lead compounds, chemicals known

to the State of California to cause cancer

and birthdefects or other reproductive

harm.Wash hands after handling.

I, GENERAL OPERATION

•Read, understand, and follow all

instructionsin the manual and on the

machine before starting.

•Only allow responsible adults, who are

familiar with the instructions,to operate

the machine.

•Clear the area of objectssuch as rocks,

toys,wire, etc., whichcould be picked

up and thrown by the blade.

•Be sure the area is clear of other people

before mowing. Stop machine if anyone

enters the area.

•Never carry passengers.

•Do not mow in reverse unlessabsolutely

necessary. Always look down and

behind before and while backing.

•Be aware of the mower discharge

directionand do not point itat anyone.

Do not operate the mower withouteither

the entiregrass catcheror the guard in

place.

•Slow down before tuming.

•Never leave a runningmachine

unattended. Always tum off blades, set

parking brake, stop engine, and remove

keys before dismounting.

•Tum off blades when not mowing.

•Stop engine before removing grass

catcher or uncloggingchute.

•Mow only in daylightor good artificial

light.

•Do not operate the machine while under

the influence of alcohol or drugs.

•Watch for trafficwhen operating near or

crossing roadways.

•Use extra care when loading or unload-

ing the machine into a trailer ortruck.

•Data indicatesthat operators, age 60

years and above, are involvedin a large

percentage of riding mower-related

injuries. These operatorsshould

evaluate their ability to operate the riding

mower safely enough to protect them-

selves and others from seriousinjury.

•Keep machine free of grass, leaves or

other debris build-upwhich can touch

hot exhaust /engine parts and bum. Do

not allow the mower deck to plow leaves

or other debris which can cause build-

up to occur. Clean any oil or fuel

spillage before operating or storing the

machine. Allow machine to cool before

storage.

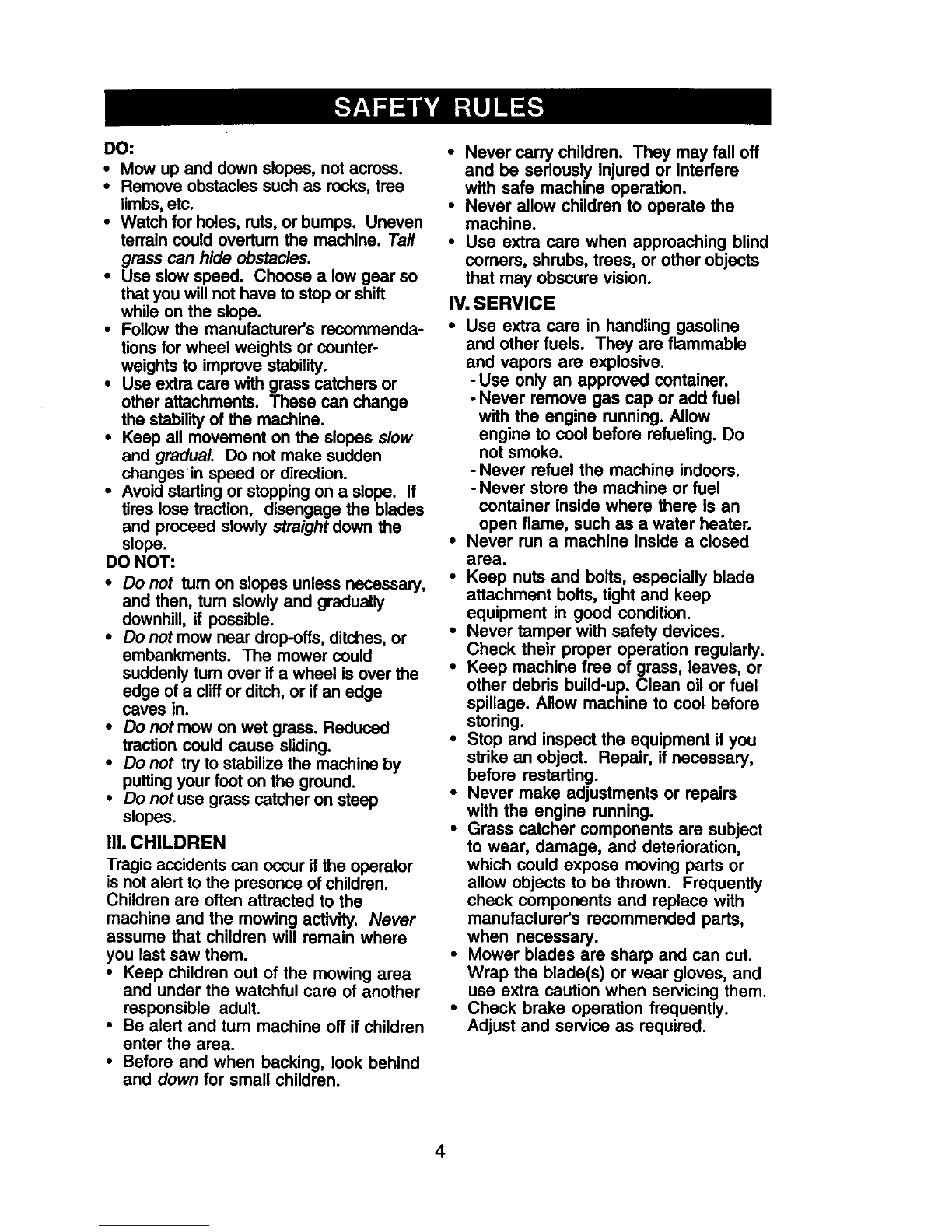

II. SLOPE OPERATION

Slopes are a major factor related to loss-of-

control and tipoveraccidents, which can re-

suit in severe Injury or death. All slopes

require extra caution. Ifyou cannot back up

the slope or if you feel uneasy on it, do not

mow it.

DO:

•Mow up and down slopes, not across.

• Remove obstaclessuch as rocks,tree

limbs,etc.

•Watch for holes, ruts,or bumps. Uneven

terrain could overtum the machine. Tall

grass can hide obstacles.

•Use slow speed. Choose alow gear so

thatyou will not have to stop or shift

while on the slope.

•Follow the manufacturer's recommenda-

tions for wheel weights or counter-

weights to improve stability.

• Use extra care with grass catchers or

other attachments. These can change

thestabilityofthemachine.

•Keep allmovement on theslopesslow

and gradual.Do notmake sudden

changesinspeed or direction.

•Avoidstartingorstoppingon a slope.If

tireslosetraction,disengagetheblades

and proceed slowly straight down the

slope.

DO NOT:

•Do not turn on slopes unless necessary,

and then, turn slowly and gradually

downhill, if possible.

•Do not mow near drop-offs, ditches,or

embankments. The mower could

suddenly turn over if a wheel is over the

edge of acliffor ditch,or ifan edge

caves in.

•Do not mow on wet grass. Reduced

traction could cause sliding.

•Do not try to stabilizethe machine by

puttingyour foot on the ground.

•Do not use grass catcher on steep

slopes.

III. CHILDREN

Tragic accidentscan occurif the operator

is notalert to the presence ofchildren.

Children are often attracted to the

machine and the mowing activity. Never

assume that children will remain where

you last saw them.

•Keep children out of the mowing area

and under the watchful care of another

responsible adult.

•Be alert and turn machine off if children

enter the area.

•Before and when backing, look behind

and down for small children.

•Never carry children. They may fall off

and be sedously injured or interfere

with safe machine operation.

•Never allow children to operate the

machine.

•Use extra care when approaching blind

comers, shrubs, trees, or other objects

that may obscure vision.

IV. SERVICE

•Use extra care in handling gasoline

and other fuels. They are flammable

and vapors are explosive.

-Use only an approved container.

- Never remove gas cap or add fuel

with the engine running. Allow

engine to cool before refueling. Do

not smoke.

-Never refuel the machine indoors.

- Never store the machine or fuel

container inside where there is an

open flame, such as a water heater.

•Never run a machine inside a closed

area.

•Keep nuts and bolts, especially blade

attachment bolts, tight and keep

equipment in good condition.

•Never tamper with safety devices.

Check their proper operation regularly.

•Keep machine free of grass, leaves, or

other debris build-up. Clean oil or fuel

spillage. Allow machine to cool before

storing.

•Stop and inspect the equipment if you

strike an object. Repair, if necessary,

before restarting.

•Never make adjustments or repairs

with the engine running.

•Grass catcher components are subject

to wear, damage, and detedoration,

which could expose moving parts or

allow objects to be thrown. Frequently

check components and replace with

manufacturer's recommended parts,

when necessary.

•Mower blades are sharp and can cut.

Wrap the blade(s) or wear gloves, and

use extra caution when servicing them.

•Check brake operation frequently.

Adjust and service as required.

•Be sure the area is clear of other

people before mowing. Stop machine if

anyone enters the area.

•Never carry passengers or children

even with the blades off.

•Do not mow in reverse unless abso-

lutely necessary. Always look down

and behind before and while backing.

•Never carry children. They may fall off

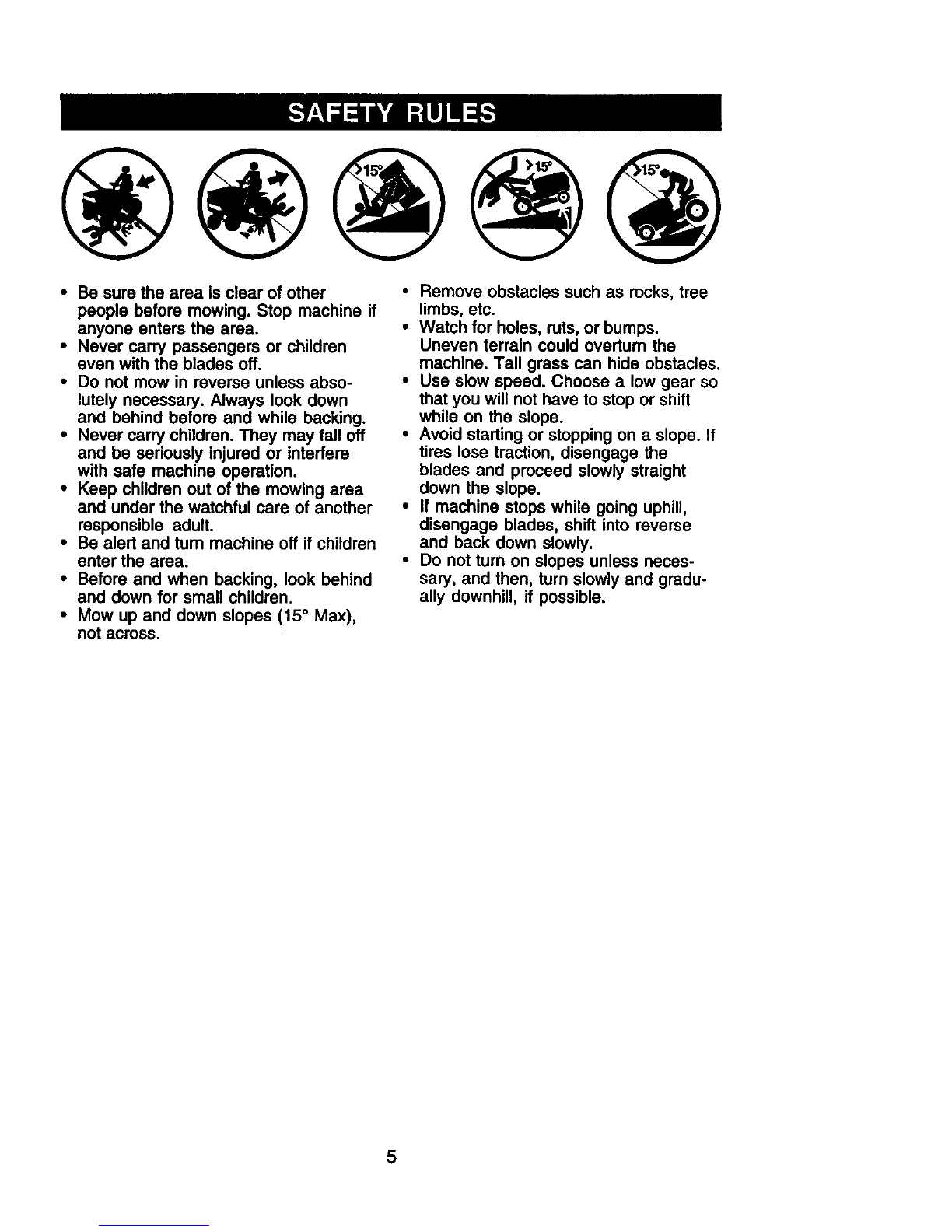

and be seriously injured or interfere

with safe machine operation.

•Keep children out of the mowing area

and under the watchful care of another

responsible adult.

•Be alert and tum machine off if children

enter the area.

•Before and when backing, look behind

and down for small children.

•Mow up and down slopes (15° Max),

not across.

Remove obstacles such as rocks, tree

limbs, etc.

Watch for holes, ruts, or bumps.

Uneven terrain could overturn the

machine. Tall grass can hide obstacles.

Use slow speed. Choose a low gear so

that you will not have to stop or shift

while on the slope.

Avoid starting or stopping on a slope. If

tires lose traction, disengage the

blades and proceed slowly straight

down the slope.

If machine stops while going uphill,

disengage blades, shift into reverse

and back down slowly.

Do not turn on slopes unless neces-

sary, and then, turn slowly and gradu-

ally downhill, if possible.

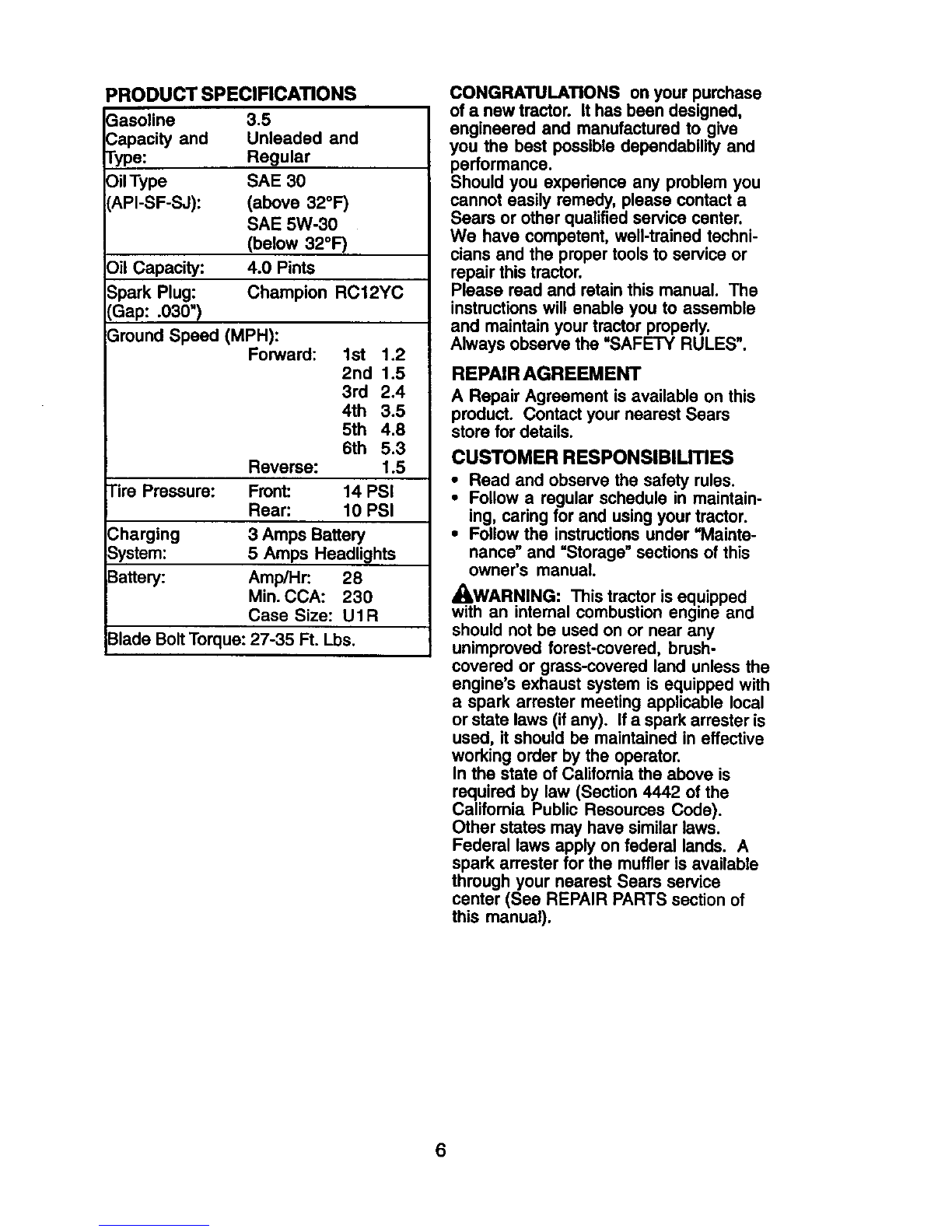

PRODUCT SPECIRCATIONS

"_asoline

Capacity and

rype:

_)ilType

_,PI-SF-SJ):

3il Capacity:

3park Plug:

',Gap: .030")

3round Speed (MPH):

Forward:

3.5

Unleaded and

Regular

SAE 30

(above 32°F)

SAE 5W-30

(below 32°F)

4.0 Pints

Champion RC12YC

1st 1.2

2nd 1.5

3rd 2.4

4th 3.5

5th 4.8

6th 5.3

Reverse: 1.5

Tire Pressure: Front: 14 PSI

Rear: 10 PSI

Charging 3 Amps Battery

System: 5 Amps Headlights

Battery: Amp/Hr: 28

Min. CCA: 230

Case Size: UIR

Blade Bolt Torque: 27-35 Ft. Lbs.

CONGRATULATIONS on your purchase

of a new tractor. It has been designed,

engineered and manufactured to give

you the best possible dependability and

performance.

Should you expedence any problem you

cannot easily remedy, please contact a

Sears or other qualified service center.

We have competent, well-trained techni-

cians and the proper tools to service or

repair this tractor.

Please read and retain this manual. The

instructionswill enable you to assemble

and maintain your tractor properly.

Always observe the "SAFETY RULES".

REPAIR AGREEMENT

A Repair Agreement is available on this

product. Contact your nearest Sears

store for details.

CUSTOMER RESPONSIBILITIES

•Read and observe the safety rules.

•Follow a regular schedule in maintain-

ing, caring for and using your tractor.

•Follow the instructions under "Mainte-

nance" and "Storage" sections of this

owner's manual.

_,WARNING: This tractor is equipped

with an internal combustion engine and

should not be used on or near any

unimproved forest-covered, brush-

covered or grass-covered land unless the

engine's exhaust system is equipped with

a spark arrester meeting applicable local

or state laws (if any). If a spark arrester is

used, it should be maintained in effective

working order by the operator.

In the state of California the above is

required by law (Section 4442 of the

California Public Resources Code).

Other states may have similar laws.

Federal laws apply on federal lands. A

spark arrester for the muffler is available

through your nearest Sears service

center (See REPAIR PARTS section of

this manual).

Steering

Wheel Insert

Steering Wheel

(1) Hex Bolt 1/4-28 x 1-1/4

_Steedng Wheel

Adapter

(1) Locknut 1/2-20

_St_eo_g

(1) Large Flat Washer

(1) Locknut

114-28

Steedng

Extension

Shaft

Seat

(1) Washer

17132x 1-3/16 x 12 Gauge

_(1) Knob

Keys

(2) Keys

(_1_(1) O_ Drain Tub_

For Future Use

Slope Sheet Video Cassette

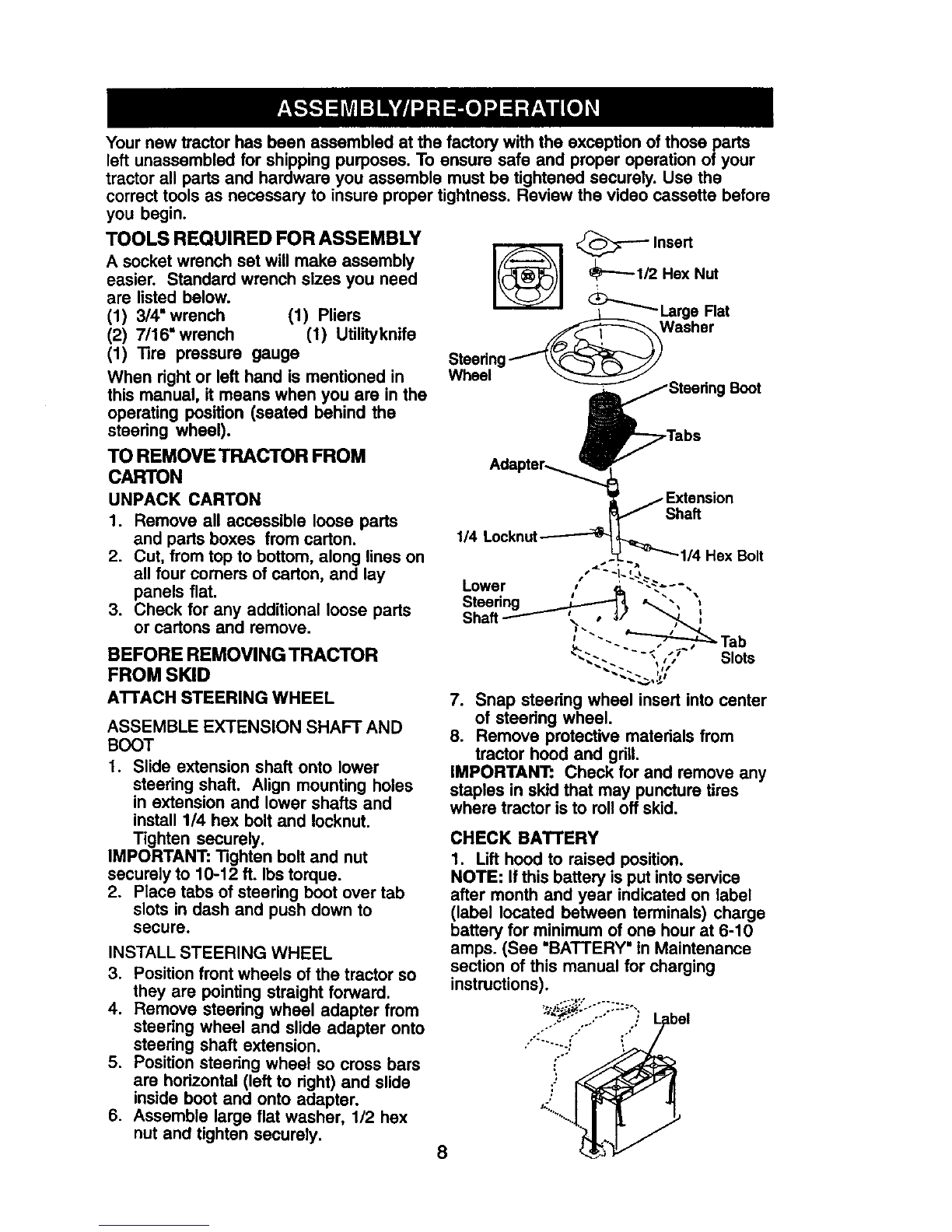

Your new tractor has been assembled at the factory with the exception of those parts

left unassambled for shipping purposes. To ensure safe and proper operation of your

tractor all parts and hardware you assemble must be tightened securely. Use the

correct tools as necessary to insure proper tightness. Review the video cassette before

you begin.

TOOLS REQUIRED FOR ASSEMBLY

A socket wrench set will make assembly

easier. Standard wrench sizes you need

are listed below.

(1) 3/4" wrench (1) Pliers

(2) 7/16" wrench (1) Utilityknife

(1) Tire pressure gauge

When right or left hand is mentioned in

this manual, it means when you are in the

operating position (seated behind the

steering wheel).

TO REMOVE TRACTOR FROM

CARTON

UNPACK CARTON

1. Remove all accessible loose parts

and parts boxes from carton.

2. Cut, from top to bottom, along lines on

all four comers of carton, and lay

panels flat.

3. Check for any additional loose parts

or cartons and remove.

BEFORE REMOVING TRACTOR

FROM SKID

ATTACHSTEERINGWHEEL

ASSEMBLE EXTENSION SHAFT AND

BOOT

1. Slide extension shaft onto lower

steering shaft. Align mounting holes

in extension and lower shafts and

install 1/4 hex bolt and Iocknut.

Tighten securely.

IMPORTANT: "13ghtanbolt and nut

securely to 10-12 ft. Ibs torque.

2. Place tabs of steering boot over tab

slots in dash and push down to

secure.

INSTALL STEERING WHEEL

3. Position front wheels of the tractor so

they are pointing straight forward.

4. Remove steedng wheel adapter from

steering wheel and slide adapter onto

steedng shaft extension.

5. Position steering wheel so cross bars

are horizontal (left to right) and slide

inside boot and onto adapter.

6. Assemble large flat washer, 1/2 hex

nut and tighten securely.

_Insert

I( )1 HexNut

Whee,

Adapter_ --

Extension

Shaft

1/4 Locknut-------_ _'_"_1/4 Hex Bolt

Lower ,_. --._--..

Steenng _,_-,

_'-_. ",,;/ Slots

7. Snap steering wheel insert into center

of steedng wheel.

8. Remove protective materials from

tractor hood and gdll.

IMPORTANT: Check for and remove any

staples in skid that may puncture tires

where tractor is to roll off skid.

CHECK BATTERY

1. Lift hood to raised position.

NOTE: If this battery is put into service

after month and year indicated on label

(label located between terminals) charge

battery for minimum of one hour at 6-10

amps. (See "BATTERY" in Maintenance

section of this manual for charging

instructions).

_:_"i.;':::::':, __be,

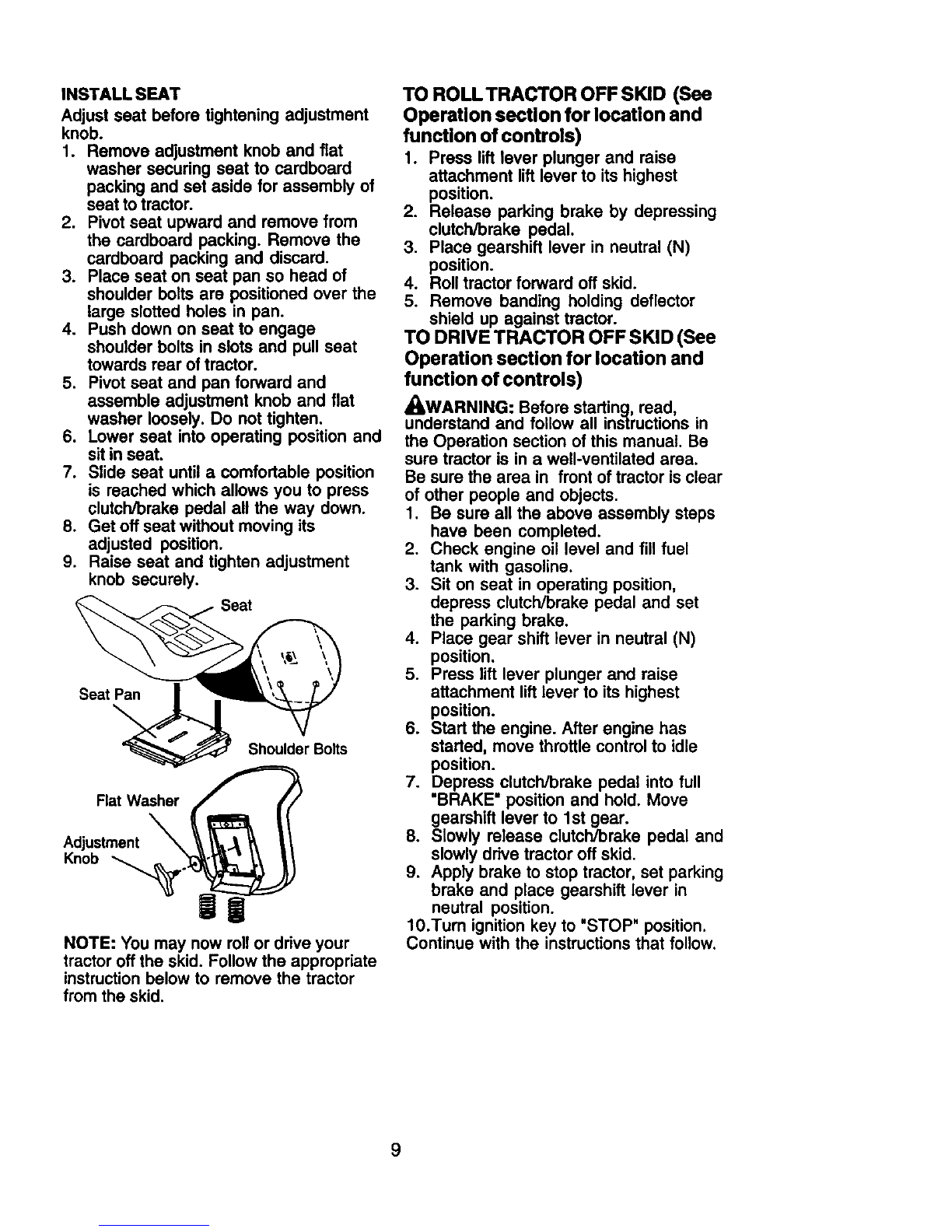

INSTALL SEAT

Adjust seat before tightening adjustment

knob.

1. Remove adjustment knob and fiat

washer securing seat to cardboard

packing and set aside for assembly of

seat to tractor.

2. Pivot seat upward and remove from

the cardboard packing. Remove the

cardboard packing and discard.

3. Place seat on seat pan so head of

shoulder bolts are positioned over the

large slotted holes in pan.

4. Push down on seat to engage

shoulder bolts in slots and pull seat

towards rear of tractor.

5. Pivot seat and pan forward and

assemble adjustment knob and flat

washer loosely. Do not tighten.

6. Lower seat into operating position and

sit in seat.

7. Slide seat until a comfortable position

is reached which allows you to press

clutch/brake pedal all the way down.

8. Get off seat without moving its

adjusted position.

9. Raise seat and tighten adjustment

knob securely.

Seat

Seat Pan

Shoulder Bolts

Flat Washer

Adjustment

Knob

NOTE: You may now roll or drive your

tractor off the skid. Follow the appropriate

instruction below to remove the tractor

from the skid.

TO ROLLTRACTOR OFF SKID (See

Operation section for location and

function of controls)

1. Press liftlever plunger and raise

attachment liftlever to its highest

position.

2. Release parking brake by depressing

clutch/brake pedal.

3, Place gearshift lever in neutral (N)

position.

4. Roll tractor forward off skid.

5. Remove banding holding deflector

shield up against tractor.

TO DRIVE TRACTOR OFF SKID (See

Operation section for location and

function of controls)

_WARNING: Before starting, read,

understand and follow all instructionsin

the Operation section of this manual. Be

sure tractor is in a well-ventilated area.

Be sure the area in front oftractor isclear

of other people and objects.

1. Be sure all the above assembly steps

have been completed.

2. Check engine oil level and fill fuel

tank with gasoline.

3. Sit on seat in operating position,

depress clutch/brake pedal and set

the parking brake.

4. Place gear shift lever in neutral (N)

position.

5. Press lift lever plunger and raise

attachment liftlever to its highest

position.

6. Start the engine. After engine has

started, move throttle controlto idle

position.

7. Depress clutch/brake pedal into full

"BRAKE" position and hold. Move

gearshift lever to 1st gear.

8. Slowly release clutch/brake pedal and

slowly drive tractor off skid.

9. Apply brake to stop tractor, set parking

brake and place gearshift lever in

neutral position.

10.Turn ignitionkey to "STOP" position.

Continue with the instructionsthat follow.

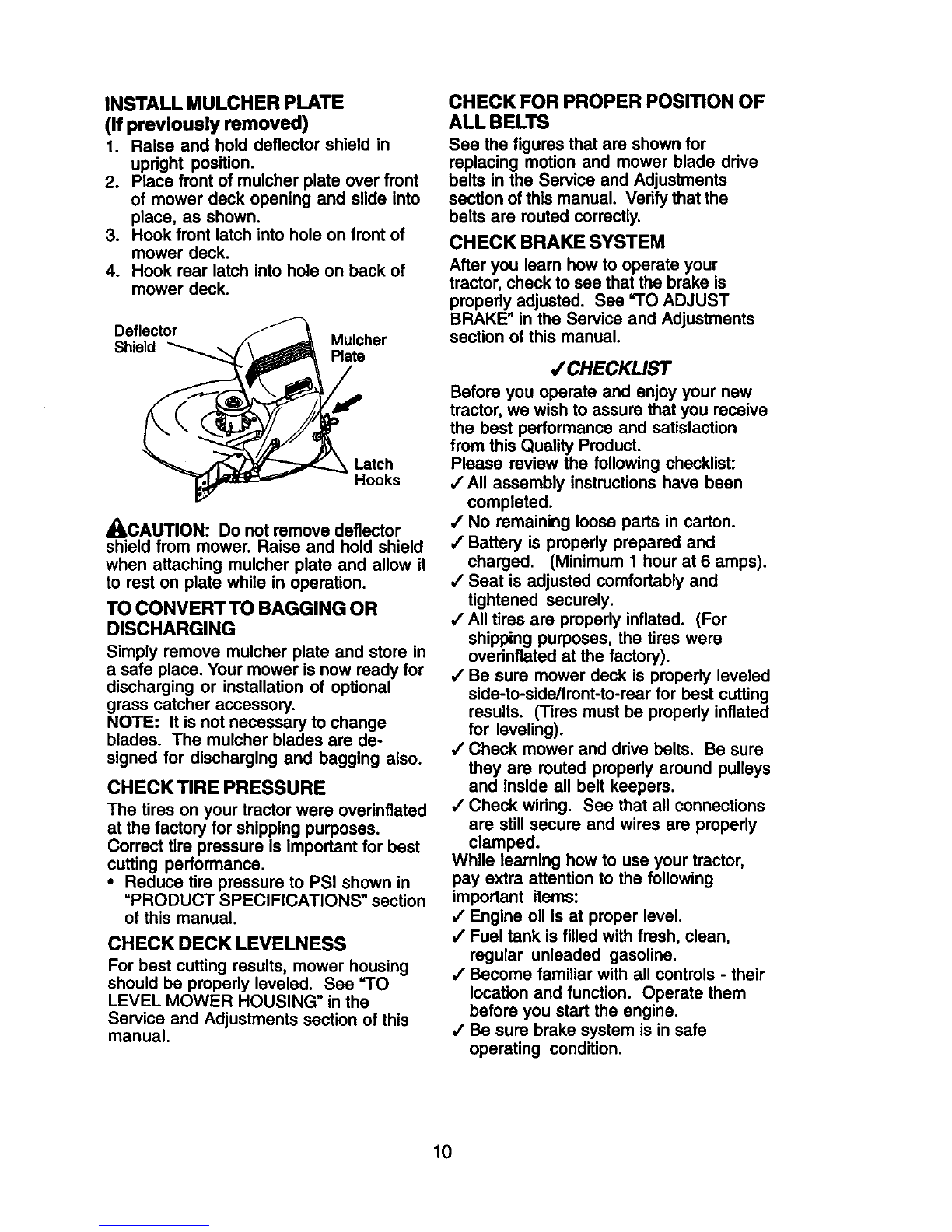

INSTALL MULCHER PLATE

(If previously removed)

I. Raise and hold deflector shield in

upright position.

2. Place front of mulcher plate over front

of mower deck opening and slide into

place, as shown.

3. Hook front latch into hole on front of

mower deck.

4. Hook rear latch into hole on back of

mower deck.

Deflector Mulcher

Shield _Plate

Latch

Hooks

_CAUTION: Do not remove deflector

shield from mower. Raise and hold shield

when attaching mulcher plate and allow it

to rest on plate while in operation.

TO CONVERT TO BAGGING OR

DISCHARGING

Simply remove mulcher plate and store in

a safe place. Your mower isnow ready for

discharging or installation of optional

grass catcher accessory.

NOTE: It is not necessary to change

blades. The mulcher blades are de-

signed for discharging and bagging also.

CHECK TIRE PRESSURE

The tires on your tractor were overinflated

at the factory for shipping purposes.

Correct tire pressure is important for best

cutting performance.

• Reduce tire pressure to PSI shown in

=PRODUCT SPECIFICATIONS" section

of this manual.

CHECK DECK LEVELNESS

For best cutting results, mower housing

should be properly leveled. See "TO

LEVEL MOWER HOUSING" in the

Service and Adjustments section of this

manual.

CHECK FOR PROPER POSITION OF

ALL BELTS

See the figures that are shown for

replacing motion and mower blade drive

belts in the Service and Adjustments

section ofthis manual. Varifythat the

belts are routed correctly.

CHECK BRAKE SYSTEM

After you learn how to operate your

tractor, check to see that the brake is

properly adjusted. See ='1"OADJUST

BRAKE" in the Service and Adjustments

section of this manual.

/CHECKLIST

Before you operate and enjoy your new

tractor, we wish to assure that you receive

the best performance and satisfaction

from this Quality Product.

Please review the following checklist:

/All assembly instructions have been

completed.

/No remaining loose parts in carton.

/Battery is properly prepared and

charged. (Minimum 1 hour at 6 amps).

•f Seat is adjusted comfortably and

tightened securely.

/All tires are properly inflated. (For

shipping purposes, the tires were

overinflated at the factory).

•/Be sure mower deck is properly leveled

side-to-side/front-to-rear for best cutting

results. (Tires must be properly inflated

for leveling).

•/Check mower and drive belts. Be sure

they are routed properly around pulleys

and inside all belt keepers.

,/Check wiring. See that all connections

are still secure and wires are properly

clamped.

While teaming how to use your tractor,

pay extra attention to the following

important items:

,/Engine oil is at proper level.

,/Fuel tank is filled with fresh, clean,

regular unleaded gasoline.

,/Become familiar with all controls -their

location and function. Operate them

before you start the engine.

/Be sure brake system is in safe

operating condition.

Table des matières

Autres manuels Craftsman Tondeuse à gazon

Craftsman

Craftsman 917.273396 Manuel utilisateur

Craftsman

Craftsman 917.273600 Manuel utilisateur

Craftsman

Craftsman 917.388521 Manuel utilisateur

Craftsman

Craftsman 917.377170 Manuel utilisateur

Craftsman

Craftsman 917.255890 Manuel utilisateur

Craftsman

Craftsman 917.4789A Manuel utilisateur

Craftsman

Craftsman 3One 917.252590 Manuel utilisateur

Craftsman

Craftsman 917.273631 Manuel utilisateur

Craftsman

Craftsman 917.374943 Manuel utilisateur

Craftsman

Craftsman 917.389990 Manuel utilisateur

Craftsman

Craftsman EZ3 917.272190 Manuel utilisateur

Craftsman

Craftsman EZ3 917.258553 Manuel utilisateur

Craftsman

Craftsman 917.379300 Manuel utilisateur

Craftsman

Craftsman EZ3 917.377530 Manuel utilisateur

Craftsman

Craftsman 917.376166 Manuel utilisateur

Craftsman

Craftsman 917.378342 Manuel utilisateur

Craftsman

Craftsman 917.28814 Manuel utilisateur

Craftsman

Craftsman 917.28863 Manuel utilisateur

Craftsman

Craftsman 917.27075 Manuel utilisateur

Craftsman

Craftsman 3One 917.384150 Manuel utilisateur

Craftsman

Craftsman 917.370752 Manuel utilisateur

Craftsman

Craftsman EZ3 917.377200 Manuel utilisateur

Craftsman

Craftsman 917.27351 Manuel utilisateur

Craftsman

Craftsman 486.24629 Manuel utilisateur

Manuels Tondeuse à gazon populaires d'autres marques

RHINO

RHINO 1958 Manuel utilisateur

Wolf Garten

Wolf Garten Compact plus 40 B Manuel utilisateur

Cub Cadet

Cub Cadet LTX 1045 Manuel utilisateur

GGP ITALY SPA

GGP ITALY SPA CR/CS 434 SERIES Manuel utilisateur

Challenge

Challenge CH18V2 Instructions de fonctionnement

TALEN TOOLS

TALEN TOOLS AVR HGM30 Manuel utilisateur

DEWEZE

DEWEZE ATM-725 Manuel d'utilisation

Weed Eater

Weed Eater 180083 Manuel utilisateur

Husqvarna

Husqvarna Poulan Pro PP185A42 Manuel utilisateur

Better Outdoor Products

Better Outdoor Products Quick Series Manuel utilisateur

Cub Cadet

Cub Cadet 23HP Z-Force 60 Manuel d'utilisation

MTD

MTD 795, 792, 791, 790 Manuel utilisateur

Toro

Toro Groundsmaster 3505-D Manuel utilisateur

Dennis

Dennis FT 610 Manuel utilisateur

AIRFORCE

AIRFORCE F-15 Gen 3 Manuel utilisateur

MTD

MTD 126-220-000 Manuel utilisateur

Toro

Toro 74806 Manuel utilisateur

Stihl

Stihl RMA 443 PV Manuel utilisateur
