Craftsman 917.272245 Manuel utilisateur

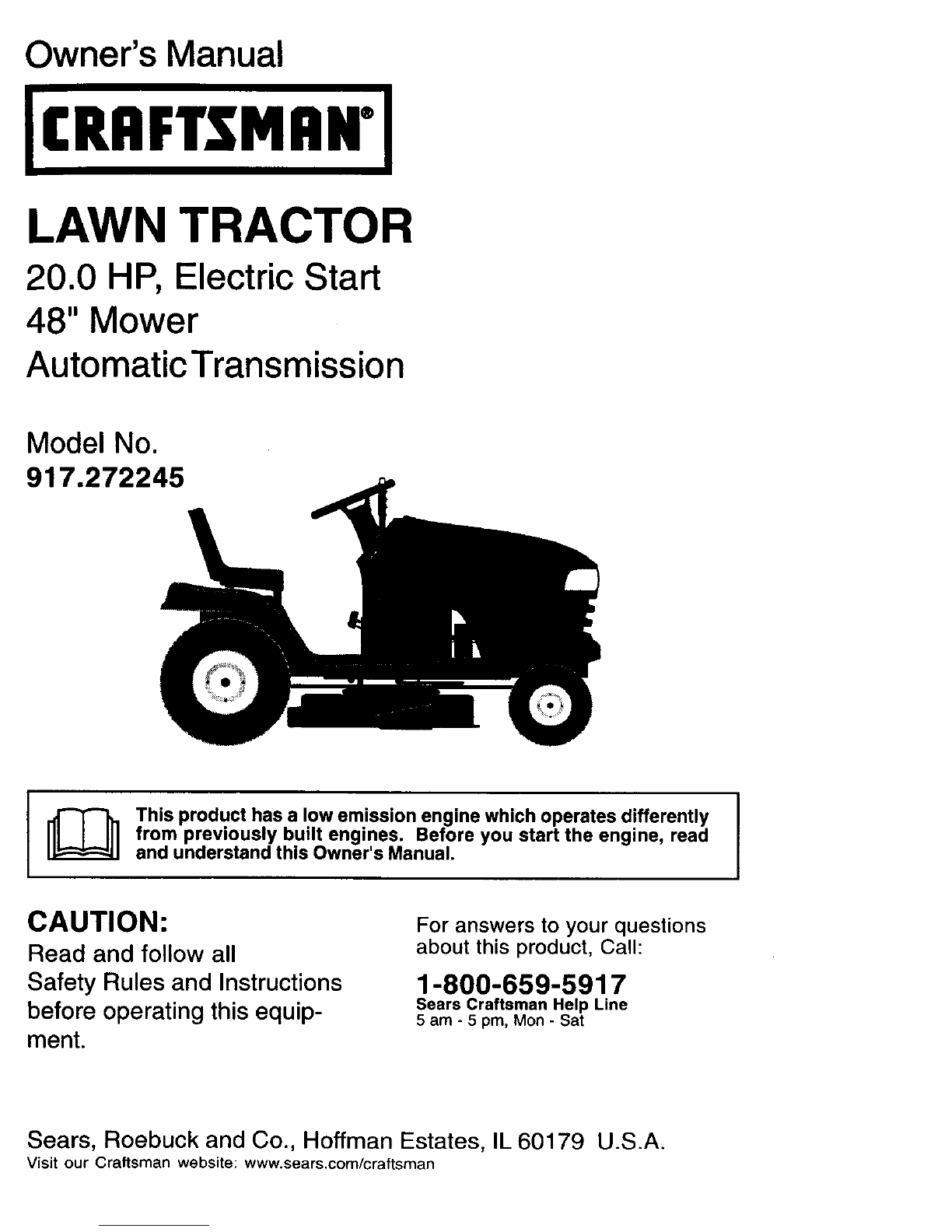

Owner's Manual

JCRRFTSMRN"I

LAWN TRACTOR

20.0 HP, Electric Start

48" Mower

AutomaticTransmission

Model No.

917.272245

I_This product has a low emission engine which operates d!fferently

from previously built engines. Before you start the engine, read

and understand this Owner's Manual.

CAUTION:

Read and follow all

Safety Rules and Instructions

before operating this equip-

ment.

For answers to your questions

about this product, Call:

1-800-659-5917

Sears Craftsman Help Line

5 am -5 pro, Mon- Sat

Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A.

Visit our Craftsman website: www.sears.com/craftsman

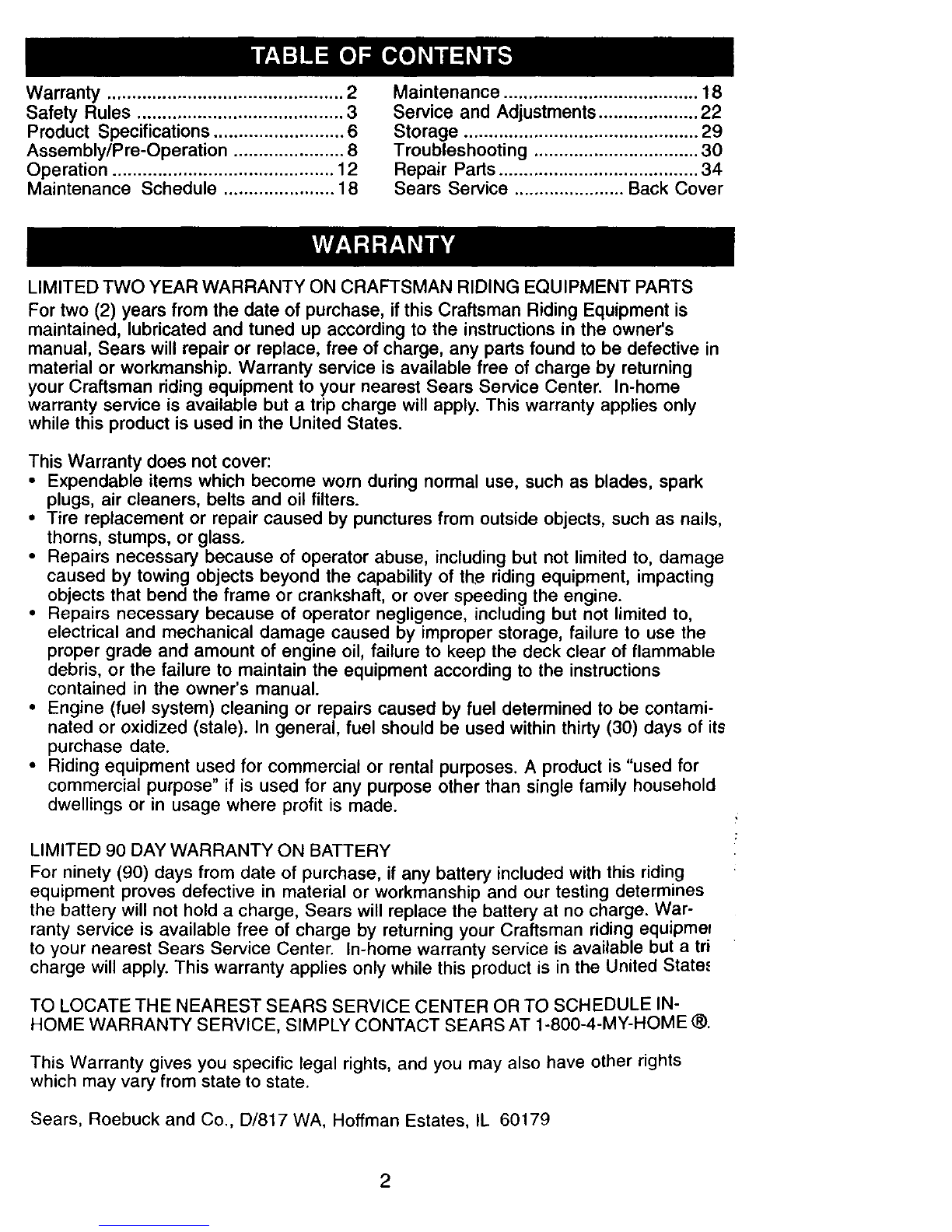

Warranty ............................................... 2

Safety Rules ......................................... 3

Product Specifications .......................... 6

Assembly/Pre-Operation ...................... 8

Operation ............................................ 12

Maintenance Schedule ...................... 18

Maintenance ....................................... 18

Service and Adjustments .................... 22

Storage ............................................... 29

Troubleshooting ................................. 30

Repair Parts ........................................ 34

Sears Service ...................... Back Cover

LIMITED TWO YEAR WARRANTY ON CRAFTSMAN RIDING EQUIPMENT PARTS

For two (2) years from the date of purchase, if this Craftsman Riding Equipment is

maintained, lubricated and tuned up according to the instructions in the owner's

manual, Sears will repair or replace, free of charge, any parts found to be defective in

material or workmanship. Warranty service is available free of charge by returning

your Craftsman riding equipment to your nearest Sears Service Center. In-home

warranty service is available but a trip charge will apply. This warranty applies only

while this product is used in the United States.

This Warranty does not cover:

• Expendable items which become worn during normal use, such as blades, spark

plugs, air cleaners, belts and oil filters.

•Tire replacement or repair caused by punctures from outside objects, such as nails,

thorns, stumps, or glass.

• Repairs necessary because of operator abuse, including but not limited to, damage

caused by towing objects beyond the capability of the riding equipment, impacting

objects that bend the frame or crankshaft, or over speeding the engine.

• Repairs necessary because of operator negligence, including but not limited to,

electrical and mechanical damage caused by improper storage, failure to use the

proper grade and amount of engine oil, failure to keep the deck clear of flammable

debris, or the failure to maintain the equipment according to the instructions

contained in the owner's manual.

•Engine (fuel system) cleaning or repairs caused by fuel determined to be contami-

nated or oxidized (stale). In general, fuel should be used within thirty (30) days of its

purchase date.

• Riding equipment used for commercial or rental purposes. A product is "used for

commercial purpose" if is used for any purpose other than single family household

dwellings or in usage where profit is made.

LIMITED 90 DAY WARRANTY ON BATTERY

For ninety (90) days from date of purchase, if any battery included with this riding

equipment proves defective in material or workmanship and our testing determines

the battery will not hold a charge, Sears will replace the battery at no charge. War-

ranty service is available free of charge by returning your Craftsman riding equipmef

to your nearest Sears Service Center. In-home warranty service is available but a tri

charge will apply. This warranty applies only while this product is in the United State,,

TO LOCATE THE NEAREST SEARS SERVICE CENTER OR TO SCHEDULE IN-

HOME WARRANTY SERVICE, SIMPLY CONTACT SEARS AT 1-800-4-MY-HOME ®.

This Warranty gives you specific legal rights, and you may also have other rights

which may vary from state to state.

Sears, Roebuck and Co., D/817 WA, Hoffman Estates, IL 60179

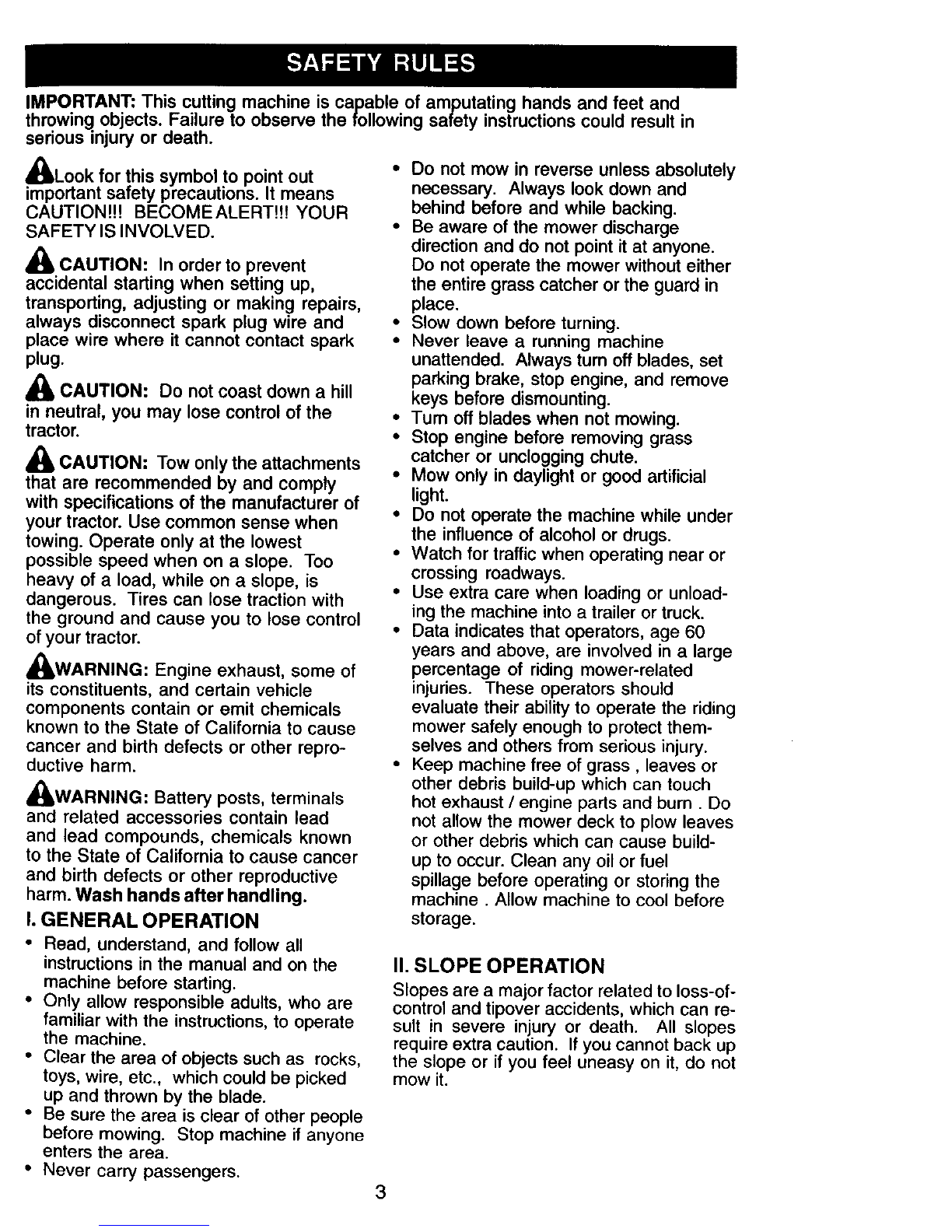

IMPORTANT: This cutting machine is capable of amputating hands and feet and

throwing, objects. Failure to observe the following safety instructions could result in

serious injury or death.

Look for this symbol to point out

important safety precautions. It means

CAUTION!!! BECOMEALERT!!T YOUR

SAFETY IS INVOLVED.

CAUTION: In order to prevent

accidental starting when setting up,

transporting, adjusting or making repairs,

always disconnect spark plug wire and

place wire where it cannot contact spark

plug.

CAUTION: Do not coast down a hill

in neutral, you may lose control of the

tractor.

CAUTION: Tow only the attachments

that are recommended by and comply

with specifications of the manufacturer of

your tractor. Use common sense when

towing. Operate only at the lowest

possible speed when on a slope. Too

heavy of a load, while on a slope, is

dangerous. Tires can lose traction with

the ground and cause you to lose control

of your tractor.

WARNING: Engine exhaust, some of

its constituents, and certain vehicle

components contain or emit chemicals

known to the State of California to cause

cancer and birth defects or other repro-

ductive harm.

,_WARNING: Battery posts, terminals

and related accessories contain lead

and lead compounds, chemicals known

to the State of California to cause cancer

and birth defects or other reproductive

harm. Wash hands after handling.

I. GENERAL OPERATION

• Read, understand, and follow all

instructions in the manual and on the

machine before starting.

•Only allow responsible adults, who are

familiar with the instructions, to operate

the machine.

• Clear the area of objects such as rocks,

toys, wire, etc., which could be picked

up and thrown by the blade.

•Be sure the area is clear of other people

before mowing. Stop machine if anyone

enters the area.

•Never carry passengers.

• Do not mow in reverse unless absolutely

necessary. Always look down and

behind before and while backing.

• Be aware of the mower discharge

direction and do not point it at anyone.

Do not operate the mower without either

the entire grass catcher or the guard in

place.

•Slow down before turning.

•Never leave a running machine

unattended. Always turn off blades, set

parking brake, stop engine, and remove

keys before dismounting.

•Tum off blades when not mowing.

•Stop engine before removing grass

catcher or unclogging chute.

•Mow only in daylight or good artificial

light.

•Do not operate the machine while under

the influence of alcohol or drugs.

•Watch for traffic when operating near or

crossing roadways.

•Use extra care when loading or unload-

ing the machine into a trailer or truck.

•Data indicates that operators, age 60

years and above, are involved in a large

percentage of riding mower-related

injuries. These operators should

evaluate their ability to operate the riding

mower safely enough to protect them-

selves and others from serious injury.

•Keep machine free of grass, leaves or

other debris build-up which can touch

hot exhaust /engine parts and burn. Do

not allow the mower deck to plow leaves

or other debris which can cause build-

up to occur. Clean any oil or fuel

spillage before operating or storing the

machine. Allow machine to cool before

storage.

II. SLOPE OPERATION

Slopes are amajor factor related to loss-of-

control and tipover accidents, which can re-

suit in severe injury or death. All slopes

require extra caution. If you cannot back up

the slope or if you feel uneasy on it, do not

mow it.

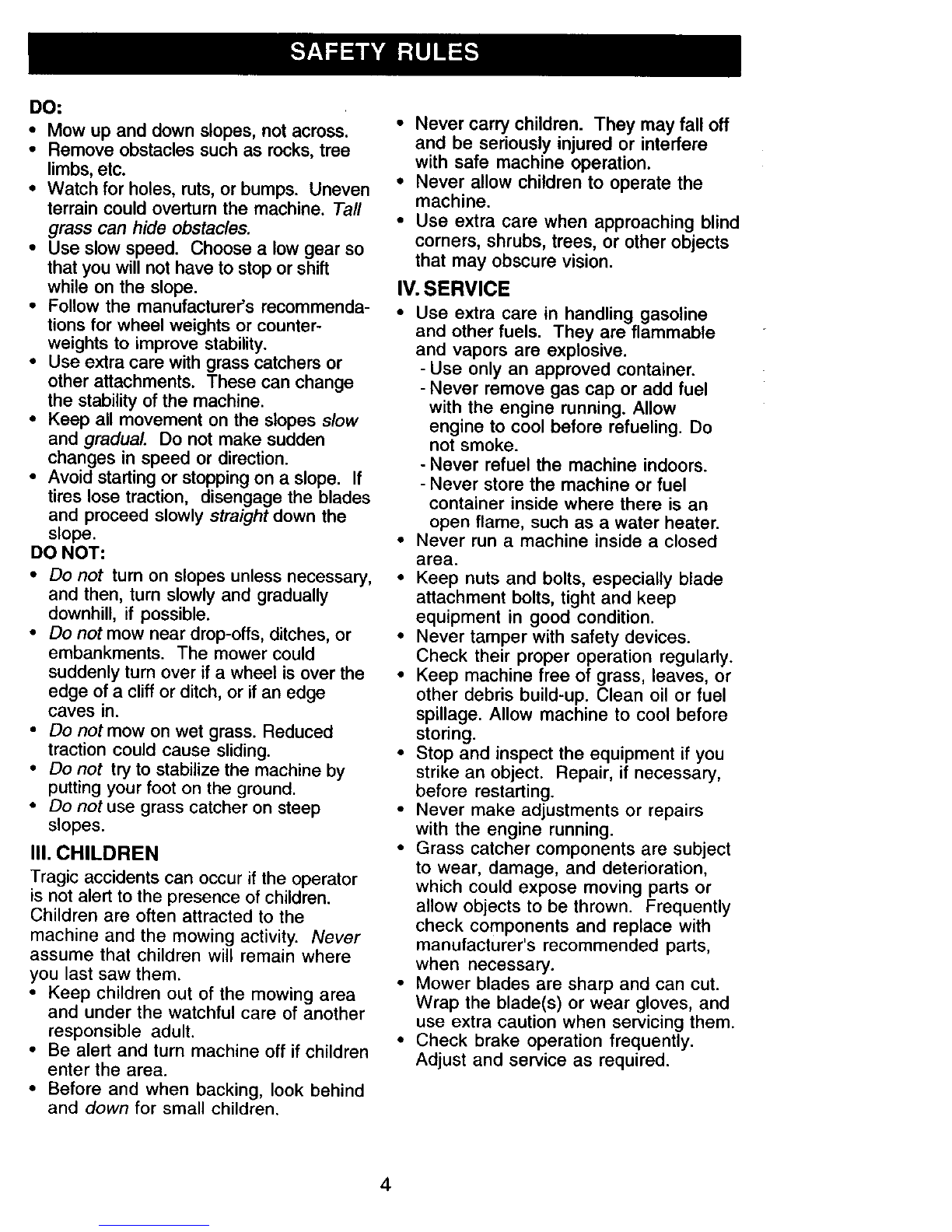

DO:

•Mow up and down slopes, not across.

• Remove obstacles such as rocks, tree

limbs, etc.

•Watch for holes, ruts, or bumps. Uneven

terrain could overturn the machine. Ta//

grass can hide obstacles.

• Use slow speed. Choose a low gear so

that you will not have to stop or shift

whi_e on the slope.

• Follow the manufacturer's recommenda-

tions for wheel weights or counter-

weights to improve stability.

• Use extra care with grass catchers or

other attachments. These can change

the stability of the machine.

• Keep all movement on the slopes slow

and gradual Do not make sudden

changes in speed or direction.

• Avoid starting or stopping on a slope. If

tires lose traction, disengage the blades

and proceed slowly straight down the

slope.

DO NOT:

•Do not turn on slopes unless necessary,

and then, turn slowly and gradually

downhill, if possible.

•Do not mow near drop-offs, ditches, or

embankments. The mower could

suddenly turn over if a wheel is over the

edge of a cliff or ditch, or if an edge

caves in.

•Do not mow on wet grass. Reduced

traction could cause sliding.

•Do not try to stabilize the machine by

putting your foot on the ground.

•Do not use grass catcher on steep

slopes.

III. CHILDREN

Tragic accidents can occur if the operator

is not alert to the presence of children.

Children are often attracted to the

machine and the mowing activity. Never

assume that children will remain where

you last saw them.

•Keep children out of the mowing area

and under the watchful care of another

responsible adult.

•Be alert and turn machine off if children

enter the area.

• Before and when backing, look behind

and down for small children.

• Never carry children. They may fall off

and be seriously injured or interfere

with safe machine operation.

•Never allow children to operate the

machine.

•Use extra care when approaching blind

corners, shrubs, trees, or other objects

that may obscure vision.

IV. SERVICE

•Use extra care in handling gasoline

and other fuels. They are flammable

and vapors are explosive.

- Use only an approved container.

- Never remove gas cap or add fuel

with the engine running. Allow

engine to cool before refueling. Do

not smoke.

- Never refuel the machine indoors.

- Never store the machine or fuel

container inside where there is an

open flame, such as a water heater.

• Never run a machine inside a closed

area.

• Keep nuts and bolts, especially blade

attachment bolts, tight and keep

equipment in good condition.

• Never tamper with safety devices.

Check their proper operation regularly.

• Keep machine free of grass, leaves, or

other debris build-up. Clean oil or fuel

spillage. Allow machine to cool before

storing.

• Stop and inspect the equipment if you

strike an object. Repair, if necessary,

before restarting.

•Never make adjustments or repairs

with the engine running.

• Grass catcher components are subject

to wear, damage, and deterioration,

which could expose moving parts or

arrow objects to be thrown. Frequently

check components and replace with

manufacturer's recommended pads,

when necessary.

• Mower blades are sharp and can cut.

Wrap the blade(s) or wear gloves, and

use extra caution when servicing them.

•Check brake operation frequently.

Adjust and service as required.

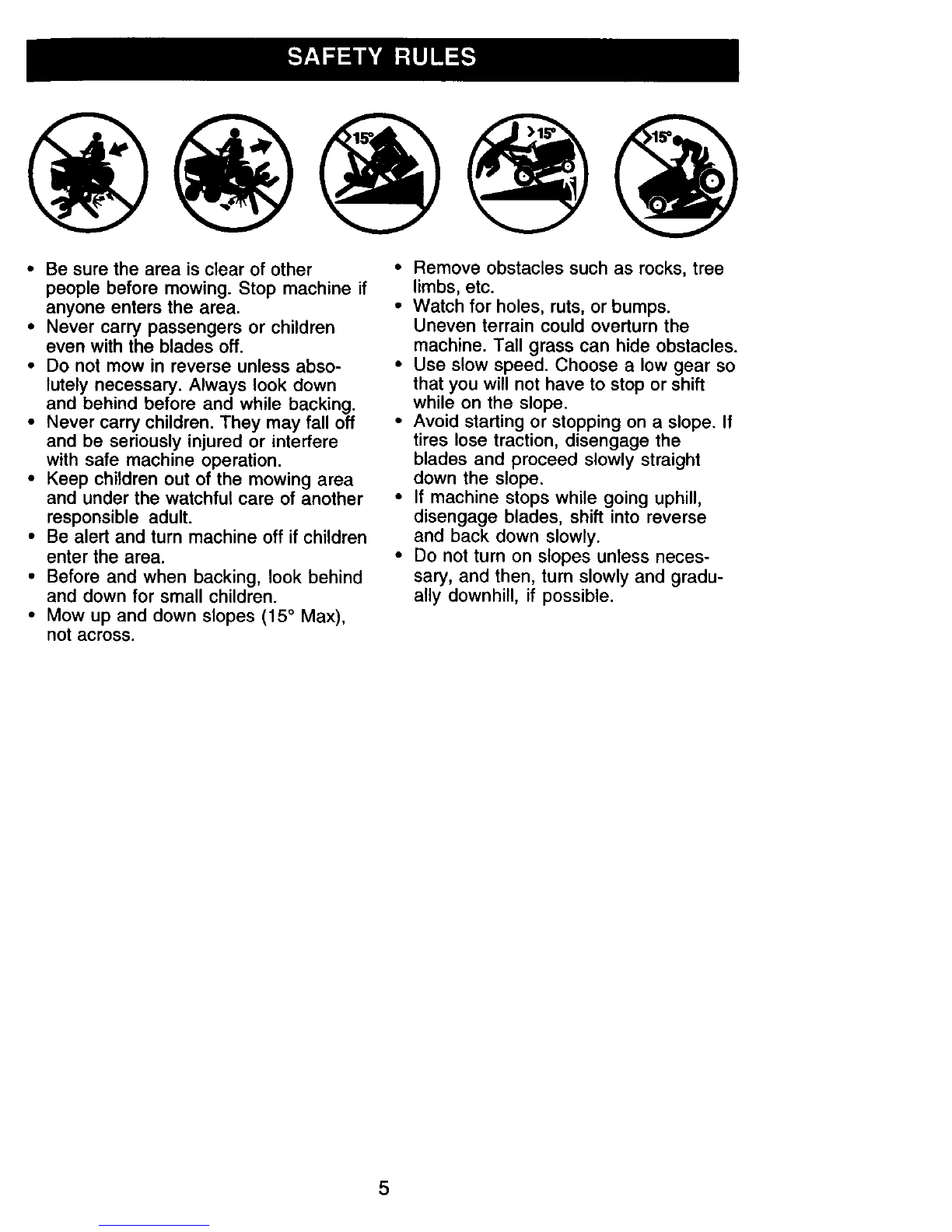

•Be sure the area is clear of other °

people before mowing. Stop machine if

anyone enters the area. •

• Never carry passengers or children

even with the blades off.

• Do not mow in reverse unless abso- •

lutely necessary. Always look down

and behind before and while backing.

• Never carry children. They may fall off •

and be seriously injured or interfere

with safe machine operation.

•Keep children out of the mowing area

and under the watchful care of another •

responsible adult.

• Be alert and turn machine off if children

enter the area. •

• Before and when backing, look behind

and down for small children.

• Mow up and down slopes (15 °Max),

not across.

Remove obstacles such as rocks, tree

limbs, etc.

Watch for holes, ruts, or bumps.

Uneven terrain could overturn the

machine. Tall grass can hide obstacles.

Use slow speed. Choose a low gear so

that you will not have to stop or shift

while on the slope.

Avoid starting or stopping on a slope. If

tires lose traction, disengage the

blades and proceed slowly straight

down the slope.

If machine stops while going uphill,

disengage blades, shift into reverse

and back down slowly.

Do not turn on slopes unless neces-

sary, and then, turn slowly and gradu-

ally downhill, if possible.

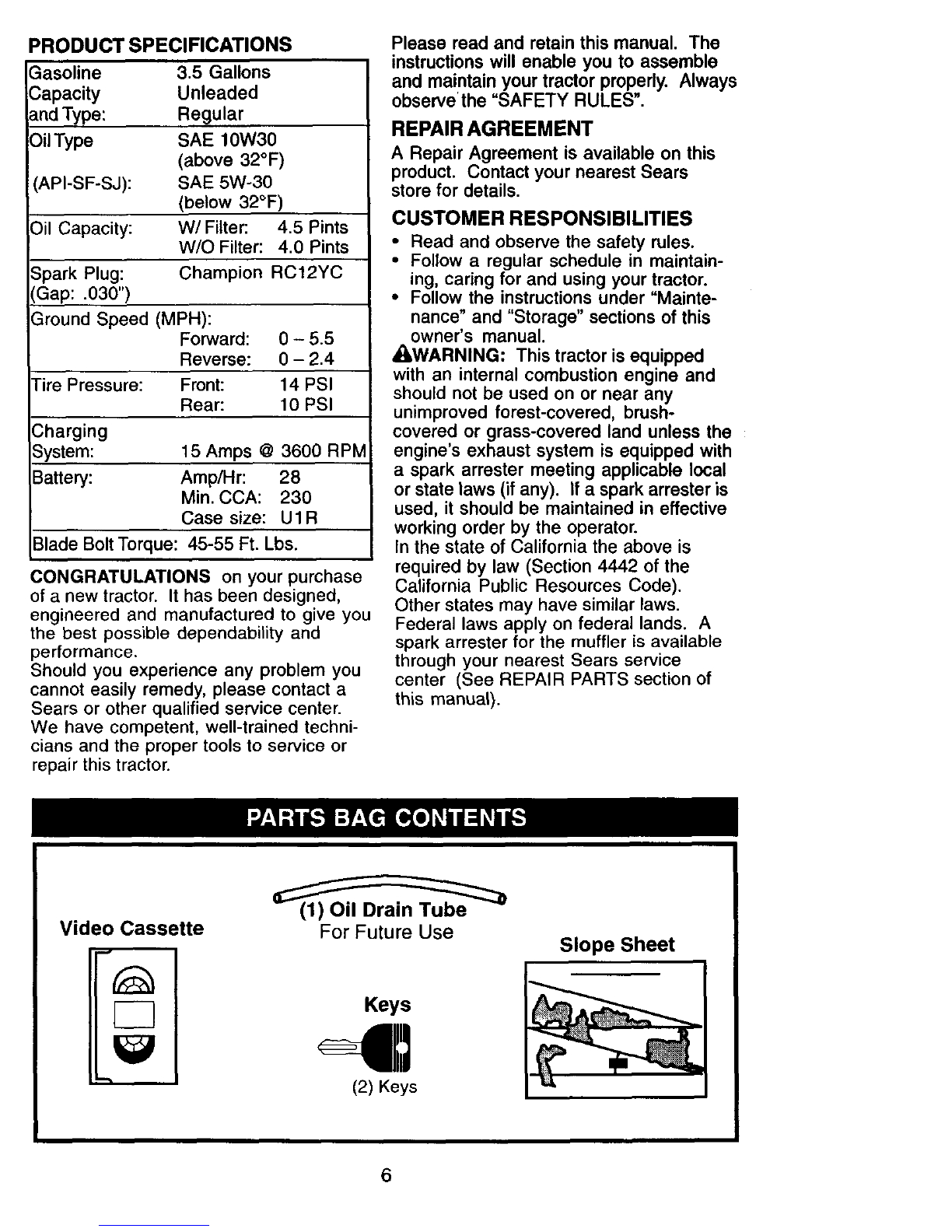

PRODUCT SPECIFICATIONS

3asoline

3apacity

_nd Type:

OilType

3.5 Gallons

Unleaded

Regular

SAE 10W30

(above 32°F)

API-SF-SJ): SAE 5W-30

(below 32°F)

Oil Capacity: W/Filter: 4.5 Pints

W/O Filter: 4.0 Pints

Spark Plug: Champion RC12YC

(Gap: .030")

Ground Speed (MPH):

Forward: 0 -5.5

Reverse: 0 - 2.4

Tire Pressure: Front: 14 PSI

Rear: 10 PSI

Charging

System: 15 Amps @ 3600 RPM

Battery: Amp/Hr: 28

Min. CCA: 230

Case size: U1R

Blade Bolt Torque: 45-55 Ft. Lbs.

CONGRATULATIONS on your purchase

of a new tractor. It has been designed,

engineered and manufactured to give you

the best possible dependability and

performance.

Should you experience any problem you

cannot easily remedy, please contact a

Sears or other qualified service center.

We have competent, well-trained techni-

cians and the proper tools to service or

repair this tractor.

Please read and retain this manual. The

instructionswill enable you to assemble

and maintain your tractor properly. Always

observethe "SAFETY RULES".

REPAIR AGREEMENT

A Repair Agreement is available on this

product. Contact your nearest Sears

store for details.

CUSTOMER RESPONSIBILITIES

• Read and observe the safety rules.

• Follow a regular schedule in maintain-

ing, caring for and using your tractor.

•Follow the instructions under "Mainte-

nance" and "Storage" sections of this

owner's manual.

_I_WARNING: This tractor is equipped

with an internal combustion engine and

should not be used on or near any

unimproved forest-covered, brush-

covered or grass-covered land unless the

engine's exhaust system is equipped with

a spark arrester meeting applicable local

or state laws (if any). if a spark arrester is

used, it should be maintained in effective

working order by the operator.

In the state of California the above is

required by law (Section 4442 of the

California Public Resources Code).

Other states may have similar laws.

Federal laws apply on federal lands. A

spark arrester for the muffler is available

through your nearest Sears service

center (See REPAIR PARTS section of

this manual).

Video Cassette

Y-7

For Future Use

Keys

(2) Keys

Slope Sheet

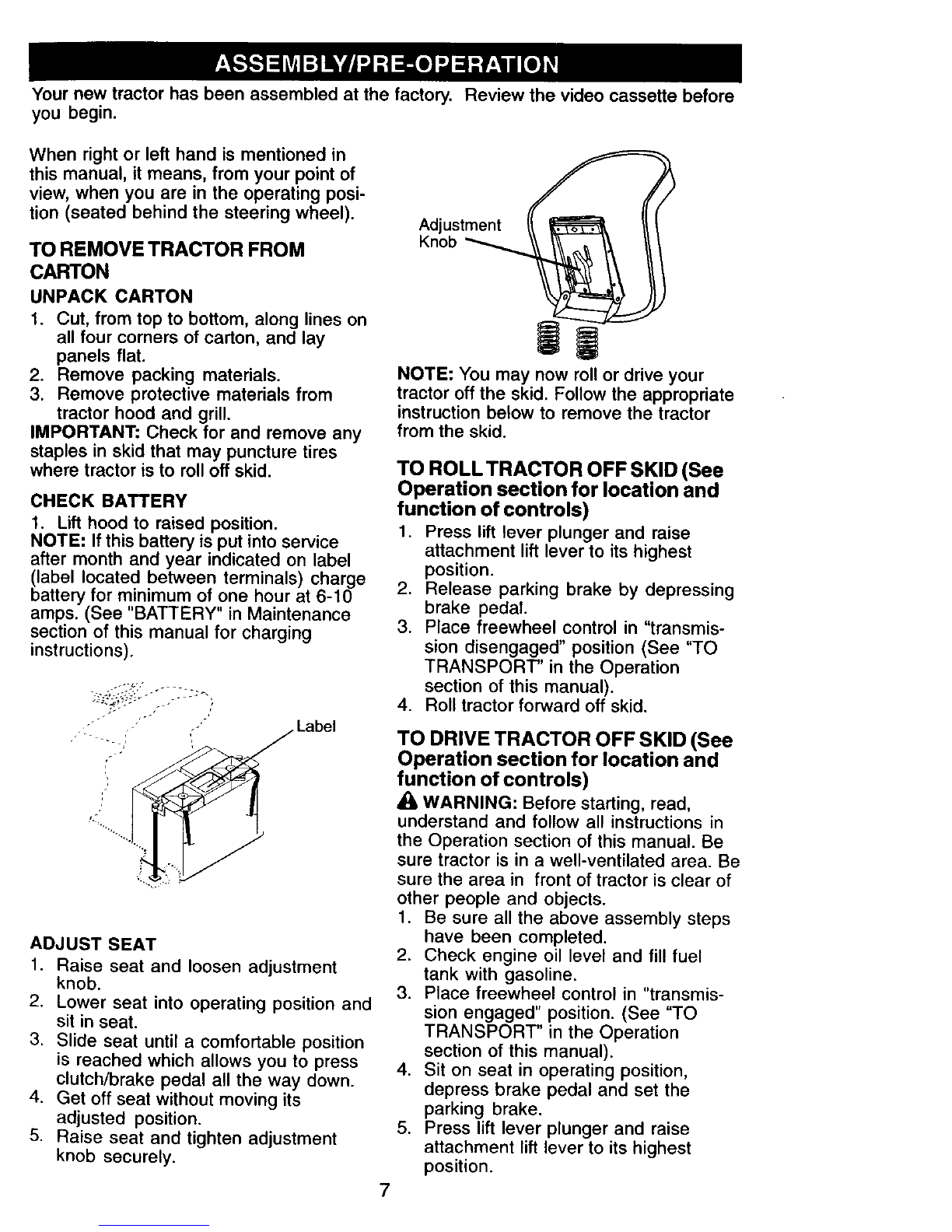

Your new tractor has been assembled at the factory. Review the video cassette before

you begin.

When right or left hand is mentioned in

this manual, it means, from your point of

view, when you are in the operating posi-

tion (seated behind the steering wheel).

TO REMOVE TRACTOR FROM

CARTON

UNPACK CARTON

1. Cut, from top to bottom, along lines on

all four corners of carton, and lay

panels flat.

2. Remove packing materials.

3. Remove protective materials from

tractor hood and grill.

IMPORTANT: Check for and remove any

staples in skid that may puncture tires

where tractor is to roll off skid.

CHECK BATTERY

1. Lift hood to raised position.

NOTE: If this battery is put into service

after month and year indicated on label

(label located between terminals) charge

battery for minimum of one hour at 6-10

amps. (See "BATTERY" in Maintenance

section of this manual for charging

instructions).

-'iA. J,_. Label

%,•

ADJUST SEAT

1. Raise seat and loosen adjustment

knob.

2, Lower seat into operating position and

sit in seat.

3. Slide seat until a comfortable position

is reached which allows you to press

clutch/brake pedal all the way down.

4. Get off seat without moving its

adjusted position,

5, Raise seat and tighten adjustment

knob securely,

Adjustment

Knob

NOTE: You may now roll or drive your

tractor off the skid. Follow the appropriate

instruction below to remove the tractor

from the skid.

TO ROLL TRACTOR OFF SKID (See

Operation section for location and

function of controls)

1. Press lift lever plunger and raise

attachment lift lever to its highest

position.

2. Release parking brake by depressing

brake pedal.

3. Place freewheel control in "transmis-

sion disengaged" position (See "TO

TRANSPORT" in the Operation

section of this manual).

4. Roll tractor forward off skid.

TO DRIVE TRACTOR OFF SKID (See

Operation section for location and

function of controls)

_k WARNING: Before starting, read,

understand and follow all instructions in

the Operation section of this manual• Be

sure tractor is in a well-ventilated area. Be

sure the area in front of tractor is clear of

other people and objects.

1. Be sure all the above assembly steps

have been completed.

2. Check engine oil level and fill fuel

tank with gasoline.

3. Place freewheel control in "transmis-

sion engaged" position. (See "TO

TRANSPORT" in the Operation

section of this manual).

4. Sit on seat in operating position,

depress brake pedal and set the

parking brake.

5. Press lift lever plunger and raise

attachment lift lever to its highest

position.

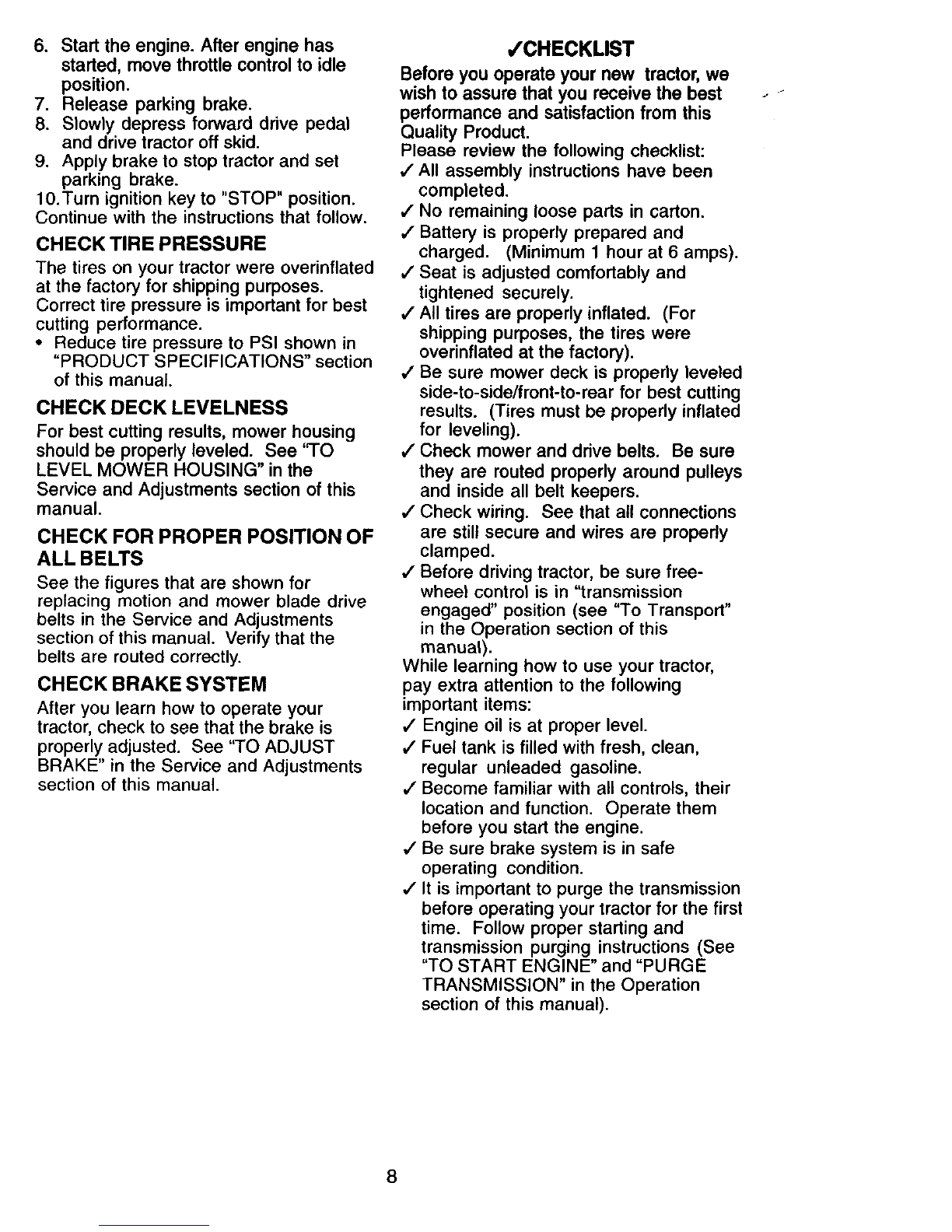

6. Start the engine. After engine has

started, move throttle control to idle

position.

7. Release parking brake.

8. Slowly depress forward drive pedal

and drive tractor off skid.

9. Apply brake to stop tractor and set

parking brake.

10.Turn ignition key to "STOP" position.

Continue with the instructions that follow.

CHECKTIREPRESSURE

The tires on your tractor were overinflated

at the factory for shipping purposes.

Correct tire pressure is important for best

cutting performance.

• Reduce tire pressure to PSI shown in

"PRODUCT SPECIFICATIONS" section

of this manual.

CHECK DECKLEVELNESS

For best cutting results, mower housing

should be properly leveled. See 'qO

LEVEL MOWER HOUSING" in the

Service and Adjustments section of this

manual.

CHECK FOR PROPER POSITION OF

ALL BELTS

See the figures that are shown for

replacing motion and mower blade drive

belts in the Service and Adjustments

section of this manual. Verify that the

belts are routed correctly.

CHECK BRAKE SYSTEM

After you learn how to operate your

tractor, check to see that the brake is

properly adjusted. See "TO ADJUST

BRAKE" in the Service and Adjustments

section of this manual.

/CHECKLIST

Before you operate your new tractor, we

wish to assure that you receive the best

performance and satisfaction from this

Quality Product.

Please review the following checklist:

,/All assembly instructions have been

completed.

,/No remaining loose parts in carton.

,/Battery is properly prepared and

charged. (Minimum 1hour at 6 amps).

,I Seat is adjusted comfortably and

tightened securely.

•/Atl tires are properly inflated. (For

shipping purposes, the tires were

overinflated at the factory).

,/Be sure mower deck is properly leveled

side-to-side/front-to-rear for best cutting

results. (Tires must be properly inflated

for leveling).

/Check mower and drive belts. Be sure

they are routed properly around pulleys

and inside all belt keepers.

•/Check wiring. See that all connections

are still secure and wires are properly

clamped.

J Before driving tractor, be sure free-

wheel control is in "transmission

engaged" position (see "To Transport"

in the Operation section of this

manual).

While learning how to use your tractor,

pay extra attention to the following

important items:

,/ Engine oil is at proper level.

,/Fuel tank is filled with fresh, clean,

regular unleaded gasoline.

,/Become familiar with all controls, their

location and function. Operate them

before you start the engine.

,/Be sure brake system is in safe

operating condition.

,/It is important to purge the transmission

before operating your tractor for the first

time. Follow proper starting and

transmission purging instructions (See

"TO START ENGINE" and "PURGE

TRANSMISSION" in the Operation

section of this manual).

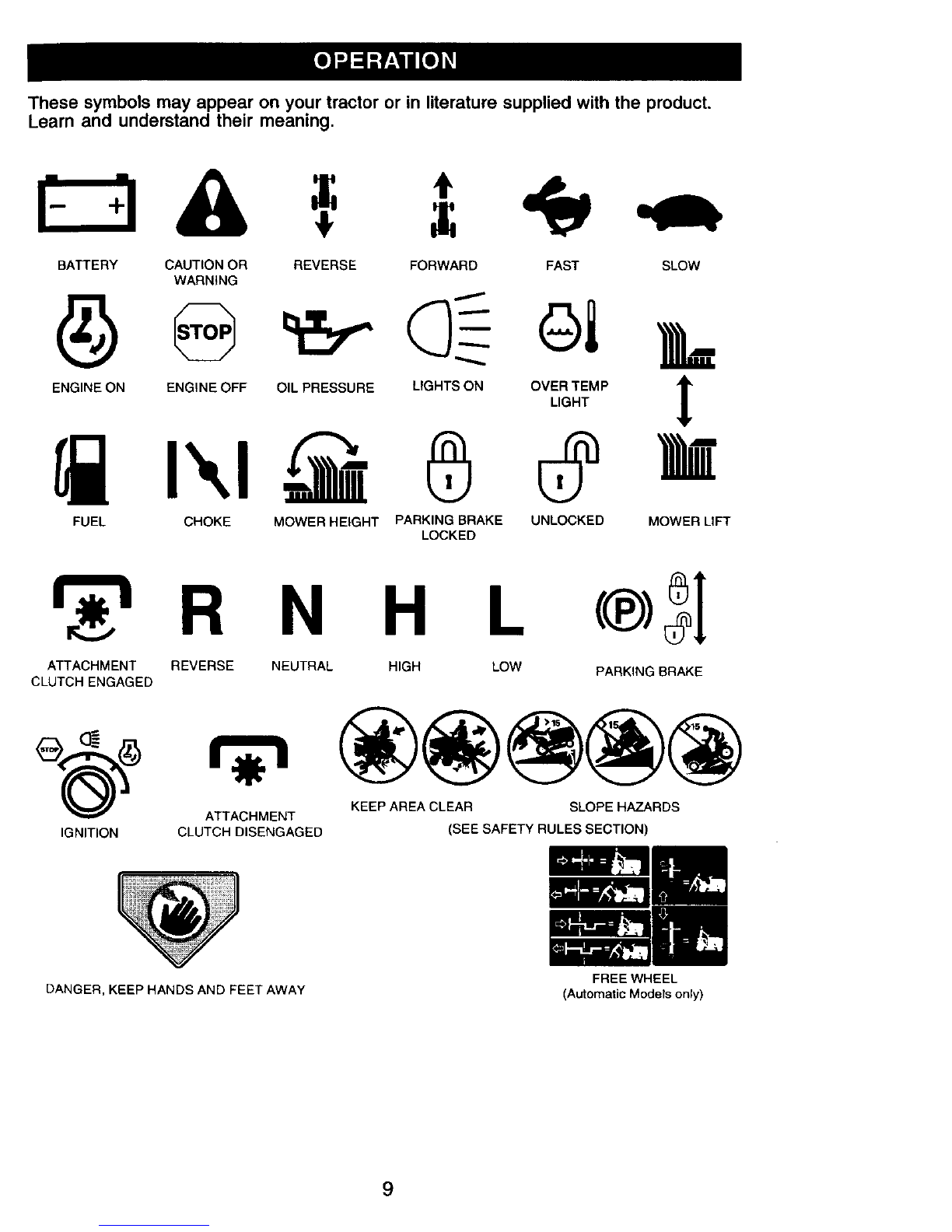

These symbols may appear on your tractor or in literature supplied with the product,

Learn and understand their meaning.

BATTERY CAUTION OR

WARNING

ENGINE ON ENGINE OFF

REVERSE FORWARD FAST SLOW

OIL PRESSURE

FUEL CHOKE MOWER HEIGHT

LIGHTS ON

PARKING BRAKE

LOCKED

o%_.. I

UNLOCKED MOWER LIFT

R N H L

ATTACHMENT REVERSE NEUTRAL HIGH LOW

CLUTCH ENGAGED PARKING BRAKE

ATTACHMENT KEEP AREA CLEAR SLOPE HAZARDS

IGNITION CLUTCH DISENGAGED (SEE SAFETY RULES SECTION)

DANGER, KEEP HANDS AND FEET AWAY

FREE WHEEL

(Automatic Models only)

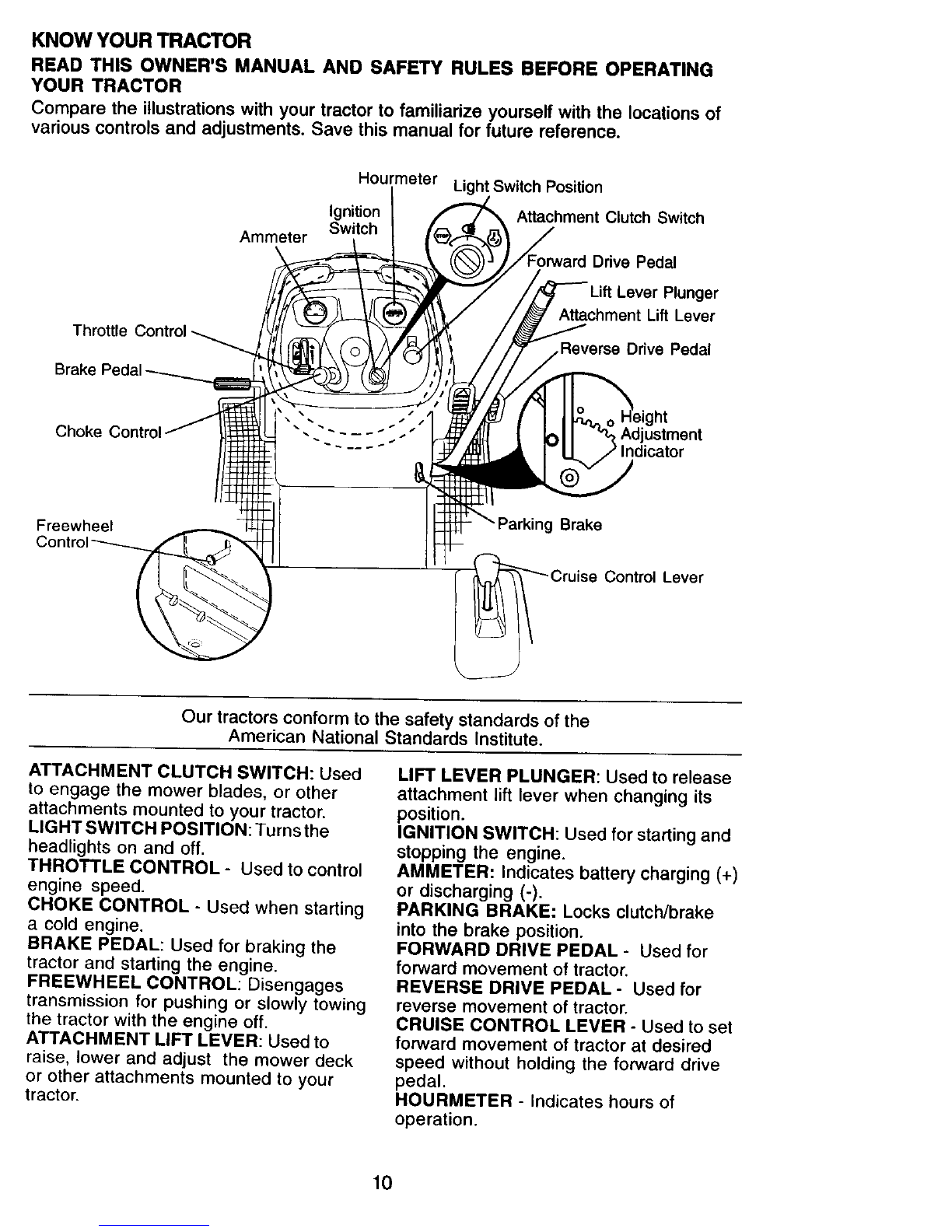

KNOW YOUR TRACTOR

READ THIS OWNER'S MANUAL AND SAFETY RULES BEFORE OPERATING

YOUR TRACTOR

Compare the illustrations with your tractor to familiarize yourself with the locations of

various controls and adjustments. Save this manual for future reference.

Throttle

Brake

Ammeter

Hourmeter

Ignition

Switch

Light Switch Position

Attachment Clutch Switch

Drive Pedal

Lever Plunger

Attachment Lift Lever

Reverse Drive Pedal

Choke Adjustment

Indicator

Freewheel

Con gBrake

Control Lever

Our tractors conform to the safety standards of the

American National Standards Institute.

ATTACHMENT CLUTCH SWITCH: Used

to engage the mower blades, or other

attachments mounted to your tractor.

LIGHT SWITCH POSITION: Turns the

headlights on and off.

THROTTLE CONTROL - Used to control

engine speed.

CHOKE CONTROL - Used when starting

a cold engine.

BRAKE PEDAL: Used for braking the

tractor and starting the engine.

FREEWHEEL CONTROL: Disengages

transmission for pushing or slowly towing

the tractor with the engine off.

ATTACHMENT LIFT LEVER: Used to

raise, lower and adjust the mower deck

or other attachments mounted to your

tractor.

LIFT LEVER PLUNGER: Used to release

attachment lift lever when changing its

position.

IGNITION SWITCH: Used for starting and

stopping the engine.

AMMETER: Indicates battery charging (+)

or discharging (-).

PARKING BRAKE: Locks clutch/brake

into the brake position.

FORWARD DRIVE PEDAL - Used for

forward movement of tractor.

REVERSE DRIVE PEDAL -Used for

reverse movement of tractor.

CRUISE CONTROL LEVER -Used to set

forward movement of tractor at desired

speed without holding the forward drive

pedal.

HOURMETER - Indicates hours of

operation.
