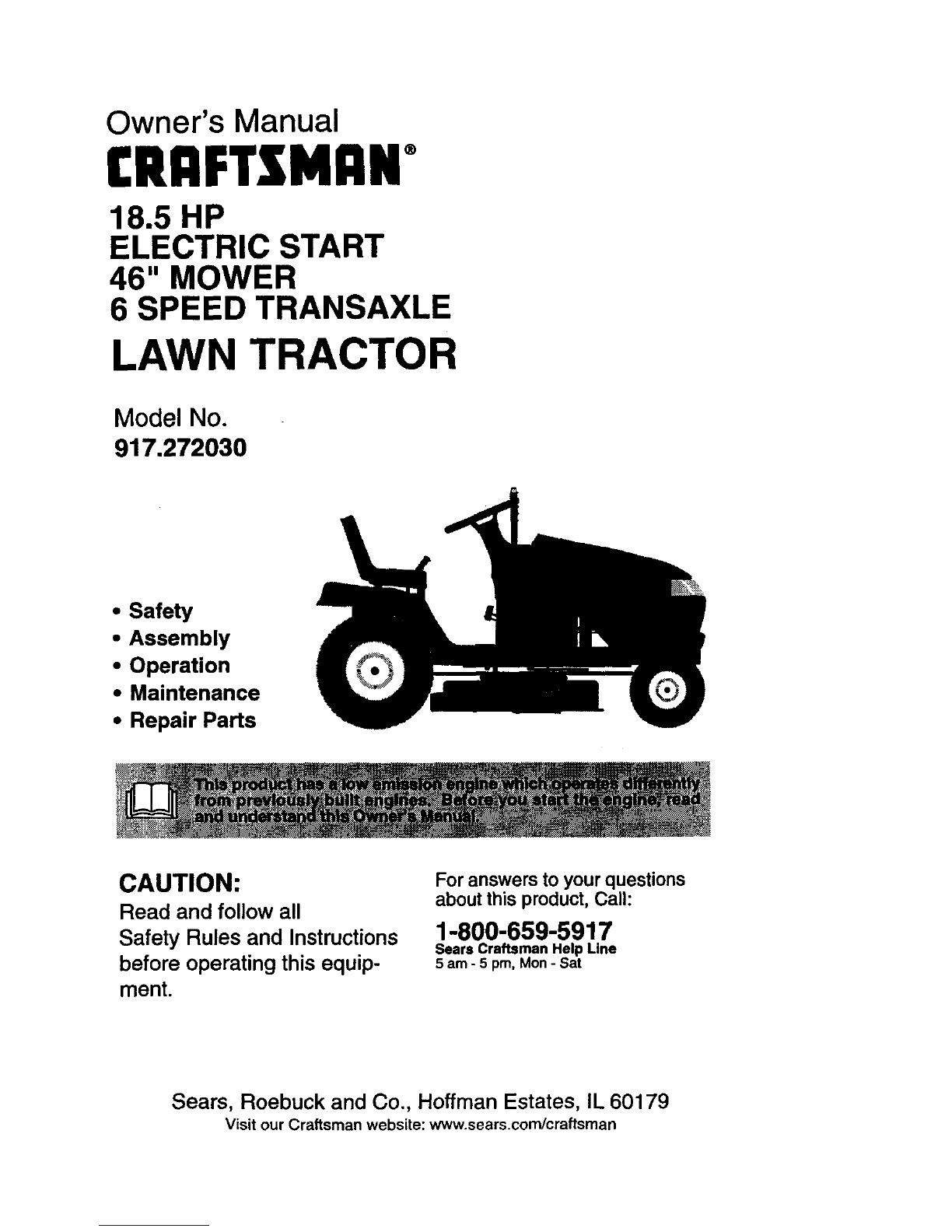

Owner's Manual

CRRFTXMRN

18.5 HP

ELECTRIC START

46" MOWER

6 SPEED TRANSAXLE

LAWN TRACTOR

Model No.

917.272030

• Safety

•Assembly

•Operation

•Maintenance

•Repair Parts

CAUTION:

Read and follow all

Safety Rules and Instructions

before operating this equip-

ment.

For answersto yourquestions

aboutthis product,Call:

1-800-659-5917

Sears Craftsman Help Line

5am 5 pro, Mon Sat

Sears, Roebuck and Co., Hoffman Estates, IL 60179

Visit our Craftsman website: www.sears.com/craftsman

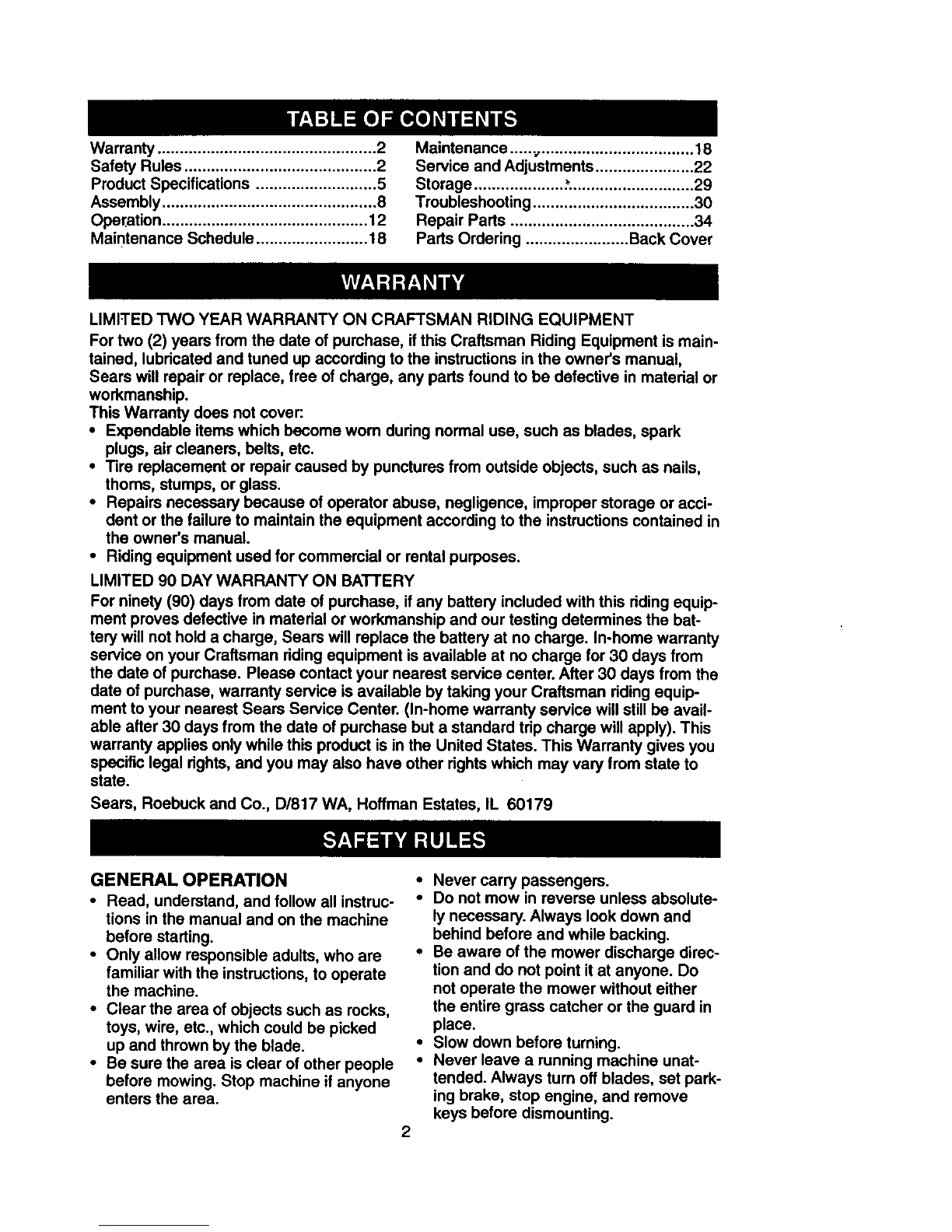

Warranty ................................................. 2

Safety Rules ........................................... 2

Product Specifications ........................... 5

Assembly ................................................ 8

Operation .............................................. 12

Maintenance Schedule ......................... 18

Maintenance......_ .................................. 18

Service and Adjustments...................... 22

Storage.................... _........................... 29

Troubleshooting.................................... 30

Repair Parts ......................................... 34

Parts Ordering ....................... Back Cover

LIMITED TWO YEAR WARRANTY ON CRAFTSMAN RIDING EQUIPMENT

Fortwo (2) years fromthe date of purchase, ifthis Craftsman Riding Equipment is main-

tained, lubricatedand tuned up according to the instructionsinthe owner's manual,

Sears will repair or replace, free of charge, any parts found to be defective in material or

workmanship.

This Warranty does not cover:

•Expendable items which become wom during normal use, such as blades, spark

plugs, air cleaners, belts, etc.

•Tire replacement or repair caused by punctures from outside objects, such as nails,

thorns, stumps, or glass.

•Repairs necessary because of operator abuse, negligence, improper storage or acci-

dent or the failure to maintain the equipment according to the instructionscontained in

the owner's manual.

• Riding equipment used for commercial or rental purposes.

LIMITED 90 DAY WARRANTY ON BATTERY

For ninety (90) days from date of purchase, if any battery includedwith this ridingequip-

ment proves defective in material or workmanship and our testing determines the bat-

tery will not holda charge, Sears will replace the battery at no charge. In-home warranty

service on your Craftsman ridingequipment isavailable at no charge for 30 days from

the date of purchase. Please contact your nearest service center. After 30 days from the

date of purchase, warranty service is available by taking your Craftsman riding equip-

ment to your nearest Sears Service Center. (In-home warranty service willstillbe avail-

able after 30 days from the date of purchase but a standard trip charge will apply). This

warranty applies only while this product isin the United States. This Warranty gives you

specific legal rights,and you may also have other dghtswhich may vary from state to

state.

Sears, Roebuck and Co., D/817 WA, Hoffman Estates, IL 60179

GENERAL OPERATION

• Read, understand, and follow all instruc-

tions in the manual and on the machine

before starting.

•Only allow responsible adults, who are

familiar with the instructions, to operate

the machine.

•Clear the area of objects such as rocks,

toys, wire, etc., which could be picked

up and thrown by the blade.

•Be sure the area is clear of other people

before mowing. Stop machine if anyone

enters the area.

•Nevercarry passengem.

•Do not mow in reverse unless absolute-

ly necessary. Always look down and

behind before and while backing.

•Be aware of the mower discharge direc-

tion and do not point it at anyone. Do

not operate the mower without either

the entire grass catcher or the guard in

place.

•Slow down before turning.

•Never leave a running machine unat-

tended. Always turn off blades, set park-

ing brake, stop engine, and remove

keys before dismounting.

•Tum off blades when not mowing.

•Stop engine before removing grass

catcher or unclogging chute.

•Mow only in daylight or good artificial

light.

•Do not operate the machine while under

the influence of alcohol or drugs.

•Watch for traffic when operating near or

crossing roadways.

• Use extra care when loading or unload-

ing the machine into a trailer or truck.

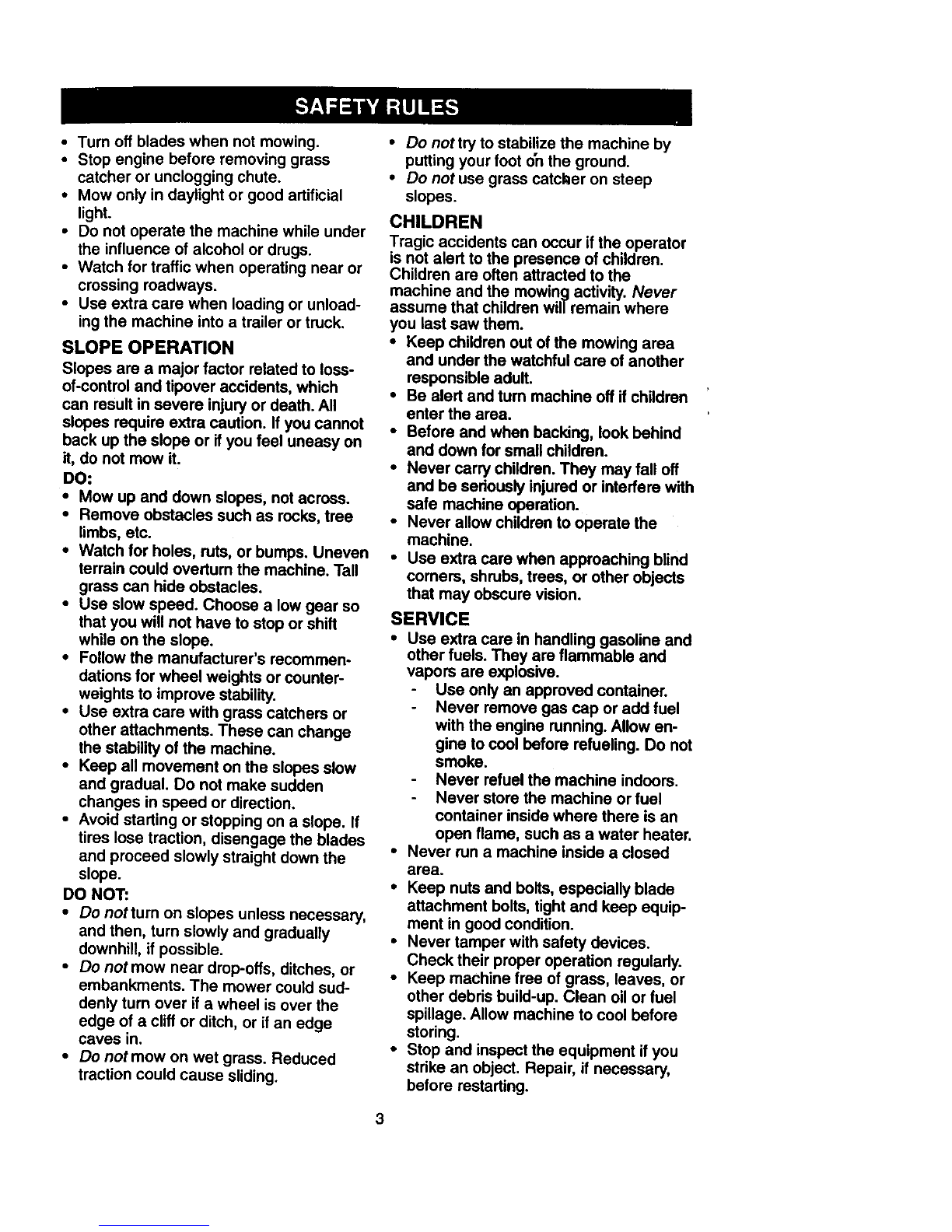

SLOPE OPERATION

Slopes are a major factor related to loss-

of-control and tipover accidents, which

can result in severe injury or death. All

slopes require extra caution. If you cannot

back up the slope or if you feel uneasy on

it, do not mow it.

DO:

•Mow up and down slopes, not across.

•Remove obstacles such as rocks, tree

limbs, etc.

•Watch for holes, ruts, or bumps. Uneven

terrain could overturn the machine. Tall

grass can hide obstacles.

•Use slow speed. Choose a low gear so

that you will not have to stop or shift

while on the slope.

•Follow the manufacturer's recommen-

dations for wheel weights or counter-

weights to improve stability.

•Use extra care with grass catchers or

other attachments. These can change

the stability of the machine.

•Keep all movement on the slopes slow

and gradual. Do not make sudden

changes in speed or direction.

•Avoid starting or stopping on a slope. If

tires lose traction, disengage the blades

and proceed slowly straight down the

slope.

DO NOT:

•Do nottum on slopes unless necessary,

and then, turn slowly and gradually

downhill, if possible.

•Do not mow near drop-otis, ditches, or

embankments. The mower could sud-

denly turn over if a wheel is over the

edge of a cliff or ditch, or if an edge

caves in.

•Do not mow on wet grass. Reduced

traction could cause sliding.

•Do not try to stabilize the machine by

putting your foot o'n the ground.

•Do not use grass catcher on steep

slopes.

CHILDREN

Tragic accidents can occur ifthe operator

isnot alert to the presence of children.

Children are often attracted to the

machine and the mowing activity. Never

assume that childrenwill remain where

you last saw them.

•Keep children out of the mowing area

and under the watchfulcare of another

responsibleadult.

•Be alert and turn machine off if children

enter the area.

•Before and when backing, look behind

and down forsmall children.

•Never carry children.They may fall off

and be seriously injured or interfere with

safe machine operation.

•Never allow children to operate the

machine.

•Use extra care when approaching blind

comers, shrubs,trees, or other objects

that may obscure vision.

SERVICE

•Use extra care in handling gasoline and

other fuels. They are flammable and

vapors are explosive.

Use only an approved container.

Never remove gas cap or add fuel

with the engine running. Allow en-

gine to cool before refueling. Do not

smoke.

Never refuel the machine indoors.

Never store the machine or fuel

container inside where there is an

open flame, such as a water heater.

•Never run a machine inside a closed

area.

•Keep nutsand bolts, especially blade

attachment bolts, tight and keep equip

ment in good condition.

•Never tamper with safety devices.

Check their proper operation regulady.

•Keep machine free of grass, leaves, or

other debris build-up. Clean oil or fuel

spillage. Allow machine to cool before

storing.

•Stop and inspect the equipment if you

strike an object. Repair, if necessary,

before restarting.

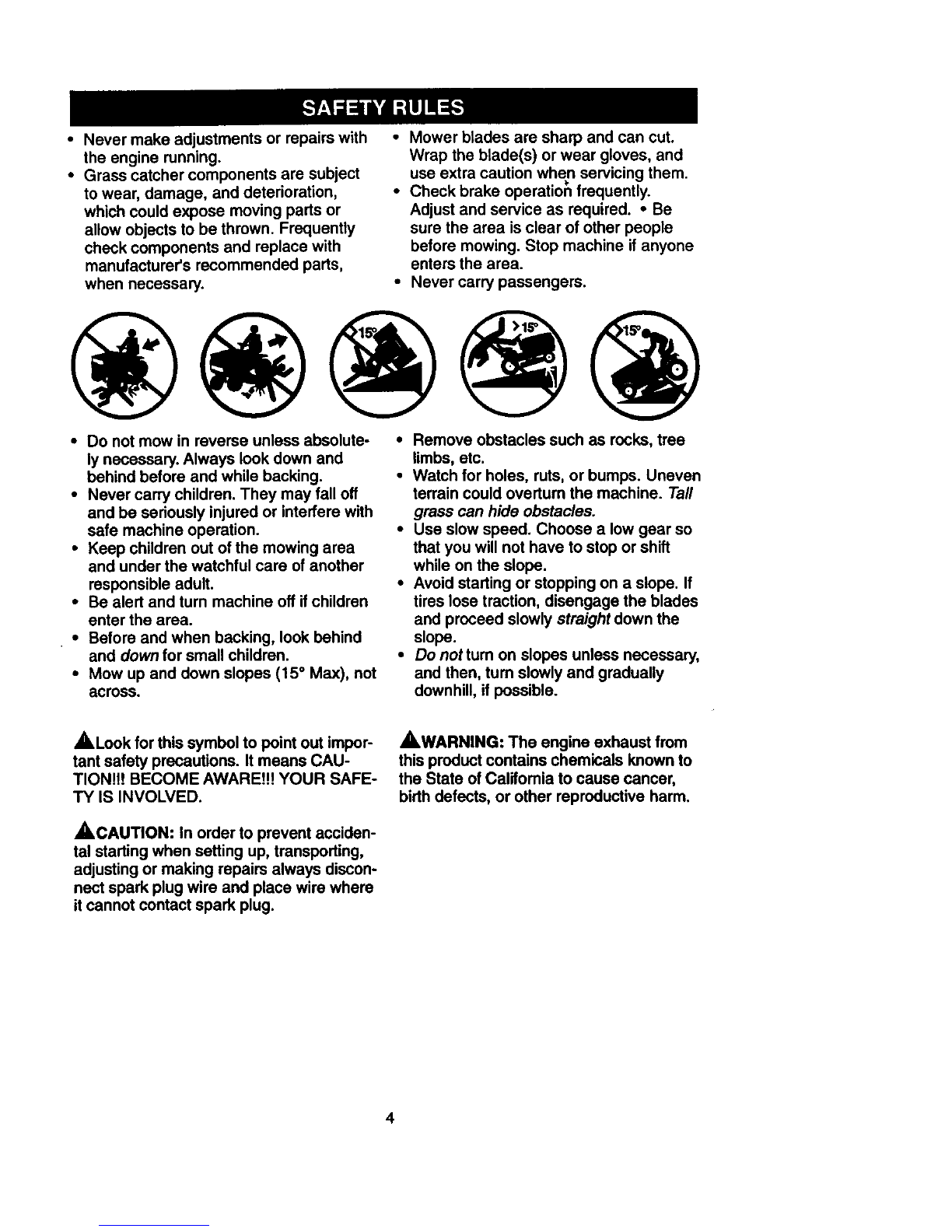

• Never make adjustments or repairs with

the engine running.

• Grass catcher components are subject

towear, damage, and deterioration,

which could expose moving parts or

allow objects to be thrown. Frequently

check components and replace with

manufacturer's recommended parts,

when necessary.

•Mower blades are sharp and can cut.

Wrap the blade(s) or wear gloves, and

use extra caution when servicing them.

•Check brake operat=on frequently.

Adjust and service as required. •Be

sure the area is clear of other people

before mowing. Stop machine if anyone

enters the area.

•Never carry passengers.

•Do not mow in reverse unless absolute-

ly necessary. Always look down and

behind before and while backing.

•Never carry children. They may fall off

and be seriously injured or interfere with

safe machine operation.

•Keep children out of the mowing area

and under the watchful care of another

responsible adult.

• Be alert and turn machine off if children

enter the area.

•Before and when backing, look behind

and down for small children.

•Mow up and down slopes (15 ° Max), not

across.

•Remove obstacles such as rocks, tree

limbs, etc.

•Watch for holes, ruts, or bumps. Uneven

terrain could overturn the machine. Tall

grass can hide obstacles.

•Use slow speed. Choose a low gear so

that you will not have to stop or shift

while on the slope.

•Avoid starting or stopping on a slope. If

tires lose traction, disengage the blades

and proceed slowly straight down the

slope.

•Donotturn on slopes unless necessary,

and then, turn slowly and gradually

downhill, if possible.

_,Look for this symbol to point out impor-

tant safety precautions. It means CAU-

TION!It BECOME AWARE!H YOUR SAFE-

TY IS INVOLVED.

_,CAUTION: In order to prevent acciden-

tal starting when setting up, transporting,

adjustingor making repairs always discon-

nect spark plugwire and place wire where

itcannot contact spark plug.

AWARNING: The engine exhaust from

this product contains chemicals known to

the State of Califomia to cause cancer,

birth defects, or other reproductive harm,

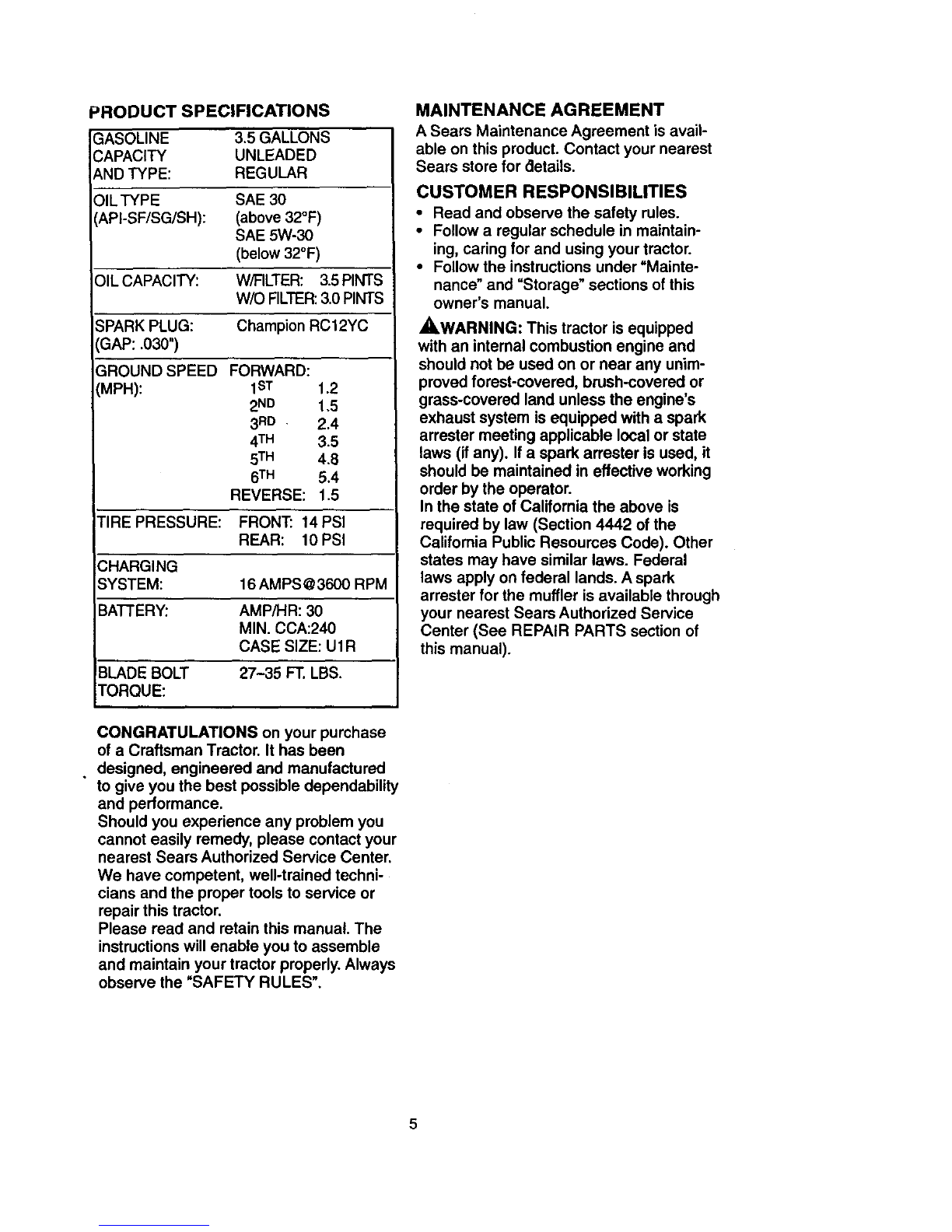

PRODUCT SPECIFICATIONS

GASOLINE 3.5 GALLONS

CAPACITY UNLEADED

AND TYPE: REGULAR

OIL TYPE SAE 30

API-SF/SG/SH): (above 32°F)

SAE 5W-30

(below 32°F)

OIL CAPACITY: W/FILTER: 3.5 PINTS

W/O FILTER:3.0 PINTS

SPARK PLUG: Champion RC12YC

GAP: .030")

GROUND SPEED FORWARD:

(MPH): 1ST t .2

2ND 1.5

3RD • 2.4

4TM 3.5

5TM 4.8

6TM 5.4

REVERSE: 1.5

TIRE PRESSURE: FRONT: 14PSI

REAR: 10 PSI

CHARGING

SYSTEM: 16 AMPS @3600 RPM

E3A'I-I'ERY: AMP/HR: 30

MIN. CCA:240

CASE SIZE: U1R

BLADE BOLT 27--35 FT. LBS.

TORQUE:

MAINTENANCE AGREEMENT

A Sears Maintenance Agreement is avail-

able on this product. Contact your nearest

Sears store for aetails.

CUSTOMER RESPONSIBILITIES

•Read and observe the safety rules.

•Follow a regular schedule in maintain-

ing, caring for and using your tractor.

•Follow the instructions under "Mainte-

nance" and "Storage" sections of this

owner's manual.

_,WARNING: This tractor is equipped

with an internal combustion engine and

should not be used on or near any unim-

proved forest-covered, brush-covered or

grass-covered land unless the engine's

exhaust system is equipped with a spark

arrester meeting applicable local or state

laws (if any). If a spark arrester is used, it

should be maintained in effective working

order by the operator.

In the state of California the above is

required by law (Section 4442 of the

California Public Resources Code). Other

states may have similar laws. Federal

laws apply on federal lands. A spark

arrester for the muffler is available through

your nearest Sears Authorized Service

Center (See REPAIR PARTS section of

this manual).

CONGRATULATIONS on your purchase

of a Craftsman Tractor. It has been

•designed, engineered and manufactured

to give you the best possible dependability

and performance.

Should you experience any problem you

cannot easily remedy, please contact your

nearest Sears Authorized Service Center.

We have competent, well-trained techni-

cians and the proper tools to service or

repair this tractor.

Please read and retain this manual. The

instructions will enable you to assemble

and maintain your tractor properly. Always

observe the "SAFETY RULES".

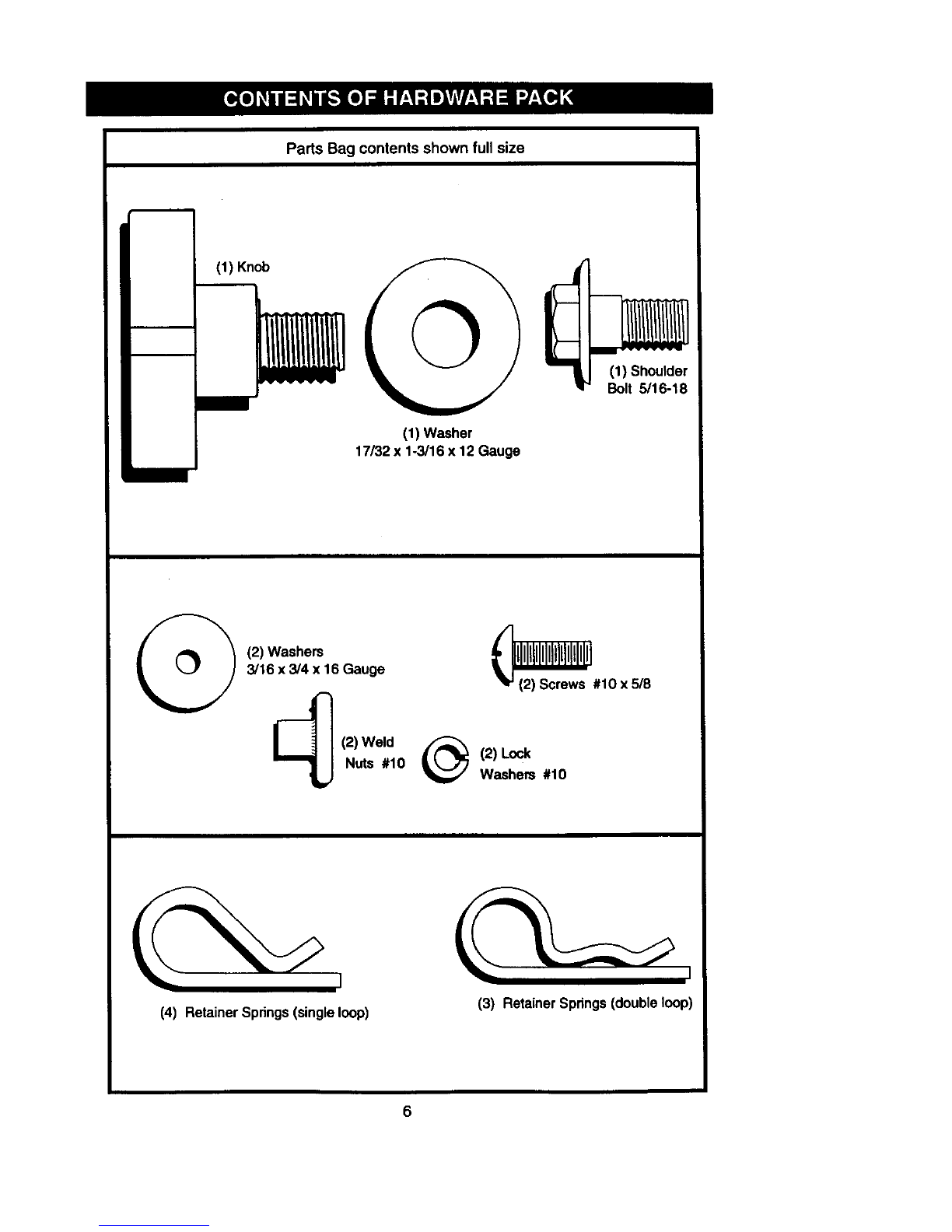

PartsBagcontentsshownfullsize

(1) Knob

(1) Washer

17/32 x 1-3/16 x 12 Gauge

(1) Shoulder

Bolt 5/16-18

(2) Washers

3/16 x3/4 x 16 Gauge

(2) Weld

Nuts #10 (2) Lock

Washers #10

(4) Retainer Springs(single loop) (3) Retainer Springs(doubleloop)

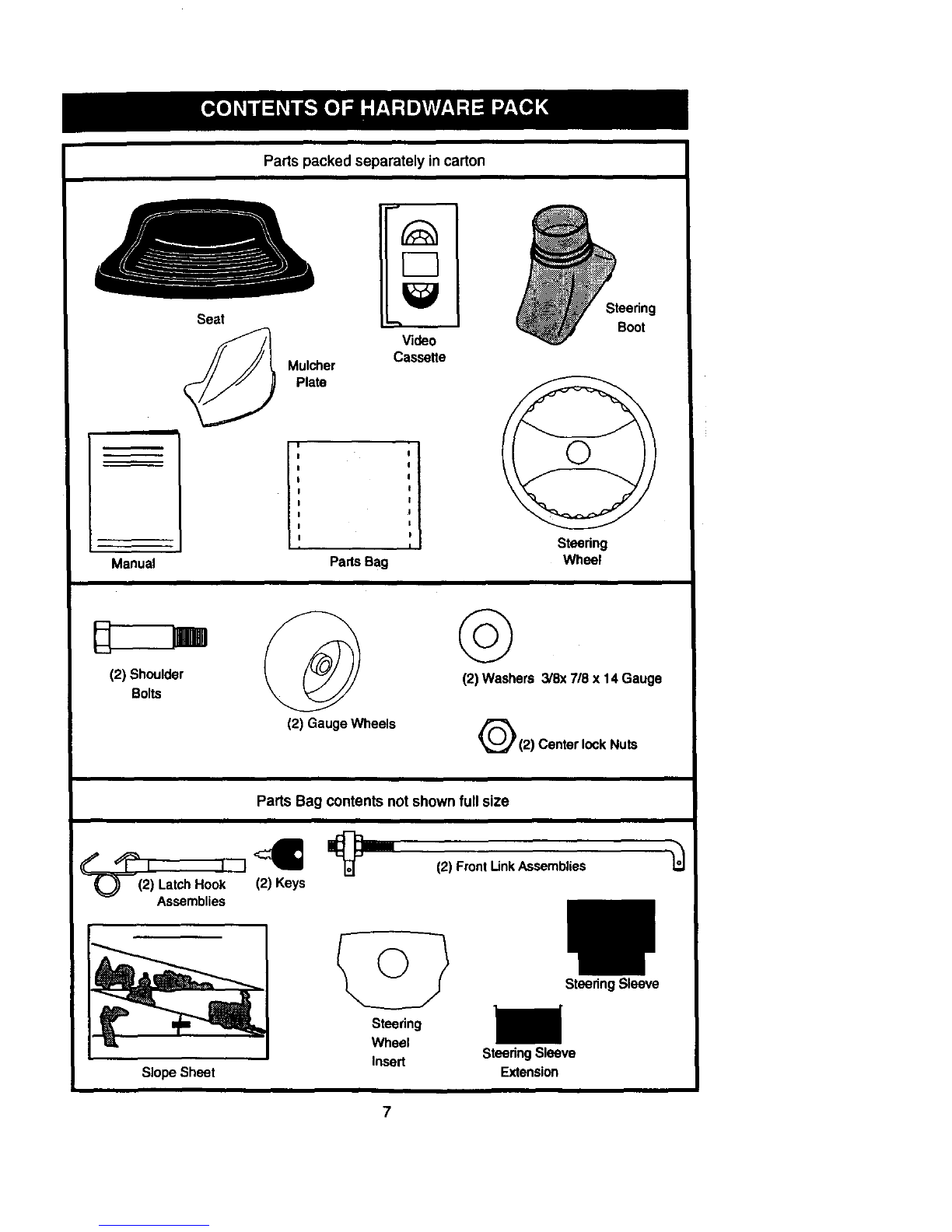

Parts packed separately in carton

Seat

Mulcher

Plate

Video

Cassette

Steering

Boot

iii

!__

Manual ,I

Pads Bag Steedng

Wheel

(2) Shoulder

Bolts

(2) Gauge Wheels

(2) Washers 3/8x7/8 x 14 Gauge

Q(2) Center lock Nuts

Parts Bag contents not shown full size

LatchHook

Assemblies

(2) Front Unk Assemblies

Slope Sheet

Steering

Wheel

Insert

Steering Sleeve

SteeringSleeve

Extension

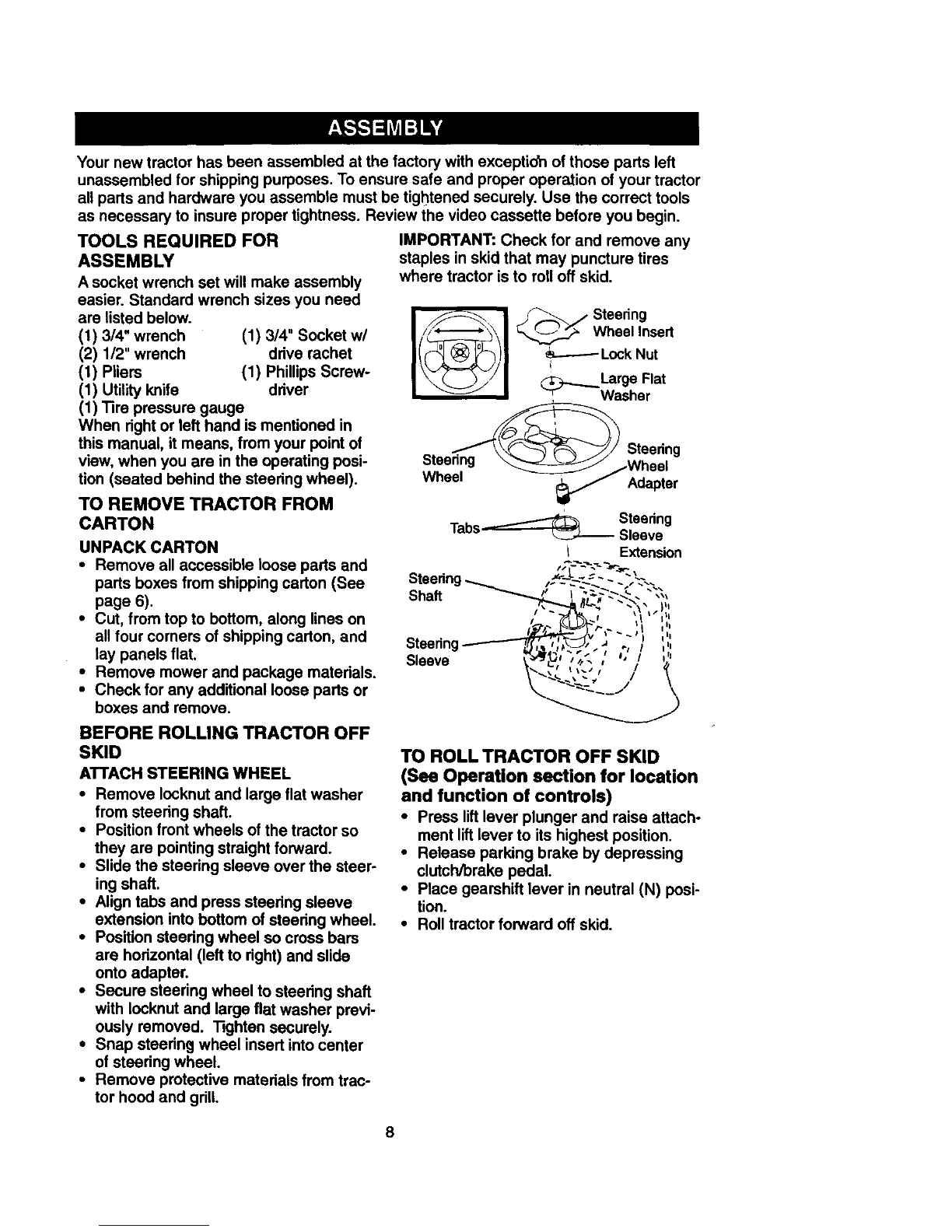

Your new tractor has been assembled at the factory with exception of those parts left

unassemb_ed for shipping purposes. To ensure safe and proper operation of your tractor

all parts and hardware you assemble must be tigl_tened securely. Use the correct tools

as necessary to insure proper tightness. Review the video cassette before you begin.

TOOLS REQUIRED FOR

ASSEMBLY

A socket wrench set willmake assembly

easier. Standard wrench sizes you need

are listedbelow.

(1) 3/4" wrench (1) 3/4" Socket w/

(2) 1/2" wrench drive rachet

(1) Pliers (1) PhillipsScrew-

(1) Utilityknife driver

(1) T_repressure gauge

When rightor left hand is mentioned in

this manual, it means, from your point of

view, when you are in the operating posi-

tion (seated behind the steering wheel).

TO REMOVE TRACTOR FROM

CARTON

UNPACK CARTON

•Remove all accessible loose parts and

parts boxes from shipping carton (See

page 6).

•Cut, from top to bottom, along lines on

all four corners of shipping carton, and

lay panels flat.

•Remove mower and package materials.

•Check for any additional loose parts or

boxes and remove.

IMPORTANT: Check for and remove any

staples in skid that may puncture tires

where tractor isto roll off skid.

ii iI t.n

Wheel Insert

_.-_ Lock Nut

_j..__._ Large Flat

_r. Washer

Steering

Wheel

Steering

Adapter

Steering

Tabs _.._.._._ Sleeve

/Extension

I_ J t|

Steering ._., /

BEFORE ROLLING TRACTOR OFF

SKID

ATTACH STEERING WHEEL

•Remove Iocknut and large flat washer

from steering shaft.

•Position front wheels of the tractor so

they are pointing straight forward.

•Slide the steering sleeve over the steer-

ing shaft.

•Align tabs and press steedng sleeve

extension into bottom of steering wheel.

•Position steering wheel so cross bars

are horizontal (left to right) and slide

onto adapter.

•Secure steering wheel to steering shaft

with Iocknut and large flat washer previ-

ously removed. "13ghtensecurely.

•Snap steedng wheel insert into center

of steering wheel.

•Remove protective materials from trac-

tor hood and grill.

TO ROLL TRACTOR OFF SKID

(See Operation section for location

and function of controls)

•Press liftlever plunger and raise attach-

ment lift lever to its highest position.

•Release parking brake by depressing

clutch/brake pedal.

•Place gearshift lever in neutral (N) posi-

tion.

•Roll tractor forward off skid.

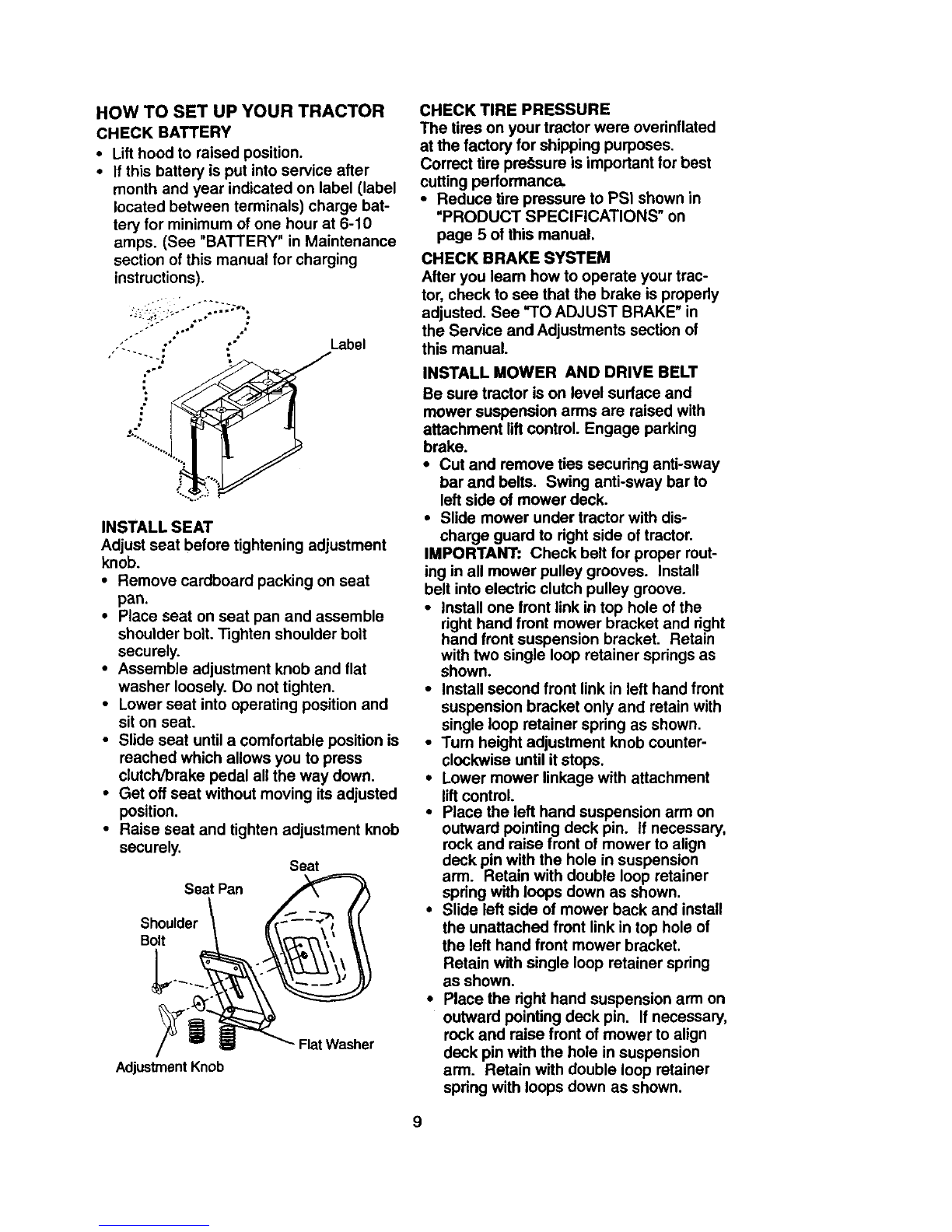

HOW TO SET UPYOUR TRACTOR

CHECKBATTERY

• Lifthoodto raised position.

• If this battery is put into service after

month and year indicated on label (label

located between terminals) charge bat-

tery for minimum of one hour at 6-10

amps. (See "BATTERY" in Maintenance

section of this manual for charging

instructions).

=.- ' _.....

_w p

o; Label

INSTALL SEAT

Adjust seat before tightening adjustment

knob.

• Remove cardboard packing on seat

pan.

• Place seat on seat pan and assemble

shoulder bolt. Tighten shoulder bolt

securely.

• Assemble adjustment knob and flat

washer loosely. Do not tighten.

• Lower seat into operating position and

sit on seat.

• Slide seat until a comfortable position is

reached which allows you to press

clutch/brake pedal all the way down.

•Get off seat without moving its adjusted

position.

• Raise seat and tighten adjustment knob

securely. Seat

Seat Pan

Shoulder

Bolt

Adjustment Knob

Flat Washer

CHECK TIRE PRESSURE

The tires on your tractor were overinflated

at the factory for shipping purposes.

Correct tire pre.,_sure is important for best

cutting performance.

•Reduce tire pressure to PSI shown in

"PRODUCT SPECIFICATIONS" on

page 5 of this manual.

CHECK BRAKE SYSTEM

After you learn how to operate your trac-

tor, check to see that the brake is properly

adjusted. See "TO ADJUST BRAKE" in

the Service and Adjustments section of

this manual.

INSTALL MOWER AND DRIVE BELT

Be sure tractor is on level surface and

mower suspension arms are raised with

attachment lift control. Engage parking

brake.

•Cut and remove ties securing anti-sway

bar and belts. Swing anti-sway bar to

left side of mower deck.

•Slide mower under tractor with dis-

charge guard to right side of tractor.

IMPORTANT: Check belt for proper rout-

ing in all mower pulley grooves. Install

belt into electric clutch pulley groove.

•Install one front link in top hole of the

right hand front mower bracket and right

hand front suspension bracket. Retain

with two single loop retainer springs as

shown.

•Install second front link in left hand front

suspension bracket only and retain with

single loop retainer spring as shown.

•Turn height adjustment knob counter-

clockwise until it stops.

•Lower mower linkage with attachment

lift control.

•Place the left hand suspension arm on

outward pointing deck pin. if necessary,

rock and raise front of mower to align

deck pin with the hole in suspension

arm. Retain with double loop retainer

spring with loops down as shown.

•Slide left side of mower back and install

the unattached front link in top hole of

the left hand front mower bracket.

Retain with single loop retainer spring

as shown.

•Place the right hand suspension arm on

outward pointing deck pin. If necessary,

rock and raise front of mower to align

deck pin with the hole in suspension

arm. Retain with double loop retainer

spring with loops down as shown.

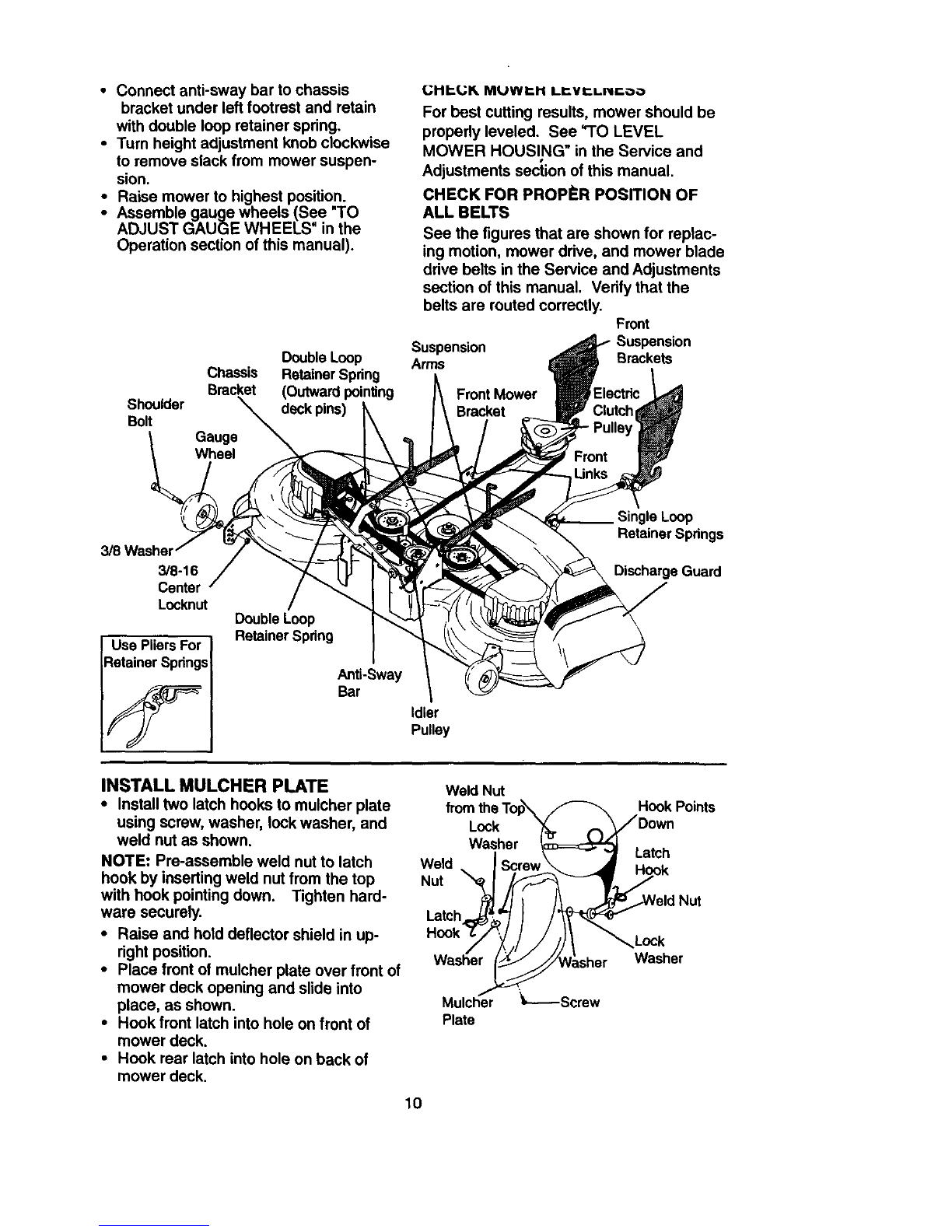

•Connect anti-sway bar to chassis

bracket under left footrest and retain

with double loop retainer spring.

•Turn height adjustment knob clockwise

to remove slack from mower suspen-

sion.

•Raise mower to highest position.

•Assemble gauge wheels (See "TO

ADJUST GAUGE WHEELS in the

Operation section of this manual).

Shoulder

Bolt

Double Loop

Chassis Retainer Spring

Bracket (Outward pointing

deck pins)

(.;Hb(,;R MUWP-I1 Lr.Vr.L.£Oo

For best cutting results, mower should be

properly leveled. See "TO LEVEL

MOWER HOUSING" in the Service and

Adjustments section of this manual.

CHECK FOR PROPI_R POSITION OF

ALL BELTS

See the figures that are shown for replac-

ing motion, mower drive, and mower blade

drive belts in the Service and Adjustments

section of this manual. Verify that the

belts are muted correctly. Front

Suspension Suspension

Arms Brackets

Front Mower

Bracket

3/8 Washel

3/8-16

Center

Locknut

Use PliersFor

Retainer Springs

Double Loop

Retainer Spdng

Anti-Sway

Bar

Idler

Pulley

Single Loop

Retainer Spdngs

Discharge Guard

INSTALL MULCHER PLATE Weld Nut

•Install two latch hooks to mulcher plate

using screw, washer, lock washer, and Lock

weld nut as shown. Washer

NOTE: Pre-assemble weld nut to latch Weld

hook by inserting weld nut from the top Nut

with hook pointing down. Tighten hard-

ware securely. Latch_

•Raise and hold deflector shield in up- Hook

right position.

•Place front of mulcher plate over front of

mower deck opening and slide into

place, as shown. Mulcher _,-----Screw

•Hook front latch into hole on front of Plate

mower deck.

•Hook rear latch into hole on back of

mower deck.

Hook Points

Latch

Lock

Washer

Table des matières

Autres manuels Craftsman Tondeuse à gazon

Craftsman

Craftsman 917.387560 Manuel utilisateur

Craftsman

Craftsman 3One 917.372910 Manuel utilisateur

Craftsman

Craftsman EZ3 917.258870 Manuel utilisateur

Craftsman

Craftsman 917.388893 Manuel utilisateur

Craftsman

Craftsman 917.387441 Manuel utilisateur

Craftsman

Craftsman 247.887330 Manuel utilisateur

Craftsman

Craftsman EZ3 917.270642 Manuel utilisateur

Craftsman

Craftsman 917.2720601 Manuel utilisateur

Craftsman

Craftsman 917.376732 Manuel utilisateur

Craftsman

Craftsman 37948 Manuel utilisateur

Craftsman

Craftsman 25314 Manuel utilisateur

Craftsman

Craftsman EZ3 917.377531 Manuel utilisateur

Craftsman

Craftsman 917.374367 Manuel utilisateur

Craftsman

Craftsman 917.273100 Manuel utilisateur

Craftsman

Craftsman 917.27351 Manuel utilisateur

Craftsman

Craftsman 917.370432 Manuel utilisateur

Craftsman

Craftsman 917.370543 Manuel utilisateur

Craftsman

Craftsman 917.388224 Manuel utilisateur

Craftsman

Craftsman 25672 Manuel utilisateur

Craftsman

Craftsman EZ3 917.259550 Manuel utilisateur

Craftsman

Craftsman EZ3 917.271021 Manuel utilisateur

Craftsman

Craftsman 917.28805 Manuel utilisateur

Craftsman

Craftsman 917.378351 Manuel utilisateur

Craftsman

Craftsman 917.271651 Manuel utilisateur

Manuels Tondeuse à gazon populaires d'autres marques

RHINO

RHINO 1958 Manuel utilisateur

Wolf Garten

Wolf Garten Compact plus 40 B Manuel utilisateur

Cub Cadet

Cub Cadet LTX 1045 Manuel utilisateur

GGP ITALY SPA

GGP ITALY SPA CR/CS 434 SERIES Manuel utilisateur

Challenge

Challenge CH18V2 Instructions de fonctionnement

TALEN TOOLS

TALEN TOOLS AVR HGM30 Manuel utilisateur

DEWEZE

DEWEZE ATM-725 Manuel d'utilisation

Weed Eater

Weed Eater 180083 Manuel utilisateur

Husqvarna

Husqvarna Poulan Pro PP185A42 Manuel utilisateur

Better Outdoor Products

Better Outdoor Products Quick Series Manuel utilisateur

Cub Cadet

Cub Cadet 23HP Z-Force 60 Manuel d'utilisation

MTD

MTD 795, 792, 791, 790 Manuel utilisateur

Toro

Toro Groundsmaster 3505-D Manuel utilisateur

Dennis

Dennis FT 610 Manuel utilisateur

AIRFORCE

AIRFORCE F-15 Gen 3 Manuel utilisateur

MTD

MTD 126-220-000 Manuel utilisateur

Toro

Toro 74806 Manuel utilisateur

Stihl

Stihl RMA 443 PV Manuel utilisateur
