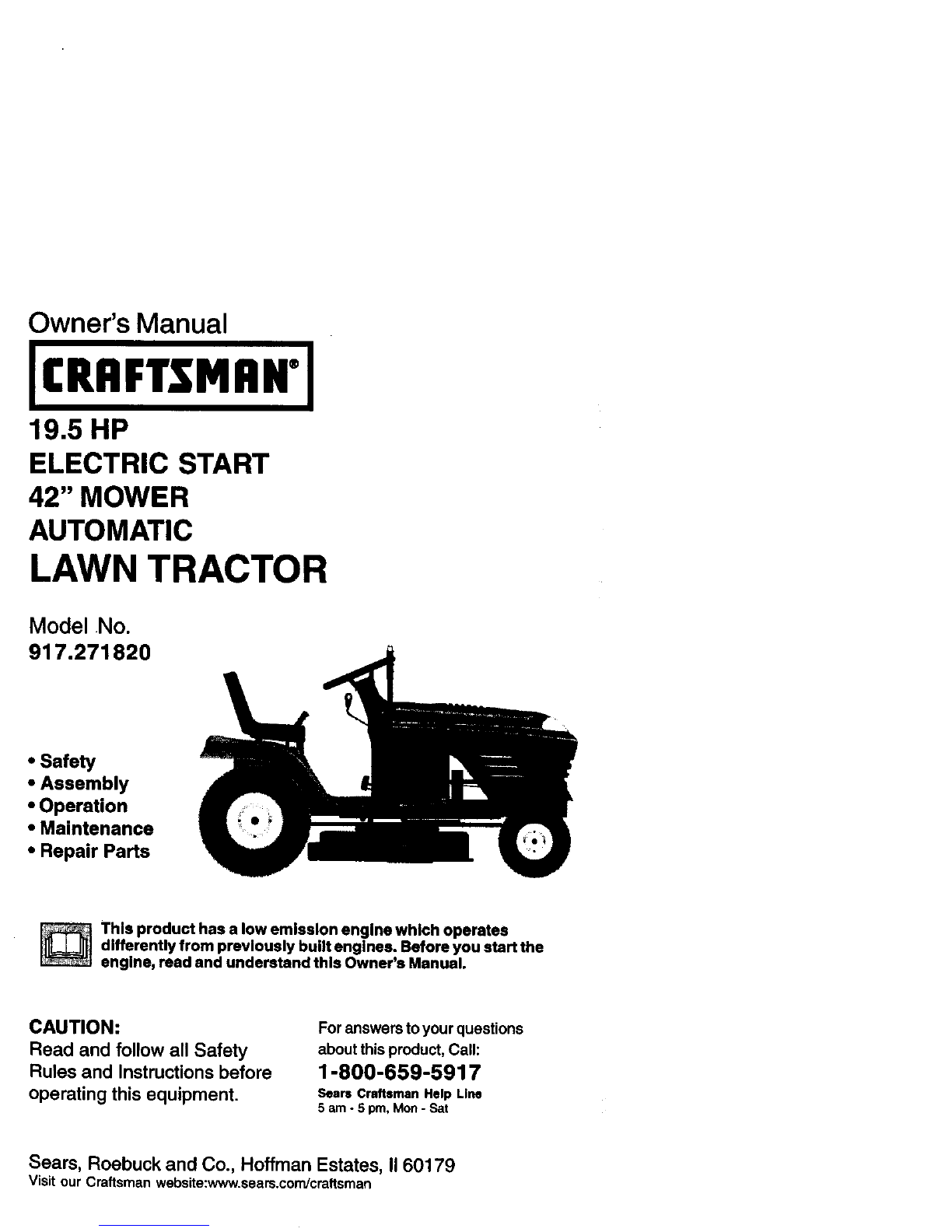

Owner's Manual

ICRRFTSMRN'I

19.5 HP

ELECTRIC START

42" MOWER

AUTOMATIC

LAWN TRACTOR

Model No.

917.271820

• Safety

• Assembly

•Operation

•Maintenance

•Repair Parts

This product has a low emission engine which operates

differently from previously built engines. Before you start the

engine, read end understand this Owner's Manual.

CAUTION:

Read and follow all Safety

Rules and Instructions before

operating this equipment.

For answers to your questions

about this product, Call:

1-800-659-5917

Sears Craftsman Help Line

5am - 5 pro, Mon- Sat

Sears, Roebuck and Co., Hoffman Estates, II 60179

Visitour Craftsmanwebsite:www.sears.corn/craftsman

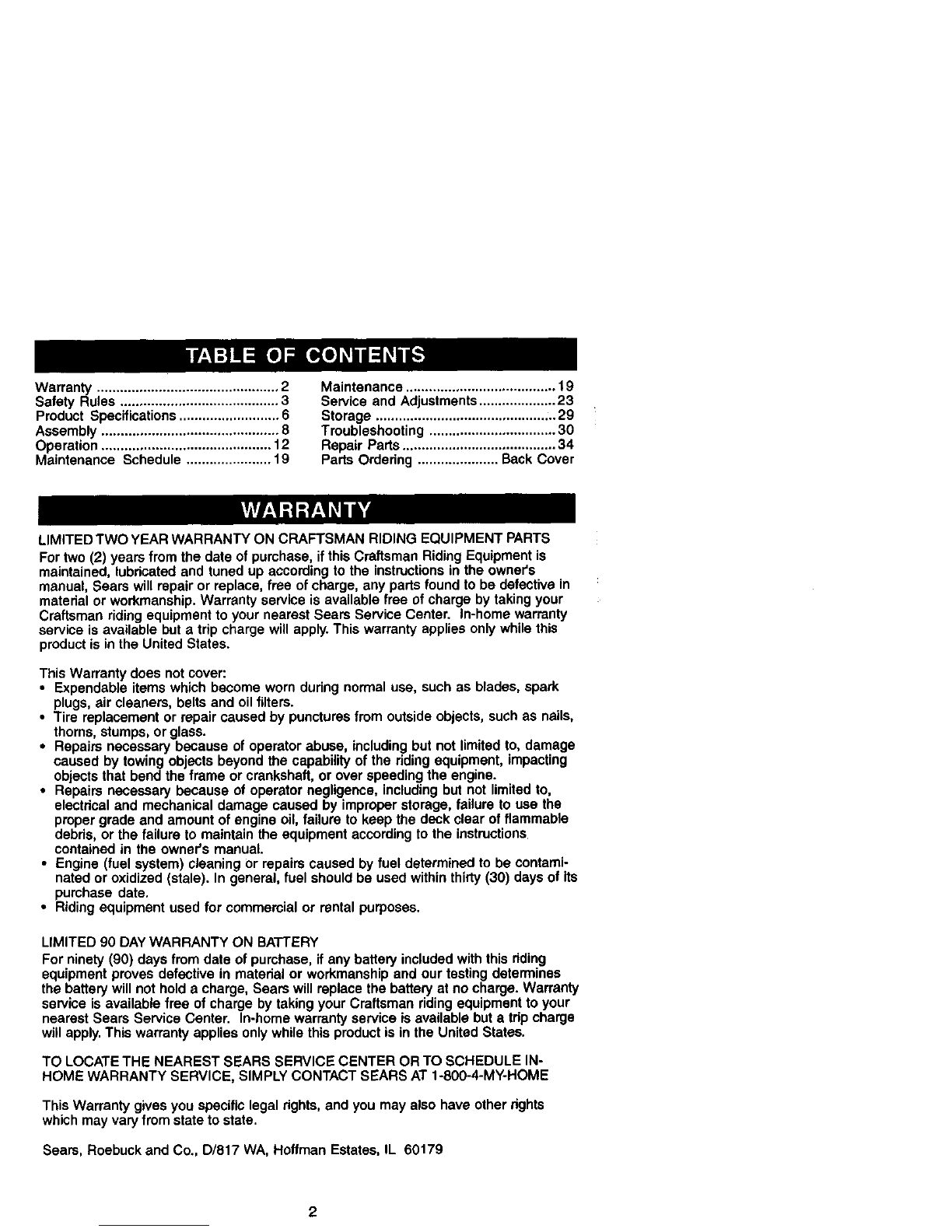

Warranty ............................................... 2

Safety Rules ......................................... 3

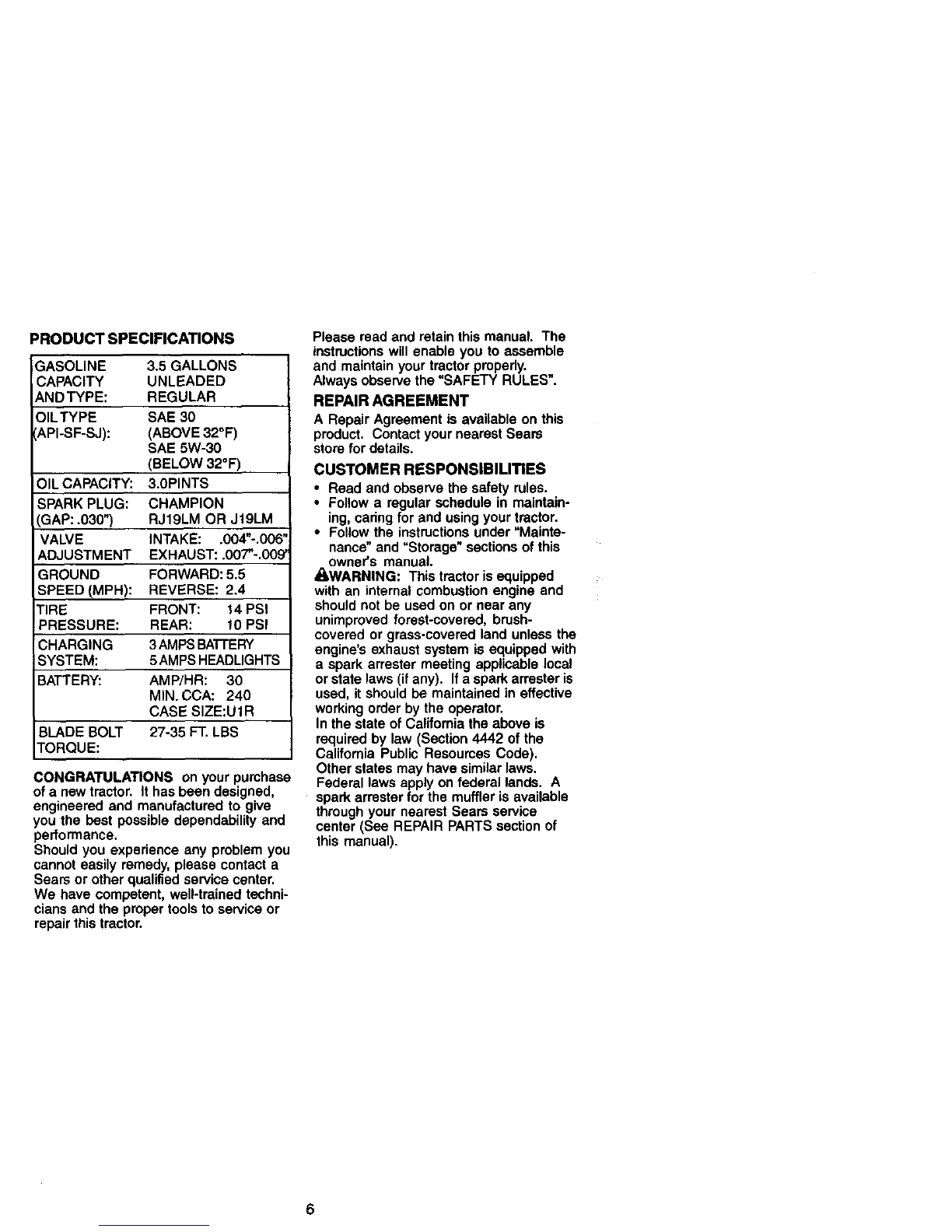

Product Specifications .......................... 6

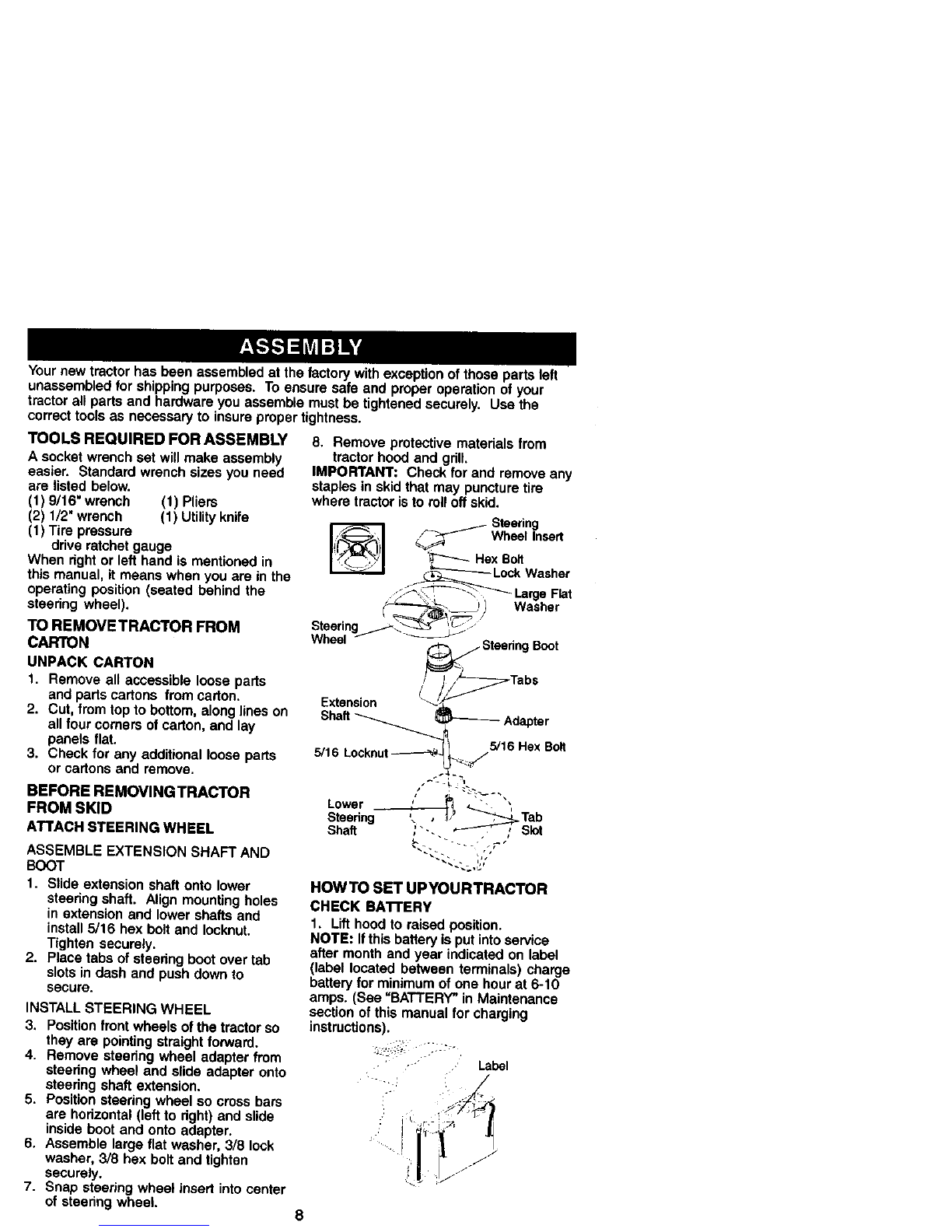

Assembly .............................................. 8

Operation ............................................ 12

Maintenance Schedule ...................... 19

Maintenance ....................................... 19

Service and Adjustments .................... 23

Storage ............................................... 29

Troubleshooting ................................. 30

Repair Parts ........................................ 34

Parts Ordering ..................... Sack Cover

LIMITED TWO YEAR WARRANTY ON CRAFTSMAN RIDING EQUIPMENT PARTS

For two (2) years from the date of purchase, if this Craftsman Riding Equipment is

maintained, lubricated and tuned up according to the instructions in the owner's

manual, Sears will repair or replace, free of charge, any parts found to be defective in

material or workmanship. Warranty service is available free of charge by taking your

Craftsman riding equipment to your nearest Sears Service Center. In-home warranty

service is available but a trip charge will apply. This warranty applies only while this

product is in the United States.

This Warranty does not cover:

•Expendable items which become worn during normal use, such as blades, spark

plugs, air cleaners, belts and oil filters.

•Tire replacement or repair caused by punctures from outside objects, such as nails,

thorns, stumps, or glass.

• Repairs necessary because of operator abuse, including but not limited to, damage

caused by towing objects beyond the capability of the dding equipment, impacting

objects that bend the frame or crankshaft, or over speeding the engine.

•Repairs necessary because of operator negligence, including but not limited to,

electdcal and mechanical damage caused by improper storage, failure to use the

proper grade and amount of engine oil, failure to keep the deck clear of flammable

debds, or the failure to maintain the equipment according to the instructions

contained in the owner's manual.

•Engine (fuel system) cleaning or repairs caused by fuel determined to be contami-

nated or oxidized (stale). In general, fuel should be used within thirty (30) days of its

purchase date,

•Riding equipment used for commercial or rental purposes.

LIMITED 90 DAY WARRANTY ON BATTERY

For ninety (90) days from date of purchase, if any battery included with this dding

equipment proves defective in matedal or workmanship and our testing determines

the battery will not hold a charge, Sears will replace the battery at no charge. Warranty

service is available free of charge by taking your Craftsman riding equipment to your

nearest Sears Service Center. In-home warranty service is available but a tdp charge

will apply. This warranty applies only while this product is in the United States.

TO LOCATE THE NEAREST SEARS SERVICE CENTER OR TO SCHEDULE IN-

HOME WARRANTY SERVICE, SIMPLY CONTACT SEARS AT 1-800-4-MY-HOME

This Warranty gives you specific legal dghts, and you may also have other rights

which may vary from state to state.

Sears, Roebuck and Co., D/817 WA, Hoffman Estates, IL 60179

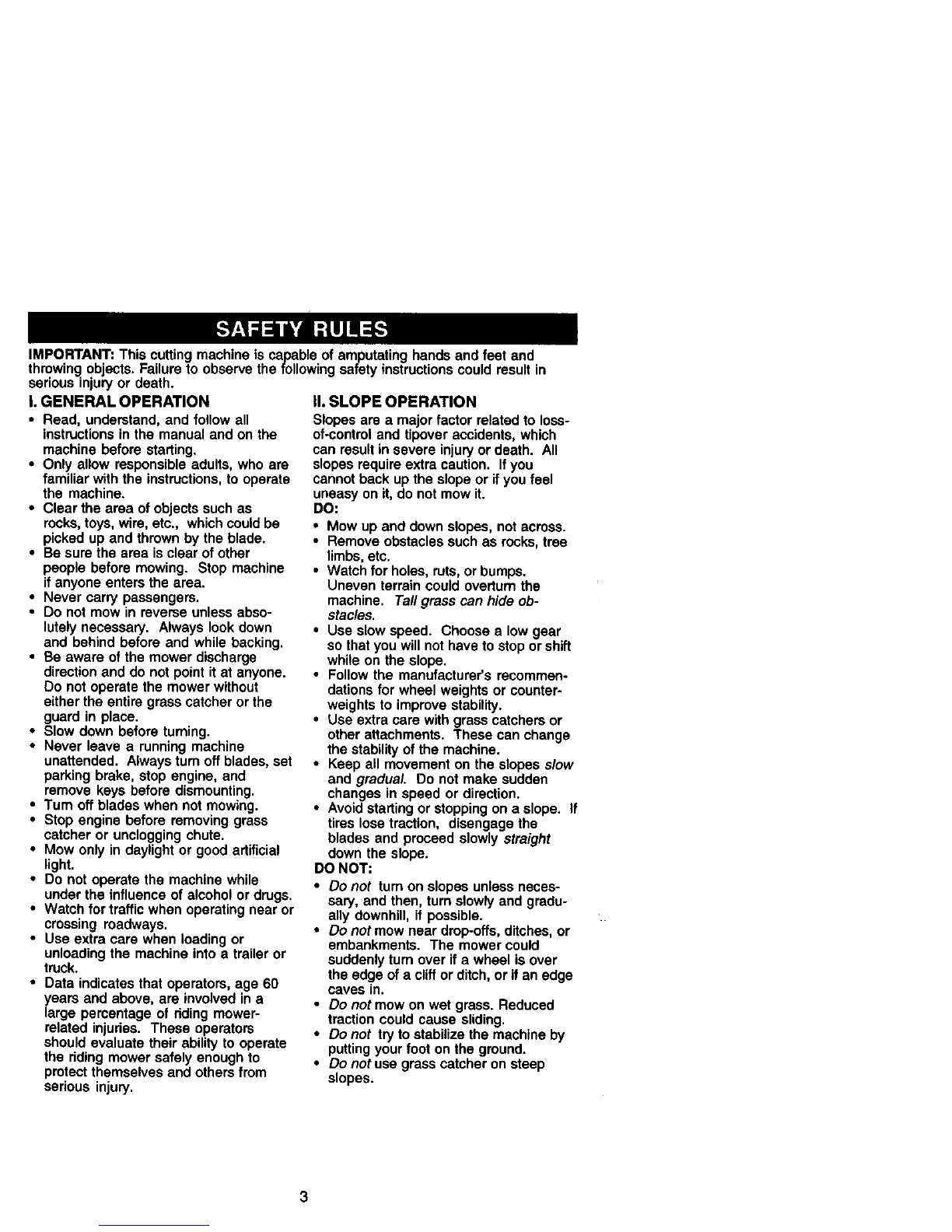

IMPORTANT: This cutting machine is capable of amputating hands and feet and

thro.wing,objects. Failure to observe the following safety instructions could result in

senous injury or death.

I. GENERAL OPERATION

• Read, undemtand, and follow all

instructions in the manual and on the

machine before starting.

•Only allow responsible adults, who are

familiar with the instructions, to operate

the machine.

• Clear the area of objects such as

rocks, toys, wire, etc., which could be

picked up and thrown by the blade.

•Be sure the area is clear of other

people before mowing. Stop machine

if anyone enters the area.

•Never carry passengers.

• Do not mow in reverse unless abso-

lutely necessary. Always look down

and behind before and while backing.

• Be aware of the mower discharge

direction and do not point it at anyone.

Do not operate the mower without

either the entire grass catcher or the

guard in place.

•Slow down before turning.

•Never leave a running machine

unattended. Always tum off blades, set

parking brake, stop engine, and

remove keys before dismounting.

•Tum off blades when not mowing.

•Stop engine before removing grass

catcher or unclogging chute.

•Mow only in daylight or good artificial

light.

•Do not operate the machine while

under the influence of alcohol or drugs.

•Watch for traffic when operating near or

crossing roadways.

•Use extra care when loading or

unloading the machine into a trailer or

truck.

•Data indicates that operators, age 60

years and above, are involved in a

large percentage of riding mower-

related injuries. These operators

should evaluate their ability to operate

the riding mower safely enough to

protect themselves and others from

serious injury.

II. SLOPE OPERATION

Slopes are a major factor related to Ioss-

of-contrel and tipover accidents, which

can result in severe injury or death. All

slopes require extra caution. Ifyou

cannot back up the slope or if you feel

uneasy on it, do not mow it.

DO:

•Mow up and down slopes, not across.

•Remove obstacles such as rocks, tree

limbs, etc.

•Watch for holes, ruts, or bumps.

Uneven terrain could overturn the

machine. Tall grass can hide ob-

stacles.

•Use slow speed. Choose a low gear

so that you will not have to stop or shift

while on the slope.

•Follow the manufacturer's recommen-

dations for wheel weights or counter-

weights to improve stability.

•Use extra care with grass catchers or

other attachments. These can change

the stability of the machine.

•Keep all movement on the slopes slow

and gradual Do not make sudden

changes in speed or direction.

•Avoid starting or stopping on a slope. If

tires lose traction, disengage the

blades and proceed slowly straight

down the slope.

DO NOT:

•Do not turn on slopes unless neces-

sary, and then, turn slowly and gradu-

ally downhill, if possible.

•Do not mow near drop-offs, ditches, or

embankments. The mower could

suddenly turn over if a wheel is over

the edge of a cliff or ditch, or if an edge

caves in.

•Do not mow on wet grass. Reduced

traction could cause sliding.

•Do not try to stabilize the machine by

putting your foot on the ground.

•Do not use grass catcher on steep

slopes.

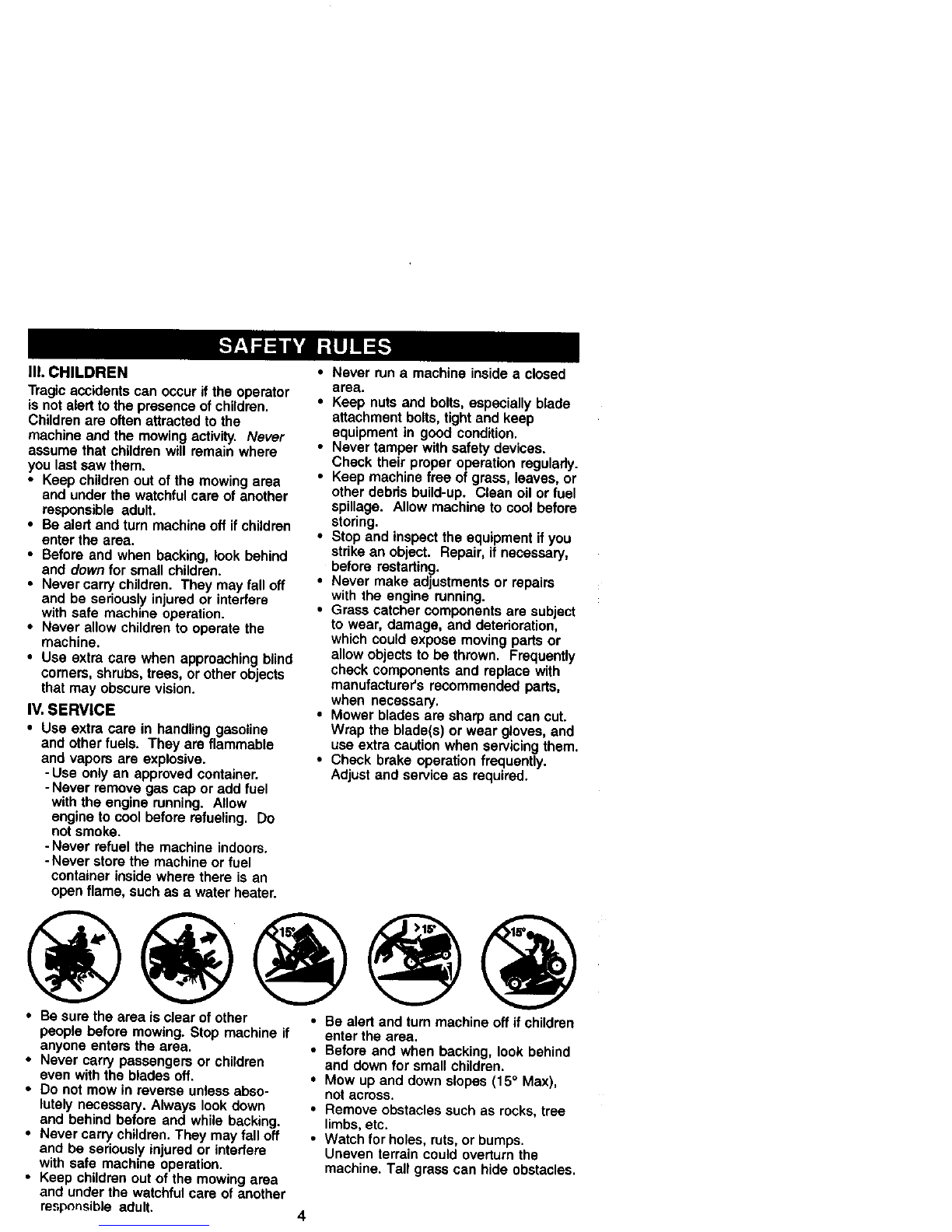

III.CHILDREN

Tragic accidents can occur if the operator

is not alert to the presence of children.

Children are often attracted to the

machine and the mowing activity. Never

assume that children will remain where

you last saw them.

•Keep children out of the mowing area

and under the watchful care of another

responsible adutt.

•Be alert and turn machine off if children

enter the area.

• Before and when backing, look behind

and down for small children.

•Never carry children. They may fall off

and be seriously injured or interfere

with safe machine operation.

•Never allow children to operate the

machine.

•Use extra care when approaching blind

corners, shrubs, trees, or other objects

that may obscure vision.

IV. SERVICE

•Use extra care in handling gasoline

and other fuels. They are flammable

and vapors are explosive.

-Use only an approved container.

-Never remove gas cap or add fuel

with the engine running. Allow

engine to cool before refueling, Do

not smoke.

-Never refuel the machine indoors.

-Never store the machine or fuel

container inside where there is an

open flame, such as a water heater.

•Never run a machine inside a closed

area.

•Keep nuts and bolts, especially blade

attachment bolts, tight and keep

equipment in good condition.

• Never tamper with safety devices.

Check their proper operation regulady.

• Keep machine free of grass, leaves, or

other debds build-up. Clean oil or fuel

spillage. Allow machine to cool before

storing.

•Stop and inspect the equipment if you

strike an object. Repair, if necessary,

before restarting.

•Never make adjustments or repairs

with the engine running.

•Grass catcher components are subject

to wear, damage, and detedoretion,

which could expose moving parts or

allow objects to be thrown. Frequently

check components and replace with

manufacturers recommended parts,

when necessary.

•Mower blades are sharp and can cut.

Wrap the blade(s) or wear gloves, and

use extra caution when servicing them.

•Check brake operation frequently.

Adjust and service as required.

•Be sure the area is clear of other

people before mowing. Stop machine if

anyone enters the area.

•Never carry passengers or children

even with the blades off.

•Do not mow in reverse unless abso-

lutely necessary. Always look down

end behind before and while backing.

•Never carry children. They may fall off

and be seriously injuredor interfere

with safe machine operation.

•Keep children out of the mowing area

and under the watchful care of another

respnnsible adult.

• Be ated and turn machine off if children

enter the area.

•Before end when backing, look behind

and down for small children.

•Mow up and down slopes (15°Max),

not across.

•Remove obstacles such as rocks, tree

limbs, etc.

•Watch for holes, ruts, or bumps.

Uneven terrain cou_ overturn the

machine. Tall grass can hide obstacles.

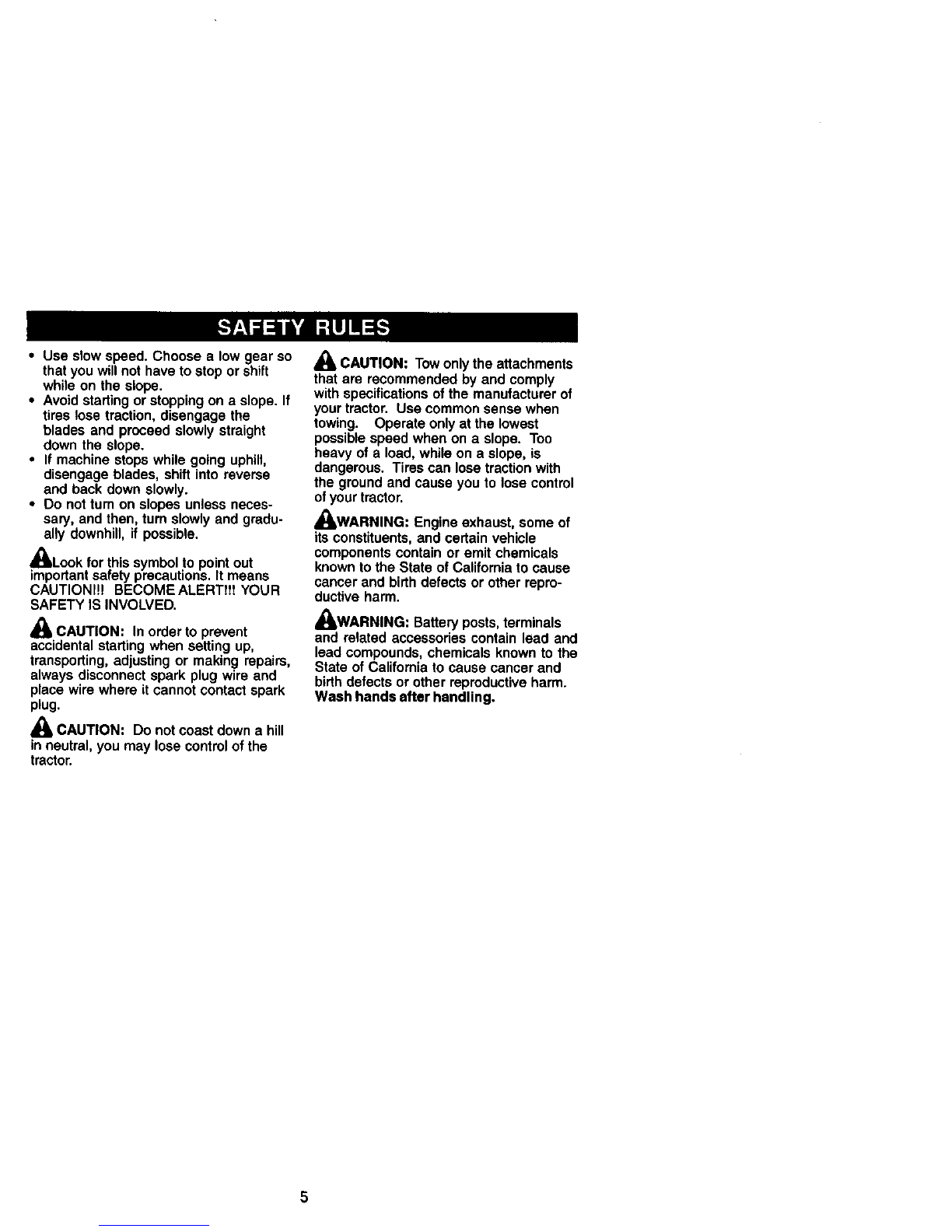

• Use slow speed. Choose a low gear so

that you will not have to stop or shift

while on the slope.

• Avoid starting or stopping on a slope. If

tires lose traction, disengage the

blades and proceed slowly straight

down the slope.

•If machine stops while going uphill,

disengage blades, shift into reverse

and back down slowly.

•Do not turn on slopes unless neces-

sary, and then, turn slowly and gradu-

ally downhill, if possible.

,_Look for this symbol to point out

important safety precautions. It means

CAUTIONI!! BECOMEALERT!!! YOUR

SAFETY IS INVOLVED.

_, CAUTION: In order to prevent

accidental starting when setting up,

transporting, adjusting or making repairs,

always disconnect spark plug wire and

place wire where it cannot contact spark

plug.

,_ CAUTION: Do not coast down a hill

in neutral, you may lose control of the

tractor.

CAUTION: Tow only the attachments

that are recommended by and comply

with specifications of the manufacturer of

your tractor. Usa common sense when

towing. Operate only at the lowest

possible speed when on a slope. Too

heavy of aload, while on a slope, is

dangerous. Tires can lose traction with

the ground and cause you to lose control

ofyour tractor.

_,WARNING: Engine exhaust, some of

its constituents, and certain vehicle

components contain or emit chemicals

known to the State of California to cause

cancer and birth defects or other repro-

ductive harm.

_WARNING: Battery posts, terminals

and related accassories contain lead and

lead compounds, chemicals known to the

State of California to cause cancer and

birth defects or other reproductive harm.

Wash hands after handling.

PRODUCT SPECIFICATIONS

GASOLINE 3.5 GALLONS

CAPACITY UNLEADED

ANDTYPE: REGULAR

OILTYPE SAE 30

API-SF-SJ): (ABOVE 32°F)

SAE 5W-30

(BELOW 32°F)

OIL CAPACITY: 3.0PINTS

SPARK PLUG: CHAMPION

GAP: .030") RJ19LM OR Jt9LM

VALVE INTAKE: .004"-.006"

ADJUSTMENT EXHAUST: .007"-.009 _

GROUND FORWARD: 5.5

SPEED (MPH): REVERSE: 2.4

TIRE FRONT: 14 PSI

PRESSURE: REAR: 10 PSI

CHARGING 3AMPS BA'I-rERY

SYSTEM: 5AMPS HEADLIGHTS

BATTERY: AMP/HR: 30

MIN. CCA: 240

CASE SIZE:U1R

BLADE BOLT 27-35 FT. LBS

TORQUE:

CONGRATULATIONS on your purchase

of a new tractor. It has been designed,

engineered and manufactured to give

you the best possible dependability and

performance.

Should you experience any problem you

cannot easily remedy, please contact a

Sears or other qualified service center.

We have competent, well-trained techni-

cians and the proper tools to service or

repair this tractor.

Pleasereadand retainthismanual. The

instructionswillenable you to assemble

and maintainyourtractorproperly.

Alwaysobservethe"SAFETY RULES".

REPAIR AGREEMENT

A RepairAgreementis availableon this

product. ContactyournearestSears

storefor details.

CUSTOMER RESPONSIBILITIES

• Read and observe the safety rules.

• Follow a regular schedule in maintain-

ing, caring for and using your tractor.

•Follow the instructions under "Mainte-

nance" and "Storage" sections of this

owner's manual.

_kWARNING: This tractor is equipped

with an internal combustion engine and

should not be used on or near any

unimproved forest-covered, brush-

covered or grass-covered land unless the

engine's exhaust system is equipped with

a spark arrester meeting applicable local

or state laws (if any). If a spark arrestar is

used, it should be maintained in effective

working order by the operator.

In the state of California the above is

required by law (Section 4442 of the

Califomia Public Resources Code).

Other states may have similar laws.

Federal laws apply on federal lands. A

spark arrester for the muffler is available

through your nearest Sears service

center (See REPAIR PARTS section of

this manual).

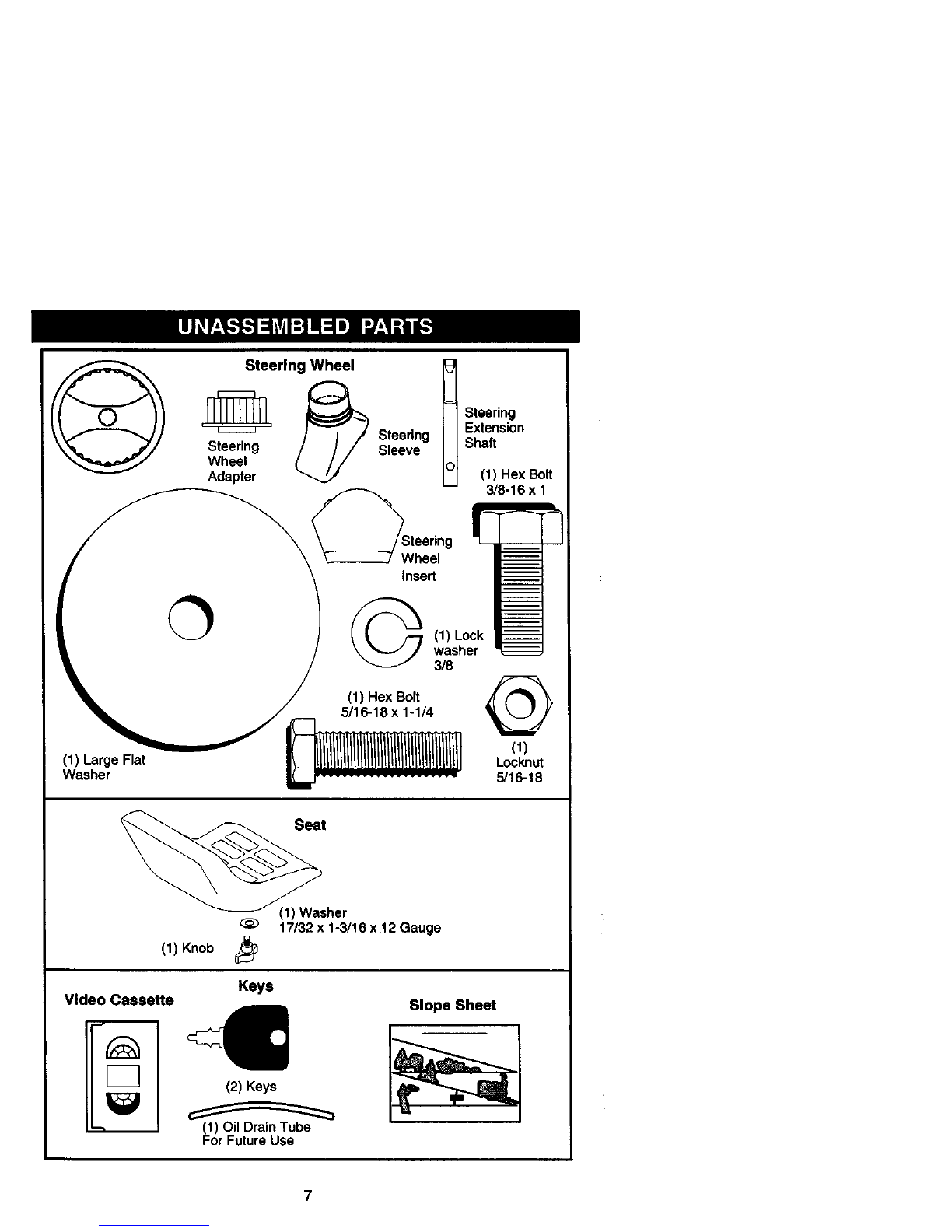

Steerin( Wheel

Swt_l:rePg l

Adapter

Steering

Sleeve Iteering

Extension

Shaft

(1) Hex Bolt

3/8-16 x 1

(1)Large Flat

Washer

Wheel

Inse_

(1) Hex Bolt

5/16-18 x 1-1/4

(1) Lock

washer

3/8 @

(1)

Locknut

5/16-18

Seat

(1) Washer

17/32 x 1-3/16 x 12 Gauge

(1) Knob

Keys

Video Cassette _SlopeShee

(1) OilDrainTube

ForFutureUse

Your new tractor has been assembled at the factory with exception of those parts left

unassembled for shipping purposes. To ensure safe and proper operation of your

tractor all parts and hardware you assemble must be tightened securely. Use the

correct tools as necessary to insure proper tightness.

TOOLS REQUIRED FOR ASSEMBLY

A socket wrench set will make assembly

easier. Standard wrench sizes you need

are listed below.

(1) 9/16" wrench (1) Pliers

(2) 1/2" wrench (1) Utility knife

(1) Tire pressure

ddve ratchet gauge

When dght or left hand is mentioned in

this manual, it means when you are in the

operating position (seated behind the

steedng wheel).

TO REMOVETRACTOR FROM

CARTON

UNPACK CARTON

1. Remove all accessible loose parts

and parts cartons from carton.

2. Cut, from top to bottom, along lines on

all four comers of carton, and lay

panels flat.

3. Check for any additional loose parts

or cartons and remove.

BEFORE REMOVING TRACTOR

FROM SKID

ATTACH STEERING WHEEL

ASSEMBLE EXTENSION SHAFT AND

BOOT

1. Slide extension shaft onto lower

steedng shaft. Align mounting holes

in extension and lower shafts and

install 5/16 hex bolt and Iocknut.

Tighten securely.

2. Place tabs of steering boot over tab

slots in dash and push down to

Secure.

INSTALL STEERING WHEEL

3. Position front wheels of the tractor so

they are pointing straight forward.

4. Remove steering wheel adapter from

steedng wheel and slide adapter onto

steering shaft extension.

5. Position steering wheel so cross bars

are horizontal (left to dght) and slide

inside boot and onto adapter.

6. Assemble large flat washer, 3/8 lock

washer, 3/8 hex bolt and tighten

securely.

7. Snap steering wheel Jnsed into center

of steering wheel.

8. Remove protective materiels from

tractor hood and gdll.

IMPORTANT: Check for and remove any

staples in skid that may puncture tire

where tractor is to roll off skid.

Steering

_Wheel Insert

_.x Bolt

f______ Lock Washer

-_ _ LargeFlat

_) Washer

Steering j_'_

Wheel

_Steedng Boot

Extension _,_F

Shaft__-- Adapter

5/16 Locknut__'5/16 Hex Bolt

._--_.

Lower _ _ ",

Steering \,_! ._ Tab

Shaft ;'-. _,, Slot

HOWTO SET UPYOURTRACTOR

CHECK BATrERY

1. Lift hood to raised position.

NOTE: Ifthis battery is put into service

after month and year indicated on label

(label located between terminals) charge

battery for minimum of one hour at 6-10

amps. (See "BATTERY" in Maintenance

section of this manual for charging

instructions).

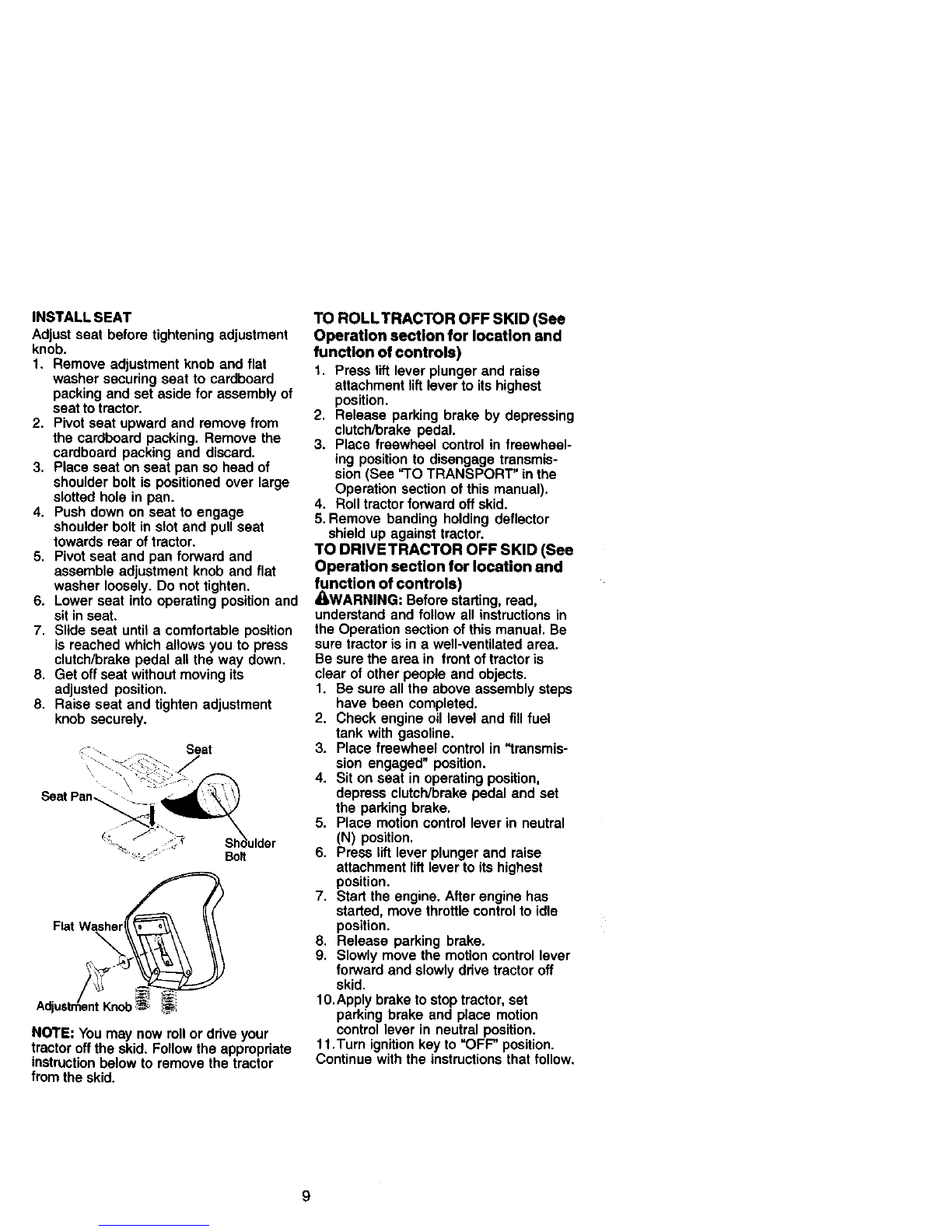

INSTALL SEAT

Adjust seat before tightening adjustment

knob.

1. Remove adjustment knob and flat

washer securing seat to cardboard

packing and sat aside for assembly of

seat to tractor.

2. Pivot seat upward and remove from

the cardboard packing. Remove the

cardboard packing and discard.

3. Place seat on seat pan so head of

shoulder bolt is positioned over large

slotted hole in pan.

4. Push down on seat to engage

shoulder bolt in slot and pull seat

towards rear of tractor.

5. Pivot seat and pan forward and

assemble adjustment knob and flat

washer loosely, Do not tighten.

6. Lower seat into operating position and

sit in seat.

7. Slide seat until a comfortable position

is reached which allows you to press

clutch/brake pedal all the way down.

8. Get off seat without moving its

adjusted position.

8. Raise seat and tighten adjustment

knob securely.

Seat

Flat Washer

NOTE: You may now roll or drive your

tractor off the skid. Follow the appropriate

instruction below to remove the tractor

from the skid.

TO ROLLTRACTOR OFF SKID (See

Operation section for location and

function of controls)

1. Press lift lever plunger and raise

attachment lift lever to its highest

position.

2. Release parking brake by depressing

clutch/brake pedal.

3. Place freewheel control in freewheel-

ing position to disengage transmis-

sion (See TO TRANSPORT" in the

Operation section of this manual).

4. Roll tractor forward off skid.

5. Remove banding holding deflector

shield up against tractor.

TO DRIVETRACTOR OFF SKID (See

Operation section for location and

function of controls)

_WARNING: Before starting, read,

understand and follow all instructions in

the Operation section of this manual. Be

sure tractor is in a well-ventilated area.

Be sure the area in front of tractor is

clear of other people and objects.

1. Be sure all the above assembly steps

have been completed.

2. Check engine oil level and fill fuel

tank with gasoline.

3. Place freewheel control in "transmis-

sion engaged" position.

4. Sit on seat in operating position.

depress clutch/brake pedal and set

the parking brake.

5. Place motion control lever in neutral

(N) position.

6. Press lift lever plunger and raise

attachment lift lever to its highest

position.

7. Start the engine. After engine has

started, move throttle control to idle

position.

8. Release parking brake.

9. Slowly move the motion control lever

forward and slowly drive tractor off

skid.

10. Apply brake to stop tractor, set

parking brake and place motion

control lever in neutral position.

11.Turn ignition key to "OFP' position.

Continue with the instructions that follow.

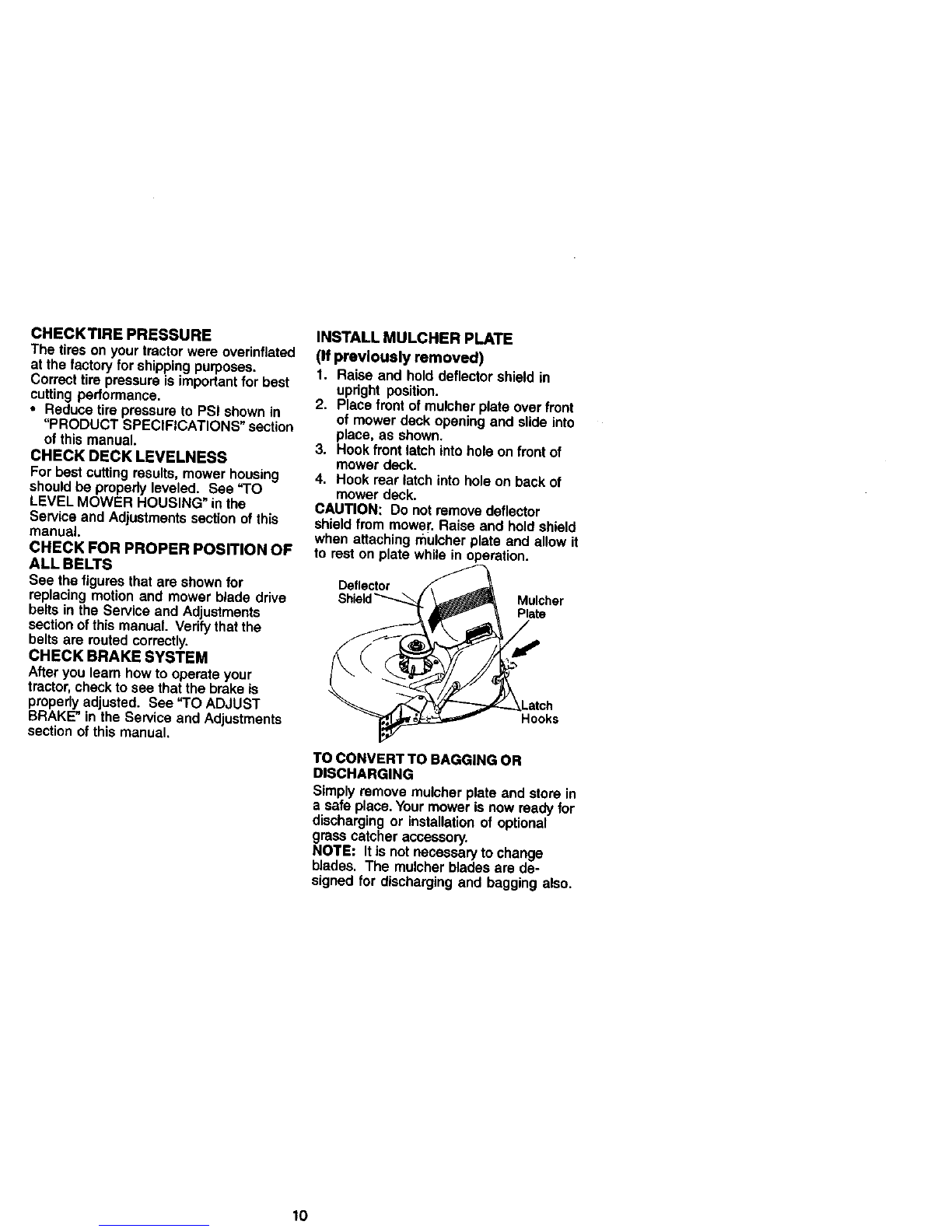

CHECKTIRE PRESSURE

The tires on your tractor were overinflated

at the factory for shipping purposes.

Correct tire pressure is important for best

cutting performance.

•Reduce tire pressure to PSI shown in

"PRODUCT SPECIFICATIONS" section

of this manual.

CHECK DECK LEVELNESS

For best cutting results, mower housing

should be properly leveled. See "TO

LEVEL MOWER HOUSING" in the

Service and Adjustments section of this

manual

CHECK FOR PROPER POSITION OF

ALL BELTS

See the figures that are shown for

replacing motion and mower blade drive

belts in the Service and Adjustments

section of this manual. Verify that the

belts are routed correctly.

CHECK BRAKE SYSTEM

After you learn how to operate your

tractor, check to see that the brake is

property adjusted. See =TO ADJUST

BRAKE" in the Service and Adjustments

section of this manual.

INSTALL MULCHER PLATE

(If previously removed)

1. Raise and hold deflector shield in

upright position.

2. Place front of mulcher plate over front

of mower deck opening and slide into

place, as shown.

3. Hook front latch into hole on front of

mower deck.

4. Hook rear latch into hole on back of

mower deck.

CAUTION: Do not remove deflector

shield from mower. Raise and hold shield

when attaching malcher prate and a,ow it

to rest on plate while in operation.

Deflector Mulcher

Plate

Hooks

TO CONVERT TO BAGGING OR

DISCHARGING

Simply remove mulcher plate and stere in

a safe place. Your mower is now ready for

discharging or installation of optional

grass catcher accessory.

NOTE: It is not necessary to change

blades. The mulcher blades are de-

signed for discharging and bagging also.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Craftsman Tondeuse à gazon

Craftsman

Craftsman 917.20401 Manuel utilisateur

Craftsman

Craftsman 917.27686 Manuel utilisateur

Craftsman

Craftsman 917.377543 Manuel utilisateur

Craftsman

Craftsman 917.270920 Manuel utilisateur

Craftsman

Craftsman 917.27223 Manuel utilisateur

Craftsman

Craftsman 2One 917.380250 Manuel utilisateur

Craftsman

Craftsman 917.370926 Manuel utilisateur

Craftsman

Craftsman 917.388592 Manuel utilisateur

Craftsman

Craftsman 917.38614 Manuel utilisateur

Craftsman

Craftsman 917.379470 Manuel utilisateur

Craftsman

Craftsman 247.288831 Manuel utilisateur

Craftsman

Craftsman 917.370724 Manuel utilisateur

Craftsman

Craftsman 917.270910 Manuel utilisateur

Craftsman

Craftsman 917.28914 Manuel utilisateur

Craftsman

Craftsman 917.254450 Manuel utilisateur

Craftsman

Craftsman 917.388970 Manuel utilisateur

Craftsman

Craftsman 917.275902 Manuel utilisateur

Craftsman

Craftsman 917.374801 Manuel utilisateur

Craftsman

Craftsman 917.387241 Manuel utilisateur

Craftsman

Craftsman 917.258694 Manuel utilisateur

Craftsman

Craftsman 917.388660 Manuel utilisateur

Craftsman

Craftsman 917.383641 Manuel utilisateur

Craftsman

Craftsman 917.374100 Manuel utilisateur

Craftsman

Craftsman 917.289271 Manuel utilisateur

Manuels Tondeuse à gazon populaires d'autres marques

RHINO

RHINO 1958 Manuel utilisateur

Wolf Garten

Wolf Garten Compact plus 40 B Manuel utilisateur

Cub Cadet

Cub Cadet LTX 1045 Manuel utilisateur

GGP ITALY SPA

GGP ITALY SPA CR/CS 434 SERIES Manuel utilisateur

Challenge

Challenge CH18V2 Instructions de fonctionnement

TALEN TOOLS

TALEN TOOLS AVR HGM30 Manuel utilisateur

DEWEZE

DEWEZE ATM-725 Manuel d'utilisation

Weed Eater

Weed Eater 180083 Manuel utilisateur

Husqvarna

Husqvarna Poulan Pro PP185A42 Manuel utilisateur

Better Outdoor Products

Better Outdoor Products Quick Series Manuel utilisateur

Cub Cadet

Cub Cadet 23HP Z-Force 60 Manuel d'utilisation

MTD

MTD 795, 792, 791, 790 Manuel utilisateur

Toro

Toro Groundsmaster 3505-D Manuel utilisateur

Dennis

Dennis FT 610 Manuel utilisateur

AIRFORCE

AIRFORCE F-15 Gen 3 Manuel utilisateur

MTD

MTD 126-220-000 Manuel utilisateur

Toro

Toro 74806 Manuel utilisateur

Stihl

Stihl RMA 443 PV Manuel utilisateur
