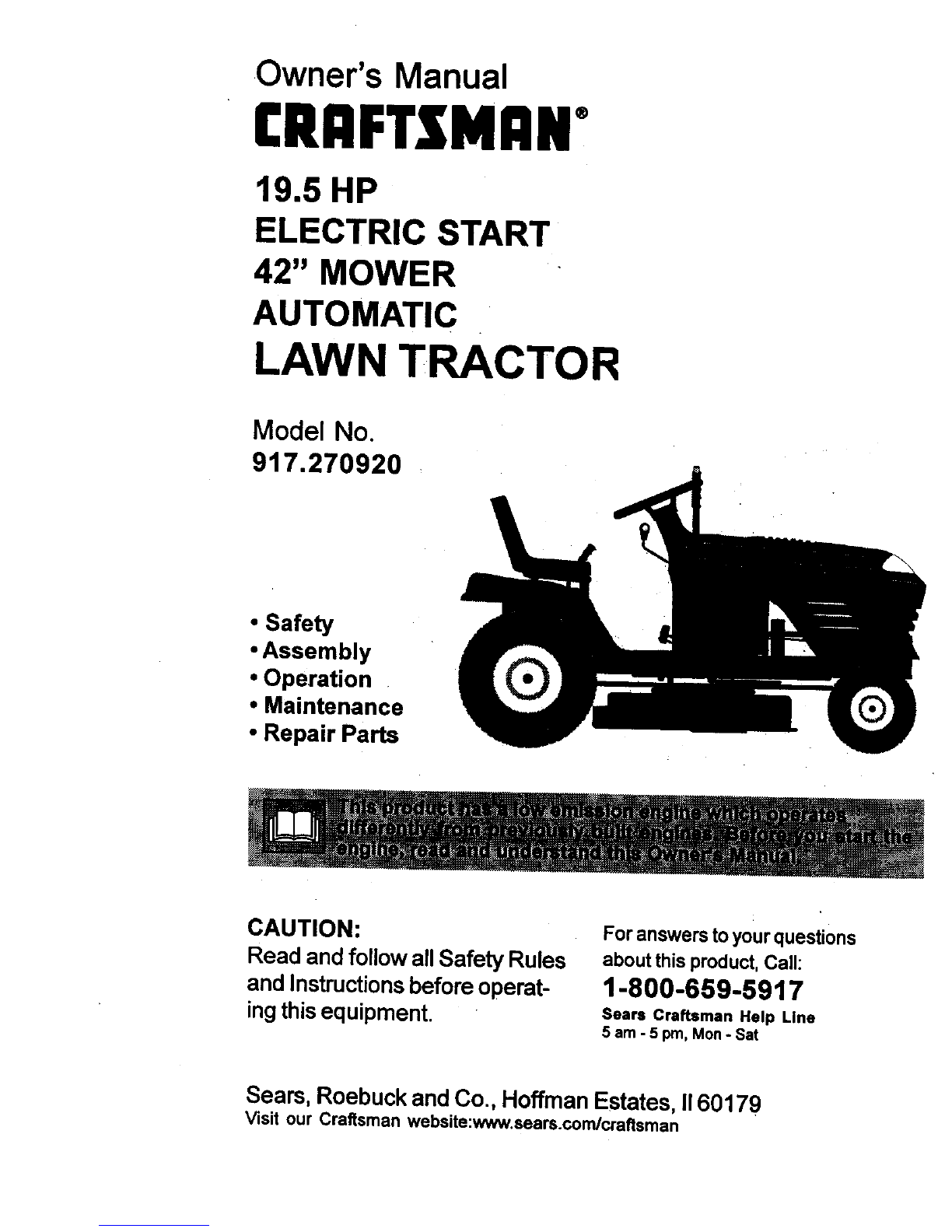

•Owner's Manual

CRAFTSMAN"

19.5 HP

ELECTRIC START

42" MOWER

AUTOMATIC

LAWN TRACTOR

Model No.

917.270920

• Safety

• Assembly

•Operation

• Maintenance

•Repair Parts

CAUTION:

Read and followallSafety Rules

and Instructionsbefore operat-

ingthis equipment.

For answers to your questions

about this product, Call:

1-800-659-5917

Sears Craftsman Help Line

5 am -5 pm, Mon -Sat

Seam, Roebuck and Co., Hoffman Estates, II60179

Visit our Craftsman website:www.sears.com/craftsman

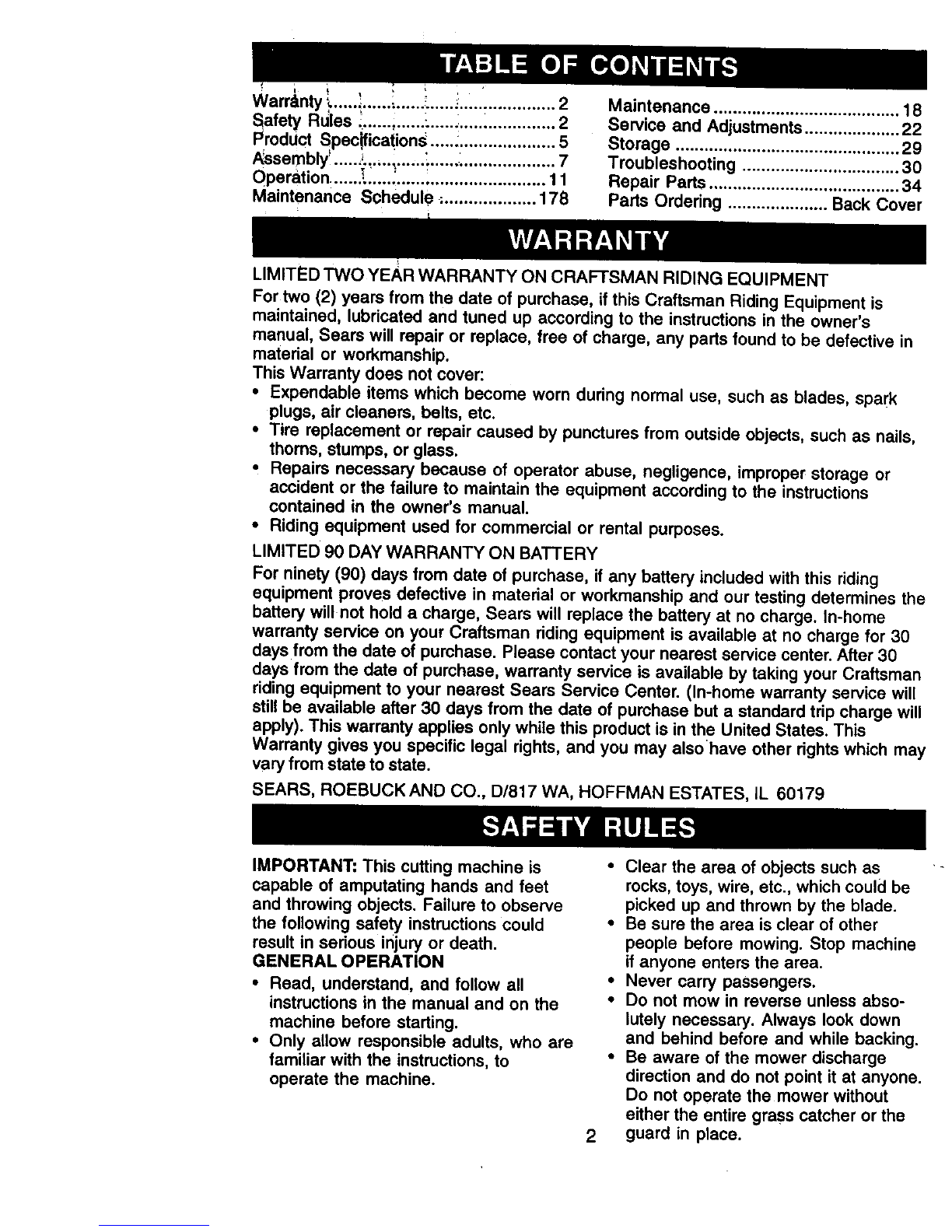

Warr_Lnty "_....._...... :...... ......i .................... 2

Safety R=Jles. ...... :...... ......;...... .............. 2

ProdUct Spec_ficatlons ........................... 5

Assembly ..... .?,.,._ ...... ,........................... 7

Operation ....... '.............. _........................ 11

Maintenance Schedule ;................... 178

Maintenance ....................................... 18

Service and Adjustments .................... 22

Storage ............................................... 29

Troubleshooting ................................. 30

Repair Parts ........................................ 34

Parts Ordering ..................... Back Cover

LIMITED TWO YE_,R WARRANTY ON CRAFTSMAN RIDING EQUIPMENT

For two (2) years from the date of purchase, if this Craftsman Riding Equipment is

maintained, lubricated and tuned up according to the instructions in the owner's

manual, Sears will repair or replace, free of charge, any parts found to be defective in

material or workmanship.

This Warranty does not cover:

•Expendable items which become worn during normal use, such as blades, spark

plugs, air cleaners, belts, etc.

•Tire replacement or repair caused by punctures from outside objects, such as nails,

thorns, stumps, or glass.

•Repairs necessary because of operator abuse, negligence, improper storage or

accident or the failure to maintain the equipment according to the instructions

contained in the owner's manual.

• Riding equipment used for commercial or rental purposes.

LIMITED 90 DAY WARRANTY ON BATTERY

For ninety (90) days from date of purchase, if any battery included with this riding

equipment proves defective in material or workmanship and our testing determines the

battery will not hold a charge, Sears will replace the battery at no charge. In-home

warranty service on your Craftsman riding equipment is available at no charge for 30

days from the date of purchase. Please contact your nearest service center. After 30

days from the date of purchase, warranty service is available by taking your Craftsman

riding equipment to your nearest Sears Service Center. (In-home warranty service will

still be available after 30 days from the date of purchase but a standard trip charge will

apply). This warranty applies only while this product is in the United States. This

Warranty gives you specific legal rights, and you may alsohave other rights which may

vary from state to state.

SEARS, ROEBUCK AND CO., D/817 WA, HOFFMAN ESTATES, iL 60179

IMPORTANT" This cutting machine is

capable of amputating hands and feet

and throwing objects. Failure to observe

the following safety instructions could

result in serious injury or death.

GENERAL OPERATION

•Read, understand, and follow all

instructions in the manual and on the

machine before starting.

•Only allow responsible adults, who are

familiar with the instructions, to

operate the machine.

• Clear the area of objects such as

rocks, toys, wire, etc., which could be

picked up and thrown by the blade.

•Be sure the area is clear of other

people before mowing. Stop machine

if anyone enters the area.

• Never carry passengers.

•Do not mow in reverse unless abso-

lutely necessary. Always look down

and behind before and while backing.

• Be aware of the mower discharge

direction and do not point it at anyone.

Do not operate the mower without

either the entire grass catcher or the

2 guard in place.

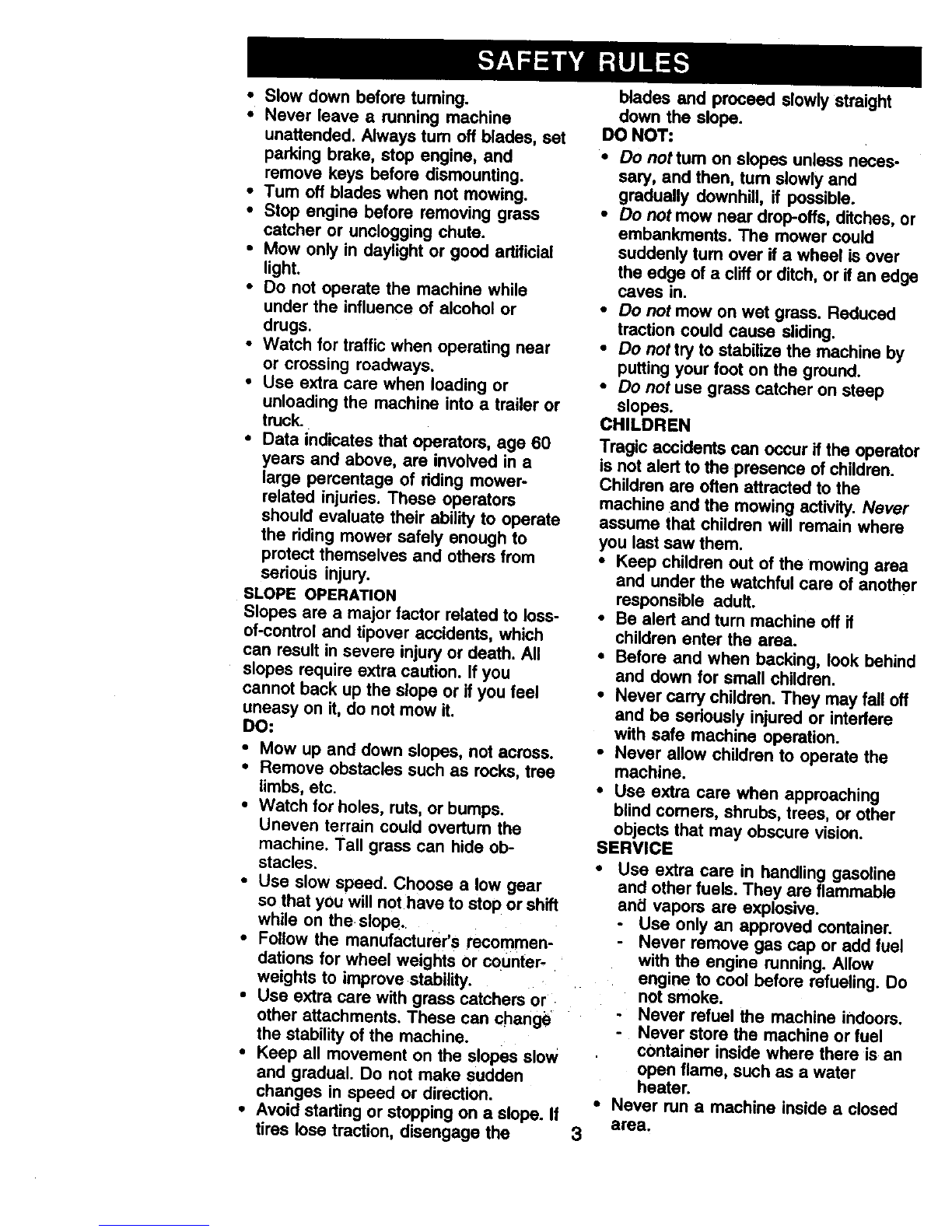

•Slow down before tuming.

•Never leave arunning machine

unattended. Always turn off blades, set

parking brake, stop engine, and

remove keys before dismounting.

•Tum off blades when not mowing.

•Stop engine before removing grass

catcher or unclogging chute.

• Mow only in daylight or good artificial

light.

•Do not operate the machine while

under the influence of alcohol or

drugs.

•Watch for traffic when operating near

or crossing roadways.

•Use extra care when loading or

unloading the machine into a trailer or

truck.

•Data indicates that operators, age 60

years and above, are involved in a

large percentage of riding mower-

related injuries. These operators

should evaluate their ability to operate

the riding mower safely enough to

protect themselves and others from

senous injury.

SLOPE OPERATION

Slopes are a major factor related to loss-

of-control and tipover accidents, which

can result in severe injury or death. All

slopes require extra caution. If you

cannot back up the slope or if you leel

uneasy on it, do not mow it.

DO:

•Mow up and down slopes, not across.

•Remove obstacles such as rocks, tree

limbs, etc.

•Watch for holes, ruts, or bumps.

Uneven terrain could overturn the

machine. Tall grass can hide ob-

stacles.

•Use slow speed• Choose a low gear

so that you will not have to stop or shift

while on the slope.

•Follow the manufacturer's recommen-

dations for wheel weights or counter-

weights to improve stability.

•Use extra care with grass catchers or

other attachments. These can change

the stability of the machine.

•Keep all movement on the slopes slow

and gradual. Do not make sudden

changes in speed or direction.

•Avoid starting or stopping on a slope. If

tires lose traction, disengage the

blades and proceed slowly straight

down the slope.

DO NOT:

•Do not turn on slopes unless neces-

sary, and then, tum slowly and

gradually downhill, if possible.

•Do not mow near drop-offs, ditches, or

embankments. The mower could

suddenly tum over if a wheel is over

the edge of a cliff or ditch, or ifan edge

caves in.

•Do not mow on wet grass. Reduced

traction could cause sliding.

•Do nottry to stabilize the machine by

putting your foot on the ground.

•Do not use grass catcher on steep

slopes.

CHILDREN

Tragic accidents can occur if the operator

is not alert to the presence of children.

Children are often attracted to the

machine and the mowing activity. Never

assume that children will remain where

you last saw them.

•Keep children out of the mowing area

and under the watchful care of another

responsible adult.

•Be alert and turn machine off if

children enter the area.

•Before and when backing, look behind

and down for small children.

•Never carry children. They may fall off

and be seriously injured or interfere

with safe machine operation.

•Never allow children to operate the

machine.

•Use extra care when approaching

blind comers, shrubs, trees, or other

objects that may obscure vision.

SERVICE

•Use extra care in handling gasoline

and other fuels. They are flammable

and vapors are explosive.

Use only an approved container.

Never remove gas cap or add fuel

with the engine running. Allow

engine to cool before refueling. Do

not smoke.

Never refuel the machine indoors.

Never store the machine or fuel

cOntainer inside where there is an

open flame, such as a water

heater.

•Never run a machine inside a closed

3 area.

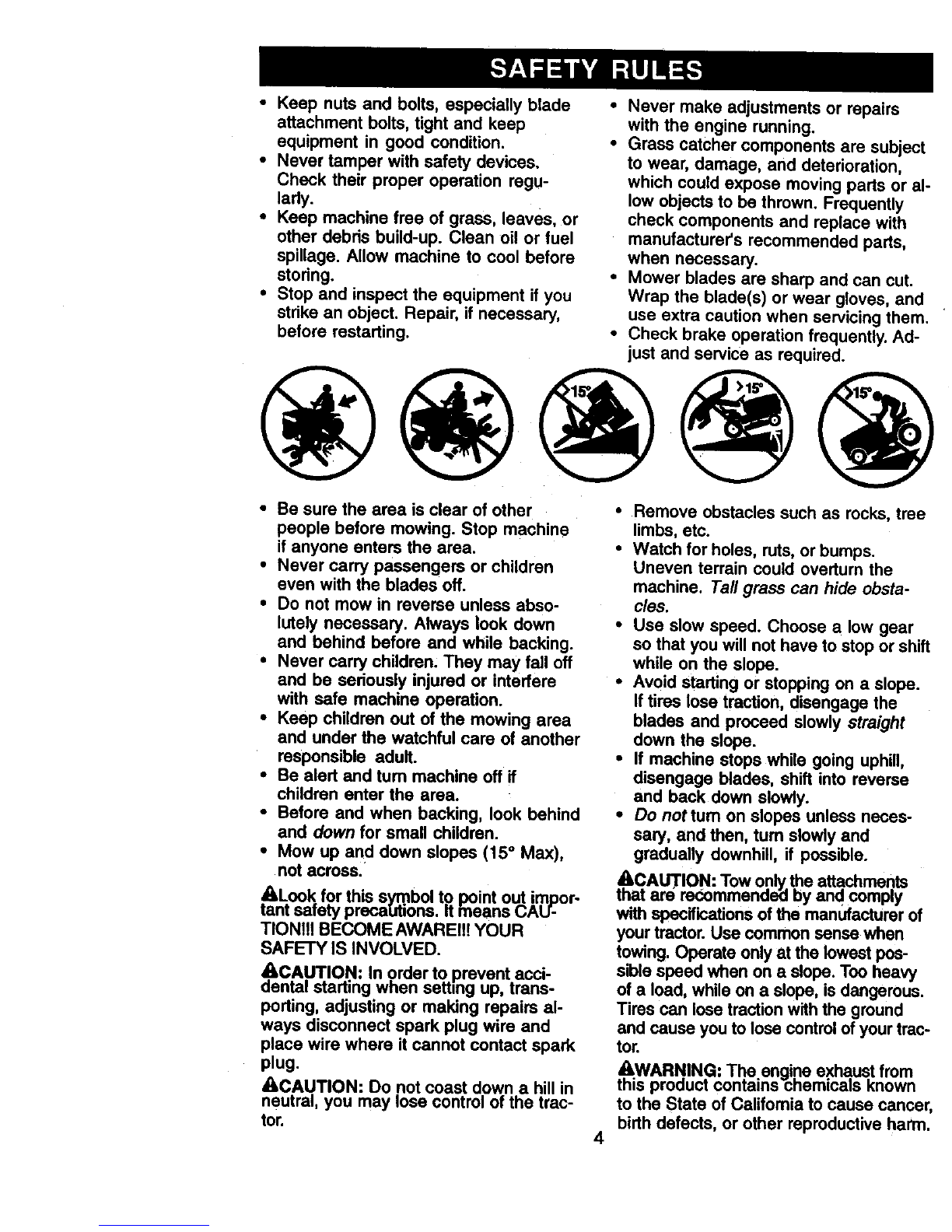

• Keepnutsandbolts,especiallyblade

attachmentbolts,tightand keep

equipment in good condition.

•Never tamper with safety devices.

Check their proper operation regu-

larly.

•Keep machine free of grass, leaves, or

other debris build-up. Clean oil or fuel

spillage. Allow machine to cool before

storing.

•Stop and inspect the equipment ifyou

strike an object. Repair, if necessary,

before restarting.

•Never make adjustments or repairs

with the engine running.

•Grass catcher components are subject

to wear, damage, and deterioration,

which could expose moving parts or al-

low objects to be thrown. Frequently

check components and replace with

manufacturer's recommended parts,

when necessary.

•Mower blades are sharp and can cut.

Wrap the blade(s) or wear gloves, and

use extra caution when sewicing them.

•Check brake operation frequently. Ad-

just and service as required.

•Be sure the area is clear of other

people before mowing. Stop machine

if anyone enters the area.

•Never carry passengers or children

even with the blades off.

•Do not mow in reverse unless abso-

lutely necessary. Always |ook down

and behind before and while backing.

•Never carry children: They may fall off

and be seriously injured or interfere

with safe machine operation.

•Keep children out of the mowing area

and under the watchful care of another

responsible adult.

•Be alert and turn machine off if

children enter the area.

•Before and when backing, look behind

and down for small children.

•Mow up and down slopes (15° Max),

not across.

ALook for this symbol to point out impor-

tant safety preca[Jtions.Itfneans CAU-

TIONItt BECOME AWAREII! YOUR

SAFETY IS INVOLVED.

c,AeCA.Ul_.IO.N:In order to.prevent.acci-

nta=starting wnen setting up, trans-

porting, adjusting or making repairs al-

ways disconnect spark plug wire and

place wire where it cannot contact spark

plug.

_kCAUTION: Do not coast down a hill in

neutral, you may lose control of the trac-

tor.

•Remove obstacles such as recks, tree

limbs, etc.

•Watch for holes, ruts, or bumps.

Uneven terrain could overturn the

machine. Tall grass can hide obsta-

cles.

•Use slow speed. Choose a low gear

so that you will not have to stop or shift

while on the slope.

•Avoid starting or stopping on a slope.

if tires Iosa traction, disengage the

blades and proceed slowly straight

down the slope.

•If machine stops while going uphill,

disengage blades, shift into reverse

and back down slowly.

• Do not turn on slopes unless neces-

sary, and then, tum slowly and

gradually downhill, if possible.

tAhCAUTION: Tow o.nly_atta._men.ts

at are recommeno_a by aria comply

with specifications of the manufacturer of

your tractor. Use common sense when

towing. Operate only at the lowest pos-

sibio speed when on a slope. Too heavy

of a load, while on a slope, is dangerous.

Tires can lose traction with the ground

and cause you to loss control of your trac-

tor.

&WARN.IN.G: Th.e engi.ne exhaus.t from

this pro<_uctcontains chemicals Known

to the State of Califomia to cause cancer,

birth defects, or other reproductive harm.

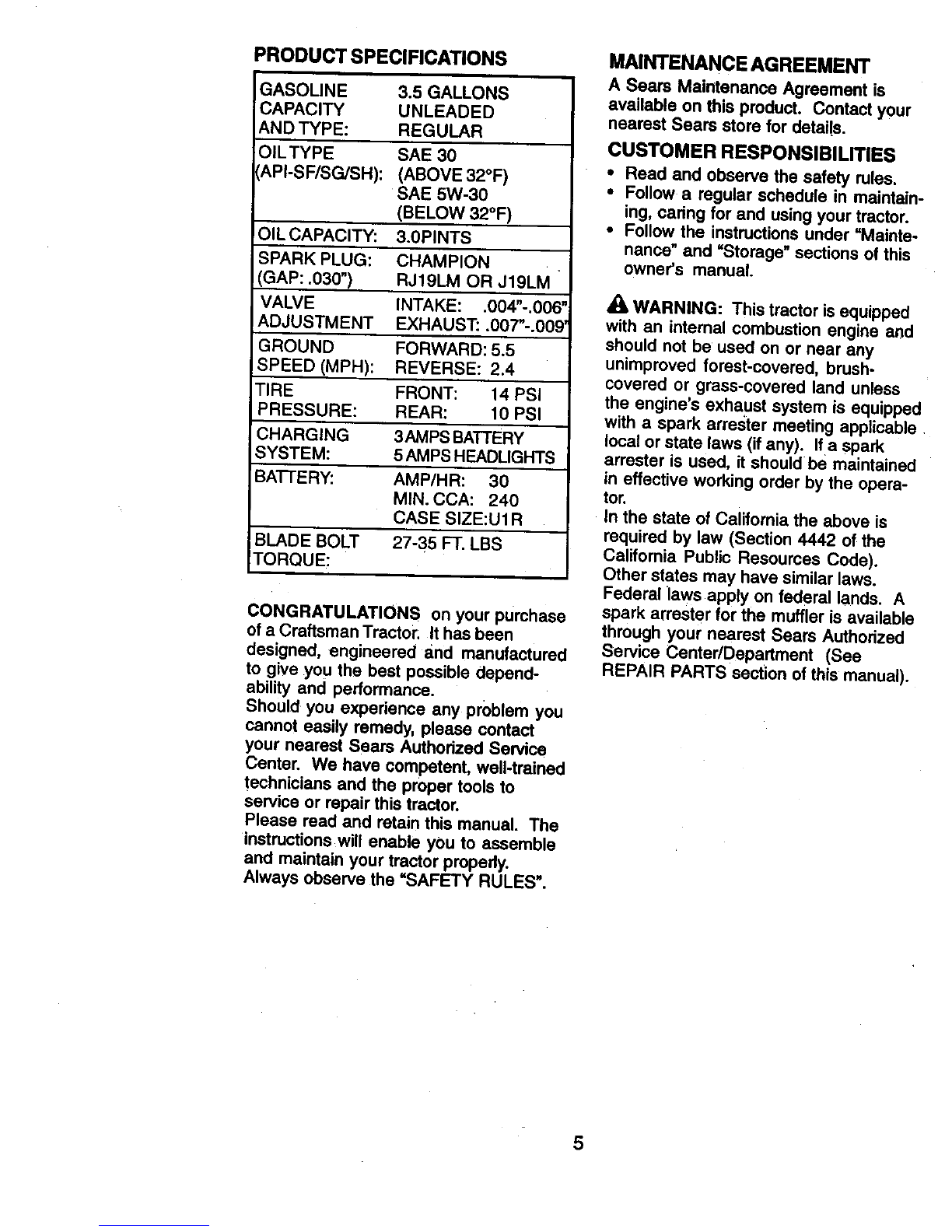

PRODUCT SPECIFICATIONS

GASOLINE

CAPACITY

AND TYPE:

OILTYPE

API-SF/SG/SH):

OIL CAPACITY:

SPARK PLUG:

GAP: .030")

VALVE

ADJUSTMENT

GROUND

SPEED (MPH):

TIRE

PRESSURE:

CHARGING

SYSTEM:

BA'I-FERY:

BLADE BOLT

TORQUE:

3.5 GALLONS

UNLEADED

REGULAR

SAE 30

(ABOVE 32°F)

SAE 5W-30

(BELOW 32°F)

3.0PINTS

CHAMPION

RJ19LM OR J19LM

INTAKE: .004"-.006"

EXHAUST'..007"-.009'

FORWARD: 5.5

REVERSE: 2.4

FRONT: 14 PSi

REAR: 10 PSI

3AMPS BATTERY

5 AMPS HEADLIGHTS

AMP/HR: 30

MIN. CCA: 240

CASE SIZE:U1R

27-35 FT. LBS

CONGRATULATIONS on your purchase

of a Craftsman Tractor. It has been

designed, engineered and manufactured

to give you the best possible depend-

ability and performance.

Should you experience any problem you

cannot easily remedy, please contact

your nearest Sears Authorized Service

Center. We have competent, well-trained

technicians and the proper tools to

service or repair this tractor.

Please read and retain this manual. The

instructions will enable you to assemble

and maintain your tractor properly.

Always observe the "SAFETY RULES".

MNNTENANCE AGREEMENT

A Sears Maintenance Agreement is

available on this product. Contact your

nearest Sears store for details.

CUSTOMER RESPONSIBILITIES

• Read and observe the safety rules.

•Follow a regular schedule in maintain-

ing, caring for and using your tractor.

•Follow the instructions under =Mainte-

nance" and =Storage" sections of this

owner's manual.

WARNING: This tractor is equipped

with an internal combustion engine and

should not be used on or near any

unimproved forest-covered, brush-

covered or grass-covered land unless

the engine's exhaust system is equipped

with a spark arrester meeting applicable

local or state laws (if any). Ira spark

arrester is used, it should be maintained

in effective working order by the opera-

tor.

In the state of California the above is

required by law (Section 4442 of the

California Public Resources Code).

Other states may have similar laws.

Federal laws apply on federal lands. A

spark attester for the muffler is available

through your nearest Sears Authorized

Service Center/Department (See

REPAIR PARTS section of this manual).

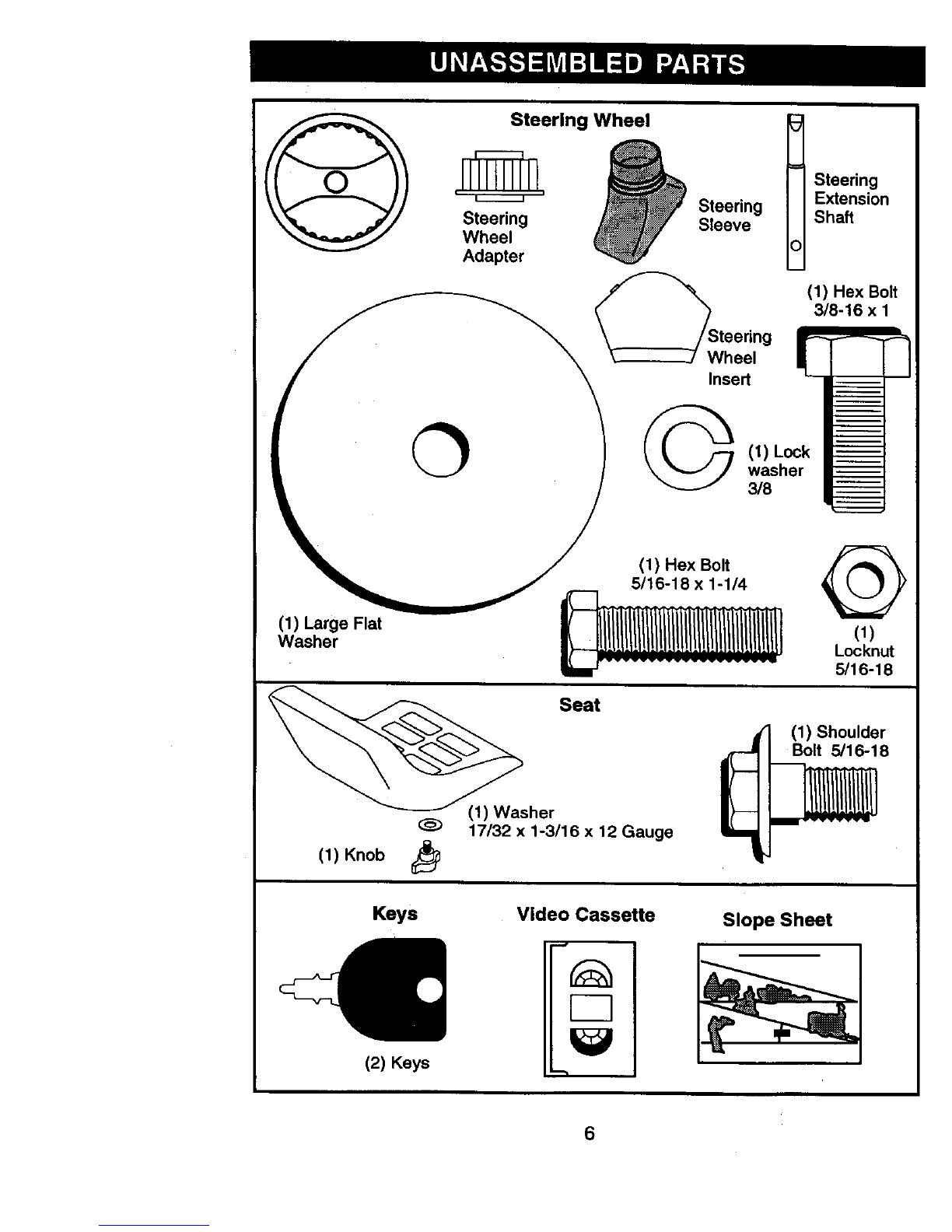

Steerlng Wheel t

_ _ Steering

Steering Extension

Sleeve Shaft

Adapter

(1) Hex Bolt

3/8-16 x 1

Wheel g

II (, 1J_ _. /--/ (1) Lock

(_/)sLaregeF'at _L_>lCk._t_

sher Seat

17/32 x 1-3/16 x12 Gauge

(1) Knob

(1) Shoulder

Bolt 5/16-18

Keys

(2) Keys

Video Cassette

"-1

Slope Sheet

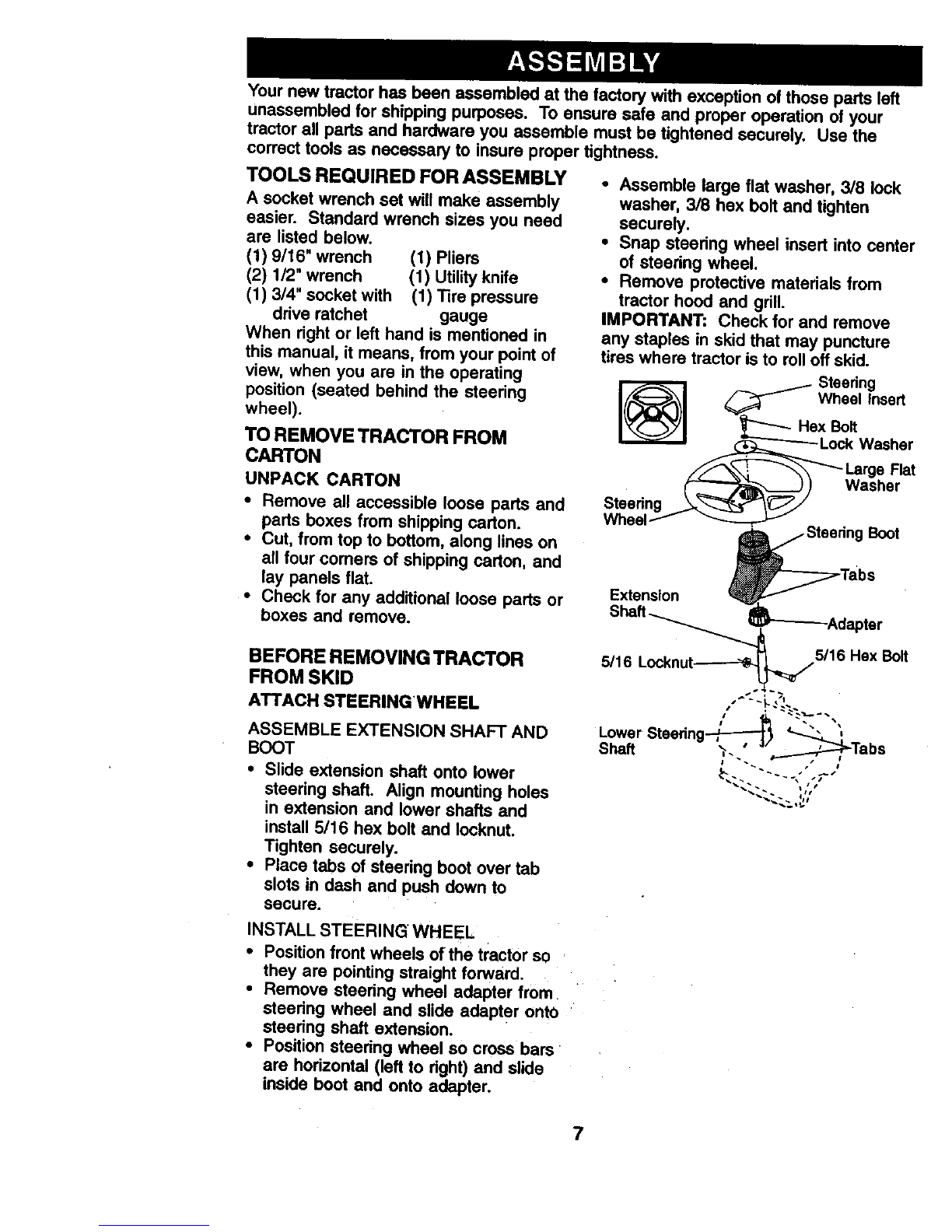

Your new tractor has been assembled at the factory with exception of those parts left

unassembled for shipping purposes. To ensure safe and proper operation of your

tractor all parts and hardware you assemble must be tightened securely. Use the

correct tools as necessary to insure proper tightness.

TOOLS REQUIRED FOR ASSEMBLY

A socket wrench set will make assembly

easier. Standard wrench sizes you need

are listed below.

(1) 9/16" wrench (1) Pliers

(2) 1/2" wrench (1) Utility knife

(1) 3/4" socket with (1) Tire pressure

drive ratchet gauge

When right or left hand is mentioned in

this manual, it means, from your point of

view, when you are in the operating

position (seated behind the steering

wheel).

TO REMOVE TRACTOR FROM

CARTON

UNPACK CARTON

•Remove all accessible loose parts and

parts boxes from shipping carton.

•Cut, from top to bottom, along lines on

all four corners of shipping carton, and

lay panels flat.

•Check for any additional loose pads or

boxes and remove.

BEFORE REMOVING TRACTOR

FROM SKID

ATTACH STEERING WHEEL

ASSEMBLE EXTENSION SHAFT AND

BOOT

•Slide extension shaft onto lower

steering shaft. Align mounting holes

in extension and lower shafts and

install 5/16 hex bolt and Iocknut.

Tighten securely.

•Place tabs of steedng boot over tab

slots in dash and push down to

secure.

INSTALL STEERING WHEEL

•Position front wheels of the tractor so

they are pointing straight forward.

•Remove steedng wheel adapter from

steedng wheel and slide adapter onto

steedng shaft extension.

•Position steedng wheel so cross bars

are horizontal (left to dght) and slide

inside boot and onto adapter.

•Assemble large flat washer, 3/8 lock

washer, 3/8 hex bolt and tighten

securely.

•Snap steering wheel insert intocenter

of steedng wheel.

•Remove protective materials from

tractor hood and grill.

IMPORTANT: Check for and remove

any staples in skid that may puncture

tires where tractor is to rolloff skid.

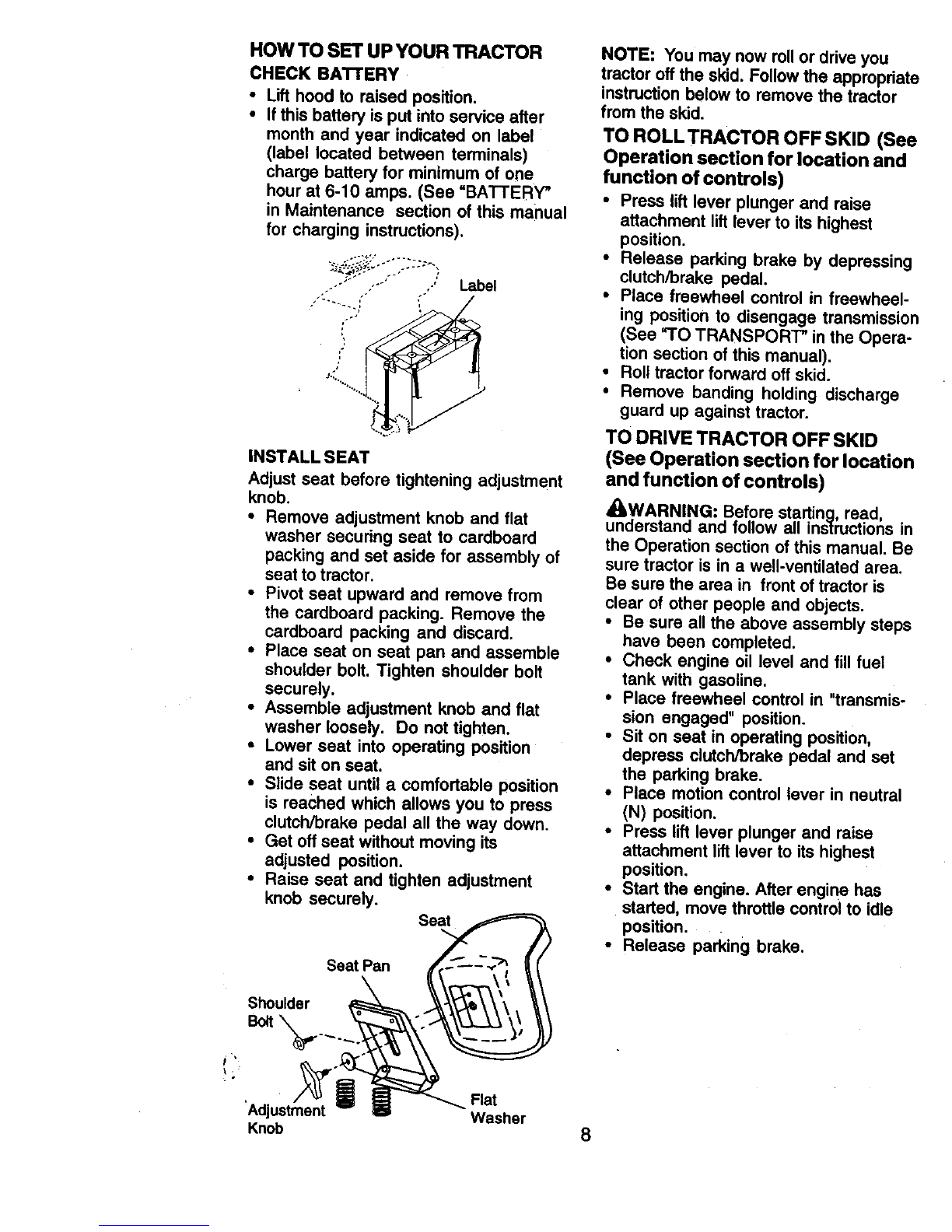

HOWTO SETUPYOURTRACTOR

CHECK BA'n'ERY

•Lift hood to raised position.

•If this battery is put into service after

month and year indicated on label

(label located between terminals)

charge battery for minimum of one

hour at 6-10 amps. (See =BATTERY"

in Maintenance section of this manual

for charging instructions).

Y"' "Label

• .o'

:-::i..........

iNSTALL SEAT

Adjust seat before tightening adjustment

knob.

•Remove adjustment knob and flat

washer securing seat to cardboard

packing and set aside for assembly of

seat to tractor,

•Pivot seat upward and remove from

the cardboard packing. Remove the

cardboard packing and discard.

•Place seat on seat pan and assemble

shoulder bolt. Tighten shoulder bolt

securely.

•Assemble adjustment knob and flat

washer loosely. Do not tighten,

• Lower seat into operating position

and sit on seat.

•Slide seat until acomfortable position

is reached which allows you to press

clutch/brake pedal all the way down.

•Get off seat without moving its

adjusted position.

•Raise seat and tighten adjustment

knob securely, Seat

Seat Pan

NOTE: You may now rollor drive you

tractor off the skid. Follow the appropriate

instructionbelow to remove the tractor

from the skid.

TO ROLL TRACTOR OFF SKID (See

Operation section for location and

function of controls)

•Press lift lever plunger and raise

attachment lift lever to its highest

position.

•Release parking brake by depressing

clutch/brake pedal.

•Place freewheel control in freewheel-

ing position to disengage transmission

(See _'O TRANSPORT" in the Opera-

tion section of this manual),

•Roll tractor forward off skid.

•Remove banding holding discharge

guard up against tractor.

TO DRIVE TRACTOR OFF SKID

(See Operation section for location

and function of controls)

_kWARNING: Before starting, read,

understand and follow all instructions in

the Operation section of this manual• Be

sure tractor is in a well-ventilated area•

Be sure the area in front of tractor is

clear of other people and objects.

•Be sure all the above assembly steps

have been completed.

•Check engine oil level and fill fuel

tank with gasoline.

•Place freewheel control in "transmis-

sion engaged" position.

•Sit on seat in operating position,

depress clutch/brake pedal and set

the parking brake.

•Place motion control lever in neutral

(N) position.

•Press lift lever plunger and raise

attachment lift lever to its highest

position.

•Start the engine. After engine has

started, move throttle control to idle

position.

•Release parking brake.

Shoulder

Flat

'Adjustment Washer

Knob 8

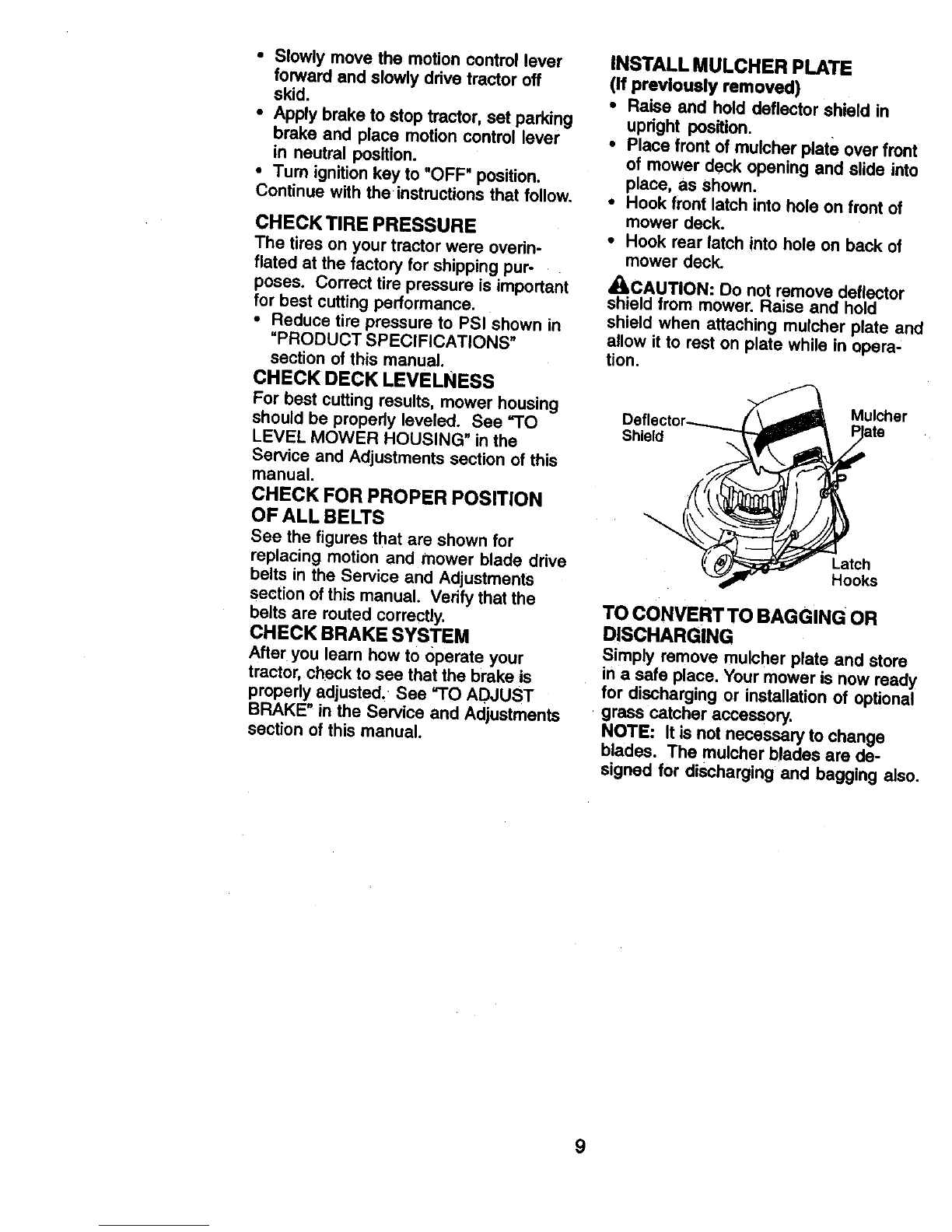

• Slowly move the motion control lever

forward and slowly drive tractor off

skid.

• Apply brake to stop tractor, set parking

brake and place motion control lever

in neutral position.

•Tum ignitionkey to "OFF" position.

Continue with the instructions that follow.

CHECK TIRE PRESSURE

The tires on your tractor were overin-

flated at the factory for shipping pur-

poses. Correct tire pressure is important

for best cuttingperformance.

•Reduce tire pressure to PSI shown in

=PRODUCT SPECIFICATIONS"

section of this manual.

CHECK DECK LEVELNESS

For best cutting results, mower housing

should be property leveled. See "I"O

LEVEL MOWER HOUSING" in the

Service and Adjustments section of this

manual.

CHECK FOR PROPER POSITION

OF ALL BELTS

See the figures that are shown for

replacing motion and mower blade drive

belts in the Service and Adjustments

section of this manual. Verify that the

belts are routed correctly.

CHECK BRAKE SYSTEM

After you learn how to Operate your

tractor, check to see that the brake is

properly adjusted. See =TO ADJUST

BRAKE" in the Service and Adjustments

section of this manual.

INSTALL MULCHER PLATE

(If previously removed)

•Raise and hold deflector shield in

upright position.

•Place front of mulcher plate over front

of mower deck opening and slide into

place, as shown.

• Hook front latch into hole on front of

mower deck.

•Hook roar latch into hole on back of

mower deck.

,I_!ILCAUTION: Do not remove deflector

shield from mower. Raise and hold

shield when attaching mulcher plate and

allow it to rest on plate while in opera-

tion.

Shield

Mulcher

Latch

Hooks

TO CONVERT TO BAGGING OR

DISCHARGING

Simply remove mulcher plate and store

in a safe place. Your mower is now ready

for discharging or installation of optional

grass catcher accessory,

NOTE: It is not necessary to change

blades. The mulcher blades are de-

signed for discharging and bagging also.

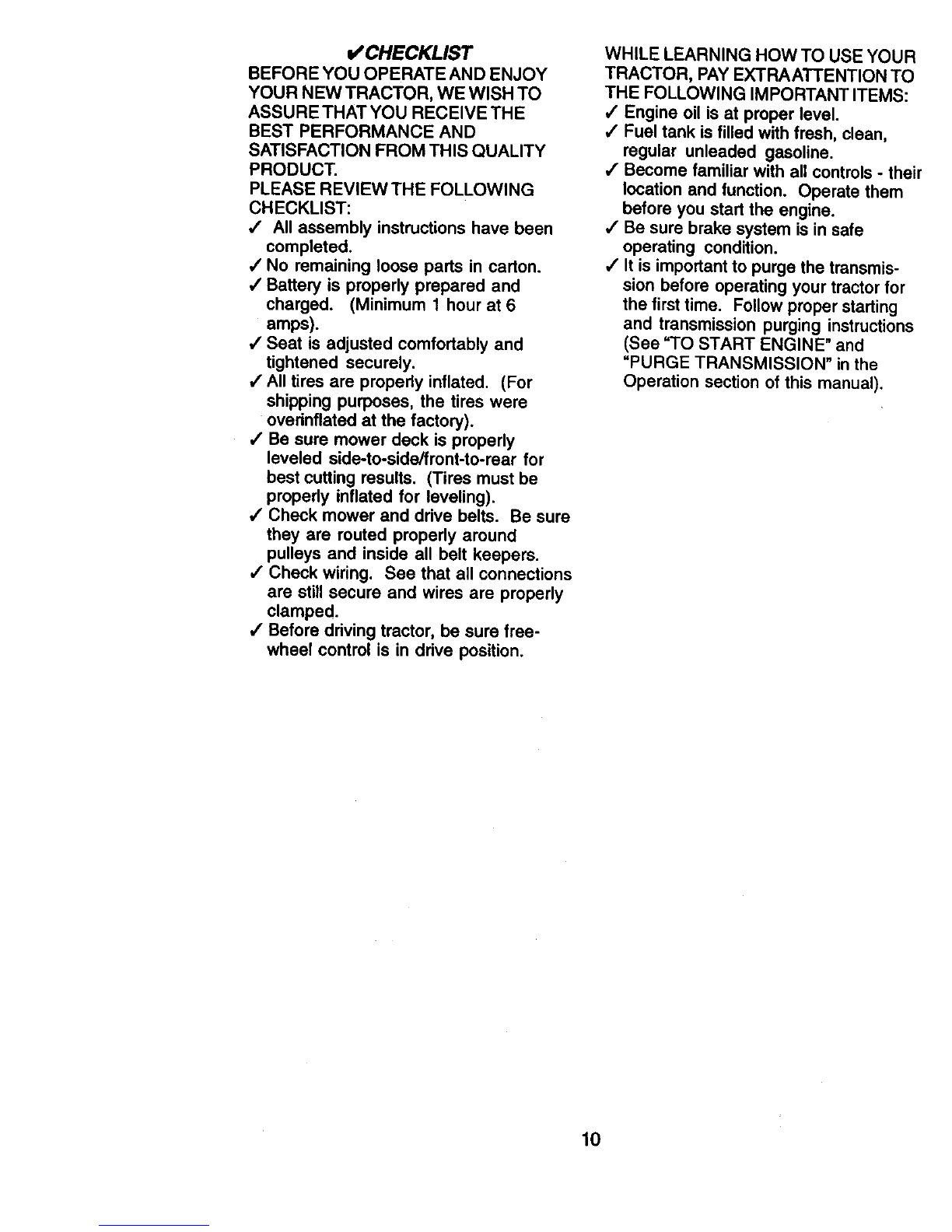

t/CHECKLIST

BEFORE YOU OPERATE AND ENJOY

YOUR NEW TRACTOR, WE WISH TO

ASSURE THAT YOU RECEIVE THE

BEST PERFORMANCE AND

SATISFACTION FROM THIS QUALITY

PRODUCT.

PLEASE REVIEW THE FOLLOWING

CHECKLIST:

,# All assembly instructions have been

completed.

,/No remaining loose parts in carton.

4Battery is properly prepared and

charged. (Minimum 1 hour at 6

amps).

4Seat is adjusted comfortably and

tightened securely.

/All tires are properly inflated. (For

shipping purposes, the tires were

overinflated at the factory).

/Be sure mower deck is propedy

leveled side-to-side/front-to-rear for

best cutting results. (Tires must be

properly inflated for leveling).

JCheck mower and ddve belts. Be sure

they are routed propedy around

pulleys and inside all belt keepers.

4" Check wiring. See that all connections

are stillsecure and wires are properly

clamped.

,/Before drivingtractor, be sure free-

wheel control is in ddve position.

WHILE LEARNING HOW TO USE YOUR

TRACTOR, PAY EXTRAATTENTION TO

THE FOLLOWING IMPORTANT ITEMS:

,I Engine oil is at proper level.

,/Fuel tank is filled with fresh, clean,

regular unleaded gasoline.

,I Become familiar with all controls- their

location and function. Operate them

before you start the engine.

4Be sure brake system is in safe

operating condition.

4It is important to purge the transmis-

sion before operating your tractor for

the first time. Follow proper starting

and transmission purging instructions

(See "TO START ENGINE" and

"PURGE TRANSMISSION" in the

Operation section of this manual).

Table des matières

Autres manuels Craftsman Tondeuse à gazon

Craftsman

Craftsman E410 Manuel utilisateur

Craftsman

Craftsman 917.289243 Manuel utilisateur

Craftsman

Craftsman 28947 - GT 5000 26 HP/54" Garden Tractor Manuel utilisateur

Craftsman

Craftsman 944.364740 Manuel utilisateur

Craftsman

Craftsman 917.388831 Manuel utilisateur

Craftsman

Craftsman 2One 917.372471 Manuel utilisateur

Craftsman

Craftsman 917.28845 Manuel utilisateur

Craftsman

Craftsman 247.27038 Series Manuel utilisateur

Craftsman

Craftsman 917.385142 Manuel utilisateur

Craftsman

Craftsman 917.376094 Manuel utilisateur

Craftsman

Craftsman 917.255441 Manuel utilisateur

Craftsman

Craftsman 917.388225 Manuel utilisateur

Craftsman

Craftsman 917.255890 Manuel utilisateur

Craftsman

Craftsman 917.388012 Manuel utilisateur

Craftsman

Craftsman 37146 Manuel utilisateur

Craftsman

Craftsman 625 Series Manuel utilisateur

Craftsman

Craftsman 917.28914 Manuel utilisateur

Craftsman

Craftsman 917.377650 Manuel utilisateur

Craftsman

Craftsman 247.370341 Manuel utilisateur

Craftsman

Craftsman 917.272672 Manuel utilisateur

Craftsman

Craftsman 247.889360 Manuel utilisateur

Craftsman

Craftsman 917.374102 Manuel utilisateur

Craftsman

Craftsman EZ3 917.259830 Manuel utilisateur

Craftsman

Craftsman 944.365990 Manuel utilisateur

Manuels Tondeuse à gazon populaires d'autres marques

RHINO

RHINO 1958 Manuel utilisateur

Wolf Garten

Wolf Garten Compact plus 40 B Manuel utilisateur

Cub Cadet

Cub Cadet LTX 1045 Manuel utilisateur

GGP ITALY SPA

GGP ITALY SPA CR/CS 434 SERIES Manuel utilisateur

Challenge

Challenge CH18V2 Instructions de fonctionnement

TALEN TOOLS

TALEN TOOLS AVR HGM30 Manuel utilisateur

DEWEZE

DEWEZE ATM-725 Manuel d'utilisation

Weed Eater

Weed Eater 180083 Manuel utilisateur

Husqvarna

Husqvarna Poulan Pro PP185A42 Manuel utilisateur

Better Outdoor Products

Better Outdoor Products Quick Series Manuel utilisateur

Cub Cadet

Cub Cadet 23HP Z-Force 60 Manuel d'utilisation

MTD

MTD 795, 792, 791, 790 Manuel utilisateur

Toro

Toro Groundsmaster 3505-D Manuel utilisateur

Dennis

Dennis FT 610 Manuel utilisateur

AIRFORCE

AIRFORCE F-15 Gen 3 Manuel utilisateur

MTD

MTD 126-220-000 Manuel utilisateur

Toro

Toro 74806 Manuel utilisateur

Stihl

Stihl RMA 443 PV Manuel utilisateur
