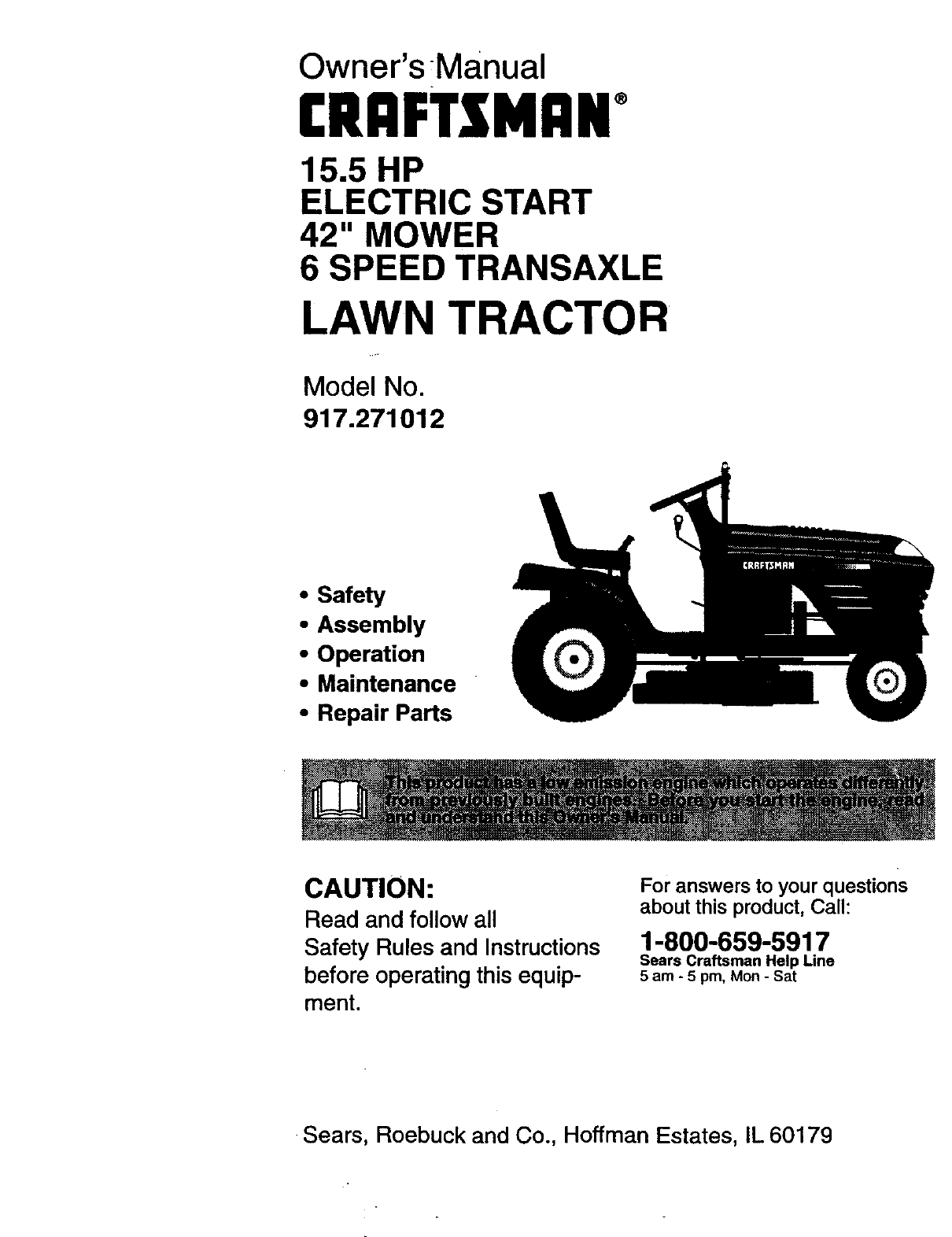

Craftsman 917.271012 Manuel utilisateur

Owner's Manual

CRnFTXMnNo

15.5 HP

ELECTRIC START

42" MOWER

6 SPEED TRANSAXLE

LAWN TRACTOR

Model No.

917.271012

•Safety

•Assembly

•Operation

•Maintenance

•Repair Parts

CAUTION:

Read and follow all

Safety Rules and Instructions

before operating this equip-

ment.

For answers to your questions

about this product, Call:

1-800o659-5917

Sears Craftsman Help Line

5 am * 5 pro, Mon -Sat

Sears, Roebuck and Co., Hoffman Estates, IL 60179

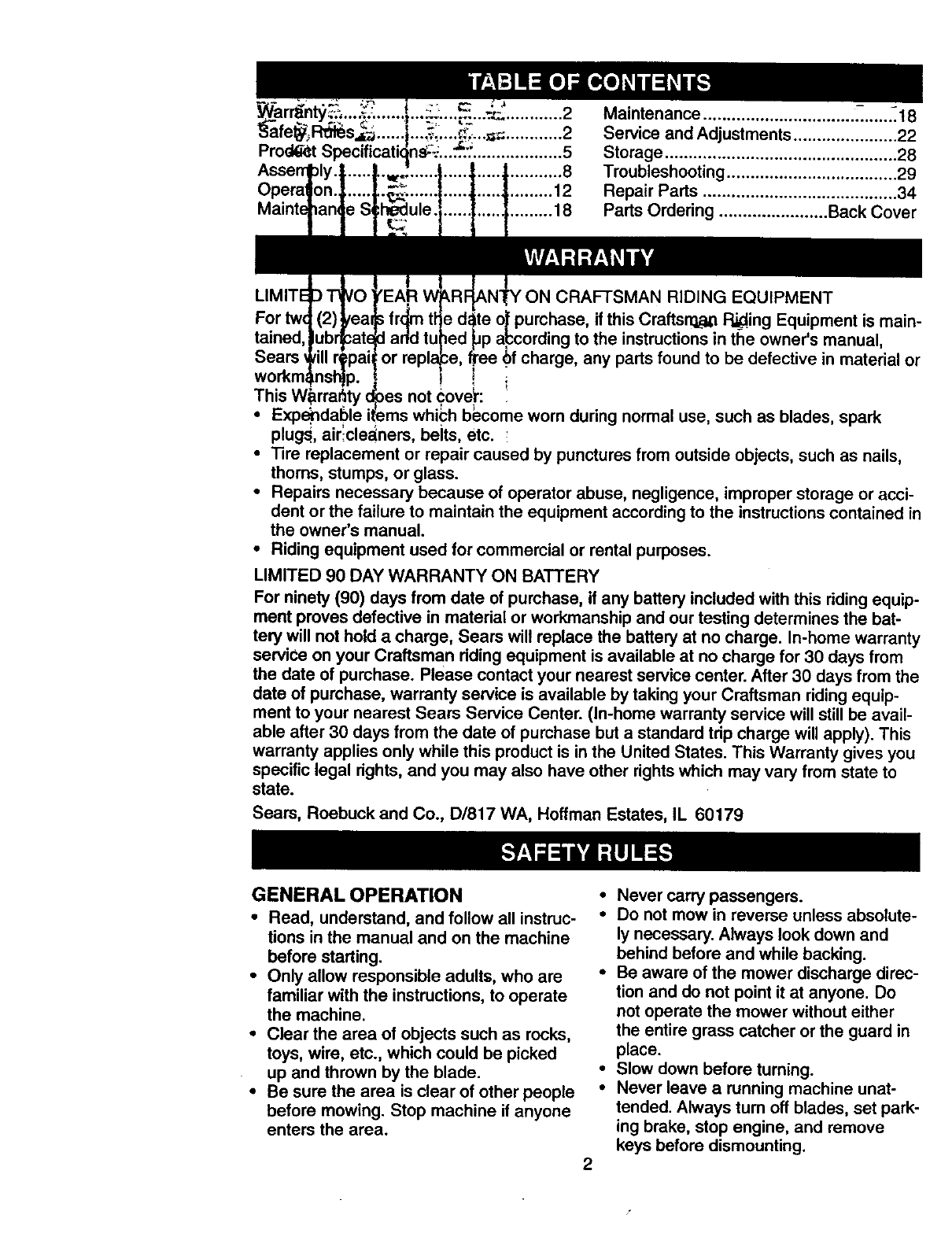

Prod_t € i.... ........ 2

..... ,jl, ....... ....8

..... 4......... 12

..... .,......... 18

Maintenance ................................ _......._18

Service and Adjustments ...................... 22

Storage ................................................. 28

Troubleshooting .................................... 29

Repair Parts ......................................... 34

Parts Ordering ....................... Back Cover

not covei': i

IMAN RIDING EQUIPMENT

if this Craftsm_ R__ing Equipment is main-

=gto the instructions in the owner's manual,

charge, any parts found to be defective in material or

=which become worn during normal use, such as blades, spark

plug_, air';cle_ners, belts, etc.

•Tire replacement or repair caused by punctures from outside objects, such as nails,

thoms, stumps, or glass.

•Repairs necessary because of operator abuse, negligence, improper storage or acci-

dent or the failure to maintain the equipment according to the instructions contained in

the owner's manual.

•Riding equipment used for commercial or rental purposes.

LIMITED 90 DAY WARRANTY ON BATTERY

For ninety (90) days from date of purchase, if any batten/included with this riding equip-

ment proves defective in material or workmanship and our testing determines the bat-

tery will not hold a charge, Sears will replace the batten/at no charge. In-home warranty

service on your Craftsman riding equipment is available at no charge for 30 days from

the date of purchase. Please contact your nearest service center. After 30 days from the

date of purchase, warranty service is available by taking your Craftsman riding equip-

ment to your nearest Sears Service Center. (In-home warranty service will still be avail-

able after 30 days from the date of purchase but a standard trip charge will apply). This

warranty applies only while this product is in the United States. This Warranty gives you

specific legal rights, and you may also have other rights which may van/from state to

state.

Sears, Roebuck and Co., D/817 WA, Hoffman Estates, IL 60179

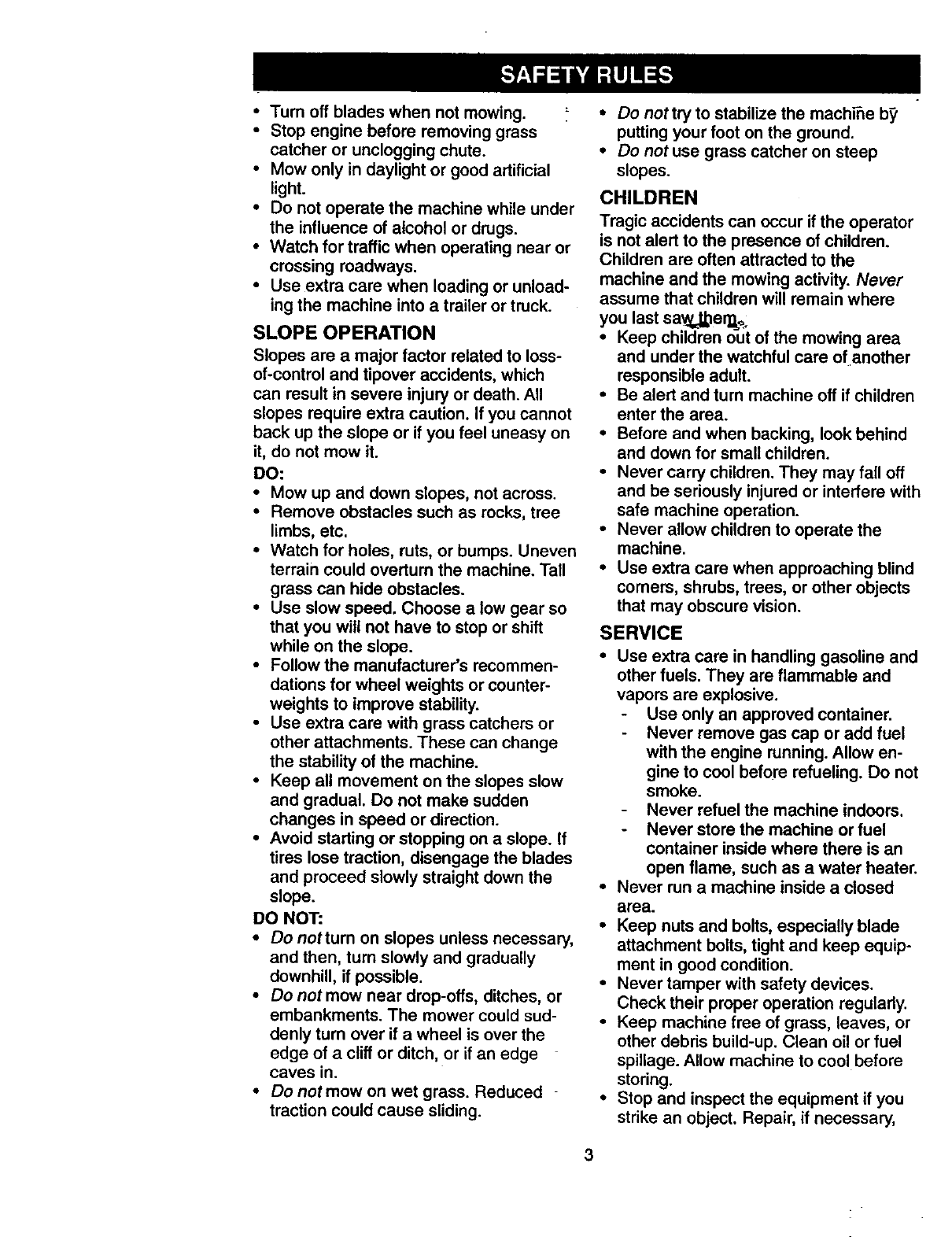

GENERAL OPERATION

•Read, understand, and follow all instruc-

tions in the manual and on the machine

before starting.

•Only allow responsible adults, who are

familiar with the instructions, to operate

the machine.

•Clear the area of objects such as rocks,

toys, wire, etc., which could be picked

up and thrown by the blade.

•Be sure the area is clear of other people

before mowing. Stop machine if anyone

enters the area.

• Never carrypassengers.

• Do not mow in reverse unless absolute-

ly necessary. Always look down and

behind before and while backing.

•Be aware of the mower discharge direc-

tion and do not point it at anyone. Do

not operate the mower without either

the entire grass catcher or the guard in

place.

•Slow down before fuming.

•Never leave a running machine unat-

tended. Always turn off blades, set park-

ing brake, stop engine, and remove

keys before dismounting.

•Tum off blades when not mowing.

• Stop engine before removing grass

catcher or unclogging chute.

•Mow only in daylight or good artificial

light.

•Do not operate the machine while under

the influence of alcohol or drugs.

• Watch for traffic when operating near or

crossing roadways.

• Use extra care when loading or unload-

ing the machine into a trailer or truck.

SLOPE OPERATION

Slopes are a major factor related to loss-

of-control and tipover accidents, which

can result in severe injury or death. All

slopes require extra caution. If you cannot

back up the slope or if you feel uneasy on

it, do not mow it.

DO:

•Mow up and down slopes, not across.

•Remove obstacles such as rocks, tree

limbs, etc.

•Watch for holes, ruts, or bumps. Uneven

terrain could overtum the machine. Tall

grass can hide obstacles.

• Use slow speed. Choose a low gear so

that you will not have to stop or shift

while on the slope.

•Follow the manufacturer's recommen-

dations for wheel weights or counter-

weights to improve stability.

•Use extra care with grass catchers or

other attachments. These can change

the stability of the machine.

•Keep all movement on the slopes slow

and gradual. Do not make sudden

changes in speed or direction.

• Avoid starting or stopping on a slope. If

tires lose traction, disengage the blades

and proceed slowly straight down the

slope.

DO NOT:

•Donotturn on slopes unless necessary,

and then, turn slowly and gradually

downhill, if possible.

•Do not mow near drop-offs, ditches, or

embankments. The mower could sud-

denly turn over it a wheel is over the

edge of a cliff or ditch, or if an edge

caves in.

•Do not mow on wet grass. Reduced

traction could cause sliding.

•DonottrytostabilizethemachTnebrt

putting your foot on the ground.

•Do not use grass catcher on steep

slopes.

CHILDREN

Tragic accidents can occur ifthe operator

is not alert to the presence of children.

Children are often attracted to the

machine and the mowing activity. Never

assume that children will remain where

you last sawyers.

•Keep children out of the mowing area

and under the watchful care of another

responsible adult.

•Be alert and turn machine off if children

enter the area.

•Before and when backing, look behind

and down for small children.

•Never carry children. They may fall off

and be seriously injured or interfere with

safe machine operation.

•Never allow children to operate the

machine.

•Use extra care when approaching blind

corners, shrubs, trees, or other objects

that may obscure vision.

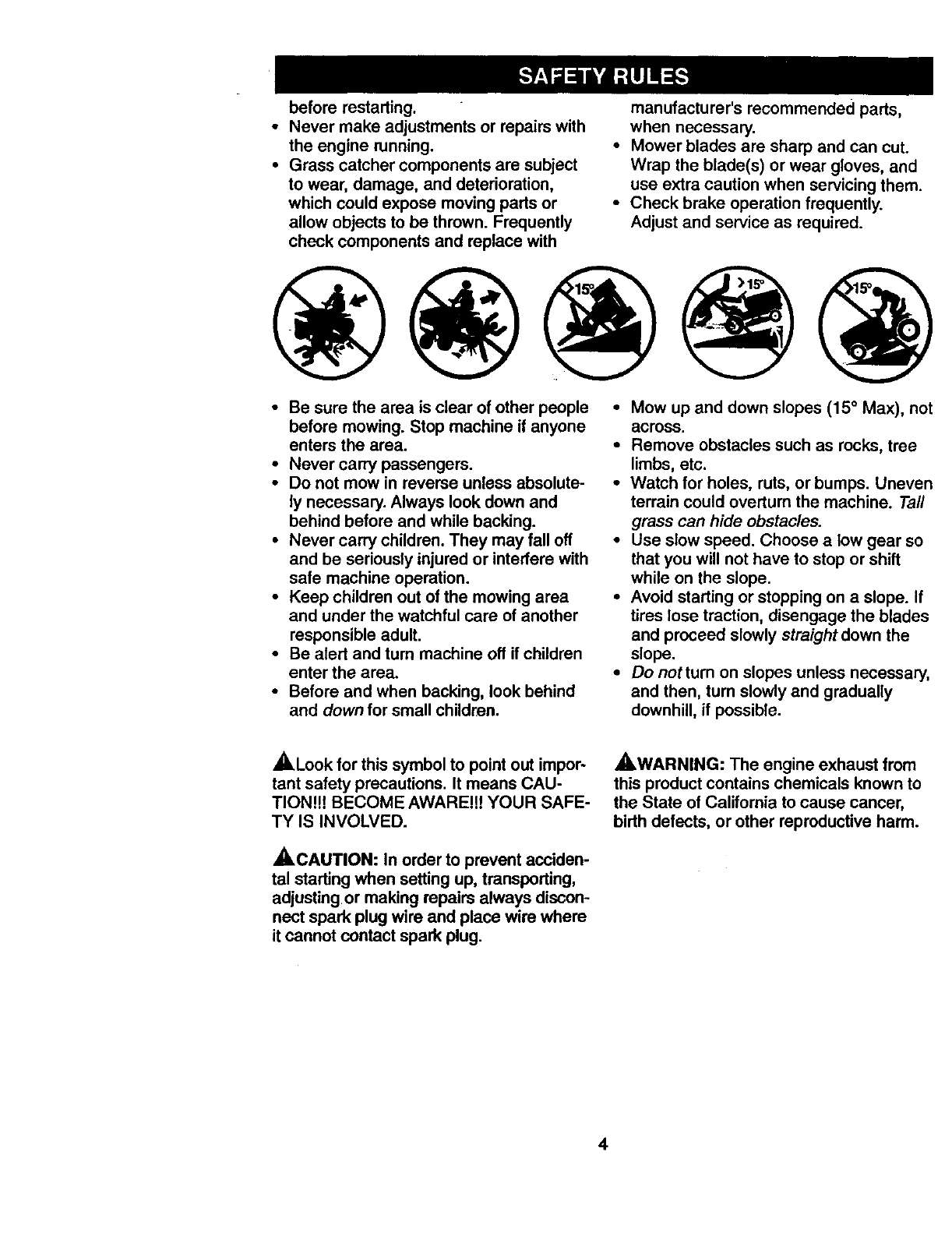

SERVICE

•Use extra care in handling gasoline and

other fuels. They are flammable and

vapors are explosive.

Use only an approved container.

Never remove gas cap or add fuel

with the engine running. Allow en-

gine to cool before refueling. Do not

smoke.

Never refuel the machine indoors.

Never store the machine or fuel

container inside where there is an

open flame, such as a water heater.

•Never run a machine inside a closed

area.

•Keep nuts and bolts, especially blade

attachment bolts, tight and keep equip-

ment in good condition.

•Never tamper with safety devices.

Check their proper operation regulady.

•Keep machine free of grass, leaves, or

other debris build-up. Clean oil or fuel

spillage. Allow machine to cool before

storing.

•Stop and inspect the equipment if you

strike an object. Repair, if necessary,

beforerestarting.

• Never make adjustments or repairs with

the engine running.

•Grass catcher components are subject

to wear, damage, and deterioration,

which could expose moving parts or

allow objects to be thrown. Frequently

check components and replace with

manufacturer's recommended parts,

when necessary.

•Mower blades are sharp and can cut.

Wrap the blade(s) or wear gloves, and

use extra caution when servicing them.

•Check brake operation frequently.

Adjust and service as required.

•Be sure the area is clear of other people

before mowing. Stop machine if anyone

enters the area.

•Never carry passengers.

•Do not mow in reverse unless absolute-

ly necessary. Always look down and

behind before and while backing.

•Never carry children. They may fall off

and be seriously injured or interfere with

safe machine operation.

•Keep children out of the mowing area

and under the watchful care of another

responsible adult.

•Be alert and turn machine off ifchildren

enter the area.

•Before and when backing, look behind

and down for small children.

Mow up and down slopes (15 ° Max), no1

across.

Remove obstacles such as rocks, tree

limbs, etc.

Watch for holes, ruts, or bumps. Unever

terrain could overturn the machine. Taft

grass can hide obstacles.

Use slow speed. Choose a low gear so

that you will not have to stop or shift

while on the slope.

Avoid starting or stopping on a slope. If

tires lose traction, disengage the blades

and proceed slowly straight down the

slope.

Do notturn on slopes unless necessary,

and then, turn slowly and gradually

downhill, if possible.

,_Look for this symbol to point out impor-

tant safety precautions. It means CAU-

TION!!! BECOME AWARE!!! YOUR SAFE-

TY IS INVOLVED.

_.CAUTION: In order to prevent acciden-

tal starting when setting up, transporting,

adjusting or making repairs always discon-

nect spark plug wire and place wire where

it cannot contact spark plug.

_,WARNING: The engine exhaust from

this product contains chemicals known to

the State of California to cause cancer,

birth defects, or other reproductive harm.

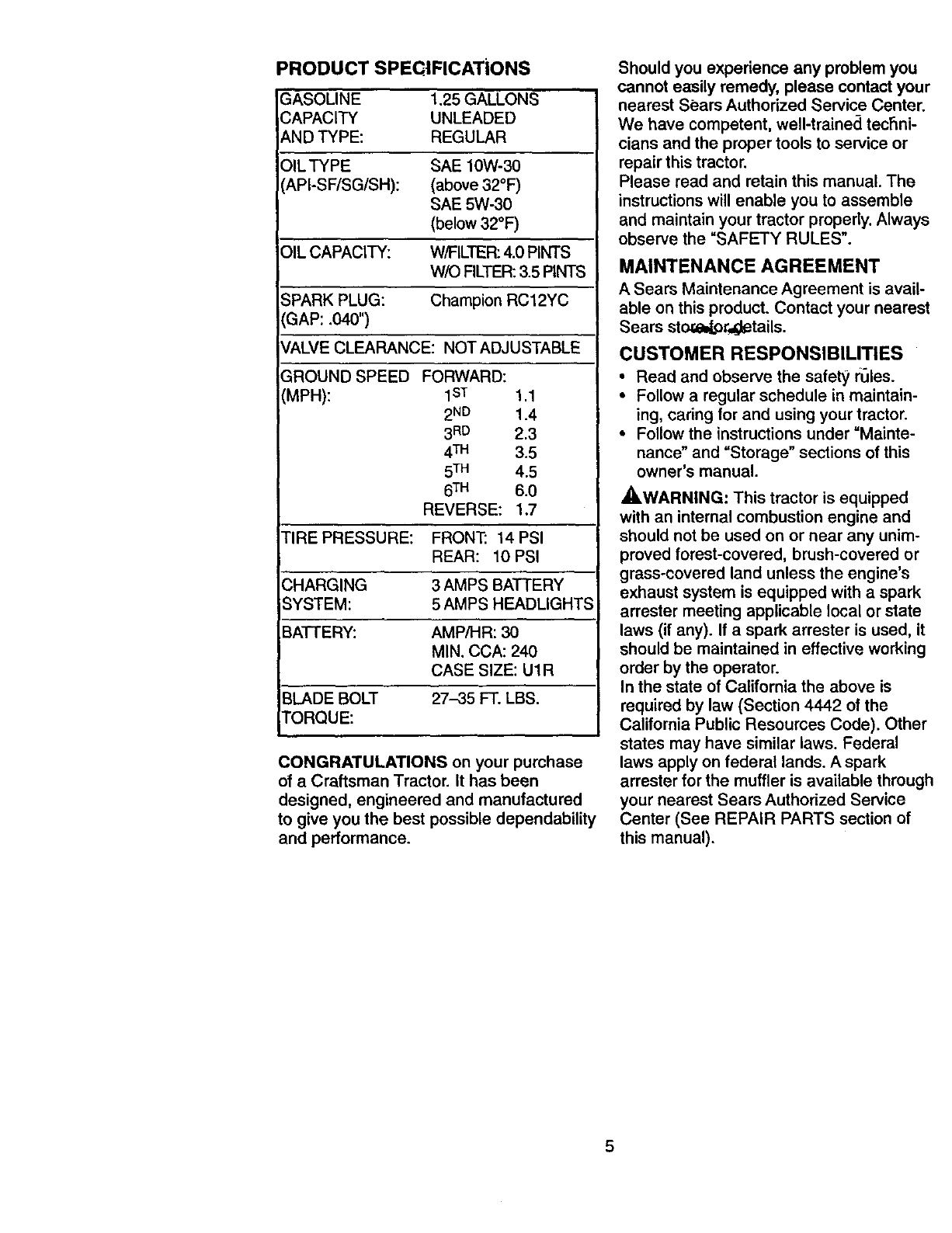

PRODUCT SPEGIFICATiONS

GASOLINE 1.25 GALLONS

CAPACITY UNLEADED

AND TYPE: REGULAR

OIL TYPE SAE 10W-30

API-SF/SG/SH): (above 32°F)

SAE 5W-30

(below 32°F)

OIL CAPACITY: W/FILTER: 4.0 PINTS

W/O FILTER: 3.5 PINTS

SPARK PLUG: Champion RC12YC

GAP: .040")

VALVE CLEARANCE: NOT ADJUSTABLE

GROUND SPEED FORWARD:

(MPH): 1sT 1.1

2ND 1.4

3RD 2.3

4TM 3.5

5TM 4.5

6TM 6.0

REVERSE: 1,7

TIRE PRESSURE: FRONT: 14 PSI

REAR: 10 PSI

CHARGING 3 AMPS BATTERY

SYSTEM: 5 AMPS HEADLIGHTS

BATTERY: AMP/HR: 30

MIN. CCA: 240

CASE SIZE: UIR

BLADE BOLT 27-35 FT. LBS.

TORQUE:

CONGRATULATIONS on your purchase

of a Craftsman Tractor. It has been

designed, engineered and manufactured

to give you the best possible dependability

and performance.

Should you experience any problem you

cannot easily remedy, please contact your

nearest Sears Authorized Service Center.

We have competent, well-trainea tecSni-

clans and the proper tools to service or

repair this tractor.

Please read and retain this manual. The

instructions will enable you to assemble

and maintain your tractor properly. Always

observe the "SAFETY RULES".

MAINTENANCE AGREEMENT

ASears Maintenance Agreement is avail-

able on this product. Contact your nearest

Sears stor,a,_r,,_etails.

CUSTOMER RESPONSIBILITIES

•Read and observe the safety nJles.

• Follow a regular schedule in maintain-

ing, caring for and using your tractor.

• Follow the instructions under =Mainte-

nance" and "Storage" sections of this

owner's manual.

,_,WARNING: This tractor is equipped

with an internal combustion engine and

should not be used on or near any unim-

proved forest-covered, brush-covered or

grass-covered land unless the engine's

exhaust system is equipped with a spark

arrester meeting applicable local or state

laws (if any). If a spark arrester is used, it

should be maintained in effective working

order by the operator.

In the state of California the above is

required by law (Section 4442 of the

California Public Resources Code). Other

states may have similar laws. Federal

laws apply on federal lands. A spark

arrester for the muffler is available through

your nearest Sears Authorized Service

Center (See REPAIR PARTS section of

this manual).

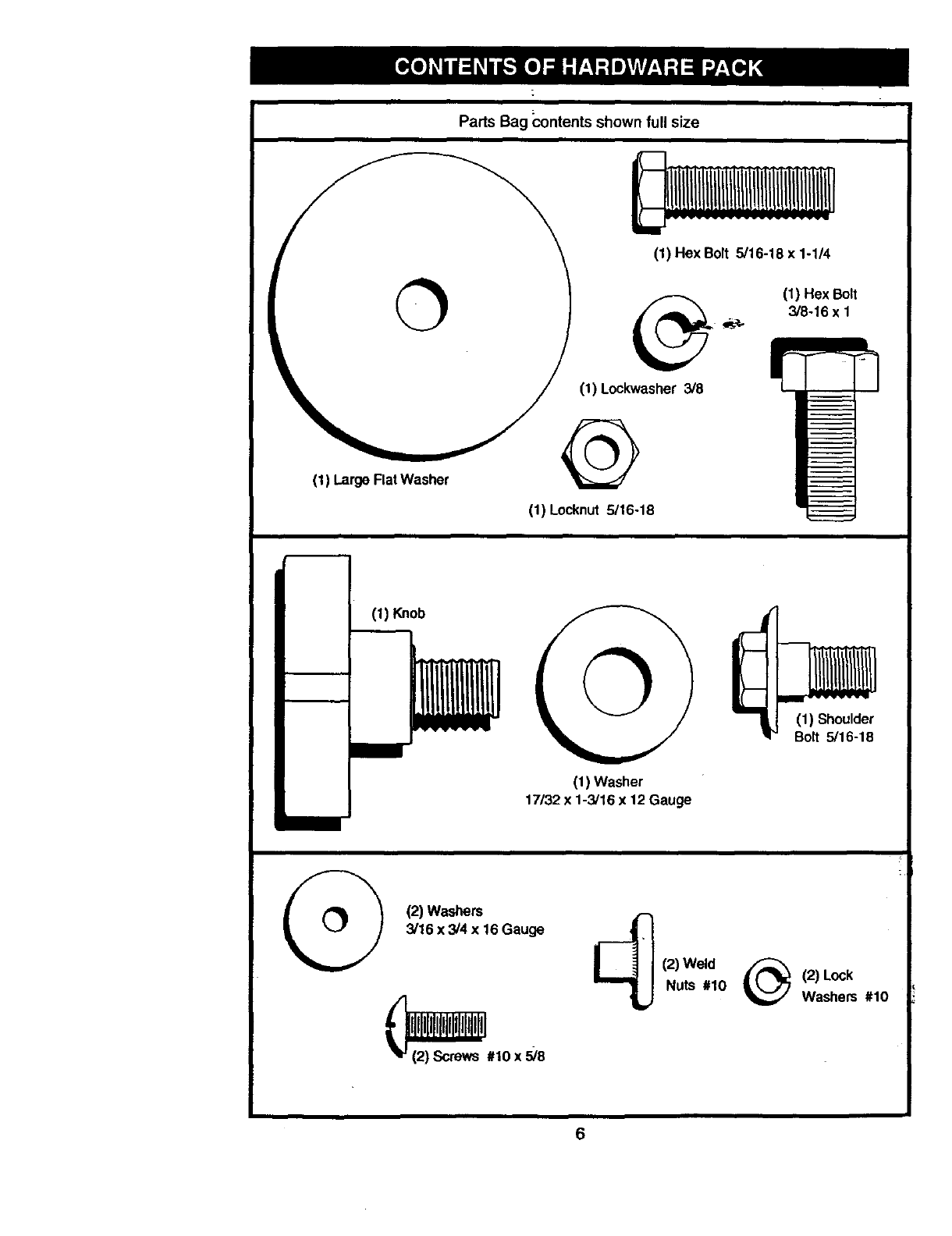

(1) LargeFlatWasher

Parts Bag _:ontents shown full size

(1) Hex Bolt 5/16-18 x 1-1/4

(1) Lockwasher 3/8

(1) Hex Bolt

3/8-16 x I

(1) Locknut 5/16-18

(1) Knob

(1) Washer

17/32 x 1-3/16x 12 Gauge

(1) Shoulder

Bolt 5/16-18

O(2) Washers

3/16 x 3/4 x 16 Gauge

(2)__ #10 x 5/8

(2) Weld

Nuts #10 (2) Lock

Washers #10

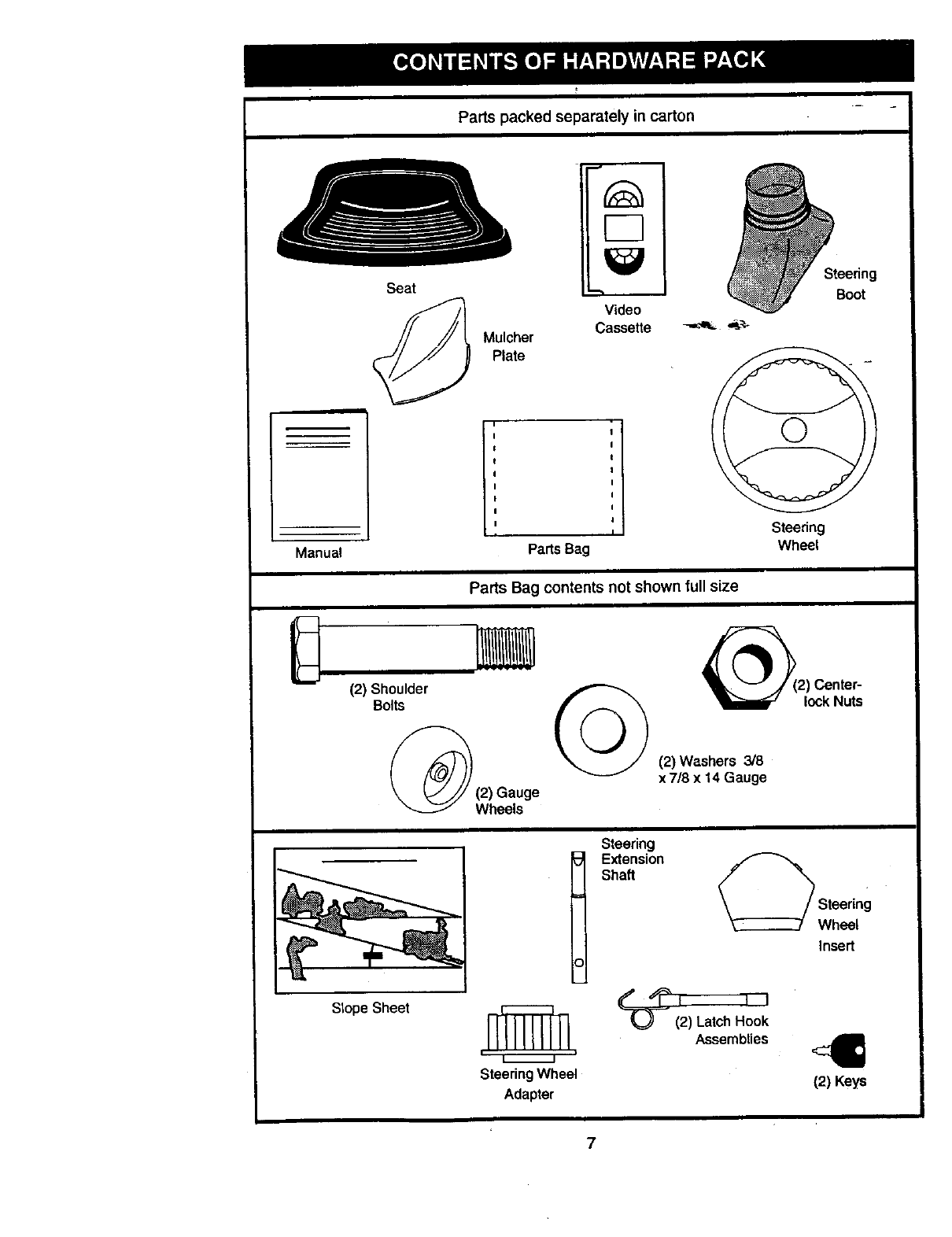

Parts packed separately in carton

Seat

Mulcher

Plate

Video

Cassette

Steedng

Boot

Manual

D(2) Shoulder

Bolts

Slope Sheet

j, I

Parts Bag

Parts Bag contents not shown full size

Wheels

Steering

t E_ension

Sha_

Steering Wheel

Adapter

Steedng

Wheel

(2) Washers 3/8

x 7/8 x14 Gauge

Wheel

Insert

Latch.'oo

Assemblies

(2) Keys

Yournew tractor has been assembled at the factory with exception of those parts left

unassembled for shipping purposes. To ensure safe and proper operation of your tractor

all parts and hardware you assemble must be tightened securely. Use the correct tools

as necessary to insure proper tightness. Review the video cassette before you begin.

TOOLS REQUIRED FOR

ASSEMBLY

A socket wrench set will make assembly

easier. Standard wrench sizes you need

are listed below.

(1) 9/16" wrench (1) 3/4" Socket w/

(1) Pliers drive ratchet

(2) 112" wrench (1) Phillips Screw-

(1) Utility knife driver

(1) Tire pressure gauge

When right or left hand is mentioned in

this manual, it means, from your point of

view, when you are in the operating posi-

tion (seated behind the steering wheel).

TO REMOVE TRACTOR FROM

CARTON

UNPACK CARTON

•Remove all accessible loose parts and

parts boxes from shipping carton (See

page 6).

•Cut, from top to bottom, along lines on

all four comers of shipping carton, and

lay panels flat.

•Check for any additional loose parts or

boxes and remove.

BEFORE ROLLING TRACTOR OFF

SKID

ATTACH STEERING WHEEL

ASSEMBLE EXTENSION SHAFT AND

BOOT

•Slide extension shaft onto lower steer-

ing shaft. Align mounting holes in exten-

sion and lower shafts and install 5/16

hex bolt and Iocknut. Tighten securely.

IMPORTANT: Tighten bolt and nut secure-

lyto 18-22 ft. Ibs. torque.

•Place tabs of steedng boot over tab

slots in dash and push down to secure.

INSTALL STEERING WHEEL

•Position front wheels of the tractor so

they are pointing straight forward.

•Slide steering wheel adapter onto steer-

ing shaft extension.

•Position steedng wheel so cross bars

are horizontal (left to dght) and slide

inside boot and onto adapter.

•Assemble large flat washer, 3/8 lock

Insert

_3/8 Rex Bolt

,_3/8 L_:_l_asher

Large Flat

ff--_Washer

Steedng_'_,___ )

Steering

Adapter _Tabs

5/16 Locknut _._5/16 Hex Bolt

Extension <',

Shaft ," -'1-

\ ,I

Lower .,. ,

Steering Shaft , ,Tab

,,<-,, ,,, ," Slots

washer. 3/8 hex belt and tighten securely.

• Snap steering wheel insert into center

of steering wheel.

• Remove protective materials from trac-

tor hood and grill.

IMPORTANT: Check for and remove any

staples in skid that may puncture tires

where tractor is to roll off skid.

TO ROLL TRACTOR OFF SKID (See

Operation section for location and

function of controls)

• Press lift lever plunger and raise attach-

ment lift lever to its highest position.

•Release parking brake by depressing

clutch/brake pedal.

•Place gearshift lever in neutral (N) posi-

tion.

•Roll tractor forward off skid.

•Remove banding holding discharge

guard up against tractor.

HOW TO SET UP YouR TRACTOR

CHECK BATTERY

• Lift seat pan to, raised position and open

battery box door.

• If this battery is put into service after

month and year indicated on label (label

located between terminals) charge bat-

tery for minimum of one hour at 6-10

amps. (See "BATTERY" in

MAINTENANCE section of this manual

for charging instructions).

Seat Pan

Battery Box

Door Label

INSTALL SEAT

Adjust seat before tightening adjustment

knob.

• Remove cardboard packing on seat pan.

• Place seat on seat pan and assemble

shoulder bolt. Tighten shoulder bolt

securely.

• Assemble adjustment knob and flat

washer loosely. Do not tighten.

• Lower seat into operating position and

sit on seat.

• Slide seat until a comfortable position is

reached which allows you to press

clutch/b_._ke _o_dal all the way down.

• Get off _e-_t _Tthout moving its adjusted

position.

• Raise seat and tighten adjustn_ent knob

securely.

Seat Pan

: to,0o,/

Adjustment Knob

Seat

Flat Washer

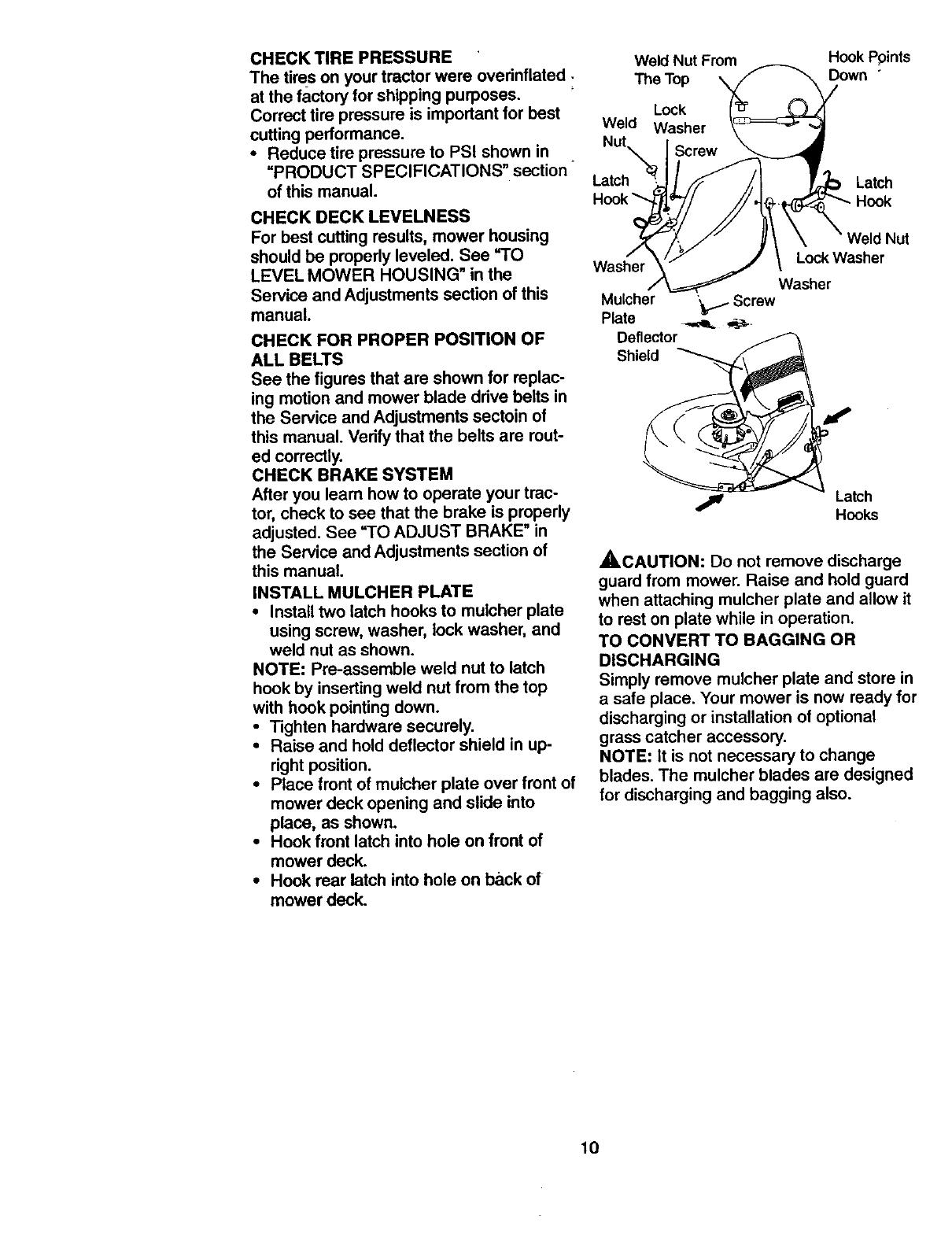

CHECK TIRE PRESSURE

The tires on your tractor were overinflated.

at the factory for shipping purposes.

Correct tire pressure is important for best

cutting performance.

•Reduce tire pressure to PSI shown in

=PRODUCT SPECIFICATIONS" section

of this manual.

CHECK DECK LEVELNESS

For best cutting results, mower housing

should be properly leveled. See =TO

LEVEL MOWER HOUSING" in the

Service and Adjustments section of this

manual.

CHECK FOR PROPER POSITION OF

ALL BELTS

See the figures that are shown for replac-

ing motion and mower blade drive belts in

the Service and Adjustments sectoin of

this manual. Verify that the belts are rout-

ed correctly.

CHECK BRAKE SYSTEM

After you leam how to operate your trac-

tor, check to see that the brake is properly

adjusted. See "TO ADJUST BRAKE" in

the Service and Adjustments section of

this manual.

INSTALL MULCHER PLATE

•Install two latch hooks to mulcher plate

using screw, washer, lock washer, and

weld nut as shown.

NOTE: Pre-assemble weld nut to latch

hook by inserting weld nut from the top

with hook pointing down.

•Tighten hardware securely.

•Raise and hold deflector shield in up-

right position.

•Place front of mulcher plate over front of

mower deck opening and slide into

place, as shown.

•Hook front latch into hole on front of

mower deck.

•Hook rear latch into hole on back of

mower deck.

Weld Nut From Hook Ppints

The Top Down •

Lock

Weld Washer

Latch Latch

LockWasher

Washer Washer

Mulcher "_1_ Screw

Plate _ _..

Deflector

Shield

Latch

Hooks

_.CAUTION: Do not remove discharge

guard from mower. Raise and hold guard

when attaching mulcher plate and allow it

to rest on plate while in operation.

TO CONVERT TO BAGGING OR

DISCHARGING

Simply remove mulcher plate and store in

a safe place. Your mower is now ready for

discharging or installation of optional

grass catcher accessory.

NOTE: It is not necessary to change

blades. The mulcher blades are designed

for discharging and bagging also.

Table des matières

Autres manuels Craftsman Tondeuse à gazon

Craftsman

Craftsman 917.271062 Manuel utilisateur

Craftsman

Craftsman 917.272650 Manuel utilisateur

Craftsman

Craftsman 917.273521 Manuel utilisateur

Craftsman

Craftsman 917.28851 Manuel utilisateur

Craftsman

Craftsman EZ 917.270752 Manuel utilisateur

Craftsman

Craftsman 917.9995A Manuel utilisateur

Craftsman

Craftsman 917.28858 Manuel utilisateur

Craftsman

Craftsman 917.2565 Manuel utilisateur

Craftsman

Craftsman 37639 Manuel utilisateur

Craftsman

Craftsman 917.388102 Manuel utilisateur

Craftsman

Craftsman 247.288831 Manuel utilisateur

Craftsman

Craftsman 917.389610 Manuel utilisateur

Craftsman

Craftsman 25401 Manuel utilisateur

Craftsman

Craftsman EZ3 917.256710 Manuel utilisateur

Craftsman

Craftsman 917.271110 Manuel utilisateur

Craftsman

Craftsman 917.255930 Manuel utilisateur

Craftsman

Craftsman 917.272671 Manuel utilisateur

Craftsman

Craftsman 944.367150 Manuel utilisateur

Craftsman

Craftsman 917.257620 Manuel utilisateur

Craftsman

Craftsman 917.272460 Manuel utilisateur

Craftsman

Craftsman 917.276640 Manuel utilisateur

Craftsman

Craftsman 917.376093 Manuel utilisateur

Craftsman

Craftsman 247.28901 Manuel utilisateur

Craftsman

Craftsman 917.28821 Manuel utilisateur

Manuels Tondeuse à gazon populaires d'autres marques

RHINO

RHINO 1958 Manuel utilisateur

Wolf Garten

Wolf Garten Compact plus 40 B Manuel utilisateur

Cub Cadet

Cub Cadet LTX 1045 Manuel utilisateur

GGP ITALY SPA

GGP ITALY SPA CR/CS 434 SERIES Manuel utilisateur

Challenge

Challenge CH18V2 Instructions de fonctionnement

TALEN TOOLS

TALEN TOOLS AVR HGM30 Manuel utilisateur

DEWEZE

DEWEZE ATM-725 Manuel d'utilisation

Weed Eater

Weed Eater 180083 Manuel utilisateur

Husqvarna

Husqvarna Poulan Pro PP185A42 Manuel utilisateur

Better Outdoor Products

Better Outdoor Products Quick Series Manuel utilisateur

Cub Cadet

Cub Cadet 23HP Z-Force 60 Manuel d'utilisation

MTD

MTD 795, 792, 791, 790 Manuel utilisateur

Toro

Toro Groundsmaster 3505-D Manuel utilisateur

Dennis

Dennis FT 610 Manuel utilisateur

AIRFORCE

AIRFORCE F-15 Gen 3 Manuel utilisateur

MTD

MTD 126-220-000 Manuel utilisateur

Toro

Toro 74806 Manuel utilisateur

Stihl

Stihl RMA 443 PV Manuel utilisateur
