Craftsman 917.270430 Manuel utilisateur

Owner's Manual

(RAFTtMAN"

13.5 HP

ELECTRIC START

38" MOWER

5 SPEED TRANSAXLE

LAWN TRACTOR

Model No.

917.270430

• Safety

• Assembly

• Operation

• Maintenance

•Repair Parts

CAUTION:

Read and follow all Safety

Rules and Instructions before

operating this equipment.

For answers to your questions

about this product, Call:

1-800-659-5917

Sears Craftsman Help Line

5 am - 5 pm, Mon - Sat

Sears, Roebuck and Co., Hoffman Estates, II 60179

Visit our Craftsman website:www.sears.comlcraftsman

Warranty............................................... 2

Safety Rules .......................................... 2

Product Specifications .......................... 5

Assembly............................................... 8

Operation. ............................................ 11

Maintenance Schedule ...................... 17

Maintenance ....................................... 17

Service and Adjustments.................... 21

Troubleshooting ................................. 28

Repair Parts ........................................ 32

Parts Ordering ..................... Back Cover

LIMITED TWO YEAR WARRANTY ON CRAFTSMAN RIDING EQUIPMENT

For two (2) _ears from the date of purchase, ifthis Craftsman Riding Equipment is

maintained, lubricated and tuned up according to the instructionsin the owner's

manual, Sears will repair or replace, free of charge, any parts found to be defective in

material or workmanship.

This Warranty does not cover:

•Expendable items which become worn during normal use, such as blades, spark

plugs, air cleaners, belts, etc.

•Tire replacement or repair caused by punctures from outside objects, such as nails,

thorns, stumps, or glass.

•Repairs necessary because of operator abuse, negligence, improper storage or acci-

dent or the failure to maintain the equipment according to the instructionscontained

in the owner's manual.

•Riding equipment used for commercial or rental purposes.

LIMITED 90 DAY WARRANTY ON BATTERY

For ninety (90) days from date of purchase, ifany battery included with this riding

equipment proves defective in material or workmanship and ourtesting determines the

battery will not hold a charge, Sears will replace the battery at no charge. In-home

warranty service on your Craftsman ridingequipment is available at no charge for 30

days from the date of purchase. Please contact your nearest service center. After 30

days from the date of purchase, warranty service is available by taking your Craftsman

riding equipment to your nearest Sears Service Center. (In-home warranty service will

still be available after 30 days from the date of purchase but astandard trip charge will

apply). This warranty applies only while this product is in the United States. This

Warranty gives you specific legal rights, and you may also have other rights which may

vary from state to state.

Sears, Roebuck and Co., D/817 WA, Hoflman Estates, IL 60179

GENERAL OPERATION

•Read, understand, and follow all in-

structions in the manual and on the

machine before starting.

•Only allow responsible adults, who are

familiar with the instructions, to operate

the machine.

•Clear the area of objects such as

rocks, toys, wire, etc., which could be

picked up and thrown by the blade.

•Be sure the area is clear of other

people before mowing. Stop machine if

anyone enters the area.

•Never carry passengers.

•Do not mow in reverse unless abso-

lutely necessary. Always look down and

behind before and while backing.

•Be aware of the mower discharge di-

rection and do not point it at anyone.

Do not operate the mower without ei-

ther the entire grass catcher or the

guard in place.

•Slow down before tuming.

•Never leave a running machine unat-

tended. Always turn off blades, set

parking brake, stop engine, and re-

2 move keys before dismounting.

• Tum off blades when not mowing.

•Stop engine before removing grass

catcher or unclogging chute.

•Mow only in daylight or good artificial

light.

•Do not operate the machine while un-

der the influence of alcohol or drugs.

•Watch fortraffic when operating near

or crossing roadways.

•Use extra care when loading or un-

loading the machine into a trailer or

truck.

SLOPE OPERATION

Slopes are amajor factor related to loss-

of-control and tipever accidents, which

can result in severe injury or death. All

slopes require extra caution. If you can-

not back up the slope or if you feel un-

easy on it, do not mow it.

DO:

•Mow up and down slopes, not across.

•Remove obstacles such as rocks, tree

limbs, etc.

•Watch for holes, ruts, or bumps. Un-

even terrain could overtum the ma-

chine. Tall grass can hide obstacles.

•Use slow speed. Choose alow gear so

that you will not have to stop or shift

while on the slope.

•Follow the manufacturer's recommen-

dations for wheel weights or counter-

weights to improve stability.

•Use extra care with grass catchers or

other attachments. These can change

the stability of the machine.

•Keep all movement on the slopes slow

and gradual. Do not make sudden

changes in speed or direction.

•Avoid starting or stopping on a slope. If

tires lose traction, disengage the

blades and proceed slowly straight

down the slope.

DO NOT:

•Do nottum on slopes unless neces-

sary, and then, turn slowly and gradu-

ally downhill, if possible.

•Do not mow near drop-offs, ditches, or

embankments. The mower could sud-

denly turn over if a wheel is over the

edge of a cliff or ditch, or if an edge

caves in.

•Do not mow on wet grass. Reduced

traction could cause sliding.

•Do nottry to stabilize the machine by

putting your foot on the ground.

•Do not use grass catcher on steep

slopes.

CHILDREN

Tragic accidents can occur if the operator

is not alert to the presence of children.

Children are often attracted to the ma-

chine and the mowing activity.Neveras-

sume that children will remain where you

lastsaw them.

•Keep children out of the mowing area

and under the watchful care of another

responsible adult.

•Be alert and turn machine off if chil-

dren enter the area.

•Before and when backing, look behind

and downfor small children.

•Never carry children. They may fall off

and be sedously injured or interfere

with safe machine operation.

•Never allow children to operate the ma-

chine.

•Use extra care when approaching blind

corners, shrubs, trees, or other objects

that may obscure vision.

SERVICE

•Use extra care in handling gasoline

and other fuels. They are flammable

and vapors are explosive.

Use only an approved container.

Never remove gas cap or add fuel

with the engine running. Allow en-

gine to cool before refueling. Do

not smoke.

Never refuel the machine indoors.

Never store the machine or fuel

container inside where there is an

open flame, such as a water heat-

er.

•Never run a machine inside a closed

area.

•Keep nuts and bolts, especially blade

attachment bolts, tight and keep equip-

ment in good condition.

•Never tamper with safety devices.

Check their proper operation regulady.

•Keep machine free of grass, leaves, or

other debris build-up. Clean oil or fuel

spillage.Allow machine to cool before

storing.

•Stop and inspect the equipment if you

strike an object. Repair, if necessary,

before restarting.

• Nevermakeadjustmentsorrepairs

withtheenginerunning.

• Grasscatchercomponentsaresubject

to wear,damage,and deterioration,

which could expose moving parts or al-

low objects to be thrown. Frequently

check components and replace with

manufacturer's recommended parts,

when necessary.

•Mower blades are sharp and can cut.

Wrap the blade(s) or wear gloves, and

use extra caution when servicing them.

•Check brake operation frequently. Ad-

just and service as required.

•Be sure the area is clear of other

people before mowing. Stop machine if

anyone enters the area.

•Never carry passengers.

•Do not mow in reverse unless abso-

lutely necessary. Always look down and •

behind before and while backing.

• Never carry children. They may fall off

and be seriously injured or interfere •

with safe machine operation.

•Keep children out of the mowing area

and under the watchful care of another •

responsible adult.

•Be alert and turn machine off if chil-

dren enter the area.

•Before and when backing, look behind •

and down for small children.

•Mow up and down slopes (15 ° Max),

not across.

Remove obstacles such as rocks, tree

limbs, etc.

Watch for holes, ruts, or bumps. Un-

even terrain could overturn the ma-

chine. Tallgrass can hide obstacles.

Use slow speed. Choose a low gear so

that you will not have to stop or shift

white on the slope.

Avoid starting or stopping on a slope. If

tires lose traction, disengage the

blades and proceed slowly straight

down the slope.

Do not tum on slopes unless neces-

sary, and then, tum slowly and gradu-

ally downhill, if possible.

_k,Look for this symbol to point out im-

portant safety precautions. It means

CAUTION!!! BECOME AWARE!!! YOUR

SAFETY IS INVOLVED.

/k CAUTION: In order to prevent acci-

dental starting when setting up, trans-

porting, adjusting or making repairs al-

ways disconnect spark plug wire and

place wire where it cannot contact spark

plug.

WARNING: The engine exhaust from

this product contains chemicals known to

the State of California to cause cancer,

birth defects, or other reproductive harm.

PRODUCT SPECIFICATIONS

GASOLINE

CAPACITY

AND TYPE:

OIL'TYPE

(API-SF/SG/SH):

Z)ILCAPACITY:

;PARK PLUG:

_AP: .030")

CALVE

3LEARANCE:

1.25 GALLONS

UNLEADED

REGULAR

SAE 30(ABOVE 32°F

SAE 5W-30

(Below 32°F)

3.0 PINTS

CHAMPION

RJ19LM

INTAKE: .005"-.007"

EXHAUST:.009"-.0t 1"

3ROUND SPEED FORWARD:

[MPH): 1ST 1.0

2ND 2.2

3RD 3.2

4TH 4.4

5TH 5.0

REVERSE: 1.4

TIRE FRONT: 14 PSI

PRESSURE: REAR: 12 PSI

CHARGING 3 AMPS BATTERY

SYSTEM: 5 AMPS HEADLIGHTS

BATTERY: AMP/HR: 25

MIN. CCA: 190

CASE SIZE:U1R

3LADE BOLT 27-35 FT. LBS

FORQUE:

MAINTENANCE AGREEMENT

A Sears Maintenance Agreement is

available on this product. Contact your

nearest Sears store for details.

CUSTOMER RESPONSlBIUTIES

•Read and observe the safety rules.

•Follow a regular schedule in maintain-

ing, caring for and using your tractor.

•Follow the instructionsunder "Mainte-

nance" and =Storage" sections of this

owner's manual.

WARNING: This tractor is equipped

with an internal combustion engine and

should not be used on or near any

unimproved forest-covered, brush-

covered or grass-covered land unless the

engine's exhaust system is equipped with

a spark arrester meeting applicable local

or state laws (if any). If a spark arrester

is used, it should be maintained in

effective working order by the operator.

In the state of California the above is

required by law (Section 4442 of the

California Public Resources Code).

Other states may have similar laws.

Federal laws apply on federal lands. A

spark arrester for the muffler is available

through your nearest Sears Authorized

Service Center/Department (See

REPAIR PARTS section of this manual).

CONGRATULATIONS on your purchase

of a Craftsman Tractor. It has been

designed, engineered and manufactured

to give you the best possible dependabil-

ity and performance.

Should you experience any problem you

cannot easily remedy, please contact

your nearest Sears Authorized Service

Center. We have competent, well-trained

technicians and the proper tools to

service or repair this tractor.

Please read and retain this manual. The

instructionswillenable you to assemble

and maintain your tractor properly.

Always observe the "SAFETY RULES".

Parts Bag contents shown full size

(1) Large Flat Washer

(2) Sheet

Metal

Screws

#10-16 x 1/2

(1)Locknut

3/8-24

(1) Knob ©

(1) Washer

17/32 x 1-3/16 x 12 Gauge (1) Shoulder

Bolt 5/16-18

Parts packed separately in carton

Seat

F-7

Video

Cassette Steering

Wheel

Manual Steering

Boot Parts Bag

Parts Bag contents not shown full size

Slope Sheet

(2) Keys

Steering

Bushing

Steering

Wheel

Insert,

Steering Wheel

, , Adapter

= i

Your new tractor has been assembled at the factory with exception of those parts left

unassembled for shipping purposes. To ensure safe and proper operation of your

tractor all parts and hardware you assemble must be tightened securely. Use the

correct tools as necessary to insure proper tightness. Review the video cassette before

you begin.

TOOLS REQUIRED FOR

ASSEMBLY

A socket wrench set will make assembly

easier. Standard wrench sizes you need

are listed below.

(1) 5/16"wrench (1) Pliers

(2) 1/2"wrench (1) Utility knife

(1) Tire pressure gauge

When right or left hand is mentioned in

this manual, it means, from your point of

view, when you are in the operating

position (seated behind the steering

wheel).

f_ I_Steering Wheel

insert

((J .J lJI 3/8-24Locknut

I(_---Large Fiat Washer

Sheet

")_Metal

Sc,ew

/_"_ _ Steering

"_Bushing

Steering Wheel_ Tabs

Steering Wheel /

Adapter

Steering

TO REMOVE TRACTOR FROM

CARTON

UNPACK CARTON

Steering Shaft

(Assembly

Position)

• Remove all accessible loose parts

and parts boxes from shipping carton.

•Cut, from top to bottom, along lines on

all four comers of shipping carton, and

lay panels flat.

•Remove mower and packing mated-

als.

•Check for any additional loose parts

or boxes and remove.

BEFORE ROLUNG TRACTOR OFF

SKID

ATTACH STEERING WHEEL

•Slide the steedng bushing over the

steedng shaft.

•Raise steedng shaft forward until

screw holes in dash line up with

steering bushing. Install two (2) sheet

metal screws and tighten securely.

•Position steering boot over steedng

shaft.

•Place tabs of steering boot over tab

slots in dash and push down to

secure.

•Slide steedng wheel adapter onto

upper steering shaft.

•Position front wheels of the tractor so

they are pointing straight forward.

•Position steering wheel so cross bars

are horizontal (left to right) and slide

onto adapter.

Steedng ......... .,'

(Shipping Position) ........ J

Slot

•Assemble large flat washer and 3/8-24

Iocknut and tighten securely.

•Snap steedng wheel insert into center

of steedng wheel.

•Remove protective materials from

tractor hood and grill.

IMPORTANT:Check for and remove any

staples in skid that may puncture tires

where tractor isto rolloff skid.

HOW TO SET UP YOUR TI:_,C'FOR

CHECK BATTERY

• Lift seat pan to raised position and

open battery box door.

•If this battery is put into service after

month and year indicated on label

(label located between terminals)

charge battery for minimum of one

hour at 6-10 amps. (See "BATTERY" in

Maintenance section of this manual for

charging instructions),

Battery Box Label

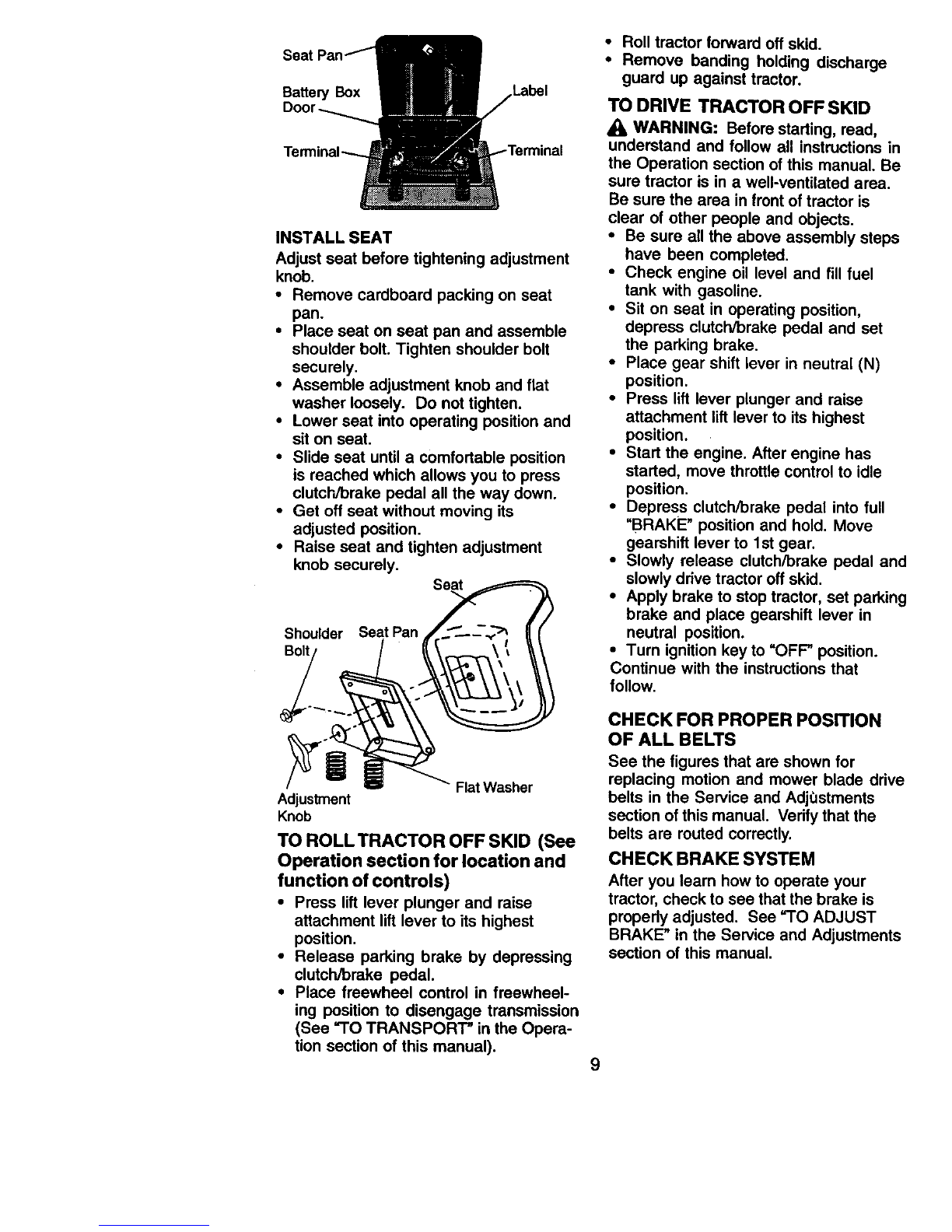

INSTALL SEAT

Adjust seat before tightening adjustment

knob.

•Remove cardboard packing on seat

pan.

•Place seat on seat pan and assemble

shoulder bolt. Tighten shoulder bolt

securely.

•Assemble adjustment knob and fiat

washer loosely. Do not tighten.

•Lower seat into operating position and

sit on seat.

•Slide seat until a comfortable position

is reached which allows you to press

clutcWbrake pedal all the way down.

•Get oft seat without moving its

adjusted position.

•Raise seat and tighten adjustment

knob securely.

Shoulder Seat Pan

Flat Washer

Adjustment

Knob

TO ROLLTRACTOR OFF SKID (See

Operation section for location and

function of controls)

• Press lift lever plunger and raise

attachment lift lever to its highest

position,

•Release parking brake by depressing

clutch/brake pedal.

•Place freewheel control in freewheel-

ing position to disengage transmission

(See "TO TRANSPORT" in the Opera-

tion section of this manual).

•Roll tractor forward off skid.

• Remove banding holding discharge

guard up against tractor.

TO DRIVE TRACTOR OFF SKID

WARNING: Before starting, read,

understand and follow all instructions in

the Operation section of this manual. Be

sure tractor is in a well-ventilated area.

Be sure the area in front of tractor is

clear of other people and obiects.

•Be sure all the above assembly steps

have been completed.

•Check engine oil level and fill fuel

tank with gasoline.

•Sit on seat in operating position.

depress clutch/brake pedal and set

the parking brake.

•Place gear shift lever in neutral (N)

position.

•Press lift lever plunger and raise

attachment lift lever to its highest

position.

•Start the engine. After engine has

started, move throttle control to idle

position.

•Depress clutch/brake pedal into full

"BRAKE" position and hold. Move

gearshift lever to 1st gear.

•Slowly release clutch/brake pedal anq

slowly drive tractor off skid.

•Apply brake to stop tractor, set parkin!

brake and place gearshift lever in

neutral position.

•Turn ignition key to "OFF" position.

Continue with the instructions that

follow.

CHECK FOR PROPER POSITION

OF ALL BELTS

See the figures that are shown for

replacing motion and mower blade driv_

belts in the Service and AdjOstments

section ofthis manual. Verify that the

belts are routed correctly.

CHECK BRAKE SYSTEM

After you learn how to operate your

tractor, check to see that the brake is

properly adjusted. See "TO ADJUST

BRAKE" in the Service and Adiustment.'

section of this manual.

CHECKTIRE PRESSURE

The tires on your tractor were overin-

flated at the factory for shipping pur-

poses. Correct tire pressure is important

for best cuttingperformance.

•Reduce tire pressure to PSI shown in

"PRODUCT SPECIFICATIONS"

section of this manual.

CHECK DECK LEVELNESS

For best cuttingresults, mower housing

should be properly leveled. See "TO

LEVEL MOWER HOUSING" in the

Service and Adjustments section of this

manual.

4CHECKLIST •

BEFORE YOU OPERATE AND ENJOY

YOUR NEW TRACTOR, WE WISH TO

ASSURE THAT YOU RECEIVE THE

BEST PERFORMANCE AND

SATISFACTION FROM THIS QUALITY

PRODUCT.

PLEASE REVIEW THE FOLLOWING

CHECKLIST:

,/All assembly instructionshave been

completed.

/No remaining loose parts in carton.

4Battery is properly prepared and

charged. (Minimum 1 hour at 6

amps).

/Seat is adjusted comfortably and

tightened securely.

/All tires are properly inflated. (For

shipping purposes, the tires were

ovednflated at the factory).

/Be sure mower deck is properly

leveled side-to-side/front-to-rear for

best cutting results. (Tires must be

propedy inflated for leveling).

/Check mower and drive belts. Be sure

they are routed properly around pulleys

and inside all belt keepers.

/Check wiring. See that all connections

are stillsecure and wires are propedy

clamped.

WHILE LEARNING HOWTO USEYOUR

TRACTOR, PAY EXTRAATTENTION TO

THE FOLLOWING IMPORTANT ITEMS:

/Engine oil is at proper level.

/Fuel tank isfilled with fresh, clean,

regular unleaded gasoline.

/Become familiar with all controls - their

location and function. Operate them

before you start the engine.

/Be sure brake system is in safe

operating condition.

Table des matières

Autres manuels Craftsman Tondeuse à gazon

Craftsman

Craftsman 247.374900 Manuel utilisateur

Craftsman

Craftsman EZ3 917.273122 Manuel utilisateur

Craftsman

Craftsman 917.270312 Manuel utilisateur

Craftsman

Craftsman 917.28738 Manuel utilisateur

Craftsman

Craftsman 917.375611 Manuel utilisateur

Craftsman

Craftsman 917.289344 Manuel utilisateur

Craftsman

Craftsman 247.203791 Manuel utilisateur

Craftsman

Craftsman 917.376659 Manuel utilisateur

Craftsman

Craftsman 917.385410 Manuel utilisateur

Craftsman

Craftsman 917.255581 Manuel utilisateur

Craftsman

Craftsman 917.376091 Manuel utilisateur

Craftsman

Craftsman 917.388560 Manuel utilisateur

Craftsman

Craftsman 917.275764 Manuel utilisateur

Craftsman

Craftsman 917.28842 Manuel utilisateur

Craftsman

Craftsman 37659 - Front Propelled Rear Bag Lawn Mower Manuel utilisateur

Craftsman

Craftsman 917.372780 Manuel utilisateur

Craftsman

Craftsman 917.273760 Manuel utilisateur

Craftsman

Craftsman ELECTRIC START 42" MOWER AUTOMATIC LAWN TRACTOR... Manuel utilisateur

Craftsman

Craftsman 917.377823 Manuel utilisateur

Craftsman

Craftsman 917.270411 Manuel utilisateur

Craftsman

Craftsman 917.373491 Manuel utilisateur

Craftsman

Craftsman 917.379601 Manuel utilisateur

Craftsman

Craftsman C459-36306 Manuel utilisateur

Craftsman

Craftsman 917.370890 Manuel utilisateur

Manuels Tondeuse à gazon populaires d'autres marques

RHINO

RHINO 1958 Manuel utilisateur

Wolf Garten

Wolf Garten Compact plus 40 B Manuel utilisateur

Cub Cadet

Cub Cadet LTX 1045 Manuel utilisateur

GGP ITALY SPA

GGP ITALY SPA CR/CS 434 SERIES Manuel utilisateur

Challenge

Challenge CH18V2 Instructions de fonctionnement

TALEN TOOLS

TALEN TOOLS AVR HGM30 Manuel utilisateur

DEWEZE

DEWEZE ATM-725 Manuel d'utilisation

Weed Eater

Weed Eater 180083 Manuel utilisateur

Husqvarna

Husqvarna Poulan Pro PP185A42 Manuel utilisateur

Better Outdoor Products

Better Outdoor Products Quick Series Manuel utilisateur

Cub Cadet

Cub Cadet 23HP Z-Force 60 Manuel d'utilisation

MTD

MTD 795, 792, 791, 790 Manuel utilisateur

Toro

Toro Groundsmaster 3505-D Manuel utilisateur

Dennis

Dennis FT 610 Manuel utilisateur

AIRFORCE

AIRFORCE F-15 Gen 3 Manuel utilisateur

MTD

MTD 126-220-000 Manuel utilisateur

Toro

Toro 74806 Manuel utilisateur

Stihl

Stihl RMA 443 PV Manuel utilisateur
