Craftsman 33029 Manuel utilisateur

perator's Manual

I:RI FrSMAN°

Revolution Zero-Turn Riding Mower

42-iNCH MULCH KiT

Model No. 33029

For answers to your questions about this product,

call 1=800=659=5917.

CAUTION: BEFORE USING THiS

PRODUCT, READ THIS MANUAL

AND FOLLOW ALL SAFETY RULES

AND OPERATING iNSTRUCTiONS.

Sears, Roebuck and Co., Hoffman Estates, IL 60179, U.S.A.

Visit our website: www.sears.com/craftsman FormNo.769-04770

(February10,2009)

Model33029mulchkitisdesignedforusewiththeCraftsman42-

inchcuttingdeckontheRevolutionZero-TurnRidingMower.

CARTON CONTENTS

IMPORTANT: Useatorquewrenchtotighteneachbladespindle'shex

flangenutto between70ft-lband90ft-lb.

Beforebeginninginstallation,removeallpartsfromthecartonto

makesureeverythingispresent.Cartoncontentsarelistedbelow

andshownin Figure1.Partnumbersareshownin parentheses.

• Two22"MulchBlades(742-04214)

• One42"DeckMulchPlugAssembly(631-04262)

Figure 1

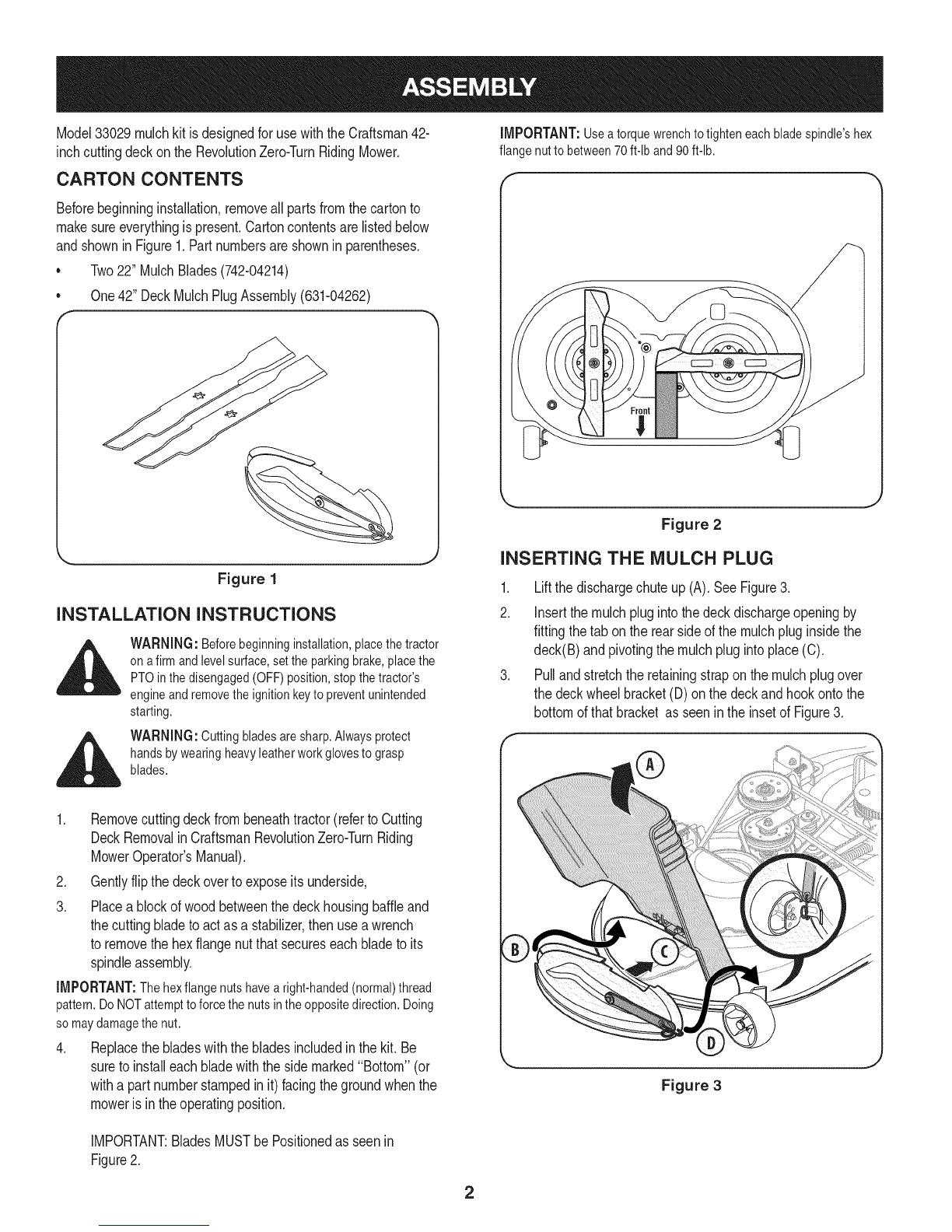

INSTALLATION INSTRUCTIONS

WARNING: Beforebeginninginstallation,placethe tractor

on a firmand levelsurface,setthe parkingbrake,placethe

PTOinthe disengaged(OFF)position,stopthe tractor's

engineand removethe ignitionkeyto preventunintended

starting.

WARNING: Cuttingbladesaresharp.Alwaysprotect

handsby wearingheavyleatherworkglovestograsp

blades.

1. Removecuttingdeckfrombeneathtractor(refertoCutting

DeckRemovalinCraftsmanRevolutionZero-TurnRiding

MowerOperator'sManual).

2. Gentlyflipthedeckovertoexposeits underside,

3. Placea blockofwoodbetweenthedeckhousingbaffleand

thecuttingbladetoactasa stabilizer,thenusea wrench

toremovethehexflangenutthatsecureseachbladeto its

spindleassembly.

IMPORTANT:Thehexflangenutshavearight-handed(normal)thread

pattern.DoNOTattempttoforcethenutsintheoppositedirection.Doing

somaydamagethenut.

4. Replacethebladeswiththebladesincludedinthekit. Be

suretoinstalleachbladewiththesidemarked"Bottom" (or

witha partnumberstampedin it)facingthegroundwhenthe

mowerisin theoperatingposition.

IMPORTANT:BladesMUSTbe Positionedasseenin

Figure2.

Figure 2

INSERTING THE MULCH PLUG

1. Liftthedischargechuteup (A).SeeFigure3.

2. Insertthemulchplugintothedeckdischargeopeningby

fittingthetabontherearsideofthemulchpluginsidethe

deck(B)and pivotingthemulchplugintoplace(C).

3. Pullandstretchtheretainingstrapon themulchplugover

thedeckwheelbracket(D)onthedeckandhookontothe

bottomofthat bracketasseenin theinsetof Figure3.

Figure 3

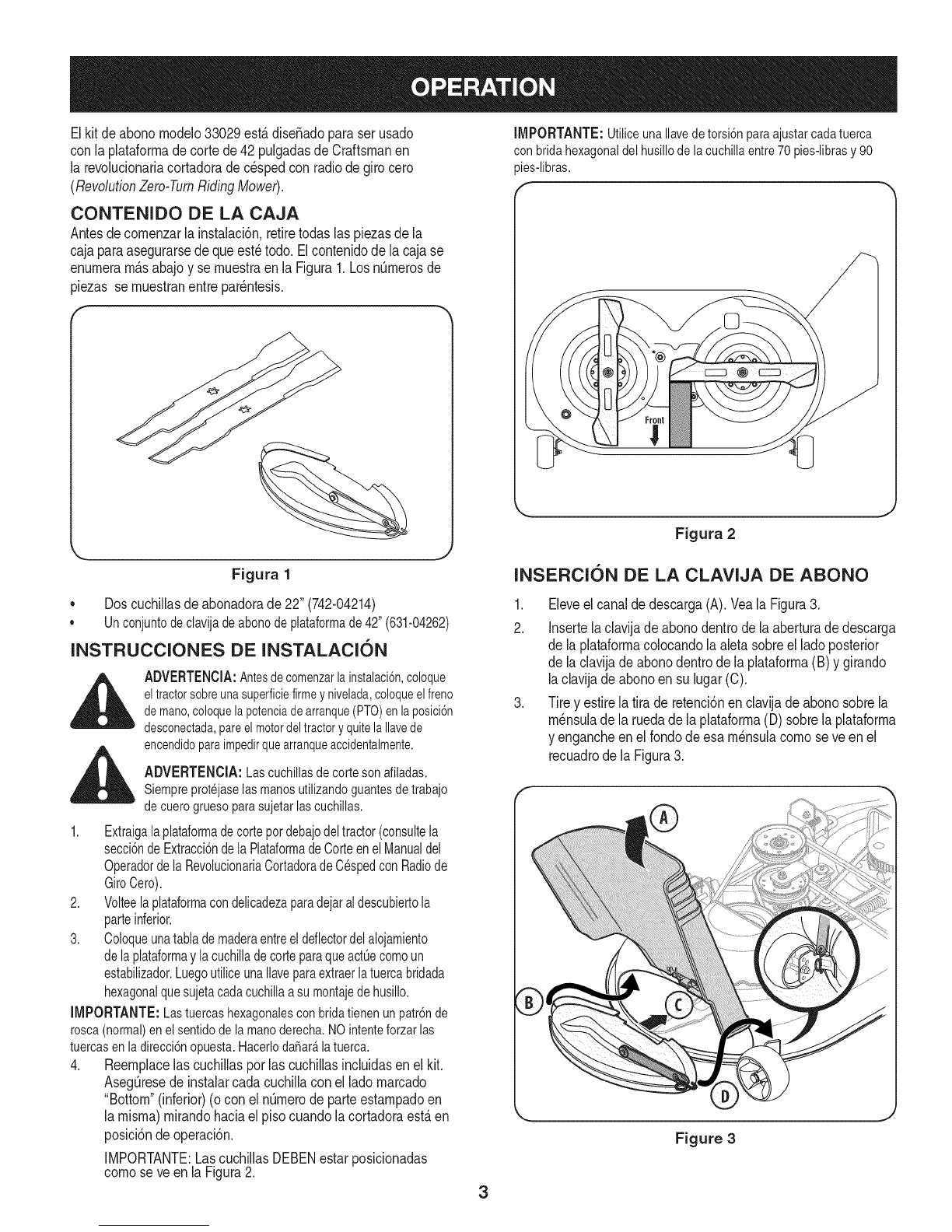

Elkit deabonornodelo33029est,.dise_adoparaserusado

conlaplataforrnade cortede42 pulgadasde Craftsmanen

la revolucionariacortadoradec_spedconradiodegirocero

(RevolutionZero-TurnRidingMower).

CONTENIDO DE LA CAJA

Antesdecornenzarla instalaci6n,retiretodaslaspiezasde la

cajaparaasegurarsedequeest_todo.Elcontenidode lacajase

enurnerarn_.sabajoyse rnuestraen la Figura1.Losn0rnerosde

piezas sernuestranentrepar_ntesis.

Figura 1

IMPORTANTE:UtiliceunaIlavedetorsi6nparaajustarcadatuerca

conbridahexagonaldelhusillodelacuchillaentre70pies-librasy90

}ies-libras.

Figura 2

INSERCION DE LA CLAVIJA DE ABONO

• Doscuchillasdeabonadorade 22" (742-04214)

, Unconjuntodeclavijadeabonodeplataforrnade42"(631-04262)

INSTRUCCIONES DE INSTALACION

ADVERTENCIA: Antesdecomenzarla instalaci6n,coloque

el tractorsobreunasuperficiefirmeynivelada,coloqueel freno

demano,coloquela potenciadearranque(PTO)en laposici6n

desconectada,pareel motordeltractoryquitelaIlavede

encendidoparaimpedirquearranqueaccidentalmente.

ADVERTENCIA: Lascuchillasdecortesonafiladas.

Siempreprotejaselas manosutilizandoguantesdetrabajo

de cuerogruesoparasujetarlas cuchillas.

Extraigalaplataformadecortepordebajodeltractor(consultela

secci6ndeExtracci6ndela PlataformadeCorteenelManualdel

OperadordelaRevolucionariaCortadoradeC_spedconRadiode

GiroCero).

2. Volteelaplataformacondelicadezaparadejaraldescubiertola

parteinferior.

3. Coloqueunatablademaderaentreeldeflectordelalojamiento

delaplataformaylacuchilladecorteparaqueactQecomoun

estabilizador.LuegoutiliceunaIlaveparaextraerlatuercabridada

hexagonalquesujetacadacuchillaasumontajedehusillo.

IMPORTANTE:Lastuercashexagonalesconbridatienenunpatr6nde

rosca(normal)enelsentidodelamanoderecha.NOintenteforzarlas

tuercasenladirecci6nopuesta.Hacerloda_ar_latuerca.

4. Reernplacelascuchillasporlascuchillasincluidasenel kit.

Aseg0resede instalarcadacuchillaconel ladornarcado

"Bottom"(inferior)(o conelnQrnerode parteestarnpadoen

la misrna)rnirandohaciael pisocuandolacortadoraest,.en

posici6ndeoperaci6n.

IMPORTANTE:LascuchillasDEBENestarposicionadas

cornoseveen la Figura2.

Eleveel canalde descarga(A).Veala Figura3.

Insertelaclavijade abonodentrodela aberturade descarga

de laplataforrnacolocandolaaletasobreel ladoposterior

de laclavijade abonodentrodela plataforrna(B) ygirando

laclavijadeabonoen sulugar(C).

Tirey estirela tirade retenci6nen clavijade abonosobrela

rn_nsulade la ruedade laplataforrna(D)sobrelaplataforrna

yengancheenel rondodeesarn_nsulacornoseveenel

recuadrodela Figura3.

Figure 3

Your Home

For expert troubleshooting and home solutions advice:

www.managemyhome.com

For repair - in your home - of all major brand appliances,

lawn and garden equipment, or heating and cooling systems,

no matter who made it, no matter who sold it!

For the replacement parts, accessories and

owner's manuals that you need to do-it-yourself.

For Sears professional installation of home appliances

and items like garage door openers and water heaters.

1-800-4-MY-HOME ®(1-800-469-4663)

Call anytime, day or night (U.S.A. and Canada)

www.sears.com www.sears.ca

Our Home

For repair of carry-in items like vacuums, lawn equipment,

and electronics, call anytime for the location of your nearest

Sears Parts & Repair Service Center

1-800-488-1222 (U.S.A.) 1-800-469-4663 (Canada)

www.sears.com www.sears.ca

To purchase a protection agreement on a product serviced by Sears:

1-800-827-6655 (U.S.A.) 1-800-361-6665 (Canada)

Para pedir servicio de reparaci6n

a domicilio, y para ordenar piezas:

1-888-SU-HOGAR ®

(1-888-784-6427)

Au Canada pour service en fran£ais:

1-800-LE-FOYER M°

(1-800-533-6937)

www.sears.ca

® Registered Trademark /TMTrademark /SMService Mark of Sears Brands, LLC

® Marca Registrada /TMMarca de F&brica /Marca de Servicio de Sears Brands, LLC

MCMarque de commerce /MDMarque depos6e de Sears Brands, LLC © Sears Brands, LLC
