Craftsman 247.38528 Manuel utilisateur

Sears Brands Management Corporation, Hoffman Estates, IL 60179, U.S.A.

Visit our website: www.craftsman.com

CAUTION: Before using

this product, read this

manual and follow all

safety rules and operating

instructions.

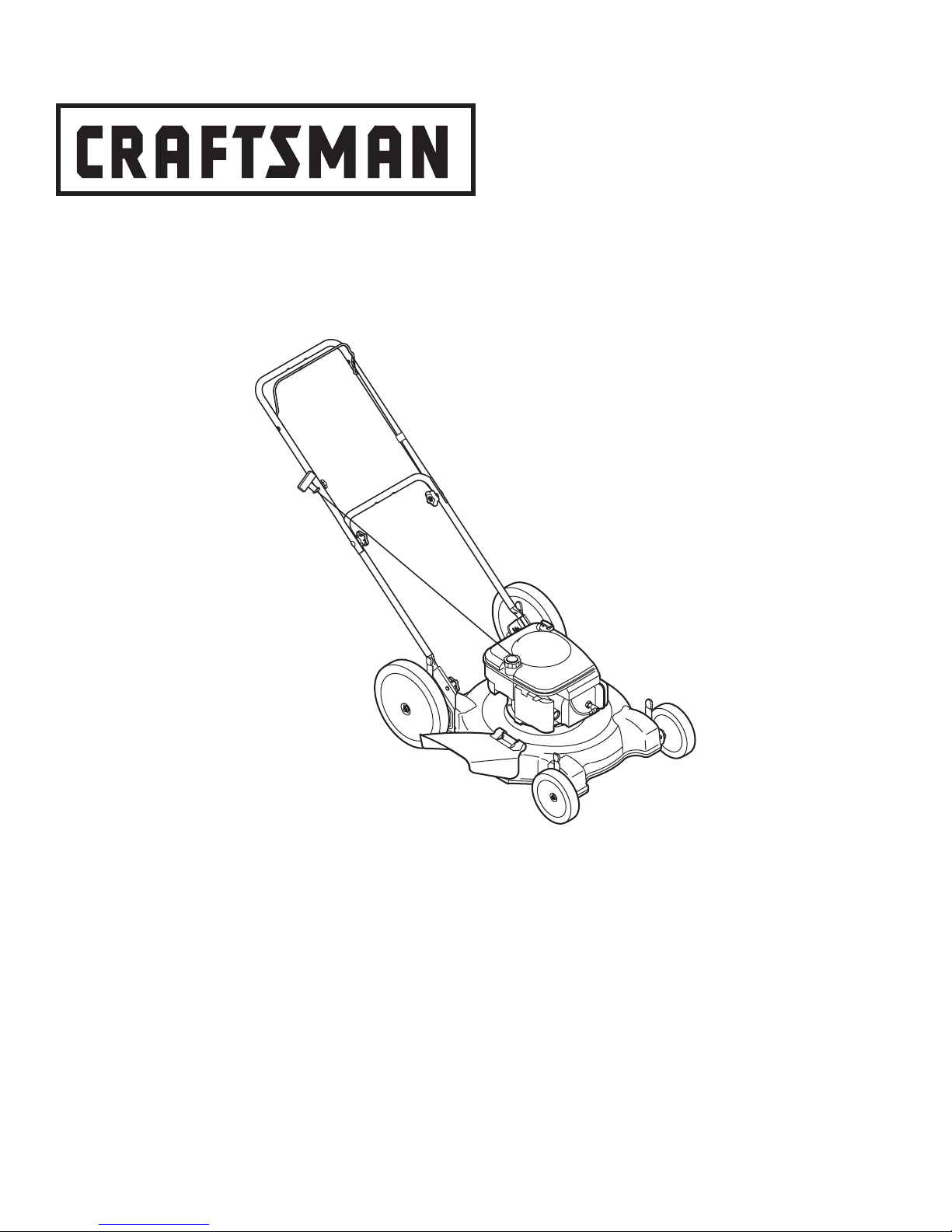

Operator’s Manual

22” LAWN MOWER

Model No. 247.38528

7/15/2010

FORM NO. 769-05495A

• SAFETY

• ASSEMBLY

• OPERATION

• MAINTENANCE

• PARTS LIST

• ESPAÑOL, p. 33

PARTS LIST

28 27

Craftsman Mower — Model No. 247.38528

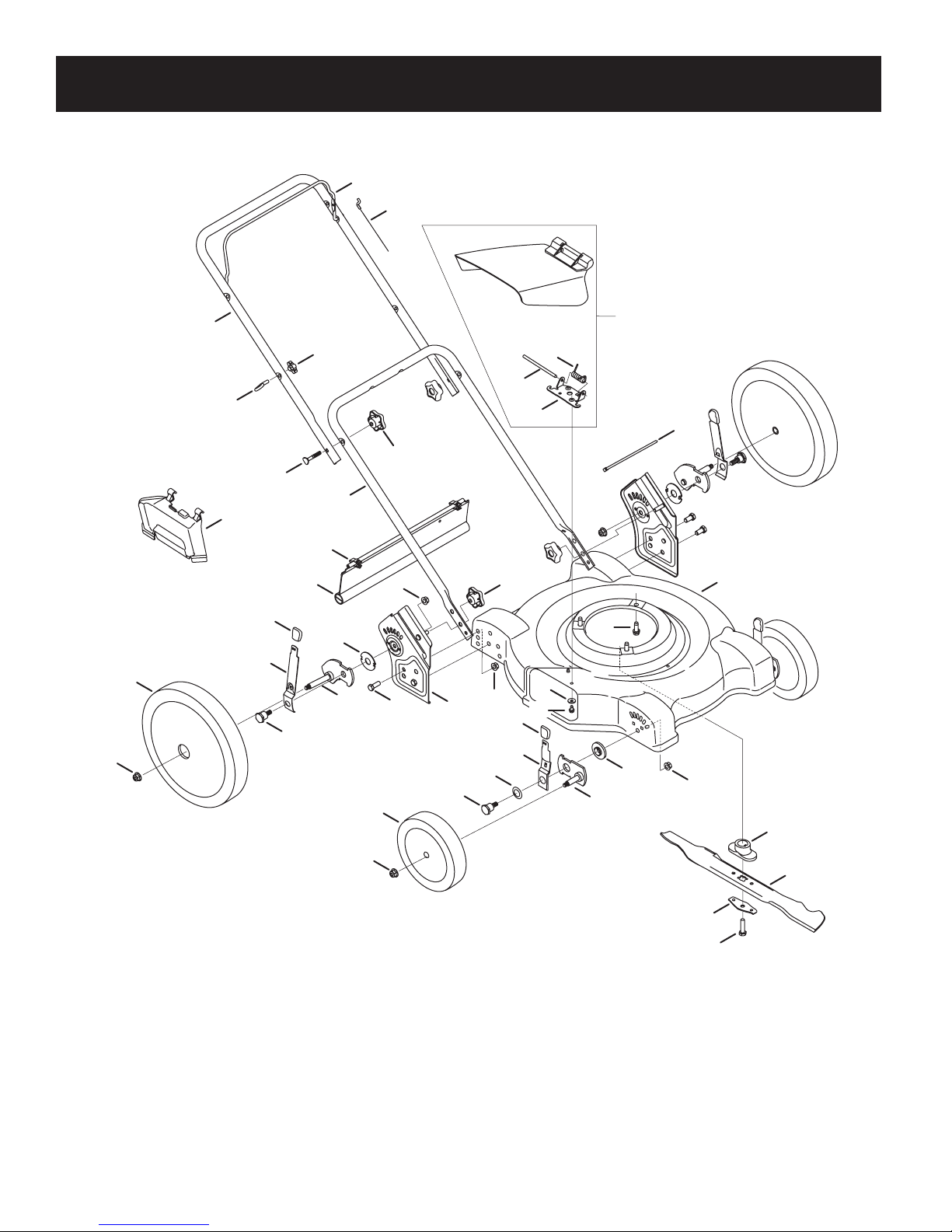

PARTS LIST

Craftsman Mower — Model No. 247.38528

Ref. No. Part No. Description

1. 710-1205 Eye Bolt

2. 720-0279 Wing Nut

3. 747-1161A-0637 Blade Control Handle

4. 749-1092A-0637 Upper Handle

5. 946-1130 Control Cable

6. 749-04037 Lower Handle

7. 725-0157 Cable Tie

8. 687-02048A-4044 Deck Assembly, 22”

9. 710-0654A TT Screw, 3/8-16 x 1.0

10. 748-04096 Blade Adapter

11. 942-0742A Mulching Blade, 22”

12. 736-0524B Blade Bell Support

13. 710-1044 Screw, 3/8-24 x 1.5

14. 712-04065 Lock Nut, 3/8-16

15. 741-0717 Thrust Bearing

16. 687-02553 Rear Pivot Arm - LH

16a. 687-02554 Rear Pivot Arm - RH

17. 732-1026 Front Lever

18. 736-0741 Bell Washer, .760 OD x 1.25 OD

19. 738-1172 Shoulder Screw

20. 734-04542 Front Wheel

Ref. No. Part No. Description

21. 710-0599 TT Screw, 1/4-20 x .5

22. 736-0270 Bell Washer, .265 ID x .75 OD

23. 710-0216 Screw, 3/8-16 x .75

24. 738-04267 Shoulder Screw

25. 734-04546 Rear Wheel

26. 982-3062A Handle Bracket Assembly, RH

26a. 982-3063A Handle Bracket Assembly, LH

27. 720-04072A Star Knob

28. 731-06952 Trailshield

29. 732-04631 Hinge Clip

30. 710-1174 Carriage Bolt, 5/16-18 x 2

31. 720-0426 Knob

32. 732-0984B Rear Lever

33. 732-1014 Torsion Spring

34. 17032A Chute Hinge

35. 747-0710 Hinge Pin

36. 931-1034B Hinged Chute Deflector Ass’y

37. 631-04045 Mulching Baffle

38. 687-02342 Front Pivot Arm

39. 741-04242 Height Adjuster Bearing

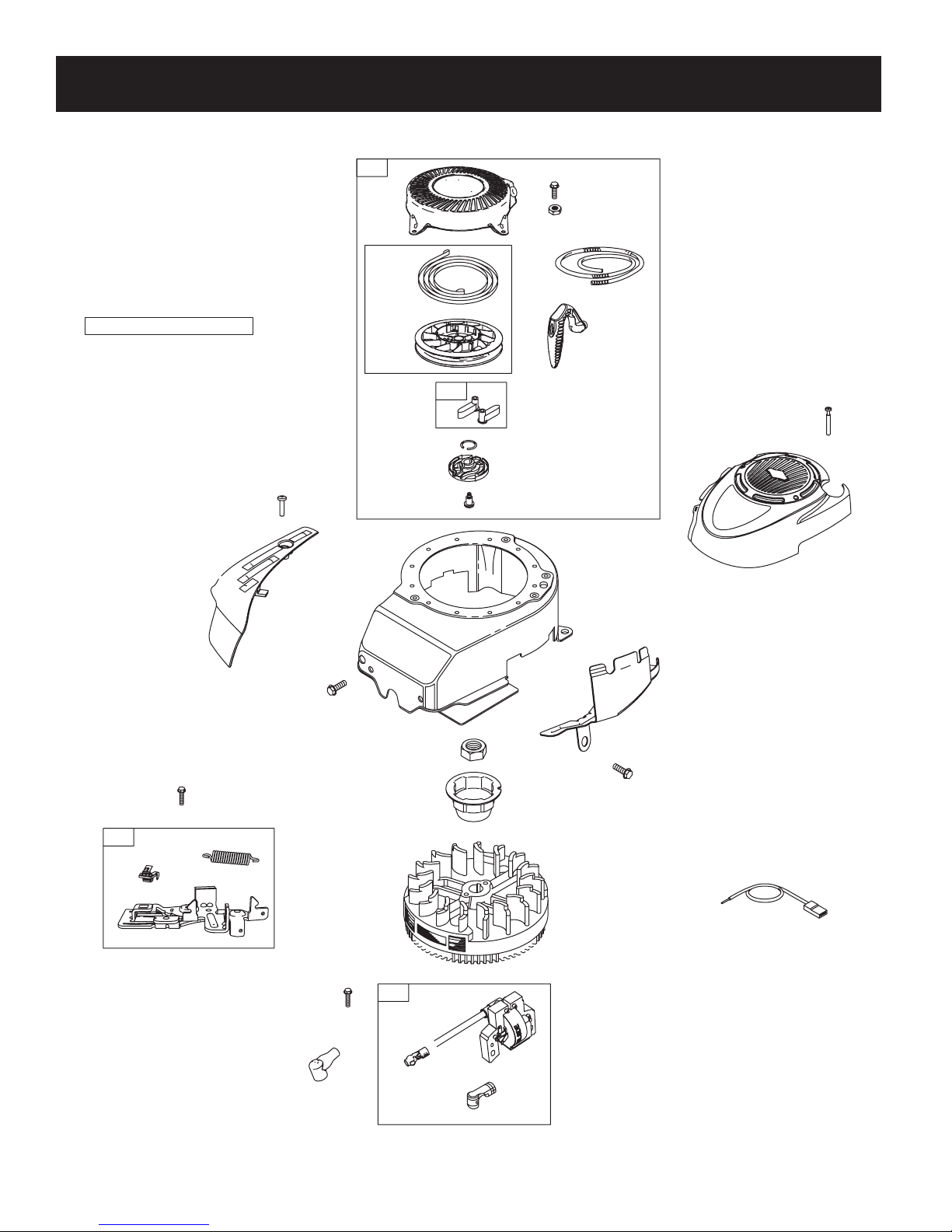

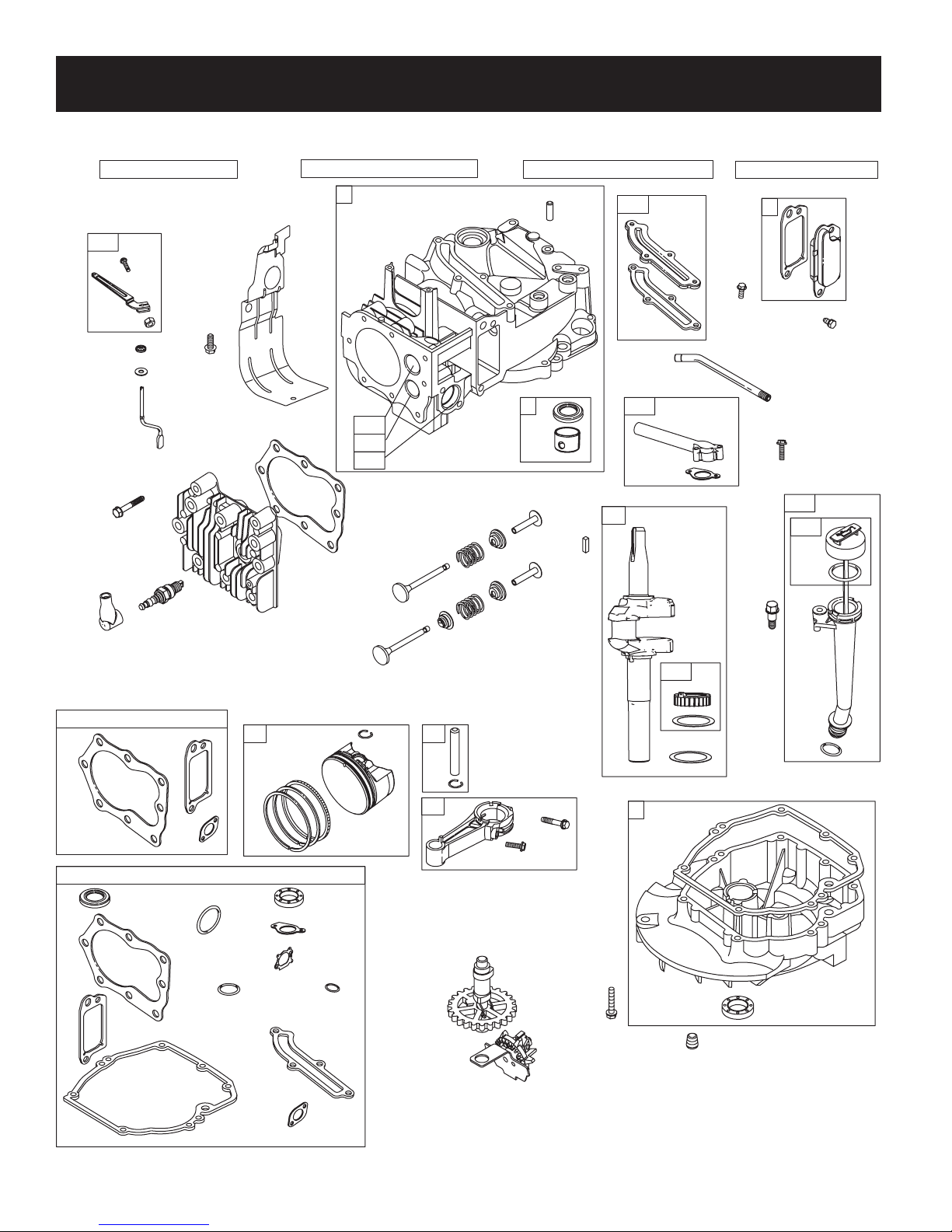

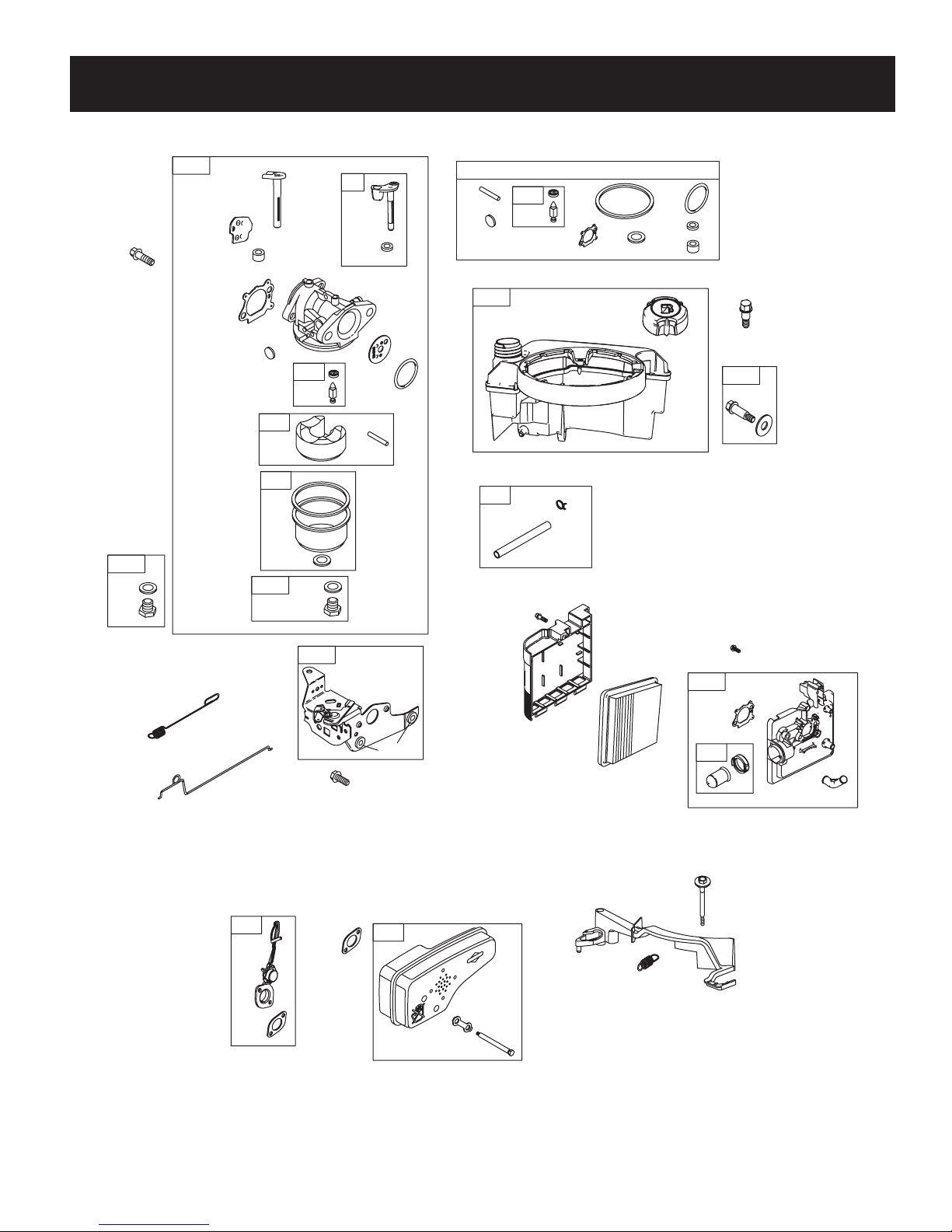

PARTS LIST

Craftsman Engine Model No. 126T02-0795-B1 For Craftsman Mower Model No. 247.38528

718

307

337

13 5

22 20

847

523

287

524

525

842

883

1095VALVE GASKETSET

40 45

358 ENGINEGASKET SET

883

842

617

524

163

585

32A

741

870

869

871

684

585

584

868

1330 REPAIR MANUAL

1058 OPERATOR’S MANUAL

306

48 SHORTBLOCK 1329 REPLACEMENTENGINE

616

404

615

505

562

227

635

PARTS LIST

Craftsman Engine Model No. 126T02-0795-B1 For Craftsman Mower Model No. 247.38528

190

972

1059

134

121 CARBURETOROVERHAUL KIT

104

127

137

163 633

617

633A

276

957

975

133

134 617

130

633

163

276

137

104

276

108

633A

127

276

365

601

187

118

117

125

109

443

445

968

425

976

163

11A

966

202

209

188

883

291

1387

1388

1386

613

883 300

222

668

PARTS LIST

Craftsman Engine Model No. 126T02-0795-B1 For Craftsman Mower Model No. 247.38528

305

304

1036EMISSIONS LABEL

592

597

456

689

1210

1211

608

455

332

334 333

356

459

621

922

745

923

635

851

969

604

564

851

921

PARTS LIST

Craftsman Engine Model No. 126T02-0795-B1 For Craftsman Mower Model No. 247.38528

Ref.

No. Part No. Description

1697322 Cylinder Assembly

2399269 Kit-Bushing/Seal (Magneto Side)

3• 299819s Seal-Oil (Magneto Side)

4493279 Sump-Engine

5691160 Head-Cylinder

7•+ 692249 Gasket-Cylinder Head

8695250 Breather Assembly

9699472 Gasket-Breather

10 691125 Screw (Breather Assembly)

11 691781 Tube-Breather

11A 691923 Tube-Breather

12• 692232 Gasket-Crankcase

13 690912 Screw (Cylinder Head)

15 691680 Plug-Oil Drain

16 691450 Crankshaft

20• 399781s Seal-Oil (PTO Side)

22 691092 Screw (Crankcase Cover/Sump)

23 691987 Flywheel

24 222698s Key-Flywheel

25 797302 Piston Assembly (Standard)

797303 Piston Assembly (.020” Oversize)

26 797304 Ring Set (Standard)

797305 Ring Set (.020” Oversize)

27 691588 Lock-Piston Pin

28 298909 Pin-Piston

Ref.

No. Part No. Description

29 797306 Rod-Connecting

32 691664 Screw (Connecting Rod) (Short)

32A 695759 Screw (Connecting Rod) (Long)

33 262651s Valve-Exhaust

34 262652s Valve-Intake

35 691270 Spring-Valve (Intake)

36 691270 Spring-Valve (Exhaust)

37 793756 Guard-Flywheel

40 692194 Keeper-Valve

43 691997 Slinger-Governor/Oil

45 690548 Tappet-Valve

46 691449 Camshaft

48 792741 Short Block

50 794305 Manifold-Intake

51• 794306 Gasket-Intake

54 691650 Screw (Intake Manifold)

55 691421 Housing-Rewind Starter

58 697316 Rope-Starter

60 281434s Grip-Starter Rope

65 690837 Screw (Rewind Starter)

78 691108 Screw (Flywheel Guard)

81 691740 Lock-Muffler Screw

97 696565 Shaft-Throttle

104Ø 691242 Pin-Float Hinge

108 795935 Valve-Choke

PARTS LIST

Craftsman Engine Model No. 126T02-0795-B1 For Craftsman Mower Model No. 247.38528

Ref.

No. Part No. Description

109 795936 Shaft-Choke

117 498977 Jet-Main (Standard) (Includes O-Ring Seal)

118 694975 Jet-Main (High Alt.) (Includes O-Ring Seal)

121 498260 Kit-Carburetor Overhaul

125 794304 Carburetor

127Ø 694468 Plug-Welch

130 696564 Valve-Throttle

133 398187 Float-Carburetor

134 398188 Kit-Needle/Seat

137Ø 796610 Gasket-Float Bowl

163Ø• 795269 Gasket-Air Cleaner

187 791766 Line-Fuel (Cut To Required Length)

188 693399 Screw (Control Bracket)

190 690940 Screw (Fuel Tank)

202 691829 Link-Mechanical Governor

209 699056 Spring-Governor (No Color)

222 793754 Bracket-Control

227 690783 Lever-Governor Control

276 271716 Washer-Sealing

287 690940 Screw (Dipstick Tube)

291 790830 Thermostat

300 790828 Muffler

304 790826 Housing-Blower

305 691108 Screw (Blower Housing)

306 790836 Shield-Cylinder

307 690345 Screw (Cylinder Shield)

Ref.

No. Part No. Description

332 690662 Nut (Flywheel)

333 802574 Armature-Magneto

334 691061 Screw (Magneto Armature)

337 802592s Plug-Spark

356 692390 Wire-Stop

358 794307 Gasket Set-Engine

365 691688 Screw (Carburetor)

404 690272 Washer (Governor Crank)

425 690670 Screw (Air Cleaner Cover)

443 692523 Screw (Air Cleaner Primer Base)

445 491588s Filter-Air Cleaner Cartridge

455 791960 Cup-Flywheel

456 692299 Plate-Pawl Friction

459 281505s Pawl-Ratchet

505 691251 Nut (Governor Control Lever)

523 499621 Dipstick

524 692296 Seal-Dipstick Tube

525 495265 Tube-Dipstick

562 691119 Bolt (Governor Control Lever)

564 698589 Screw (Control Cover)

584 697734 Cover-Breather Passage

585 691879 Gasket-Breather Passage

592 690800 Nut (Rewind Starter)

597 691696 Screw (Pawl Friction Plate)

601 791850 Hose-Clamp (Green)

604 790703 Cover-Control

PARTS LIST

Craftsman Engine Model No. 126T02-0795-B1 For Craftsman Mower Model No. 247.38528

• EngineGasketSet  ReferenceNumber358

Ø Carburetor Overhaul Kit Reference Number 121

+ ValveGasketSet  ReferenceNumber1095

Ref.

No. Part No. Description

608 497680 Starter-Rewind

613 790833 Screw (Muffler)

615 690340 Retainer-Governor Shaft

616 698801 Crank-Governor

617Ø+ 270344s Seal-O Ring

621 692310 Switch-Stop

633 Ø 691321 Seal-Choke/Throttle Shaft (Throttle Shaft)

633A 693867 Seal-Choke/Throttle Shaft (Choke Shaft)

635 66538s Boot-Spark Plug

668 493823 Spacer

684 690345 Screw (Breather Passage Cover)

689 691855 Spring-Friction

718 690959 Pin-Locating

741 795755 Gear-Timing

745 691648 Screw (Brake)

842 691031 Seal-O Ring (Dipstick Tube)

847 692047 Dipstick/Tube Assembly

851 493880s Terminal-Spark Plug

868•+ 697338 Seal-Valve

869 691155 Seat-Valve (Intake)

870 690380 Seat-Valve (Exhaust)

871 262001 Bushing-Valve Guide (Exhaust)

63709 Bushing-Valve Guide (Intake)

883• 691881 Gasket-Exhaust

921 795064 Cover-Blower Housing

923 796136 Brake

Ref.

No. Part No. Description

957 692046 Cap-Fuel Tank

966 795259 Base-Air Cleaner Base

968 692298 Cover-Air Cleaner

969 690700 Screw (Blower Housing Cover)

972 699374 Tank-Fuel

975 796611 Bowl-Float

976 694395 Primer-Carburetor

1036 Label-Emissions (Available from a Briggs &

Stratton Authorized Dealer)

1058 277039 Operator’s Manual

1059 692311 Kit-Screw/Washer (Fuel Tank)

1095 498528 Gasket Set-Valve

1210 498144 Pulley/Spring Assembly (Pulley)

1211 498144 Pulley/Spring Assembly (Spring)

1329 126T02-

0625-F1

Replacement Engine

1330 270962 Repair Manual

1386 790848 Vane-Air

1387 790849 Spring-Air Vane

1388 790850 Screw (Air Vane)
