Cradlepoint AER 2100 Manuel utilisateur
AER 2100
All-in-One, Cloud-Managed Networking Solution
Quick Start Guide
2
Cradlepoint AER 2100
Accessories
•Additional MC400 integrated 4G LTE modem*
•Rack mounting bracket
•Power adapters and international power cords
•External modem antennas and cabling
* A Cradlepoint MC400 integrated 4G LTE modem comes standard with the AER 2100. Add
a second integrated MC400 modem for a complete “cut-the-wire” 4G LTE solution, fusing
enterprise reliability with unparalleled agility.
Enterprise Support
For enhanced services including enterprise-level support, extended warranties, site surveys, and expert installation, check out Cradlepoint’s
CradleCare suite of services. Visit cradlepoint.com/cradlecare to learn more.
What’s In The Box
Cradlepoint AER 2100 Dual-Band 2.4/5 GHz
WiFi Antennas
12V 3A AC/DC
Power Supply
Ethernet Cable Quick Start GuideMultipurpose Retaining Tool
with screws for securing
Integrated MC400
3G/4G Modem with Antennas
3
Cloud-Enabled Management and Application Platform
Cradlepoint Enterprise Cloud Manager
Deploy and Manage the Intelligent Network
Rapidly deploy and dynamically manage networks at geographically distributed stores and branch locations with Enterprise Cloud
Manager, Cradlepoint’s next generation management and application platform. Enterprise Cloud Manager integrates cloud manage-
ment with your Cradlepoint devices to improve productivity, increase reliability, reduce costs, and enhance the intelligence of your
network and business operations.
To learn more about Cradlepoint Enterprise Cloud Manager and to begin a free 30-day trial, contact services@
cradlepoint.com or visit cradlepoint.com/ecm.
4
Hardware
USB 2.0 Port
LEDs
(see pages 6–7 for descriptions)
Lock Slot
10/100/1000 Ethernet Port
(Configurable: LAN or WAN
Default: WAN)
Reset
USB 2.0 Port
Power
Switch and Port
LEDs
(see pages 6–7 for descriptions)
Ground Screw
Front Panel
Back Panel
10/100/1000 Ethernet Ports
(Configurable: LAN or WAN
Default: LAN)
5
Hardware
Left Side Right Side
Modem Port 1
(USB 2.0)
Reserved for
future use
Modem Port 2
(USB 2.0)
With Cover
Cover Removed
With Two MC400 Integrated Modems (one included)
3G/4G Antenna
Connectors
(SMA)
WiFi Antenna Connectors
(Reverse SMA)
WiFi Modem
When connecting the provided antennas, review the connection points.
•WiFi antennas have flat circular bases (RSMA).
• Modem antennas have protruding pins (SMA).
3G/4G Antenna
Connectors
(SMA)
GPS
Connector
(SMA)
GPS
Connector
(SMA)
6
LED Information
SIGNAL STRENGTH Blue LED bars indicate the active modem’s signal strength.
•4 Solid Bars = Strongest signal.
•1 Blinking Bar = Weakest signal. (A blinking bar indicates half of a bar.)
POWER The Cradlepoint AER 2100 must be powered using an approved 12V DC power source.
•Green = Powered ON.
•No Light = Not receiving power. Check the power switch and the power source connection.
•Flashing Amber = Attention. Open the administration pages (see page 12) and check the router status.
ETHERNET WAN Indicates information about a data source connected to the Ethernet WAN port.
•Blue = Connected to an active Ethernet WAN interface.
WiFi BROADCAST These two LEDs indicate activity on the WiFi broadcast for both the 2.4 GHz and 5
GHz bands.
•2.4G (green) = 2.4 GHz WiFi is on and operating normally.
•5G (blue) = 5 GHz WiFi is on and operating normally.
7
LED Information
INTEGRATED MODEM Indicates the status of integrated modems.
EXTERNAL USB MODEM Indicates the status of external USB modems.
Both integrated and external USB modems have the following LED indicators:
•Green = Modem has established an active connection.
•Blinking Green = Modem is connecting.
•Amber = Modem is not active.
•Blinking Amber = Data connection error. No modem connection possible.
•Blinking Red = Modem is in the process of resetting.
ADDITIONAL LED INDICATIONS
•Several different LEDs flash when the factory reset button is detected.
•Two of the modem LEDs blink red in unison for 10 seconds when there is an error during firmware
upgrade.
8
Getting Started
1. Insert an activated SIM.
A wireless broadband data plan must be added to your Cradlepoint AER 2100. Wireless broadband data plans are available from
wireless carriers such as Verizon, AT&T, Sprint, EE, and Vodafone. The SIM must be provisioned with the carrier. Contact your
carrier for details about selecting a data plan and about the process for provisioning your SIM.
Once you have an activated SIM, insert it into the integrated modem. Insert the SIM card into the slot marked SIM 1 (use the
other slot, SIM 2, for a secondary/backup SIM). Be sure to insert the card with the notch-end first and the gold contacts facing
down – it will click into place.
Gold contacts must
face down
Notch-end goes
in first
Sample SIM card
9
Getting Started (continued)

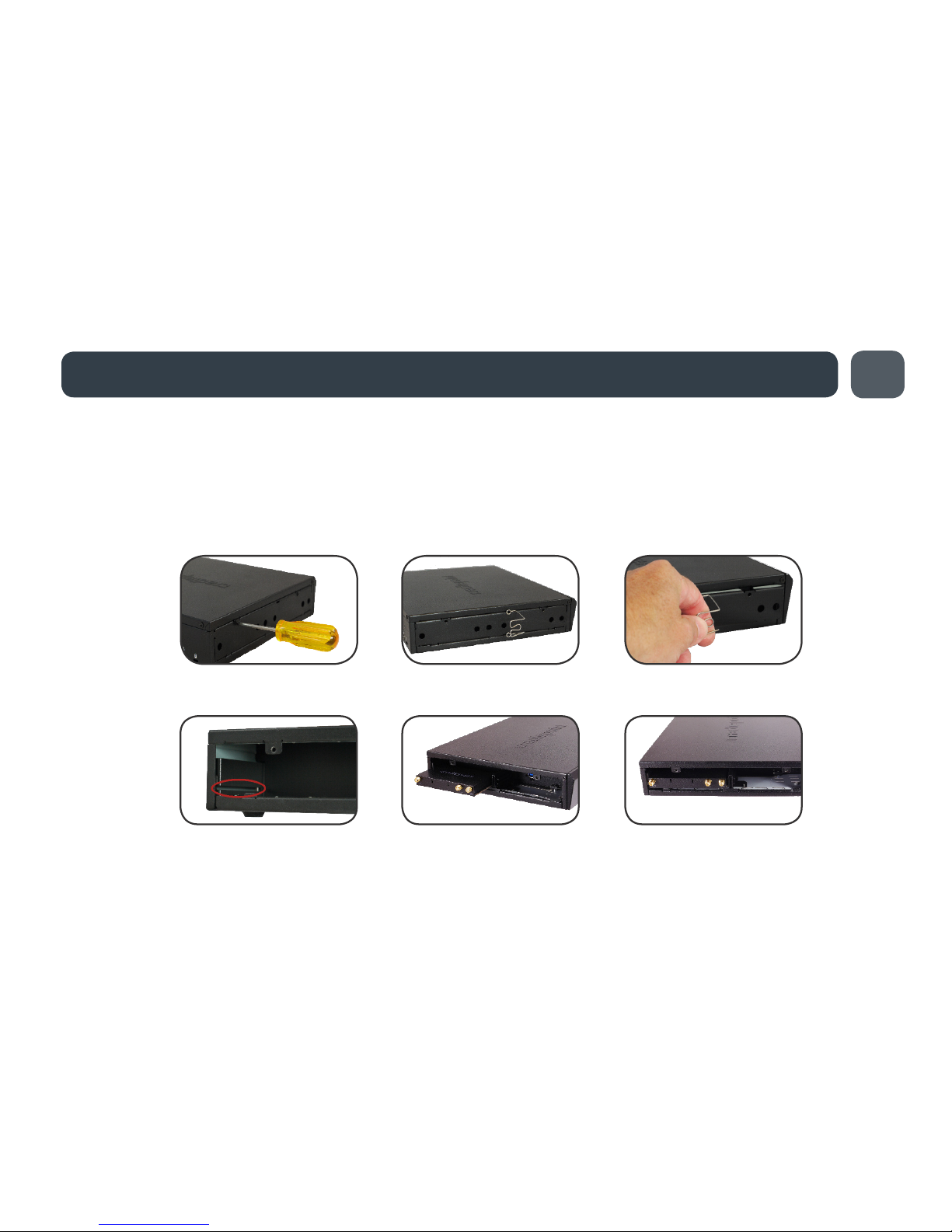

2. Attach the integrated modem.
Follow these steps to attach the integrated modem:
1. Remove the left side panel cover from the router. Use a Phillips screwdriver to remove the screws, and use the
Multipurpose Retaining Tool (included in the router package) to remove the cover.
2. Slide the modem into the side of the router (left slot first). The protruding section of the modem fits into the groove.
3. Reattach the panel cover and screw it back on. (When necessary, remove the cover and modem using the
Multipurpose Retaining Tool.)
10
Getting Started (continued)
3. Attach the WiFi and modem antennas.
Attach the three included WiFi antennas and two included modem antennas to the connectors. Antennas are jointed, which
enables you to position them for optimal signal. To attach, hold the antenna straight and twist the base of the antenna to connect,
folding the joint if needed.
Examples of suggested antenna orientations:
Care should be taken to ensure that the router antennas are not near metal or other RF reflective surfaces.
Wall Mount
Desk Mount
