Covert Scouting Cameras AW1-A Manuel utilisateur
AW1-A
Covert Scouting Camera Instruction Manual
Watch the set-up video on our website at
www.covertscoutingcameras.com
Content
Introduction..................................................................3
Camera Overview .........................................................5
Button Instructions.......................................................6
Purchasing your Plan ....................................................7
Activating Multiple Cameras ........................................8
Other Plan Information.................................................9
Quick Start ..................................................................10
Purchasing your Plan ..........................................11
Connecting your Camera to Cloud Server ..........11
Settings and Start ...............................................12
The Light Information.........................................14
Manual Photo.....................................................15
Customizing the camera settings................................16
Mounting....................................................................18
Warranty………………………………………………………………...19
Technical Specifications..............................................28
5
Camera
overview
6
1. Switch
2. Reset
3. Micro SD Card slot
4. Nano SIM slot
5. USB
6. Antenna
7. “PIR & Power”Light
8. “Status”Light
9.MIC
10.PIR
11. Lens
12. IR Flash LED
13. 6V Jack 14. Tripod stand 15. Eject button
Button instruction
Button
Function description
ON: Working mode；
OFF: Power off
(Please remove batteries when not in use);
7
①：Press the button and the camera will
take a manual photo and automatically
send to the app.
②：Hold it and push the switch to ON，if
there is a FW installed on the Micro SD
Card，the camera will update.
Sound information:
Beeps once: upgrade is completed.
Beeps twice: no SIM card.
Beeps thrice: no SD card.
Purchasing
your
Plan
Follow these simple steps to activate or renew an
AT&T
plan:
1. Open yourweb browser to:
https://secure.covert-wireless.com
2. Select the type of plan you'd like to add.
3. Follow the prompts to select your rate
plan
, enter
your
personal/billing
information and complete your
purchase.
4. Log back into your account.
8
5. Enter the ICCID number located on the SIM card
included with your camera. Then enter the IMEI for
your camera found on the inside white label of the
camera or on the outer packaging.
6. Click the green activate button and refresh your page.
7. Rename your camera in the nickname field provided.
(OPTIONAL)
Activating Multiple Cameras
Same
Rate
Plan-
To activate multiple cameras on
the same rate plan, simply enter the ICCID and IMEI
number under said rate plan and click activate.
Note: You can activate as many cameras as you’d like on
a rate plan. Rate plans are charged on device quantities.
9
Different
Rate
Plan
-
To activate cameras on a
different rate plan, scroll to
Purchase
Additional
Subscription
Plans.
Select the provider and the rate plan
of your choice. This will add the rate plan option under
My
Services
and
Equipment.
Other
Plan
Information
Auto
Renew:

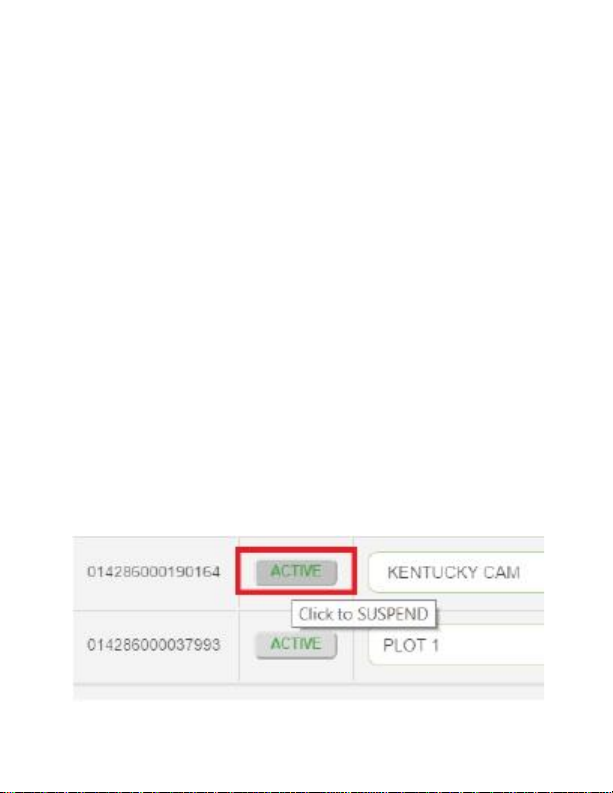

Covert Wireless plans automatically renew,
however there is no long-term contract. To opt out of
your billing for certain months, simply hover over the
“ACTIVE”button and click. You will no longer be billed
for services until you log back into your account and
“click to activate.”
10
Quick Start
Before you start, you need to prepare a Micro SD card
(up to 32G), a Nano SIM card and 8 AA batteries.
Please insert them correctly.
