Costway TY327933 Manuel utilisateur

Children Electric Tractor with Trailer

TY327933

Please read all instructions carefully and keep it for future reference.

Warnings:

Attention! Use it with protective equipment.

Attention! Not use it in the traffic.

Attention! The product is not suitable for the children under 3 years.

General Warnings:

The product must be installed and used under the supervision of an adult.

Read through each step carefully and follow the proper order.

Remove all packaging, separate and count all parts and hardware.

Please ensure that all parts are correctly installed, incorrect installation can lead to a danger.

We recommend that, where possible, all items are assembled near to the area in which they

will be placed in use, to avoid moving the product unnecessarily once assembled.

Ensure a secure surface during construction, und place the product always on a flat, steady

and stable surface.

Please use the product carefully, as the product requires great skill, avoid accidents by the

user or others, by fall or collision.

Please wear suitable protective equipment during use, e.g. protective helmet, gloves, knee

pads, elbow pads etc.

02 03

109*47*44 cm

151*68*70 cm

12V/900mA

3800-10000 550-10000

Motor 22

front wheel / trailer wheel 2/ 2/2

04 05

Wrench

06 07

1.The rear wheel fender is clamped in the body of the corresponding

clamping slot, then the body is reversed, screws are installed in the

corresponding screw holes and tightened. (The rear guard plate has

7 screws on the left and 7 screws on the right, totaling 14 screws).

Rear Fender installation

1234

Use a screwdriver

to press the

shock absorbers

down into the rear

axle as shown

. Tighten a

M10

nut to the end of the

rear axle.

Inset the

rear-

whee

hub to the

rear

wheel.

Repeat steps 1-4 for the other rear wheel.

Rear wheels

.Slide

a #

washer onto the rear axle.

1.First slide the motor to the rear axle, and then

slide the rear wheel to the back of the motor. Make

sure the rear wheels match the gearbox on the body

3.The Bogie is fixedly

connected with the

steering rod by a Split Pin.

4.The body turning sleeve is

provided with a mud plate

steering fixing part.

5.Use the M8 locknut to

screw it in place.

Insert the Bogie

into the body as

shown

Front

1 Put the iron parts into the

Bogie and the #20 washer.

08 09

9.The car body link line with cable to plug the steering wheel.

Front

Slide a # 10 washer onto the front axle.

1. Slide a # 10 washer onto the front axle. Slide a front wheel bushing (shorter

plastic ring) onto the front axle.

10 11

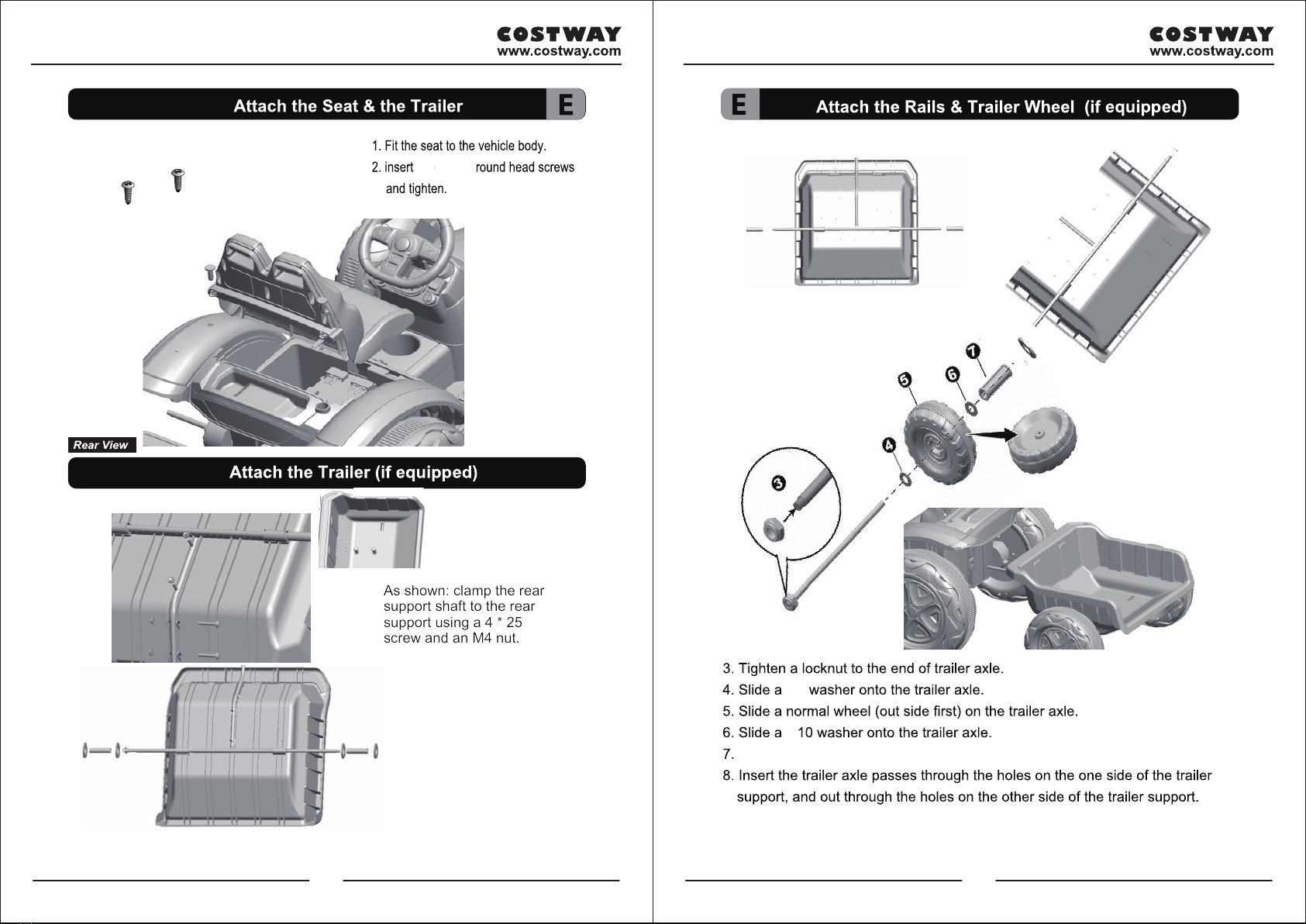

support shaft to the rear

support using a 4 * 25

2.As shown in figure:

INSERT THE REAR support

wheel axle clip into the rear

support.

As shown: clamp the rear

screw and an M4 nut

#12

TWO

Slide trailer bushing (longer plastic ring) on the trailer axle.

12 13

After the alignment connection

rod with connecting pin.

With card pin connection to

prevent

fall

Slide trailer bushing (longer plastic ring) on the trailer axle.

Music Player

Forward OR

14 15

Operation method:

First, open the battery cover on the back of the remote controller and

load two 1.5 VAAA alkaline batteries. Note: Correctly connecting the

positive and negative positions can prevent short circuit of power supply

terminals.

1. Turn off the power supply and press the pair key for 3-5 seconds. The

light flashes to turn on the power supply.

2. Forward and backward switch: According to the forward direction, the

stroller moves forward;

3. Emergency stop key: Control the stroller to stop in case of emergency

during driving.

4. Fast and slow gear: Adjust the speed of the tractor during driving.

5. The remote control key can be automatically turned on and

automatically turned off after being idle for about 2 minutes.

BACKWARD

SPEED SELECT

RIGHT

LEFT

STOP

CAR SELECT

FORWARD

16 17

18 19

Note: This tractor is equipped with charging protection function. All functions

of this tractor are unavailable when charging!

When charging, the power switch must be turned off.

It is recommended to charge for 4 ~ 6 hours before the first use, but not more

than 10 hours.

When the normal driving speed of the stroller slows down obviously, it means

that the battery is insufficient. Please charge it in time. Please charge for

8 ~ 12 hours after each use, but not more than 20 hours.

1. Insert the charger plug into the charging hole;

2. Plug the charger into the power socket;

FREQUENCY

(MHZ)

2402MHz

2403MHz

2404MHz

2405MHz

2406MHz

2407MHz

2408MHz

2409MHz

2410MHz

2411MHz

2412MHz

2413MHz

2414MHz

2415MHz

2416MHz

2417MHz

2418MHz

2419MHz

2420MHz

2421MHz

2422MHz

2423MHz

2424MHz

2425MHz

2426MHz

2427MHz

2428MHz

2429MHz

2430MHz

2431MHz

2432MHz

2433MHz

2434MHz

2435MHz

2436MHz

2437MHz

2438MHz

2439MHz

2440MHz

2441MHz

2442MHz

NUMBER

FREQUENCY

(MHZ)

2443MHz

2444MHz

2445MHz

2446MHz

2447MHz

2448MHz

2449MHz

2450MHz

2451MHz

2452MHz

2453MHz

2454MHz

2455MHz

2456MHz

2457MHz

2458MHz

2459MHz

2460MHz

2461MHz

2462MHz

2463MHz

2464MHz

2465MHz

2466MHz

2467MHz

2468MHz

2469MHz

2470MHz

2471MHz

2472MHz

2473MHz

2474MHz

2475MHz

2476MHz

2477MHz

2478MHz

2479MHz

2480MHz

2481MHz

2482MHz

2483MHz

NUMBER

FREQUENCY RANGE
