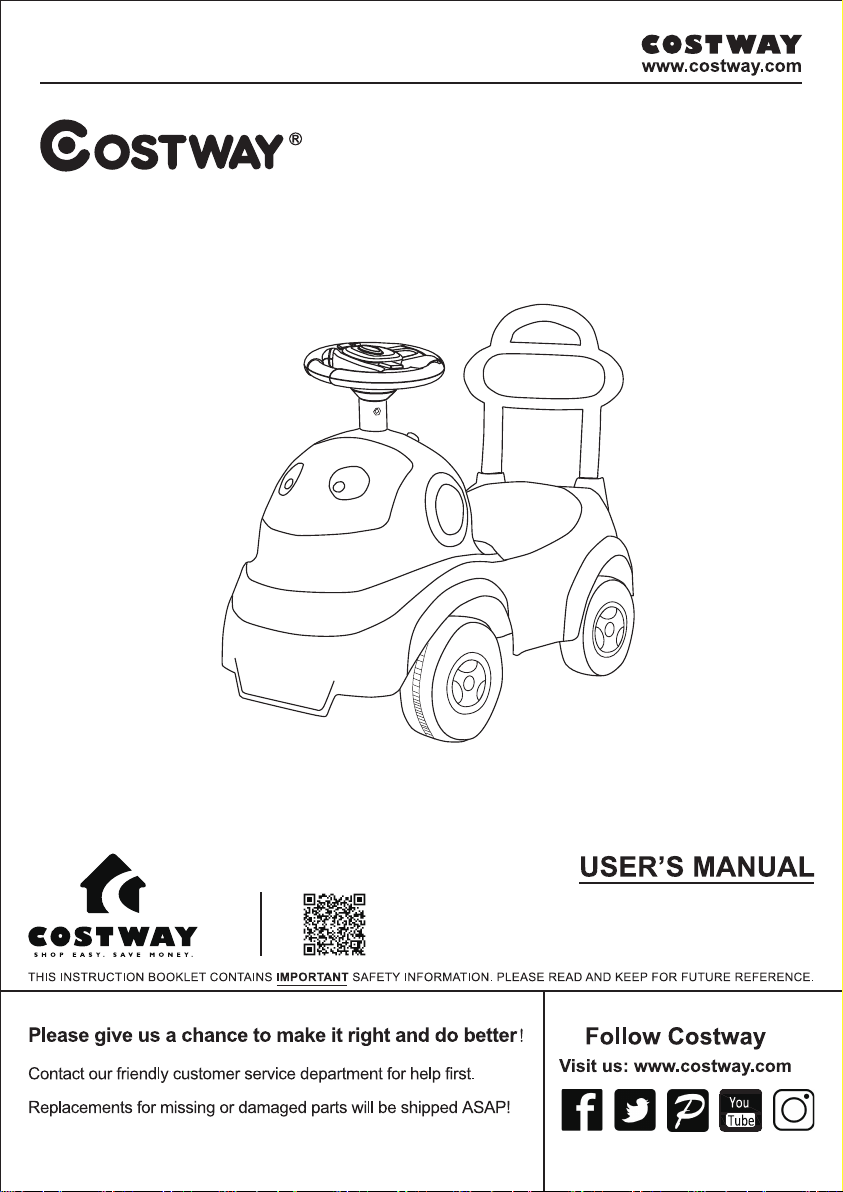

Costway TY579445 Manuel utilisateur
Ride on Car
TY579445
5527
Please read all instructions carefully and keep it for future reference.
General Warnings:
Attention: To prevent possible injury by entanglement, remove this toy when the child starts
trying to get up on its hands and knees in a crawling position.
Danger! Keep all small parts and packaging materials for this product away from babies and
children, otherwise they may pose a choking hazard.
The product must be installed and used under the supervision of an adult.
Read through each step carefully and follow the proper order.
Remove all Packaging, separate and count all parts and hardware before Installation.
Please ensure that all parts are correctly installed, incorrect Installation can lead to a Danger.
We recommend that, where possible, all items are assembled near to the area in which
they will be placed in use, to avoid moving the product unnecessarily once assembled.
Ensure a secure surface during construction, and place the product always on a flat, steady
and stable surface.
02
www.costway.com

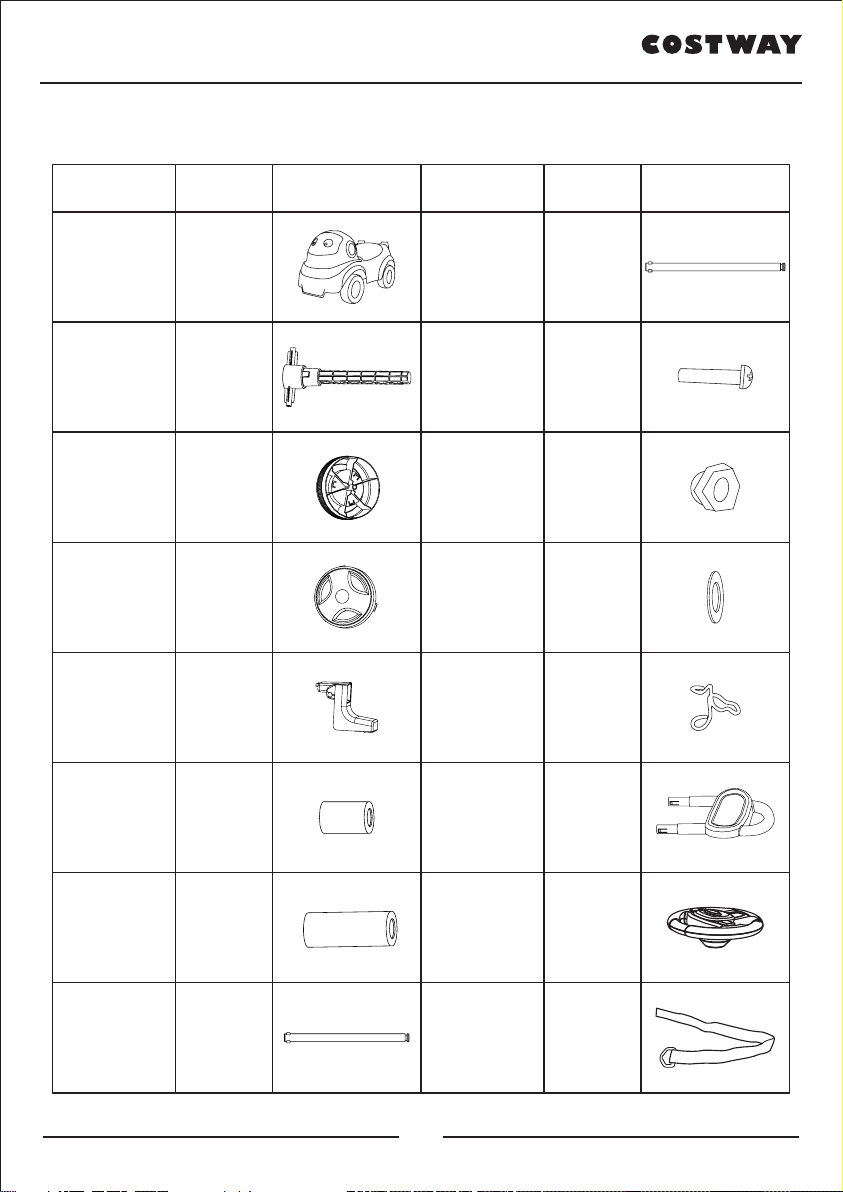

PACKING LIST
Part Name Quantity
1
1
4
4
1
2
2
1
Picture Part Name Quantity Picture
1
1
1
4
2
1
1
1
Car body
Steering shaft
Wheel
Hubcap
Ant-warping
Plate
Front axle
sleeve (short)
Rear axle
sleeve (long)
Front axle
(short)
Rear axle
(long)
Screw
Nut with cap
Gasket
Spring clip
Back
Steering wheel
Rope
03

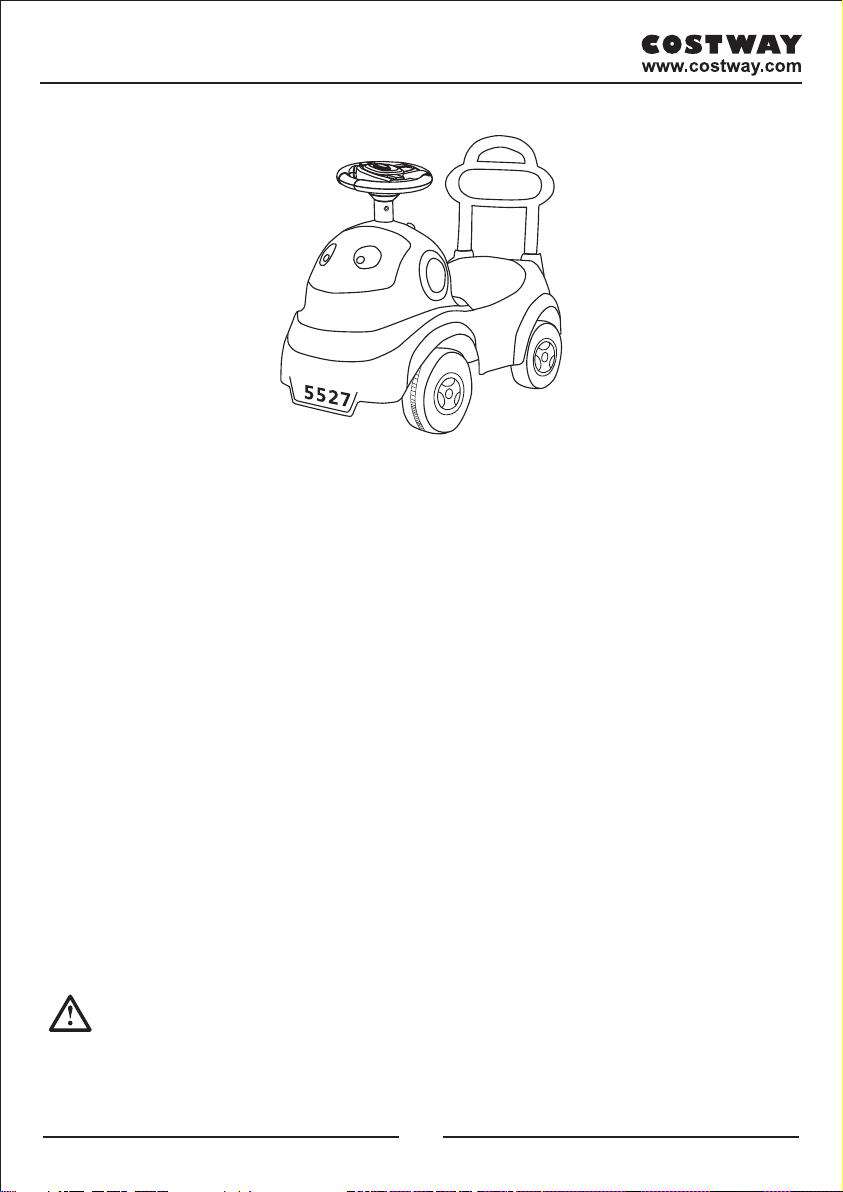

PRODUCT SIZE: 55X26.5X49.5CM ( 21.5” x 10.5” x 19.5” )
ISO9001:2000 QUALITY SYSTEM AUTHENTICATION PATENT PRODUCT
I. PRECAUTIONS, SAFE USE AND MAINTENANCE
1. The instruction manual contains important information and should be properly
preserved.
2. Small detachable parts should be disposed of properly and never be swallowed by
children.
3. Please do not throw away the packaging after removal, so as not to pollute the
environment.
4. Do not store it near fire or in high temperature or moist place.
5. Do not wash the body with water, just wipe it with cloth.
6. This car is not a vehicle, please do not drive on the streets or roads.
7. Please do not drive on rough and sloping roads.
8. This product is suitable for children under 15kg (33 lbs.) aged within 18 months
and 36 months.
9. Check the product before each use to ensure safety.
10. If it is not used for a long time, please take out the battery in order to avoid
battery leakage damage to electronic components.
Warning: The product must be assembled by an adult and used under
adult supervision.
04
II. NAME OF SPARE PARTS

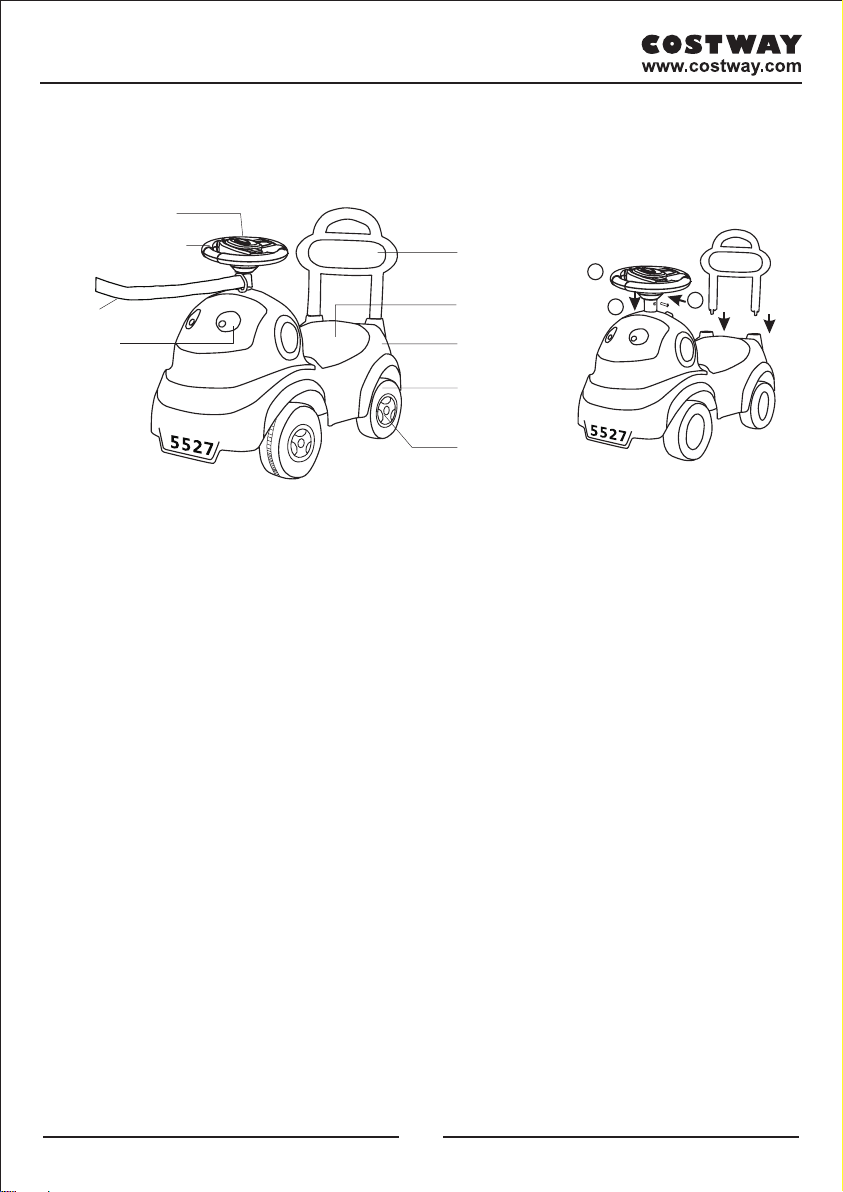

As Fig. 1 shows
III. ASSEMBLY ILLUSTRATION

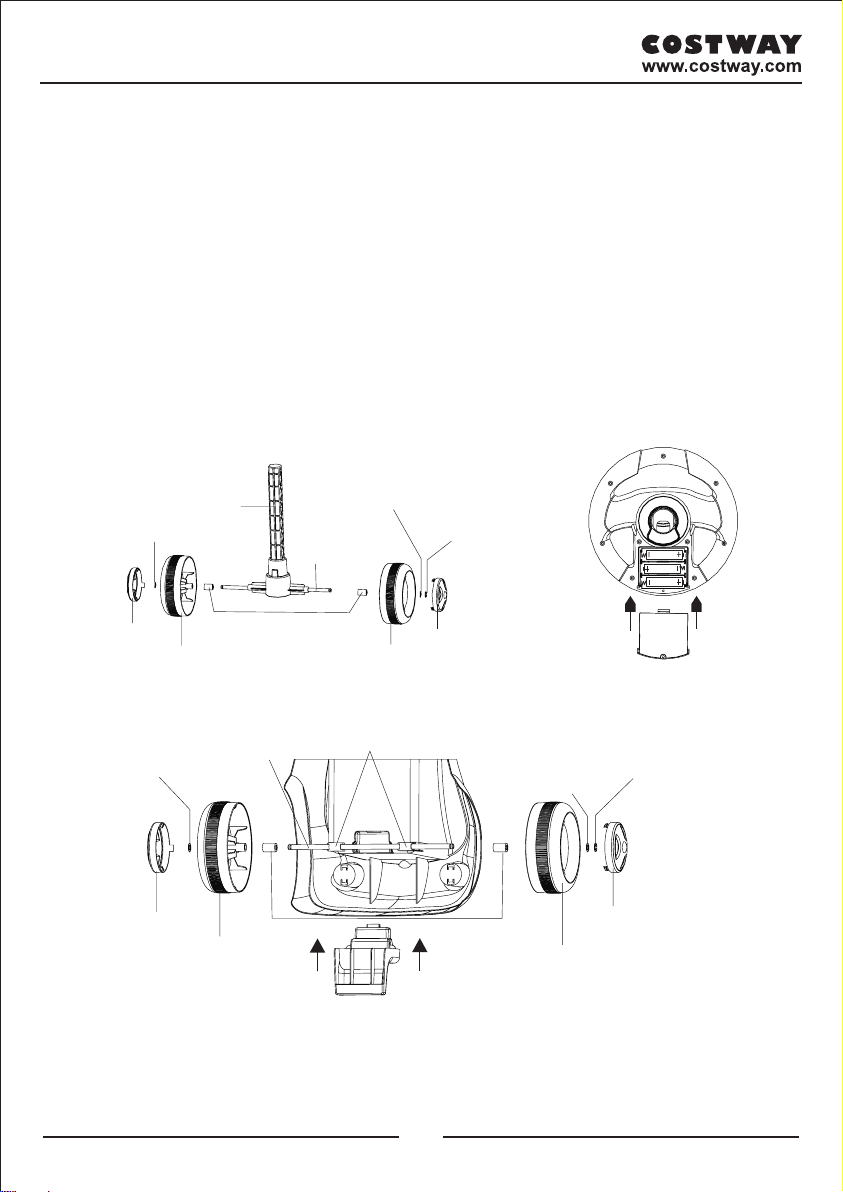

1. Front wheel assembly (shown in Figure 3)
●Pass the gasket, the wheel, front axle sleeve (short), steering shaft, front axle
sleeve (short), wheel and gasket through the slotted end of the front iron axle
(short) in turn.
●Snap the spring clip into the front iron axle slot.
● Cover hubcaps on two wheels.
2. Rear wheel assembly (As shown in figure 4)
● Buckle the anti-warping plate to the rear of the car in the direction shown in the
figure.
● Pass the gasket, wheel, rear axle sleeve (long) through the slotted end of the
rear iron axle (long) successively.
● Then thread the rear iron axle through the rear axle hole of the car body and
anti-warping plate.
● Pass another wheel, rear axle sleeve (long), gasket through the rear axle.
● Then stuck the spring clip in the rear iron axle slot.
● Cover the outside of two wheels with hubcaps respectively.
rope
eye
steering wheel
horn button
Back
seat
car body
wheel
hubcap
Fig. 1
Fig. 2
2
1
3
05
3. Steering wheel assembly (as shown in Figure 2)
● Loosen the screw on the steering shaft rod
● Thread the steering shaft installed on the front axle through the steering hole.
● Then align the steering wheel with the hole of the steering shaft, and pass the
screw through the hole on the steering shaft.
● Lock the steering wheel on the steering shaft with a hexagon nut by using a
screwdriver.
4. Back assembly (As shown in figure 2)
Hard press the back into the car body hole until it’s buckled.
anti-warping plate
Rear axle
sleeve(long) wheel
wheel
hubcap hubcap
spring clip
Gasket
Gasket
Rear axle
(long) hole of rear shaft
Fig. 4
steering shaft
Gasket
Gasket
Fig. 3 (front wheel assembly)
front axle
(short)
spring clip
hubcap hubcap
wheel wheel
front axle sleeve
(short)
Fig. 5
06
IV. BATTERY INSTALLATION
1. Load three AA batteries into the steering wheel battery box based on the
correct polarity.
2. Close the battery cover on the steering wheel as shown in the figure.
Precautions for safe use of battery
A. The power terminal shall not be short-circuited
B. Rechargeable batteries can only be charged under adult supervision
C. Rechargeable batteries should be removed from the toy before charging
D. Do not mix different types of batteries or old and new ones
E. The exhausted battery should be removed from the toy
F. Non-rechargeable batteries are not rechargeable
G. The battery should be placed in the correct polarity
V. FUNCTION DEMONSTRATION
1. Sliding function: Move forward, backward and make turns, ability to
coordinate limbs
2. Pulling function: Adults pull the rope at the the steering wheel to pull the car
forward
3. Pushing function: The baby grasps the back with both hands to push the car
forward. It helps baby learn to walk.
4. Other functions:
A. Press the horn button and it will make a sound
B. Press the music button and it will make a beautiful sound
C. Open the seat cushion, it can store items inside.
