Costway EP25150 Manuel utilisateur

EN FR
THIS INSTRUCTIONBOOKLET CONTAINS IMPORTANTSAFETYINFORMATION. PLEASE READ AND KEEPFORFUTURE REFERENCE.
Follow Costway
Please give us a chance to make it right and do better!
Contact our friendly customer service department for help first.
Replacements for missing or damaged parts will be shipped ASAP!
USER’S MANUAL
Electric Infrared Heater
EP25150

Contact Us!
Do NOT return this item.
Contact our friendly customer service department for help first.
E-mail
US: cs.us@costway.com
UK: cs.uk@costway.com
Before You StartBefore You Start
Please read all instructions carefully.
Retain instructions for future reference.
Separate and count all parts and hardware.
Read through each step carefully and follow the proper order.
We recommend that, where possible, all items are assembled near to the
area in which they will be placed in use, to avoid moving the product
unnecessarily once assembled.
Always place the product on a flat, steady and stable surface.
Keep all small parts and packaging materials for this product away from
babies and children as they potentially pose a serious choking hazard.
02

ASSEMBLY & OPERATION INSTRUCTION
Please read carefully and Save this instruction
THESE INSTRUCTIONS SHOULD BE READ CAREFULLY AND
RETAINED FOR FUTURE REFERENCE,
We cannot be liable for any damages caused by failure to observe these
instructions.
READ CAREFULLY-The infrared heater is designed for safe operation.
Nevertheless, installation, maintenance and operation of the heater can be
dangerous. Observing the following procedures will reduce the risk of
fire, electric shock, injury to persons and keep installation time to a
minimums. Save these instructions for future used.
1.Read all instruction before using this heater.
2.Remove the unit from it’s packaging and check to make sure it is in
good condition before using.
3.Do not let children play with parts of package (such as plastic bags).
4. Check the household voltage to ensure it matches the heater’s rated
specification.
5. Check the power cord and plug carefully before used, to make sure
that they are not damaged.
6. Before unplugging the power cord, be sure to turn off the power, when
energizing the unit, be sure your hands are dry to prevent from electric
shock.
7. Do not use flammable objects near or point the heater like furniture,
pillows. bedding, paper, clothes and curtains at least 3 feet (1meter) from
the front of the heater and keep them always the sides and rear.
8. Do not use near or in the immediate vicinity of a bath or swimming
pool or any source of liquid.
Warning
IMPORTANT SAFETY INSTRUCTIONS
03

9. To protect against electric shock, do not immerse cord or plug in water
or any other liquid.
10. Do not insert or allow foreign objects to enter any ventilation or
exhaust opening , as this may cause an electric shock, fire or damage to
the heater.
11.Always unplug the heater when not in use.
12. Do not allow cord to overhang the counter top where it can be easily
pulled by children.
13. Do not put fingers or foreign objects into the grill while in operation.
14. Do not leave the appliance unattended when in use.
15.This heater is not intended for use in bathrooms, laundry and similar
indoor locations, never located heater where it may fall into a bathtub or
other water container.
16.Non compliance with instructions or any other improper use or
mishandling may cause danger.
17. This appliance is not intended for use by persons (including children)
with reduces physical, sensory or mental capabilities or lack of
experience and knowledge unless they have been given supervision or
instruction concerning the use of the appliance by a person responsible
for their safety. Children and vulnerable people should be supervised to
ensure they do not play with the appliance.
18. If the supply cord is damaged in any way, it must be replaced by the
manufacturer or a similarly qualified person in order to avoid a hazard.
19. To prevent overheating of this appliance, keep the air inlets and
outlets clean and free of anything that may cause blockage. Check all
inlets and outlets from time to time to ensure it is clear of any dirt or dust
accumulation. DO NOT COVER.
20. Parts of the heater may exceed 200℃ , contact with the heating tube,
reflector, or metal parts near the heating tube, may cause severe BURNS
. To avoid burns, do not let bare skin touch hot surface.
04

21. NEVER place hands under the heating elements. ALWAYS allow
heating element to cool at least 10 minutes before touching the heating
tube or adjacent parts.
22. This product contains recyclable materials. Do not dispose this
product as unsorted municipal waste. Please contact your local
municipality for the nearest collection point.
This infrared heater produce instant and comfortable heat like the sun.
These robust and weatherproof heaters are designed for domestic and
commercial heating applications within indoor and outdoor areas.
Introduction
Model
Voltage(V)
Wattage(W)
Hertz(Hz)
Dimensions W×H×D(mm)
Weight N.W(KG)
SUNDEAR MOON
120V AC
1500
60
778×125×135
3.6
05

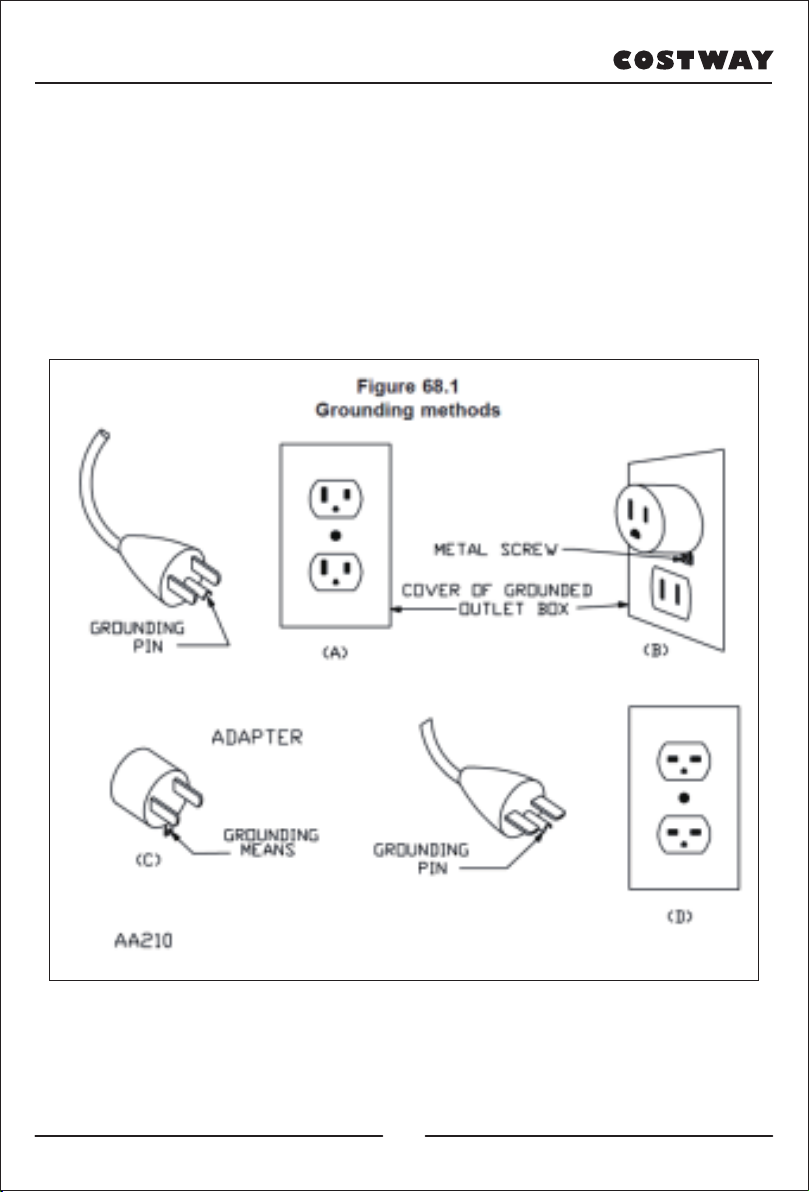

This heater is for use on 120 volts. The cord has a plug as shown at A in
Figure 68.1. An adapter as shown at C is available for connecting
three-blade grounding-type plugs to two-slot receptacles. The green
grounding lug extending from the adapter must be connected to a
permanent ground such as a properly grounded outlet box. The adapter
should not be used if a three-slot grounded receptacle is available.
06

A wall mounting bracket is provide with the heater which has been
specifically designed to allow this product to be fitted to a wall or ceiling
before drilling the holders for the wall/ceiling is solid and that there are
no hidden water pipes or electric wires. The heater must be installed no
less than 16’’ from side walls and no less than 6”’ off the floor.
Important: Ensure that the supply cables is well mounted and that it
does not come into contact with reflector of the heater or that does not
trail into heated area, the supply cable can be fixed to the metal mounting
bracket behind heater with plastic zip ties.
1.This heater should be installed by a competent person, i.e. a qualified
electrician.
2.Always disconnected the heater from the electricity supply and allow it
to cool before installation.
3.This heater can be mounted in a horizontal or vertical manner.
4.For both wall and ceiling mounting, the lowest part of the heater must
be located at or above a minimum height of 1.8m from ground level, so
that the heater can not be touched when in operation.
5.When mounting horizontally or to a ceiling, do not position the heater
at an angle more than 90°and less than 45°as shown in Fig. A and B.
6.The supply cable must be at the lower end of the heater if the heater is
installed at an angle or vertically.
7.Keep the supply cord away from the body of the heater which will get
hot during use.
8.Do not install the heater on an inflammable surface.
Tools Needed:
Warning
* Pencil *Hammer *Level
*Screw Driver *Power Drill and drill bits
07

9.Observe the minimum safe distance between the heater body and the
inflammable surfaces when mounted.
10.The heater should always have a minimum clearance of 0.5m from a
ceiling and adjacent walls.
11.If the heater is to be used outside, a weatherproof outlet is
recommended.
12.Before drilling ensure that there are no wires or water pipes in the area
where the heater is to be installed.
13.The heater must be installed on the mounting brackets provided.
14.Fasten the brackets securely to the mounting surface and the backside
of the heater using the nuts and screws supplied.
15.Fasten the heater securely on the brackets using the nuts and bolts
supplied.
16.The brackets can be used to adjust the direction of the heater, adjust
the heater angle by loosening the two bolts on the wall mounting bracket,
tighten the bolts again when the desired angle is reached.
08

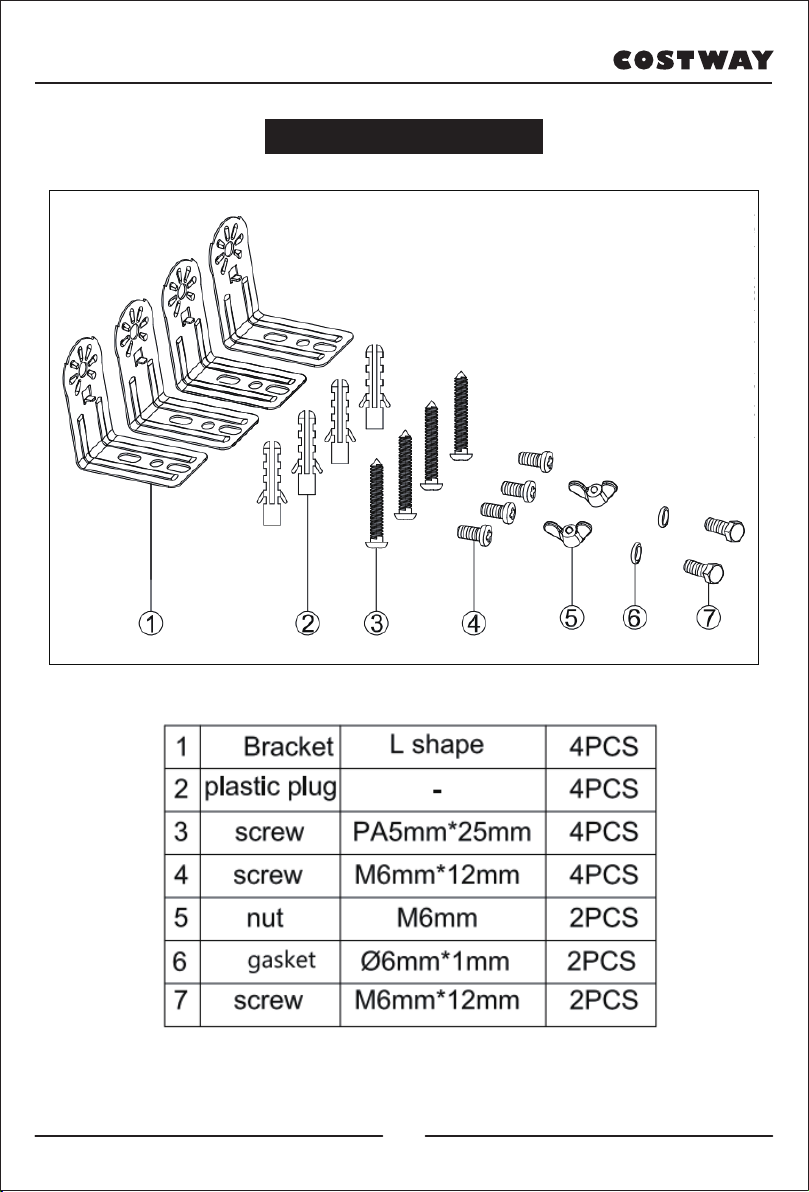

Installation Accessories
09

Wall Mounted Installation
10
