Heatscope PURE Guide rapide

Installation and

instruction manual

Electric ambient carbon radiant heater for indoor and outdoor areas

PURE

heatscopeheaters.com

Dear Customer,

Thank you for choosing a HEATSCOPE®electric radiant heater. This infrared ambient heater is

manufactured in Germany and complies with latest CE/EN/DIN standards and EU directives. Only

tested, environmentally friendly materials and components are used.

HEATSCOPE® infrared heaters are producing high energy ecient heat based on IR fast midwave

up to ecient IR midwave technology.

Eye, skin and organism harming IR short waves are not produced by HEATSCOPE®carbon heating

elements in any way.

Designed for private and commercial use for wall and ceiling mounting in indoor and outdoor areas,

HEATSCOPE®carbon radiant heaters produce heat within seconds wherever it is needed. The

infrared radiant heater allows you to transport heat over a distance of up to 3 metres, ideally in a

specic direction.

Before installing the unit, please read this instruction manual carefully. Follow the information given

to avoid endangering yourself, your family, your friends and your acquaintances. If you have any

questions, contact the vendor or manufacturer.

Please keep this instruction manual in a safe place. Pass on the manual to any subsequent owner of

the HEATSCOPE®unit and ensure that any supplements received are included along with it.

Prior to installation, ensure that the operating voltage matches the one specied on the rating plate

of the HEATSCOPE®unit!

This instruction manual is intended solely for the standard products available. The technical data,

installation requirements and dimensions of custom made, special versions may dier.

TABLE OF CONTENTS

Electrical Connection 2

Manual Control 2

Installation 3

Mounting 4

Wall Mounting Clearances 5

Ceiling Mounting Clearances 6 - 7

Glass Surface Clearances 8

Unpacking the Unit / Packaging 9

Installation Instructions 9

Operation, Installation Instructions and Min. Distances 9

Care, Maintenance and Service 10

Removal From Service / Disposal 10

Guarantee And Warranty 10

Processing of Guarantee Claims 10

Warranty Exclusions 10

Techincal Data 11

Dimensions and Specications 11

heatscopeheaters.com

ELECTRICAL CONNECTION

Curciut breaker / fuse switch on installation side

MANUAL CONTROL

220-240 V AC~

50/60 Hz

II: 50%

I: 50%

50%

100%

50%

INSTALLATION

Version .01

Version .02

heatscopeheaters.com

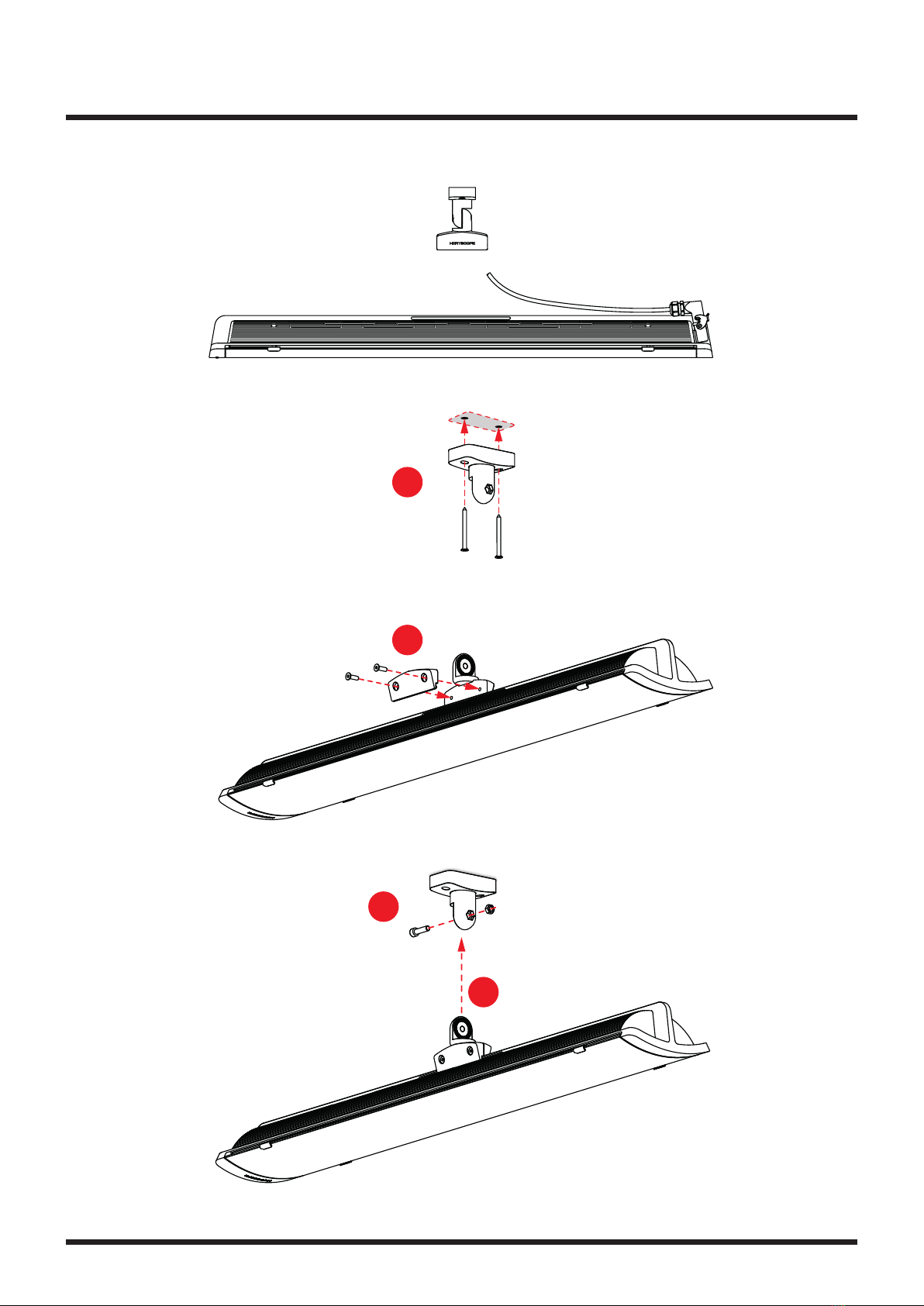

MOUNTING

1 x

WALL MOUNTING CLEARANCES



> 180cm

> 15 cm

> 40cm

> 180cm

> 15 cm

> 180cm

> 150cm





> 15cm

> 180cm

> 40cm > 40cm

heatscopeheaters.com

CEILING MOUNTING SPACING

> 200cm

> 40cm

> 200cm



> 40cm

> 200cm

> 15cm



> 200cm

> 10cm



> 150cm

heatscopeheaters.com

> 180cm

> 25 cm



> 150cm

GLASS SURFACE CLEARANCES

> 180cm

> 25 cm



> 150cm
