Cortelco 1201 Guide de configuration

WNER'S

NSTRUCTION ANUAL

MODEL 1201

Carefully read the instructions in this manual.

Follow all warnings and instructions marked on the unit.

When cleaning, unplug the telephone jack from the wall outlet. Use

a damp cloth. use liquid or aerosol cleaners.

Do not use this equipment near water, eg: near a kitchen sink,

bathtub, washbowl, laundry rub, swimming pool or in a wet

basement.

Install in a protected location. Ensure all lines and cords are away

from foot traffic. place objects on the line cord that may

cause damage or abrasion.

Avoid spilling any liquid on the unit. This may cause internal

shorting, fire or shock and is not covered under your warranty.

Do not overload wall outlets and extension cords as this can result

in the risk of fire or electrical shock.

Never push objects of any kind into this telephone as they can

touch dangerous voltage points or short out parts that could result

in a risk of fire or electrical shock.

Take the phone to a qualified technician when it requires repair

work or service. To reduce the risk of electrical shock, do not

disassemble the telephone. Opening or removing covers can

expose you to dangerous voltages or other risks. Incorrect re-

assembly can cause electrical shock during subsequent use.

Avoid using the telephone during an electrical storm. There can be

a slight risk of electrical shock from lightning.

use the telephone to report a gas leak, if in the vicinity of

the leak.

Unplug this telephone from the wall outlet and refer servicing to

qualified service personnel under the following conditions:

If liquid is spilled into the unit.

If the unit is exposed to rain or water.

If the unit does not operate normally by following the

operating Instructions.

If the unit is dropped or the casing is damaged.

If the unit exhibits a distinct change in performance.

DO NOT

To reduce the risk of fire, electrical shock, and injury, please follow

these basic safety precautions before you use this equipment.

10.

11.

12.

SAFETY INSTRUCTIONS

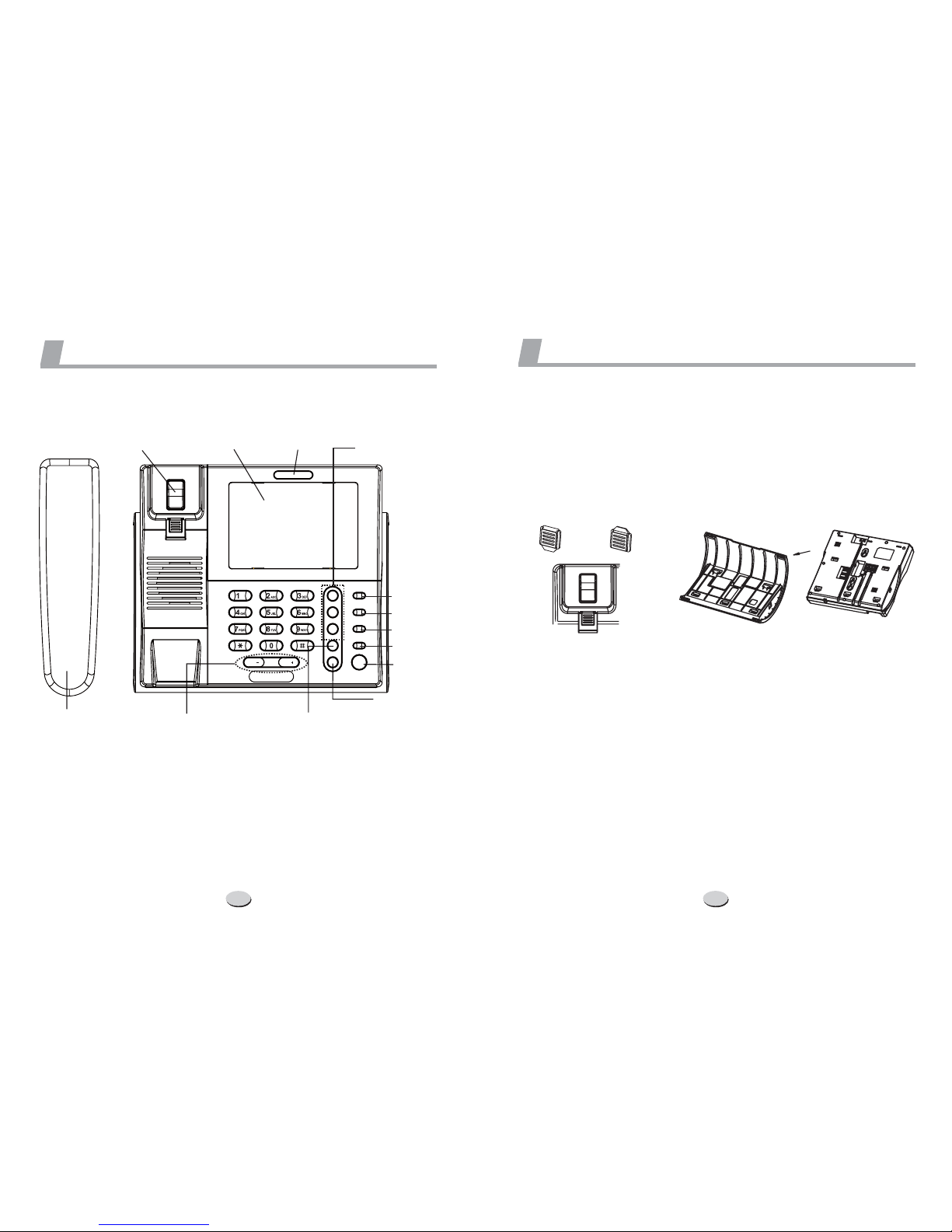

LOCATION OF CONTROLS

Hook Switch Message lamp

AUTO

MUTE

HOLD

Handset

FLASH

PAUSE

STORE/SET

Volume

LCD display Memory

(M1~M3)

REDIAL

RING

VOL.

PAUSE

FLASH

STORE/SET

AUTO

MUTE

HOLD

REDIAL

WALL INSTALLATION

Desk tab

position

Wall mount

tab position

diagram 1

Slide the handset tab out and rotate it 180 degrees so that the hook

points up. This will hold the handset in the cradle when the phone is

mounted on the wall.

Remove the desk stand from the phone base (see diagram 2).

Mount the phone on a standard telephone wall jack.

diagram 2

10. Hold button

Pause button

To place a call on hold, press and hang up the handset. To retrieve the

call lift the handset or go off hook on any other phone connected to the line.

HOLD

11.

12. Phone resetting

1. Lift the handset.

2. Dial *#0000*#.

3. Hang up the handset.

Pressing this button will insert a 3 second pause in the dialing sequence. This

is intended to be used with memory dialing.

Resetting the phone will erase all memory dial numbers and the redial

memory.

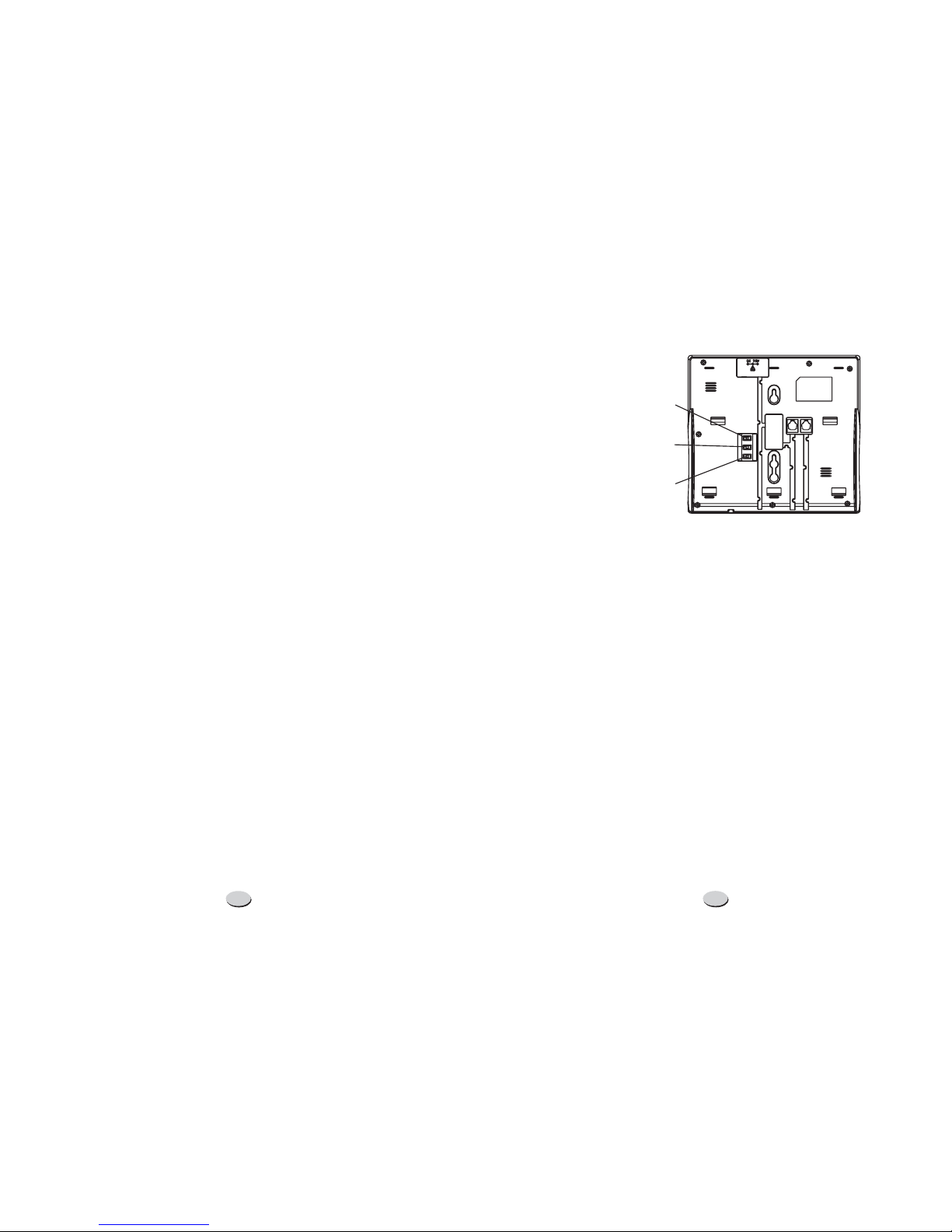

Ringer volume

switch

Flash time

switch

Dialing mode

switch

This switch is located on the bottom of the telephone. For Tone Dialing, set

the switch to the T position. For Pulse Dialing, set the switch to the P position.

This feature allows you to redial the last phone number dialed.

a. Lift handset.

b. Press .

Ringer Volume Switch - There are 3 ringer levels ( , , and ). These may

be selected by this switch on the bottom of the telephone.

1. Dial mode switch

Redial function

3. Mute function

4. Flash button

Flash time switch

6. Ringer volume switch

REDIAL

HI LO OFF

This feature allows you to turn off your telephone's microphone so that the

other party cannot hear you.

Press FLASH instead of pressing the hook switch to activate services such as

Call Waiting or 3-Way Calling, or to activate certain PBX or Centrex features.

You may be required to press other buttons before or after you press .

Refer to the custom calling instructions provided by your local telephone

company or to the operating instructions provided with your PBX.

The initial factory-set flash length is 600 milliseconds, which is appropriate for

most installations. However, two other Flash times are available. Use this

switch on the bottom of the phone to select 100, 300 or 600 mSec.

FLASH

OPERATIONS

Press the or buttons to adjust the receive volume during a

conversation. There are 4 levels.

There are 3 memory locations ( ~ ).

1. Lift the handset.

2. Press .

3. Dial the number to be stored (Press to insert a pause).

4. Press .

5. Press the desired Memory Button ( ~ ).

1. Lift the handset.

2. Press the desired Memory Button ( ~ ).

1. Lift the handset.

2. Press .

3. Dial the number to be stored (Press to insert a pause).

4. Press .

5. Press the desired Memory Button ( ).

1. Lift the handset.

2. Press .

3. Press the desired Memory Button ( ).

8. One-touch memory

9. Two-touch memory

VOL.+ VOL.-

M1 M3

A. To store a number to memory

STORE/SET

PAUSE

STORE/SET

M1 M3

A. To store a number to memory

STORE/SET

PAUSE

STORE/SET

0~9

B. To dial the number in memory

AUTO

0~9

Volume setting

To dial a number stored in memory

There are 10 two-touch memory locations.
