ILLUSTRATED PARTS LIST

Manual Part No. 630460202IPL

07–22–2005

IMI Cornelius Co., 2005 XTREME ICE (1444 and 1844)

1 of 12

Rev A

XTREME ICE MAKER (1444 AND 1844 SERIES)

631814001

631814002

631814003

631814004

631814020

631814040

631814041

631818001

631818002

631818003

631818050

631818051

631818052

MODEL NO.

IMI CORNELIUS INC.

www.cornelius.com

ILLUSTRATED PARTS LIST

Manual Part No. 630460202IPL

07–22–2005

IMI Cornelius Co., 2005 XTREME ICE (1444 and 1844)

2 of 12

Rev A

XTREME ICE MAKER (1444 AND 1844 SERIES)

FIGURE 1. GENERAL ASSEMBLY (AIR CONDENSER SHOWN)

Item

No. Part No. Name

1 161168006 Screw TC 8-32 HXWS 12

161090000 Screw TC 8-32 HXWS 10 (Marine)

2 164510000 Grommet Nut

3 166194001 Grille

630200510 Grille (Marine)

4 631500096

631500257

Front Panel Ass’y

Front Panel Ass’y (XAC1844 only)

Item

No. Part No. Name

5 630201041 Cover, Electrical Box (1444)

630201235 Cover, Electrical Box (1844)

630201247 Cover, Electrical Box (Marine)

6 318308000 Screw TR 10-32 PAPH 32

7 630201194 Cover, Top

8 630900887 Splash Panel

IMI CORNELIUS INC.

www.cornelius.com

ILLUSTRATED PARTS LIST

Manual Part No. 630460202IPL

07–22–2005

IMI Cornelius Co., 2005 XTREME ICE (1444 and 1844)

3 of 12

Rev A

XTREME ICE MAKER (1444 AND 1844 SERIES)

SEE DETAIL A

SEE DETAIL B

DETAIL BDETAIL A

910

FIGURE 2. TRIM ASSEMBLY (AIR CONDENSER SHOWN)

Item

No. Part No. Name

1 07578 Thread Cutting Screw, Phil Truss

Hd, No. 8-32 By 3/8-In. Long

2 630201160 Brace, Electrical Box

630201271 Brace, Electrical Box (Marine)

3Electrical Box Ass’y (See Figure 9)

4 165384000 Sheet Metal Screw, No. 8 By 1/2-In.

Long

5 630201076 Panel, Side

630201254 Panel, Side (Marine)

6 630901000 Washer, .340 I.D.

7 630900924 Switch, On/Off

8 630900798 Switch, Proximity

9 630900827 Cover, Evaporator, Large

Item

No. Part No. Name

10 630900870 Fitting, Placeholder

11 631500120 Water Distributor Ass’y (See Figure

10)

12 164126000 Screw

13 630201190 Recess Panel

14 00311 Grommet

15 00987 Fitting

16 630900818 Tube, Vynl Mold

17 630201093 Bracket, Vynl Tube

18 164713001 Screw

19 162445002 Clip

IMI CORNELIUS INC.

www.cornelius.com

ILLUSTRATED PARTS LIST

Manual Part No. 630460202IPL

07–22–2005

IMI Cornelius Co., 2005 XTREME ICE (1444 and 1844)

4 of 12

Rev A

XTREME ICE MAKER (1444 AND 1844 SERIES)

13 14

31 32

SEE DETAIL A

DETAIL A

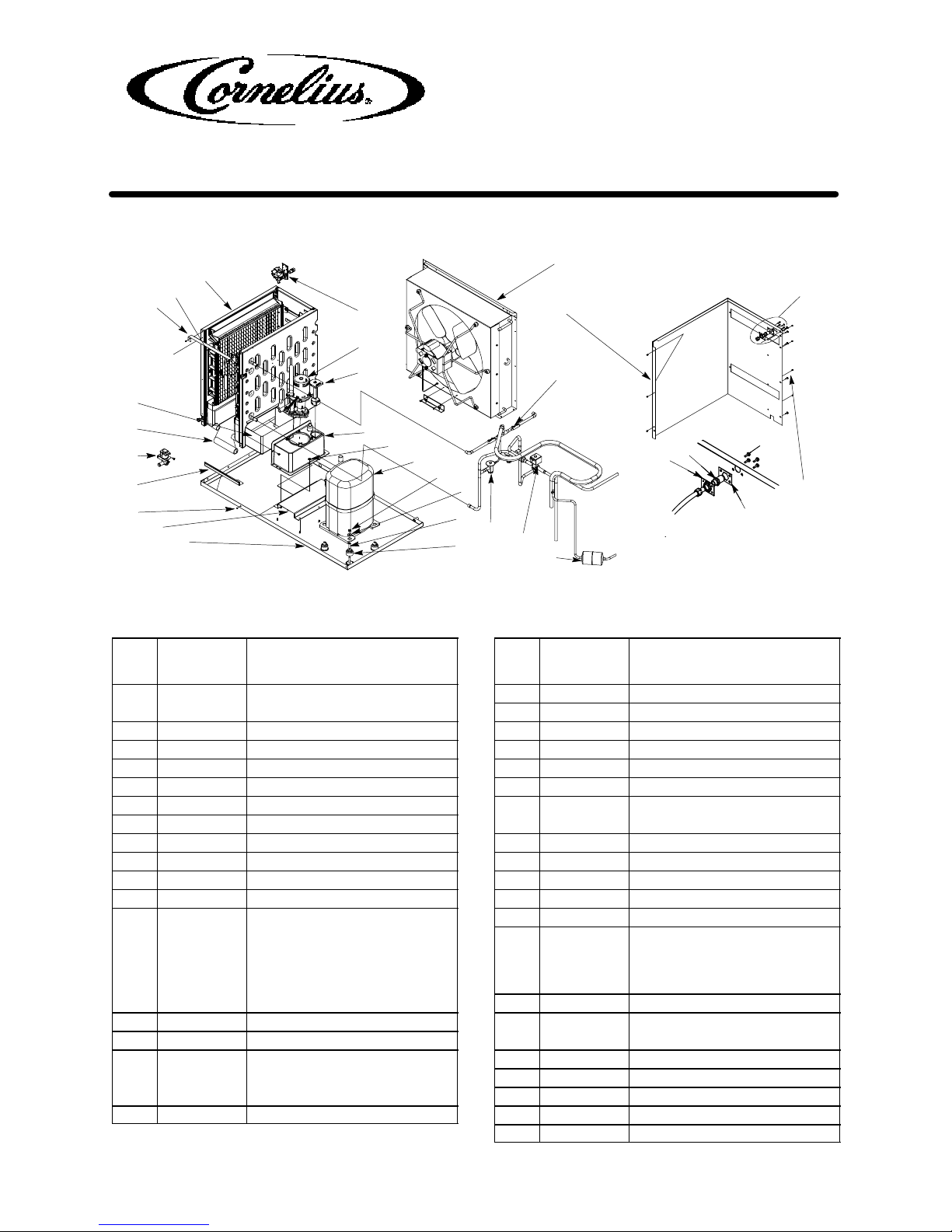

FIGURE 3. BUILD ASSEMBLY (AIR CONDENSER)

Item

No. Part No. Name

1 630201156 Wrap, Cabinet (1444)

630201249 Wrap, Cabinet (1844)

2 165384000 Sheet Metal Screw, No. 8 By 1/2”

3 420906000 Tube, .265 I.D. (Not Shown)

4 630200935 Flange, Bulkhead

5 630900783 Fitting, Bulkhead

6 630201570 Flange, Bulkhead

7Condenser Ass’y (See Figure 7)

8 630900868 Pressure Sensor Ass’y

9Water Pump Ass’y (See Figure 11)

10 630900895 Hex Nut, No. 8-32

11 630900869 Pan, Water Wrap

12 631500148 Kit Comp 208V 60HZ (1444)

631500161 Kit Comp 3HP 240V 50HZ (1444)

631500098 Kit Comp 3-1/4HP 240V 60HZ

(1844; 1PH)

631500097 Kit Comp 3-1/4HP 230V 60HZ

(1844; 3PH)

13 164083005 Hex Nut, 5/16-18

14 164154001 Washer, .375 I.D.

15 630900964 Sleeve Grommet 60HZ (1444)

165596002 Sleeve Grommet 50HZ (1444)

165596003 Sleeve Grommet (1844)

16 630900791 Solenoid Valve

Item

No. Part No. Name

17 630201038 Brace, Bulkhead

18 638006070 Tube, .375 I.D. (Not Shown)

19 Bulkhead Ass’y (See Figure 6)

20 164126000 Screw, SM 8 PHTR 16

21 165637009 Dump Valve

22 630201113 Bracket, Water Pan

23 630000853 Base (1444)

630000894 Base (1844)

24 630201112 Bracket (Not Shown)

25 630201092 Clip

26 630900930 Tube, Vynl

27 161862005 Sensor Temp (Not Shown)

28 161462001 Clamp, Screw

29 630000854 Service Valve and Bracket Ass’y

(1444; Not Shown)

630000886 Service Valve and Bracket Ass’y

(1844; Not Shown)

30 166184003 Dryer

31 161921008 Expansion Valve (1444)

630901095 Expansion Valve (1844)

32 165629009 Hot Gas Valve

33 630900833 Water Pan

34 630900963 Grommet

35 630201267 Bracket, Stiffener

36 630201250 Bracket, Fan Motor (Not Shown)

IMI CORNELIUS INC.

www.cornelius.com

ILLUSTRATED PARTS LIST

Manual Part No. 630460202IPL

07–22–2005

IMI Cornelius Co., 2005 XTREME ICE (1444 and 1844)

5 of 12

Rev A

XTREME ICE MAKER (1444 AND 1844 SERIES)

SEE DETAIL A

DETAIL B

DETAIL A

SEE DETAIL B

21 23

30 32

24 12 44 1

37 42

14 27

FIGURE 4. BUILD ASSEMBLY (REMOTE)

Item

No. Part No. Name

1 630201156 Wrap, Cabinet

2 165384000 Sheet Metal Screw, No. 8 By 1/2-In.

3 420906000 Tube, .265 I.D. (Not Shown)

4 630200935 Flange, Bulkhead

5 630900783 Fitting, Bulkhead

6 630201570 Flange, Bulkhead Fitting Flat

7 630201158 Panel, Back

8 630900868 Pressure Sensor Ass’y

9Water Pump Ass’y (See Figure 11)

10 630900895 Hex Nut, No. 8-32

11 630900869 Pan, Water, Wrap

12 631500148 Kit Comp 208V 60HZ (1444)

631500098 Kit Comp 3-1/4HP 240V 60HZ

(1844; 1PH)

631500097 Kit Comp 3-1/4HP 230V 60HZ

(1844; 3PH)

13 164083005 Hex Nut, 5/16-18

14 164154001 Washer, .375 I.D.

15 630900964 Sleeve, Grommet (1444)

165596003 Sleeve, Grommet (1844)

16 630900963 Grommet (1444)

17 630900791 Solenoid Valve

18 630201038 Brace, Bulkhead

19 166225000 Receiver (1444)

630901097 Receiver (1844)

20 Bulkhead Ass’y (See Figure 6)

21 164126000 Screw SM 8 PHTR 16

22 165637009 Dump Valve

Item

No. Part No. Name

23 630201113 Bracket, Water Pan

24 630000853

630000894

Base (1444)

Base (1844)

25 630201234

630201270

Mounting Plate, Receiver (1444)

Mounting Plate, Receiver (1844)

26 01022 Washer

27 09652 Hex Nut

28 630201112 Bracket

29 630201182 Bracket, Receiver Top

30 630900833 Water Pan

31 630900930 Tube, Vynl

32 300098000 Button Plug

33 161426001 Clamp

34 630000854

630000886

Service Valve and Bracket (1444)

Service Valve and Bracket (1844)

35 166184003 Dryer

36 165384000 Screw

37 161921008

630901095

Expansion Valve (1444)

Expansion Valve (1844)

38 165629009 Hot Gas Valve

39 165677008 Switch Ass’y

40 165629011 Solenoid Valve

41 630900479 CRO Valve

42 41275 Check Valve

43 630001146 Foamed Accumulator Assembly

44 630201524 Accumulator Bracket

45 630901346 Compresor Crankcase Heater

(1444 only –Not Shown)

46 630201190 Evaporator Wrap

IMI CORNELIUS INC.

www.cornelius.com

ILLUSTRATED PARTS LIST

Manual Part No. 630460202IPL

07–22–2005

IMI Cornelius Co., 2005 XTREME ICE (1444 and 1844)

6 of 12

Rev A

XTREME ICE MAKER (1444 AND 1844 SERIES)

SEE DETAIL A DETAIL A

SEE DETAIL B

DETAIL B

FIGURE 5. BUILD ASSEMBLY (WATER COOLED)

Item

No. Part No. Name

1 630201156 Wrap, Cabinet

2 165384000 Screw SM 8 HX 16

161090000 Screw TC 8-32 HXWS 10 (Marine)

3 420906000 Tube, .265 I.D.

4 630200935 Flange, Bulkhead

5 630900783 Fitting, Bulkhead

6 630201570 Flange, Bulkhead

7 630201157 Panel, Back

630000899 Panel, Back (Marine)

8 630900868 Pressure Sensor Ass’y

9Water Pump Ass’y (See Figure 11)

10 630900895 Hex Nut, No. 8-32

11 630900869 Pan, Water, Wrap

12 631500148 Kit Comp 208V 60HZ (1444)

631500098 Kit Comp 3-1/4HP 240V 60HZ

(1844; 1PH)

631500097 Kit Comp 3-1/4HP 230V 60HZ

(1844; 3PH)

13 164083005 Hex Nut, 5/16-18

164083006 Hex Nut, 5/16-18 (Marine)

14 164154001 Washer, .375 I.D.

164154002 Washer Ft .312 I.D. (Marine)

15 630900964 Sleeve, Grommet (1444)

165596003 Sleeve, Grommet (1844)

16 630900963 Grommet (1444)

630201266 Grommet (1844)

17 630900791 Solenoid Valve

18 630201038 Brace, Bulkhead

Item

No. Part No. Name

19 164838004 Water Coil Ass’y (1444)

630901090 Water Coil Ass’y (1844)

20 Bulkhead Ass’y (See Figure 6)

21 164126000 Sheet Metal Screw, Phil Truss Hd,

No. 8 By 1/2-In. Long

22 165637009 Dump Valve

23 630201113 Bracket, Water Pan

24 630000853 Base (1444)

630000894 Base (1844)

630000898 Base (Marine)

25 161763012 Tube Ass’y (1444)

630250160 Tube Ass’y (1844)

26 164832016 Tube Ass’y, Water Inlet (1444)

630250158 Tube Ass’y, Water Outlet (1844)

27 164832015 Tube Ass’y, Water Outlet (1444)

630250159 Tube Ass’y, Water Outlet (1844)

28 630201112 Bracket (Not Shown)

29 300098000 Button Plug

30 630900930 Tube, Vynl

31 161426001 Clamp

32 00214 Washer

33 164980002 Valve, Water Regulator

34 161189000 Washer

35 166196002 Clamp, Water Coil

630200325 Clamp, Water Coil (Marine)

36 630900833 Water Pan

37 630201268 Bracket Water Coil Fnt (Not Shown)

38 630201269 Bracket Water Coil Bck (Not Shown)

IMI CORNELIUS INC.

www.cornelius.com

ILLUSTRATED PARTS LIST

Manual Part No. 630460202IPL

07–22–2005

IMI Cornelius Co., 2005 XTREME ICE (1444 and 1844)

7 of 12

Rev A

XTREME ICE MAKER (1444 AND 1844 SERIES)

FIGURE 6. BULKHEAD ASSEMBLY

Item

No. Part No. Name

1 630900903 Clip

2 630900847 Panel, Bulkhead Left

630900849 Panel, Bulkhead, Right

3 630900844 Bulkhead, Rear

4 630901121 Screw SM 8 HXWS 16 SS

5 630900833 Pan, Water, Large, Right

630900835 Pan, Water, Large, Left

6 630900892 Plug

7 630900858 Frame, Evaporator, Left

630900859 Frame, Evaporator, Right

8 630900781 Deflector, Water

9 630201024 Gasket, Frame, Top and Bottom

10 631500139

631500140

Kit Service Evap Frame Left

(Standard Cube)

Kit Service Evap Frame Left

(Large Cube)

Item

No. Part No. Name

631500135 Kit Service Evap Frame Ri

631500135

Kit

Service

Eva

Frame

Right

(Standard Cube)

631500138

(Standard

Cube)

Kit Service Evap Frame Right

(L Cb)

(Large Cube)

11 630201027 Gasket, Side, Left

630201028 Gasket, Side, Right

12 630901495 Lock Nut Nylon 8–32

13 630900857 Frame, Evaporator, Bottom

14 630900896 Sheet Metal Screw, Hex Hd, No. 14

by 5/8”

15 630250142 Evaporator Line, Upper, Left

630900962 Evaporator Line, Upper, Right

16 630250142 Evaporator Line, Lower, Left

630900962 Evaporator Line, Lower, Right

17 630201242 Bracket, Evaporator Frame Support

IMI CORNELIUS INC.

www.cornelius.com

ILLUSTRATED PARTS LIST

Manual Part No. 630460202IPL

07–22–2005

IMI Cornelius Co., 2005 XTREME ICE (1444 and 1844)

8 of 12

Rev A

XTREME ICE MAKER (1444 SERIES)

FIGURE 7. CONDENSER ASSEMBLY

Item

No. Part No. Name

1 161870006 Condenser Coil

2 630201159 Shroud, Condenser

3 630900190 Sheet Metal Screw, Phil Pan Hd, No.

8 By 3/8-In. Long

4 630900889 Well Nut, 1/4-20

5 39898 Fan Blade

Item

No. Part No. Name

6 630900996 Bracket, Motor

7 23978 Washer, .690 I.D.

8 165294000 Machine Screw, Hex Hd, 1/4-20 By

1-In. Long

9 630000870 Motor Cond 230V 50/60HZ

10 07667 Machine Screw, Hex Hd, No. 8-36

By 1/2-In. Long

IMI CORNELIUS INC.

www.cornelius.com

ILLUSTRATED PARTS LIST

Manual Part No. 630460202IPL

07–22–2005

IMI Cornelius Co., 2005 XTREME ICE (1444 and 1844)

9 of 12

Rev A

XTREME ICE MAKER (1844 SERIES)

FIGURE 8. CONDENSER ASSEMBLY

Item

No. Part No. Name

1 630901072 Condenser Coil

2 630201245 Shroud, Condenser

3 630201541 Shroud, Collar

4 164005001 POP Rivet

5 630901093 Fan Blade

6 630201250 Motor Bracket

Item

No. Part No. Name

7 630901092 Motor Cond 230V 50/60Hz (1844)

8 168745000 Hex Bolt 1/4–20

9 164820012 Mounting Bracket

10 00239 Washer, Lock

11 164154001 Washer, Flat

12 630900190 Sheet Metal Screw, Phillips Pan Hd,

No. 8 x 3/8 in. Long

IMI CORNELIUS INC.

www.cornelius.com

ILLUSTRATED PARTS LIST

Manual Part No. 630460202IPL

07–22–2005

IMI Cornelius Co., 2005 XTREME ICE (1444 and 1844)

10 of 12

Rev A

XTREME ICE MAKER (1444 AND 1844 SERIES)

FIGURE 9. ELECTRICAL BOX ASSEMBLY

Item

No. Part No. Name

1 630900789 Control Board

2 07578 Thread Cutting Screw, Phil Truss

Hd, No. 8-32 By 3/8-In. Long

3 40713 Relay, 208/240V 50/60HZ (1444)

630901104 Relay, 208/240V 50/60HZ (1844)

4 630460105 Spacer, Control Board

5 630901013 Relay, Start 230V 60HZ (1444)

41042 Relay, Start 230V 50HZ (1444)

161998018 Relay, Start 60HZ (1844)

6 161838002 Terminal Block

7 630900905 Switch

Item

No. Part No. Name

8 630200166 Strap, Capacitor

9 630901016 Capacitor Run 440V 60HZ (1444)

161192005 Capacitor Run 330V 50HZ (1444)

161192011 Capacitor Run 440V 60HZ (1844)

10 630900730 Capacitor, Start 60HZ (1444)

630900176 Capacitor, Start 50HZ (1444)

41044 Capacitor, Start (1844)

11 03611 Bushing

12 630201035 Wrap, Electrical Box (1444)

630201233 Wrap, Electrical Box (1844)

630201246 Wrap, Electrical Box (Marine)

Ce manuel convient aux modèles suivants

Autres manuels Cornelius Machine à glaçons

Cornelius

Cornelius 500 - Series Manuel utilisateur

Cornelius

Cornelius XTREME 631812001 Guide de configuration

Cornelius

Cornelius WM600 Mode d'emploi

Cornelius

Cornelius AC-300 Manuel utilisateur

Cornelius

Cornelius I Series Guide d'installation

Cornelius

Cornelius CONTINUOUS FLOW ICEMAKER 1400R Manuel utilisateur

Cornelius

Cornelius ICE MAKER Manuel utilisateur

Cornelius

Cornelius Nordic CCM0322 Mode d’emploi

Cornelius

Cornelius Adapter Lid Manuel utilisateur

Cornelius

Cornelius WM600 Manuel utilisateur

Cornelius

Cornelius IACSSO Manuel utilisateur

Cornelius

Cornelius IMD Series Manuel utilisateur

Cornelius

Cornelius Series 200 Manuel utilisateur

Cornelius

Cornelius P/N 620028801 Manuel utilisateur

Cornelius

Cornelius WCF1411-A Series Manuel utilisateur

Cornelius

Cornelius Ice Cube Maker JEACS50SL1 Manuel utilisateur

Cornelius

Cornelius IMD300-15A Manuel utilisateur

Cornelius

Cornelius Duraflex 150-8 Valve Manuel utilisateur

Cornelius

Cornelius WCC1401-A Series Manuel utilisateur

Cornelius

Cornelius ED150 "K" Style Lid Kit Manuel utilisateur

Cornelius

Cornelius Granita Guide d'installation

Cornelius

Cornelius 2306 Manuel utilisateur

Cornelius

Cornelius D3030 Manuel utilisateur

Cornelius

Cornelius IMD600-90 Guide d'installation

Manuels Machine à glaçons populaires d'autres marques

Hoshizaki

Hoshizaki KMD-460MWJ Manuel utilisateur

Sub-Zero

Sub-Zero 315I Instructions d'utilisation

Unold

Unold 48945 Manuel utilisateur

Kenmore

Kenmore 2217402A Manuel utilisateur

GE XPIO43SCSS Manuel utilisateur

Hoshizaki

Hoshizaki KMD-901MAH Manuel utilisateur

Whynter

Whynter FIM-450HA Manuel utilisateur

U-Line

U-Line UMCR014-SC01A Manuel d'installation

Andrew James

Andrew James AJ000522 Manuel utilisateur

Scotsman

Scotsman CME1356 Manuel utilisateur

Scotsman

Scotsman ACM 25 Manuel utilisateur

Kärcher

Kärcher IP 120 Manuel utilisateur

U-Line

U-Line SS1095 Manuel utilisateur

Maytag

Maytag MIM1554WRS - Ice Maker Manuel utilisateur

Hoshizaki

Hoshizaki KM-630MAH Manuel utilisateur

Princess

Princess Yonanas Manuel utilisateur

Unold

Unold 48946 Manuel utilisateur

Electrolux

Electrolux E15IM60GP Manuel utilisateur
