Copernicus DCS7 Manuel utilisateur

DCS7 - Version C - Released March 30, 2020 - Copernicus Educational Products Inc.

This product is meant to be assembled by an adult.

In its unassembled state, small parts present a hazard.

To be used under direct supervision of an adult.

WARNING

Dewey Video/Podcasting Stand with Doc Cam

For assistance, please contact us:

1-800-267-8494

Email [email protected]om

Have your packing slip ready for reference

Assembly Guide

DCS7_2021_C

Check out our other products online at

www.copernicused.com

Please Recycle

DCS7

DCS7 - Version C - Released March 30, 2020 - Copernicus Educational Products Inc.

For assistance, please contact us:

1-800-267-8494

Email [email protected]om

Have your packing slip ready for reference

We do not inherit the

earth from our ancestors,

we borrow it from our

children.

NORTH AMERICAN

PROVERB

Change is the end result

of all true learning.

LEO BUSCAGLIA

What you leave behind is

not what is engraved in

stone monuments, but

what is woven into the

lives of others.

PERICLES

Education is the most

powerful weapon which

you can use to change the

world.

NELSON MANDELA

Dear Educator,

Thank you for purchasing Dewey Video/Podcasting Stand with Doc Cam. We hope it meets all your

expectations and you and your students enjoy using it in your school.

If you have any questions, concerns or ideas on how we can improve please let us know by contacting our

Customer Solutions Ninjas at 1-800-267-8494 or info@copernicused.com.

Happy teaching,

Kaylyn Belcourt

President

Registering your warranty ensures we have all the information we need to make any future warranty claims quick and

easy. Please visit www.copernicused.com/warranty and complete the form within 10 business days from product

assembly. By registering your product, you will be entered into a draw to win Copernicus product.

Make a Warranty Claim

We offer a Lifetime Warranty on almost everything we make. Please call 1-800-267-8494 or email

[email protected]om to start your warranty claim. Proof of purchase will be required upon warranty claim (i.e. copy

of invoice).

Lifetime

Warranty

DCS7

Assembly Guide

DCS7_2021_C

Check out our other products online at

www.copernicused.com

Dewey Video/Podcasting Stand with Doc Cam

DCS7 - Version C - Released March 30, 2020 - Copernicus Educational Products Inc.

Warning! Hazard Risks!

This product is to be used under the supervision of an adult.

Indoor Use

Only

This product is intended for indoor use only. To reduce the risk of fire or electric shock, do not expose

this product to rain or moisture. The internal components are not sealed from the environment.

Read your power strip electrical specifications. Only plug in devices that are approved for use with this

power strip. Connect the supplied power strip directly to a wall outlet. Do not connect to another

power strip or use an extension cord. Unplug when not in use. Do not leave this product plugged in

for more than 72 consecutive hours. Turn off power strip before unplugging.

Power Strip

Specifications

Do not install or use the electrical components of this unit during a lightning storm.

Electrical Shock

In its unassembled state, this product contains parts that can be hazardous to small children. This

product should be assembled by an adult.

Small

Parts

Ensure that any cables extending across the floor to your product are properly bundled and marked to

avoid tripping or falling which may lead to personal injury.

Cable Trip

Hazard

Climb Hazard

Do not climb on, hang from or suspend objects from any components of your product unless otherwise

specified.

Read the electrical specifications of any electronic equipment you are using with your Copernicus

products. Failure to read these specifications and follow their instructions could result in damage to your

equipment or personal injury.

Electronic

Equipment

Adult

Supervision

Please read the warnings below for important safety information regarding your product. Failure to

read these warnings or to follow the instructions below could result in personal injury or damage to

your product that could void your warranty.

DCS7 - Version C - Released March 30, 2020 - Copernicus Educational Products Inc.

Top Arm Pre-Assembly

Adjustable Tube

Assembly

VGA Strap

Landscape Position

for 8.5” x 11” Paper

iPad & Paper

Portrait Position

for 8.5” x 11” Paper

Positioning

Template

Headphone Holder

Adjustment Lip

DCS5

4mm Allen Key

(43281)

M6 x 45mm (Not required)

M6 Lock Washer

AM6 x 20mm

M6 Nylon Washer

EM6 Knob

Box contents of DCS7 Master Pack

Hardware

Actual Size

Contents - DCS7

In Box 1

Tools

(Not to Scale)

DCS7

Ring Light

Bracket

Power Adapter

Hook & Loop Straps

(43321)

Base

Dewey Video/Podcasting Stand with Doc Cam

M6 x 50mm

Contents - DCS7

DCS7 - Version C - Released March 30, 2020 - Copernicus Educational Products Inc.

Watch for this symbol throughout the Assembly Guide. Wherever you see it, pay close

attention. The symbol denotes a step needing extra attention to ensure it is done

correctly.

The star symbol highlights an advisory note.

Watch for These Helpful Symbols

Before You Begin

As You Assemble the Unit

Lay out and identify all of the included parts.

The hardware has been packed according to step.

Read the assembly guide over once to familiarize yourself with them.

Please note that in its unassembled state, this product contains parts that can be

hazardous to small children. This product should be assembled by an adult.

Follow the steps in sequence.

Before beginning each step, find the part(s) that you need for that step.

Pay attention to the labels on the parts; they are there to help direct you at certain stages.

The title of each step states what you will be doing. Review the text and the pictures as you build

the unit.

Tips for Assembly

Customer Service - FAQ’s

Need Tech Support?

Have a Question?

Email our Tech Support Service www.copernicused.com

Check out some of our

other great products!

For missing parts and other issues regarding the frame:

Please call Copernicus Customer Service, where we will be happy to help.

1-800-267-8494. Monday - Friday 8:00am - 4:30 pm EST.

Email our Tech Support Service at info@copernicused.com

DCS7 - Version C - Released March 30, 2020 - Copernicus Educational Products Inc.

You will need: (Not to Scale)

Actual Size:

You will need: (Not to Scale)

Actual Size:

Adjustable Tube

Assembly

Base

Make sure the height

adjustment holes are

facing outwards, as

seen in image.

Assemble the adjustable tube assembly to the base

AM6 x 20mm

Allen Key

Fasten adjustment lip to top arm pre-assembly

M6 Nylon Washer

DEM6 Knob

Adjustment Lip

DCS7 - Version C - Released March 30, 2020 - Copernicus Educational Products Inc.

You will need: (Not to Scale)

Actual Size:

Attach ring light bracket, headphone holder and top arm assembly

Attach Ring Light on top of Ring Light Bracket

You will need: (Not to Scale)

Top Arm

M6 x 50mm

BM6 Lock Washer

Headphone Holder

Allen Key

Hold the Ring Light

facing forwards and

turn thumb screw

from the bottom.

Ring Light

Bracket

Power Adapter

Plug in Power Adapter

Use hook & loop to

keep cables tidy

Hook & Loop Straps

(43321)

DCS7 - Version C - Released March 30, 2020 - Copernicus Educational Products Inc.

Position the paper template (OPTIONAL)

Positioning

Template

Landscape Position

for 8.5” x 11” Paper

iPad & Paper

Portrait Position

for 8.5” x 11” Paper

Landscape Position

for 8.5” x 11” Paper

iPad® & Paper

Pay close attention to the orientation of of

device and 8.5”x11” paper. Then match the

edge of the paper with the indicated line

that the arrow points at. This helps to

position your paper in the middle of your

projection.

You will need: (Not to Scale)

Apple VGA Adapter

Tablet

VGA Strap

To hold the VGA cable in place, use provided VGA strap. Tie the strap around the adapter cable

and then loop over the edge of the Top Arm.

Use strap to hold video adapter in place (OPTIONAL)

DCS7 - Version C - Released March 30, 2020 - Copernicus Educational Products Inc.

NOTE: Projected image may not rotate when device is rotated. To rotate image, tilt top mechanism down to allow device to adjust.

If folding tension is loose,

tighten nut & bolt with

10mm wrench and the

provided allen key.

If swivel tension is

loose, tighten nut

with 10mm wrench.

Landscape Position

Portrait Position

Securing Dewey to a Surface

The holes are made for 1/4” or M6 flat head

bolts/screws. Holes are countersunk.

The length and type of your hardware depends

on your surface thickness.

Mounting hardware not included.

To change the orientation of the projected image, hold onto top mechanism and turn 90 degrees.

Change Projected Image Orientation

Change Mode from Document Camera to Stand

To change from document camera mode to tablet stand, hold top mechanism and tilt.

Fasten Dewey to Surface

Mount Dewey to a surface using the holes on the base.

DCS7 - Version C - Released March 30, 2020 - Copernicus Educational Products Inc.

Using Dewey with 10” Tablet

Using Dewey with 7” Tablet

Loosen the M6 Knob to slide the

Adjustment Lip into the maximum

position, then tighten.

Loosen the M6 Knob to slide the

Adjustment Lip into the minimum

position, then tighten

Using Dewey with Smartphones

Smartphones must be used with Dewey in the Landscape position.

1. 2.

Camera on this side

Pull

Setup for Devices

Table des matières

Autres manuels Copernicus Support et étagère

Copernicus

Copernicus PDR11 Manuel utilisateur

Copernicus

Copernicus HAWM-AC1 Manuel utilisateur

Copernicus

Copernicus HAWM-AC1 Manuel utilisateur

Copernicus

Copernicus CS700-EXT Manuel utilisateur

Copernicus

Copernicus BCS1 Manuel utilisateur

Copernicus

Copernicus DCS5 Manuel utilisateur

Copernicus

Copernicus IFP-ACS Manuel utilisateur

Copernicus

Copernicus IFP-ACS 2 Manuel utilisateur

Copernicus

Copernicus DCS5 Manuel utilisateur

Copernicus

Copernicus MTS-SPK Manuel utilisateur

Copernicus

Copernicus RC106 Manuel utilisateur

Copernicus

Copernicus HAWM Manuel utilisateur

Copernicus

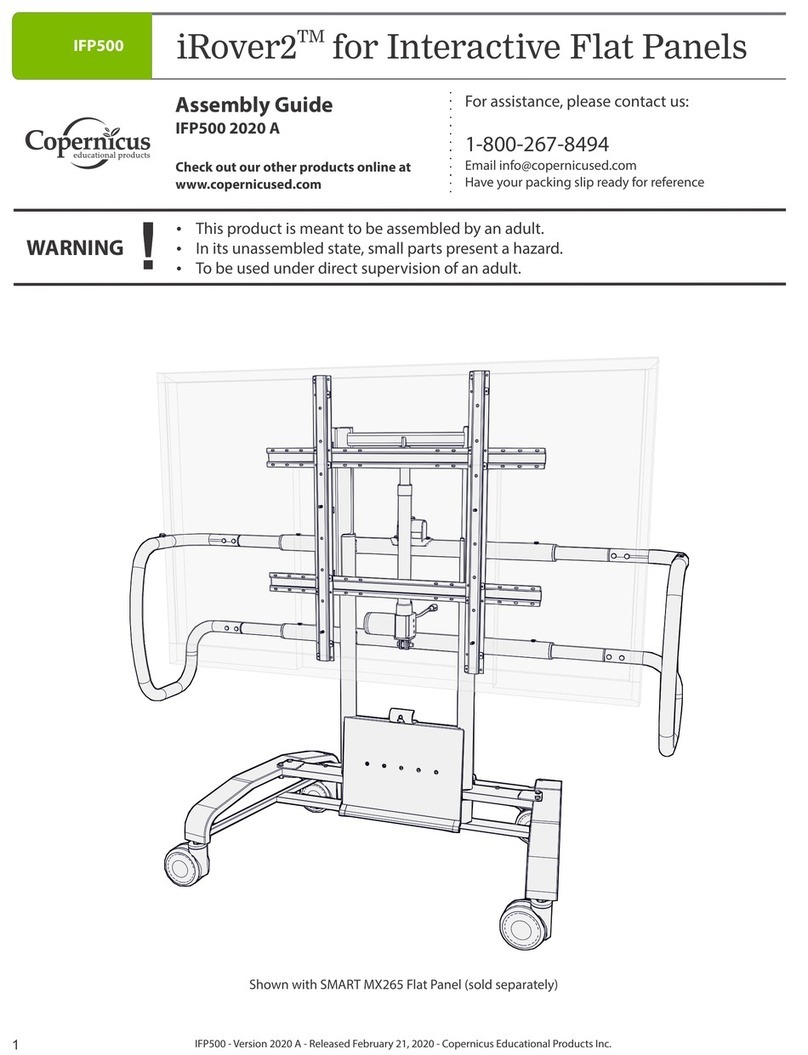

Copernicus iRover2 IFP300 Manuel utilisateur
