Warning

: Before starting any work ensure

that all sources of power are turned off. All

work must meet local/national codes and be

performed by a certified electrician.

Do not

mount fixtures vertically.

Installation Instructions

Vault C Scroll Roundel

These installation instructions are valid with the above Ametrix styles.

Sheet 1 of 3

Large, INDOOR

(Cantilever, Remote ballast)

Visor and Non-Visor

ADY071480 REVA(ECN080352)

Mounting cantile er to structure

J box

(by others)

#8 32 x3/8"

Set screw

Canopy

Mounting plate

1/4" fastener

(by others)

(4x)

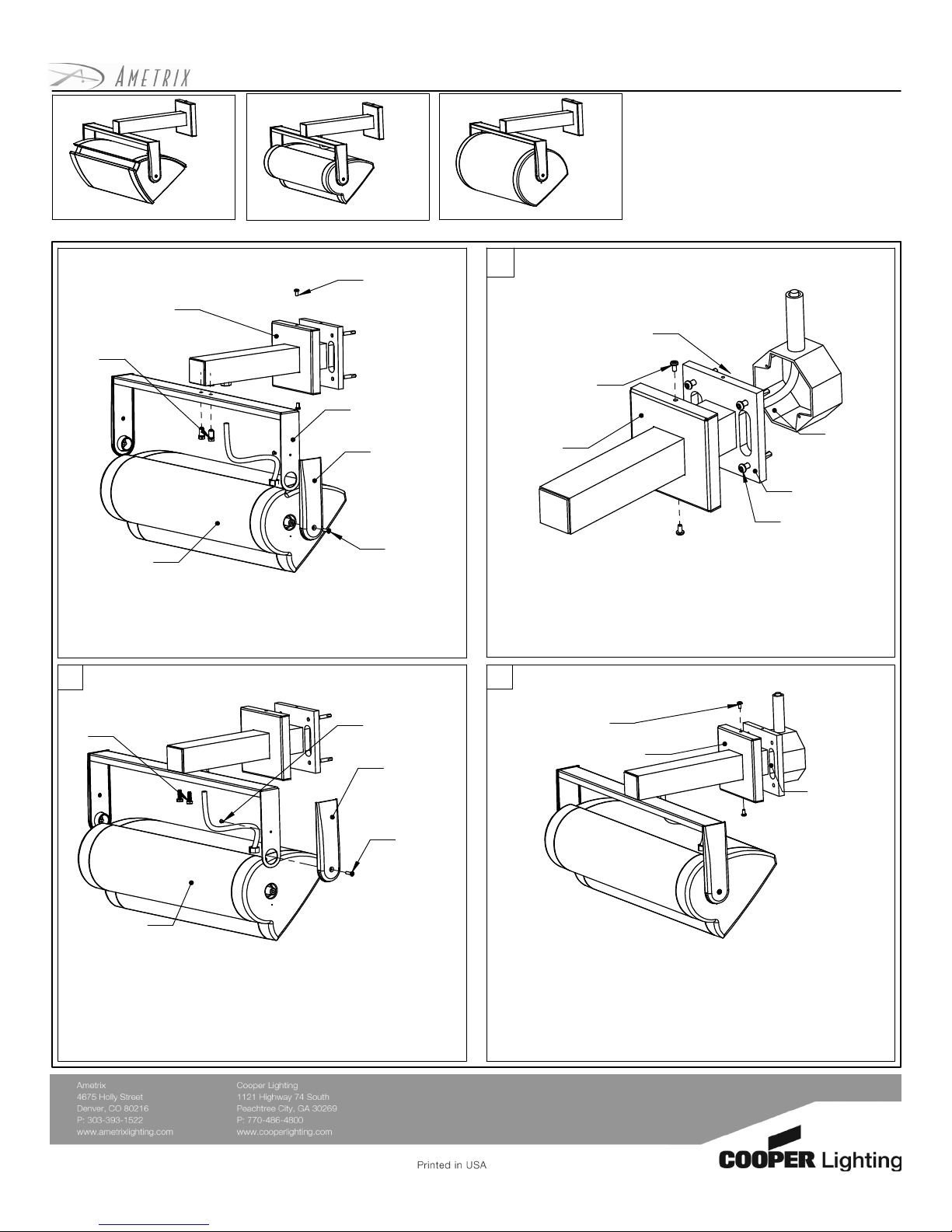

Wiring the fixture

Use additional bracing around

J-box to support J-box.

Exploded iew and part call-out

Canopy

#8 32 x3/8"

Set screw

(2x)

Fixture head #10 32 x1

End screw

(2x)

Yoke end cap

Yoke assembly

1/4 20 x3/4"

Hex bolts

(2x)

1. Prior to attaching fixture head to cantilever, remove both

#8 32 x3/8" set screws and allow canopy to slide down

pendant.

2. Feed power wire through wiring holes and using appropriate

fasteners, secure mounting plate to structure. Use additional

bracing around J-box to support J-box.

Attention:

All large fixtures require additional bracing/structure

around J box to support fixture.

1. After pulling wires through wiring holes in mounting plate,

attach appropriate wires and ensure all connections are

properly matched.

2. Push connections into J box and secure canopy using both

#8 32 x3/8" set screws.

3. Refer to supplementary sheet for instructions on aiming and

sealing the fixture.

#8 32 x 3/8"

Set screws

(2x)

Wiring holes

Canopy

Securing fixture to cantile er

1. To remove fixture head from yoke assembly, remove #10 32

x1 end screw from one side.

2. Remove the #6 32 x 1/4" Flat head screw from the inside of the

yoke arm and remove the yoke end cap.

3. With fixture head removed, secure yoke to cantilever using

1/4 20 x 3/4" hex bolts.

4. Run wiring from fixture head, into pendant and out holes in

mounting plate.

#10 32 x1

End screw

Yoke arm

end cap

Fixture head

#6 32 x1/4

Flat head screw

1/4 20 x3/4"

Hex bolts

(2x)

Installation Instructions

Vault w/ visor C Scroll w/ visor Roundel w/ visor

These installation instructions are valid with the above Ametrix styles

Warning

: Before starting any work ensure

that all sources of power are turned off. All

work must meet local/national codes and be

performed by a certified electrician. Do not

mount fixtures vertically.

Large, INDOOR

(Cantilever, Remote ballast)

Visor and Non-Visor

Sheet 2 of 3

ADY071480 REVA(ECN080352)

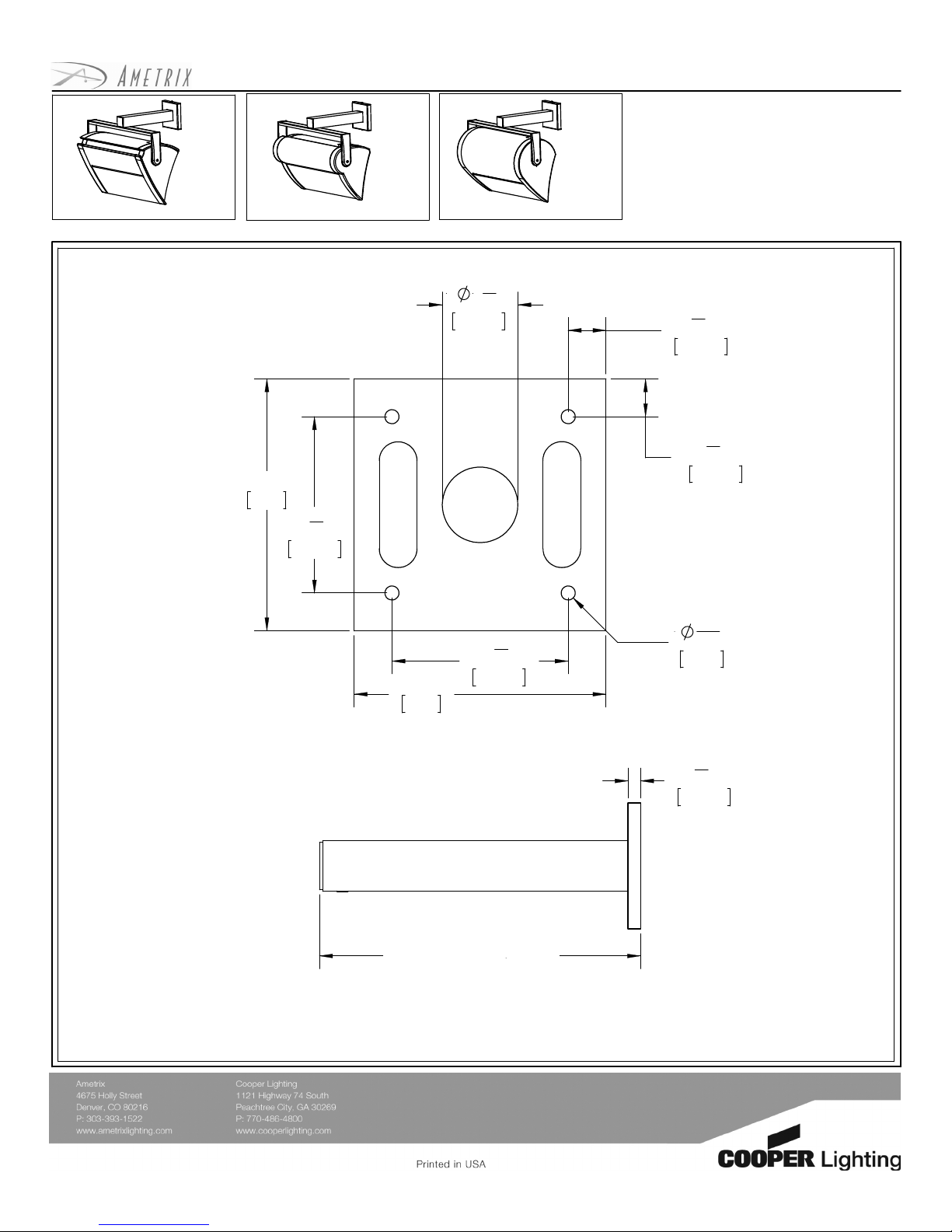

Mounting plate dimensions In[mm]

Top View

Side View

127

19.05

88.90

127

88.90

7.11

19.05

38.10

Length dependant

on order

12.70

Installation Instructions

Vault w/ visor C Scroll w/ visor Roundel w/ visor

These installation instructions are valid with the above Ametrix styles

Warning

: Before starting any work ensure

that all sources of power are turned off. All

work must meet local/national codes and be

performed by a certified electrician. Do not

mount fixtures vertically.

Large, INDOOR

(Cantilever, Remote ballast)

Visor and Non-Visor

Sheet 3 of 3

ADY071480 REVA(ECN080352)

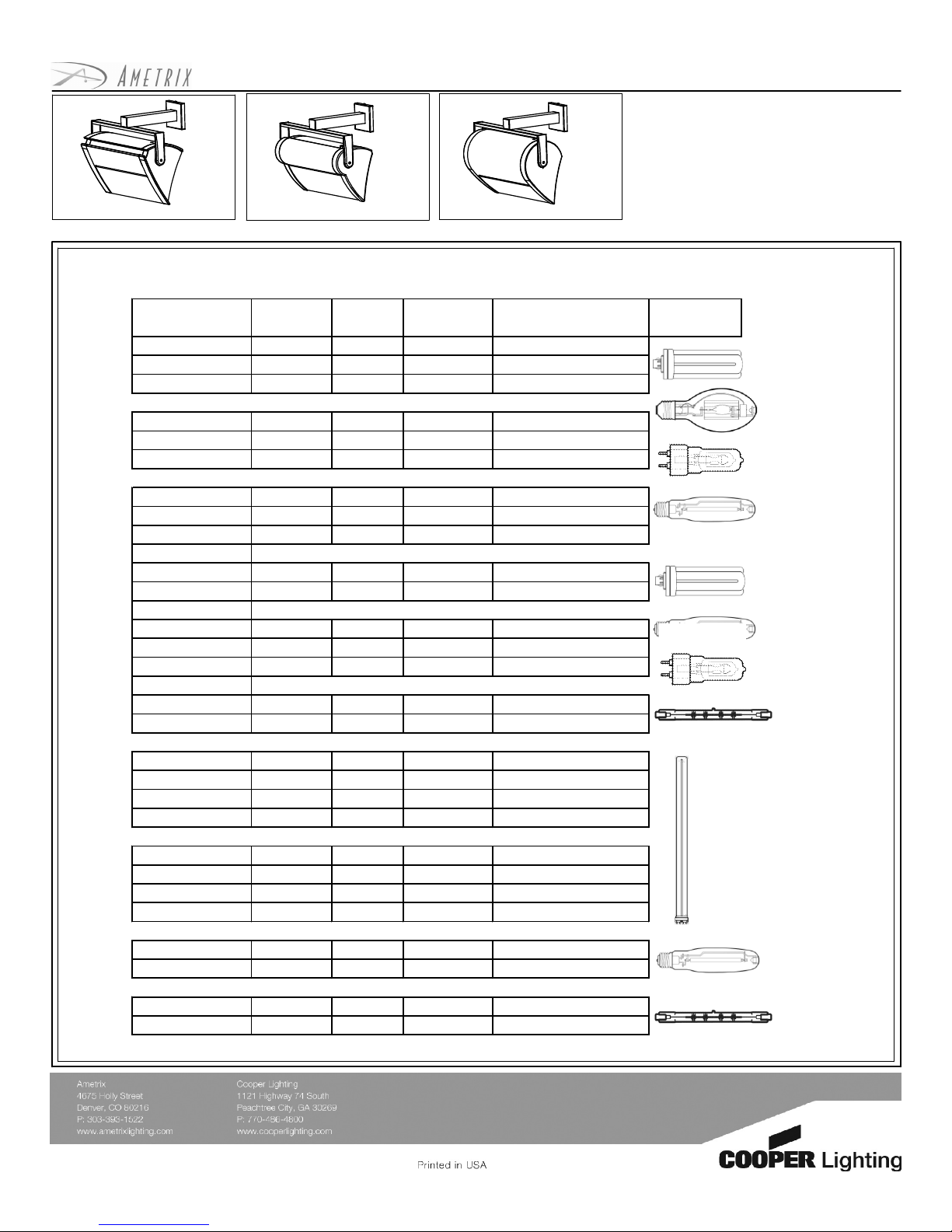

Lamping Size Chart

(lamps provided by others)

FIXTURE SIZE

(inches/ mm) WATTAGE

# OF

LAMPS LAMP TYPE LAMP DESCRIPTION

Lamp

(not to scale)

1/2

/ 419.1 32 W 1 T4 Compact Flourescent

1/2

/ 419.1 42 W 1 T4 Compact Flourescent

1/2

/ 419.1 57 W 1 T4 Compact Flourescent

1/2

/ 419.1 100 W 1 ED17 Ceramic Metal Halide

1/2

/ 419.1 150 W 1 T6 Ceramic Metal Halide

1/2

/ 419.1 175 W 1 ED17 Ceramic Metal Halide

1/2

/571.5 mm 250 W 1 ET18 Metal Halide

1/2

/571.5 mm 400 W 1 ET18 Metal Halide

1/2

/571.5 mm 150 W 2 T6 Ceramic Metal Halide

1/2

/571.5 mm 32 W 2 T4 Compact Flourescent

1/2

/571.5 mm 42 W 2 T4 Compact Flourescent

1/2

/571.5 mm 250 W 1 ET18 Metal Halide

1/2

/571.5 mm 400 W 1 ET18 Metal Halide

1/2

/571.5 mm 150 W 2 T6 Ceramic Metal Halide

1/2

/571.5 mm 350 W 1 T3 Halogen(Double Ended)

1/2

/571.5 mm 500 W 1 T3 Halogen(Double Ended)

1/2

/ 774.7 36 W 1 T5 Twin Tube

1/2

/ 774.7 40 W 1 T5 Twin Tube

1/2

/ 774.7 50 W 1 T5 Twin Tube

1/2

/ 774.7 55 W 1 T5 Twin Tube

1/2

/ 774.7 36 W 2 T5 Twin Tube

1/2

/ 774.7 40 W 2 T5 Twin Tube

1/2

/ 774.7 50 W 2 T5 Twin Tube

1/2

/ 774.7 55 W 2 T5 Twin Tube

1/2

/ 774.7 250 W 2 ET18 Metal Halide

1/2

/ 774.7 400 W 2 ET18 Metal Halide

1/2

/ 774.7 900 W 1 T3 Halogen(Double Ended)

1/2

/ 774.7 1000 W 1 T3 Halogen(Double Ended)
