Catalog #

Project

Comments

Prepared by

Type

Date

SPECIFICATION FEATURES

11/16/2007 11:28:04 AM

Consult your representative for additional options and finishes.

Specifications and Dimensions subject to change without notice.

ADI070185

DESCRIPTION

Recessed downlight luminaire with 2 inch square regressed pinhole

aperture utilizing a low voltage MR16 tungsten-halogen lamp. Modular

platform can be reconfigured from below the ceiling to accept a broad range

of lamp modules and optical elements. Platform is suitable for direct contact

with insulation and 2x8 residential construction. Platform + module +

element combination supports various lamp beam spreads for desired

optical distribution with excellent light control and low aperture brightness.

Frame

Galvanized steel plaster frame with

integral bar hanger receivers.

Setscrews provide positive

horizontal locking.

Collar

Matte black steel collar adjusts

vertically for 1/2" - 1" thick ceilings

and can be rotated +/- 7.5° thru the

aperture. Integral gun sights

facilitate the use of guide strings or

laser lines. Shipped with a paint

overspray protector installed in the

collar.

Lamp Module

Installed or removed thru the

aperture or from the top and

allows lamp orientation at 0°, 90°,

180° and 270° positions.

Housing

Double wall aluminum housing

painted matte black for a visually

dark interior. All fasteners are

captive.

Gaskets

Closed cell gaskets achieve

restrictive airflow requirements

without additional caulking.

Bar Hangers

Captive preinstalled bar hangers

adjusts from 8-1/2" to 24" wide;

pass thru feature allows shortening

without removal. Captive nail

penetrates standard and

engineered lumber. Mounting

flange levels platform with ceiling.

Integral clip attaches directly to

t-bar.

Splay

Diecast aluminum splay has

truncated paramid with regressed

square aperture providing minimal

ceiling presence. Can be painted to

match ceiling finish. Mousetrap

type springs pull flange tight to

ceiling. Light trap eliminates spill

light at edge of flange. May also be

installed rimless using optional

plastering lathing ring. Provided

with both straight and angle cut

parabolic shielding cone, shipped

with angle cut version installed.

Junction Box

(7) 1/2" trade size pry outs, (3)

integral clamps for non-metallic

cable. Rated for (4) #12 thru branch

circuits. Wago® type push wire

connectors for field connections

Thermal Protector

Self-resetting thermal protector

protects against improper lamping.

Transformer

Integral dual output toroidal

magnetic transformer, 120V

50/60Hz input, 12V nominal 75VA

maximum output. Separate output

for circuits controlled by dimmers

compensates for losses in

dimmers, improves color

temperature and lumen output.

Lamp Capsule

Ceramic GX5.3 lamp holder

mounts to an aluminum heat sink

to dissipate heat. Connects to the

transformer with electrical quick

connects. Accepts 2 lenses, filters

or optional lamp snoot.

Code Compliance

Thermally protected, IP labeled,

cULus listed for damp locations

and ASTM-E283 AIRTITE(tm).

Suitable for direct contact with

insulation.

P408ICAT

MV4MR

E4RPIN

50W MR16

Tungsten-Halogen

2 Inch Square Dowlight

2“

(51mm)

5-3/4“

(146mm)

ENERGY DATA

Lamp Wattage Input Power Input Current

(Nominal) (Watts) (Amps)

20 21 0.17

35 37 .031

37 39 0.32

42 44 0.37

50 53 0.44

14-9/16”

(369mm)

8-1/2”

(216mm)

4-9/16”

(115mm)

4-5/16”

(126mm)

Cutout=5-3/16”

(132mm)

ORDERING INFORMATION: Complete unit consists of platform, lamp module and optical element.

P408ICAT = 4” Square

Aperture IC Housing

MV4MR = MR16

Vertical Lamp

Module, 120V Input

E4RPIN = 2” Square

Aperture Regressed

Pinhole

Optical Element

Platform Lamp Module Flange

P408ICAT MV4MR

Accessories

Blank] = Self Flanged,

Matte White Flange

RL = Rimless, Matte

White Flange

PLR4x4 = Plaster Lathing Ring

(For Use With E4PINRL Only)

RLA4x4 = Rimless Adapter

(For Use With E4PINRL Only)

LSA16 = Matte black lamp snoot accessory

L Series - Filter Media For MR16 lamps

(See Accessories specification sheet)

IRIS®

IRiS • Customer First Center • 1121 Highway 74 South • Peachtree City, GA 30269 • TEL 770.486.4800 • FAX 770.486.4801 11/16/2007 11:28:04 AM

Specifications and Dimensions subject to change without notice.

ADI070185

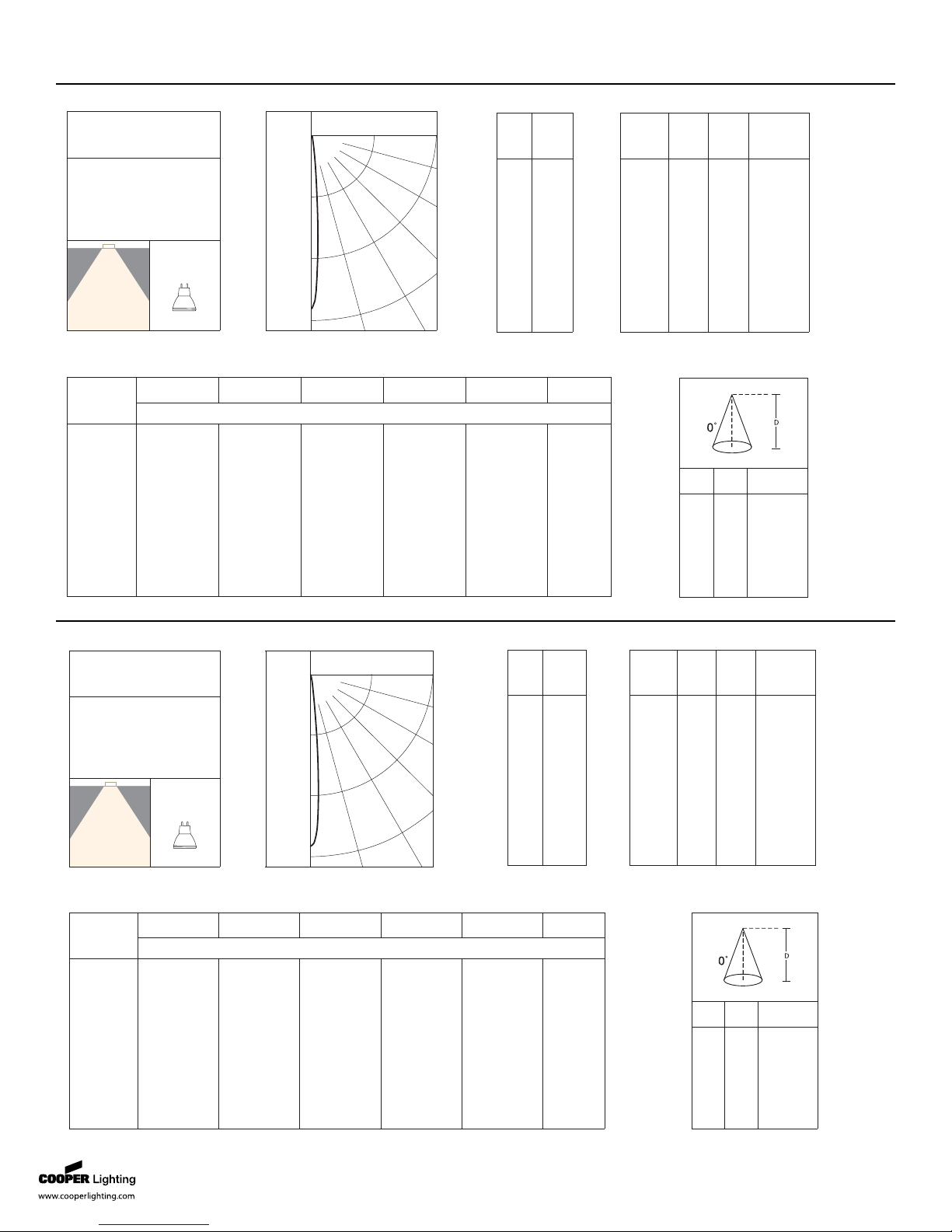

Photometrics

P408ICAT MV4MR E4RPIN

Photometric Results

Spacing Criterion = .1

Efficiency = 41.3%

Test No. P10511

Platform = P406TAT

Element = E4RPIN

Lumens = 575

Lamp = 42MR16 VNSP9

42W

MR16

Candlepower Distribution

3000

6000

9000

Downlight

45°

30°15°0°

60°

75°

90°

Cone of Light

Coefficients of Utilization

D FC Beam Dia

8'0"

9'0"

10'0"

13'0"

15'0"

131

104

1.0

1.2

1.3

1.7

2.0

Candelas

Vertical

Angle CD

112

2694

8405

Ceiling

Wall %

RCR

70 50 30 10 70 50 30 10 50 30 10 50 30 10 50 30 10 0

Zonal cavity method -- floor reflectance = 20%

49 49 49 49

48 47 47 46

47 46 45 44

46 45 44 43

45 44 43 42

45 43 42 41

44 42 41 40

43 42 40 40

43 41 40 39

42 41 40 39

42 40 39 39

48 48 48 48

47 46 46 45

46 45 44 44

45 44 43 42

45 43 42 41

44 43 41 41

43 42 41 40

43 41 40 40

43 41 40 39

42 40 39 39

42 40 39 38

46 46 46

45 44 44

44 43 43

43 42 42

42 42 41

42 41 40

41 41 40

41 40 39

40 39 39

40 39 38

44 44 44

43 43 43

43 42 42

42 42 41

42 41 41

41 41 40

41 40 40

41 40 39

40 39 39

40 39 38

42 42 42

42 42 41

42 41 41

41 41 41

41 41 40

41 40 40

41 40 39

40 40 39

40 39 39

39 39 38

Zonal Lumens Summary

Zone Lumens % Lamp % Luminaire

0- 30

0- 40

0- 60

0- 90

90-180

0-180

234

237

40.8

41.3

98.8

100

Photometric Results

Spacing Criterion = .2

Efficiency = 39.8%

Test No. P10535

Platform = P406TAT

Element = E4RPIN

Lumens = 1320

Lamp = 50MR16 IR SP10

50W

MR16

Candlepower Distribution

4000

8000

12000

Downlight

45°

30°15°0°

60°

75°

90°

Cone of Light

Coefficients of Utilization

D FC Beam Dia

8'0"

9'0"

10'0"

13'0"

15'0"

177

140

113

1.3

1.5

1.6

2.1

2.5

Candelas

Vertical

Angle CD

360

5711

11325

Ceiling

Wall %

RCR

70 50 30 10 70 50 30 10 50 30 10 50 30 10 50 30 10 0

Zonal cavity method -- floor reflectance = 20%

47 47 47 47

46 46 45 44

45 44 43 42

44 43 42 41

43 42 40 40

42 41 39 39

42 40 39 38

41 39 38 37

40 39 37 37

40 38 37 36

39 38 36 36

46 46 46 46

45 45 44 44

44 43 42 42

43 42 41 40

43 41 40 39

42 40 39 38

41 40 39 38

41 39 38 37

40 38 37 37

40 38 37 36

39 37 36 36

44 44 44

43 43 42

42 41 41

41 40 40

40 40 39

40 39 38

39 38 37

38 37 36

37 36 36

42 42 42

42 41 41

41 40 40

40 40 39

40 39 38

39 38 38

39 38 37

38 37 37

38 37 36

37 36 36

37 36 35

41 41 41

40 40 40

40 40 39

40 39 39

39 39 38

39 38 38

38 38 37

38 37 37

38 37 36

37 36 36

37 36 35

Zonal Lumens Summary

Zone Lumens % Lamp % Luminaire

0- 30

0- 40

0- 60

0- 90

90-180

0-180

517

525

526

39.2

39.8

98.4

99.9

100
