Catalog #

Project

Comments

Prepared by

Type

Date

SPECIFICATION FEATURES

04/03/2007 1:25:04 PM

Consult your representative for additional options and finishes.

Specifications and Dimensions subject to change without notice.

ADC041665

LAMP CONFIGURATIONS

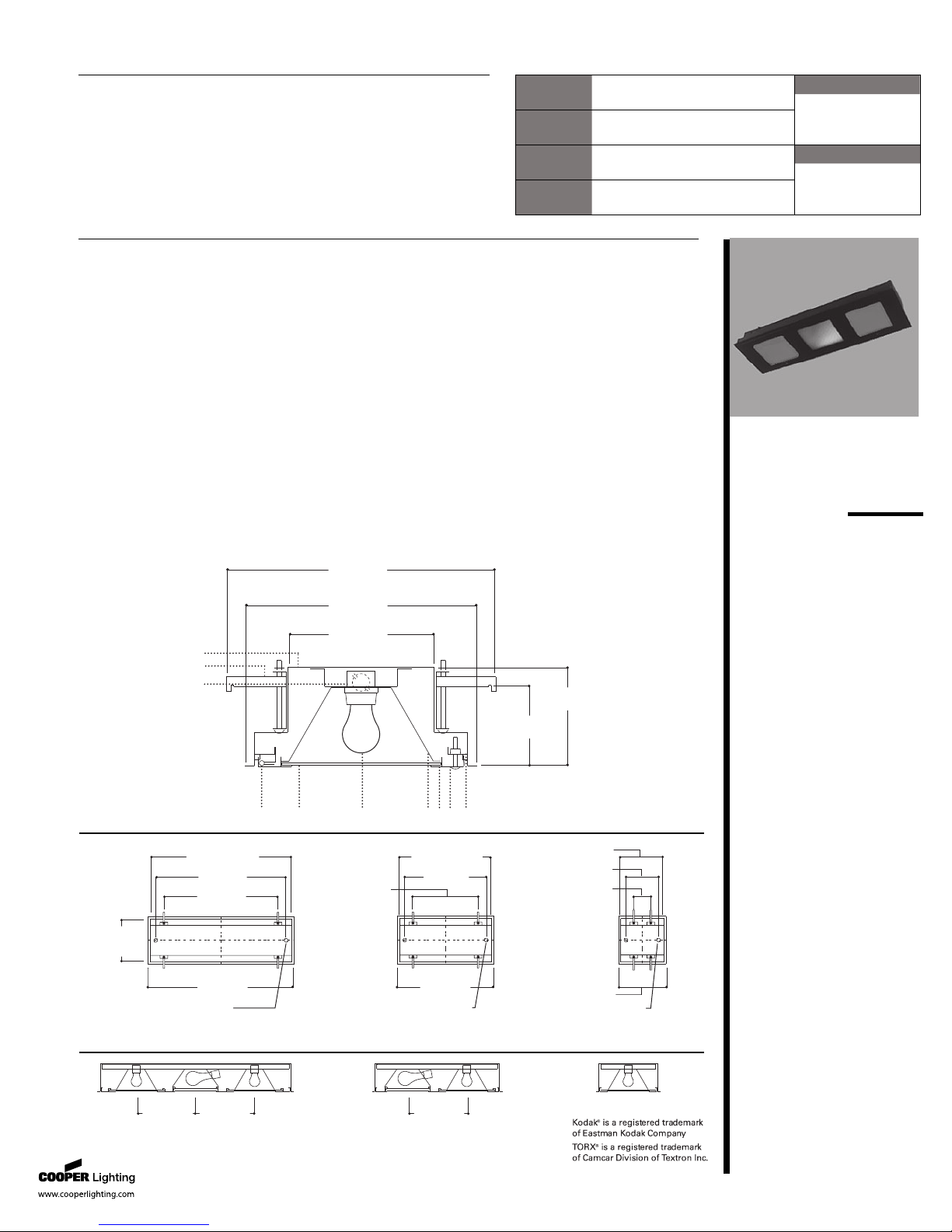

MOUNTING DIMENSIONS

DESCRIPTION

Fail-Safe's DRR-F Series is part of the Dark Room Safelights product line.

These energy efficient, durable luminaires feature a die formed 20 gauge

housing and door with integral lens/filter retainers, prismatic tempered

glass lamp diffuser with up to (2) Kodak® dark room safelight filters, and a

smooth black polyester powder coat finish. Gasketing surrounds the door

frame and filter reflector(s) to prevent light leaks. Adjustable swing hangers

are used for mounting.

The DRR-F Series is ideal for areas which require a filtered light source such

as photo processing labs, medical x-ray processing centers and graphics

printing pre-press applications.

A ... Shielding/Filter(s)

Crystal 73 pattern prismatic

tempered glass or glass fresnel

task lamp diffuser. Choice of up to

two (2) Kodak® dark room

safelight filters. See Filter

Applications chart and Ordering

Information.

B ... Fasteners

Two captive Phillips-head screws

standard. Tamperproof TORX®

screws are optional.

C ... Hinge

Concealed continuous piano hinge.

D ... Housing/Finish

Die-formed 20 ga. CRS housing. All

spot welded construction. Satin

black

D ... Housing/Finish Cont.

polyester powder coat finish over a

seven stage pre-treatment.

Hardness: 2H; Salt Spray: 500

Hours.

E ... Door Frame

One-piece die formed 20 ga. CRS

door with integral lens/filter

retainer brackets. Finish to match

housing. Stainless steel door

optional.

F ... Lamps

(By Others)

G ... Electrical

Porcelain socket(s), copper

screwshell, silicone braid, 150°C

wiring.

H ... Reflector(s)

Die formed 20 ga. CRS. All spot

welded construction. (Filter

reflector features one-piece seam

welding.) White polyester powder

coat finish over seven-stage

pre-treatment. Gloss: 85%;

Reflectance: 93%; Hardness: 2H;

Salt Spray: 500 Hours.

I ... Light Mask

Door frame and filter reflector(s)

are surrounded by gasketing to

prevent light leaks.

J ... Mounting

Four (4) adjustable swing hangers

secure fixture to ceiling.

Labels

U.L. listed, C.S.A. certified,

standard damp label.

DRR-F

15W & 200W

Incandescent

DARK ROOM

SAFELIGHT

RECESSED FLANGE

EHFA

10 3/4"

[273mm]

13 9/16"

[344mm]

11 11/16"

[297mm]

4 15/16"

[125mm]

4" [102mm] Max.

1 5/8" [41mm] Min.

E N E R G Y D ATA

Input Watts:

(1) 15W incandescent: 15W

(1) 15W & (1) 200W Incand.: 215W

(2) 15W & (1) 200W Incand.: 230W

10 3/4"

[273mm]

10 3/4"

[273mm]

10 3/4"

[273mm]

35" [899mm]

Ceiling Cut-Out

32"

[813mm]

28"

[711mm]

23" [584mm]

Ceiling Cut-Out

20"

[508mm]

16"

[406mm] 4 3/16"

[106mm]

[203mm]

11" [279mm]

Ceiling Cut-Out

11" [279mm]

Ceiling

Cut-Out

35 11/16"

[906mm]

(4) 7/8” Dia.

Knock Outs

23 11/16"

[602mm] 11 11/16"

[297mm]

(4) 7/8” Dia.

Knock Outs

(4) 7/8” Dia.

Knock Outs

FAIL-SAFE®

Fail-Safe • Customer First Center • 1121 Highway 74 South • Peachtree City, GA 30269 • TEL 770.486.4800 • FAX 770.486.4801 04/03/2007 1:25:04 PM

Specifications and Dimensions subject to change without notice.

ADC041665

FILTER APPLICATIONS (3)

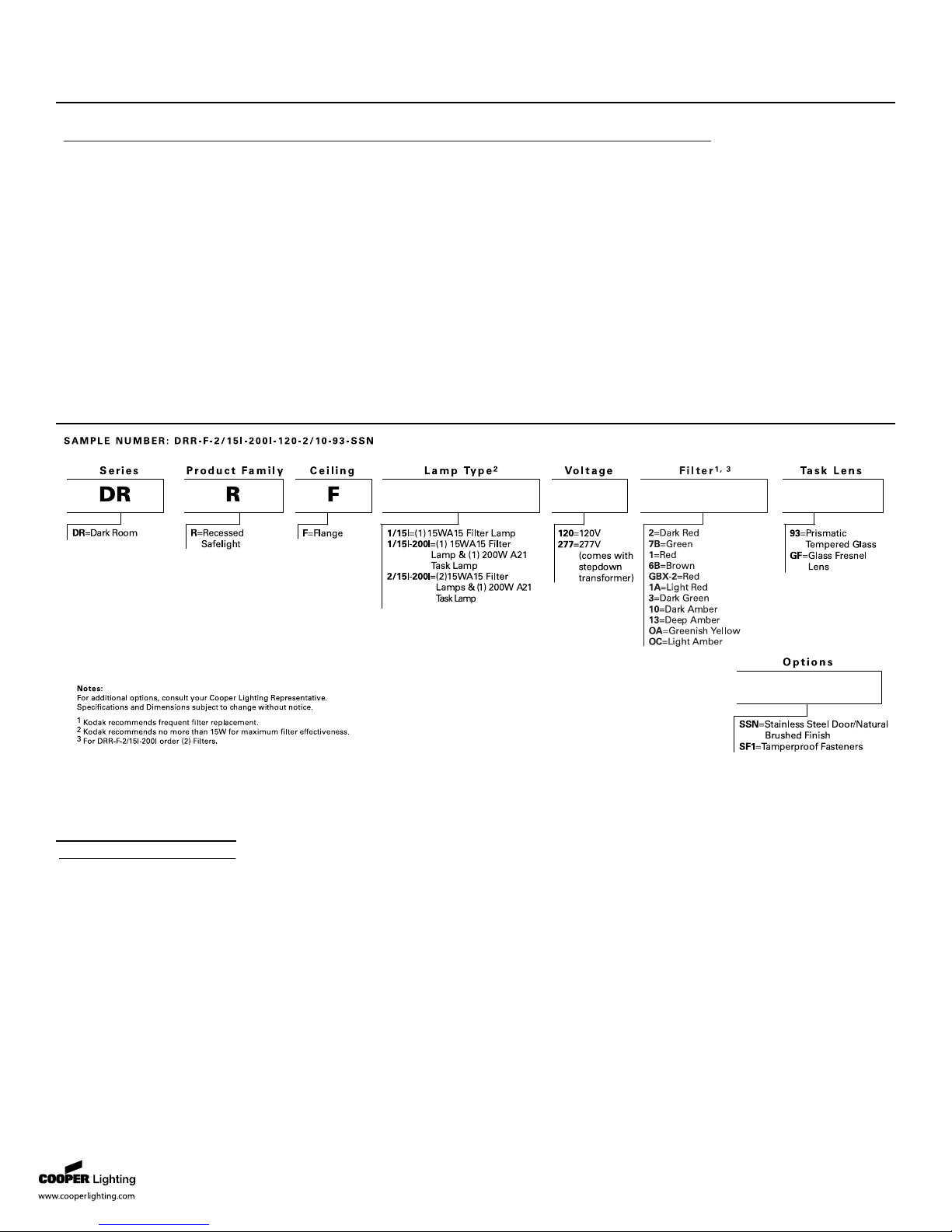

ORDERING INFORMATION

SHIPPING INFORMATION

DRR-F

Ordering

Code Color Application/Usage

2 Dark Red Fast orthochromatic materials, green-sensitive X-ray films

7B Green Infrared films

1 Red Blue-sensitive materials and most phototypesetting materials

6B Brown Blue-sensitive X-ray films

GBX-2 Red Most blue-sensitive X-ray films, most green-sensitive medical X-ray films

1A Light Red Slow orthochromatic materials

3 Dark Green Some panchromatic materials

10 Dark Amber Color negative papers, materials, panchromatic black-and-white papers

13 Deep Amber Color negative papers, panchromatic black-and-white papers

OA Greenish Yellow Black-and-white contact and duplicating materials, projection films

OC Light Amber Contact and enlarging papers

Catalog Number Weight

DRR-F-1/15I 13 lbs.

DRR-F-1/15I-200I 22 lbs.

DRR-F-2/15I-200I 30 lbs.
