1Fold in tabs for corresponding
mounting method.
1Remove Top Lens and Reector
2Using provided Hardware secure xtures to MOUNTING BRACKET,
and connect xtures together as shown.
3Re-Install Reector and Top Lens
2
3
Fold Tab A if xture to be joined to another xture (row).
Make electrical connections and tuck wires into wire cavity
prior to hanging xture on mounting bracket.
#10-32 Screw
Hardware should be positioned
at bottom of keyhole slot and
tightened securely.
#10-32 Nut
#10 Star Washer
Fold Tabs B and C if xture to be mounted as single unit
or if xture is at end of row.
See Page 1 Mounting Bracket Specications and Dimensions.
INSTALLING FIXTURES
ROW MOUNTING
WALL LED Luminaire
INSTALLATION
JAYLUM
ADE130028
REFLECTOR
TOP LENS
A
B
C
Wire xture to requirements following all
National and Local Electrical Codes.
Tuck wires back into xture.
Hang Fixture on MOUNTING BRACKET
and secure with included fasteners.
Pull wires from J-Box thru end of xture
for easy wiring while xture is hanging.
WALL LED Luminaire

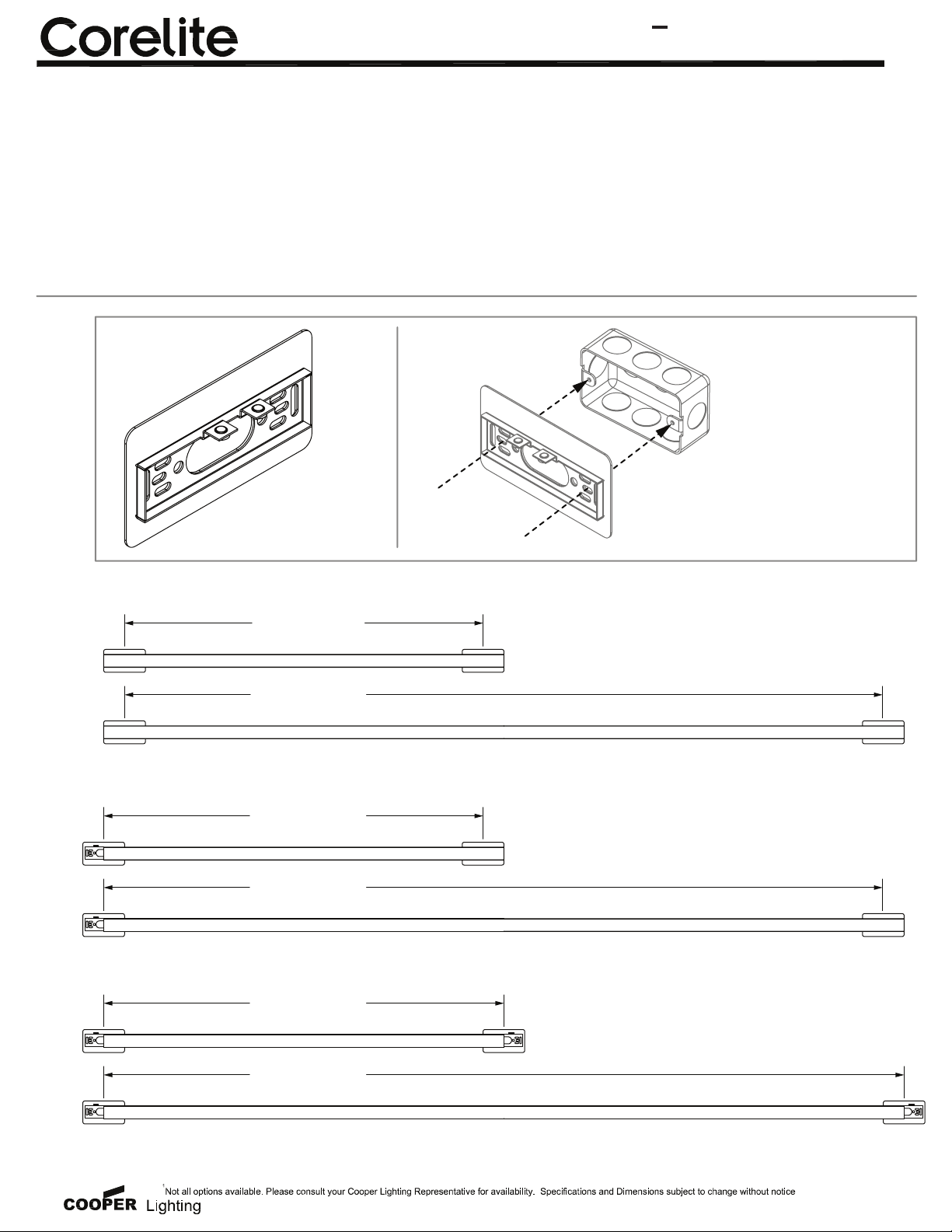

MOUNTING BRACKET
USE ONLY HORIZONTALLY
MOUNTED 2x4” J-BOXES (by others)
AT POWER LOCATIONS.
MOUNT NON-POWER LOCATION
BRACKETS TO STRUCTURE.
INSTALLATION OF MOUNTING BRACKETS
SAVE THESE INSTRUCTIONS
INSTALLATION
JAYLUM
ADE130028
WARNINGS
1) WARNING! – Risk of Fire/Electric Shock. Disconnect power at fuse or circuit breaker before installing or servicing.
2) WARNING! – Risk of Fire/Electric Shock. If not qualifiied, consult an electrician.
3) WARNING! – Avoid contact with LED modules.
NOTES
1) NOTE! – This product must be installed in accordance with local/ national electrical codes.
2) NOTE! – Only those open holes indicated in the photographs and/or drawings may be made or altered as a result of kit installation. Do not leave any other open holes in an
enclosure of wiring or electrical components.
3) NOTE! – To prevent wiring damage or abrasion, do not expose wiring to edges of sheet metal or any sharp objects.
4) NOTE! – Disconnect all power before proceeding.
Mounting For Single Fixture
Mounting For Beginning or End Of Row
END
4’
8’
4’
8’
4’
8’
END
43.0” [1092 mm]
91.0” [2311 mm]
45.5” [1156 mm]
93.5” [2375 mm]
Mounting For Middle Of Row
48.0” [1219 mm]
96.0” [2438 mm]
2
1
1
2
3
3
Install provided fasteners fully, then back out 1/4 turn.
Loosen or Tighten as necessary to ensure a
tight t when END CAP is installed.
Fit END CAP fasteners into KEYHOLE SLOTS.
- THIS SPACE INTENTIONALLY LEFT BLANK -
END CAP
INSTALLING END CAPS
WALL LED Luminaire
INSTALLATION
JAYLUM
ADE130028
KEYHOLE SLOTS
SUPPORT FIXTURE
Press END CAP downward to snap into position.
Ensure xture is securely supported while
installing END CAP.
