CoolAutomation CLOUDBOX Manuel utilisateur
CLOUDBOX
HVAC Bridge
Version 0.0.8
Quick Installation Guide
2
Warning
Read these Safety Precautions carefully to ensure correct installation.
WARNING
This manual classies precautions into WARNING and CAUTION.
Only qualied personnel must carry out the installation work.
Ask your dealer or technical representative to install the unit.
Any deciency caused by your own installation may result in an electric shock or re.
All electrical work must be performed by a licensed technician, according to local regulations and in
accordance with the instructions in the installation manual.
Any lack of electric circuit or any deciency caused by installation may result in an electric shock or re.
Do not relocate or reinstall the CLOUDBOX by yourself.
Any deciency caused by your own re-installation may result in an electric shock or re.
Make sure that all wiring is secured, that specied wires are used and that no external forces act on terminal
connections or wires. Improper wiring connections or installation may produce heat and result in re.
Before touching electrical parts, turn off the unit.
To dispose of this product, consult your dealer.
•
•
•
•
•
•
•
•
•
•
Failure to follow WARNING is very likely to result in such grave
consequences as death or serious injury
3
Caution
CAUTION
Do not allow children to play with the CLOUDBOX and supervise them not to get access to the appliance.
CLOUDBOX is not to be used by persons with reduced physical, sensory or mental capabilities,
or lack of experience and knowledge.
Do not disassemble, modify or repair the CLOUDBOX.
Any deciency caused by your modication or repair may result in an electric shock or re.
Never let the CLOUDBOX to get wet.
Water can cause damage to the CLOUDBOX, and may cause an electric shock or re.
Do not use ammable materials (e.g. hairspray or insecticide) near the CLOUDBOX.
Do not clean the CLOUDBOX with organic solvents such as paint thinner. The use of organic
solvents may cause cracking, damaging the CLOUDBOX, causing electrical shock or re.
Do not apply AC110V or AC220V to the CLOUDBOX. The maximum voltage that can be applied to the unit directly
is 24V DC.
If damaged CLOUDBOX can generate heat and cause a re.
•
•
•
•
•
•
•
•
•
•
Failure to follow CAUTION may result in serious injury or property damage,
and in certain circumstances, may result in a grave onsequence.
4
Caution
DO NOT INSTALL THE COOLMASTERNET IN THE FOLLOWING LOCATIONS:
Where a mineral oil mist or oil spray or vapor is produced, for example, in a kitchen. Plastic parts may deteriorate
and fall off or result in water leakage.
Where corrosive gas, such as sulfurous acid gas, is produced.
Near machinery emitting electromagnetic waves. Electromagnetic waves may disturb the operation of the
CLOUDBOX and cause the unit to malfunction.
Where ammable gas may leak, where there is carbon ber or ignitable dust suspensions in the air, or where volatile
ammable such as thinner or gasoline are handle Operating the CLOUDBOX in such conditions can cause a re.
High temperature area or directly amed point. Heating and/or re can occur.
Moist area, where there is exposure to water. If water enters the inside of the CLOUDBOX, it may cause electric
shock and electrical components may fail.
a)
b)
c)
d)
e)
f)
Failure to follow CAUTION may result in serious injury or property damage,
and in certain circumstances, may result in a grave consequence.
5
HVAC LG VRF
HVAC Midea VRF
HVAC Samsung VRF
Contents
HVAC Daikin VRV
HVAC Mitsubishi Electric VRF
HVAC Toshiba VRF
HVAC Hitachi VRF
HVAC Haier VRF
Warning
Caution
Contents
What's in the box
CloudBox
Precongured CloudBox
HVAC Line conguration
L1
L7
10
11
13
12
14
15
16
17
2
3
6
7
8
5
9
L8 HVAC Gree GMV5, GMV6 (Gree) VRF
HVAC Fujitsu VRF
18
19
CloudBox installation complete
How to change the brand of a specic line
Connect to CoolAutomation Cloud Apps
Power Supply
Mounting on DIN rail
Mounting on a wall
Online documentation and Support
20
25
22
27
21
26
24
6

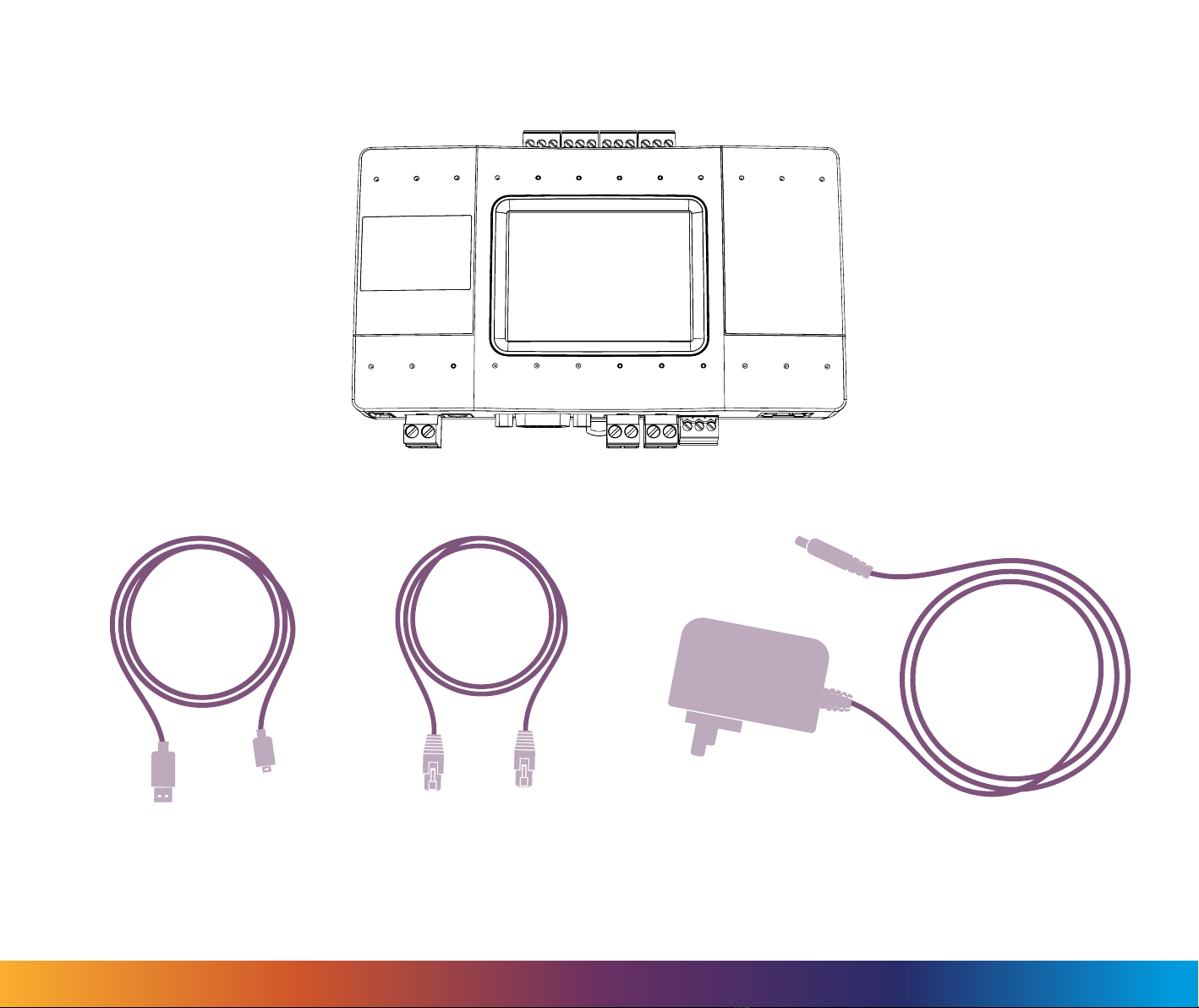

What’s in the box
CloudBox
1 USB-Mini USB
cable
1 Ethernet
cable
AC Power supply adapter
100V-240V 50/60hz to 12V
7
CloudBox
Socket
8
Precongured CloudBox
This label uniquely identies the manufacturer’s conguration of
CloudBox. Located on the back of the enclosure.
A precongured label example:
congured for LG on L7
Type label Type label with Conguration sticker
LG
LG
9
HVAC Line conguration
Conguration stickers for HVAC line L1
Conguration stickers for HVAC line L8
Conguration stickers for HVAC line L7
10
HVAC Daikin VRV
Secure the cables in the L1 line plug.
Insert the plug in to the CloudBox L1 socket.
Dip switches setup for VRV HVAC system on L1.
Daikin HVAC Terminal
HVAC outdoor connection
* Polarity is not required on the HVAC communication line.
** Centralized (group) address required.
HVAC Communication Terminals
Connecting to the line plug
Plugging to the CloudBox
Check DIP Switches are set correctly
