Safety 02

EN Before you start

These instructions are for

your safety. Please read the

following instructions carefully

before proceeding with the

installation and use of this

appliance.

WARNING: All installation

work must be carried out by

a suitably qualiﬁed person,

strictly following local

building regulations and these

instructions.

WARNING: Read the

instructions before using the

appliance.

• To avoid the risks that are

always present when you use

an electrical appliance it is

important that this electric

hob is installed correctly

and that you read the safety

instructions carefully to

avoid misuse and hazards.

After unpacking the electric

hob please check that it is

not damaged. If in doubt, do

not use the appliance but

contact Customer Services

on 0800 324 7818 (UK) and

1-800932230 (Eire).

• Check the package and make

sure you have all of the parts

listed and decide upon the

appropriate location for your

product.

• If this product contains

glass please take care with

ﬁtting or handing to prevent

personal injury or damage to

the product.

• The speciﬁcation plate shown

on this appliance displays all

the necessary identiﬁcation

information for ordering

replacement parts.

• If you sell the appliance, give

it away, or leave it behind

when you move house, please

ensure that you pass on this

manual so that the new owner

can become familiar with

the appliance and its safety

warnings.

Safety

WARNING: Before connecting

the hob, check that the

supplied voltage and

frequency match with that

indicated on the appliance

rating plate.

211859_s1_s4-5059340186696-C&L-A5-SM-Safety-V01-Multi.indd 2

08-01-2021 16:26:44

211859_s1_s4-5059340186696-C&L-A5-SM-Safety-V01-Multi.pdf, Cycle:1, Status:Approved

Printed by Fang Yuan, 18/03/2021 03:07:15 page 3 of 76 pages

Safety 03

• Failure to install the appliance

in accordance with these

instructions may result in a

safety hazard.

• If in doubt, ask for advice

in store or from a qualiﬁed

installer.

WARNING: Consult local

regulations regarding

extraction outlets and ensure

these arecomplied with.

WARNING: This appliance

can be used by children

aged from 8 years and

above and persons with

reduced physical, sensory

or mental capabilities or

lack of experience and

knowledge if they have

been given supervision or

instruction concerning use

of the appliance in a safe

way and understand the

hazards involved. Children

shall not play with the

appliance. Cleaning and user

maintenance shall not be

made by children without

supervision. Keep the

appliance and its supply cord

out of the reach of children

less than 8yearsold.

• Do not use inappropriate child

safety shields or hob guards.

These can cause accidents.

• Do not use covers. These

can cause accidents

oroverheating and damage

tothe electric hob.

• We recommend that great

care be taken during use and

cleaning. Read the cleaning

and maintenance sections

ofthis appliance carefully.

• Risk of electric shock!

Donot use any high pressure

cleaners or steam cleaners,

which can result in an electric

shock.

• Danger of burns! Thehotplates

and surrounding area become

very hot. Never touch the hot

surfaces. When a cooking

zone has been in use, the

surface remains hot for some

time afterwards. Becareful not

to touch the hot surface and

not to place any objects on it.

• After use, switch off the hob

element its control and do not

rely on the pan detector.

211859_s1_s4-5059340186696-C&L-A5-SM-Safety-V01-Multi.indd 3

08-01-2021 16:26:44

211859_s1_s4-5059340186696-C&L-A5-SM-Safety-V01-Multi.pdf, Cycle:1, Status:Approved

Printed by Fang Yuan, 18/03/2021 03:07:15 page 4 of 76 pages

Safety 04

• Metallic objects such as

knives, forks, spoons and lids

should not be placed on the

hob surface since they can

get hot.

• Never use water to put

out burning oil or fat.

Switchoff the hotplate.

Extinguishﬂames carefully

using a ﬁre blanket.

• Risk of ﬁre! The hotplates

become very hot. Never place

combustible items on the hob.

• Never store objects on the

hob.

• Risk of ﬁre! Do not use

ﬂammable sprays in close

vicinity to the appliance.

• Risk of ﬁre! Do not store

detergents or ﬂammable

materials beneath the hob.

• This appliance is intended

for domestic use only. The

appliance must only be used

for the preparation of food

and drink.

• The appliance must be

supervised during operation.

Only use this appliance

indoors.

• The manufacturer declines

all liability for personal or

material damage as a result

of misuse or incorrect

installation of this appliance.

Please dispose of the packing

material carefully.

• Risk of injury! Saucepans may

suddenly move due to liquid

between the pan base and

the hotplate. Always keep

the hotplate and saucepan

basesdry.

WARNING: There is a risk

of electric shock and ﬁre if

cleaning is not carried out

in accordance with these

instructions.

WARNING: Use only the same

size of ﬁttings and mounting

screws as recommended

in this instruction manual.

Failure to follow these

instructions may result

inelectrical hazards.

WARNING: Switch off the

appliance at the mains supply

before carrying out any

maintenancework.

211859_s1_s4-5059340186696-C&L-A5-SM-Safety-V01-Multi.indd 4

08-01-2021 16:26:44

211859_s1_s4-5059340186696-C&L-A5-SM-Safety-V01-Multi.pdf, Cycle:1, Status:Approved

Printed by Fang Yuan, 18/03/2021 03:07:15 page 5 of 76 pages

Safety 05

WARNING: Accessible parts

may become hot when used

with cooking appliances.

Youngchildren should bekept

away. Care should be taken to

avoid touching the appliance.

WARNING: Means for full

disconnection must be

incorporated in the ﬁxed

wiring in accordance with the

local wiring installation rules

for your country. Anall-pole

disconnection switch having a

contact separation of at least

3mm in all poles should be

connected during installation.

WARNING: Only clean the

hob when it has cooled down

sufﬁciently. Whenthe power

to the cooktop is switched

off, there will be no residual

heat indication but the

cooking zone may still be hot.

Takeextreme care!

WARNING: Unattended

cooking on a hob with fat or

oil can be dangerous and may

result in ﬁre. NEVER try to

extinguish aﬁre with water,

but switch off the appliance

and then cover ﬂame e.g. with

a lid or a ﬁre blanket.

CAUTION: The cooking

process has to be supervised.

A short term cooking

process has to be supervised

continuously.

WARNING: Danger of ﬁre: do

not store items on the cooking

surfaces.

WARNING: Use only hob

guards designed by the

manufacturer ofthe cooking

appliance or indicated by the

manufacturer of the appliance

in the instructions for use

as suitable or hob guards

incorporated in the appliance.

The use ofinappropriate

guards cancause accidents.

WARNING: If the surface

is cracked, switch off the

appliance to avoid the

possibility of electric shock.

• The appliance is not intended

to be operated by means of

an external timer or separate

remote-control system.

• If the supply cord is damaged,

it must be replaced by the

manufacturer, its service

agent or similarly qualiﬁed

persons in order to avoid a

safety hazard.

211859_s1_s4-5059340186696-C&L-A5-SM-Safety-V01-Multi.indd 5

08-01-2021 16:26:44

211859_s1_s4-5059340186696-C&L-A5-SM-Safety-V01-Multi.pdf, Cycle:1, Status:Approved

Printed by Fang Yuan, 18/03/2021 03:07:15 page 6 of 76 pages

Safety 06

IMPORTANT: Heavy-duty scourers, some nylon scourers and

harsh/abrasive cleaning agents may scratch the glass. Always

read the label to check if your cleaner or scourer is suitable.

IMPORTANT: Never leave cleaning residue on the cooktop; the

glass may become stained.

IMPORTANT: Theappliance is for domestic use as a cooking

device; do not use as a source ofheat.

Installation

All installation must be carried out by a competent person

or qualiﬁed electrician. Before connecting the mains supply

ensure that the mains voltage corresponds to the voltage on the

ratingplate.

Direct connection

• The appliance must be connected directly to the mains using

an omnipolar circuit breaker with a minimum opening of 3mm

between the contacts.

• The installer must ensure that the correct electrical connection

has been made and that it complies with the wiring diagram.

• The cable must not be bent or compressed.

• Regularly check the power cord for damage.

WARNING: This is a Class I appliance and MUST be earthed.

• The appliance is supplied with a 4 core mains cable coloured as

follows:

Brown = L2

Black = L1

Blue = N or Neutral

Green and Yellow = E or Earth

211859_s1_s4-5059340186696-C&L-A5-SM-Safety-V01-Multi.indd 6

08-01-2021 16:26:44

211859_s1_s4-5059340186696-C&L-A5-SM-Safety-V01-Multi.pdf, Cycle:1, Status:Approved

Printed by Fang Yuan, 18/03/2021 03:07:15 page 7 of 76 pages

Safety 07

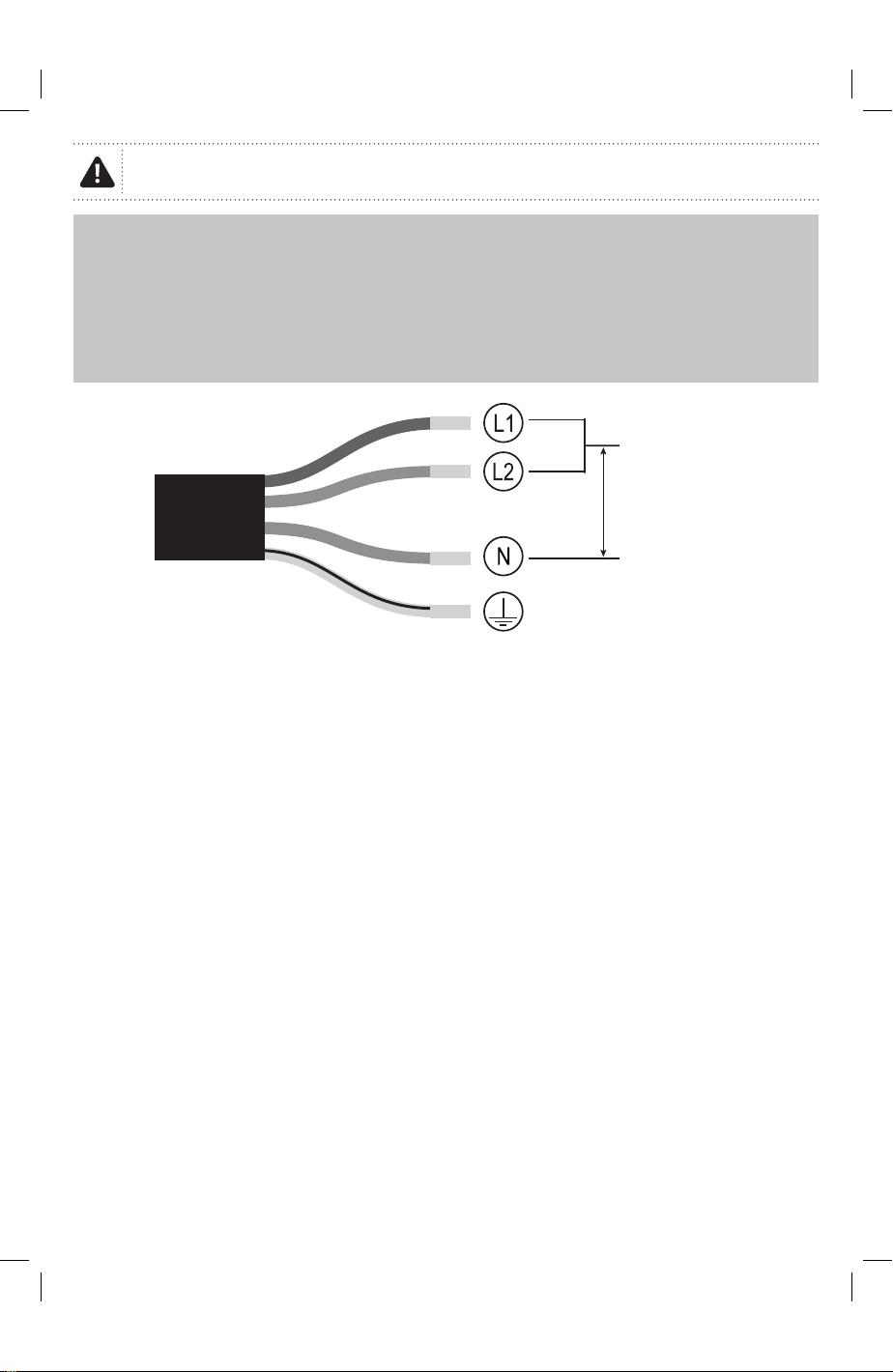

WARNING: Securely crimp the two Live cables together

(L1 and L2) before connecting them to the Live terminal of the

mains supply.

WARNING: Before obtaining access to the terminals, all supply

circuits must be disconnected.

32 A~

220-240 V~ 50Hz

This appliance should be connected directly to the consumer

unit with a 32Amp Residual Current Device (RCD) protecting its

circuit.

To avoid the risks that are always present when you use an

electrical appliance it is important that this appliance is installed

correctly and that you read the safety instructions carefully to

avoid misuse and hazards. Please keep this instruction booklet

for future reference and pass it on to any future owners. After

unpacking the appliance please check that it is not damaged. If in

doubt, do not use the appliance but contact Customer Services.

The manufacturer declines all liability for damage caused to

persons and objects due to incorrect or improper installation of

the appliance. Any permanent electrical installation must comply

with the latest wiring regulations applicable to your country and

for your own safety a qualiﬁed electrician or contractor should

undertake the electrical installation.

211859_s1_s4-5059340186696-C&L-A5-SM-Safety-V01-Multi.indd 7

08-01-2021 16:26:44

211859_s1_s4-5059340186696-C&L-A5-SM-Safety-V01-Multi.pdf, Cycle:1, Status:Approved

Printed by Fang Yuan, 18/03/2021 03:07:15 page 8 of 76 pages

Safety 08

Technical data

Supply voltage 220-240V~ 50Hz

Max. power consumption 7000W

Dimensions (W x D x H) 590 x 520 x 60mm

Symbol Value Unit

Model identiﬁcation CLCIN65

Type of hob Electric hob

Number of cooking zones and/or areas 4 zones

Heating technology (induction cooking

zones and cooking areas, radiant cooking

zones, solid plates)

Induction cooking areas

For circular cooking zones or area:

diameter of useful surface area per

electric heated cooking zone, rounded to

the nearest 5mm.

Ø Front left zone: 21

Rear left zone: 16

Rear right zone: 21

Front right zone: 16

For non-circular cooking zones or areas:

length and width of useful surface area

per electric heated cooking zone or area,

rounded to the nearest 5mm

L, W - cm

Energy consumption per cooking zone or

area calculated per kg EC

electric

cooking

Front left zone: 204.2

Rear left zone: 187.5

Front right zone: 185.3

Rear right zone: 187.9

Wh/ kg

Energy consumption for the hob EC

electric hob

191.2 Wh/ kg

The measurement and calculation method of the above table was done in accordance with Commission

Regulation (EN) No 66/2014.

211859_s1_s4-5059340186696-C&L-A5-SM-Safety-V01-Multi.indd 8

08-01-2021 16:26:44

211859_s1_s4-5059340186696-C&L-A5-SM-Safety-V01-Multi.pdf, Cycle:1, Status:Approved

Printed by Fang Yuan, 18/03/2021 03:07:15 page 9 of 76 pages

Safety 09

Troubleshooting

Problem Possible cause Solution

The induction hob cannot be

turned on. No power. Make sure the induction hob is

connected to the power supply and

that it is switched on.

Check whether there is a power

outage in your home or area. If

you’ve checked everything and

the problem persists, contact the

Customer Service helpline shown in

this manual.

The touch controls are

unresponsive. The controls are locked. Unlock the controls. See the section

‘Using your induction hob’ for details.

The touch controls are

difﬁcult to operate. There may be a slight ﬁlm of

water over the controls or

you may be using the tip of

your ﬁnger when touching the

controls.

Make sure the touch control area is

dry and use the ball of your ﬁnger

when touching the controls.

The glass is being scratched. Rough-edged cookware. Use cookware with ﬂat and smooth

bases. See ‘Choosing the right

cookware’.

Unsuitable, abrasive scourer or

cleaning products are being used. See ‘Care and maintenance’.

Some pans make crackling or

clicking noises. This may be caused by the

construction of your cookware

(layers of different metals

vibrating differently).

This is normal for cookware and

does not indicate a fault.

The induction hob makes a

low humming noise when

used on a high heat setting.

This is caused by the technology

of induction cooking. This is normal, but the noise

should quieten down or disappear

completely when you decrease the

heat setting.

Fan noise coming from the

induction hob. A cooling fan built into your

induction hob has come on to

prevent the electronics from

overheating. It may continue to

run even after you’ve turned the

induction hob off.

This is normal and needs no action.

Do not switch the power to the

induction hob off at the wall while

the fan is running.

Pans do not become hot and

“u” ﬂashes on the display. The induction hob cannot detect

the pan because it is not suitable

for induction cooking.

Use cookware suitable for induction

cooking. See the section ‘Cookware’

in the instructions.

The induction hob cannot detect

the pan because it is too small for

the cooking zone or not properly

centred on it.

Centre the pan and make sure that

its base matches the size of the

cooking zone.

211859_s1_s4-5059340186696-C&L-A5-SM-Safety-V01-Multi.indd 9

08-01-2021 16:26:44

211859_s1_s4-5059340186696-C&L-A5-SM-Safety-V01-Multi.pdf, Cycle:1, Status:Approved

Printed by Fang Yuan, 18/03/2021 03:07:15 page 10 of 76 pages

Autres manuels pour CLCIN65

Ce manuel convient aux modèles suivants

Table des matières

Langues :

Autres manuels Cooke & Lewis hotte de ventilation

Cooke & Lewis

Cooke & Lewis CLVHS50a Manuel utilisateur

Cooke & Lewis

Cooke & Lewis CLCHS70 Manuel utilisateur

Cooke & Lewis

Cooke & Lewis CLTHW60 Manuel utilisateur

Cooke & Lewis

Cooke & Lewis CLDHB90 Manuel utilisateur

Cooke & Lewis

Cooke & Lewis CHW60 Manuel utilisateur

Cooke & Lewis

Cooke & Lewis CLCGLEDS60 Manuel utilisateur

Cooke & Lewis

Cooke & Lewis CLCHB100 Manuel utilisateur

Cooke & Lewis

Cooke & Lewis CLCG60RF Manuel utilisateur

Cooke & Lewis

Cooke & Lewis VHS50 Manuel utilisateur

Cooke & Lewis

Cooke & Lewis PCG60 Manuel utilisateur

Cooke & Lewis

Cooke & Lewis MAKONDA 3663602527435 Manuel utilisateur

Cooke & Lewis

Cooke & Lewis CLTHW60 Manuel utilisateur

Cooke & Lewis

Cooke & Lewis CHS50 Manuel utilisateur

Cooke & Lewis

Cooke & Lewis GIHD90SS Manuel utilisateur

Cooke & Lewis

Cooke & Lewis CLCHB110 Manuel utilisateur

Cooke & Lewis

Cooke & Lewis CLCH60SS-C Manuel utilisateur

Cooke & Lewis

Cooke & Lewis 5052931055791 Manuel utilisateur

Cooke & Lewis

Cooke & Lewis CLIBHS90 Manuel utilisateur

Cooke & Lewis

Cooke & Lewis CLVHS50 Manuel utilisateur

Cooke & Lewis

Cooke & Lewis CLDHB90 Manuel utilisateur

Cooke & Lewis

Cooke & Lewis CLCGLEDB60 Manuel utilisateur

Cooke & Lewis

Cooke & Lewis CLBHS60 Manuel utilisateur

Cooke & Lewis

Cooke & Lewis CLCER90a Manuel utilisateur

Cooke & Lewis

Cooke & Lewis CLTHS50 Manuel utilisateur

Manuels hotte de ventilation populaires d'autres marques

emmeti

emmeti RECUPA MED A-140 Mode d’emploi

Nibe

Nibe F135 Manuel utilisateur

Kuppersberg

Kuppersberg INTRO 60 Instructions d'installation et d'entretien

Zephyr

Zephyr Spruce AK9834BS Guide d'installation

Hisense

Hisense MH6INBG Manuel utilisateur

Miele

Miele DA 1255 Manuel utilisateur

Broan

Broan 46000 Manuel utilisateur

GE Profile PV977 Instructions originales

FALMEC

FALMEC FFRIA24W5FS Manuel utilisateur

Whirlpool

Whirlpool RH2600XL-1 SERIES Manuel utilisateur

Küppersbusch

Küppersbusch DX ISLA Manuel utilisateur

ETNA

ETNA AV360RVS Manuel utilisateur

JUNO

JUNO JDF603E6 Manuel utilisateur

Miele

Miele DA 6708 D Manuel utilisateur

Tricity Bendix

Tricity Bendix LE 150 Manuel

AEG

AEG X68163BV1 Manuel utilisateur

AEG

AEG 125 D Manuel utilisateur

Smeg

Smeg KSEV97X Manuel utilisateur
