Repair Guide: SD One MF 1

Touch Screen Control Panel

Symptoms: Touchscreen panel non-responsive

Tools Required: T6 Torx Screwdriver

Prerequisites

Switch power off.

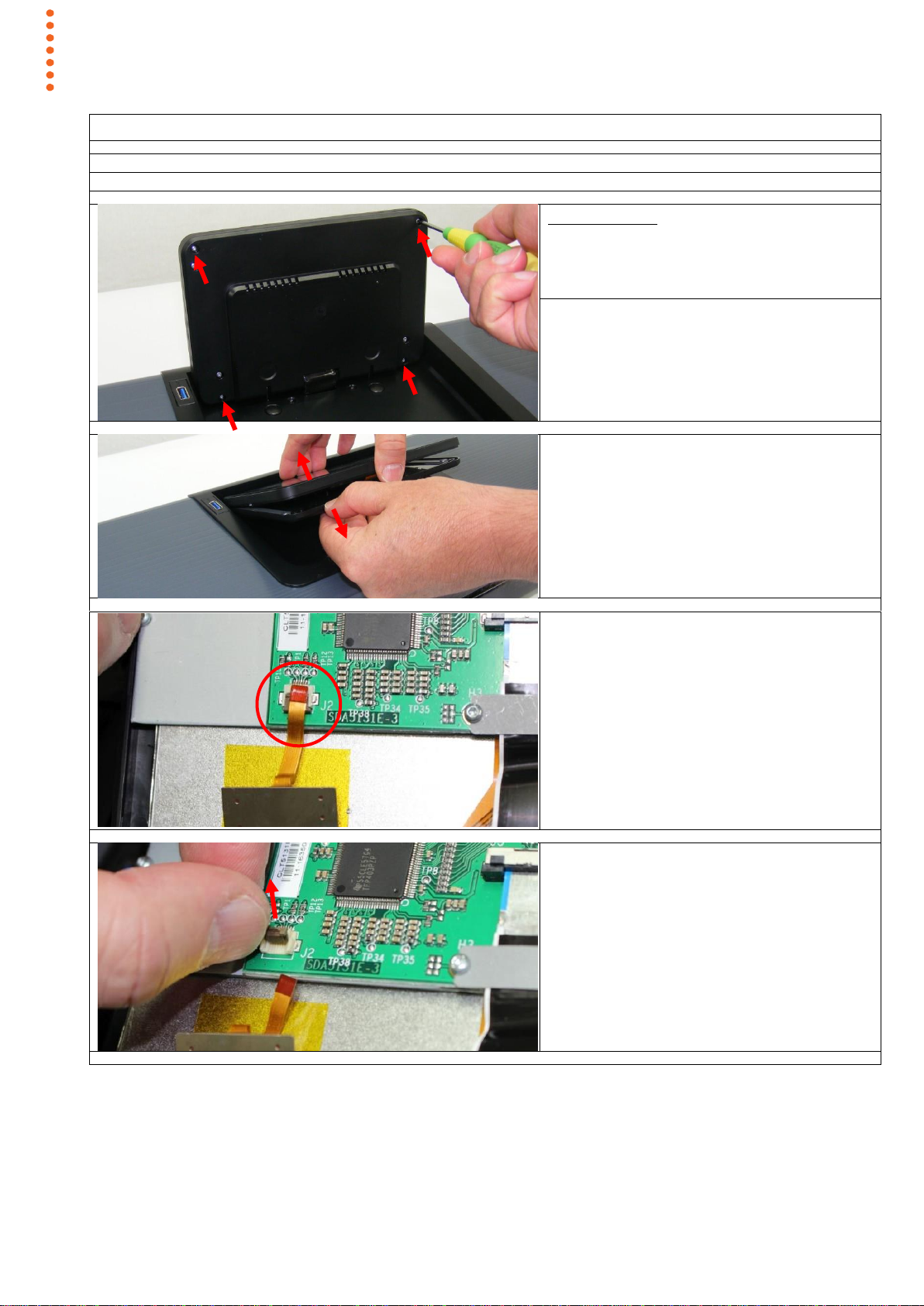

1. Lift the LCD Touch Screen up,

and remove the 4 corner (T6)

screws.

2. Separate the Touch Screen

display from the rear cover.

3. On opening, the touchscreen

flat cable has become loose

from the connector, so is either

not in the connector, or can be

pulled out very easily without

opening the connector.

4. Gently lift the locking plate of

the connector. Using your

fingernail should be sufficient for

this, as using a screwdriver

could damage the tiny

connector.

Repair Guide: SD One MF 2

5. Fit the touchscreen flat cable, so

that it fits inside the groove of

the connector centrally.

6. Press the locking plate of the

connector down until it locks in

place, securing the cable.

7. Clip the touchscreen and rear

panel back together and replace

the 4 x T6 screws

If this fails to repair the non-responsive touchscreen, then replace the Touch Screen Module (incl. SDAA Board)

(p/n: 2853D131) itself.

More information in the SD One MF service guide found in the restricted support site on www.contex.com
