Conel UR5 v2 Manuel utilisateur

UMTS router

UR5 v2

and

UR5 v2 SL

USER’S GUIDE

OBSAH

Contents

Safety instruction 5

Description of the router 6

2.1.

Introduction 6

2.2.

UMTS technology 7

2.3.

HSDPA technology (High Speed Download Packet Access) 7

2.4.

Delivery Identification 8

2.5.

Antenna Connection 9

2.6.

SIM Card Reader 10

2.7.

Power Supply 10

2.8.

Technical parameters 10

2.9.

Description of the individual components of the router 11

2.9.1.

UMTS module 11

2.9.2.

Control microcomputer 11

2.10.

User interfaces (Connectors) 12

2.10.1.

Connection of the PWR Supply Connector 13

2.10.2.

Connection of binary input and output 13

2.10.3.

Connection of the Port1 Connector – RS232 14

2.10.4.

Connection of the Port1 Connector – RS485 15

2.10.5.

Connection of the Port1 Connector – RS422 16

2.10.6.

Connection of the Port1 Connector – M-BUSD 17

2.10.7.

Connection of the Port1 Connector – CNT 18

2.10.8.

Connection of the ETH Connector 19

2.10.9.

Connection of the Connector USB 19

2.11.

Technical specification of optional PORT1 and PORT2 20

2.12.

Technical specification of I/O port 24

2.13.

Modem status indication 24

2.14.

Putting into operation 25

2.15.

Mechanical external dimensions and mounting recommendations 25

Expansion port mounting 29

3.1.

Expansion port mounting for UR5 v2 29

3.2.

Expansion port mounting for UR5 v2 SL 31

Changing the SIM cards 33

Ordering code routers 34

5.1.

Basic version 34

5.2.

Full version 34

Configuration settings over web browser 35

6.1.

Network Status 36

6.2.

DHCP Status 37

6.3.

UMTS/GPRS Status 37

6.4.

IPsec status 38

6.5.

DynDNS status 39

6.6.

System Log 39

6.7.

LAN Configuration 40

6.8.

VRRP Configuration 44

6.9.

UMTS/GPRS Configuration 46

6.10.

Firewall Configuration 49

6.11.

NAT Configuration 51

6.12.

OpenVPN Tunnel Configuration 54

CONTENTS

3 - 3 - 16.5.2011

6.13.

IPSec Tunnel Configuration 57

6.14.

GRE Tunnels Configuration 59

6.15.

L2TP Configuration 61

6.16.

DynDNS Client Configuration 63

6.17.

NTP Client Configuration 64

6.18.

SNMP Configuration 64

6.19.

SMTP Configuration 66

6.20.

SMS Configuration 67

6.21.

Expansion Port Configuration 75

6.22.

USB Port Configuration 76

6.23.

Startup Script 78

6.24.

Up/Down Script 79

6.25.

Automatic update configuration 79

6.26.

Change profile 80

6.27.

Change password 81

6.28.

Set real time clock 81

6.29.

Set SMS service center address 81

6.30.

Unlock SIM card 81

6.31.

Send SMS 82

6.32.

Backup Configuration 82

6.33.

Restore Configuration 82

6.34.

Update firmware 83

6.35.

Reboot 83

6.36.

Default settings 84

6.36.1.

LAN Configuration 84

6.36.2.

VRRP Configuration 85

6.36.3.

Firewall Configuration 85

6.36.4.

UMTS/GPRS Configuration 86

6.36.5.

NAT Configuration 87

6.36.6.

OpenVPN Tunnel Configuration 88

6.36.7.

IPsec Tunnel Configuration 89

6.36.8.

GRE Tunnels Configuration 90

6.36.9.

L2TP Tunnel Configuration 90

6.36.10.

DynDNS Configuration 90

6.36.11.

NTP Configuration 91

6.36.12.

SNMP Configuration 91

6.36.13.

SMTP Configuration 91

6.36.14.

SMS Configuration 92

6.36.15.

Expansion Port Configuration 93

6.36.16.

USB Port Configuration 93

6.36.17.

Startup script 94

6.36.18.

Up/Down Script 94

6.36.19.

Automatic update 95

Configuration setting over Telnet 96

Possible problems 97

Reference 97

10.

FAQ 97

11.

Customers support 98

12.

Product disposal instructions 99

13.

Guarantee Claim Guidelines 100

14.

Guarantee certificate 103

CONTENTS

4 - 4 - 16.5.2011

Symbols used

Danger – important notice, which may have an influence on the user’s safety or the function

of the device.

Attention – notice on possible problems, which can arise in specific cases.

Information, notice – information, which contains useful advice or special interest.

GPL licence

Source codes under GPL licence are available free of charge by sending an email

to [email protected].

Conel s.r.o., Sokolska 71, 562 04 Usti nad Orlici, Czech Republic

Issue in CZ, 5/16/2011

Declared quality system

ISO 9001

SAFETY INSTRUCTION

1. Safety instruction

Please, observe the following instructions:

•The communication module must be used in compliance with all applicable international

and national laws and in compliance with any special restrictions regulating the utilization

of the communication module in prescribed applications and environments.

•To prevent possible injury to health and damage to appliances and to ensure that all

the relevant provisions have been complied with, use only the original accessories.

Unauthorised modifications or utilization of accessories that have not been approved may

result in damage to the communication module and in a breach of applicable regulations.

Unauthorized modifications or utilization of accessories that have not been approved may

result in the termination of the validity of the guarantee.

•The communication module must not be opened.

•Caution! The SIM card could be swallowed by small children.

•Voltage at the feed connector of the communication module must not be exceeded.

•Do not expose the communication module to extreme ambient conditions. Protect

the communication module against dust, moisture and high temperature.

•It is recommended that the communication module should not be used at petrol stations.

We remind the users of the duty to observe the restrictions concerning the utilization

of radio devices at petrol stations, in chemical plants, or in the course of blasting works

in which explosives are used.

•Switch off the communication module when travelling by plane. Utilization

of the communication module in a plane may endanger the operation of the plane

or interfere with the mobile telephone network, and may be unlawful. Failure to observe

these instructions may result in the suspension or cancellation of telephone services

for the respective client, or, it may result in legal sanctions; it may also result in both

eventualities.

•When using the communication module in the close proximity of personal medical devices,

such as cardiac pacemakers or hearing aids, you must proceed with heightened caution.

•If it is in the proximity of TV sets, radio receivers and personal computers, the telephone

may cause interference.

•It is recommended that you should create an appropriate copy or backup

of all the important settings that are stored in the memory of the device.

EXPANSION PORT MOUNTING

2. Description of the router

2.1. Introduction

The UMTS router is a compact electronic device based on the UMTS module

which enables data transfers using HSDPA/UMTS/EDGE/GPRS/GSM technologies.

Primarily, the router expands the capabilities of the UMTS module by the option

of connecting more PC’s by means of the built-in Ethernet interface. In addition, the firmware

of the router provides automatic establishment and maintenance

of HSDPA/UMTS/EDGE/GPRS PPP connection. By means of the integration of a DHCP

server it provides the user with simple installation and Internet access.

In addition, the router is equipped with a USB 2.0 Host interface which is designed only

for connection to a USB device.

By customer request it is possible to equip the router with the PORT1 module, PORT2

module and extend the function of the UMTS router about RS232, RS485/RS422,

ETHERNET, M-BUSD or CNT (I/O module).

The UMTS router has two versions. The first version is basic UR5 v2 and the second

version is UR5 v2s SL in the aluminum box.

Examples of Possible Applications

•mobile office

•fleet management

•security system

•telematic

•telemetric

•remote monitoring

•vending and dispatcher machines

EXPANSION PORT MOUNTING

2.2. UMTS technology

For radio terrestrial part UMTS (Universal Mobile Telecommunication System), which is

marked as UTRA (UMTS Terrestrial Radio Access), is warranted 155 MHz band in frequency

band about the 2 GHz. It is bands 1900–1980 MHz, 2010–2025 MHz and 2110–2170 MHz.

The UMTS system is based on code division of carried channels – use the access

method WCDMA (Wideband Code Division Multiple Access). WCDMA exploits direct spread

spectrum DS (Direct Spread). For transmission the UMTS network exploits two duplex

techniques – transmission modes FDD (Frequency Division Duplex), which is based

on separate frequency channels (i.e. uplink and downlink uses different channels) and TDD

(Time Division Duplex), which is based on separate time (i.e. uplink and downlink uses one

channel, in which both directions are changes in time).

UMTS network consists of three basic entities:

•Basic network CN (Core Network) – own core of network UMTS,

•network UTRAN (UMTS Terrestrial Radio Access Network) – the radio access

network,

•users part UE (User Equipment) – entity, which allows the user to access

the UMTS network.

2.3. HSDPA technology (High Speed Download Packet Access)

HSDPA is an improved and extended version of the UMTS-TDD. HSDPA is available

for both UMTS FDD and for UMTS TDD. HSDPA raises significantly bit rate for downlink. It is

attained on the programmer level. It doubles capacity on BTS (Base Transceiver Station),

which allows process of data and signals from more users at one time. HSDPA is based

on a few innovations of network architecture; thanks to this, it has lower latency, faster

reaction on channel change quality and processing of H-ARQ (Hybrid automatic repeat

request) on transmission repeat. Transport channel for HSDPA effectively uses available

frequencies, on which transmits data packets together. Afterwards these packets are divided

between individual users according to specific algorithms.

EXPANSION PORT MOUNTING

2.4. Delivery Identification

Specimen Label:

Trade name Type name Other

UR5 v2 Basic UR-5-v2 Basic version

UR5 v2 SL Basic UR-5-v2-SL Basic version in the aluminum box

UR5 v2 Full UR-5-v2-Full Full version

UR5 v2 SL Full UR-5-v2-SL-Full

Full version in the aluminum box

Example of expansion port PORT1:

Trade name Type name Power supply

Expansion port RS232 XC-232 Internal power supply

Expansion port RS485-RS422 XC-485422 Internal/external power supply

Expansion port ETHERNET XC-ETH Internal power supply

Expansion port M-BUS XC-MBUS External power supply

Expansion port CNT XC-CNT Internal power supply

EXPANSION PORT MOUNTING

Basic delivered set of router includes:

•UMTS router,

•power supply,

•crossover UTP cable,

•external antenna,

•clips for the DIN rail

•installation CD containing instructions.

In addition to the basics it is possible to deliver:

•one or two expansion ports RS232, RS485/RS422, ETHERNET, M-BUSD or CNT

(separation columns are in distribution),

Module can be connected only

as follows.

PORT1 RS232, RS485/422, ETHERNET, M-BUSD, CNT

PORT2 RS232, RS485/422, M-BUSD

The router standard designed for:

•mounting to a panel using through holes (only UR5 v2 version),

•possibility to be put on a work surface,

•for mounting onto a DIN rail, the clips are included.

2.5. Antenna Connection

The antenna is connected to the router using the SMA connector on the front panel.

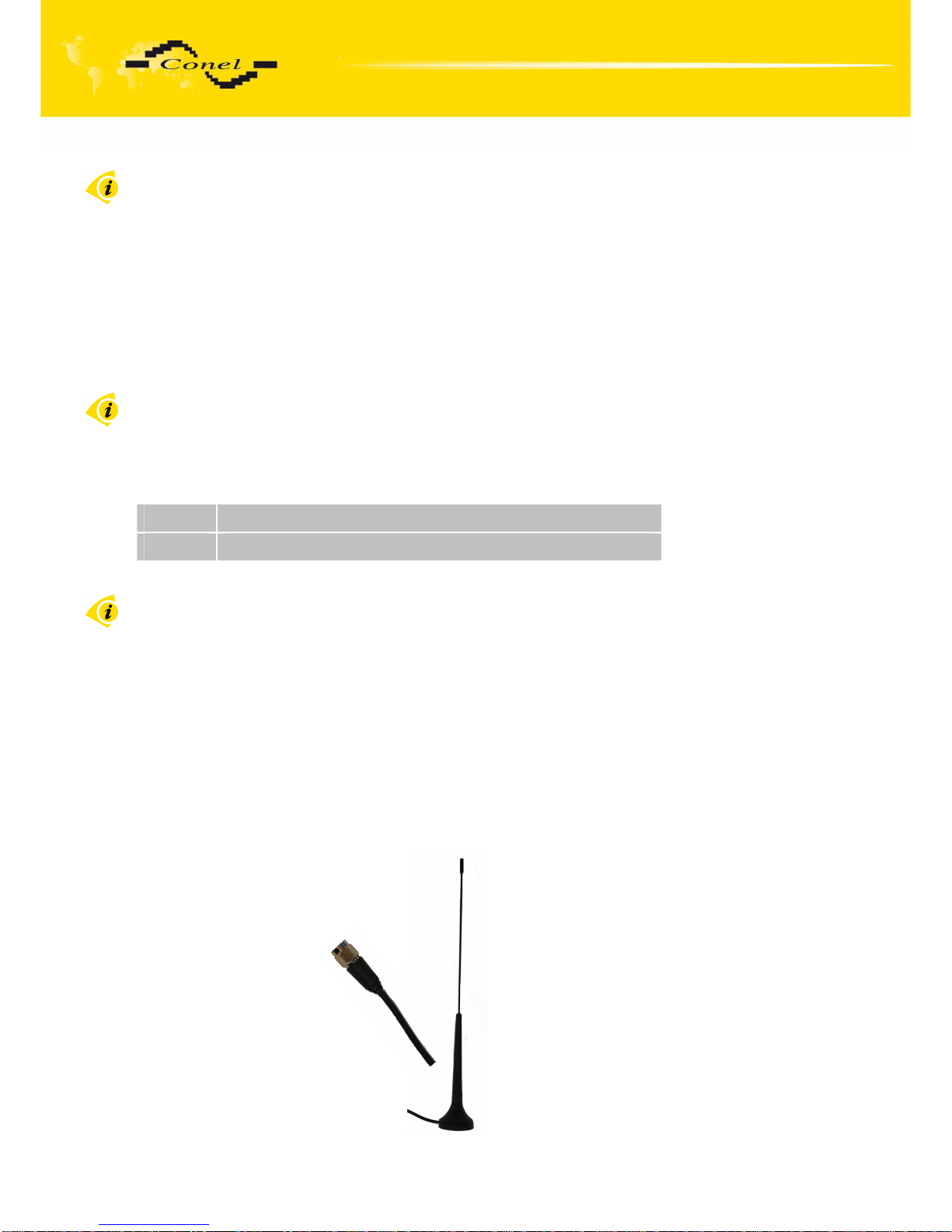

External antennas:

EXPANSION PORT MOUNTING

2.6. SIM Card Reader

The SIM card reader for 3 V and 1.8 V SIM cards is located on the front panel

of the router. To initiate the router into operation it is necessary to insert an activated SIM card

with unblocked PIN in the reader. The SIM cards might be of different adjusted APN (Access

Point Name).

2.7. Power Supply

The router requires +10 V DC to +30 V DC supply. Protection against reversed polarity

without signaling is built into the router.

The power consumption during receiving is 1W. The peak power consumption during

data sending is 3.5W. For correct operation it is necessary that the power source is

able to supply a peak current of 500mA.

2.8. Technical parameters

UR5 v2

Complies with standards EN 301 511, v9.0.2,

EN 301 908-1&2, v3.2.1,

ETSI EN 301 489-1 V1.8.1,

EN 60950-1:06 ed.2 +A11:09

HSDPA parameters 3GPP rel. 5 standard

bitrate 3.6 Mbps/384 kbps

UE CAT. 1 to 6, 11, 12

Data compress 3GPP TS25.212

UMTS parameters W-CDMA FDD standard

PS bitrate – 384/384 kbps

CS bitrate – 64/64 kbps

GPRS parameters GPRS multislot class 10, CS 1 to 4

EGPRS multislot class 10, CS 1 to 4,

MCS 1 to 9

Transmit power Class 3 (+23dBm) for UMTS 900/2100MHz

Temperature range Function

Storage -30

C to +60

-40

C to +85

Protection Freely

In switch board IP20

IP56

Supply voltage 10 to 30 V DC

Consumption Reception

GPRS

UMTS/HSDPA

300 mW

to 3,5 W (GPRS transmission)

to 5,5 W (UMTS/HSDPA transmission)

Dimensions 42x76x113 mm (DIN 35mm)

Weight UR5 v2 – 150 g

UR5 v2 SL – 280 g

Antenna connector SMA– 50 Ohm

User interface ETH

USB

PORT1

PORT2

Ethernet (10/100 Mbit/s)

USB 2.0 type A host

Optional RS232/RS485/ETHERNET/M-BUSD

or inputs/outputs (I/O)

Optional RS232/RS485/M-BUSD

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Conel Routeur réseau

Conel

Conel ER75i v2 SL Manuel utilisateur

Conel

Conel UR5 Manuel utilisateur

Conel

Conel ER75i v2 SL Manuel utilisateur

Conel

Conel UR5 Manuel utilisateur

Conel

Conel xr5i sl Manuel utilisateur

Conel

Conel XR5i v2 Manuel utilisateur

Conel

Conel CR10 v2 SL Manuel utilisateur

Conel

Conel CR10 v2 SL Manuel utilisateur

Conel

Conel RR75i v2 Manuel utilisateur

Conel

Conel Bivias v2 Manuel utilisateur

Conel

Conel SPECTRE v3 LTE Manuel utilisateur

Conel

Conel LR77 v2 SL Manuel utilisateur

Conel

Conel EDGE ER75i Manuel utilisateur

Conel

Conel LR77 v2 SL Feuille d'instructions

Conel

Conel ER75i v2 SL Mode d’emploi

Conel

Conel ER 75i SL Manuel utilisateur

Conel

Conel UR5i a Manuel utilisateur

Conel

Conel LR77 v2 SL Manuel utilisateur

Conel

Conel UCR11 v2 SL Manuel utilisateur

Conel

Conel UR5i v2 SL Feuille d'instructions

Conel

Conel UCR11 Manuel utilisateur

Conel

Conel Bivias v2 Manuel utilisateur

Conel

Conel UR5i v2 SL Manuel utilisateur

Conel

Conel EDGE ER75i Manuel utilisateur

Manuels Routeur réseau populaires d'autres marques

Allnet

Allnet ALL0333AU Manuel utilisateur

HomeSeer

HomeSeer HT-SEL Manuel utilisateur

Sercomm

Sercomm Genesis OC3505D Manuel utilisateur

Billion

Billion BIPAC 5102 Series Manuel utilisateur

TP-Link

TP-Link TD-8817 Manuel utilisateur

Motorola

Motorola MR1900 Manuel utilisateur

Digi

Digi IX14 Manuel utilisateur

Cisco

Cisco NCS 540 Manuel

XAVi

XAVi X8821e Manuel utilisateur

BEC

BEC 6200WZL Manuel utilisateur

MikroTik

MikroTik hAP ac3 Series Manuel utilisateur

Korenix

Korenix JetNet 5428G Series Manuel utilisateur

NETGEAR

NETGEAR FS526T - Switch Manuel utilisateur

Korenix

Korenix JetNet 5710G Series Manuel utilisateur

Automated Logic

Automated Logic ZN551 Manuel du propriétaire

Cisco

Cisco ASR 1000 Series Manuel de l'opérateur

EnGenius

EnGenius ESR-9710 Manuel utilisateur

Cisco

Cisco 805 Series Instructions d'utilisation et de sécurité
