Concord Camera DV2020 Manuel utilisateur
Digital Video Camera
E1
ENGLISH
Contents
Safety Precautions 4
Specifications 5
Name of Parts and Buttons 8
LCD Monitor and LED Displays 12
Before Using the Digital Video (DV) 15
Powering the Digital Video 16
How to recharge the battery 16
Using the AC adapter 17
Setting the date and time 17
Setting the storage media 18
1.Basic Recording 20
Motion Picture Recording 20
Still Picture Recording 21
2.Advance Recording 22
Menu Function (Resolution / Self-Timer / White Balance / Effect / Strobe) 22
Selector Dial Function (Digital Zoom / Scene Mode) 26
3.Voice Recording 28
Record 28
E2
4.Playback Mode 29
Playing Files on a TV 29
Motion File / Voice File Playback 30
Still Single File Playback 31
Slide Show 31
Thumbnail Playback 32
Delete (One File / All Files) 32
Protect (One File / All Files / Cancel All) 34
Print (One File / All Files / Cancel All) 36
5.MP3 39
Play Music 39
6. Changing the DV Setting 40
Setting the Beep Sound 40
Setting the Power Off 41
Setting the LCD Confirmation Time 42
Formatting the Internal Memory / Memory Card 43
Adjusting the LCD Brightness 44
Setting the Frequency 44
Setting the Date Imprint 45
Setting the Language 46
Changing the Video Out Signal Method 47
Setting the Date and Time 47
7. Others 48
Recording Capacities 48
Warning Message 50
E3
ENGLISH
8. SOFTWARE INSTALLATION GUIDE 51
Computer System Requirements 51
Introduction to Software Applications 51
Installing Software Applications 52
Important Note for Viewing Video Clips Sent via E-mail 53
9.CONNECTING THE CAMERA TO THE COMPUTER
Connect the camera to a USB port on the computer via the supplied
USB cable 54
10. DOWNLOADING PICTURES / VIDEO CLIPS /
MUSIC ONTO YOUR COMPUTER 58
For Windows Users (Windows 98SE/ME/2000/XP) 58
For Macintosh Users (Mac OS 9.0 or higher) 58
11. USING ARCSOFT PHOTOIMPRESSION 60
12. USING ARCSOFT VIDEOIMPRESSION 61
(WEB MODE)
13. TROUBLESHOOTING 63
14. GETTING HELP 66
15. REGULATORY INFORMATION 67
E4
Safety Precautions
Do not attempt to disassemble, repair or alter the equipment
yourself. The high-voltage circuitry in the equipment poses
significant electrical hazard.
Do not attempt to disassemble, alter or directly solder the battery.
Do not put the battery in a fire, attempt to heat it, use it in high
temperature environment such as next to a fire or inside a car.
Do not put it into water or allow it to get wet.
Do not use this DV in the bathroom.
Do not use batteries that are significantly damaged or deformed.
Turn off the power immediately in the event of irregularity, such
as the equipment emitting smoke or a strange smell. Remove
the battery as soon as possible, being careful to avoid electric
shocks or burns.
Keep the battery and Memory Card used in this DV out of the
reach of children to prevent accidental ingestion.
E5
ENGLISH
Specifications
General
Power Source Rechargeable Lithium-Ion Battery 3.7V
AC Adapter 5.0V
Dimensions (WxHxD) 94.3 x 63.3 x 34.6 mm
Weight Approx. 157.8g (with battery 184.5g)
Operating Conditions Temperature: 0°C to 40°C (32°F to 104°F)
Humidity: 85% or less
Storage Temperature -20°C ~ 60°C (-4°F to 140°F)
Memory Media
Internal Memory 16 MB
Memory Card Secure Digital Card Slot
E6
Digital Video (DV)
CMOS 1/2” 2.0 mega pixels
Lens Fix Lens F = 2.8
Focal Length f = 8.64 mm
Shooting Range Approx. 1.0 m ~ Infinity
Digital Zoom Motion Picture: 4X
Still Picture: 2X
Monitor 1.5” Low –Temperature Polysilicon TFT Color LCD
White Balance Auto / Manual (Sunny, Cloudy, Tungsten,
Fluorescent)
Exposure Exposure compensation: Auto
Compensation Metering: TTL CMOS
Shutter Speed Motion Picture: 1 / 30 ~ 1 / 4000 seconds
Still Picture: 1 / 8 ~ 1 / 4000 seconds
ISO Sensitivity Auto (ISO 100 equivalent)
Built-in Flash Set by manually
Modes: Auto, Flash Off, Red-eye Reduction
Image Resolution zMotion Picture: 320 x 240F(17 FPS),
(Quality) 320 x 240N (15FPS), 320 x 240E (10FPS),
160 x 120F (10FPS), 160 x 120N (10FPS)
zStill Picture: 2048 x 1536F, 1600 x 1200F,
1600 x 1200N, 800 x 600F, 800 x 600N
File Format Still Picture: JPEG (Exif2.2) , DCF
Motion Picture: AVI File
Voice: WAV File
E7
ENGLISH
PC Platforms
Windows 98SE / ME / 2000 / XP
Macintosh Mac OS 9.x
System Requirements of PC
Windows zWindows 98SE or higher
zPentium II 450 Processor or equivalent
z64MB or more of RAM
zMedia Player 7 or later version
Macintosh zMac OS 9.x
z400 MHz G3 or faster
zQuickTime 6 or later version
E8
Name of Parts and Buttons

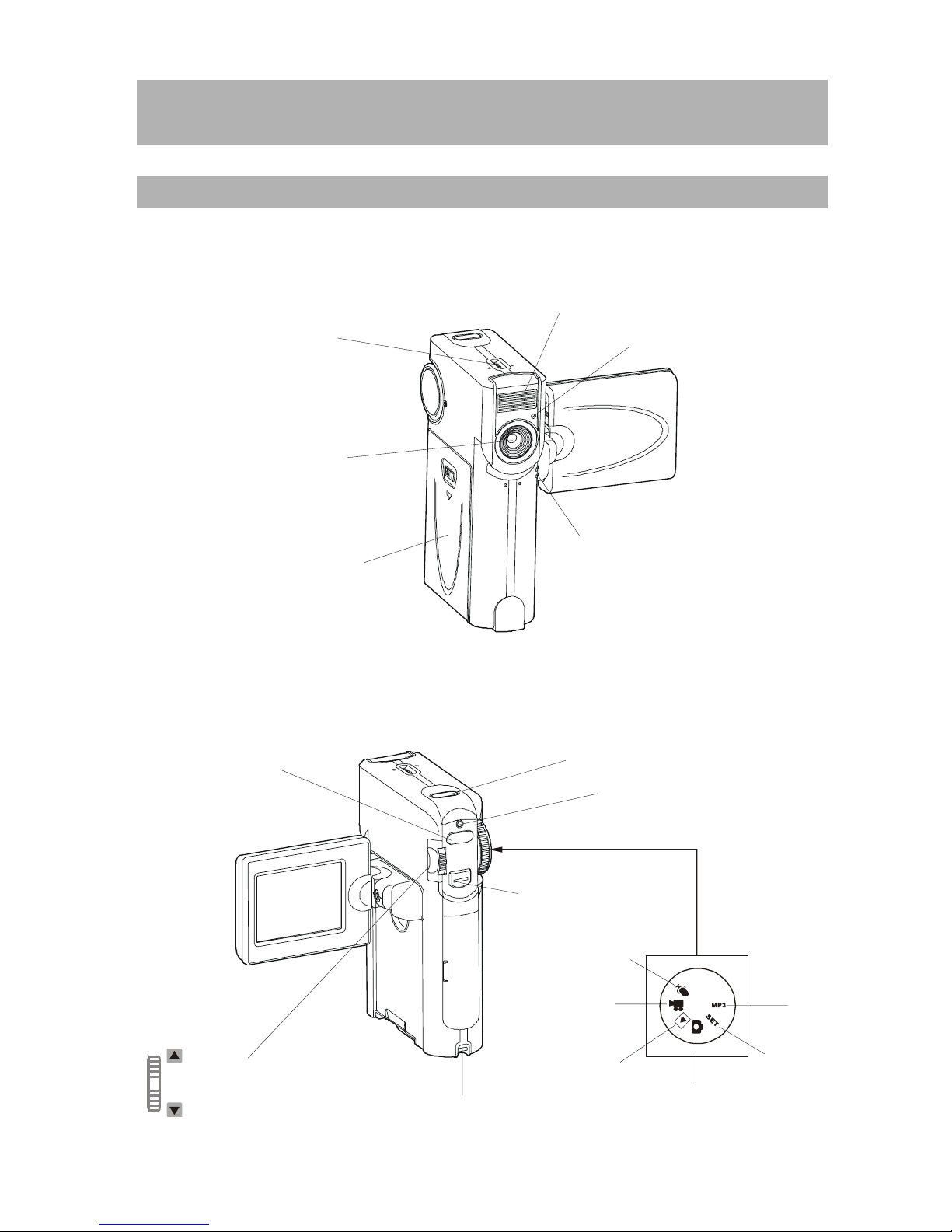

DV Body
Microphone
Strobe
Lens
Self-Timer Indicator
Photo Sensor
Battery Cover
Menu Button
ENTER
Selector Dial
Shutter Button
Power Button
Mode Dial
Voice
Motion
Playback
Still
Set Up
MP3
Power / Strobe Indicator
Wrist Strap Eyelet
E9
ENGLISH

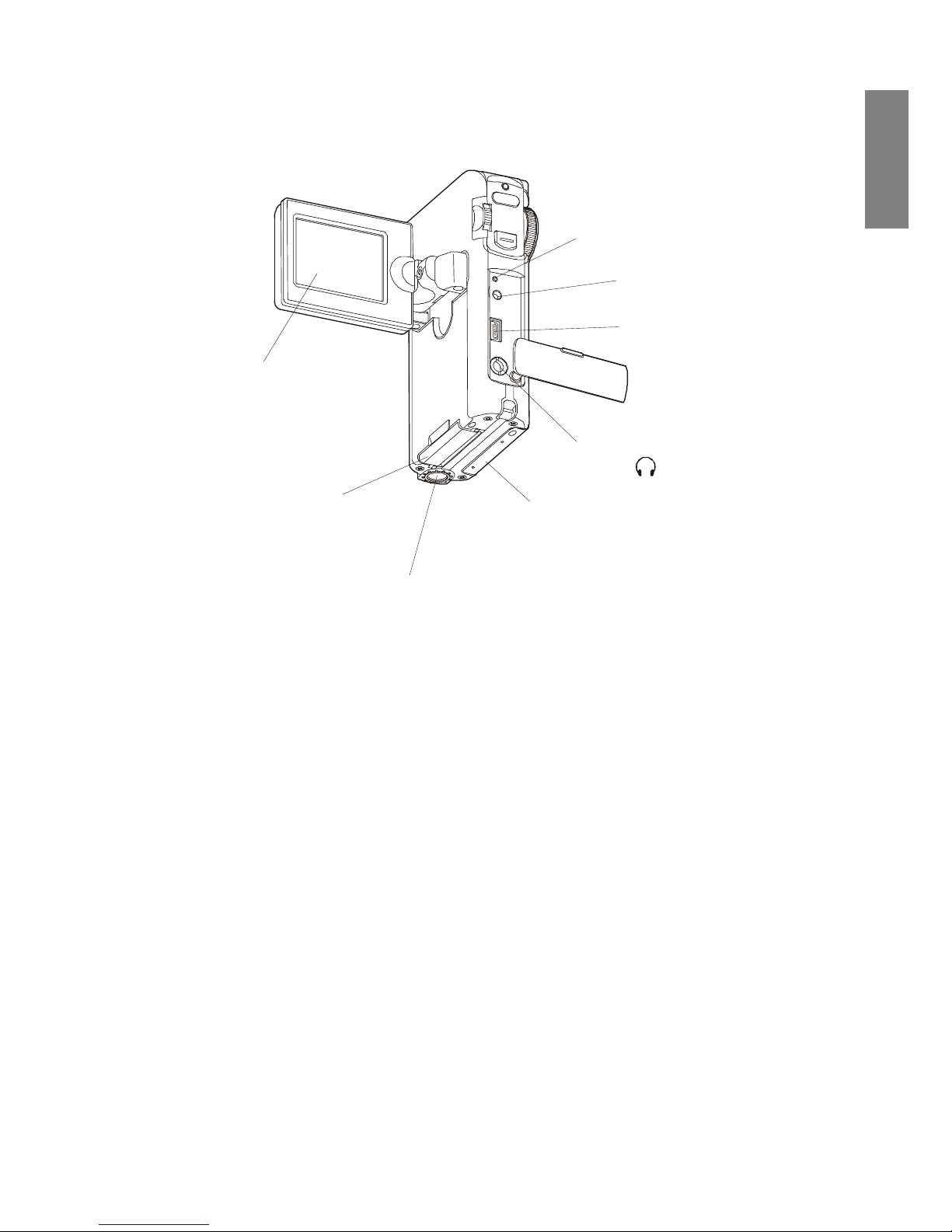

Battery Cover
Tripod Screw Hole
Card Cover
LCD Monitor
(270° Rotation)
Reset Button
DC IN
USB Terminal
AV Out / Earphone
zReset Button: When an error happens to your DV, please press the Reset
Button with the tip of a pencil or similar object to turn off the DV, then turn on
again. All DV setting will keep as what you set before turning the DV off.
