IP HIGH SPEED DOME SERIES QUICK START GUIDE

CP-HSD20/30-IP

IP PTZ

QUICK START GUIDE

IP HIGH SPEED DOME SERIES QUICK START GUIDE

1WHAT’S IN THE BOX?

Packaging Contents

Speed Dome Camera x1 9-Pin Terminal Block x 1 Quick Start Guide x1

Bracket x1 Anchor Bolt x 4 Screwdriver x1

Hex Key x 1 Mounting Template x 1 User Manual USB x1

Gloves x1

2INSTALLATION

Install the Speed Dome Camera in 3 Steps

1. Use the mounting template sheet to drill holes in the mounting surface, then ax

the included bracket to the surface

2. Connect the safety lanyard between the camera and bracket, then connect all

required cables to the camera

3. Twist the camera into the bracket and tighten the xing screws.

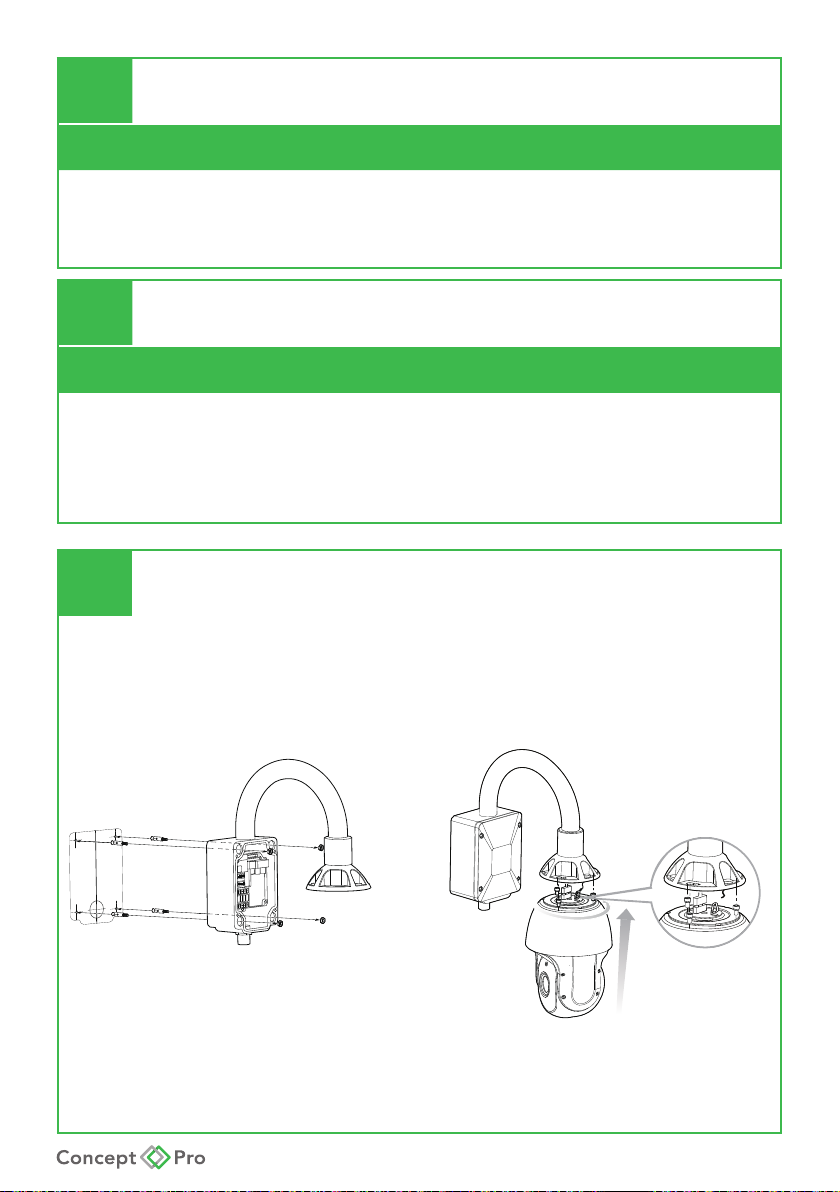

3WALL MOUNT INSTALLATION

1. Drill holes and ax wall bracket to surface and pass cable through to junction box

2. Congure DIP switches for ID, baud rate, video output then twist on dome and

secure to wall bracket

3. Attach all cables to junction box and tighten all xing screws

IP HIGH SPEED DOME SERIES QUICK START GUIDE

4CONFIGURING THE CAMERA

Camera Connections

Alarm Input Terminal Block

1BNC 1 CVBS Output

Network Connection

Alarm Output Terminal Block

DC 12V/ AC 24V Power Input

RS-485 Connector

Camera Setting Set Switch

Address ID Set Switch

DC12V Output

CablingBNC1

Speaker

Mic.

ALARM INPUT

GND1 2 3 4 5 6 7 8

COM

In 1

In 8

OUT1 OUT2 OUT3 OUT4

BNC2

1. VIDEO OUTPUT

BNC1: Analogue (CVBS) Output.

2. Address ID Switch

1 2 3 4 5 6 7 8

OFF

---

OFF

---

OFF

---

OFF

---

OFF

---

OFF

---

OFF

---

OFF

---

255

12345678

D I P

4 8 1 6 3 2 6 4 128Va l I D

Factory default

switch positions

Speed dome ID is set using

standard binary notation

1 2 4 8 16 32 65 128

Note: ID 0 should not be used. Where multiple speed domes

are connected, a unique ID must be assigned to each one.

IP HIGH SPEED DOME SERIES QUICK START GUIDE

5CONNECTING VIA INTERNET EXPLORER

How to connect and operate the camera via IE

Default IP Address:

http://192.168.12.100

User Name: admin

Password: admin

This product supports Internet

Explorer 8 and higher.

Please login

Language:

Uusername:

Password:

English

LoginClear

Please downlosd plug-inDownlosd

Download Plug-in

Click “Download” to download plug-in.

Please refer to the user manual page 15-16 for additional details.

Note: If the plug-in could not be successfully installed, one possibility

is that the operating system and the browser are not compatible. For

example, if the operation system is 64 bits, but the browser is 32 bits, then

the 32-bit plug-in will need to be installed.

4CONFIGURING THE CAMERA

Camera Connections

3. SET SWITCHES

DIP No. 1 and 2 congures the baud rate as follows:

1 2 3 4 5 6 7 8

OFF

Factory default

switch positions

NO.1

OFF

NO.2

2400

4800

9600

Rat e

Switch No. 5:

ON: NTSC OFF: PAL

Switch No. 6:

ON: 30FPS (Default)

Switch No. 7: Not Used

Switch No. 8:

RS485 matching resistance switch (120Ω). Default setting is OFF.

IP HIGH SPEED DOME SERIES QUICK START GUIDE

5HOW TO OPERATE ON IE WEB PAGE

How to connect and operate the camera via IE

Changing

Camera

Settings

• Using the cameras web browser it

is possible to congure the IP PTZ

camera with ease. From changing

stream settings to adjusting the

image settings or even applying pri-

vacy masks using the click and drag

function. All the network settings

associated with a network camera

for example; sending emails, taking

snapshots of live images, device

information, IP settings, rmware

version, and maintenance options

can be congured.

• When applying settings to the CP-

HSD10/20/30-IP, only use the web

browser for conguring image qual-

ity settings and any other settings

within the camera options. While

the IP camera supports RS485 with

access to the OSD menu (via preset

95), when editing the camera from

the OSD menu the settings may not

change, therefore synchronisation is

not possible using the web browser.

However, when changes are made

from the web browser these are

synchronised to the OSD menu.

PCamera Web Service

Alarm Out

Listen Talk Snapshot Record Streaming PlayerMode

2017 05 15 02:30:26 Tues

PTZ >>

Type:

Name:

2 3 4

PTZ

Call Setup

PTZ

Zoom

Focus

IRIS +

1280x1024 7793 Kbps 25 fps

314 / 0/ x0

3D Wipers Light

Setup

Exit

V iew

Preset

Preset1

Strram1 Real time first

Connect to NVR

To connect this product to an NVR, please make sure the NVR and PTZ

are on the same network segment.

NVR

Monitor

IP HIGH SPEED DOME SERIES QUICK START GUIDE

5HOW TO OPERATE ON IE WEB PAGE

How to connect and operate the camera via IE

Input/Output

This product supports audio in/out, analogue CVBS output, and up to

64GB Micro SD card.

Audio in GND Audio out

Speaker Mic.

Power Supply

Only use recommended power supply adapters with this camera.

AC24VDC12VPoE++(Oponal)

IP HIGH SPEED DOME SERIES QUICK START GUIDE

NOTES
