Concept Pro AIR8010-AHD-Z Manuel utilisateur
AIR8010-AHD-Z
Concept Pro 2MP AHD 10x
Motorised Zoom Bullet Camera
USER MANUAL
AIR8010-AHD-Z
AIR8010-AHD-Z
1. Installation should be made by qualied service personnel and should adhere
to all local codes.
2. In order to prevent electric shock and avoid damage to waterproof seals, do
not loosen any screws on the camera body.
3. Adjust the sunshield to avoid exposing the lens to direct sunlight.
4. Do not touch the front glass. If necessary, use a soft cloth to wipe off dust or
debris.
5. Do not install on a surface subjected to frequent vibration or shocks.
6. Do not operate the camera beyond its temperature range or power ratings.
7. Should any damage or suspected damage occur, shutdown and disconnect
the power and contact your service provider.
8. Do not install the camera under unstable lighting conditions. Severe lighting
change or icker can cause the camera to work improperly.
9. Never use the camera close to a gas or oil leak.
10. Do not disassemble the camera.
11. Do not drop the camera or subject the unit to physical shocks
12. Do not point the camera directly at strong light, this can damage the sensor.
13. Ensure all removable covers are replaced to protect the inner components.
14. Do not install near devices which emit a strong electro-magnetic eld.
15. Use a dry or damp cloth only for cleaning.
PLEASE FOLLOW THE ABOVE PRECAUTIONS – FAILURE TO DO SO
MAY INVALIDATE THE WARRANTY OR CAUSE SERIOUS INJURY.
CAUTION
Note: Changes or modications not expressly approved by the
manufacturer can cause the camera to be damaged and become
inoperable. This may invalidate the user warranty.
AIR8010-AHD-Z
The Concept Pro AIR8010-AHD-Z is a weatherproof IR camera, suitable for
monitoring areas in hostile conditions and in low light.
PACKING CONTENTS
WALL SCREW
X4
MOUNTING
DRAWING PAPER
X1
ROUND
FIXING PLATE
X1
MOUNTING
SEAL
X1
PLASTIC-WALL PLUG
X4
ALLEN KEY
X2
USER MANUAL
X1

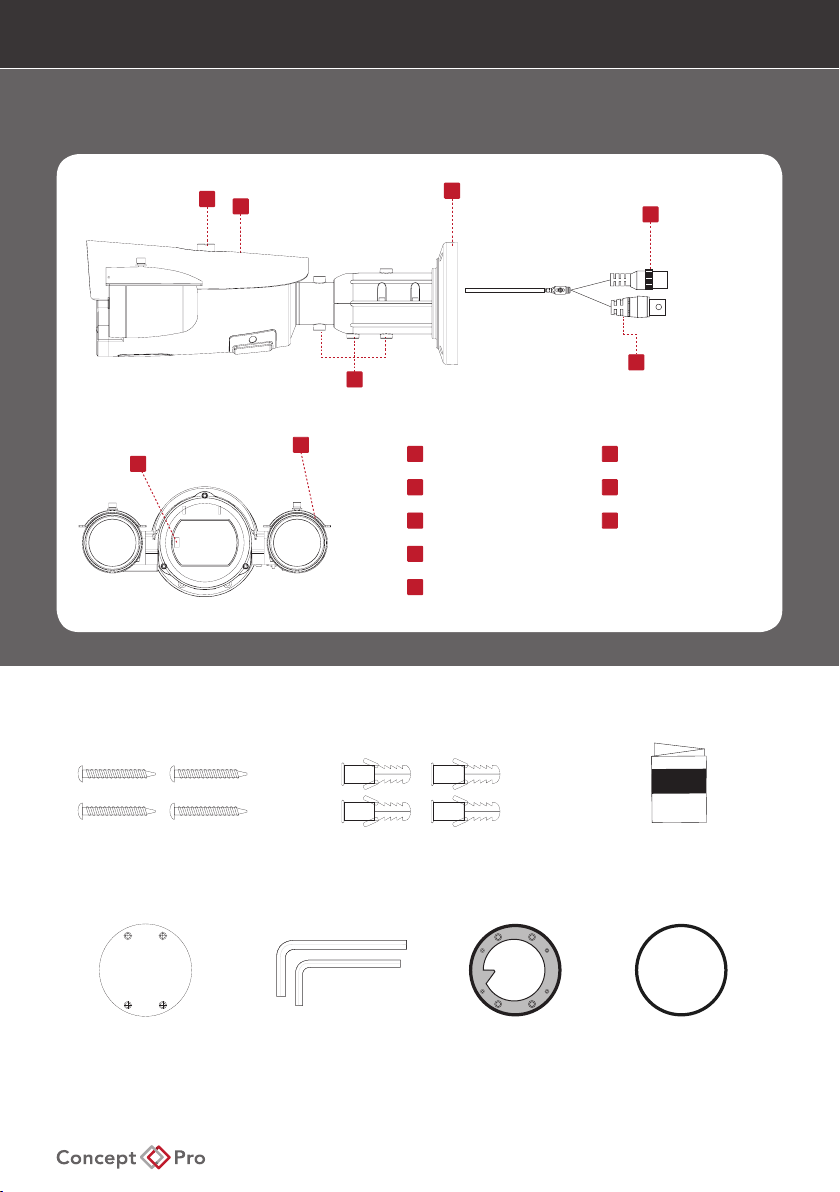

Fixing Bolt for Sunvisor Tri- Axis Points
Pre-Bolt on IR Lamps 12V DC Connector
Photo Sensor Video Out Connector
Sunvisor
Mounting Bracket
1
2
6
7
4
83
5
4
15
7
6
8
2
3
USER
MANUAL
AIR8010-AHD-Z
Important: Ensure all precautions are observed during installation.
It is recommended the camera is tested during the most demanding
environmental conditions such as low light or bright sunlight to ensure continuity of
effective CCTV monitoring. You may nd the use of an ND lter helpful.
Remove the camera unit carefully from the box,
and keep the accessories in a safe place.

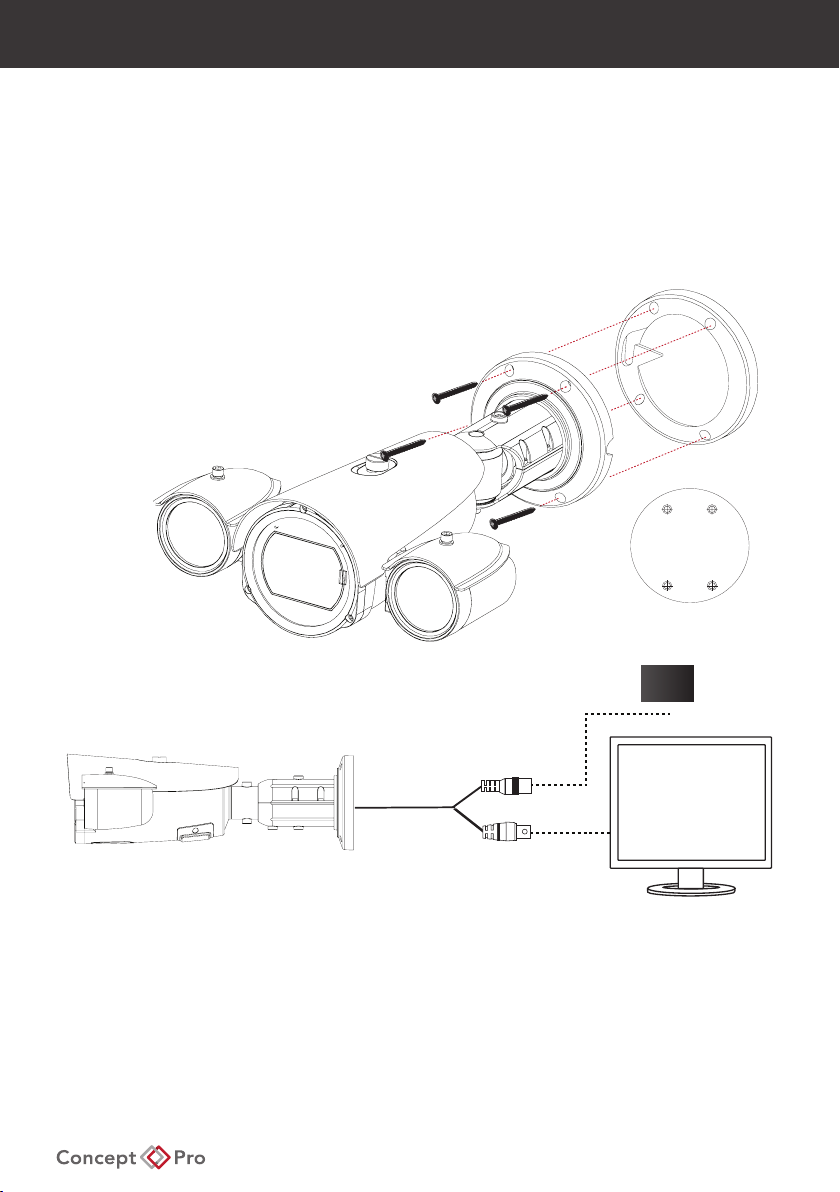

MOUNTING TEMPLATE
Use the supplied mounting template
to mark the spacing for drilling.
Following drilling, securely attach the
bracket and camera to the wall.
Troubleshooting
Ensure all connections to the camera, DVR and monitor are correct.
If a picture still cannot be obtained please contact your supplier for technical support.
Connect the video output to your
monitor.
Check the power supply is correct
and connect it to the power port on
the Camera.
View the picture on your monitor
to check the power and video
connections are working properly.
INSTALLATION
FIXING TO A WALL
CONNECTION PSU
AIR8010-AHD-Z

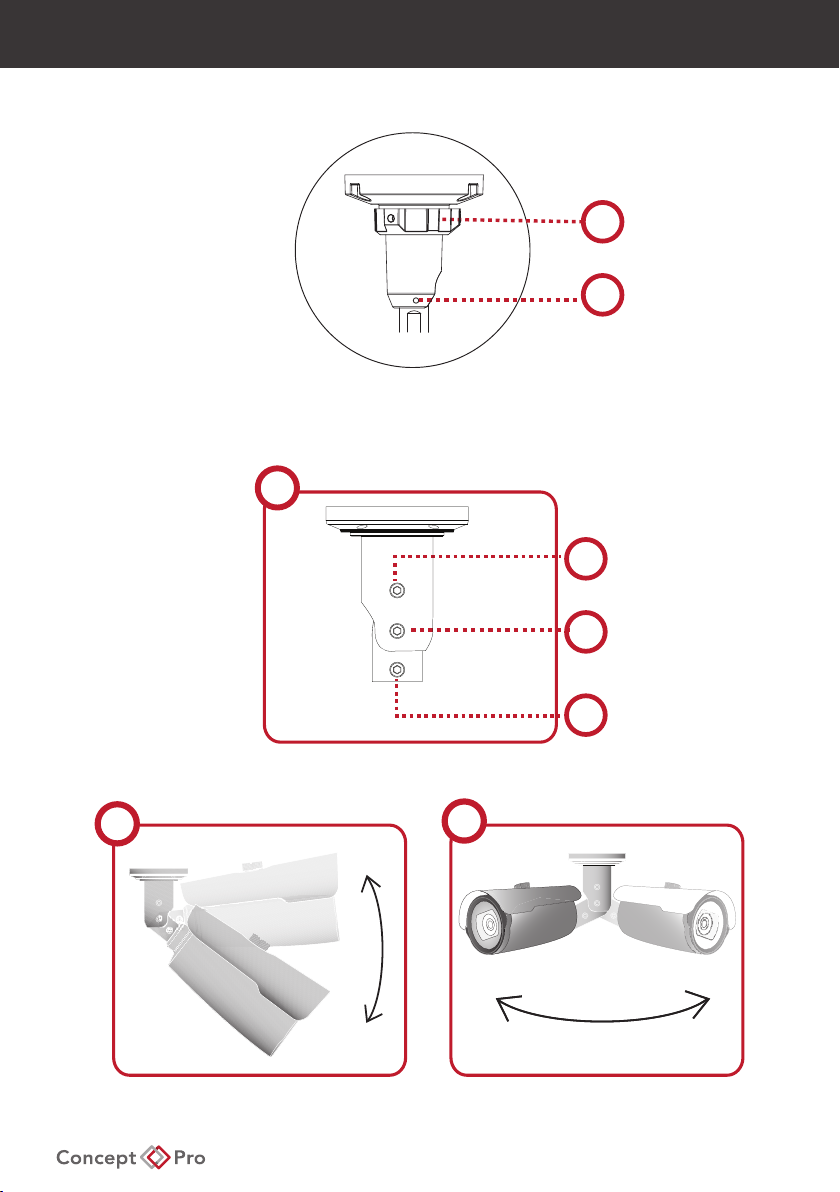

Point the Camera towards the area to be monitored.
POSITIONING
2
1
1
3
2
1
23
AIR8010-AHD-Z
ON SCREEN DISPLAY (OSD)
ZOOM/FOCUS FROM DVR
The AIR8010-AHD-Z is an a coaxitron controlled zoom camera with auto focus.
There are no manual zoom or focus controls, the camera uses Up the Coax (UTC)
control protocol which sends the zoom commands via the coax cable.
When the camera is connected to a DVR with coaxitron enabled, the DVR will
control the zoom (near/far) commands from the PTZ menu. Use the zoom control in
the menu to set the desire zoom level.

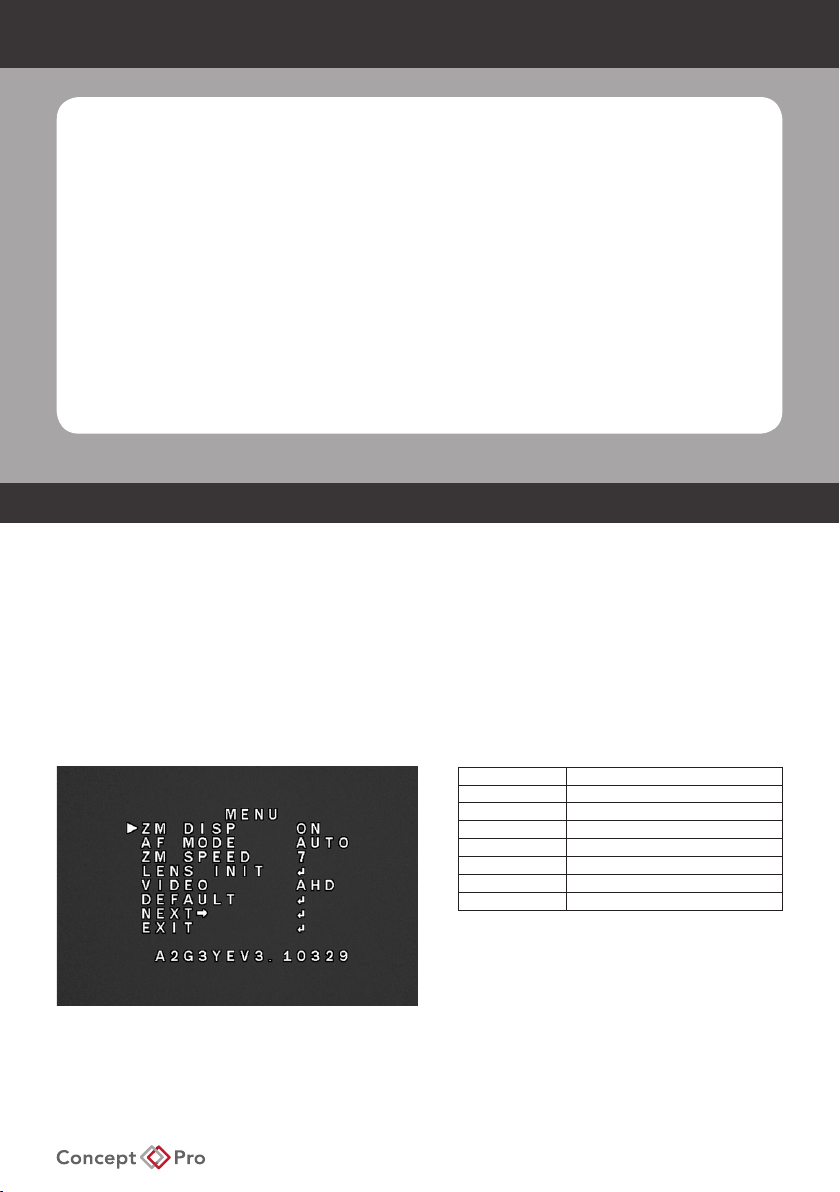

1. Open the PTZ Control or Coaxial
Control menu from a DVR.
2. Press the Iris or OSD Open button to
open the camera OSD.
3. Navigate down to highlight the
EXPOSURE menu.
4. Press RIGHT 3 times, then press ENTER.
5. Under MONITOR OUT, select a
desired video format (AHD, THD/TVI,
CHD/CVI). Then ENTER/APPLY.
Note: Setting CVBS will disable UTC.
Note: Please make sure that Up the
Coax (Coaxitron) PTZ protocol is
enabled for the selected channel on
the DVR
How to Change Video Formats

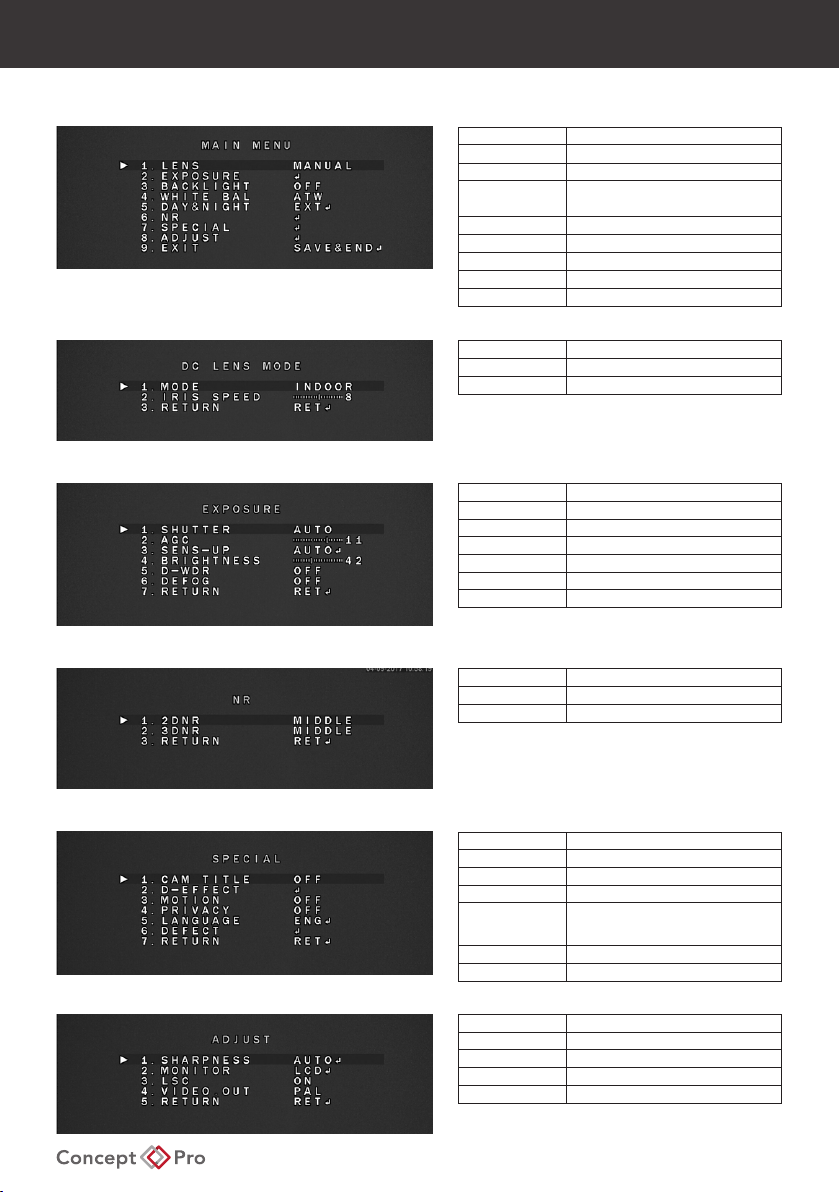

MAIN MENU
ZM DISP ON/OFF
AF MODE AUTO/MANUAL/KEY AUTO
ZM SPEED 1-8
LENS INIT ↵
VIDEO
DISPLAYS CURRENT VIDEO FORMAT
DEFAULT ↵
NEXT -->
EXIT ↵
AIR8010-AHD-Z
ON SCREEN DISPLAY (OSD)
MODE INDOOR/OUTDOOR
IRIS SPEED 0-15
RETURN ↵
SHUTTER
AUTO/1/25-50,000/x2-x30/FLK
AGC 0-15
SENS-UP AUTO (x2-x30)/OFF
BRIGHTNESS 1-100
D-WDR AUTO/ON (0-8)/OFF
DEFOG AUTO/OFF
RETURN ↵
2DNR OFF/LOW/MIDDLE/HIGH
3DNR OFF/LOW/MIDDLE/HIGH
RETURN ↵
CAM TITLE OFF/ON
D-EFFECT
FREEZE/MIRROR/NEG. IMAGE
MOTION ON/OFF
PRIVACY ON/OFF
LANGUAGE
ENGLISH, CHINESE, GERMAN, FRENCH,
ITALIAN, SPANISH, POLISH, RUSSIAN,
PORTUGUESE, DUTCH, TURKISH
DEFECT LIVE/WHITE/BLACK DPC
RETURN ↵
SHARPNESS AUTO/OFF
MONITOR LCD/CRT
LSC ON/OFF
VIDEO OUT NTSC/PAL
RETURN ↵
DC LENS MODE
MAIN MENU
EXPOSURE
NOISE REDUCTION
SPECIAL
ADJUST
LENS MANUAL/DC
EXPOSURE ↵
BACKLIGHT OFF/BLC/HSBLC
WHITE BAL ATW/AWC SET/INDOOR/
OUTDOOR/MANUAL/AWB
DAY & NIGHT
EXT/AUTO/COLOUR/B&W
NR ↵
SPECIAL ↵
ADJUST ↵
EXIT
SAVE & END/RESET/NOT SAVE
AIR8010-AHD-Z

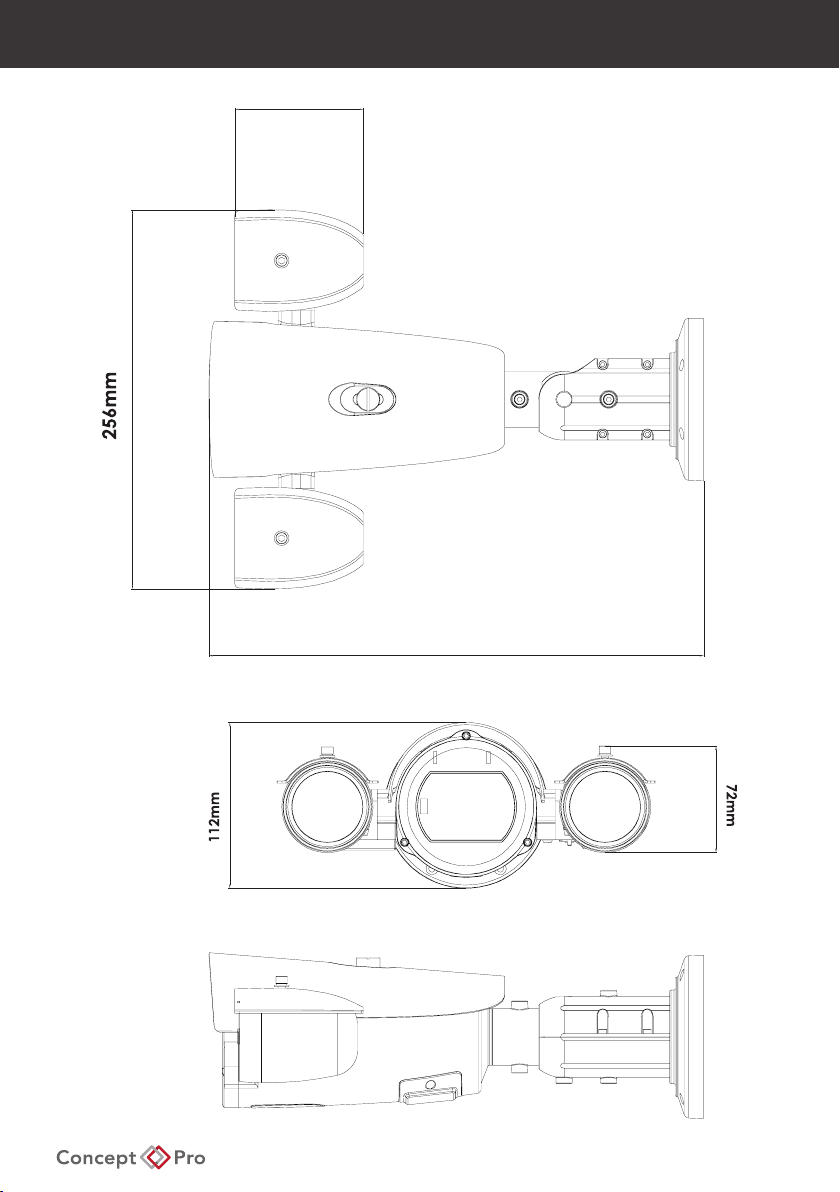

DIMENSIONS
87mm
334mm
AIR8010-AHD-Z
NOTES
AIR8010-AHD-Z
NOTES
