Comtrol RocketLinx ES8105 Manuel utilisateur

RocketLinx ES8105

RocketLinx ES8105F-S

RocketLinx ES8105F-M

Industrial Ethernet Switch

User Guide

2000558 Rev B

Comtrol and RocketLinx are trademarks of Comtrol Corporation.

Other product names mentioned herein may be trademarks and/or registered trademarks of their respective owners.

Second Edition, August 1, 2012

Comtrol Corporation makes no representations or warranties with regard to the contents of this document or to the

suitability of the Comtrol product for any particular purpose. Specifications are subject to change without notice.

Some software or features may not be available at the time of publication. Contact your reseller for current product

information.

Federal Communications Commission (FCC) Statement

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15

of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the

equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency

energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to

radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in

which case the user will be required to correct the interference at his expense.

The user is cautioned that changes and modifications made to the equipment without approval of the manufacturer

could void the user's authority to operate this equipment.

Document Number: 2000558 Revision B

RocketLinx ES8105/ES8105F User Guide: 2000558 Rev. B - 3

Table of Contents

Introduction .................................................................................................................................................................................5

Product Overview.................................................................................................................................................................5

Features.................................................................................................................................................................................5

LED Indicators.....................................................................................................................................................................5

Hardware Installation.................................................................................................................................................................7

Connecting the Power and Ground....................................................................................................................................7

Wiring the Relay Output.....................................................................................................................................................7

Enabling the Event Alarm...................................................................................................................................................7

Mounting the RocketLinx ES8105/ES8105F .....................................................................................................................8

Connecting the Ethernet Ports............................................................................................................................................8

Connecting the Fiber Port (RocketLinx ES8105F)...........................................................................................................9

Testing the ES8105/ES8105F....................................................................................................................................................11

Troubleshooting and Technical Support.................................................................................................................................13

Troubleshooting..................................................................................................................................................................13

Comtrol Support ................................................................................................................................................................13

Index ...........................................................................................................................................................................................15

4 - RocketLinx ES8105/ES8105F User Guide: 2000558 Rev. B Table of Contents

Introduction RocketLinx ES8105/ES8105F User Guide: 2000558 Rev. B - 5

Introduction

Product Overview

This User Guide discusses the RocketLinx ES8105 industrial Ethernet switch family, which includes three models:

•RocketLinx ES8105 provides five10/100BASE-TX Ethernet ports

•RocketLinx ES8105F-S provides four 10/100BASE-TX ports and one 100BASE-FX Single-Mode fiber uplink port that

supports a transmission distance of 30KM

•RocketLinx ES8105F-M provides four 10/100BASE-TX ports and one 100BASE-FX Multi-Mode fiber uplink port that

supports a transmission distance to 2KM

The ES8105/ES8105F is enclosed in a slim and rigid aluminum case that saves rail space and provides good heat radiation for

compact system requirements. In order to operate in harsh environments, the RocketLinx ES8105/ES8105F is equipped with

IP31 grade case design to meet the requirements of drop-water proof and is dust proof.

The RocketLinx ES8105/ES8105F also provides one relay output for port error events, which is enabled/ disabled by the DIP

switch. The RocketLinx ES8105/ES8105F has good immunity against unstable power source and can accept 18 to 27VAC or

18 to 32VDC power input.

RocketLinx ES8105/ES8105F requires no user setup and immediately starts operating as soon as you power it up.

Features

The RocketLinx ES8105/ES8105F family has the following features:

• Port alarm

• Compact IP31 aluminum alloy enclosure

• DIN rail or wall mount

• Power input of 18-27VAC or 18-32VDC

• Compliance with IEEE Hi-Pot Testing

Refer to the Comtrol web site for detailed specification information, RocketLinx ES8105 or RocketLinx ES8105F Single-Mode,

or RocketLinx ES8105F Multi-Mode.

LED Indicators

There are system diagnostic LEDs and Ethernet Port LEDs located on the front panel of the RocketLinx ES8105/ES8105F.

The LED indicators provide administrators with real-time system status. The following table describes the function of each

LED indicator.

LED LED Lit LED Blinking LED Off

PWR Powered No power

Alm Port link down or power

failure event occurred. Not activated

Port 1- 5

(RocketLinx

ES8105)

A network device is

detected and linked up. Activity No port link

6 - RocketLinx ES8105/ES8105F User Guide: 2000558 Rev. B LED Indicators

Introduction

Port 1- 4

(RocketLinx

ES8105F) Yellow:100Mbps A network device is detected and

link established at 10Mbps.

Fiber port #5

(RocketLinx

ES8105F) 100Mbps Link 100Mbps Activity 100Mbps Link

LED LED Lit LED Blinking LED Off

Hardware Installation RocketLinx ES8105/ES8105F User Guide: 2000558 Rev. B - 7

Hardware Installation

You can use the following subsections to install the RocketLinx ES8105/ES8105F:

•Connecting the Power and Ground

•Wiring the Relay Output on Page 7

•Enabling the Event Alarm on Page 7

•Mounting the RocketLinx ES8105/ES8105F on Page 8

•Connecting the Ethernet Ports on Page 8

•Connecting the Fiber Port (RocketLinx ES8105F) on Page 9

Connecting the Power and Ground

Use the following procedure to connect the power and the ground.

1. Insert the positive and negative wires (12-24AWG) into V+ and V- contacts.

2. Tighten the wire-clamp screws to prevent the wires from coming loose.

Note: Power should be disconnected from the power supply before connecting it to the

switch. Otherwise, your screwdriver blade can inadvertently short your terminal

connections to the grounded enclosure.

3. Connect a ground wire between the chassis and earth ground using 12-24AWG wire to

ensure that the RocketLinx ES8105/ES8105F is not damaged by noise or electrical shock.

a. Loosen the earth ground screw that is located between the DIP switch and the power/

relay terminal block.

b. Tighten the screw after the earth ground wire is connected.

Wiring the Relay Output

The RocketLinx ES8105/ES8105F have a built-in alarm-relay for port link and power

events notifications. The relay contacts are normally open and remain open when

there is no failure event. The relay contacts will close when there is a failure event to

notify.

The failure events are selectable and enabled using the DIP switch on the ES8105/

ES8105F. The relay contacts of RocketLinx ES8105/ES8105F are rated for a

maximum of 1A at 24VDC.

Wiring the alarm relay output is the same as wiring power inputs in Connecting the

Power and Ground.

1. Insert positive and negative wires into V+ and V-.

2. Tighten the wire-clamp screws to prevent the wires from coming loose.

Enabling the Event Alarm

You can use this subsection to configure and enable the event alarm to alert maintenance engineers once a system event has

occurred. The RocketLinx ES8105/ES8105F is equipped with one dry relay output for port link failure.

Extra Power

System

Alarm System

8 - RocketLinx ES8105/ES8105F User Guide: 2000558 Rev. B Mounting the RocketLinx ES8105/ES8105F

Hardware Installation

On the bottom of the ES8105/ES8105F, there is one 5-pin DIP switch for alarm control. If you connect the alarm (Wiring the

Relay Output on Page 7) and set the DIP switch of the intended Alarm to ON, the relay output forms a short circuit if an alarm

occurs.

Use this table to set the DIP switch for the relay output alarm.

Mounting the RocketLinx ES8105/ES8105F

You can mount the RocketLinx ES8105/ES8105F on a DIN rail or mounted to the wall. The DIN rail clip is already attached to

the RocketLinx ES8105/ES8105F when packaged.

Note: The RocketLinx ES8105/ES8105F will disperse heat through the metal case during PoE port operation. The

RocketLinx ES8105/ES8105F should be installed and mounted onto a panel which provides good heat dispersion.

You can use this procedure to mount the ES8105/ES8105F on a DIN rail.

1. Insert the upper end of DIN rail clip into the back of DIN rail track from its

upper side.

2. Lightly push the bottom of DIN rail clip into the track.

3. Ensure the DIN rail clip is tightly attached on the track.

4. To remove the RocketLinx ES8105/ES8105F from the track, reverse the steps

above.

To mount the ES8105/ES8105F on the wall:

1. Snap the DIN rail plate into the track.

2. Attach the ES8105/ES8105F to the wall using the mounting screws.

Connecting the Ethernet Ports

You can use the following information to connect standard Ethernet cables between the RocketLinx ES8105/ES8105F 10/

100BASE-TX Ethernet ports and the network nodes. The Fast Ethernet ports support 10BASE-T and 100BASE-TX, full- or

half-duplex modes.

All the Fast Ethernet ports automatically detect the signal from the connected devices to negotiate the link speed and duplex

mode. Auto MDI/MDIX allows you to connect another switch, hub, or workstation without changing straight-through or

crossover cables. Crossover cables cross-connect the transmit lines at each end to the received lines at the opposite end.

Pin Status Description

1-5 On Enables the port link down alarm for the corresponding port.

Off Disables the port link down alarm on the corresponding port.

Switch

3 TD+

6 TD-

1 RD+

2 RD-

3 RD+

6 RD-

1 TD+

2 TD-

Router or PC Switch

3 TD+

6 TD-

1 RD+

2 RD-

3 TD+

6 TD-

1 RD+

2 RD-

Switch

Straight-Through Cabling Crossover Cabling

Connecting the Fiber Port (RocketLinx ES8105F) RocketLinx ES8105/ES8105F User Guide: 2000558 Rev. B - 9

Hardware Installation

The Ethernet cables use Pins 1, 2, 3, and 6 of an 8-pin RJ45 connector. The signals of these pins are converted by the automatic

MDIX function, as shown in the following table.

Connect one side of an Ethernet cable into any switch port and connect the other side to your attached device. The LINK/ACT

LED is lit when the cable is correctly connected. Always make sure that the cables between the switches and attached devices

(for example, switch, hub, or workstation) are less than 100 meters (328 feet).

The wiring cable types and maximum cable length are as follows.

• 10BASE-T: 2-pair UTP/STP Category 3, 4, 5 cable, EIA/TIA-568 100-ohm (100 meters)

• 100BASE-TX: 2-pair UTP/STP Category 5 cable, EIA/TIA-568 100-ohm (100 meters)

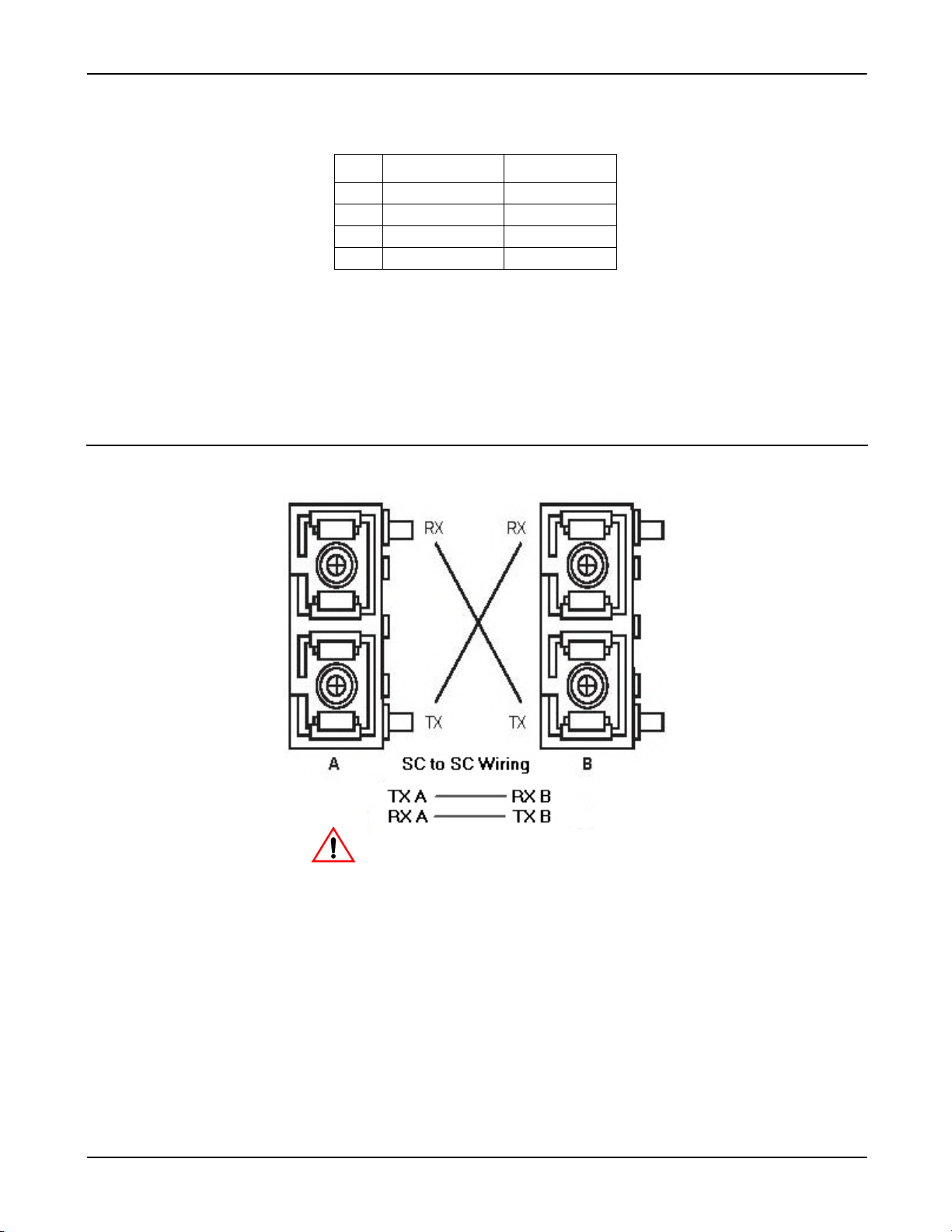

Connecting the Fiber Port (RocketLinx ES8105F)

Connect the fiber port on the RocketLinx ES8105F to another fiber Ethernet device using the following information.

A wrong connection will cause the fiber port not to work properly.

Pin MDIX Signals MDI Signals

1RD+ TD+

2RD- TD-

3TD+ RD+

6TD- RD-

Caution

This is a Class 1 Laser/LED product.

Do not stare into the Laser/LED beam.

10 - RocketLinx ES8105/ES8105F User Guide: 2000558 Rev. B Connecting the Fiber Port (RocketLinx ES8105F)

Hardware Installation

The fiber connector is a standard connector or square connector (SC).

Note: In the IEEE standard, it suggests the available transmission distance is 2KM for 62.5/125um fiber optical cable in

1310nm wave length. Actually, the attenuation of Multi-Mode 62.5/125um optical fiber cable is 1.5dBm/km and the

maximum link distance can up to 4 to 5km.

IEEE organization recommends maximum optical fiber cable distances as defined in the following table.

Mode Cable Type Wavelength Transmit

Power

(min.)

Transmit

Power

(max.)

Receive

Sensitivity

(max.)

Receive

Sensitivity

(min.)

Min. Launch

Power –Max.

Receive

Sensitivity

Distance

(km)

Multi 50/125um

62.5/125um 1310nm -20dBm -14dBm -31dBm 0dBm 11dBm 2km

Note

(below)

Single 8-10/125um 1310nm -15dBm -8dBm -34dBm -8dBm 19dBm 30km

Standard DataRate

(Mbps) Cable Type IEEE Standard

Distance

10BASE-FL 10 850nm, 50/125um or 62.5/125um

Multi-Mode optical fiber cable 2km

100BASE-FX 100 1310nm, 50/125um or 62.5/125um

Multi-Mode optical fiber cable 2km

100BASE-SX 100 850nm, 50/125um or 62.5/125um

Multi-Mode optical fiber cable 300m

1000BASE-SX 1000 850nm, 50/125um

Multi-mode optical fiber cable

850nm, 62.5/125um

Multi-Mode optical fiber cable

550m

220m

1000BASE-LX 1000 1310nm, 50/125um or 62.5/125um

Multi-mode optical fiber cable

1310nm, 9/125um

Single-Mode optical fiber cable

550m

5km

1000BASE-LH 1000 1550nm,9/125um

Single-Mode optical fiber cable 70km

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Comtrol Changer

Comtrol

Comtrol RocketLinx ES8108 Manuel utilisateur

Comtrol

Comtrol RocketPort Manuel de la liste des pièces

Comtrol

Comtrol RocketLinx ES8520-XT Manuel utilisateur

Comtrol

Comtrol RocketLinx ES8108 Manuel utilisateur

Comtrol

Comtrol Satyrn U041-RE-M12 Manuel utilisateur

Comtrol

Comtrol RocketLinx ES7510 Manuel utilisateur

Comtrol

Comtrol ROCKETLINX ES7110-VB Manuel utilisateur

Comtrol

Comtrol ROCKETLINX ACS7106 Manuel utilisateur

Comtrol

Comtrol ROCKET LINX ES7506 Manuel utilisateur

Comtrol

Comtrol RocketPort Serial Hub Si Manuel de l'opérateur

Comtrol

Comtrol Rocketlinx ES8108-GigE Manuel utilisateur

Comtrol

Comtrol RocketPort Manuel de l'opérateur

Comtrol

Comtrol ROCKETLINX ES8509-XT Manuel utilisateur

Comtrol

Comtrol ROCKETLINX ES7105 Manuel utilisateur

Comtrol

Comtrol RocketPort RPUSBSH Manuel de l'opérateur

Comtrol

Comtrol RocketLinx ES8108 Manuel utilisateur

Comtrol

Comtrol ROCKETLINX ES7206-XT Manuel utilisateur

Comtrol

Comtrol RocketLinx MP1204-XT Manuel utilisateur

Comtrol

Comtrol ROCKETLINX ES8509-XT Manuel utilisateur

Comtrol

Comtrol RocketLinx ES8108 Manuel utilisateur

Comtrol

Comtrol ROCKETLINX ES8508 Manuel utilisateur

Comtrol

Comtrol ROCKETLINX ES8510 Manuel utilisateur

Comtrol

Comtrol ROCKET LINX ES7506 Manuel utilisateur

Comtrol

Comtrol Rocket linx ES8508 Manuel utilisateur

Manuels Changer populaires d'autres marques

URC

URC Total Control MFS-8 Manuel utilisateur

Azbil

Azbil HPQ-D11 Manuel utilisateur

Sony

Sony DFS-900M Manuel utilisateur

SICK

SICK i17S Manuel utilisateur

F&F

F&F SZR-277 Manuel utilisateur

Shure

Shure UAMS/BK Manuel utilisateur

Dräger

Dräger X-zone Switch Off Manuel utilisateur

Asco

Asco Joucomatic 349 Series Manuel utilisateur

BT Mini Hub Manuel utilisateur

D-Link

D-Link DES-1226G Manuel utilisateur

Johnson Controls

Johnson Controls FS80-C Manuel utilisateur

Alcatel-Lucent

Alcatel-Lucent 7450 ESS-12 Manuel utilisateur

MicroNet

MicroNet SP1200A Manuel utilisateur

Ruijie

Ruijie RG-PF2920 Series Manuel d'installation et d'exploitation

Altinex

Altinex DA1914SX Manuel utilisateur

MiLAN

MiLAN MIL-SM2401M Manuel utilisateur

RJM

RJM MASTERMIND PBC/6X Manuel utilisateur

Atlas

Atlas MMK-KVM8 Manuel utilisateur
