Comtrend Corporation GS-7408 Manuel utilisateur

Quick Installation Guide

GS-7408 | 8-Port Gigabit Ethernet Smart-Lite Switch

I. Product Information

I-1. Package Contents

1. GS-7408 Switch

2. QIG

3. Manual CD

4. Power Cable

5. 4 x Foot Pads

I-2. Hardware Overview

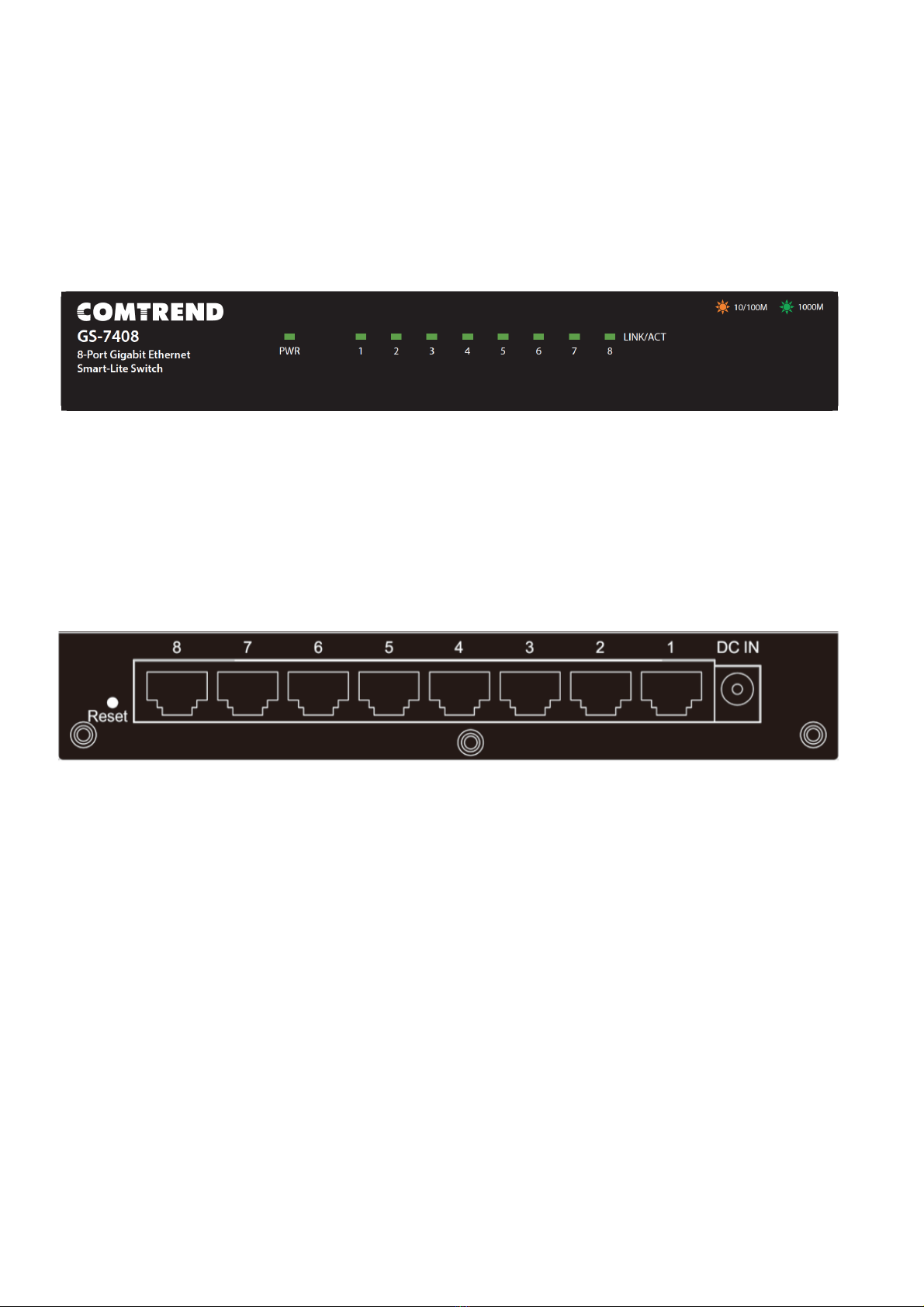

Front Panel

The front panel of the switch consists of:

A Series of LED Indicators

Rear Panel

The rear panel of the switch consists of:

8 x 10/100/1000Mbps RJ-45 Ports

AC Power Connector

Reset Button

I-3. LED Indicator

PWR:

LED Status

Mode

Description

Green

Power on

Off

Power off or fail

Link/ACT:

LED Status

Mode

Description

Green

On/Blinking

1000Mbps

connected/data

transmitting

Amber

On/Blinking

10/100Mbps

connected/data

transmitting

Off

Disconnected or fail

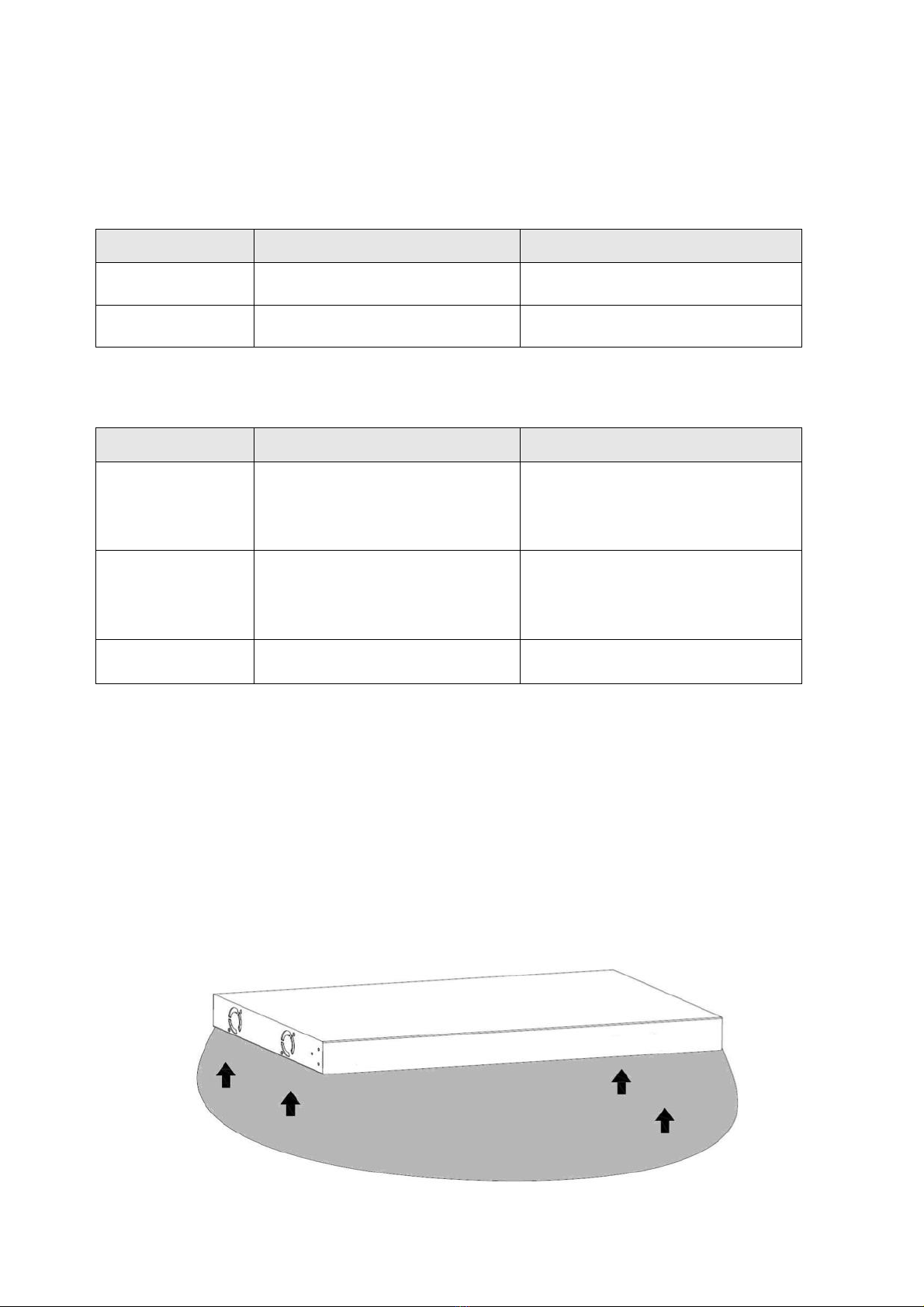

I-4. Desktop Installation

Install the switch on a desktop by attaching the cushioning

rubber feet to the bottom corners of the switch to protect

against external vibration. Allow adequate space for ventilation

between the device and any objects around.

II. Quick Setup

II-1. Switch to End Device

1. Connect the switch to local power with the included power

cable.

2. Use a standard Cat 5/5e Ethernet cable to connect the switch

to end devices as shown below. Switch ports will automatically

adjust to the link rate of the device to which it’s connected.

Optionally, any port can be used to uplink to an existing network.

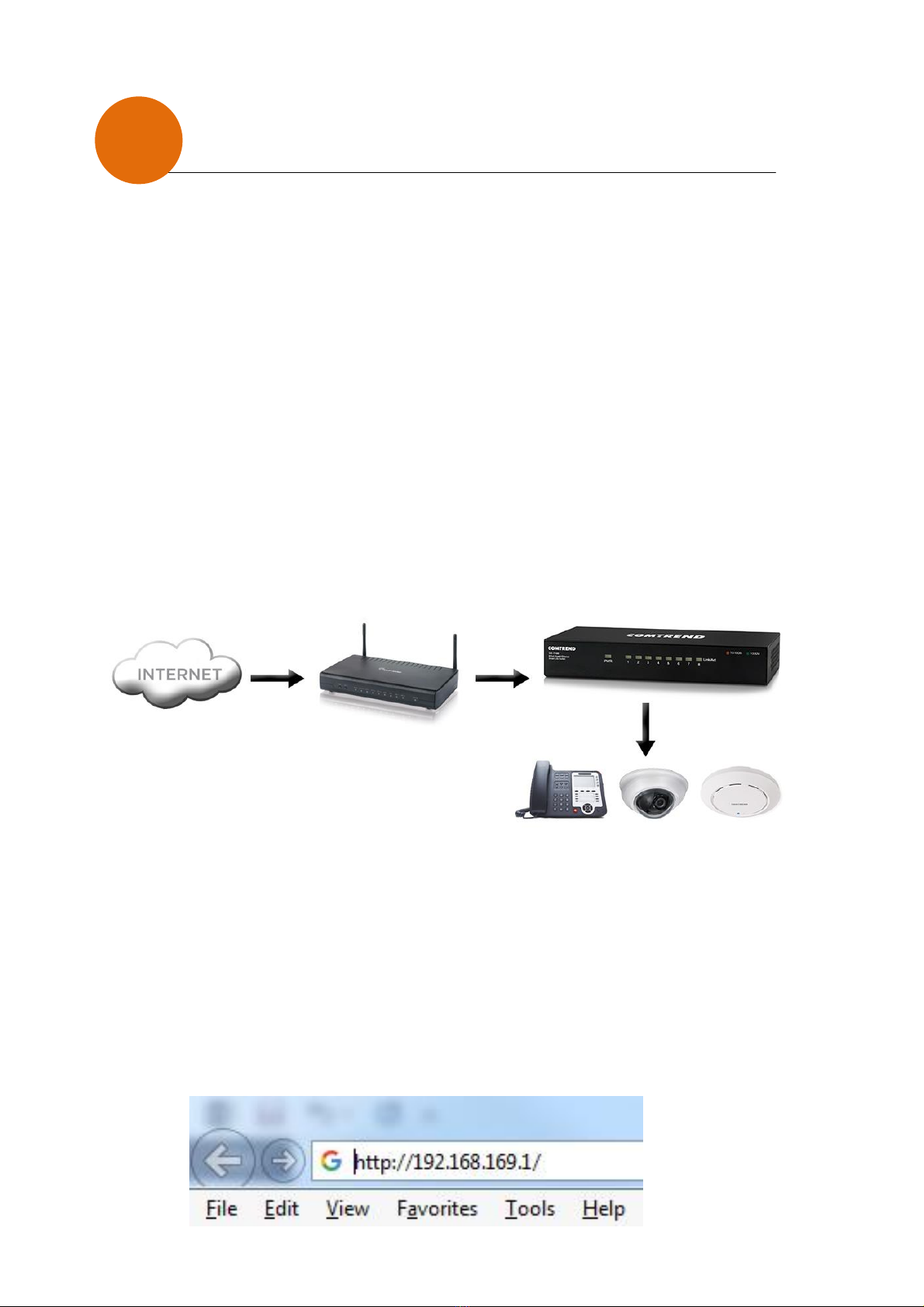

Application Diagram

II-2. Login

1. Open a web browser and go to the switch’s IP address.

2. Enter the access point’s default IP address 192.168.169.1 into

the URL bar of a web browser.

Gateway

VoIP Phone

Camera

Access

Point

Switch

You will be prompted for a username and password. Enter the

default username “admin” and the default password “admin”.

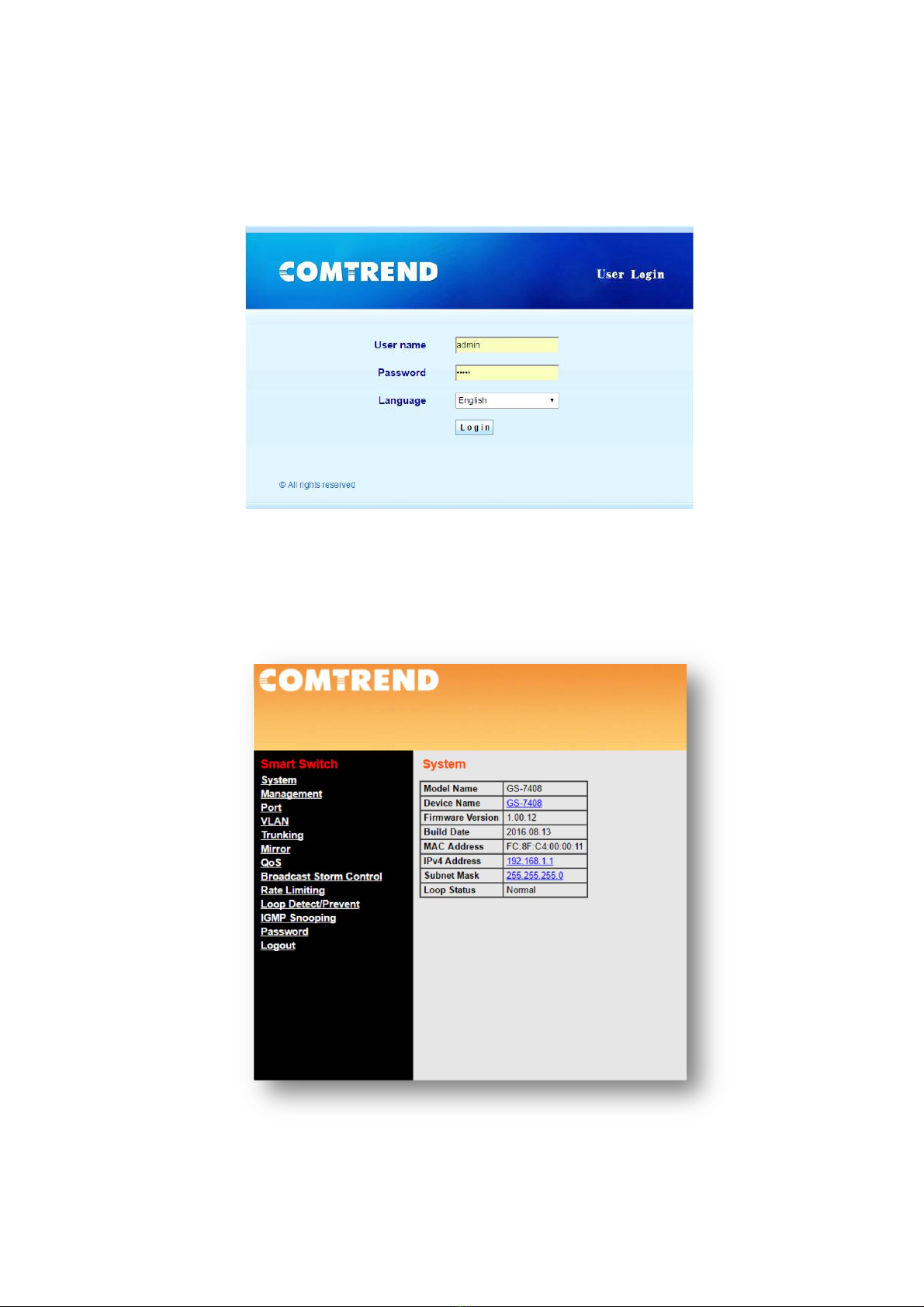

3. You will arrive at the switch configuration window as shown

below:

FOR MORE HELP: For instructions on advanced features, FAQ, etc., please visit

our online Product Webpage.

Your Device is Now Connected!

For more information:

YouTube: https://www.youtube.com/user/ComtrendConnection

Facebook: https://facebook.com/Comtrend

Website: http://us.comtrend.com/

Support: Visit our website or call 1-877-COMTREND (1-877-266-8736)
