Comset CM550W-POE 5G Router User Guide

Comset CM550W-POE 5G Router

User Guide

http://www.comset.com.au

Comset CM550W-POE 5G Router User Guide

Comset is a registered trademark of Comset. Other brands used in this manual are trademarks of their

registered holders.

Specifications are subject to change without notice. No part of this manual may be reproduced without

WARNING: Keep at least a 20cm distance between the user’s body and the modem/router device.

Address

：

37/ 125 Highbury Road, Burwood VIC 3125, Australia

Web

：

http://www.comset.com.au

Phone: +61 3 9001 9720

Fax: +61 3 9888 7100

Comset CM550W-POE 5G Router User Guide

Contents

1 Hardware Installation .......................................................................................................................................... 3

1.1 Panel ................................................................................................................................. 3

1.2 LED Status ....................................................................................................................... 4

1.3 Dimensions ....................................................................................................................... 5

1.4 Powering up the CM550W-POE Router ...................................................................... 5

2 Router Configuration ........................................................................................................................................... 8

2.1 Configuration from a local network ............................................................................... 8

2.2 Status ................................................................................................................................ 9

2.3 Tools Column ................................................................................................................. 11

2.4 Basic Network ................................................................................................................ 14

2.5 WLAN Settings............................................................................................................... 25

2.6 Advanced Network Settings ......................................................................................... 28

2.7 Firewall ............................................................................................................................ 39

Comset CM550W-POE 5G Router User Guide

2.8 VPN Tunnel .................................................................................................................... 41

2.9 Administration ................................................................................................................ 54

2.10 “Reset” Button to Restore Factory Settings ............................................................ 70

3 Configuration Examples.................................................................................................................................... 72

3.1 VLAN .............................................................................................. 72

3.2 WAN Backup (WAN as Main, Cellular as Backup) ................. 74

3.3 Port Forwarding ............................................................................ 77

3.4 IP Passthrough ............................................................................. 80

3.5 Captive Portal ............................................................................... 82

3.6 GPS Settings (GPS version only) .............................................. 86

3.7 Firewall .......................................................................................... 87

3.8 VPN Tunnel ................................................................................... 89

Comset CM550W-POE 5G Router User Guide

1 Hardware Installation

The images below might be slightly different from the actual product, but the specifications are the

same.

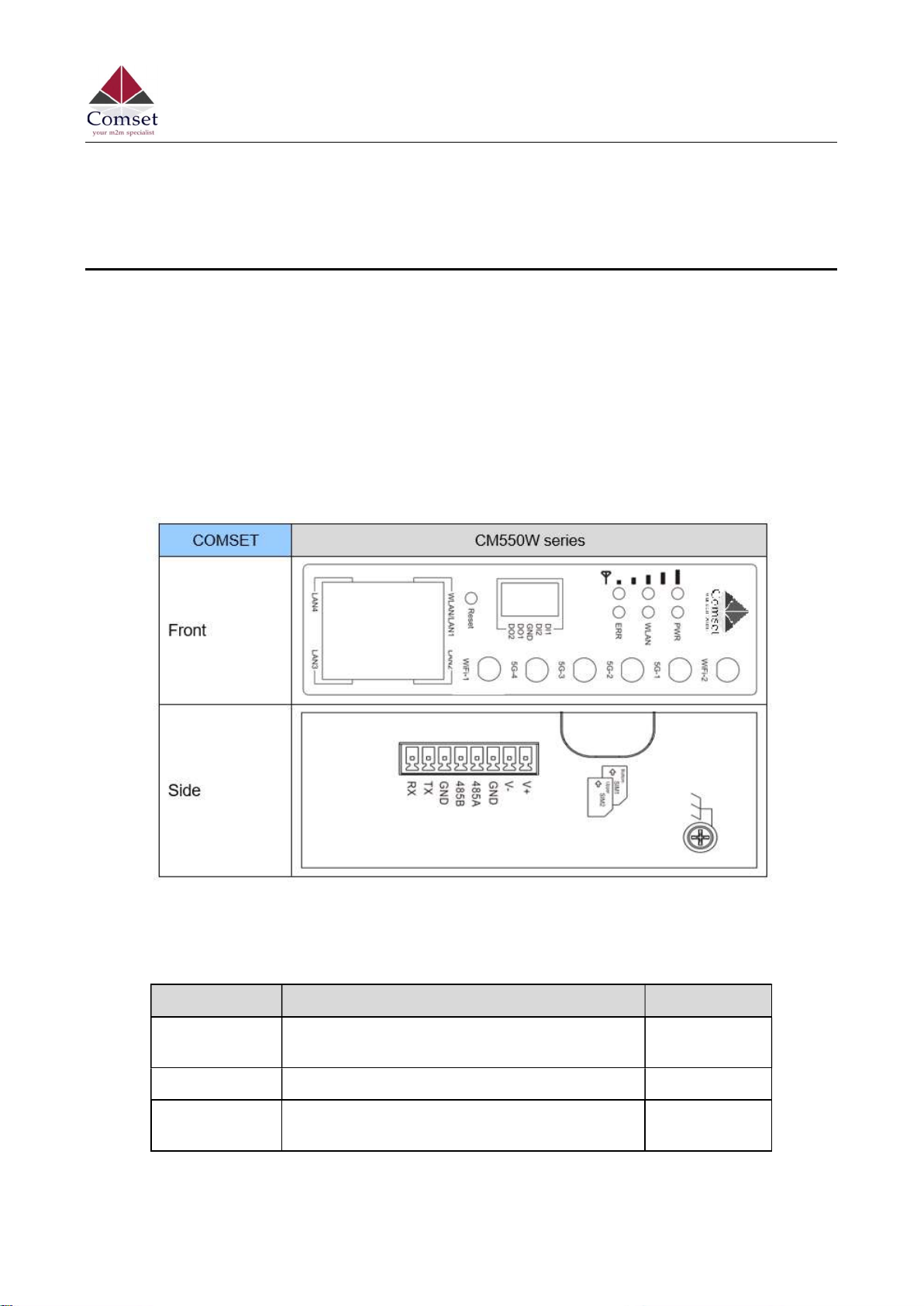

1.1 Panel

Table 1-1 CM550W-POE Interface

Table 1-2 Router Interface

Port Instructions Remark

USIM Standard size SIM Slot, supports 1.8/3V/5V

automatic detection.

Main 5G-1~5G-4 antennas, SMA connectors, 50Ω.

GPS 5G-4 can be used as a GPS antenna, SMA

connector, 50Ω.

Optional

Comset CM550W-POE 5G Router User Guide

Port Instructions Remark

Wi-Fi 2.4GHz Wi-Fi, 5GHz Wi-Fi. Dual-band

antennas, SMA connectors.

LAN0~LAN4 10/100/1000Base-TX，MDI/MDIX self-

adaption, LAN1 & LAN2 for PoE and PoE+.

Reset Reset button. Press and hold for at least 5

seconds.

PWR Power connector. 44～57VDC

for PoE

IO Interface 5xPins. 2 x DI, 2 x DO and GND.

Terminal Block 1 x RS232,1 x RS485, 1 x DC Power.

1.2 LED Status

Table 1-3 Router LED indicator Status

silk-screen

status Description

Signal

Signal Solid light LED1 indicates signal is weak (CSQ0~10)

LED2 indicates signal is good (CSQ11~19)

LED3 indicates signal is strong (CSQ20~31)

Signal 1

Blinking Dialing.

Solid light Online.

PWR Solid light System power operation.

WLAN

Solid light WLAN enabled, but no data communication.

Blinking rapidly Data is being transmitted.

Light off WLAN disabled.

ERR

Light off System in operation and 5G/4G is online.

Solid light (Red) System fail indicator. This indicates failure with

the SIM card and/or the module.

LAN

Green Solid light Connected.

Green Blinking Data is being transmitted.

Comset CM550W-POE 5G Router User

Guide

https://www.comset.com.au

silk-screen

status Description

Green Light off Disconnected.

1.3 Dimensions

Figure 1-1 CM550W-POE Router Dimensions

1.4 Powering up the CM550W-POE Router

1.4.1 SIM/UIM card installation

Please insert the SIM card(s) prior to configuring the router. Use a standard size SIM card.

Comset CM550W-POE 5G Router User

Guide

https://www.comset.com.au

Before connecting any cables, please disconnect the power source.

1.4.2 Ethernet Cable Connection

Use an Ethernet cable to connect the LAN port of the 5G Router to the LAN port of your

PC or laptop computer.

1.4.3 5G and Wi-Fi Antenna Plug

Connect the four magnetic base 5G antennas to antenna sockets 5G-1 to 5G-4, and the

two paddle shape Wi-Fi antennas to the Wi-Fi antenna sockets.

The Wi-Fi antennas support dual-band Wi-Fi 2.4GHz and 5GHz bands.

1.4.6 Power Supply

The CM550W-POE router supports a wide range of DC voltage between 44VDC and

57VDC.

Comset CM550W-POE 5G Router User

Guide

https://www.comset.com.au

1.4.7 Review

After inserting the SIM/UIM card(s) and connecting the Ethernet cable and antennas,

please connect the power adaptor or power cable.

Please connect the antennas prior to powering up the router, otherwise you may get a

poor signal due to a mismatching impedance.

Note:

Step 1 Check the antennas’ connection.

Step 2 Check the SIM/UIM card is inserted.

Step 3 Power up the CM550W-POE Router.

Comset CM550W-POE 5G Router User

Guide

https://www.comset.com.au

2 Router Configuration

The CM550W-POE Router can be configured via a web interface using a web browser

such as Internet Explorer, Firefox, or Google Chrome.

2.1 Configuration from a local network

To configure the CM550W-POE, please connect an Ethernet cable between the router and

your PC computer. The IP address on your PC can be a static IP address, or you can select

DHCP so that your computer can automatically obtain a Dynamic IP address. The default

IP address of the router is 192.168.1.1. The subnet mask is 255.255.255.0. Please follow

the instructions below:

Step 1 Click “start > control panel”, find “Network Connections” icon and double click it.

Select “Local Area Connection” corresponding to the network card on this page.

Refer to the figure below:

Figure 2-1 Network Connection

Step 2 Select “Obtain an IP address automatically” or set up a fixed IP address in the

range 192.168.1.xxx (xxx can be any number between 2～254)

Step 3 Run Internet Explorer, or any other web browser, and enter 192.168.1.1 in the

address bar and press “enter”.

The default username is admin, and the default password is admin.
