COMPX Pearl KEYPAD Manuel utilisateur

Pearl – installation instructions

Electronic push button cabinet lock

Pearl — Installation instructions: KEYPAD version

KEYPAD version

Pearl operates using a 4 to 8 digit code.

Operation is simple: type a valid code

and press (enter). Then just turn the

knob to the unlocked or locked position.

Pearl is easy to install, and offers:

wProgrammable user

and supervisor codes

wProgrammable modes of operation

wProgrammable reset features

Pearl is intended for interior use only.

Operating Temperature: 50°F – 120°F

(10°C – 48°C)

Note:

It is strongly recommended that

batteries be replaced on an annual

basis. In the event the batteries are

exhausted, they can be replaced via

the external battery compartment.

Thank you for purchasing the CompX®Pearl™

.The Pearl is an innovative solution

for locking cabinet doors and drawers. It can mount to cabinet doors or drawers

with a material thickness of 1/32" to 1-7/16".

Pearl – installation instructions

Electronic push button cabinet lock

Pearl — Installation instructions: KEYPAD version

KEYPAD version

Contents – Manual Lock Version:

2 AAAA alkaline batteries

1 Offset locking cam / 1 Straight

locking cam

FlexaCam adapters

Collar – Intended for surface

mount applications

Mounting hardware

Each lock is shipped with two green

stickers that are needed for resetting

Pearl. Place one of these green stickers

on the back of the device, in case Pearl

ever needs to be reset. The remaining

green sticker should be saved in a safe

and secure location for future reference.

(See page 9 for reset instructions.)

To clean the Pearl surface, apply non-

acid based cleaner to a clean cotton

cloth; do not spray cleaner directly on

the Pearl. Wipe down keypad and its

respective housing surfaces of excess

cleaner.

Packaged Components

Care and Cleaning

FlexaCam adaptors (if so equipped) can

be attached to the cam to provide up

to 12 different dimensional variations.

See image to the left.

FlexaCam Adaptors

FlexaCam

adaptor

The Pearl

serial number

can be found

by sliding the

housing base.

Pearl – installation instructions

Electronic push button cabinet lock

Pearl — Installation instructions: KEYPAD version 3

KEYPAD version

Pearl is shipped with two AAAA batteries.

While Pearl features a low battery

indicator, annual battery replacement

is recommended. Mixing batteries

of different chemistries or age could

damage the Pearl resulting in lock failure.

To power up Pearl, remove the red tag.

Lock is now ready for use.

Pearl batteries can be changed when

locked or unlocked. A small tool, like a

paper clip or eyeglass screwdriver, will

be required to open the battery cover.

(Not Included)

To change batteries:

1. Slide down housing base, see figure 1.

2. Release housing flip up by pressing

housing latch, tool required, see

figure 2 & 3.

3. Remove the two AAAA batteries and

install the new batteries.

4. Close housing flip up and move

housing base to the closed position,

see figure 3.

Figure 1 Figure 3Figure 2

Housing Latch

Batteries must be installed correctly for lock

to function. Make note of correct battery

installation before removing the old batteries.

Powering Up and Battery Installation

Pearl – installation instructions

Electronic push button cabinet lock

Pearl — Installation instructions: KEYPAD version

KEYPAD version

Pearl is easy to program and operate.

Type the user code (factory default

1234) and press (enter) to unlock

or lock the cabinet.

The supervisor can change operating

codes, modes and restore lock

settings.While Pearl is easy to program,

we highly recommend reading the

complete programming instructions

prior to making any changes. Remember

to keep track of any programming

changes.

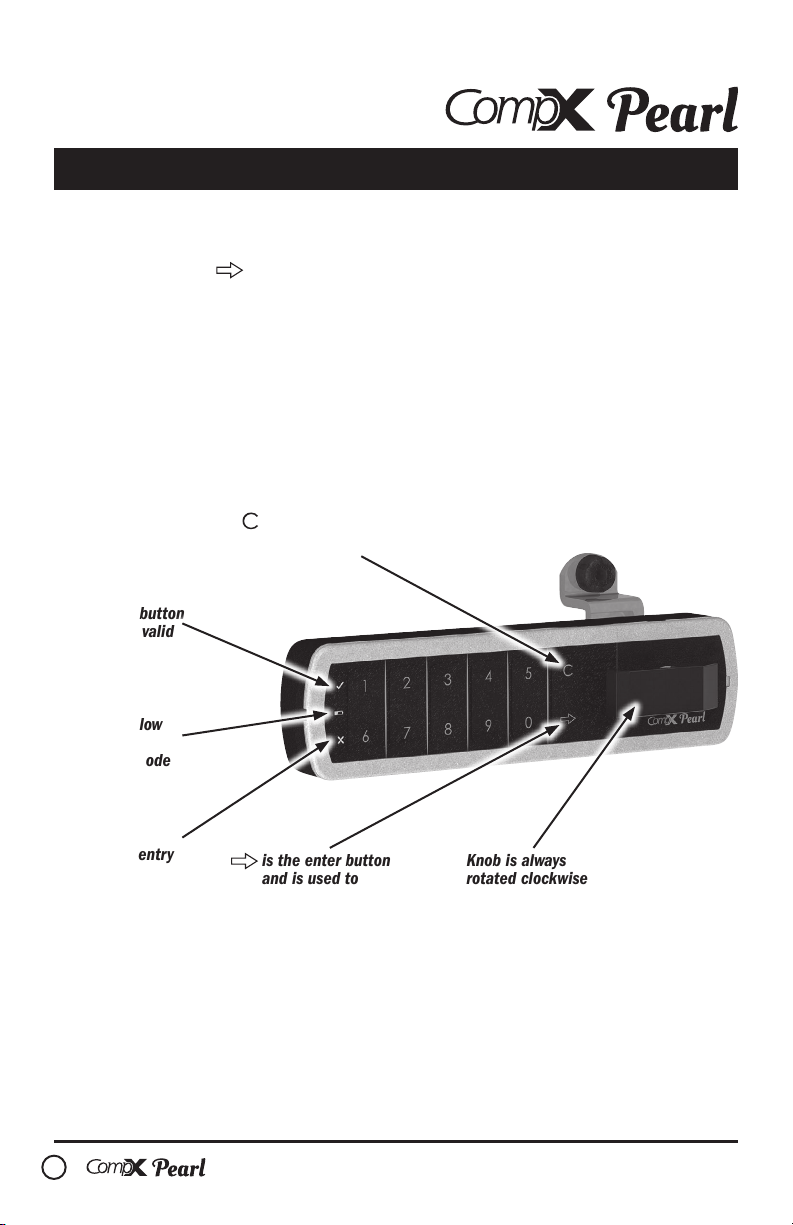

Button locations, indicator lights and

knob referenced in the programming

instructions are shown below.

Programming – Introduction

Indicator Lights

Green:

Indicates button

input and valid

code

Yellow:

Indicates low

battery or

program mode

Red:

Indicates

incorrect entry is the enter button

and is used to

complete code and

begin programming

Knob is always

rotated clockwise

to unlock and

counter clockwise

to lock

(clear) button and

erases any key input

made in error

Pearl – installation instructions

Electronic push button cabinet lock

Pearl — Installation instructions: KEYPAD version 5

KEYPAD version

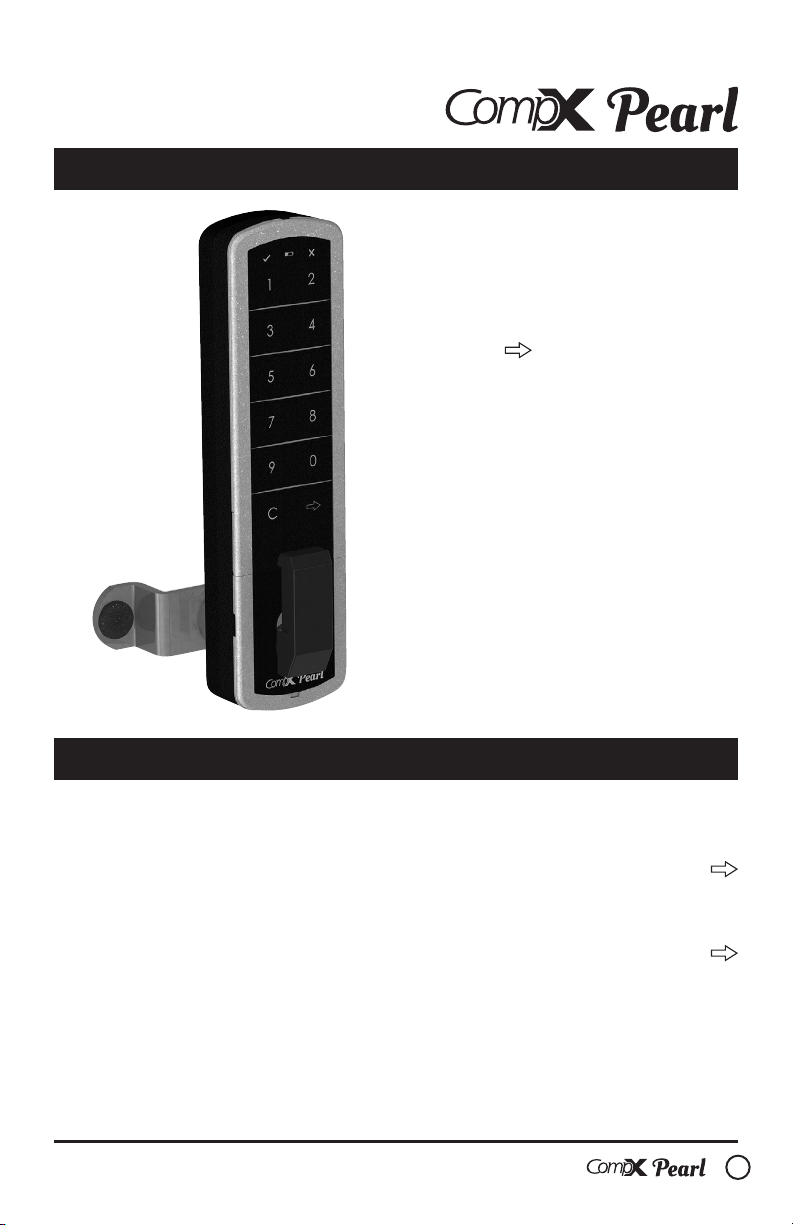

Follow the directions below to unlock

and lock the Pearl.

To operate the Pearl:

To unlock, type a valid code,

press (enter) and rotate

knob clockwise 90°.

To lock, rotate knob 90°

counter clockwise.

To enter programming mode you

must know the supervisor code. The

default supervisor code is 12345.

Once in programming mode, multiple

changes can be made prior to exiting

programming.

There is a 10 second programming time

limit between each step. If Pearl times

out or an error is made, programming

will end and you will need to enter

programming mode again.

1. Lock must be in the locked position

prior to entering programming mode.

2. Type supervisor code and press

(enter)

Rotate the knob to the unlocked

position and press and hold

(enter)

for 3seconds (yellow

indicator light will illuminate).

3. With the yellow indicator light

illuminated, programming can begin.

Programming – Introduction continued

Pearl Programming Mode

Pearl – installation instructions

Electronic push button cabinet lock

Pearl — Installation instructions: KEYPAD version

KEYPAD version

To change the user code, follow the

steps on page 5to enter programming

mode.

The factory default user code is 1234

(User codes must be 4 to 8 digits in

length.)

There is a 10 second programming time

limit between each step. If Pearl times

out or an error is made, programming

will end and you will need to enter

programming mode again.

1. Place Pearl into programming

mode (see page 5).

2. Press 1and then press (enter).

3. Type the current user code and

press

(enter)

4. Type the new user code and

press

(enter)

5. Retype the new user code and

press

(enter)

6. If successful, the green indicator

light will illuminate for 1 second.

Continue programming or press 9and

then

(enter)

to exit programming.

To change the supervisor code,

follow the steps on page 5to enter

programming mode.

The factory default supervisor code is

12345 (supervisor codes must be 4 to

8 digits in length.)

There is a 10 second programming time

limit between each step. If Pearl times

out or an error is made, programming

will end and you will need to enter

programming mode again.

1. Place Pearl into programming

mode (see page 5).

2. Press2andthen press (enter).

3. Type the current supervisor code

and press

(enter)

4. Type the new supervisor code

and press

(enter)

5. Retype the new supervisor code

and press

(enter)

6. If successful, the green indicator

light will illuminate for 1second.

Continue programming or press 9and

then

(enter)

to exit programming.

Pearl features a reset code which will restore

the default supervisor code and user code.

Pearl was shipped with reset stickers – one

should be attached to the back of the Pearl, and

the extra sticker should be saved in a safe and

secure location for future reference.

To restore the factory default supervisor and

user code, type the Reset Code assigned to the

Pearl and press (enter).

Changing the User Code

Changing the Supervisor Code

Pearl – installation instructions

Electronic push button cabinet lock

Pearl — Installation instructions: KEYPAD version 7

KEYPAD version

Single Use Mode allows for a revolving

user code so multiple people may use

the lock without having to reprogram

the Pearl each time.

Standard Mode operates with a fixed

code. To change the code, follow the

Changing the User Code steps on

page 5.

To change the Pearl to Single Use or

Standard Mode, follow the steps on

page 5 to enter programming mode.

There is a 10 second programming time

limit between each step. If Pearl times

out or an error is made, programming

will end and you will need to enter

programming mode again.

1. Place Pearl into programming

mode (see page 5).

a. To turn Single Use Mode

“ON”: type 51 and then

press

(enter)

b. To return to Standard

Mode: type 50 and

then press

(enter)

2. If successful, the green indicator

light will illuminate for 1 second.

Note: Returning to Standard Mode

will reset the factory user default

code (1234).

Continue programming or press 9and

then

(enter)

to exit programming.

CompX Pearl features several modes of operation. These functions can be

changed using the following instructions with a valid supervisor code.

Programming Single Use Mode / Standard Mode

Pearl – installation instructions

Electronic push button cabinet lock

Pearl — Installation instructions: KEYPAD version

KEYPAD version

Warning: Manual Lock - Single Use

Timeout ON is a feature to prevent

users from occupying a shared use

locker or cabinet for a prolonged

period of time. Turning this feature

on will disable the user code after a

programmable amount of time. After

this time elapses, Pearl can only be

opened with the supervisor code.

To change the Pearl to Single Use

Timeout ON or OFF, follow the steps on

page 5 to enter programming mode.

There is a 10 second programming time

limit between each step. If Pearl times

out or an error is made, programming

will end and you will need to enter

programming mode again.

1. Place Pearl into programming

mode (see page 5).

a. To set Timeout ON, type

2XX and then press

(enter)

(XX represents a time

period from 04 to 48 in

whole hours.)

b. To turn Timeout OFF, type

20 and then press

(enter)

3. If successful, the green indicator

light will illuminate for 1 second.

Continue programming or press 9and

then

(enter)

to exit programming.

Warning: Security Timeout ON will

disable the Pearl from use for 5 minutes

when 5 invalid attempts to unlock Pearl

occur. During this time, Pearl will not

unlock with either the valid user or

supervisor code.

To change the Pearl to Security Timeout

ON or OFF, follow the steps on page 5

to enter programming mode.

There is a 10 second programming time

limit between each step. If Pearl times

out or error is made, programming

will end and you will need to enter

programming mode again.

1. Place Pearl into programming

mode see page 5).

a. To turn Security Timeout

ON, type 11 and then

press

(enter)

b. To turn Security Timeout

OFF, type 10 and then

press

(enter)

2. If successful, the green indicator

light will illuminate for 1 second.

Continue programming or press 9and

then

(enter)

to exit programming.

Programming Single Use Timeout ON / Single Use Timeout OFF

Programming Security Timeout ON / Security Timeout OFF

Pearl – installation instructions

Electronic push button cabinet lock

Pearl — Installation instructions: KEYPAD version 9

KEYPAD version

To reset the User Code to the factory

default 1234 follow the steps on page

5 to enter programming mode.

There is a 10 second programming time

limit between each step. If Pearl times

out or error is made, programming

will end and you will need to enter

programming mode again.

1. Place Pearl into programming

mode (see page 5).

2. Type 8888 and then press the

(enter)

button.

3. If successful, the green indicator

light will illuminate for 1 second.

Continue programming or press 9and

then

(enter)

to exit programming.

The Supervisor Code memory location

is called Slot 01 and the first User

Code is called Slot 02.

Any additional User Codes reside in

memory slots 03-20.

To add a user code without specifying a

memory slot (03 -20), follow the steps

on page 5 to enter programming mode.

User codes must be 4 to 8 digits in

length and must be different from

all existing codes (including Slot 01

Supervisor & Slot 02 User codes).

There is a 10 second programming time

limit between each step. If Pearl times

out or an error is made, programming

will end and you will need to enter

programming mode again.

1. Place Pearl into programming

mode (see page 5).

2. Press 410 and then press

(enter)

3. Type the new user code and

press

(enter)

4. Retype the new user code and

press

(enter)

5. If successful, the yellow indicator

light will illuminate.

Continue programming or press 9and

then

(enter)

to exit programming.

Reset User Code to Factory Default 1234 (Does not apply to Single Use Mode)

Add User Without Specifying Memory Slot

Pearl – installation instructions

Electronic push button cabinet lock

Pearl — Installation instructions: KEYPAD version

KEYPAD version

The Supervisor code memory location

is called Slot 01 and the first User

code is called Slot 02.

Any additional user codes reside in

memory slots 03-20.

To add a user code to a specific

memory slot (03 -20), follow the steps

on page 5 to enter programming mode.

User codes must be 4 to 8 digits in

length and must be different from

all existing codes (including Slot 01

Supervisor & Slot 02 User codes).

There is a 10 second programming time

limit between each step. If Pearl times

out or an error is made, programming

will end and you will need to enter

programming mode again.

1. Place Pearl into programming

mode (see page 5).

2. Press 411, then press (enter).

3. Type memory slot to be added

followed by (enter) (for memory

slots 03 - 09, you must type leading

“0” – e.g. “07” for slot 7)

4. Retype memory slot to be added

followed by

(enter)

5. Type the new user code and

press

(enter)

6. Retype the new user code and

press

(enter)

7. If successful, the yellow indicator

light will illuminate.

Continue programming or press 9and

then

(enter)

to exit programming.

The Supervisor code memory location

is called Slot 01 and the first User

code is called Slot 02.

The additional user codes reside in

memory slots 03-20.

To delete a user code without specifying

a memory slot (03 -20), follow the steps

on page 5 to enter programming mode.

There is a 10 second programming time

limit between each step. If Pearl times

out or an error is made, programming

will end and you will need to enter

programming mode again.

1. Place Pearl into programming

mode (see page 5).

2. Press 400 and then press

(enter)

3. Type the user code to be deleted

and press

(enter)

4. Retype the user code to be

deleted and press

(enter)

5. If successful, the yellow indicator

light will illuminate.

Continue programming or press 9and

then

(enter)

to exit programming.

Add User to Speciﬁc Memory Slot (03 – 20)

Delete User Without Specifying Memory Slot

Autres manuels COMPX Verrouillage

COMPX

COMPX Timberline CB-240 Manuel utilisateur

COMPX

COMPX OU-4200-NA Mode d’emploi

COMPX

COMPX Stock Locks C3786 Mode d’emploi

COMPX

COMPX Stock Locks C4073 Mode d’emploi

COMPX

COMPX 1T-058 Manuel du propriétaire

COMPX

COMPX Stock Locks C4198 Mode d’emploi

COMPX

COMPX Stock Locks C1804 Mode d’emploi

COMPX

COMPX Timberline CB-241 Manuel utilisateur

COMPX

COMPX Stock Locks C2174-70-DC-KD Mode d’emploi

COMPX

COMPX CB087-187 Manuel utilisateur

COMPX

COMPX Timberline CB-D150 Manuel utilisateur

COMPX

COMPX MFW 23038 Mode d’emploi

COMPX

COMPX Timberline CB-265 Manuel utilisateur

COMPX

COMPX C425519RL-KD Mode d’emploi

COMPX

COMPX C8154 Mode d’emploi

COMPX

COMPX Timberline CB-235 Manuel utilisateur

COMPX

COMPX MFWSG29000 Mode d’emploi

COMPX

COMPX Timberline CB-245 Manuel utilisateur

COMPX

COMPX 230SERIES Manuel utilisateur

COMPX

COMPX SW2-1138AD Mode d’emploi

COMPX

COMPX National D8840 Manuel utilisateur

COMPX

COMPX OU-4260 Mode d’emploi

COMPX

COMPX Stock Locks C5002LP Mode d’emploi

COMPX

COMPX Stock Locks C1701 Mode d’emploi

Manuels Verrouillage populaires d'autres marques

Magic

Magic 105 Manuel utilisateur

Gantner

Gantner GAT NET.Lock 7020 System Guide rapide

Wittkopp

Wittkopp Insys 7202 Manuel utilisateur

Dorma

Dorma Studio Classic Manuel utilisateur

Securam

Securam ECSL-601 Manuel utilisateur

Sudhaus

Sudhaus 3003 Manuel utilisateur

Safety 1st

Safety 1st 48517 Manuel utilisateur

Pado

Pado FDS-10 Manuel utilisateur

Esco

Esco systeQ Series Manuel utilisateur

secureo

secureo Key Box Manuel utilisateur

Stock Loks

Stock Loks C8713 Manuel utilisateur

Auslock

Auslock T11 Manuel utilisateur

ELCOM

ELCOM 7205 Manuel utilisateur

Stealth SAFES

Stealth SAFES ShadowVault Manuel utilisateur

Knox

Knox KeySecure 5 Manuel utilisateur

Kwikset

Kwikset 48334/01 Manuel utilisateur

Metra Electronics

Metra Electronics Door Access Terminal Combo Manuel utilisateur

Kilitronik

Kilitronik miniK10m Manuel utilisateur
