Compuprint 3056 Manuel utilisateur

Compuprint 3046 - 3056

Installation Guide

1Unpacking the Printer

a- Packing and Unpacking

1- Make sure the following parts are included while unpacking the printer, and no parts are

damaged.

2- Preserve the packing material properly for use in case of future printer transportation.

Figure 1

b- Protection Material

Remove the protection material before assembling printer: Refer to figure 1, and remove the

protection material pointed out by numbers 1 to 7 on the printer outside and 8 to 14 inside the

printer, and preserve them for the future transportation.

After removing the protection material, take out the front paper chute board from the package,

and push both hooks gently along the track into both gap locations of printer. You should hear

a “click” when the hook snaps into the gap.

2Installing the Printer

a- Ribbon Cartridge Installation

1. Make sure the printer is turned off before inserting the ribbon cartridge.

2. Remove the transparent cover part first, then hold the plastic hooks on both sides of the

sheet holder and pull upwards to remove the transparent sheet holder. After that, move

the print head to the middle of the printer.

Figure 2

3. Turn the ribbon tension knob according to the direction shown by the arrow on the

cartridge. Hold the handle of ribbon cartridge and push the cartridge gently down. Make

sure the plastic hook of ribbon cartridge click into the grooves inside the printer as in

figure 3.

Figure 3

4. Set the ribbon between the print head and the metal septa and tense the ribbon again.

Check if the ribbon can slide freely from side to side in the channel between the print head

and metal septa.

Figure 4

5. Reinstall the transparent sheet holder.

Figure 5

6. Reinstall the printer transparent cover parts. Insert the fixing chip in the front of the

printer cover into the fixing groove on the printer and lay it down.

Figure6

3Paper Chute Installation

The rear part:

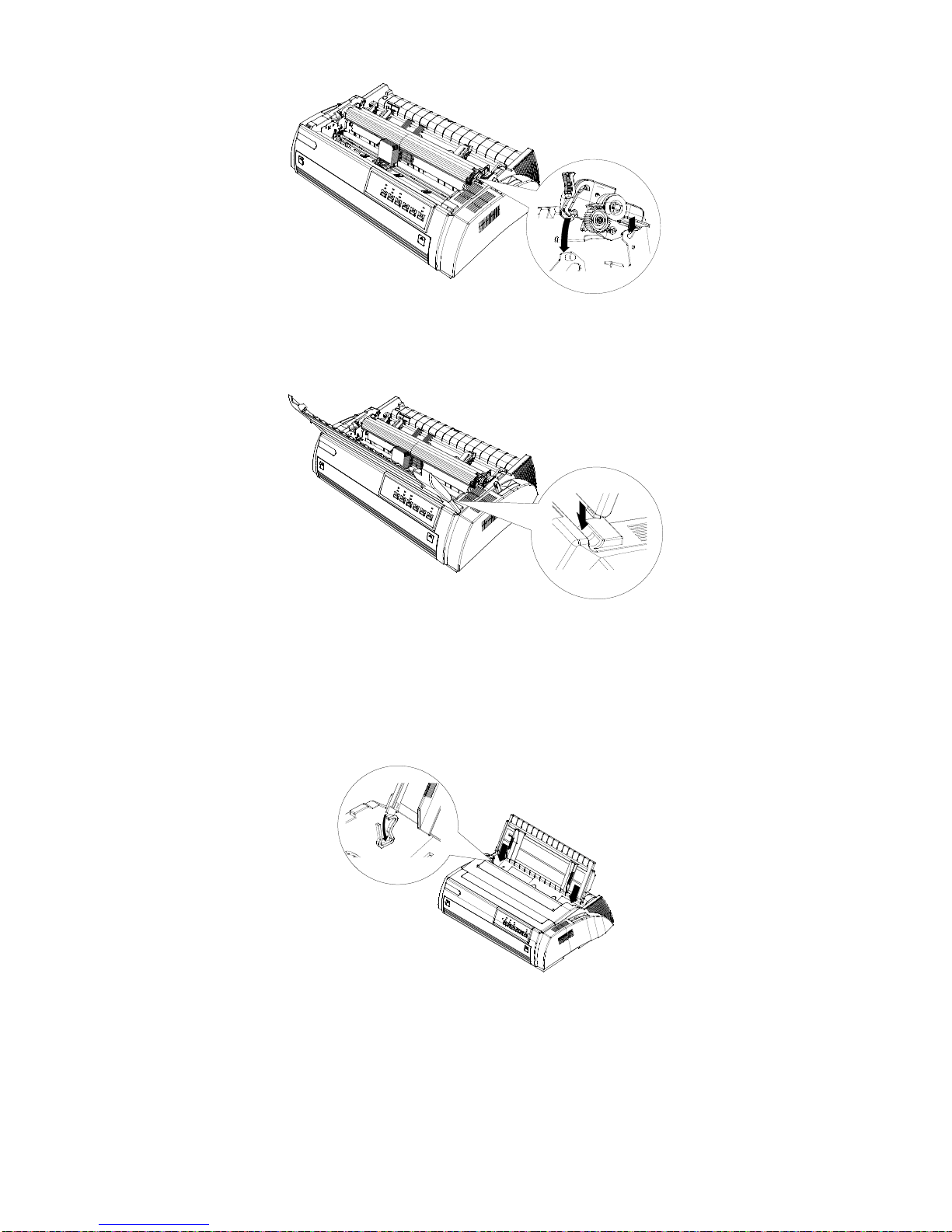

Insert the paper chute groove correctly in its allocated position on the top of the printer, as

shown in figure 7

Figure 7

The front part:

Hold the small handles on both sides of the front paper chute, and push the installation groove

to the allocated position in the printer as shown in figure 8 until you hear a “click” sound.

Figure 8

Host Computer Connection and Driver Installation

Connect Printer with Computer

Through parallel interface:

1. Switch the printer off, then connect the interface cable to the printer and computer.

Figure9

If your printer is equipped with the USB optional interface:

1. Make sure the printer is switched off.

2. Insert the USB interface cable plug into the USB interface outlet of printer.

3. Connect the other end of USB interface cable to your computer.

USB Port Usage

WINDOWS 2000 and XP: the USB device driver is installed automatically.

WINDOWS 98: USB device driver is needed additionally. The installation steps are as

follows:

1. Connect USB interface. If the system finds USB device, a dialog box prompting for the

location of the driver installation files appears.

2. The System will find the driver installation files and start the installation.

3. When the system finishes installing the USB device driver, it adds a USB port named

"USB00x" to the port options of printer attribute page (x means the number of USB port

drive that the current system has already installed).

4. Select the newly added USB port in the attribute page of the printer driver.

Windows Printer Driver Installation

To print from Windows, you need to install the driver. Insert the CD in the CD drive and run

setup.exe. You should choose corresponding printer type to suit your printer.

Notices

Security and Environment

1. Printer must have grounded power. Voltage: 100V~240V, frequency: 50Hz/60Hz.

2. Your printer must not be exposed to direct sunlight, extreme heat, humidity or dust.

3. Don’t plug the printer, computer system, large motor or the other high power

consumption machines in the same power loop; otherwise the voltage will not be stable.

4. The whole computer system should be kept away from the interference, such as high-

power sound box or radio mainframe.

5. Use the power outlet with ground line.

6. Don’t use the power controlled by wall switch or auto-timer, for the sudden power-break

may damage the information in the storage of computer and printer.

7. The whole computer system should be kept away from electromagnetic interference, such

as loudspeaker or wireless telephone.

Before using the printer

1. Make sure the printer power switch is in the off position (O) before inserting the power

plug into the grounded power outlet.

2. Remove all the transportation protection material according to the notice card before

starting printer.

3. When you switch off the printer, do NOT switch it back on until all of the Operator Panel

indicators are turned off. Failing to do so will damage the printer.

4. Choose a suitable location for the printer. Consider the following points when you choose

a location for your printer:

ÎPut the printer on a stable surface.

ÎThe distance between the printer and the host computer must not exceed the length of

the interface cable.

ÎLeave sufficient space around the printer for operation and maintenance

4The Accessory CD

The accessory CD enclosed with this printer includes the following:

1. Operation Manual: It provides the detailed information such as the installation and

use of printer, daily maintenance, troubleshooting, technical specifications, …

2. Windows Driver: to make use of the printer graphic features in Windows

environment.

3. Installation Guide: It refers to the electronic version of this guide

5Consumables

Our company provides customers with genuine printer ribbon cartridges specially designed

according to the printer’s print head needles. It protects your printer and insures the long life

of the print head and perfect print quality.

The usage of non-genuine ribbon cartridges may cause the following problems:

ÎRough ribbon and bad printing ink may wear the pins, which can reduce the life of

ribbon or even cause the pins to break.

ÎThe length of non-genuine cartridges is usually not suitable for this printer, and thus

causes ribbon jam and damage printer.

ÎNon-genuine cartridges do not guarantee printing quality

The contents of this document are subject to change without notice. This material is only

used for reference. Our company will not take any responsibility of the direct or indirect

losses caused by using this material, and preserve the final explanation right. Windows

is the registered trademark of Microsoft Corporation.
