Comprehensive CSW-HD301C Manuel utilisateur
1
Auto Switcher (IR Learning Function)
Dear Customer
Thank you for purchasing this product. For optimum performance and safety, please read these
instructions carefully before connecting, operating or adjusting this product. Please keep this
manual for future reference.
TABLE OF CONTENTS
1. Introduction
2. Product Descriptions
3. Specifications
4. Package Contents
5. Connecting and Operating
WARNING
To reduce the risk of fire, electric shock or product damage:
1. Do not expose this apparatus to rain, moisture, dripping or splashing. No objects filled with
liquids, such as vases, shall be placed on the unit.
2. Do not install or place this unit in a bookcase, built-in cabinet or in another confined space.
Ensure the unit is well ventilated.
3. To prevent risk of electric shock or fire hazard due to overheating, do not obstruct the unit
ventilation openings with newspapers, tablecloths, curtains, and similar items.
4. Do not install near any heat sources such as radiators, heat registers, stoves, or heat producing
items.
5. Clean it only with a dry cloth.
6. Unplug it from the power during lightning storms or when unused for long periods of time.
7. Protect the power cord from being pinched.
INTRODUCTION
1. This is the final edition of high performance mini HDMI Amplifier Switcher
2. This kind of HDMI mini switcher not only has the key-press-switching function, but al
so has the intelligent and remote control function。
.
3. This kind of HDMI Amplifier mini Switcher routes high definition video (in multiple r
esolutions up to 1080p) and digital audio from any one of the several sources to display
units.
4. All inputs accommodate the connections of the high definition video sources simultaneo
usly, compatible well for HD-DVD, SKY-STB, PS3, Xbox36etc. The output sends the hig
h definition audio/video signals to a high definition display.
CSW-HD301C
Cable and Connectivity Company
Auto Switcher (IR Learning Function)
2
PRODUCT DESCRIPTIONS
This Mini HDMI Amplifier Switcher has many features that enable it to perform in a superior
manner. Among those features you will find:
1. Support 12-bit Deep Color, full 1080p
2. Multifunctional on switching, intelligent or mechanical
3. Supports with HDMI1.3b.
4. High performance up to 2.5Gbps
5. Supports 25Meters HDMI Cable on both ends of the Switcher
6. Maintains high resolution video - beautiful, sharp HDTV resolutions up to 1080p, 2k, 1440p
graphics and computer resolutions up to 1920 x 1200 are easily achieved
7. The product has another advantage, infrared function for learning. The customer can use this by
setting the remote control simply at home. This is the first model of amputator which has learning
function.
SPECIFICATIONS
p-pstlov0.1-5.0langiSoediVtupnI
)LTT(p-pstlov5langiSCDDtupnI
Maximum Single Link Range 1920X1200, 1080P
0.1IVD1.1/0.1PCDH+b3.1IMDHoediVtuptuO
VGA 640x480,800x600,1024x768,1920x1200
P0801/i0801/p027/p675/p084/i675/i084VTDH/VTD
b3.1IMDHecnailpmoCIMDH
zHM522otpUycneuqerF
Vertical Frequency Range 60Hz
Video Amplifier Bandwidth 2.5Gpbs/225MHz
HCTIWSIMDH)VTDH(snoituloseR
i0801,i675,i084)zH06&05(decalretnI
Progressive(50&60Hz) 480p,576p,720p,1080p
MM91x85x18)D-W-H(eziS
G06)teN(thgieW
robaLdnastraPrsaeY2ytnarraWdetimiL
Operating Temperature 0to +70
)noitasnednocon(HR%58ot%01ytidimuHgnitarepO
Storage Temperature -10to +80
)noitasnednocon(HR%09ot%5ytidimuHegarotS
V5CDtnemeriuqeRrewoP
noisreVhsilgnElaunaMresU
Auto Switcher (IR Learning Function)
3
PACKAGE CONTENTS
1. HDMI Switcher
2. 5V DC Power Supply (select)
3. Operating Instructions
4. Remote control
5. IR receiver
Auto Switcher (IR Learning Function)
4
Input1 output input5
1. Connect one cable from each HDMI source device into the HDMI Switcher input
2. Connect one cable from display(monitor or projector) into the HDMI Switcher output
3. Connect DC 5v power supply tothe HDMI 5x1(3X1) Switcher
4. Use the RMT-IR remote control to change switch between sources
5. Press the “SELECTED” key, and the indicator light all light up, setup NEC code
remote key, when the light off, setup completed
55 Ruta Ct. South Hackensack, NJ 07606
Toll Free: 800 526-0242
Email:
www.comprehensivecable.com
Table des matières
Autres manuels Comprehensive Changer
Comprehensive
Comprehensive CSW-VGA212 Manuel utilisateur
Comprehensive
Comprehensive CSW-VGA211 Manuel utilisateur
Comprehensive
Comprehensive CVG-FW81 Manuel utilisateur
Comprehensive
Comprehensive CVG-44AV Manuel utilisateur
Comprehensive
Comprehensive CVG-719xl Manuel utilisateur
Comprehensive

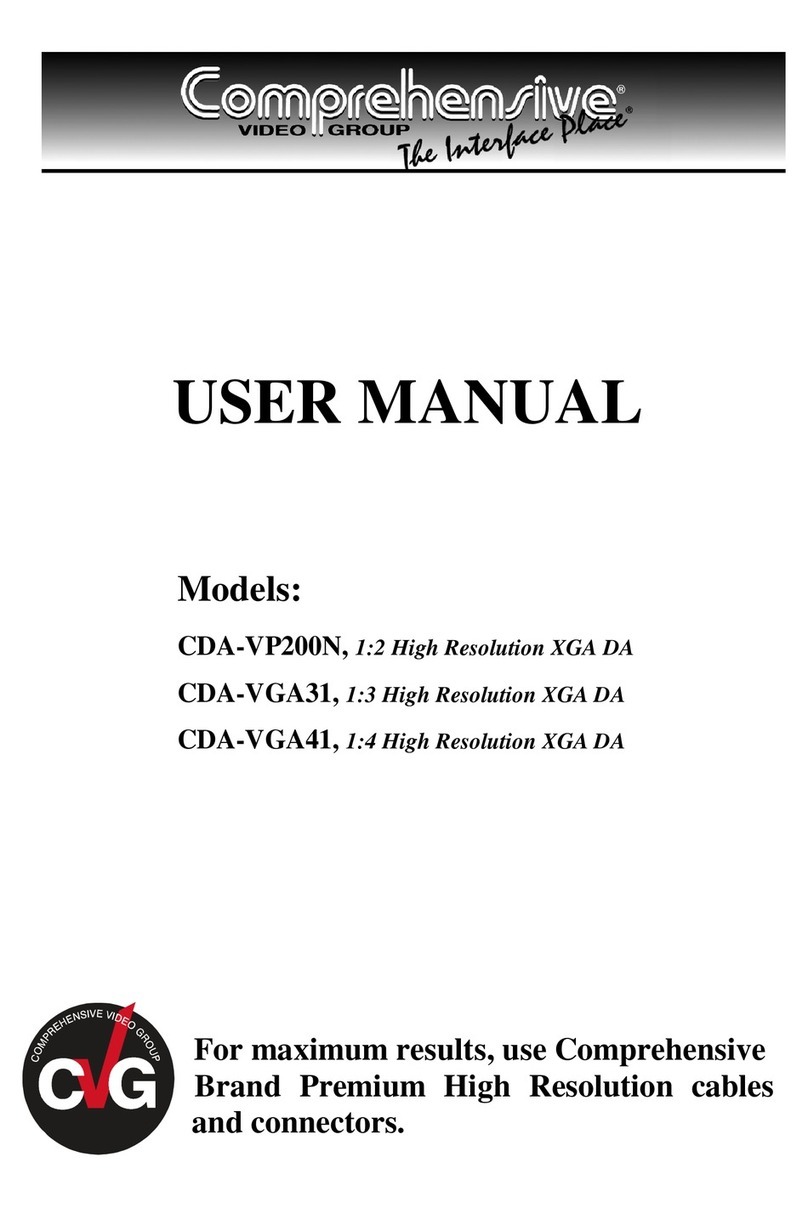

Comprehensive CDA-VP200N Manuel utilisateur
