Abstract: This white paper describes the Compaq ProLiant ML350

Generation 2 Series of servers. Information provided includes

features, models, option and spare part numbers, as well as

installation and service considerations for the product.

Compaq ProLiant ML350 G2 Service Overview 2

Rev. 1.0 Page 2 of 24

Compaq and the Compaq logo are registered in the U.S. Patent and Trademark Office. Microsoft and

Windows are trademarks of Microsoft Corporation in the United States and other countries. All other

product names mentioned herein may be trademarks of their respective companies.

Compaq shall not be liable for technical or editorial errors or omissions contained herein. The information

in this document is provided “as is” without warranty of any kind and is subject to change without notice.

The warranties for Compaq products are set forth in the express limited warranty statements accompanying

such products. Nothing herein should be construed as constituting an additional warranty.

Compaq ProLiant ML350 G2 Service Overview 3

Rev. 1.0 Page 3 of 24

Product Description

The ProLiant ML350 Generation 2 (G2) is the second update of the ProLiant ML350 since its

introduction in January 2000. Although the model launched in October 2000 was sometimes

identified as the second generation ProLiant ML350, it should now be identified as the 1.0GHz

model.

The Compaq ProLiant ML350 G2 models support two Intel Pentium®III 1.13GHz or 1.26GHz

processors with Flip-Chip Pin Grid Array (FC-PGA) technology and 512KB of Level 2 (L2) ECC

cache memory.

What’s New

New, upgraded features, or feature offerings that have changed include:

■Support for up to two 1.13 or 1.26GHz Tualatin Pentium®III Processors with FC-

PGA technology, and 133MHz front-side bus (FSB)

■Socketed VRM 8.5 Processor Power Modules (PPMs) for each installed CPU

■Integrated 512KB of L2 full speed cache

■Tower or rack form factors (5U)

■350W hot-pluggable (HP) power supply, redundant power supply option (1+1)

■No hard drive shipped standard

■Ten internal drive bays:

Four 5.25” x 1.6” removable media bays, one filled with 40X IDE CD-ROM

drive, one filled with 1.44MB carbon floppy diskette drive, two available

Six 6” x 1” wide Ultra2/Ultra3 Hot Plug Drive bays

■Internal Two Bay Hot Plug Wide Ultra2/Ultra3 SCSI Drive Cage option

■Internal storage capacity of 436.8GB (6 x 72.8GB 1”), up to 509.6GB (including two

36.4GB non-hot-plug drives in the two available removable bays) or up to 582.4GB

(including an optional internal 2-bay hot-plug drive cage with two 72.8GB hot-plug

drives installed)

■Seven Non-Hot Pluggable (NHP) expansion slots (6 available):

Five 64-bit/33MHz PCI

One 32-bit/33MHz PCI

The Server Feature Board installed in its own dedicated slot

■Integrated ATI Rage XL video controller — upgraded to 8MB SDRAM and

embedded on the Server Feature Board

■Two new ROM technologies:

Compaq Remote ROM Flash Utility

Redundant ROM

Compaq ProLiant ML350 G2 Service Overview 4

Rev. 1.0 Page 4 of 24

■Upgraded from Automatic Server Recovery (ASR) to ASR-2, and upgraded to

SmartStart version 5.20

■Pre-Execution Environment (PXE) support—enables remote configuration and

installation of operating system

■Tool free entry to chassis and access to components

■3-3-3 warranty, Pre-Failure Warranty covering processors, memory and hard drives

Processor Technology

In addition to the changes bulleted above, the FC-PGA2 processors now include an integrated

heat spreader above the flip-chip core, making them easier to cool. They also now have an

attached heatsink, solving the problems faced when the processor and heatsink were separated

and then reattached.

Both processors are powered by socketed +12V input VRM 8.5 Processor Power Modules

(PPMs). .13 –micron technology enables smaller, less expensive chips that run faster and require

less power.

Compaq Remote ROM Flash Utility

This utility allows administrators to upgrade the system ROMs as well as the supported Compaq

Smart Array controllers on multiple servers from a remote location. The ROM upgrades can

either be flashed individually or batched together to perform multiple ROM upgrades all at once.

Redundant ROM

If the server either loses power during a ROM flash or if the flash process is otherwise

interrupted, redundant ROM allows you to restart the system with the original ROM image.

Redundant ROM also allows you to use RBSU to switch between two ROM images for testing

and evaluation purposes. Through RBSU (F9 Setup)Advanced Options Redundant

ROM, you can restart the server using the previous ROM image if a new ROM flash doesn’t

meet your expectations. This eliminates the need to use the ROMPAQ Flash Utility to fall back

to the previous ROM version.

Automatic Server Recovery-2 (ASR-2)

Like ASR, ASR-2 resets the system in the event of a catastrophic operating system error and it

restarts the server within a predetermined amount of time after the system stops responding. For

ASR-2, however, system administrators can set the interval in the RBSU.

Next Generation Remote Insight Support

The ML350 G2 has two connectors on the system board to support Remote Insight, Lights-Out

Edition boards. The 16-pin connector will support the existing board, while the 30-pin connector

will support the next generation board.

Hot-Pluggable Power Supplies

The ProLiant ML350 G2 comes standard with a hot-pluggable power supply. The hot-pluggable

redundant power supply option offers a 1+1 configuration. In this configuration, both power

Compaq ProLiant ML350 G2 Service Overview 5

Rev. 1.0 Page 5 of 24

supplies send power to the power supply backplane. If one power supply fails, the other will

continue to keep the server operational.

Ultra 3 Hot-Plug (HP) Drive Cages

The ProLiant ML350 G2 supports six Low Voltage Differential SCSI (LVDS) Wide Ultra3 SCSI

hot-pluggable (HP) hard drives. Each 1-inch bay can hold a 72.8GB 10,000-rpm hard drive

(436.8GB total). These drives operate on one channel of the integrated SCSI controller. The

second channel can operate either an external secondary storage system or an internal or external

tape backup device.

Non-Hot Plug (HP) Media Bays

Two optional non-HP drives can be mounted in the removable media bays to increase the total

internal storage capacity to 509.6GB.

Internal Two Bay Hot Plug (HP) Wide Ultra2/Ultra3 SCSI Drive Cage Option

Alternatively, a 2-bay SCSI drive cage with one 1” and one 1.6” drive bay, installed in two

available removable media bays is available as an option. This cage supports two HP 72.8GB

drives that can increase the internal storage capacity to 582.4GB.

Enhanced Fan Control

A temperature-sensing device located near the processors now monitors the temperatures of both

processors and the ambient temperature of the chassis. When any of these three temperatures

reaches a predefined limit, the fan speed increases to control the temperature in the system.

Server Feature Bus

The Server Feature Bus is a proprietary bus that has PCI and management signals. Running the

management signals through this bus eliminates the need for the System Management Interface

Cable (SMIC) that was compulsory in the first generation of the ProLiant ML350.

Server Feature Board

The server feature bus slot, located at the bottom of the system board, houses the Server Feature

Board. This board contains the hard drive, NIC, video, and management controllers.

Drive and network activity is passed over the server feature bus to the LEDs on the front of the

chassis. This eliminates the need for a System Management Interface Cable (SMIC) on the board

and simplifies removal and replacement procedures.

NMI Debug Button

The NMI Debug button is located on the Server Feature Board. NMI is a diagnostic mechanism

that allows for crash dump files to be created in situations when a system is hung and unable to

respond to traditional debug mechanisms. The NMI Debug button can be used to diagnose

software failures by forcing the operating system to invoke the Non-Maskable Interrupt (NMI)

handler and generate a crash dump log. This log can provide critical troubleshooting information

that may be difficult or impossible to obtain through other means.

Compaq ProLiant ML350 G2 Service Overview 6

Rev. 1.0 Page 6 of 24

The user initiates a Non Maskable Interrupt (NMI) by pressing the NMI Debug button. The NMI

can allow a hung system to become responsive enough to generate a crash dump log. The button

is enabled/disenabled in RBSU.

Warning! The NMI Debug button causes the unit to abruptly fail, as it is designed to do.

Therefore, it should never be used during normal operation.

ASR-2 is used when an automated crash dump is desired. Normally, ASR-2 provides a system

reset; however, ASR-2 can be configured to generate the NMI Crash Dump instead of a reset.

Compaq ProLiant ML350 G2 Service Overview 7

Rev. 1.0 Page 7 of 24

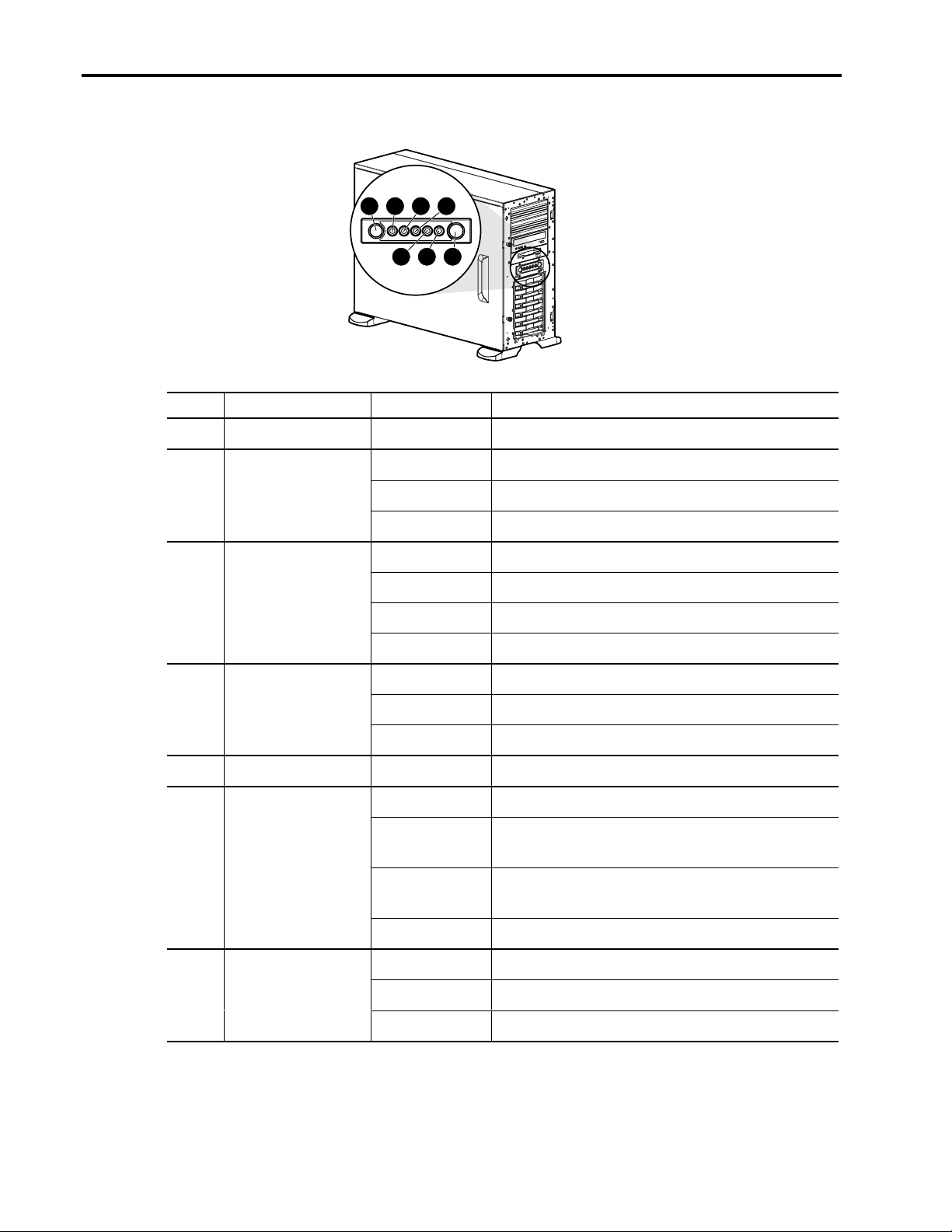

System Status LEDs

Table 1: UID, Power Button, and System Status LEDs

Item Description Status Means

1Unit ID button

Off Unit ID LED is not turned on

Blue Identification Enabled

2Unit ID LED

Flashing blue Remotely managed

Off System off

Green System health is OK

Amber System health degraded

3Internal health LED

Red System health critical

Off System off; no AC power

Green System on; redundant power supply health OK

4External health LED

Amber Redundant power supply degraded

5Power button

Off System off; no AC power.

Green System on; AC power available. Do not remove power

from system.

Flashing green System in standby mode. AC power available. Do not

remove power from system.

6Power On/Standby

status LED

Amber System is off, AC power available.

Off No connection

Green Linked to network

7NIC activity LED

Flashing green System is in standby

1 2 3 4

7 6 5

Compaq ProLiant ML350 G2 Service Overview 8

Rev. 1.0 Page 8 of 24

Unit Identification (UID) LEDs

Blue Unit Identification (UID) LED indicators on the front and back of the server help identify

the server in large rack deployments. If you press the UID button on the front of the server, the

corresponding UID LED on the back of the server1lights to identify it as the server being

serviced.

Server Health LEDs

Three server health LED indicators are located on the front of the ProLiant ML350 G2 between

the UID button and the Power On/Standby LED. These indicate the status of the:

■Internally serviceable components (processor, PPM, memory subsystem, temperature

control, Server Feature Board, and fans)

■Externally serviceable components (hot-pluggable power supplies)

■Embedded NIC

The NIC information is also represented on the rear panel with the three LEDs located above the

RJ-45 connector.

For detailed information on the system status and network controller LEDs, refer to Appendix E

in the Setup and Installation Guide. (See References at the end of this document.)

System Board LEDs

In addition to the system status LEDs, the ProLiant ML350 G2 now includes 11 diagnostic LEDs

on the system board. These LEDs indicate error conditions, such as processor, PPM, or memory

module failures. Refer to the graphic and table on the following pages to determine what these

lights indicate.

1Located underneath the keyboard connector on tower models and to the right of the keyboard connector on rack models.

Compaq ProLiant ML350 G2 Service Overview 9

Rev. 1.0 Page 9 of 24

Table 2: System Board LEDs

Item Description Status Means

Off No AC power Or power supply error detected1AC power

Green Power supply is on and functioning.

Off DIMM functioning2DIMM status

Amber DIMM failed

Off PPM 2 functioning

3PPM 2 status

Amber PPM 2 failed

Off Server Feature Board is installed properly4Server Feature Board

Seating status Amber Server Feature Board is not installed properly

Off Processor 2 temperature normal

5Processor 2 thermal

Amber Thermal trip detected for processor 2. Verify:

Processor and heatsink assembly is properly installed.

Ambient temperature is within an acceptable range2.

Off Processor 2 functioning

6Processor 2 status

Amber Processor 2 failed

Off Fan is functioning7System Fan status

Amber Fan is not installed or has failed

Off Normal8Temperature threshold

Amber Temperature threshold exceeded

2See Appendix F, “Specifications”, in the Compaq ProLiant ML350 Generation 2 Server Setup and Installation Guide for operational

temperature requirements. (See References.)

Compaq ProLiant ML350 G2 Service Overview 10

Rev. 1.0 Page 10 of 24

Table 2: System Board LEDs (continued)

Item Description Status Means

Off Normal9Processor 1 thermal

Amber Thermal trip detected for processor 1. Verify:

Processor and heatsink assembly is properly

installed.

Ambient temperature is within an acceptable range3.

Off Processor 1 functioning10 Processor 1 status

Amber Processor 1 failed

Off PPM 1 functioning11 PPM 1 status

Amber PPM 1 failed

3See Appendix F, “Specifications,” in the Compaq ProLiant ML350 Generation 2 Server Setup and Installation Guide for operational

temperature requirements. (See References.)

Autres manuels pour ProLiant ML350 (G2)

Table des matières

Autres manuels Compaq Serveur

Compaq

Compaq 112726-001 - ProLiant - 6500 Guide de démarrage rapide

Compaq

Compaq 1850R - ProLiant - 128 MB RAM Manuel utilisateur

Compaq

Compaq AlphaServer GS140 Manuel utilisateur

Compaq

Compaq BL10e - HP ProLiant - 512 MB RAM Document technique

Compaq

Compaq StorageWorks S1000 - NAS Manuel utilisateur

Compaq

Compaq Proliant 800 Instructions d'utilisation et de sécurité

Compaq

Compaq AlphaServer GS160 Manuel utilisateur

Compaq

Compaq AlphaServer GS60 Manuel utilisateur

Compaq

Compaq BL20p - ProLiant - G2 Manuel utilisateur

Compaq

Compaq ProLiant Clusters HA/F100 Manuel de service

Compaq

Compaq AlphaServer ES40 Instructions d'utilisation et d'entretien

Compaq

Compaq ProLiant 6000 Series Instructions d'utilisation et de sécurité

Compaq

Compaq ProLiant 8000 Manuel

Compaq

Compaq 219700-001 - ProLiant - 1500 Guide de référence rapide

Compaq

Compaq DL320 - ProLiant - G3 Instructions d'utilisation et de sécurité

Compaq

Compaq RRDCD Manuel de la liste des pièces

Compaq

Compaq 386746-001 - ProLiant - 1600 Guide de démarrage rapide

Compaq

Compaq AlphaServer GS60E Manuel utilisateur

Compaq

Compaq ML370 - ProLiant - G3 Manuel utilisateur

Compaq

Compaq DH-64BAA-AA - AlphaServer - ES40 Manuel utilisateur

Compaq

Compaq 108164-003 - ProLiant - 800 Guide de référence rapide

Compaq

Compaq ProSignia 200 6/233 Instructions d'utilisation et de sécurité

Compaq

Compaq ProLiant DL580 Instructions d'utilisation et de sécurité

Compaq

Compaq 5500R - ProLiant - 256 MB RAM Manuel

Manuels Serveur populaires d'autres marques

HP AlphaServer ES47 Manuel utilisateur

Dell

Dell PowerEdge R410 Manuel utilisateur

PowerNAS

PowerNAS CMA Manuel utilisateur

Supero

Supero FatTwin F617R3-FT Manuel utilisateur

MSI

MSI P1-109N-L70 Manuel utilisateur

Dell

Dell PowerEdge XE9640 Manuel

Dell

Dell PS4100 Instructions de montage

EtroVISION

EtroVISION EV3151 Manuel utilisateur

NEC

NEC Express5800/T110j Manuel utilisateur

HP ProLiant Gen9 Manuel utilisateur

Dell

Dell PowerEdge 3YPMN Manuel utilisateur

iRobo

iRobo IPC2U Manuel utilisateur

Nortel

Nortel 1000 Con?guration guide Manuel utilisateur

Asus

Asus AP7500 Manuel d'utilisation et d'entretien

Avid Technology

Avid Technology AirSpeed 5000 Manuel utilisateur

HP Integrity rx2600 Guide d'installation

Milestone

Milestone Husky IVO 350T Manuel utilisateur

Planet

Planet NAS-7410 Manuel utilisateur
