EK–RRDXX–IN. B01

RRDCD INSTALLATION CARD

Before you install a second RRDCD CD-ROM tray in a

Compaq AlphaServer GS60E system, the system must

contain two PCI card cages, each connected to a separate

KFTHA (for logical partitions), and each with a KZPBA

adapter installed. See the figure below.

BX-0183Mf-99

Rear

CB1CB1 CB2 CB3 CB4 CB5 CB6 CB7 CB8 CB9 CB10 CB11CB2 CB3 CB4 CB5 CB6 CB7 CB8 CB9 CB10 CB11

KZPBA

adapters

Front

Second PCI

card cage

First

CD-ROM

Housing

You must also have a BN21H-02 cable on hand, to connect

the KZPBA in the second PCI card cage to the second CD-

ROM. If you have these, proceed with the installation.

1. Inspect the 3X-RRDRX-AA kit. See table below.

Description Quantity Part Number

CD tray assembly 1 70–40223–01

Power cable splitter 1 17–04965–01

Button key 2 74-23357-01

Button key fasteners 2 90-08203-00

U-nut 2 90-07786-04

Push mount for

cable tie

2 90-07867-00

Cable tie 2 90-07032-01

RRDCD Installation

Card

1 EK–RRDXX–IN

2. Shut down the operating system and remove power

from the system, by turning the keyswitch to Off.

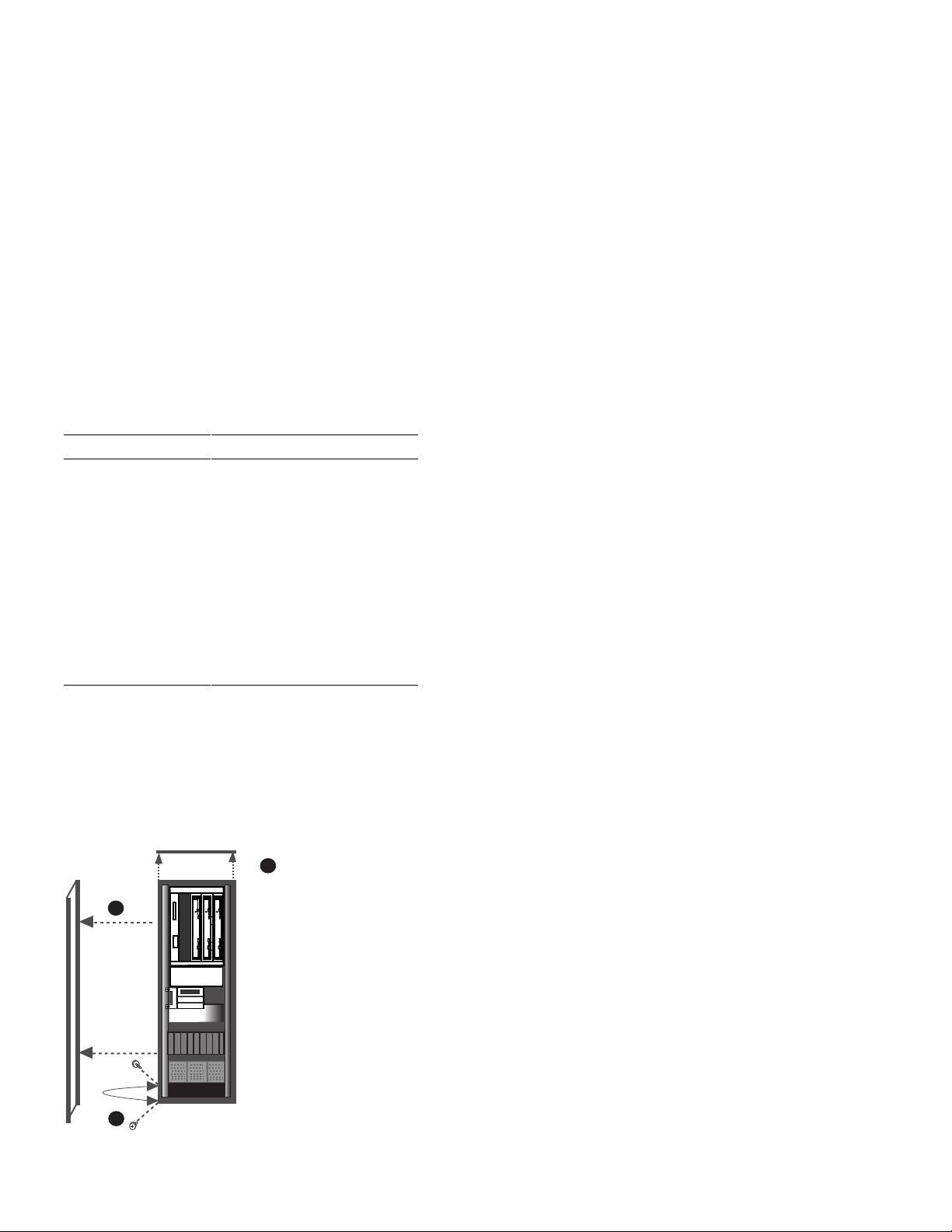

3. Open the front door of the system. Lift the top panel

of the system (➊). Remove the two screws at the

bottom front and rear of the left side panel of the

system (➋). Remove the left side panel of the system

(➌).

BX-0183Mh-99

Front

4. Ground yourself to the cabinet with the antistatic wrist

strap at the front of the system.

5. Insert the key buttons (74-23357-01) into holes 38 and

32 of the vertical rail and screw on the fasteners (90-

08203-00) until the key buttons are tight against the

rail (see ➊).

6. Slide the U-nuts (90-07786-04) onto the vertical rail

at holes 38 and 32 as shown at ➋.

7. Slide the second CD-ROM tray under the first, using

the button keys you just installed to hold the tray from

the rear (see ➌). Tighten captive screws at the front

of tray, using a Phillips screwdriver. See ➍.

BX-0183Wa-99

Front

90-08203-00

90-07786-04

74-23357-01

Hole 38

Hole 32

8. Detach the power cable from the top CD-ROM tray.

BX-0183Ua-99

CD-ROM

power cable

Front

9. Attach the single end of the cable splitter (17-04965-

01) to the end of cable you just detached.

BX-0183Ub-99

17-04965-01

10. Connect power cable to the top and bottom trays.

BX-0183Ud-99

11. At the left side of the system (side panel removed)

insert push mounts for the cable tie wraps in hole 42

of the front and back side rails. (See ➊in the figure

below).

12. Route the BN21H-02 cable from the KZPBA in the

lower PCI card cage (➋) to the second CD-ROM tray

directly below the terminator (➌). Tie-wrap the cable

to the push mounts in hole 30 of the side rails (➊).

Hole 30

BX-0183Mn-99

BN21H-02

cable

13. Close the cabinet doors, and turn the system

keyswitch to On to power up the system. After

power-up, issue a show device command to check

that the two CD-ROMs are properly connected (see ➊

and ➋, below).

P00>>> sho dev

polling for units on floppy0, slot 0, bus 1, hose0...

dva0.0.0.1100.0 DVA0

RX26/RX23

polling for units on isp0, slot 4, bus 0, hose0...

polling for units on isp1, slot 6, bus 0, hose0...

pkb.7.0.5.0 pkb Bus ID 7

dkb500.5.0.5.0 DKB500 RRD47 ➊0436

polling for units on isp2, slot 7, bus 0, hose0...

pkc.7.0.7.0 pkc term on Bus ID 7 5.57

polling for units on isp3, slot 8, bus 0, hose0...

pkd.7.0.8.0 pkd term on Bus ID 7 5.57

polling for units on cipca0, slot 10, bus 0, hose0...

pua.4.0.10.0 pua Bus ID 4 A315

polling for units on floppy1, slot 0, bus 1, hose4...

dva0.0.0.1100.4 DVA0 RX26/RX23

polling for units on isp4, slot 6, bus 0, hose4...

pke.7.0.5.4 pke Bus ID 7

dke500.5.0.5.4 DKE500 RRD47 ➋0436

polling for units on isp5, slot 7, bus 0, hose4...
